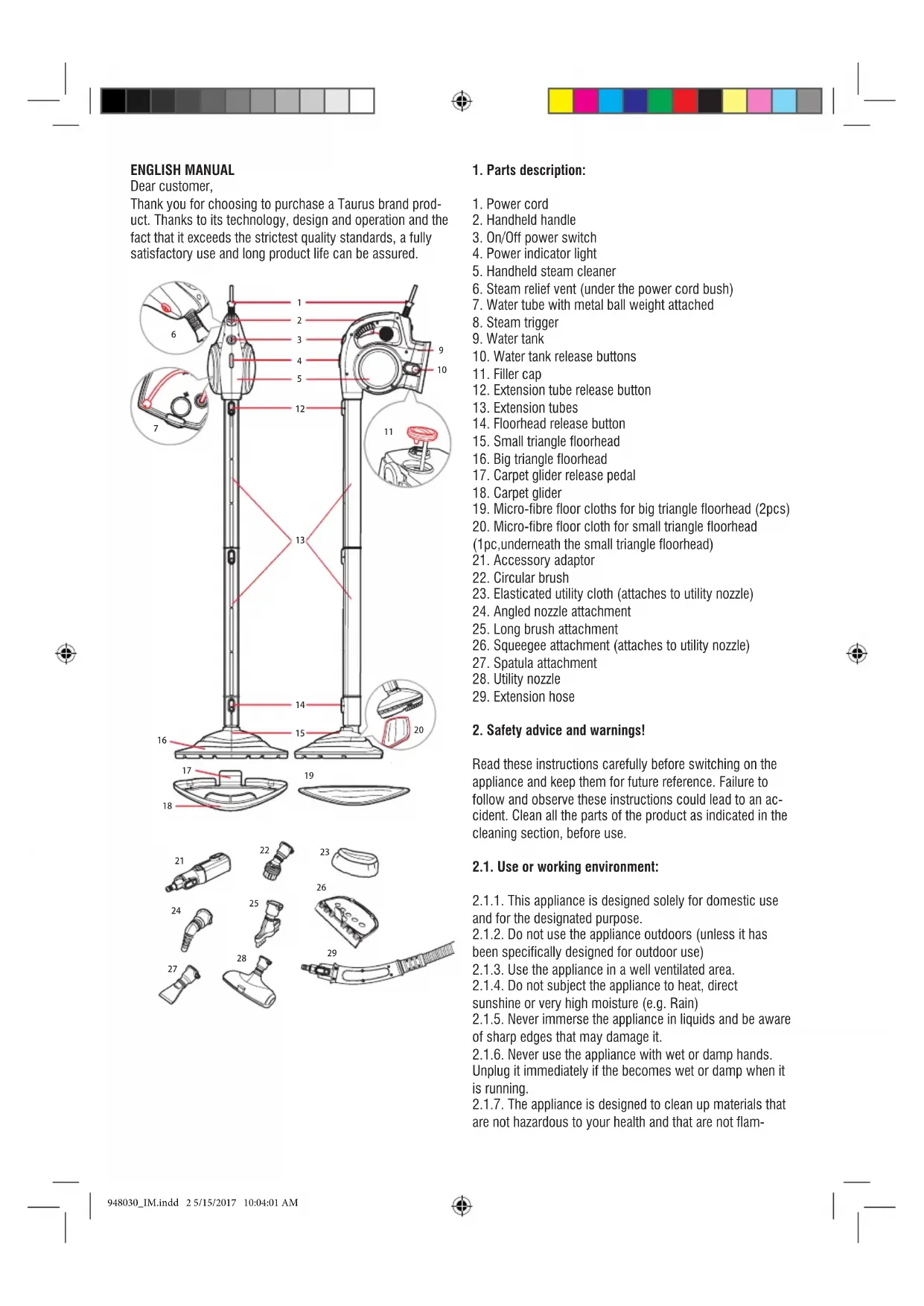

USER MANUAL 948030 TAURUS

FRENCH/ PORTUGUESE 948030_IM.indd 1 5/15/2017 10:04:00 AMENGLISH MANUAL Dear customer, Thank you for choosing to purchase a Taurus brand prod- uct. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

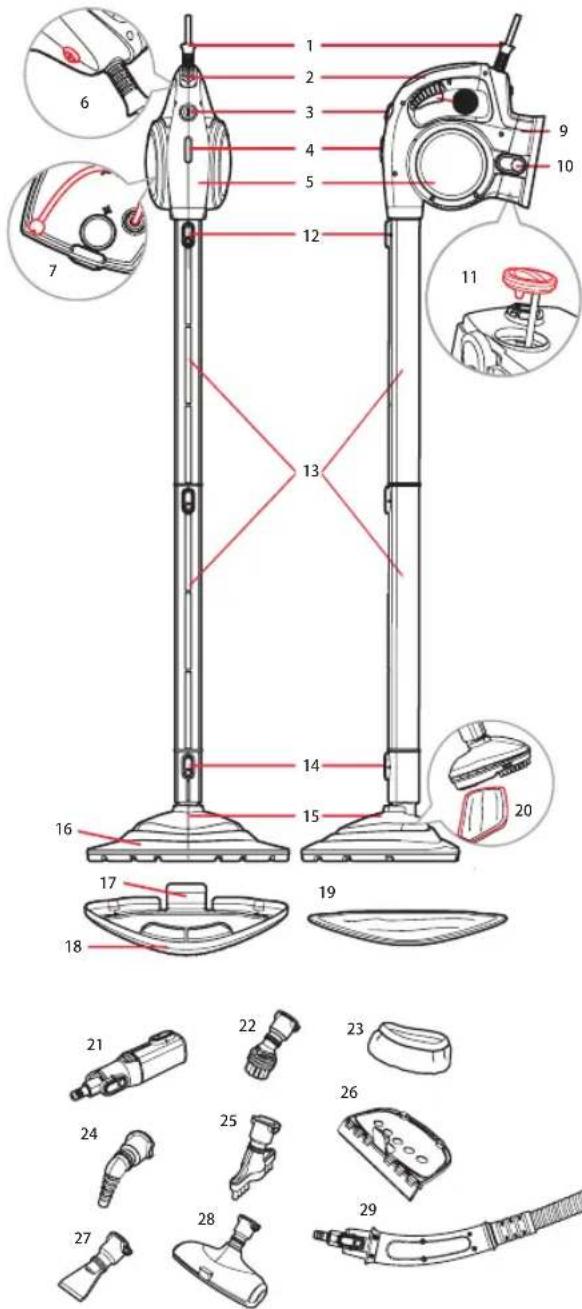

5. Handheld steam cleaner

6. Steam relief vent (under the power cord bush)

7. Water tube with metal ball weight attached

10. Water tank release buttons

17. Carpet glider release pedal

19. Micro-fibre floor cloths for big triangle floorhead (2pcs)

20. Micro-fibre floor cloth for small triangle floorhead

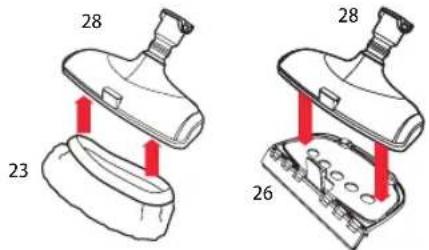

23. Elasticated utility cloth (attaches to utility nozzle)

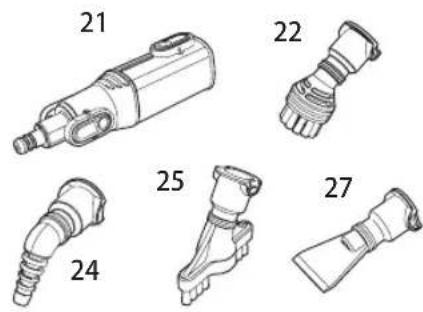

24. Angled nozzle attachment

25. Long brush attachment

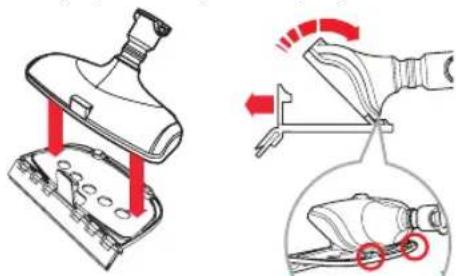

26. Squeegee attachment (attaches to utility nozzle)

2. Safety advice and warnings!

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an ac- cident. Clean all the parts of the product as indicated in the cleaning section, before use. 2.1. Use or working environment:

2.1.1. This appliance is designed solely for domestic use

and for the designated purpose.

2.1.2. Do not use the appliance outdoors (unless it has

been specifically designed for outdoor use)

2.1.3. Use the appliance in a well ventilated area.

2.1.4. Do not subject the appliance to heat, direct

sunshine or very high moisture (e.g. Rain)

2.1.5. Never immerse the appliance in liquids and be aware

of sharp edges that may damage it.

2.1.6. Never use the appliance with wet or damp hands.

Unplug it immediately if the becomes wet or damp when it is running.

2.1.7. The appliance is designed to clean up materials that

are not hazardous to your health and that are not flam-

2.1.8. Never hold the connectors in front of your face

(especially your eyes, ears, etc) Never direct the nozzle towards persons or animals.

2.1.10. Do not place flammable material near the appliance.

2.1.11. Do not use the appliance in association with a

programmer, timer or other device that automatically switches it on.

2.1.13. Ensure that the voltage indicated on the rating label

matches the mains power supply voltage before plugging in the appliance.

2.1.14. Connect the appliance to the mains power sup-

ply with an earth socket withstanding a minimum of 16 amperes.

2.1.15. The appliance’s plug must fit into the mains power

supply socket properly. Do not alter the plug.

2.1.16. If using a multi plug check ratings carefully as the

current used by several appliances could easily exceed the rating of the multi plug.

2.1.17. If any of the appliance casings breaks, immediately

disconnect the appliance from the mains power supply to prevent the possibility of an electric shock.

2.1.18. Do not use the appliance if it has fallen on the floor

or if there are visible signs of damage.

2.1.19. Do not force the power cord. Never use the power

cord to lift up, carry or unplug the appliance.

2.1.20. Do not wrap the power cord around the appliance.

2.1.21. Do not clip or crease the power cord.

2.1.22. Do not allow the power cord to hang or to come

into contact with the hot surfaces of the appliance.

2.1.23. Check the state of the power cord. Damaged or

tangled cables increase the risk of electric shock.

2.1.24. The appliance is not suitable for outdoor use.

2.1.25. Power cord should be regularly examined for signs

of damage, and if the cord is damaged, the appliance must not be used.

2.1.26. Do not touch the plug with wet hands.

2.2. Personal safety:

2.2.1. CAUTION: Do not leave the appliance unattended

during use as there is a risk of an accident.

2.2.2. Do not touch the heated parts of the appliance, as it

may cause serious burns.

2.2.3. This appliance is only for domestic use, not for

industrial or professional use. It is not intended to be used by guests in hospitality environments such as bed and breakfast, hotels, motels, and other types of residential environments, even in farm houses, areas of the kitchen staff in shops, offices and other work environments.

2.2.4. This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2.2.5. This appliance is not a toy. Children should be super-

vised to ensure that they do not play with the appliance. 2.3. Use and care: 2.3. Use and care:

2.3.1. Fully unroll the appliance’s power cable before each

are not properly fitted.

2.3.3. Do not use the appliance when full.

2.3.4. Do not turn the appliance over while it is in use or

connected to the mains power supply.

2.3.5. Do not block the outlet port.

2.3.6. Unplug the appliance from the mains power supply

when not in use and before undertaking any cleaning task.

2.3.7. This appliance should be stored out of reach of

2.3.8. Do not store the appliance if it is still hot.

2.3.9. Never leave the appliance unattended when in use

and keep out of the reach of children.

2.3.11. The appliance should not be exposed to heat.

2.3.12. Unplug the appliance from the mains supply socket

after use and before every cleaning. Pull the plug, not the mains cable, in order to disconnect the appliance from the mains.

2.3.13. Ensure that blockages are removed.

2.3.14. If, for some reason, the appliance were to catch

fire, disconnect the appliance from the mains power supply and DO NOT USE WATER TO PUT THE FIRE OUT. 2.4. Service:

2.4.1. Make sure that the appliance is serviced only by

suitably qualified technician, and that only original spare parts or accessories are used to replace existing parts/ accessories.

2.4.2. If the power cord is damaged, the manufacturer or

its service agent or a similarly qualified person must replace it in order to avoid a hazard.

2.4.3. Any misuse or failure to follow the instructions for

use renders the guarantee and the manufacturer’s liability null and void. 948030_IM.indd 3 5/15/2017 10:04:01 AM3. Instructions for use 3.1. Before use: IMPORTANT: Please remember that your steam cleaner operates by emitting steam at an increased temperature of 115°C. Always test on an inconspicuous area first. Never use it on objects or surfaces which cannot resist this temperature, or on surfaces with coatings or polishes, or on delicate materials such as dralon, plastic, natural fur or antique items etc. If in doubt, check carefully on a part of the material where minor marks will not matter. 3.2. Use and care:

3.2.1. Multiple functions:

Your steam cleaner can easily be configured into three different cleaning modes:

1. Upright steam cleaner with the big triangle

floorhead for floors and carpets.

2. Upright steam cleaner with the small triangle floorhead

for hard and small cleaning areas.

3. Handheld steam cleaner (5) for cleaning vertical or hard

to reach surfaces. (1) (2) (3)

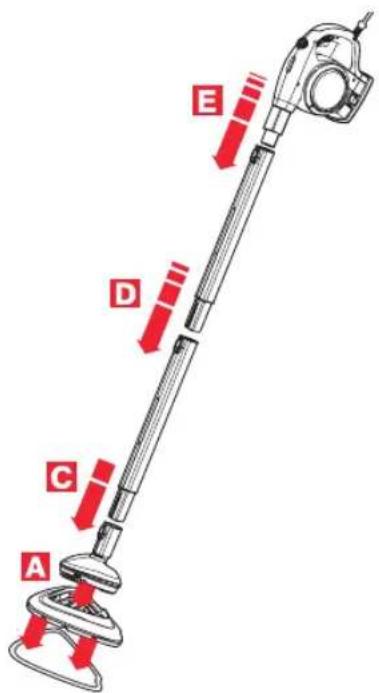

3.2.2. Upright steam cleaning: Assembly

3.2.2.1. Insert the small triangle floorhead (15) onto the big

triangle floorhead (16), ensuring it clicks into place.

3.2.2.2. Attach a micro-fibre floor cloth (19) onto the

underside of the big triangle floorhead (16).

3.2.2.3. Lower one extension tube (13) onto the small

triangle floorhead, with the floorhead release button (14) on the neck of the small triangle floorhead to the back of the assembly, until it clicks into place.

3.2.2.4. Insert the other extension tube into the upper

opening of the extension tube mentioned in the above step, ensuring the extension tube release button (12) clicks into place.

3.2.2.5. Insert the steam outlet nozzle at the top end of the

handheld steam cleaner (5) into the upper opening of the extension tube.Push the handheld steam cleaner firmly into the opening of the extension tube until the extension tube release button (12) clicks into place before use.

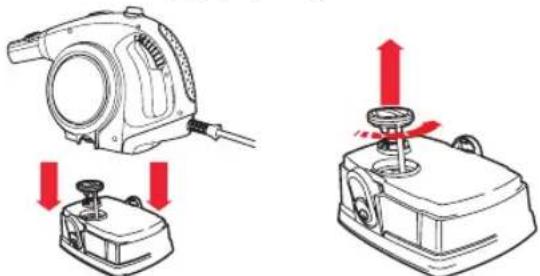

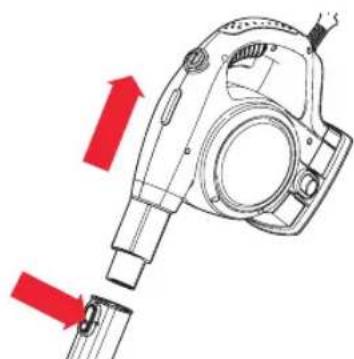

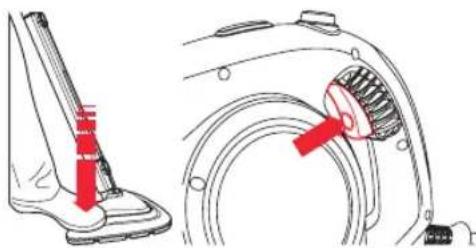

3.2.3. Using in upright steam mode

IMPORTANT: Before use, hardfloors should be thoroughly swept and carpets should be thoroughly dry vacuumed. However, we recommend that your steam cleaner is not used on:

• bare wooden floors or any surfaces where wood is exposed (as it will absorb moisture and may distort).

• damaged hardfloors or hardfloors with gaps present (as it will absorb moisture and may distort). Also, do not keep your steam cleaner in one place for an extended period, because the continual heat may cause damage to carpets and laminate flooring. Please disconnect and allow the unit to cool before chang- ing cloths and attachments. (1) (2) (3) 948030_IM.indd 4 5/15/2017 10:04:01 AM3.2.3.1. Squeeze the buttons (10) on the side of the water tank (9) to remove it from the handheld steam cleaner. Re- move the filler cap (11) by lifting it out. Fill the watertank. IMPORTANT: To prevent limescale build-up in the water tank, never fill your steam cleaner’s tank with anything other than deionised, demineralised or distilled water (available from most leading super markets). Any problems arising from limescale will invalidate the product warranty. Replace the filler cap and insert it into place Replace the water tank.

3.2.3.2. Attach the microfibre floor cloth (19) to the

floor head, with the blue side of the cloth facing the floor.

3.2.3.3. Plug in at the mains outlet and switch on the

steam cleaner by pressing the on/off power switch (3). The power indicator light (4) will illuminate and steam willbe ready to be emitted after around 30 seconds (when the steam trigger (8) is pressed).

3.2.3.4. WARNING: Before switching ON, ensure

the floorhead is located safely away from persons or animals.

3.2.3.5. Place the big triangle floor head (16) on the floor.

Hold the floorhead to the floor with your foot and tilt the main body (5) back.Squeeze the steam trigger (8) to release steam from the floor head. This will take a few sec- onds. Only operate the steam trigger intermittently to avoid overaturation of the cloth and floor. The head and moisture in the cloth should easily clean the floor. Excess steam will result in the floor taking longer to dry. Keep the floor head moving whilst cleaning. Never hold the cleaner in one spot for an extended period.

3.2.3.6. If freshening a carpet, rest the big triangle floor

head (16) with the micro-fibre cloth into the carpet glider (18), then firmly push the floor head down into the carpet glider to secure it in place. To remove, press your foot down on the tab at the back of the carpet glider and lift the floor head out. NOTE: The carpet glider is designed to make it easier to move the floorhead across the carpet.

3.2.4. Using the handheld steam cleaner

This function is ideal for cleaning vertical surfaces and hard to reach places.Separate the handheld steam cleaner (5) from the extension tube (13) by pressing the extension tube 948030_IM.indd 5 5/15/2017 10:04:01 AMrelease button (12).Pull the handheld steam cleaner out of the extension tube. Operate the steam trigger (8) under the handheld handle (2) to release the steam. NOTE: If the steam trigger is continually held, the steam output will cycle higher and lower, this is normal.

WARNING: After the steam trigger is released, steam will

continue to be emitted for a few seconds while the steam reservoir inside the product empties - this is normal. Always keep a safe distance from the nozzle until all steam has stopped. Switch off, unplug and leave to cool before attempting to remove the nozzle or change the attachments as these will be very hot after use. In order to use all of the accessories, the accessory adap- tor (21) must firstly be attached onto the handheld steam cleaner (5). This can be done by completing the following: A Slide the adaptor over the nozzle of the hand-held steam cleaner with the release catch on the adaptor facing the top of the handheld steam cleaner. Push together and fix into place. B Attach the desired accessory to the end of the adaptor until it clicks into place.

WARNING: Switch OFF and unplug before changing attach-

ments. After use, attachments will be very hot, allow to cool before handling. Never block any nozzle eg by holding against a surface being cleaned. If the nozzles are blocked, steam will be released from the steam relief vent.

WARNING: Steam can be emitted from the steam relief vent

(6) situated behind the power cord bush on the handheld. Always keep this area clear of people, animals or delicate surfaces. Do not hold the product in this area. When using in the handheld mode, only ever hold the product by the handheld handle (2). NOTE: Limescale build-up inside the boiler could also result in steam being emitted from the steam relief vent. To prevent limescale forming, only ever use water which is demineralised, deionised, distilled or softened. NOTE: hand- held mode has been designed for one-handed use only. List of attachments for use on the handheld steamer: Accessory adaptor (21) this attachment is the base at- tachment for all handheld accessories supplied with the product. It can also be used alone to clean places or crevices that are not easily accessible. Circular brush attachment (22) to remove stains on room temperature surfaces, such as tiles, wheel trims, mirrors and windows. Angled nozzle attachment (24) to clean sanitary ware such as toilet bowls, taps or drain covers. Point it directly at non-permanent stains on carpets or upholstery whilst holding a clean cloth near the stained area to capture any loosened dirt. Long brush attachment (25) to remove dirt from grooves and crevices. Spatula attachment (27) to remove stubborn deposits, or to help de-ice the refrigerator or freezer. Utility attachment (28) once attached to the accessory adaptor (21), the utility attachment is the base attachment for attaching all the following accessories:

948030_IM.indd 6 5/15/2017 10:04:01 AMElasticated utility cloth (23) for covering the utility attach- ment when cleaning upholstery and bedding. Squeegee attachment (26) can be attached to the utility attachment by inserting the hooks at the back of the squee- gee attachment into the loops on the back of the utility attachment, then secure the front of the utility attachment into the locking clip on the top of the squeegee attachment. Remove the squeegee after use by holding the locking clip forward. The utility attachment should still be hooked into the loops on the rear of the squeegee attachment, pivot the utility attachment up and unhook from the loops to lift it away. The squeegee attachment is ideal for cleaning tiled or glass areas such as windows or mirror panels. To clean win- dows, start at the top, press the squeegee to the surface and drag downwards in straight passes from top to bottom. Wipe the rubber blade and the bottom edge of the window dry after each pass. For small window panels, remove the squeegee tool and spray the steam directly onto the surface. Use the squeegee separately to wipe away the moisture.

WARNING: Do not use on very cold glass, as the sudden

temperature change may crack the glass.

3.2.5. The water tank:

The metal ball weight (7) The metal ball weight inside the water tank is attached to the end of the suction hose. The ball is weighted and designed to freely move around the water tank of the hand- held steam cleaner (5). If the ball does get stuck outside the water level, gently shake the product until it comes free. The ball must remain in the water so steam can be gener- ated whenever the steam trigger is pressed regardless of the orientation of the handheld steam cleaner. IMPORTANT: Do not add any detergents to the water/water tank. Rinsing the water tank. Regularly rinse the water tank to release any deposits that have collected on the bottom of the tank. Only use deionised, demineralised or distilled water (available from most large super markets) and fit the filler cap to allow vigorous rinsing.

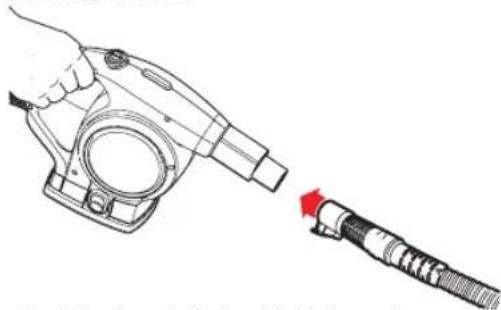

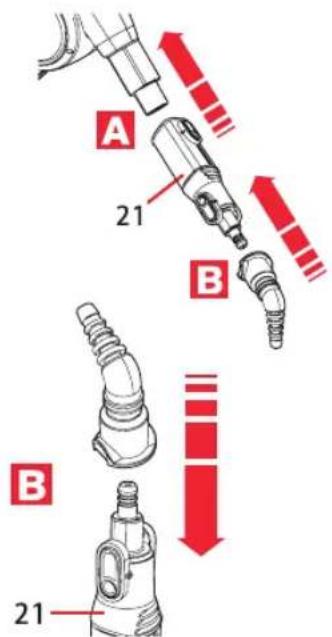

3.2.6. Using the hose:

To attach the hose to the handheld steam cleaner After separating the handheld from the extension tube, at- tach the extension hose by clicking the hose connector into place. Then attach your chosen accessory onto the nozzle. Switch off and unplug before attaching the hose. After use, switch off, unplug and allow the hose and any attachment to cool before disconnecting/ removing.

WARNING: In the event of the steam being blocked from

escaping, the steam pressure may be relieved via a vent located under power cord bush. Never hold the product in the area of the steam relief vent. Steam or hot water may be emitted from this vent but only if:

• The cleaning nozzle has been blocked, eg. by accidentally sealing it against a surface.

• The boiler has become blocked due to limescale caused by using hard water. If steam is emitted from this vent, switch off, unplug and allow the product to cool. Please contact the consumer care for further advice.

WARNING: Never attempt to use a descaling agent in the

3.3.1. Switch the cleaner off and unplug from the socket.

Place immediately on a suitable surface (eg. tiled floor) where the residual heat/moisture in the floor nozzle/ cloth will not affect the surface or store the product as a handheld steam cleaner (5) only. Wait until the cleaner has cooled down completely.

3.3.2. Empty the water tank (9) by removing the filler cap

(11) and pouring out the water. Allow the inside of the 948030_IM.indd 7 5/15/2017 10:04:01 AMwater tank to dry out before replacing the filler cap.

4.1. Disconnect the appliance from the mains power supply before undertaking any cleaning task. 4.2. The micro-fibre floor cloths (19 & 20), elasticated util- ity cloth (23) can all be machine washed (40°C max). For heavy soiling, soak the cloths in warm water and detergent or a mild stain remover. IMPORTANT: Do not use bleach or fabric softener. 4.3. Clean the outer parts of the appliance with a damp cloth with a few drops of washing-up liquid and then dry. CAUTION! Do not immerse electrical parts of the appliance in any liquid. 4.4. Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance. 4.5. Never submerge the appliance in water or any other liquid or place it under running water.

5. Anomalies and repair

5.1. Leve o aparelho a um centro de assistência autorizado se o produto estiver danificado ou se surjam outros problemas. 5.2. Se a conexão à rede elétrica tiver sido danificada, ela deve ser substituída e você deve proceder como faria em caso de danos. 948030_IM.indd 35 5/15/2017 10:04:06 AMThank you for purchasing a Taurus product. Taurus guarantees that your product has been thoroughly inspected and tested before being dispatched and is free from mechanical and electrical defects and complies with the ap- plicable safety standards. With every Taurus product purchased you get a 2 year warranty as detailed in the terms and conditions below. First Year – 1 Year Retail Warranty: Should defects due to faulty parts or workmanship develop, under normal domestic use, within 12 months from the original date of purchase please return the product to the store from where it was purchased for a refund or replacement. Second Year – 1 Year Extended Warranty Taurus takes pride in their product quality and therefore offer an extended 12 month warranty over and above the 1 Year Retail Warranty. Should defects due to faulty material or workmanship develop, under normal domestic use, after the 12 month period and within 24 months from the origi- nal date of purchase, please return the product postage pre-paid to Taurus for repair. Taurus will re- pair the product free of charge and return it to you directly. Taurus will replace a product with a similar product in the same or better condition, if the repair cannot be conducted for whatever reason. NB: The 1 Year Extended Warranty is only valid for customers who have registered their warranty online at www.taurusappliances.co.za within the first year after making their purchase. See overleaf for details and instructions. Before returning your product, check the following:

• Your household mains supply socket is in good condition, working and switched on.

• The mains supply circuit is not overloaded (White trip switch on your DB board is off).

• You have read the trouble shooting guide in your Instructions for Use.

• All accessories and parts are present. The following conditions apply:

1. Please ensure you retain your receipt as this must be

presented when making a claim under the terms of the guarantee. It is impossible to determine the guarantee period without proof of purchase, so please keep this in a safe place. (NB. Your guarantee can be scanned onto the Taurus web site for safe storage – see reverse side for details.)

2. If a refund or exchange is required the product must

be complete with all accessories, parts and packaging. Missing parts will render the guarantee void.

3. Upon receipt of your appliance, check it for any trans-

port damage to ensure it is safe for use. Return it to the store as soon as possible for exchange if damaged. The guarantee is void if products are damaged after use, so please do not use the damaged product.

4. Your product is designed for normal domestic house-

hold use. Failure to read and comply with the instruc- tions for use, cleaning and maintenance will render your guarantee void, so please read these instructions carefully to ensure your safety, and to get the most effective use from the product. (e.g. not removing lime scale; water deposits; insect infestation, and/or burnt products)

5. Any abuse, negligent, improper or accidental use

or care will render the guarantee void and Creative Housewares (Pty) Ltd will not be liable for any loss or damage.

6. Any attempted repair, or replacement of unauthorised

parts will render the guarantee void, so please contact an authorised service centre or service agent for any service or repair requirements.

7. NB: The guarantee on replaced products will be from

the original date of purchase and not from when the date replacement was made.

8. All repairs carry a 3 month guarantee even if this falls

outside of the 2 year guarantee period.

9. Taurus will attempt to conduct repairs within reasonable

time in line with industry standards but cannot be held responsible or liable for any circumstances not under our control. Repairs Out of the Warranty Period If service or repair becomes necessary outside the warranty period, this service is still available however all transport/postage, spares and labour costs will be for the customers’ account. All chargeable repairs will require the customers’ written acceptance of the quote. Once the go-ahead has been received Taurus will undertake to conduct the repair within a reasonable time and maintain the condition of the product as received. All repairs are guaranteed for 3 months from the date of the repair. For any service, enquiries and complaints please contact our Customer Care on 086 111 5006 or e-mail help@ creativehousewares.co.za from 08h00 to 15h00 Monday to Friday excluding public holidays. Please also note that the company is normally closed for 2 weeks around Christmas and New Year. Please send all products for repair postage pre-paid to one of the service centres listed on the back of this page. 948030_IM.indd 36 5/15/2017 10:04:06 AMWhy register your warranty? We at Taurus pride ourselves on bringing premium quality appliances to market, and as a commitment to this level of quality we offer a 2 year warranty (1 Year Retail + 1 Year Extended) on all of our products. We often hear that our customers lose their receipts and can therefore no longer claim if they have a problem. To take advantage of the 1 Year Extended Warranty you will need to register your warranty online within the first year of purchase in order to make a valid claim. Now you can register your product, upload your warranty online, never have to worry about losing your receipt again and enjoy the benefit of your 2 year warranty. Added Benefits In addition to providing you with an online profile of your registered products we will also provide a host of value added benefits:•Incentives and Competitions for registered users•New recipes or ideas for your products•New product developments – be the first to get the latest appliances•Special offers on promotional items How to Register your Online Warranty? STEP1 Create your user prole: DESKTOP/ LAPTOP SMART PHONE/ TABLET FAX STEP2 Pick a registration method:
