USER MANUAL EOK68600 ELECTROLUX

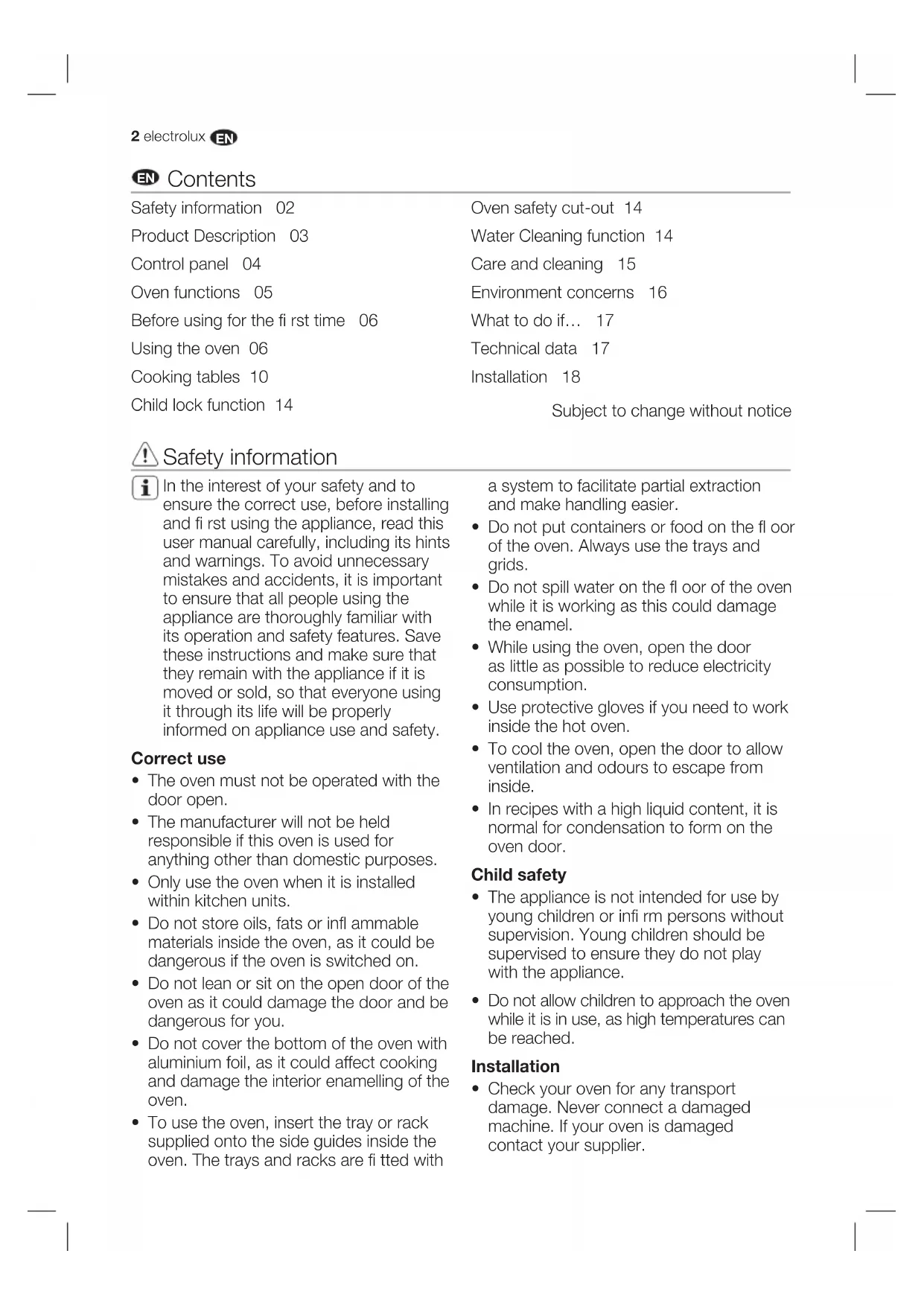

Contents Safety information 02 Product Description 03 Control panel 04 Oven functions 05 Before using for the fi rst time 06 Using the oven 06 Cooking tables 10 Child lock function 14 Oven safety cut-out 14 Water Cleaning function 14 Care and cleaning 15 Environment concerns 16 What to do if… 17 Technical data 17 Installation 18 Subject to change without notice Safety information In the interest of your safety and to ensure the correct use, before installing and fi rst using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. Correct use

• The oven must not be operated with the door open.

• The manufacturer will not be held responsible if this oven is used for anything other than domestic purposes.

• Only use the oven when it is installed within kitchen units.

• Do not store oils, fats or infl ammable materials inside the oven, as it could be dangerous if the oven is switched on.

• Do not lean or sit on the open door of the oven as it could damage the door and be dangerous for you.

• Do not cover the bottom of the oven with aluminium foil, as it could affect cooking and damage the interior enamelling of the oven.

• To use the oven, insert the tray or rack supplied onto the side guides inside the oven. The trays and racks are fi tted with a system to facilitate partial extraction and make handling easier.

• Do not put containers or food on the fl oor of the oven. Always use the trays and grids.

• Do not spill water on the fl oor of the oven while it is working as this could damage the enamel.

• While using the oven, open the door as little as possible to reduce electricity consumption.

• Use protective gloves if you need to work inside the hot oven.

• To cool the oven, open the door to allow ventilation and odours to escape from inside.

• In recipes with a high liquid content, it is normal for condensation to form on the oven door. Child safety

• The appliance is not intended for use by young children or infi rm persons without supervision. Young children should be supervised to ensure they do not play with the appliance.

• Do not allow children to approach the oven while it is in use, as high temperatures can be reached. Installation

• Check your oven for any transport damage. Never connect a damaged machine. If your oven is damaged contact your supplier.EN electrolux

• All packaging must be removed before use.

• Any electrical work required to install this appliance must be carried out by a qualifi ed and competent person.

• For safety reasons it is dangerous to alter the specifi cations or attempt to modify this product in any way.

• Never use the oven if the electrical supply cable is damaged; or if the control panel, work top or plinth area are damaged such that the inside of the appliance is freely accessible. Contact your local Service Force centre, in order to avoid hazard.

• All sides of the oven must never be drilled to prevent damage to hydraulic and electric components. Warning! For electrical connection carefully follow the instructions given in specifi c paragraphs. Product description General Overview

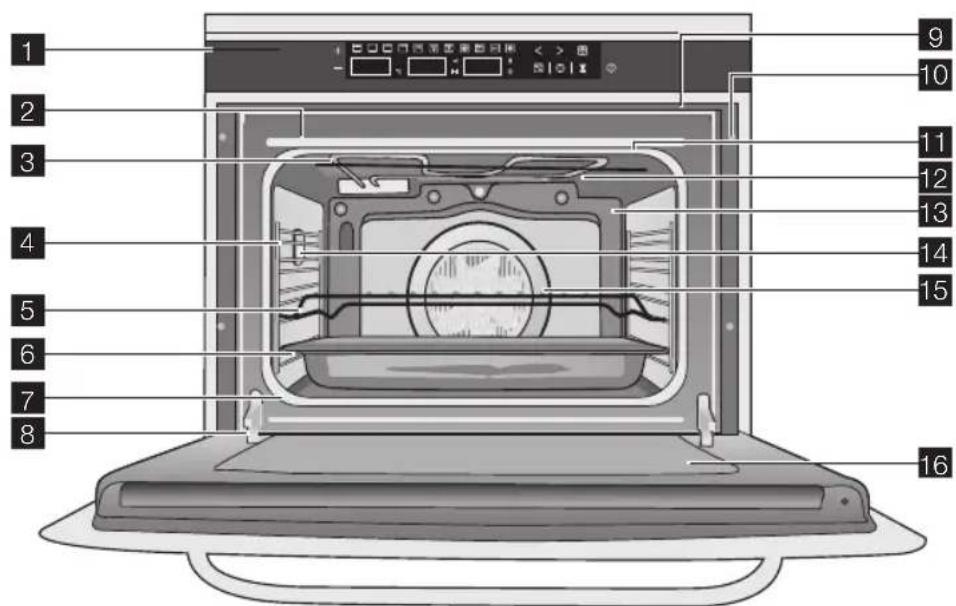

Air Outlet Fixing to Unit Grill Screen Smoke Outlet Rear Panel Light Fan Large Interior Glass Door

The oven will only work if the time of day has been set. However, the oven can also be operated without any programme.

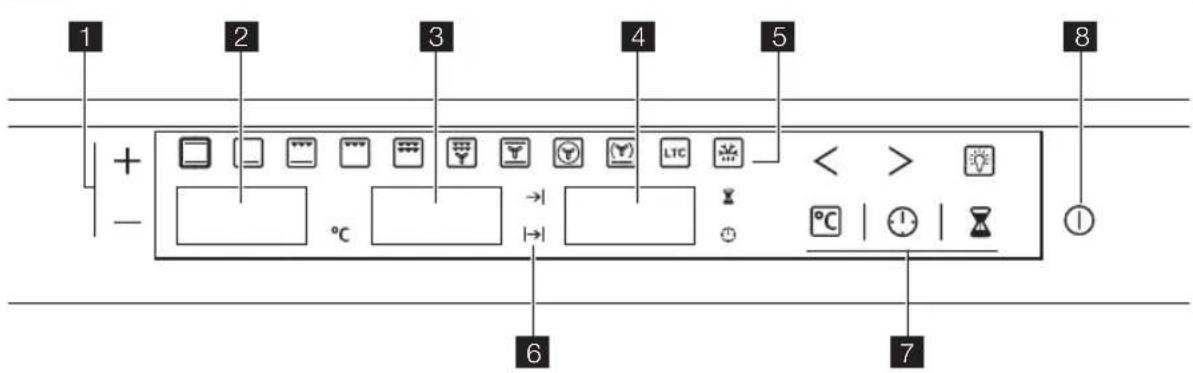

Buttons Function To switch appliance on or off To Select oven functions To set temperature and time values or defrosting level To set temperature values To select clock functions To set minute minder To switch light on or off Indicator lights Oven temperature Cooking duration End of cooking Minute minder Time of day Flashes when setting temperature is carried out. Illuminates when a programmed cooking duration is set and will start fl ashing when the cooking time is over. Illuminates when a programmed end of cooking is set and will start fl ashing when the cooking time is over. Illuminates when the minute minder alarm is set. Flashes when setting the time of day is carried outEN electrolux

Oven functions It is used for sponges and cakes where the heat received must be uniform to achieve a spongy texture. Heat only from beneath. Suitable for heating dishes and raising pastry and similar. Special for roasts. It can be used for any piece, whatever its size. For preparing dishes with superfi cial roasting. It allows the outer layer to be browned without affecting the inside of the food. Ideal for fl at food, such as steaks, ribs, fi sh, toast. Allows greater surfaces to be prepared, than with the grill, together with higher power reducing the time required for browning of the food. Allows uniform roasting at the same time as surface browning. Ideal for grills. Special for large volume pieces, such as poultry game etc. It is recommended to put the item on a rack with a tray beneath to collect the stock and juices. Suitable for roasts and cakes. The fan spreads the heat evenly throughout the inside of the oven to reduce cooking time and temperature. The fan distributes the heat produced by an element located at the rear of the oven. Due to the uniform heat distribution, it allows roasting and baking to take place at two heights at the same time. Ideal for baking pizzas, pies, and fruit tarts or sponges. Designed to cook casseroles, stews, etc, in the traditional way, and for all recipes specifying long cooking times and low heat. For the best results, we recommend using covered casserole pans with lids, fi rst making sure that they can be used in the oven. For defrosting e.g. gateaux and fl ans, butter, bread, fruit or other frozen foods. Caution! While using the Grill, Dual Grill or Dual Grill with fan, the door must be kept closed. Recommendations for Defrosting Food The defrost function works by means of a 2-level system of hot air. HI is for meats in general and LO is for fi sh, cakes, pastries and bread. When selecting the defrost function, select HI or LO on the temperature display by pressing on the temperature button and then the buttons.

• Unpackaged food should be placed on the oven tray or on a dish.

• Defrost large pieces of meat or fi sh by placing them over the grid with a tray underneath to collect any liquid.

Meat and fi sh do not need to be completely thawed before cooking. Condiments can be added once the surface is soft.

• Food should always be cooked after defrosting.

• Do not refreeze defrosted food. Conventional Lower element Grill and Lower element Single Grill Dual Grill Dual Grill with fan Conventional with fan Turbo Lower element with fan Low temperature cooking Defrosting6 electrolux

See the following chart for defrosting times and temperature levels LO LEVEL Weight Time HI LEVEL Weight Time 1/2 Kg 35 min 1/2 Kg 25 min 1/2 Kg 30 min 1 Kg 40 min 1 Kg 75 min 1,5 Kg 90 min 1/2 Kg 40 min 1/2 Kg 60 min Bread Cake Fish Fish Chicken Chicken Rib steak Minced meat Minced meat 1 Kg 120 min FOOD Before using for the fi rst time Carefully read this Instruction Manual to achieve the best results from your oven. Due to the manufacturing process there may be residues of grease and other substances. To eliminate these, proceed as follows:

Remove all the packaging material, including the protective plastic, if included.

• Select the or function at 200ºC for one hour. To do so, consult the feature list provided with this manual.

• To cool the oven open the door to allow ventilation and odours to escape from inside.

• After cooling, clean the oven and the accessories. During the fi rst use, fumes and odours may occur and the kitchen should therefore be well ventilated. Using the oven In the event of a power failure, all the settings (time of day, programme setting or programme in operation) will be cancelled. When the power is restored, the numbers in the display will fl ash, and the clock/timer has to be reset. Caution! The electronic clock features Touch- Control technology. To operate, simply touch the glass control symbols with your fi ngertip. The touch control sensitivity continuously adapts to changing conditions. Ensure that the glass front of the control panel is clean and free of any obstacles when turning on the oven. If the clock does not respond correctly when you touch the glass, you will need to turn off the oven for a few seconds and then turn it back on. By doing this, the buttons adjust automatically and will react once more to fi ngertip control.EN electrolux

Setting the Electronic Clock When turning your oven on, you will see the clock fl ashing 12:00. Set the clock by touching the symbols on the glass. You will hear 2 beeps confi rming the time has been set. If you want to change the time, turn the oven off. Touch the clock button until the indicator fl ashes

Change the time by touching the

buttons. The two beeps you hear after that will confi rm the new time has been set. Manual operation After setting the clock, the oven is ready for use: 1 Press the On button . 2 Press to select the desired cooking function. 3 The temperature display will show the preset temperature for that cooking function. Press on the temperature button

change it. Select the desired temperature by pressing on the buttons. 4 The top oven cavity will start to heat up. Functions will start the fast preheating function for a few minutes. The oven will beep when it reaches the selected temperature. Caution! this preheating function turns on the turbo motor at the back of the top oven cavity. 5 During oven heating, the temperature degree symbol on the temperature display will fl ash to show that the food is being heated. 6 Press on the Off button to stop cooking. Caution! When cooking has fi nished, you will notice that oven cooling feature will work until the temperature inside the oven has been suitably lowered. Oven Lighting The inside light will go on: – When the oven door is open. If the door is not closed after a certain time, the light will turn off to reduce power consumption. – When any cooking function is selected. The light will turn off after a certain time. If you want to turn the light on during cooking, just touch the Oven Light button . If you want to turn off the light press the the Oven Light button .8 electrolux

Electronic clock functions Electronic programmer functions Cooking Duration This function allows you to programme cooking time length, after which the oven will turn off automatically. Programming Cooking Time: 1 Press on the clock button . The symbol will light up. 2 Select the cooking time by pressing the or buttons. 3 Two consecutive beeps will then sound and the display will show the remaining cooking time. The symbol will fl ash slowly to indicate that the oven will switch itself automatically. 4 Select a cooking function and temperature. 5 Once the cooking time is complete, the oven will turn off, an alarm will sound and the symbol will fl ash more quickly. 6 Press on any button on the control panel to stop the alarm. You can change the programmed time whenever you want by touching the clock button and then on the buttons. The two beeps you hear after that will confi rm the new time has been set. End of cooking This function allows you to programme the time for cooking to stop, after which the oven will turn off automatically. Programming the Cooking Stop Time: 1 Press on the clock button several times until the symbol lights up. 2 Select the cooking stop time by pressing the buttons. 3 Two consecutive beeps will then sound and the display will show the remaining cooking time. The symbol will fl ash slowly to indicate that the oven will switch itself automatically. 4 Select a cooking function and temperature. 5 Once it is the set time, the oven will turn off, an alarm will sound and the symbol will fl ash more quickly. 6 Press on any button on the control panel to stop the alarm. You can change the programmed cooking stop time at any moment by pressing on the clock button until the symbol fl ashes and then by pressing on the buttons. The two beeps you hear after that will confi rm the new time has been set. You can use this function even if you are already cooking with the oven. If this is the case, follow all of the above instructions except No. 4.EN electrolux

Electronic programmer functions Cooking duration and End of cooking time combined This function allows both cooking time length and the stop time to be programmed. With this function, the oven switches on automatically at the set time and operates for the cooking time it has been programmed for. It switches itself off automatically at the entered stop time. 1 Press on the clock button . The symbol will light up. 2 Select the cooking time by pressing the buttons. 3 Two consecutive beeps will then sound, and the display will show the remaining cooking time. The symbol will fl ash slowly. 4 Press on the clock button several times until the symbol lights up. 5 Select the cooking stop time by pressing the buttons. 6 This will be confi rmed by two beeps. The current time will show on the display and the symbol will remain lit. 7 Select a cooking function and temperature. 8 The oven will remain off, with the symbol lit and the symbol fl ashing slowly. The clock will show the current time and the inside light will remain off. The oven is now programmed. 9 When it is time to start cooking, the oven will switch on and will operate for the programmed cooking time. The time function display will show the remaining cooking time. 10 Once the set time is reached, the oven will turn off, an alarm will sound and the and symbols will fl ash. 11 Press on any button on the control panel to stop the alarm. If you wish to change the cooking stop time while cooking is in progress, press on the clock button until the symbol fl ashes. You can then change the cooking stop time by pressing on the buttons. The two beeps you hear after that will confi rm the new time has been set. Minute minder A beep will go sound when the set time has fi nished, whether the oven is on or off. Programming the Minute Minder: 1 Press on the minute minder button . The symbol lights up. 2 Select the length of time after which you want the alarm to sound by pressing on the buttons. 3 You will then hear two beeps; the display will show the time left before the alarm sounds and the symbol will fl ash slowly, indicating that the timer has been set. 4 Once the programmed time has passed, an alarm will sound and the symbol will begin to fl ash more quickly. 5 Press on any button on the control panel to stop the alarm. You can change the programmed time whenever you want by touching the minute minder button until the symbol fl ashes, and then touching the buttons. The two beeps you hear after that will confi rm the new time has been set. Cooking duration and End of cooking time combined10 electrolux

Cooking Tables The Cooking Tables show examples of temperature ranges and approximate cooking times. The cooking mode depends on the model. For the best results we recommend the oven to be preheated with the function

Child lock function If the oven is Off the word SAFE appears on the time display. When the oven is on all the buttons keys are locked except the off button

To switch off the child lock, touch the and buttons simultaneously until you hear a long beep and SAFE goes out in the display. This function locks the oven, preventing small children from playing with it. To turn on the function, press on the and buttons until you hear a long beep. The oven is now locked. Oven safety cut-out Press any button for using the appliance after a safety cut out. The safety cut-out is cancelled if the clock function DURATION or END is set. If not switched off after a certain time, or if the temperature is not modifi ed, the oven switches off automatically. The oven switches itself off when the oven temperature is: 50-120ºC after 12,5 hours 120-200ºC after 8,5 hours 200-250ºC after 5,5 hours Water Cleaning function into a large absorbent sponge which is placed on the base of the oven cavity.

• If the oven cavity is heavily soiled, you may want to leave the solution to soak for a short time.

• Close the oven door.

• Select the “Bottom” function at a temperature of 220°C.

• Select with the Timer a period of 5 minutes.

• After the cycle is fi nished please wait 15 minutes before opening the door.

Make sure that the appliance is switched off.

• Use the large absorbent sponge to remove any excess of water from the base of the cavity.

• You can now clean the inside of the oven.

• Make sure at the end to dry all the inside and the surround of the appliance, particularly the door seals. About this function In order to keep you appliance working properly it should be regularly cleaned to prevent any build up of food, deposits or greases. This function can help to make the cleaning process easier and more convenient for you. How it works By using heat, Steam and few drops of washing up liquid food deposit are loosened and softened enough to make their removal much easier-eliminating the need to scrub the enamel and avoid any scratches on the surface. How to use:

• Remove all internal components (side shelves support/grids/pans ) before use.

• Put 500ml approximately of water with a few drops of washing up liquid addedEN electrolux

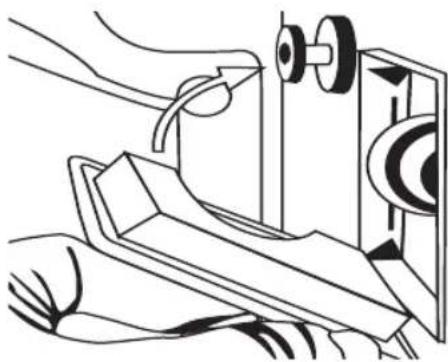

3. The interior glass is now free. Remove it.

4. Clean the interior glass and the inside of

5. Insert the supports on the interior glass

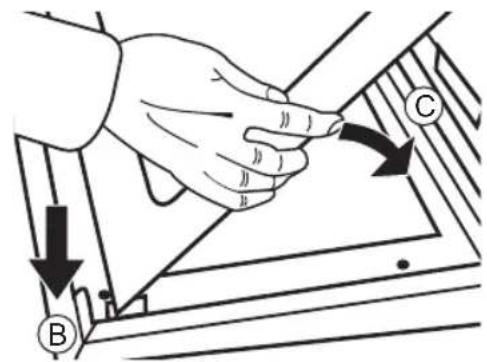

into the grooves at the top of the door (B).

6. Lower the glass into the door (C).

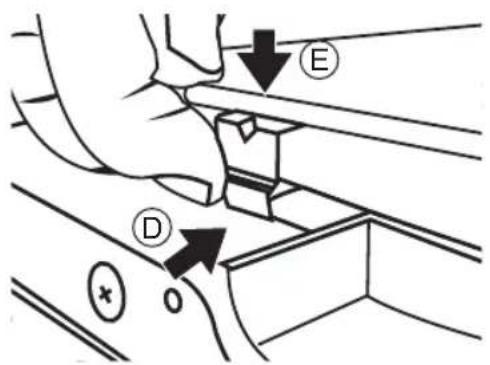

7. The glass is fi xed to the door by pressing

the two lower supports (D) while pushing the glass into the door (E). Caution! Before carrying out any work, the appliance must be disconnected from the mains electricity supply. Cleaning the Inside of the Oven

• The inside of the oven should be cleaned to remove food and grease deposits, which can give off smoke or odours and cause stains to appear.

• With the oven cold and for enamelled surfaces (e.g. the fl oor of the oven) use a nylon brush or sponge with warm soapy water. If using special oven cleaning products, use only on enamelled surfaces and follow the manufacturer’s instructions. Caution! Do not clean the inside of your oven with a steam or pressurised water jet. Do not use either metallic scouring pads or any material that could scratch the enamel. Cleaning the Oven Exterior and Accessories Clean the outside of the oven and the accessories with warm soapy water or with a mild detergent. Caution! Never use metallic scouring pads or commercial or scouring powders that could scratch the enamel. For stainless steel surfaces, proceed with care and only use sponges or cloths that cannot scratch them. To clean the outside of the oven do not attempt to remove the controls, as for this, the oven has to be fi rst removed from the kitchen unit. Cleaning the Large Interior Glass Door Warning! Be careful: the oven door closes when the interior glass is removed.

1. Open the oven door.

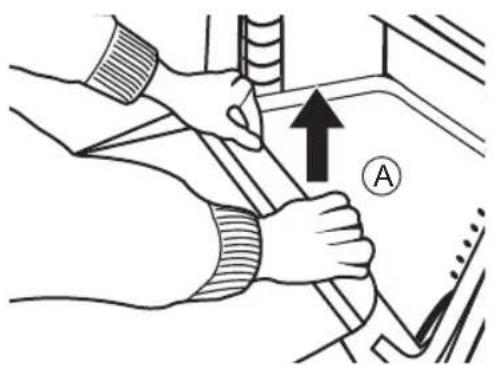

2. Pull the glass upwards from the bottom

Changing the oven bulb Caution! To change the bulb, fi rst ensure that the oven is disconnected from the power supply.

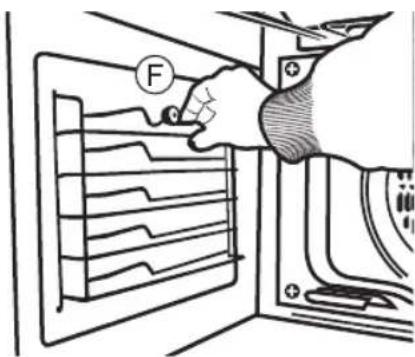

1. Ease out the chrome supports, releasing

them from the bolt (F).

3. Replace the lens, making sure it fi ts in

the correct position without forcing it. The replacement bulb must be temperature resistant to 300°C. These can be ordered from the Technical Service Department.

Enviroments concerns The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, wich could otherwise be caused by inappropriate waste handling of this product. Please contact your local city offi ce, your household waste disposal service or the shop where you purchased the product Ecological Packaging The packaging materials are completely recyclable and can be used again. Check with your local authority on the regulations for disposing of this material.

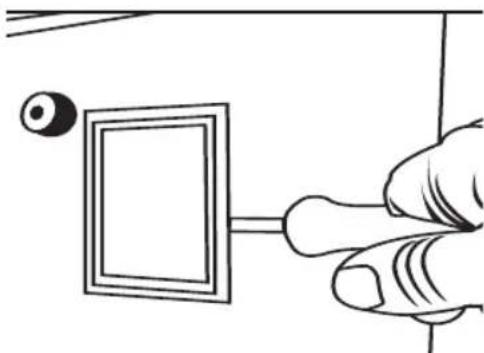

2. Loosen the lens from the lamp holder

with the help of the appropriate tool. Exchange the bulb.EN electrolux

What to do if… If the appliance is not working correctly, please check the following before contacting the Electrolux Service Centre. Warning! If, despite these recommendations, the problem continues, contact our Technical Assistance Service. Technical Data If the equipment does not work, please contact the Technical Service Department and advise them of the problem, indicating: 1 Serial number (S-No) 2 Appliance model. (Model) 3 Product number (PNC) You will fi nd this information on the rating plate on the lower part of the oven when the door is opened. The item that you have bought meets the European directives on electrical material safety (73/23/CEE) and electromagnetic compatibility (89/336/CEE). Check the connection to the electrical circuit. Check the fuses and current limiter of your installation. Ensure the clock is in the manual or programmed mode. Check the position of the function and temperature selectors. This is normal during its fi rst use. Periodically clean the oven. Reduce the amount of grease or oil added to the tray. Do not use higher temperature settings than those in the cooking tables. Change the bulb. Check its assembly in accordance with the instruction manual. Review the cooking tables to obtain guidance on the working of your oven. When the cooking process is completed, do not leave the dishes standing in the oven for longer than 15-20 minutes. Check that shelves and bakeware are not vibrating in contact with the oven back panel. Set the time of day (see chapter "Setting the time of day"). The oven does not work. Smoke is given off while the oven is working. The inside light of the oven does not work. Expected cooking results are not achieved. Steam and condensation settle on the food and in the oven cavity. The oven fan is noisy. The display shows "12.00". Problem Solution18 electrolux

Installation This information is intended for the installer, as the person responsible for assembly and electrical connection. If you install the oven yourself, the manufacturer will not be held responsible for any possible damage. Installation must only be performed by a fully qualifi ed electrician who must ensure regulations laid down for installation are observed. Before Installation. Comments

• To unpack the oven, pull the tab located on the lower part of the box.

• A niche is required in the kitchen unit as per the dimensions shown on the fi gure, providing a minimum depth of 580 mm. (See fi gures 1 and 2 describing oven fi tting on the page 90-91).

• To fi t multifunction ovens in their locations, the back part of the unit, must not have any projections (reinforcements, pipes, sockets, etc).

• The adhesive used for the plastic covering of kitchen furniture must be able to withstand temperatures up to 85ºC. Electrical Connection. Legal Requirements The installer must check that:

• The voltage and cycles of the mains supply correspond to that indicated on the rating plate.

• The electrical installation can stand the maximum power indicated on the rating plate.

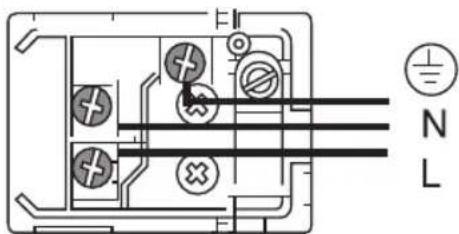

• The connection diagram is shown in the following fi gure:

• The electrical connection has adequate earthing in accordance with regulations in force.

• The connection must be carried out with an omnipolar switch, of an adequate size for the current drawn. There must be a minimum aperture between contacts of 3 mm to enable disconnection in the case of emergency, cleaning or bulb exchange. Under no circumstances must the earth wire pass through this switch. After connecting the electricity, check that all the electrical parts of the oven are working.EN electrolux

Installing the Oven For all ovens and after carrying out the electrical connection, 1 Introduce the oven into the kitchen unit, taking care not to trap the cable. 2 Fix the oven to the unit by means of the 2 screws supplied via the holes that can be seen when the door is opened. 3 Check that the oven housing is not in contact with the sides of the unit and that there is at least 2 mm separating the neighbouring units.20 electrolux
