USER MANUAL BF679W TANITA

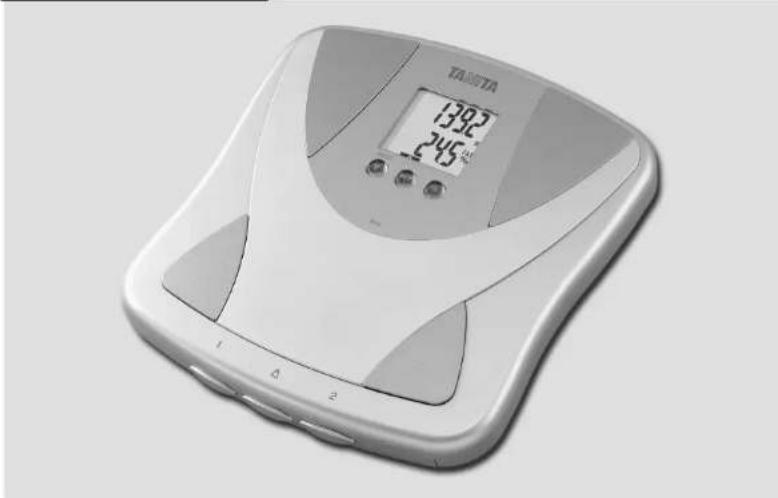

BF-679W/BF-680W Body Fat Monitor / Scale

Tanita UK Ltd.

The Barn, Philpots Close, Yinssley.

Middlesex, UB7 7RY UK

Tel: [phone]

Fax：[phone]

www.lanla.co.uk

Tanita Corporation

14-2,1-Chane Maen-Cho

Ibashi Ku Tokyo, Japan 174-8630

Tel:[phone]

Fax: [phone]

www.lanac.co.jp

ISO 9001 Certified

Tanita Europe GmbH

Dresdner Strasse 25
D-71065 Sindellingen
Germany
30-4910700161896
Fae+4901-7021-6189-71
www.janabe de

Tanita Corporation of America Inc.

2526 South Clearbrook Drive
Arlington Heights, IL 65002, USA
T+1 8476409241
[phone]
www.landa.com

Tanita France S.A.

Villa Labrousse
68 Boulevard Bourdon
92200 Nouilly-Sur-Soin France
Tol-330155249999
Fae+83(0)-1-55-24-98-68
www.lamira.ir

Tanita Health Equipment H.K. Ltd.

Unit 301-203 SF Wing Cr Plaza
62 Mody Road, Tsirnshatsan East
Kowloon Hong Kong
Tel-45228387111
Fax[phone]

©2005 Tanita Corporation

BF6797821(t)

GB Instruction Manual

Read this Instruction Manual carefully and keep it for future reference.

Bedienungsanleitung

Introduction	1
Principles of Estimating Body Fat Percentage	2
Features and Functions	4
Preparations Before Use	4
Useful Features	5
Switching the Weight Mode	1
Automatic Shut-Down Function	5
How to Determine Body Fat Percentage	5
Getting Accurate Readings	6
Taking Weight and Body Fat Readings	7
Understanding Your Reading	7
Programming Guest Mode	9
Taking Weight Measurement Only	9
Troubleshooting	20

Thank you for selecting a Tanita Body Fat Monitor/Scale. This model uses the BIA (Bioelectrical Impedance Analysis) technique, a state-of-the-art technology for body fat assessment.

Note: Road this Instruction Manual carefully and keep it handy for future reference.

Safety Precautions

• Persons with implanted electronic medical equipment, such as a pacemaker, should not use the Body Fat Monitor feature on this Tanita Body Fat Monitor/Scale. This Body Fat Monitor/Scale passes a low-level electrical signal through the body, which may interfere with the operation of a pacemaker.

The Tanita Body Fat Monitor/ Scales are intended for home use only. This unit is not intended for professional use in hospitals or other medical facilities; it is not equipped with the quality standards required for heavy usage experienced under professional conditions.
D o not use this unit on slippery surfaces such as wet floors.

Important Notes for Users

This Body fat monitor is intended for adults and children (ages 7-17) with inactive to moderately active lifestyles and adults with athletic body types. (Athlete Mode: Only for BF-680W)

Tanita defines "athlete" as a person involved in Intense physical activity of approximately 10 hours per week and who has a resting heart rate of approximately 60 beats per minute or less. Tanita's athlete definition includes "lifetime of fitness" individuals who have been fit for years but currently exercise less than 10 hours per week. The body fat monitor function is not intended for pregnant women, professional athletes or bodybuilders.

• Recorded data may be lost if the unit is used incorrectly or is exposed to electrical power surges. Tanita takes no responsibility for any kind of loss caused by the loss of recorded data.
• Tanita takes no responsibility for any kind of damage or loss caused by these units, or any kind of claim made by a third person.

Note: Body fat percentage estimates will vary with the amount of water in the body, and can be affected by dehydration or over-hydration due to such factors as alcohol consumption, menstruation, illness, intense exercise, etc.

PRINCIPLES OF ESTIMATING BODY FAT PERCENTAGE

Tanita Body Fat Monitor/ Scales allow you to determine your body fat percentage at home as easily as you measure your weight.

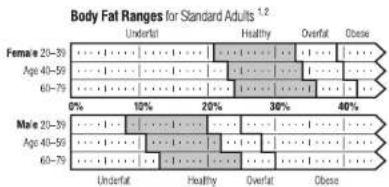

What is Body Fat Percentage?

Body fat percentage is the percentage of fat in your body. Too much body fat has been linked to conditions such as high blood pressure, heart disease, diabetes, cancer, and other disabling conditions.

Based on NIH/WHO BMR Guidelines
As reported by Galagher, et al., at NY Obesity Research Center. To determine the percentage of body fat that is appropriate for your body; consult your physician.

Tami's patented "foot-on" design sends a safe, low-level electrical signal through the body to determine its composition.

The BIA Method

Tanita Body Fat Monitor/Scapes use the BIA (Bioelectrical Impedance Analysis) technique. In this method, a sale, low-level electrical signal is passed through the body. It is difficult for the signal to flow through fat in the human body, but easy to flow through moisture in the muscle and other body tissues. The difficulty with which a signal flows through a substance is called impedance. So the more resistance, or impedance, the signal encounters, the higher the body fat reading.

Hydration Fluctuations

Hydration levels in the body may affect body fat readings. Readings are usually highest in the early waking hours, since the body tends to be dehydrated after a long night's sleep. For the most accurate reading, a person should take a body fat percentage reading at a consistent time of day under consistent conditions. Besides this basic cycle of fluctuations in the daily body fat readings using BIA, variations may be caused by hydration changes in the body due to bathing, drinking, menstruation, illness, exercising, and bathing. Daily body fat readings are unique to each person, and depend upon one's lifestyle, job and activities.

What is Total Body Water Percentage?

Total Body Water Percentage is the total amount of fluid in a person's body expressed as a percentage of their total weight. Approximately 50 - 65% of the weight of a healthy person is water. Water plays a vital role in many of the body's processes and is found in every cell, tissue and organ. Maintaining a healthy total body water percentage will ensure the body functions efficiently and will reduce the risk of developing associated health problems.

How To Measure Total Body Water

The Deuterium Dilution Method is currently used as a typical method to measure total body water (TBW) percentage. In contrast, this instrument estimates TBW by using BIA. An agreement of over 80% is obtained between this Instrument and the Deuterium Dilution Method.

Note: The Deuterrum Difuit Method measures local body water based on the analysis of the tegalurium oxide isotope in urine before and after ingestion of an oral dose.

Normal Total Body Water Percentage (% TBW)

The normal total body water percentage ranges for adults are: Female:45-60% Male:50-65%

Note: The total body weight percentage of a person with a high percentage of body fat may fall below the normal ranges.

Daily Rhythm of Total Body Water

Try to monitor total body water percentage at the same time of day and under the same conditions. This increases the accuracy of the readings. The best time is in the early evening, before the evening meal, when hydration levels are more stable. Total body water percentage tends to be underestimated to a degree if measured immediately after getting out of bed, not only because of dehydration but also because the fluid in the body will be stored centrally in the body's trunk. As the day progresses this fluid becomes more evenly distributed due to the effect of gravity. Total body water percentage is not affected by fluids consumed until they are absorbed by the body tissues.

Important Notes

Take your measurements at the same time of day and under the same conditions
- Measured results depend on the redistribution of water in the body and/or changes in body temperature. Factors affecting total body water levels include sleep, physical activity, eating and drinking, illness and medications, bathing patterns and urination.
- Take fluids immediately if you have any symptoms of dehydration, particularly after physical activity or bathing. Symptoms include a dry mouth, headache, nausea, dizziness, skin dryness, a rise in temperature, loss of concentration, etc. If symptoms persist, consult your doctor immediately.
- Elderly people are at increased risk of dehydration as they have less sensitivity to thirst and other symptoms.
This Instrument does not directly measure an individual's total body water content. The percentage reading from the monitor is only an estimate. Look for long-term changes and try to maintain a consistent, healthy total body water percentage.
This instrument will not give total body water readings for children

GB

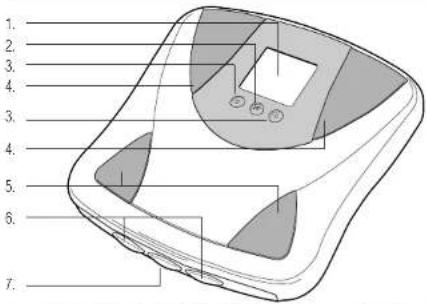

FEATURES AND FUNCTIONS

Measuring Platform

1. Display Screen
   2.Sel Button
   3.Arrow (Select) Buttons
2. Ball-of-Foot Electrodes
3. Heel Electrodes
4. Personal Keys
5. Weight-Only Key

Accessories

8 AA-Size Batteries (4)

PREPARATIONS BEFORE USE

Inserting the Batteries

Open the battery cover on the back of the measuring platform. Insert the supplied AA-batteries as indicated.

Note: Be sure that the polarity of the batteries is sel properly. If the batteries are

inpcnly pioianed the fuid may leak and damage floors. If you do not intend to use this

unil for a long period of time . It ' s advisable to remove the bacteria before storage

Please note that since the batteries were inserted at the factory, their energy levels may have decreased.

Positioning the Monitor

Place the measuring platform on a hard, flat surface where there is minimal vibration to ensure safe and accurate measurement.

Note: To avoid possible injury, do not step on the edge of the platform.

Handling Tips

This monitor is a precision instrument utilizing state-of-the-art technology
To keep the unit in the best condition, follow those instructions carefully:
- Do not attempt to disassemble the measuring platform.
- S. tore the unit horizontally, and place it so that the buttons will not be pressed accidentally.
- Avoid excessive impact or vibration to the unit.
- Place the unit in an area free from direct sunlight, heating equipment, high humidity, or extreme temperature change.
- Never submerge in water. Use alcohol to clean the electrodes and glass cleaner (applied to a cloth first) to keep them shining; avoid snaps.
- Do not step on the platform when wet.
- Do not drop any objects onto the platform.

GB

USEFUL FEATURES

Tanita Body Fat Monitor/Scales allow you to know your weight, body fat percentage, and body water percentage simultaneously and easily, simply by stepping on a scale.
- Your Body Fat Monitor/Scale can be set for Adult or Children (ages 7-17), Male or Female.
- In addition, the BF-680W can be set to Adult Athlete mode.
Personal data (Female/Male, Age, Height, etc.) can be pre-set and stored in memory for up to 2 people.
- Unique Healthy Range Indicatior automatically displays where your body fat percentage falls within the Body Fat Ranges chart (p.2).
Guest feature allows you to take readings without reprogramming one of the Personal keys.
- Weight-only Key provides quick weight readings.
The unit emits a heliul "beep" when activated, and also at various stages in the programming and measuring process.

Listen for these sounds which will prompt you to step on the unit, look at your readings, or confirm a setting.

SWITCHING THE WEIGHT MODE Note: For use only with modes containing the weight mode switch

You can switch the unit indication by using the switch on the back of the scale as shown in the figure.

Note: If weight mode is set to pounds or stone-pounds, the height programming mode will be automatically set to feet and inches.

Similarly, if kilograms is selected, height will be automatically set to centimetres.

AUTOMATIC SHUT-DOWN FUNCTION

The automatic shut-down function shuts off the power automatically in the following cases:

• If you interrupt the measurement process, the power will shut down automatically within 10 to 20 seconds, depending upon the type of operation.
  If an extraordinary weight is applied to the platform.
• D uring programming, if you do not touch any of the keys or buttons within 60 seconds.
  After you have completed the measuring process.
  Note: If the power shuts off automatically, repeat the steps from 'Seling and Sloring Data in Memory' (p.6).

HOW TO DETERMINE BODY FAT PERCENTAGE

Setting and Storing Data in Memory

The unit can be operated only if data has been programmed into one of the personal data memories or the Guest mode.

1. Turn on the Power

Press the Sel button to turn on the unit (once programmed, tapping a Personal Key turns on the unit.) The unit will beep to confirm activation; the Personal Key numbers (1,2) will be displayed, and the display will flash. Note: If you don't designate the unit for any reason after the unit has been turned on, the unit will turn off automatically.

Note: If you make a mistake or want to turn the unit off before you have finished programming it, press the Weight-Only Key (E) force quit.

2. Select a Personal Key Number

Press the UoDown buttons to select a Personal Key. Once you reach the Personal Key number you wish to use, press the Set button. The unit will beep once to confirm.

3. Set Age

The display defaults to Age 30 (range of user age is between 7-991. An arrow icon appears on the lower left side to indicate Age setting. Use the Up/Down buttons to scroll through numbers. When you reach your age, press the Sel button. The unit will beep once to confirm.

4. Select Female or Male

Use the Up/Down buttons to scroll through Female (For Male ), Female/Athlete and Male/Athlete settings, then press the Set button. The unit will be gone once to confirm.

(Athlete Mode:Only for BF-680W)

5. Specify the Height

The display defaults to 5^7.0^ (170cm) (range of user is from 3^4.0^ - 7^3.0^ or 100cm - 220cm ). Use the Up/Down buttons to specify Height and then press the Set button. The unit will be twice and the display will flash all data (Male/Female, Age, Height, etc.) three times to confirm the programming. The power will then shut down automatically.

GETTING ACCURATE READINGS

Hcels conted on electrclces

Toes may overhang measuring platform

Note: An accurate reading will not be possible if the sales of your feet are not clear, or if your knees are beri, or you are in a sitting position.

To ensure accuracy, readings should be taken without clothing and under consistent conditions of hydration. If you do not undress, always remove your socks or stockings, and be sure the soles of your foot are clean before stepping on the measuring platform. Be sure that your heels are correctly aligned with the electrodes on the measuring platform. Don't worry if your feet appear too large for the unit - accurate readings can still be obtained if your toes overhang the platform. It is best to take readings at the same time of day. Try to wait about three hours after rising, eating, or hard exercise before taking measurements. While readings taken under other conditions may not have the same absolute values, they are accurate for determining the percentage of change as long as the readings are taken in a consistent manner. To monitor progress, compare weight and body fat percentage taken under the same conditions over a period of time.

TAKING WEIGHT AND BODY FAT READINGS

1. Select Personal Key and Step On

Using your toe, tap your pre-programmed Personal Key (Release the key within 3 seconds of the display will show "Err"). The unit will beep and the display will show the programmed date.

The unit will beep again and the display will show "0.0". Now step onto the platform.

Note: If you step onto the platform before "00" appears the display will show "F" and you will not obtain a reading. Furthermore, if you do not step onto the measuring platform within about 60 seconds after "00" appears, the power is shut-off automatically.

2. Get Your Readings

Your weight will be shown first. Continue to stand on the platform.
*54321" will appear on the display and disappear one by one from right to left. Your body fat percentage(%-FAT) and Body Fat Range will appear on the display screen.

Your total body water percentage (%TBW) will appear on the display screen. The display will then flash your %TBW, weight and %FAT alternately 3 times.

Note:Do not step off until Body Fat % is shown.

3. Recall Function

To obtain previous readings, step off scale and press Up arrow button. To view current reading, release arrow button.

UNDERSTANDING YOUR READING

Healthy Range Indicator (Standard Adults only\*

Your body fat monitor/scale automatically compares your body fat reading to the Healthy Body Fat Range chart.

Following your body fat percentage reading, a black bar will flash along the bottom of the display, identifying where you fall within the Body Fat Ranges for your age and gender. For example, if the squares appear above (0) area your range is within the Healthy Range – if they appear over (-) area, your reading is below the Healthy Range. For more about the Healthy Range see page 2

(-): Underfall below the healthy body fat range. Increased risk for health problems.
(0): Healthy, within the healthy body fat percentage range for your age/gender.
(+) Overfat above the healthy range. Increased risk for health problems.
(++) : Oberge, high above the healthy body fat range. Greatly increased risk of obesity-related health problems.

Under Healthy Dear Obesa

Note: if you select Altus mode, the unit will not display the Healthy Range Indicator. Atlantes may have a lower body fat range based on their particular sport or activity.

(Range of user age is between 20-79)

PROGRAMMING THE GUEST MODE

The Guest mode allows you to use the monitor without losing the information already assigned to a Personal Key.

To programme the Guest mode, use the Down button marked to turn on the power. Then follow steps 3 through 5 in "Setting and Storing Data" (p.6.) The unit will beep twice and the display will show "0". Step onto the platform. Next follow the directions for "Get Your Reading" (p.7).

Note: If you step onto the platform before "0.0" appears the display will show "Err" and you will not obtain a reading.

Select Weight-Only Key

Using your toe, tap the Weight-only key. After 2 or 3 seconds, "0.0" will appear in the display and the unit will beep. When "0.0" appears in the display, step onto the platform. The body weight value will appear. If you remain on the platform, the display will flash for about 30 seconds, and then the power will automatically turn off. If you step off the platform, the weight will continue to show for about 5 seconds, then "0.0" will appear and the unit will shut off automatically.

TROUBLESHOOTING

If the following problems occur ...then...

A wrong weight format appears followed by kg, lb, or st-lb Refer to "Switching the Weight Mode" on p.5.
- "Lo" appears on the display, or all the data appears and immediately disappears.

Batteries are low. When this message appears, be sure to replace the batteries immediately, since weak batteries will affect the accuracy of your measurements. Change all the batteries at the same time with new AA-size batteries. Note: Your settings will not be erased from the memory when you remove the batteries.

"Err" appears while measuring.
Please stand on the platform keeping movement to a minimum. The unit cannot accurately measure your weight if it detects movement.
- The Body Fat Percentage reading does not appear or "-----" appears after the weight is measured.
Your personal data has not been programmed. Follow the steps on p6.
Make sure socks or stockings are removed, and the soles of your feet are clean and properly aligned with the guides on the measuring platform.
"OL" appears while measuring.
Reading cannot be obtained if the weight capacity is exceeded.
"Err FAT% appears while measuring.
The Body Fat Percentage is more than 75% readings cannot be obtained from the unit.
