USER MANUAL N3804AB2 HITACHI

Technical illustration of a high-voltage fastener with attached circuit board (no text or symbols)

DANGER

Improper use of this Stapler can result in death or serious injury! This Manual contains important information about product safety. Read and understand this Manual before operating the Stapler. Keep this Manual available for others before they use the Stapler. Never allow anyone who has not reviewed this manual.

DANGER

IMPORTANT SAFETY INSTRUCTIONS

FOR USING STAPLERS 4

EMPLOYER'S RESPONSIBILITIES 8

OPERATION

NAME OF PARTS 9

SPECIFICATIONS 10

STAPLE SELECTION 10

ACCESSORIES 10

STANDARD ACCESSORIES 11

OPTIONAL ACCESSORIES 11

APPLICATIONS 11

BEFORE OPERATION 11

WORKING ENVIRONMENT 11

AIR SUPPLY 12

LUBRICATION 13

COLD WEATHER CARE 13

TESTING THE STAPLER 14

ADJUSTING AIR PRESSURE 16

LOADING STAPLES 16

ADJUSTING THE STAPLING DEPTH 20

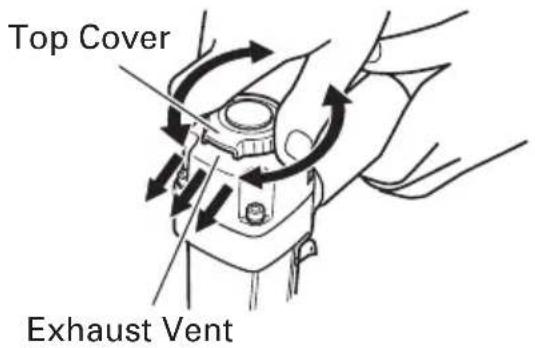

CHANGING THE EXHAUST DIRECTION ..... 21

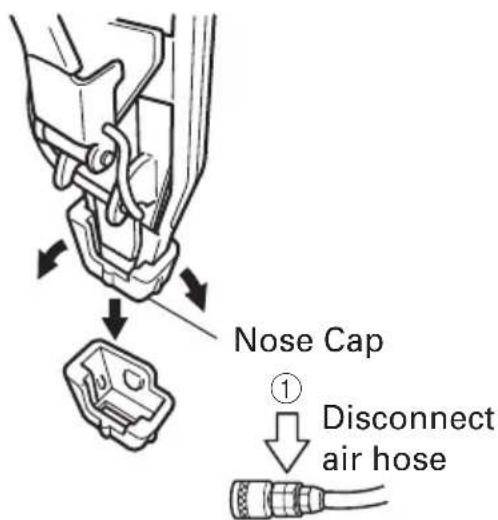

DISCONNECTING THE NOSE CAP 21

MAINTENANCE

MAINTENANCE AND INSPECTION 22

SERVICE AND REPAIRS 23

PARTS LIST 76

TABLE DES MATIERES

Français

Page Page

INFORMATION IMPORTANTE 26

DEFINITION DES MOTS DE SIGNALISATION ..... 26

SECURITE

CONSIGNES DE SECURITE IMPORTANTES

POUR L'UTILISATION DE L'AGRAFEUSE ..... 27

RESPONSABILITES DE L'EMPLOYEUR .... 31

UTILISATION

NOM DES PIECES 32

SPECIFICATIONS 33

SELECTION DES AGRAFES 33

ACCESSOIRES 33

ACCESSOIRES STANDARD 34

ACCESSOIRES EN OPTION 34

APPLICATIONS 34

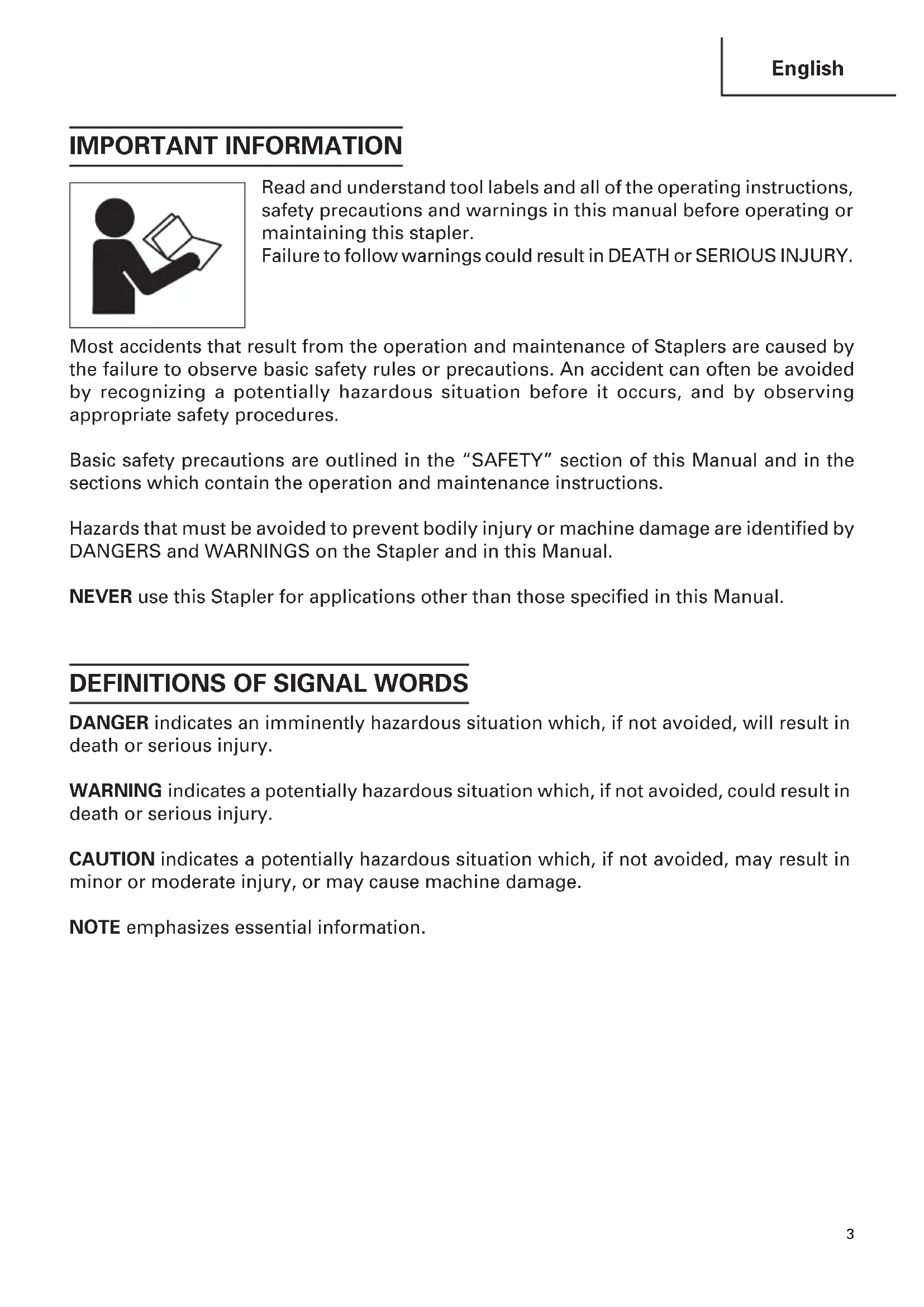

Silhouette of a person reading a book (no text or symbols)

Read and understand tool labels and all of the operating instructions, safety precautions and warnings in this manual before operating or maintaining this stapler.

Failure to follow warnings could result in DEATH or SERIOUS INJURY.

Most accidents that result from the operation and maintenance of Staplers are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by DANGERS and WARNINGS on the Stapler and in this Manual.

NEVER use this Stapler for applications other than those specified in this Manual.

DEFINITIONS OF SIGNAL WORDS

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

IMPORTANT SAFETY INSTRUCTIONS FOR USING STAPLERS

READ ALL INSTRUCTIONS

DANGER

1. OPERATORS AND OTHERS IN WORK AREA MUST WEAR SAFETY GLASSES WITH SIDE SHIELDS.

Simple line drawing of a person wearing sunglasses (no text or symbols)

When operating the Stapler, always wear safety glasses with side shields, and make sure others in work area wear safety glasses, too. Safety glasses must conform to the requirements of American National Standards Institute, ANSI Z87.1 and provide protection against flying particles both from the front and side.

The employer must enforce the use of safety glasses by the Stapler operator and others in work area.

2. NEVER USE OXYGEN OR OTHER BOTTLED GASES. EXPLOSION MAY OCCUR.

AIR

Never use oxygen, combustible gases or any other bottled gases as a power source for the Stapler. Use of the above gases is dangerous, as the Stapler will explode. Use only clean, dry, regulated compressed air.

WARNING

3. NEVER POINT TOOL AT YOURSELF OR OTHERS IN WORK AREA.

Silhouette of a hand with a pen inserted, no text or symbols present

Always assume the Stapler contains fasteners.

Never point the Stapler at yourself toward yourself or others, whether it contains fasteners or not.

If fasteners are mistakenly driven, it can lead to severe injuries.

Never engage in horseplay with the Stapler.

Respect the Stapler as a working implement.

4. KEEP FINGERS AWAY FROM TRIGGER WHEN NOT DRIVING FASTENERS TO AVOID ACCIDENTAL FIRING.

Never carry the Stapler with finger on trigger since you could drive a fastener unintentionally and injure yourself or someone else.

Always carry the Stapler by the handle only.

5. CHOICE OF TRIGGERING METHOD IS IMPORTANT.

Please read and understand page 18 of "METHODS OF OPERATION."

SAFETY — Continued

WARNING

6. DO NOT EXCEED 120 psi. (8.3 bar 8.5 kgf/cm ^2 )

120 psi 120 psi

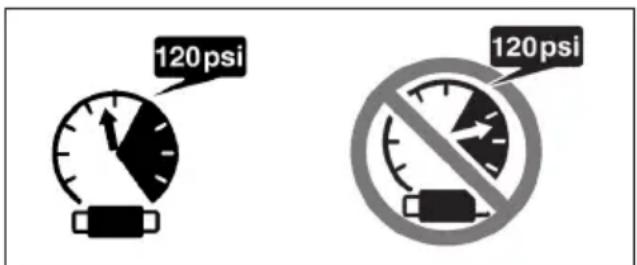

Do not exceed maximum recommended air pressure 120 psi (8.3 bar 8.5 kgf/cm ^4 ).

Never connect the Stapler to pressure which potentially exceeds 200 psi (13.7 bar 14 kgf/cm ^2 ) as the Stapler can burst.

7. ALWAYS WEAR EAR AND HEAD PROTECTION.

Always wear ear protection to protect your ears from loud noise.

Always wear head protection to protect your head from flying objects.

8. STORE STAPLER PROPERLY.

When not in use, the Stapler should be stored in a dry place. Keep out of reach of children. Lock the storage area.

9. KEEP WORK AREA CLEAN.

Cluttered areas invite injuries. Clear all work areas of unnecessary tools, debris, furniture, etc.

10. NEVER USE IN PRESENCE OF FLAMMABLE LIQUIDS OR GASES.

The Stapler produces sparks during operation.

Never use the Stapler in sites containing lacquer, paint, benzine, thinner, gasoline, gases, adhesive agents, and other materials which are combustible or explosive.

11. KEEP VISITORS AWAY.

Do not let visitors handle the Stapler.

All visitors should be kept safely away from work area.

12. DRESS PROPERLY.

Do not wear loose clothing or jewelry as they can be caught in moving parts.

Rubber gloves and nonskid footwear are recommended when working outdoors.

Wear protective hair covering to contain long hair.

13. NEVER USE NON RELIEVING COUPLER ON STAPLER.

If a non relieving coupler is used on the Stapler, the Stapler can remain charged with air after disconnecting and thus will be able to drive a fastener even after disconnecting. The Stapler and air hose must have a hose coupling such that all pressure is removed from the Stapler when the coupling joint is disconnected.

14. CHECK PUSH LEVER BEFORE USE.

Make sure the push lever operates properly. (The push lever may be called "Safety".) Never use the Stapler unless the push lever is operating properly, otherwise the Stapler could drive a fastener unexpectedly. Do not tamper with or remove the push lever, otherwise the push lever becomes inoperable.

15. KEEP ALL SCREWS AND COVERS TIGHTLY IN PLACE.

Keep all screws and covers tightly mounted. Check their condition periodically.

Never use the Stapler if parts are missing or damaged.

SAFETY — Continued

WARNING

16. DO NOT LOAD FASTENERS WITH TRIGGER PULLED OR PUSH LEVER DEPRESSED.

When loading fasteners into the Stapler or when connecting the air hose,

1) do not pull the trigger;
2) do not depress the push lever; and
3) keep the Stapler pointed downward.

17. KEEP HANDS AND FEET AWAY FROM FIRING HEAD DURING USE.

Never place your hands or feet closer than 8 inches (200 mm) from the firing head.

A serious injury can result if the fasteners are deflected by the workpiece, or are driven away from the point of entry.

18. PLACE STAPLER PROPERLY ON WORKPIECE.

Do not drive fasteners on top of other fasteners or with the Stapler at too steep of an angle; the fasteners can ricochet and hurt someone.

19. BE CAREFUL OF DOUBLE FIRE DUE TO RECOIL.

If the push lever is unintentionally allowed to re-contact the workpiece following recoil, an unwanted fastener will be driven.

In order to avoid this undesirable double fire,

1) do not push the Stapler on the workpiece with strong force;
2) take the Stapler completely away from the workpiece using recoil, and keep the push lever away from the workpiece until the next desirable shot; and
3) pull the trigger and release it QUICKLY when performing intermittent operation (trigger fire).

20. DO NOT DRIVE FASTENERS INTO THIN BOARDS OR NEAR CORNERS AND EDGES OF WORKPIECE.

The fasteners can be driven through or away from the workpiece and hit someone.

21. NEVER DRIVE FASTENERS FROM BOTH SIDES OF A WALL AT THE SAME TIME.

The fasteners can be driven into and through the wall and hit a person on the opposite side.

22. CHECK FOR LIVE WIRES.

Avoid the risk of severe electrical shock by checking for live electrical wires that may be hidden by walls, floors or ceilings. Turn off the breaker switch to ensure there are no live wires.

23. NEVER CARRY STAPLER BY HOSE.

24. DO NOT OVERREACH.

Keep proper footing and balance at all times

25. NEVER USE STAPLER WHICH IS DEFECTIVE OR OPERATING ABNORMALLY.

If the Stapler appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

26. DO NOT DISCONNECT AIR HOSE FROM STAPLER WITH FINGER ON TRIGGER.

The Stapler can fire when re-connected to an air supply.

SAFETY — Continued

WARNING

27. DISCONNECT AIR HOSE FROM STAPLER WHEN:

1) doing maintenance and inspection;
2) clearing a jam;
3) it is not in use;
4) leaving work area;
5) moving it to another location; and
6) handing it to another person.

Never attempt to clear a jam or repair the Stapler unless you have disconnected air hose from the Stapler and removed all remaining fasteners from the Stapler.

The Stapler should never be left unattended since people who are not familiar with the Stapler might handle it and injure the themselves.

28. STAY ALERT.

Watch what you are doing. Use common sense.

Do not operate the Stapler when you are tired.

The Stapler should never be used by you if you are under the influence of alcohol, drugs or medication that makes you drowsy.

29. HANDLE STAPLER CORRECTLY.

Operate the Stapler according to this Manual.

Never allow the Stapler to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

30. NEVER USE STAPLER FOR APPLICATIONS OTHER THAN THOSE SPECIFIED IN THIS MANUAL.

31. HANDLE STAPLER CAREFULLY.

Because of high air pressure in the Stapler, cracks in the surface are dangerous.

To avoid this, do not drop the Stapler or strike the Stapler against hard surfaces; and do not scratch or engrave signs on the Stapler. Handle the Stapler carefully.

32. MAINTAIN STAPLER WITH CARE.

Keep the Stapler clean and lubricated for better and safer performance.

33. USE ONLY PARTS, ACCESSORIES OR FASTENERS SUPPLIED OR RECOMMENDED BY HITACHI.

Unauthorized parts, accessories, or fasteners may void your warranty and can lead to malfunction and resulting injuries.

Only service personnel trained by Hitachi, distributor or employer shall repair the Stapler.

34. NEVER MODIFY OR ALTER A STAPLER.

Doing so may cause it to malfunction and personal injuries may result.

SAFETY — Continued

WARNING

EMPLOYER'S RESPONSIBILITIES

1. Ensure that this MANUAL is available to operators and personnel performing maintenance.
2. Ensure that Staplers are used only when operators and others in work area are wearing EYE PROTECTOR.
3. Enforce the use of EYE PROTECTOR by operators and others in work area.
4. Keep Staplers in safe working order.
5. Maintain Staplers properly.
6. Ensure that Staplers which require repair are not further used before repair.

SAVE THIS MANUAL AND KEEP IT AVAILABLE FOR OTHERS!

OPERATION

NOTE:

The information contained in this Manual is designed to assist you in the safe operation of the Stapler.

Some illustrations in this Manual may show details or attachments that differ from those on your own Stapler.

NAME OF PARTS

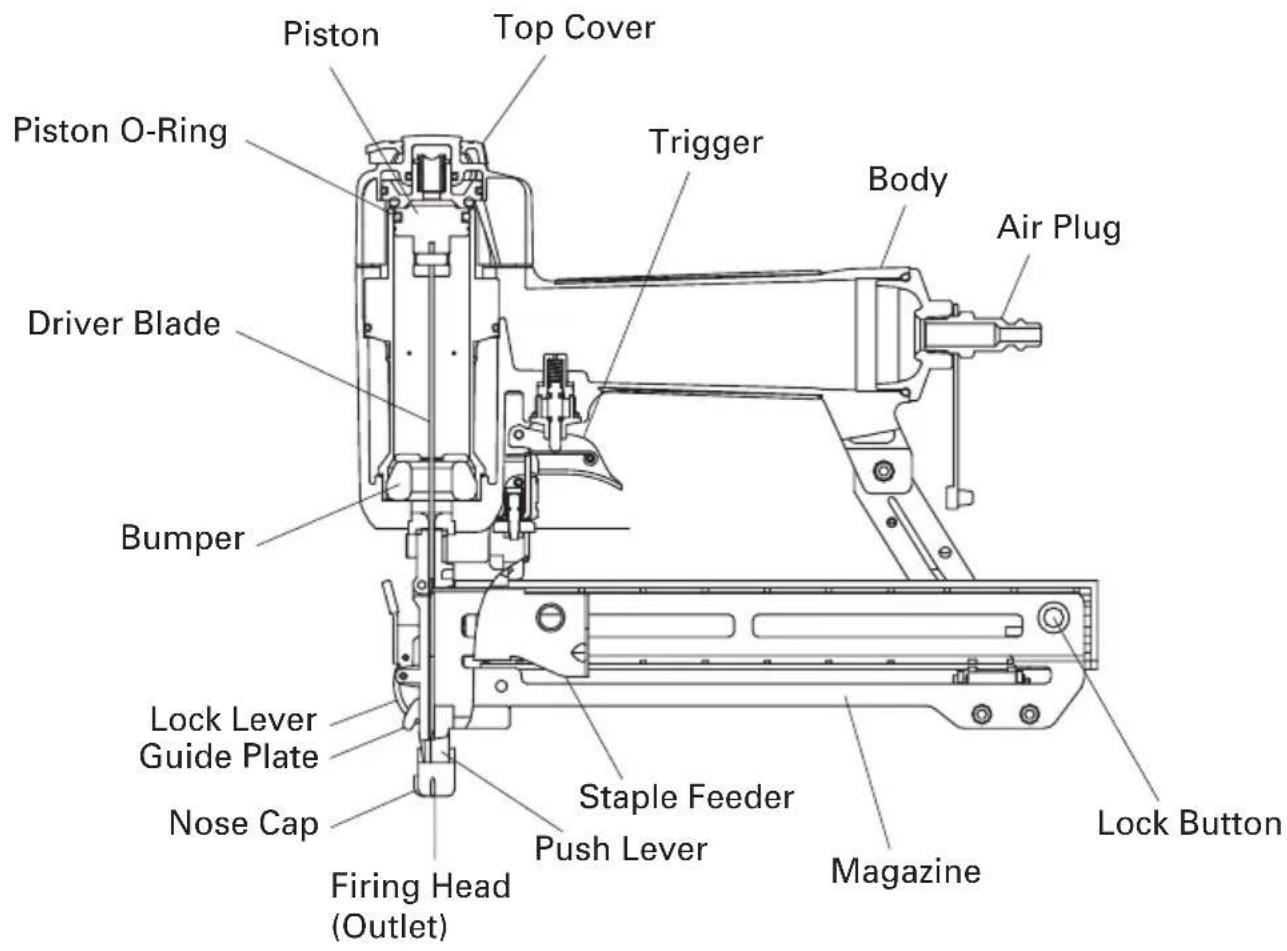

Piston Top Cover Piston O-Ring Trigger Body Air Plug Driver Blade Bumper Lock Lever Guide Plate Nose Cap Firing Head (Outlet) Staple Feeder Push Lever Magazine Lock Button

Ribbon Spring

SPECIFICATIONS

Operating pressure 70 – 120 psi	(4.9 – 8.3 bar 5 – 8.5 kgf/cm ^2 )
DimensionsLength × Height × Width	10-1/2" × 9-1/4" × 2-1/8"(267 mm × 235 mm × 54 mm)
Weight 2.4 lbs. (1.1 kg)
Nail capacity 130 Staples
Air consumption (.78 ltr/cycle at 6.9 bar)	.027 ft ^3 /cycle at 100 psi(.78 ltr/cycle at 7 kgf/cm ^2 )

STAPLE SELECTION

Only staples shown in the Table below can be driven with this Stapler.

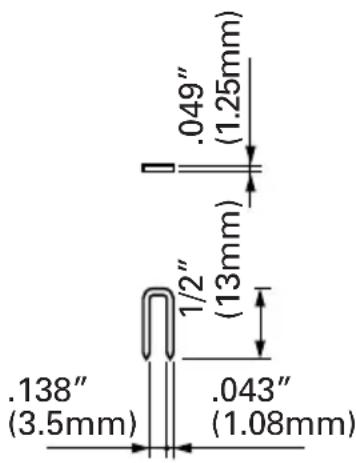

Dimensions of staples

18 Gauge 1/4” Crown
Min. Max.

ACCESSORIES

WARNING

●Accessories other than those shown below can lead to malfunction and resulting injuries.

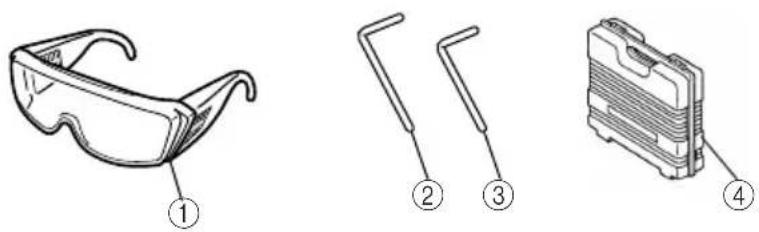

STANDARD ACCESSORIES

1Safety glasses 1
2Allen wrench for M5 screw 1
3Allen wrench for M4 screw 1
4Case 1

OPTIONAL ACCESSORIES ... sold separately

○Sequential Trip Mechanism Kit

(Single Shot Parts) (Code No. 882332)

○Pneumatic Tool Lubricant

.8 oz. (25 cc) oil feeder (Code No.877153)

4 oz. (120 cc) oil feeder (Code No.874042)

1 quart (1 ltr) can (Code No.876212)

NOTE:

Accessories are subject to change without any obligation on the part of HITACHI.

APPLICATIONS

○Making cases for furniture

○Creating walls and other areas in mobile homes.

○Making doors and windows for home construction.

BEFORE OPERATION

Read section titled "SAFETY" (pages 4 – 8).

Make sure of the following before operation.

WORKING ENVIRONMENT

WARNING

●No flammable gas, liquid or other flammable objects at worksite.

●Clear the area of children or unauthorized personnel.

AIR SUPPLY

DANGER

●NEVER use oxygen or other bottled gases. Explosion may occur.

WARNING

●Never connect Stapler to pressure which potentially exceeds 200 psi (13.7 bar 14 kgf/cm²).

●Never use non relieving coupler on Stapler.

1. Power source

○Use only clean, dry, regulated compressed air as a power source for this Stapler.
○Air compressors used to supply compressed air to this Stapler must comply with the requirements of the latest version of ANSI Standard B 19.3 "Safety Standard For Compressors For Process Industries."
○Moisture or oil in the air compressor may accelerate wear and corrosion in the Stapler. Drain daily.

1. Filter-Regulator-Lubricator

○Use a regulator with a pressure range of 0 – 120 psi (0 – 8.3 bar 0 – 8.5 kgf/cm ^2 ).

○ Filter-regulator-lubricator units supply an optimum condition for the Stapler and extend the Stapler life. These units should always be used.

Filter ...... The filter removes moisture and dirt mixed in compressed air.

Drain daily unless fitted with an automatic drain.

Keep the filter clean by regular maintenance.

Regulator ..... The regulator controls the operating pressure for safe operation of the Stapler.

Inspect the regulator before operation to be sure it operates properly.

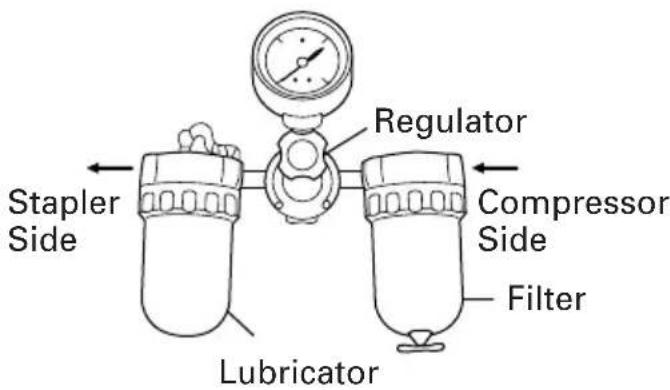

Regulator Stapler Side Compressor Side Filter Lubricator

Lubricator .... The lubricator supplies an oil mist to the Stapler.

Inspect the lubricator before operation to be sure the supply of lubricant is adequate.

Use Hitachi pneumatic tool lubricant.

3. Air hose

Air hose must have a minimum working pressure rating of 150 psi (10.4 bar 10.6 kgf/cm ^2 ) or 150% of the maximum pressure produced in the system, whichever is higher.

4. Air consumption

Using the Air consumption table and the Air compressor size formula, find a correct compressor size.

Air consumption table

	psi 80 90 100
Operating pressure (bar) (5.5) (6.2) (6.9) (kgf/cm2) (5.6) (6.3) (7)
Air consumption	ft3/cycle .019 (ltr/cycle) (.54) (.67) (78)

Air compressor size formula

Amount of air required

=number of Staplers

×average staples driven each minute per Stapler
×air consumption at given air pressure
×safety factor (always 1.2)

Example: 3 Staplers (N3804AB2) operating at 100 psi driving 30 staples per minute

Amount of air required

$$ \begin{array}{l} = 3 \times 3 0 \times . 0 2 7 (. 7 8) \times 1. 2 \ = 3. 0 \text { CFM } (\mathrm{ft} ^ {3} / \min) (8 4 \mathrm{ltr} / \min) \ \end{array} $$

After making the calculations as shown above, you should find a compressor providing

3.0 CFM of air that is required.

LUBRICATION

It is important that the Stapler be properly lubricated.

Without proper lubrication, the Stapler will not work properly and parts will wear prematurely.

○Use Hitachi pneumatic tool lubricant.

Do not use detergent oil or additives. These lubricants will harm the O-rings and other rubber parts. This will cause the Stapler to malfunction.

○Filter-regulator-lubricator units should always be used.

Keep the lubricator filled with Hitachi pneumatic tool lubricant.

☐ If a lubricator is not available, supply 5 – 10 drops of Hitachi pneumatic tool lubricant into the air plug on the Stapler twice a day.

COLD WEATHER CARE

○Do not store the Stapler in a cold weather environment.

Keep the Stapler in a warm area until beginning the work.

○If the Stapler is already cold, bring it in a warm area and allow the Stapler to warm up before use.

①Reduce the air pressure to 40 psi (2.8 bar 2.8 kgf/cm ^2 ).
②Remove all staples from the Stapler.
③Connect the air hose and free-fire (blank-fire) the Stapler.

The lowered air pressure will be enough to free-fire the Stapler.

Slow speed operation tends to warm up the moving part.

CAUTION:

●Do not free-fire the Stapler at high pressure.

TESTING THE STAPLER

DANGER

Simple line drawing of a person wearing sunglasses (no text or symbols)

●Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications.

WARNING

●Never use Stapler unless push lever is operating properly.

Before actually beginning the stapling work, test the Stapler by using the checklist below. Conduct the tests in the following order.

If abnormal operation occurs, stop using the Stapler and contact a Hitachi authorized service center immediately.

(1) DISCONNECT AIR HOSE FROM STAPLER. REMOVE ALL STAPLES FROM STAPLER.

☐ALL SCREWS MUST BE TIGHTENED. If any screws are loose, tighten them.

Line drawing of a hand operating a push-up drill press (no text or symbols)

☐THE PUSH LEVER AND TRIGGER MUST MOVE SMOOTHLY.

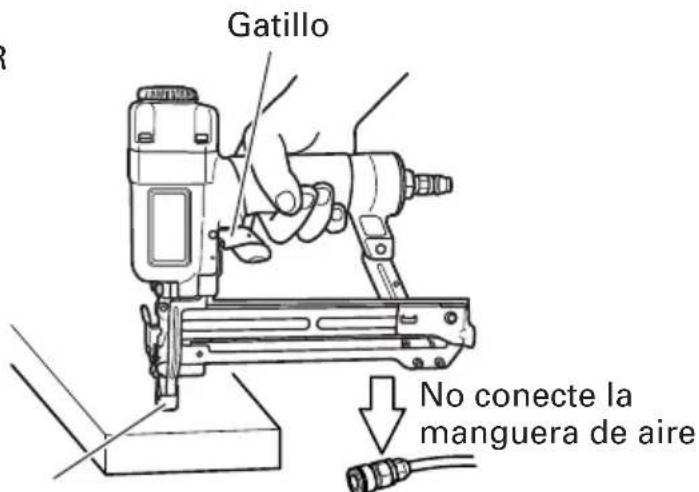

Trigger

Push Lever Do not connect air hose

(2) Adjust the air pressure to 70 psi (4.9 bar 5 kgf/cm ^2 ).

Connect the air hose.

Do not load any staples in the Stapler.

□THE STAPLER MUST NOT LEAK AIR.

Hold the Stapler downward and pull the trigger.

Line drawing of a hand using a power tool to install a voltage regulator (no text or symbols present)

Push Lever Pull Trigger

(3) With finger off the trigger, depress the push lever against the workpiece.

Do not pull Trigger

Depress Push Lever

(4) Without touching the trigger, depress the push lever against the workpiece. Pull the trigger.

☐THE STAPLER MUST OPERATE.

(5) With the Stapler off the workpiece, pull the trigger. Depress the push lever against the workpiece.

(6) If no abnormal operation is observed, you may load staples in the Stapler. Drive staples into the workpiece that is the same type to be used in the actual application.

Adjust the air pressure at recommended operating pressure 70 – 120 psi (4.9 – 8.3 bar 5 – 8.5 kgf/cm ^2 ) according to the length of staples and the hardness of workpiece.

The correct air pressure is the lowest pressure which will do the job. Using the Stapler at a higher than required air pressure unnecessarily over stresses the Stapler.

LOADING STAPLES

WARNING

●When loading staples into Stapler,

1) do not pull trigger;
2) do not depress push lever; and
3) keep Stapler pointed downward.

(1) Pull the staple feeder backward, and confirm that the lock button is securely lodged in the lock button hole on the staple feeder.

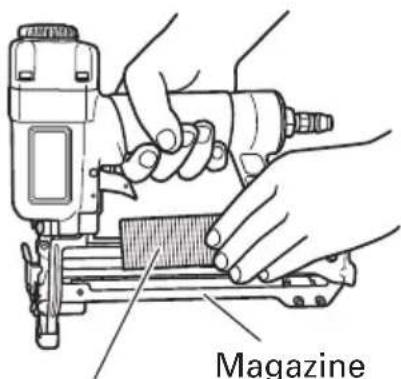

(2) Place the staple strip over the magazine. Make sure that the staple strip slides freely on the magazine.

Lock Button

Staple Feeder

Magazine

Staple

(3) Pull the staple feeder backward slightly, and press in the lock button. Push the staple feeder forward. Gently set the staple feeder to the back of the loaded staples.

The Stapler is now ready to operate.

Lock Button ① ② ③ Staple Feeder

CAUTION:

If the staple feeder is released all of a sudden, it can return abruptly, causing deformation and/or scatter, eventually ending up in clogged staples.

Be absolutely sure to bring back the staple feeder, avoiding any impact.

STAPLER OPERATION

Read section titled "SAFETY" (pages 4 – 8).

DANGER

Simple line drawing of a person wearing sunglasses (no text or symbols)

●Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications.

WARNING

Silhouette of a hand with a pen, no text or symbols present

- NEVER point tool at yourself or others in work area. - Keep fingers AWAY from trigger when not driving staples to avoid accidental firing. - Choice of triggering method is important. Please read and understand "METHODS OF OPERATION" found below.

●Never place your hands or feet closer than 8 inches (200 mm) from firing head when using.
●Do not drive staples on top of other staples or with Stapler at too steep of an angle; staples can ricochet and hurt someone.
●In order to avoid double fire or unwanted ejection of a staple due to bouncing of the Stapler.

1) do not push Stapler on workpiece with strong force;
2) take Stapler away from workpiece using recoil;
3) release trigger quickly when performing trigger fire.

●Do not drive staples into thin boards or near corners and edges of workpiece. Staples can be driven through or away from workpiece and hit someone.
●Never drive staples from both sides of a wall at the same time. Staples can be driven into and through the wall and hit a person on the opposite side.
●Never use Stapler which is defective or operating abnormally.
●Do not use Stapler as hammer.
●Disconnect air hose from Stapler when:

1) it is not in use;
2) leaving work area;
3) moving it to another location; and
4) handing it to another person.

This Hitachi Stapler has a STANDARD CONTACT TRIP MECHANISM (Bounce File). An OPTIONAL SEQUENTIAL TRIP MECHANISM kit (SINGLE SHOT) is available as order part number 882332.

THE STANDARD CONTACT TRIP MECHANISM (Bounce Fire) is for use where rapid fastener placement is desired and must be operated in accordance with the following “Methods of Operation”.

METHODS OF OPERATION

This Stapler is equipped with the push lever and does not operate unless the push lever is depressed (upward position).

There are two methods of operation to drive staples with this Stapler.

They are:

1. Intermittent operation (Trigger fire):
2. Continuous operation (Push lever fire):

(1) Intermittent operation (Trigger fire)

①Position the staple outlet on the workpiece with finger off the trigger.
②Depress the push lever firmly until it is completely depressed.
③Pull the trigger to drive a staple.
④Remove finger from the trigger.

To drive another staple, move the Stapler along the workpiece and repeat this procedure.

Push Lever Trigger

(2) Continuous operation (Push lever fire)

①Pull the trigger with the Stapler off the workpiece.
②Depress the push lever against the workpiece to drive a staple.
③Move the Stapler along the workpiece with a bouncing motion.

Each depression of the push lever will drive a staple.

As soon as the desired number of staples have been driven, remove finger from the trigger.

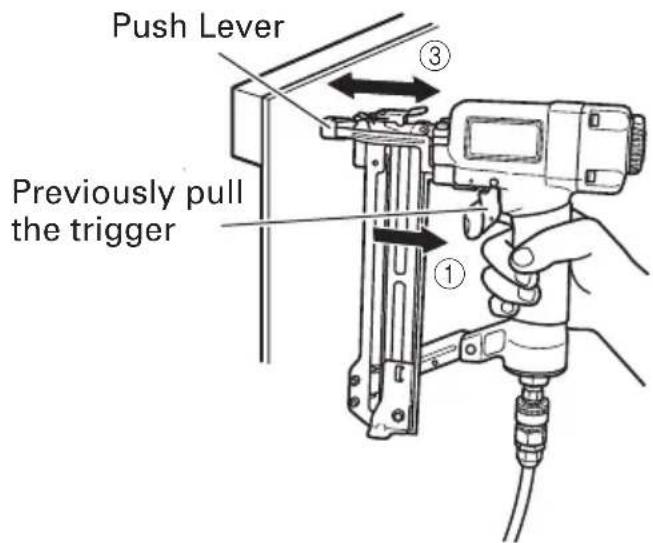

Push Lever Previously pull the trigger

WARNING

• Keep your finger off the trigger except during fastening operation, because serious injury could result if the push lever accidentally contacts you or others in work area.
• Keep hands and body away from the discharge area. The Stapler with contact trip mechanism may bounce from the recoil of driving a fastener and unwanted subsequent fastener may be driven, possibly causing injury.
  ●Some types of loaded staples can spark out of the muzzle during a nail driving operation. Exercise caution!

THE OPTIONAL SEQUENTIAL TRIP MECHANISM (SINGLE SHOT PARTS) is for use where precision fastener placement is desired and must be operated in accordance with the following "Method of Operation".

You must first depress the push lever (upward position) where you want to drive a staple and then pull the trigger. After the each staple is driven, completely release the trigger and lift the tool off the work surface. An OPTIONAL SEQUENTIAL TRIP MECHANISM may reduce the possibility of bodily injury to you or others in the work area. This is because it is less likely to drive an unwanted staple if you keep the trigger pulled and accidentally bump the push lever against yourself or others. An OPTIONAL SEQUENTIAL TRIP MECHANISM may also reduce the speed of operation compared to the standard contact trip mechanism.

NOTE:

●Both STANDARD CONTACT TRIP MECHANISM and OPTIONAL SEQUENTIAL TRIP MECHANISM are safe if used as described above and according to all warnings and instructions.
●Always handle staples and package carefully. If staples are dropped, collating bond may be broken.

●After stapling:

1) disconnect air hose from the Stapler;
2) remove all staples from the Stapler;
3) supply 5 – 10 drops of Hitachi pneumatic tool lubricant into the air plug on the Stapler; and
4) open the petcock on the air compressor tank to drain any moisture.

ADJUSTING THE STAPLING DEPTH

To assure that each staple penetrates to the same depth, be sure that:

1) the air pressure to the Stapler remains constant (regulator is installed and working properly), and
2) the Stapler is always held firmly against the workpiece.
If staples are driven too deep or shallow into the workpiece, adjust the stapling in the following order.

①DISCONNECT AIR HOSE FROM STAPLER.

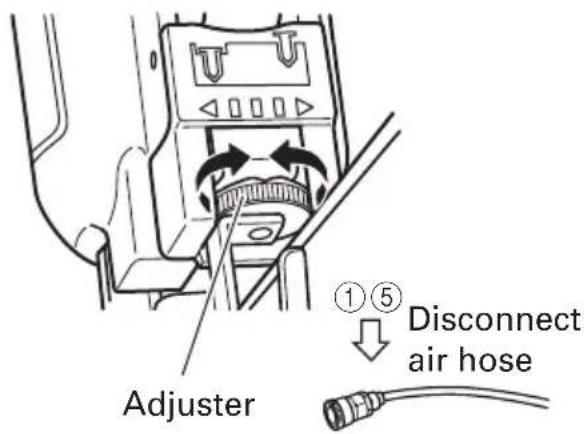

Adjuster ①⑤ Disconnect air hose

②If staples are driven too deep, turn the adjuster to the shallow side.

Adjustments are in half-turn increments.

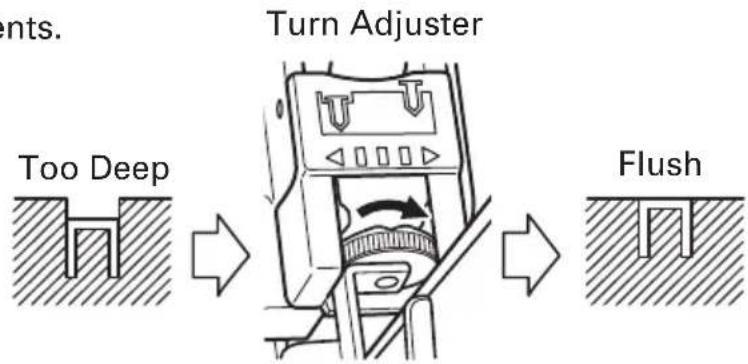

Turn Adjuster Too Deep Flush

③If staples are driven too shallow, turn the adjuster to the deep side.

Stop turning the adjuster when a suitable position is reached for a stapling test.

Suitable t. Too Shallow Turn Adjuster Flush

④Connect the air hose.

ALWAYS WEAR SAFETY GLASSES.

Perform a stapling test.

⑤DISCONNECT AIR HOSE FROM STAPLER.
⑥Choose a suitable position for the adjuster.

CHANGING THE EXHAUST DIRECTION

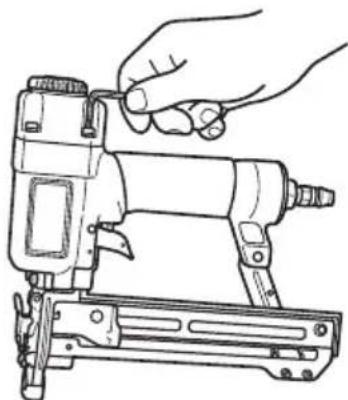

The direction of the exhaust vent can be changed by turning the top cover.

Top Cover Exhaust Vent

DISCONNECTING THE NOSE CAP

When nose cap is not needed, disconnect the nose cap from push lever.

①DISCONNECT AIR HOSE FROM STAPLER.
②Distend nose cap and pull out in a downwards motion.

Nose Cap ① Disconnect air hose

NOTE:

●Removing nose cap will make penetration depth increase by the thickness of the nose cap. Readjust penetration depth.

MAINTENANCE

NOTE:

The information contained in this Manual is designed to assist you in the safe maintenance of the Stapler.

Some illustrations in this Manual may show details or attachments that differ from those on your own Stapler.

MAINTENANCE AND INSPECTION

Read section titled "SAFETY" (pages 4 – 8).

WARNING

●Disconnect air hose and remove all staples from Stapler when:

1) doing maintenance and inspection; and
2) clearing a jam.

1. Clearing a jam

Remove a jammed staple in the following order:

①DISCONNECT AIR HOSE.
②Remove all staples.

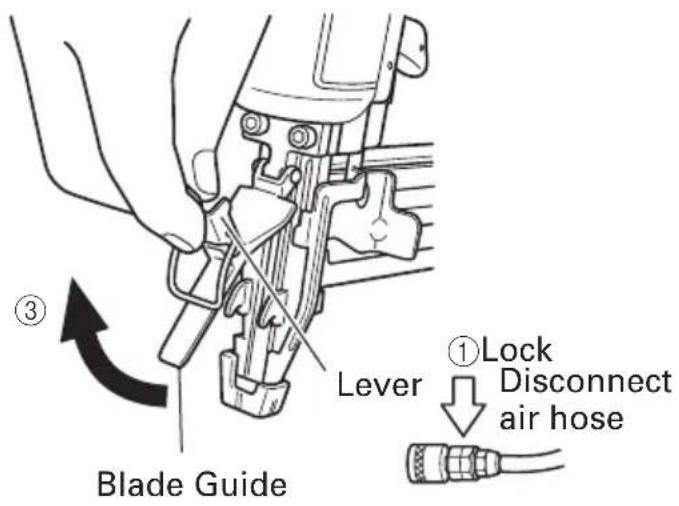

③Release the lock lever and open the blade guide.

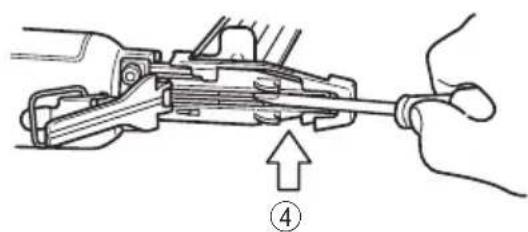

④Remove the jammed staple with a slotted-head screwdriver.
⑤Close the blade guide and latch.
⑥In case of frequent jam, contact a Hitachi authorized service center.

③ Blade Guide Lever ①Lock Disconnect air hose

Mechanical assembly diagram showing a hand turning a tool with an arrow indicating direction (no text or symbols present)

1. Maintenance chart (See page 24)
2. Operator troubleshooting (See page 25)
3. Storing

○When not in use for an extended period, apply a thin coat of the lubricant to the steel parts to avoid rust.

○Do not store the Stapler in a cold weather environment.

Keep the Stapler in a warm area.

○When not in use, the Stapler should be stored in a warm and dry place.

Keep out of reach of children.

1. WARNING LABEL

Change the WARNING LABEL if missing or damaged.

A new WARNING LABEL is available from a Hitachi authorized service center.

1. Service parts list

A: Item No.
B: Code No.
C: No. Used
D: Remarks

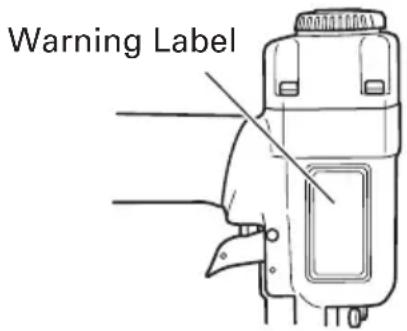

Warning Label

CAUTION:

●Repair, modification and inspection of Hitachi Power Tools must be carried out by an Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

SERVICE AND REPAIRS

WARNING

●Only service personnel trained by Hitachi, distributor or employer shall repair the Stapler.
●Use only parts supplied or recommended by Hitachi for repair.

All quality Staplers will eventually require servicing or replacement of parts because of wear from normal use.

NOTE:

Specifications are subject to change without any obligation on the part of HITACHI.

Maintenance chart

ACTION WHY HOW
Drain air line filter daily.	Prevent accumulation of moisture and dirt.	Open manual petcock.
Keep lubricator filled. Keep the	The Stapler lubricated.	Fill with Hitachi pneumatic tool lubricant.
Clean filter element — then blow air through filter in direction opposite to normal flow.	Prevent clogging of filter with dirt. instructions.	Follow manufacturer's
Clean magazine and feeder mechanism.	Prevent a jam. Blow clean daily.
Keep push lever working properly.	Promote operator safety and efficient Stapler Blow clean daily.
Lubricate the Stapler after stapling. lubricant into the Stapler.	Extend the Stapler life.	Supply 5 – 10 drops of
Drain air compressor.	Keep the Stapler operated O properly. compressor tank.	open petcock on air

Operator troubleshooting

Most minor problems can be resolved quickly and easily using the table below. If problems persist, contact a Hitachi authorized service center for assistance.

PROBLEM CHECK M	METHOD CORRECTION
Stapler operates but no Ribbon staple is driven. damaged?	Check for a jam. Clean jam per page 22.
	Staple feeder damaged? Replace staple feeder.
	on spring weakened or replace ribbon spring.
	Check for proper staples.	Use only recommended staples.
Weak drive.Slow to cycle. lubricant.	Check air pressure. (Do not exceed 120 psi (8.3 bar 8.5 kgf/cm2))
	—	Use Hitachi pneumatic tool
	Driver blade worn?	Contact Hitachi for replacement.
	Piston O-ring worn or damaged?
Drives too deep. Check air presure.		Reduce air pressure.(Adjust 70 – 120 psi)
Skipping staples.Intermittent feed.	Check for proper staples.	Use only recommended staples.
	Staple feeder damaged? Repalce staple feeder.
	Ribbon spring weakened or damaged?	Replace ribbon spring.
	Piston O-ring worn or Contact Hitachi for damaged? replacement.
Staples jam.Driven staple is bent.	Check for proper staples.	Use only recommended staples.
	Driven blade worn?	Contact Hitachi for replacement.
Drives properly during normal operation, but Check does not drive fully at air hose faster stapling speeds.	inside diameter of	Use larger air hose.

INFORMATION IMPORTANTE

Silhouette of a person reading a book (no text or symbols)

Simple line drawing of a person wearing sunglasses (no text or symbols)

Silhouette of a human hand with a pen inserted, no text or symbols present

Dimensions of staples

Calibre 18 Couronne 1/4"
Min. Max.

ACCESSOIRES

⚠ AVERTISSEMENT

Simple line drawing of a person wearing sunglasses (no text or symbols)

Line drawing of a hand using a power tool to adjust or install a component (no text or symbols visible)

□LE LEVIER-POUSSOIR ET LA GACHETTE DOIVENT FONCTIONNER AVEC SOUPLESSE.

Gâchette

Line drawing of a hand using a high-voltage power tool to install a component (no text or symbols present)

Simple line drawing of a person wearing sunglasses (no text or symbols)

Silhouette of a hand with a pen inserted, no text or symbols present

A rasTrop pi

Diagram of hands operating a mechanical device with rotating arrows indicating motion (no text or symbols)

Event d'échappement

DÉCONNEXION DU CAPUCHON AVANT

Mechanical assembly diagram showing a clamping mechanism with arrows indicating motion (no text or symbols present)

Capuchon avant

Mechanical assembly diagram showing a hand turning a tool into a mechanical component (no text or symbols present)

Silhouette of a person reading a book (no text or symbols)

Simple line drawing of a person wearing sunglasses (no text or symbols)

Silhouette of a hand with a pen inserted, no text or symbols present

=3,0 CFM (pies ^3 /min) (84 litros/min)

Simple line icon of a person wearing sunglasses (no text or symbols)

Line drawing of a hand using a high-voltage power tool (no text or symbols)

□LA PALANCA DE EMPUJE Y EL GATILLO DEBERÁN PODER ACCIONARSE SIN DIFICULTAD.

Gatillo No conecte la manguera de aire

Palanca de empuje

Line drawing of a hand using a power tool to install a component (no text or symbols visible)

Simple line drawing of a person wearing sunglasses (no text or symbols)

Silhouette of a hand with a pen, no text or symbols present

Mechanical assembly diagram showing a bracket and a housing component with directional arrows (no text or symbols)

Tapa para el morro

① Desconecte la manguera de aire

NOTA:

Mechanical assembly diagram showing a hand turning a tool with an arrow indicating direction (no text or symbols present)

Exploded view diagram of a refrigerator internal components with numbered parts and exploded view

A	B	C	D
1 882-270	1
2 882-271	4 M5 × 20
3 882-272	1
4 882-273	1
5 882-274	1
6 882-275	1 I.D.13.8
7 882-276	1
8 882-277	1 I.D.31.8
9 882-278	1 I.D.23
10 882-279	1
11 882-282	1
12 885-048	1
13 882-281	1 I.D.43
14 882-333	1
15 882-286	1
16 882-287	1
17 882-300	1
18 ————	1
19 885-049	1
20 882-288	1
21 885-065	1
22 885-064	1
23 885-071	1
24 885-072	1
25 885-073	1
26 885-063	1
27 885-062	1
28 882-316	3 M4
29 882-302	1 I.D.37
30 882-303	1
31 885-050	1
32 882-304	1
33 882-296	2
34 882-297	1
35 882-298	1
36 882-299	2 D2.5 × 16
37 882-306	2 D3 × 25
38 ————	1
39 882-289	1
40 882-290	1
41 882-291	1
42 882-293	2 I.D.2.5
43 882-292	1
44 882-294	1 I.D.13
45 882-295	1
46 882-307	1
47 885-058	1
48 885-059	1
49 885-061	1
50 882-314	1 M5 × 16

A	B	C	D
51	885-060	1 D2.5
52	882-313	2 M5 × 20
53	885-053	1
54	885-056	1
55	885-057	1
56	885-055	1
57	885-068	1 D3
58	885-070	1
59	885-069	1
60	885-066	1
61	885-067	1
62	882-338	1
63	885-051	1
64	885-052	1
65	885-054	1
66	882-366	2 M4 × 10
501	943-277	1 3MM
502	944-458	1 4MM
503	875-769	1
504	885-074	1
505	885-075	1
506	885-076	1

Line drawing of a quill pen with inkwell (no text or symbols)

Line drawing of a quill pen with inkwell (no text or symbols)

Issued by

Hitachi Koki Co., Ltd.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome,

Minato-ku, Tokyo 108-6020, Japan

Distributed by

Hitachi Koki U.S.A., Ltd.

3950 Steve Reynolds Blvd.

Norcross, GA 30093

Hitachi Koki Canada Co.

6395 Kestrel Road

Mississauga ON L5T 1Z5
