N5010A - Stapler HITACHI - Free user manual and instructions
Find the device manual for free N5010A HITACHI in PDF.
| Product type | Pneumatic stapler |
| Brand | Hitachi |
| Model | N5010A |
| Dimensions (L × H × W) | 365 mm × 258 mm × 76 mm |
| Weight | 2.0 kg |
| Power source | Clean, dry, regulated compressed air |
| Recommended operating pressure | 70 - 120 psi (4.9 - 8.3 bars / 5 - 8.5 kgf/cm²) |
| Maximum allowable pressure | 120 psi (8.3 bars / 8.5 kgf/cm²) |
| Magazine capacity | 150 staples |
| Air consumption | 0.040 ft³/cycle at 100 psi (1.1 l/cycle at 6.9 bars) |
| Staple type | Original Hitachi staples, gauge 16, crown 1/2", length 9.8 mm - 15 mm |
| Trigger mechanism | Standard contact (strip actuation); sequential option (single nailing) available |
| Main functions | Intermittent operation (trigger actuation) and continuous operation (pusher lever actuation); depth adjustment |
| Included accessories | Safety glasses, Allen key for M5 screw |
| Optional accessories | Sequential trigger mechanism (ref. 876762), Hitachi pneumatic tool oil (30 cc, 120 cc or 1 l) |
| Applications | Wall sheathing, roof panels, floor underlayment, mobile and modular homes, crate and pallet manufacturing |
| Safety | Wear safety glasses with side shields meeting ANSI Z87.1; hearing protection and hard hat recommended; never use oxygen or bottled gas |
| Maintenance and cleaning | Daily lubrication with Hitachi pneumatic tool oil; drain filter and compressor daily; clean magazine and pusher lever |
| Spare parts and repairability | Repairs only by an authorized Hitachi after-sales service; use genuine Hitachi parts |
| Storage | Store in a dry and warm place, out of reach of children; drain air and oil before storage |
Frequently Asked Questions - N5010A HITACHI
User questions about N5010A HITACHI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Stapler in PDF format for free! Find your manual N5010A - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. N5010A by HITACHI.
USER MANUAL N5010A HITACHI
Instruction and safety manual
Improper use of this Stapler can result in death or serious injury!
This Manual contains important information about product safety.
Read and understand this Manual before operating the Stapler.
Keep this Manual available for others before they use the Stapler.
Never allow anyone who has not reviewed this manual.
DANGER
METHODS OF OPERATION 12
ADJUSTING THE STAPLING DEPTH 13
MAINTENANCE
MAINTENANCE AND INSPECTION 14
SERVICE AND REPAIRS 15
PARTS LIST 47
TABLE DES MATIERES
Français
Page
Page
INFORMATIONS IMPORTANTES DE SECURITE 17
DEFINITION DES MOTS DE SIGNALISATION 17
SECURITE
CONSIGNES DE SECURITE IMPORTANTES
POUR L'UTILISATION DE L'AGRAFEUSE 18
RESPONSABILITIES DE L'EMPLOYEUR 20
UTILISATION
NOM DES PIECES 21
SPECIFICATIONS 22
SELECTION DES AGRAFES 22
ACCESSIONES 22
ACCESSOIRESTANDARD 22
ACCESSIONS EN OPTION 22
APPLICATIONS 22

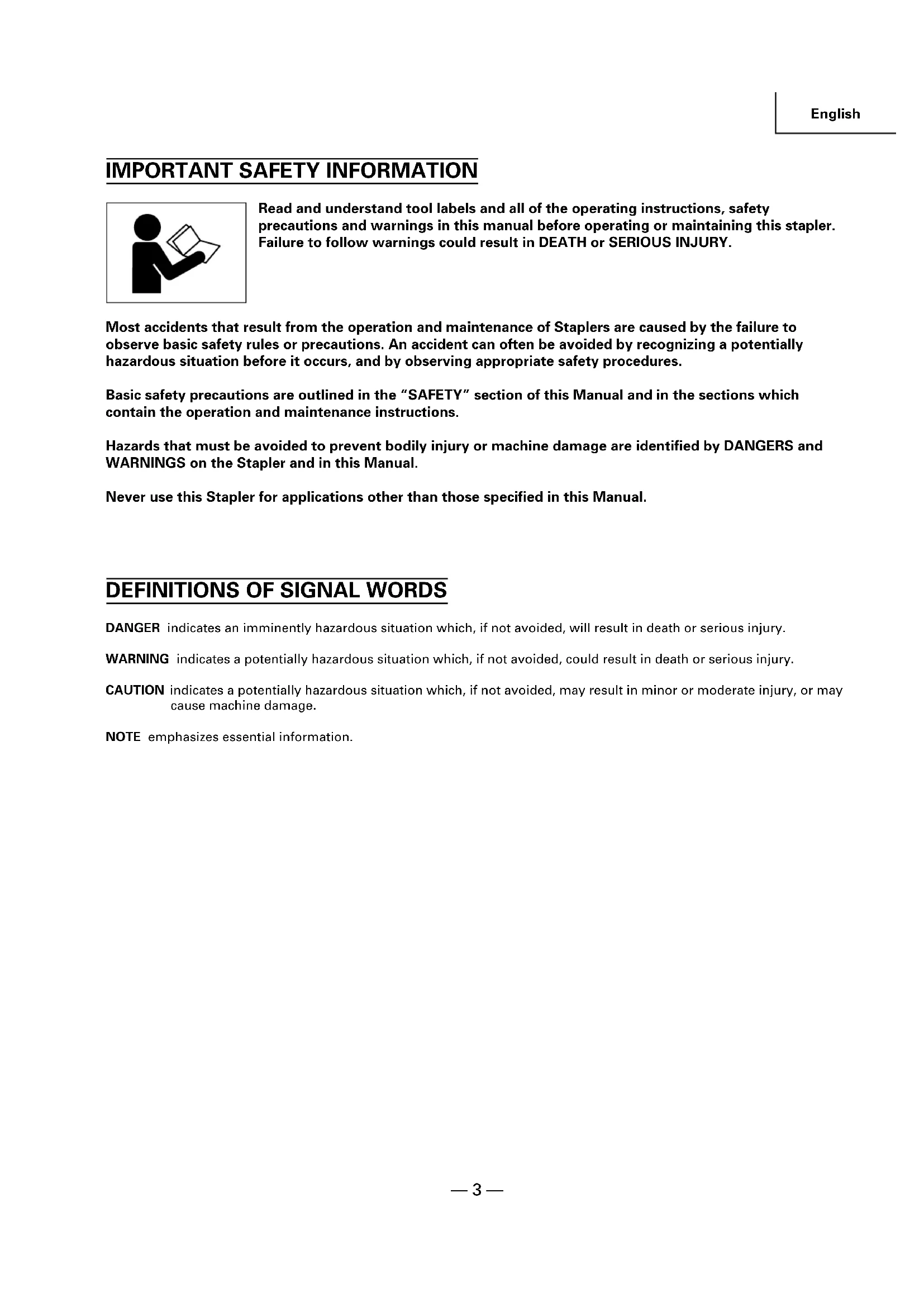

IMPORTANT SAFETY INFORMATION
Read and understand tool labels and all of the operating instructions, safety precautions and warnings in this manual before operating or maintaining this stapler. Failure to follow warnings could result in DEATH or SERIOUS INJURY.
Most accidents that result from the operation and maintenance of Staplers are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.
Basic safety precautions are outlined in the "SAFETY" section of this Manual and in the sections which contain the operation and maintenance instructions.
Hazards that must be avoided to prevent bodily injury or machine damage are identified by DANGERS and WARNINGS on the Stapler and in this Manual.
Never use this Stapler for applications other than those specified in this Manual.
DEFINITIONS OF SIGNAL WORDS
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, or may cause machine damage.
NOTE emphasizes essential information.
SAFETY
IMPORTANT SAFETY INSTRUCTIONS FOR USING STAPLERS
READ ALL INSTRUCTIONS
DANGER
1. OPERATORS AND OTHERS IN WORK AREA MUST WEAR SAFETY GLASSES WITH SIDE SHIELDS.
When operating the Stapler, always wear safety glasses with side shields, and make sure others in work area wear safety glasses, too. Safety glasses must conform to the requirements of American National Standards Institute, ANSI Z87.1 and provide protection against flying particles both from the front and side.
The employer must enforce the use of safety glasses by the Stapler operator and others in work area.
2. NEVER USE OXYGEN OR OTHER BOTTLED GASES. EXPLOSION MAY OCCUR.
Never use oxygen, combustible gases or any other bottled gases as a power source for the
Stapler.
Use of the above gases is dangerous, as the Stapler will explode.
Use only clean, dry, regulated compressed air.
WARNING
3. NEVER POINT TOOL AT YOURSELF OR OTHERS IN WORK AREA.
Always assume the Stapler contains fasteners. Never point the Stapler at yourself toward yourself or others, whether it contains fasteners or not. If fasteners are mistakenly driven, it can lead to severe injuries. Never engage in horseplay with the Stapler. Respect the Stapler as a working implement.
4. KEEP FINGERS AWAY FROM TRIGGER WHEN NOT DRIVING FASTENERS TO AVOID ACCIDENTAL FIRING.
Never carry the Stapler with finger on trigger since you could drive a fastener unintentionally and injure yourself or someone else. Always carry the Stapler by the handle only.
5. CHOICE OF TRIGGERING METHOD IS IMPORTANT.
Read and understand section titled "METHODS OF OPERATION." (pages 12-13)
6. DO NOT EXCEED 120 psi. (8.3 bar 8.5 kgf/cm)
Do not exceed maximum recommended air pressure 120 psi (8.3 bar 8.5kgf/cm^2 ). Never connect the Stapler to pressure which potentially exceeds 200 psi (13.7 bar 14kgf/cm^2 ) as the Stapler can burst.
7. ALWAYS WEAR EAR AND HEAD PROTECTION.
Always wear ear protection to protect your ears from loud noise. Always wear head protection to protect your head from flying objects.
SAFETY - Continued
WARNING
8. STORE STAPLER PROPERLY.
When not in use, the Stapler should be stored in a dry place. Keep out of reach of children. Lock the storage area.
9. KEEP WORK AREA CLEAN.
Cluttered areas invite injuries. Clear all work areas of unnecessary tools, debris, furniture, etc.
10. NEVER USE IN PRESENCE OF FLAMMABLE LIQUIDS OR GASES.
The Stapler produces sparks during operation
Never use the Stapler in sites containing lacquer, paint, benzine, thinner, gasoline, gases, adhesive agents, and other materials which are combustible or explosive.
11. KEEP VISITORS AWAY.
Do not let visitors handle the Stapler.
All visitors should be kept safely away from work area.
12. DRESS PROPERLY.
Do not wear loose clothing or jewelry as they can be caught in moving parts.
Rubber gloves and nonskid footwear are recommended when working outdoors.
Wear protective hair covering to contain long hair.
13. NEVER USE NON RELIEVING COUPLER ON STAPLER.
If a non relieving coupler is used on the Stapler, the Stapler can remain charged with air after disconnecting and thus will be able to drive a fastener even after disconnecting.
The Stapler and air hose must have a hose coupling such that all pressure is removed from the Stapler when the coupling joint is disconnected.
14. CHECK PUSH LEVER BEFORE USE.
Make sure the push lever operates properly. (The push lever may be called "Safety".) Never use the Stapler unless the push lever is operating properly, otherwise the Stapler could drive a fastener unexpectedly. Do not tamper with or remove the push lever, otherwise the push lever becomes inoperable.
15. KEEP ALL SCREWS AND COVERS TIGHTLY IN PLACE.
Keep all screws and covers tightly mounted. Check their condition periodically.
Never use the Stapler if parts are missing or damaged.
16. DO NOT LOAD FASTENERS WITH TRIGGER PULLED OR PUSH LEVER DEPRESSED.
When loading fasteners into the Stapler or when connecting the air hose,
1) do not pull the trigger;
2) do not depress the push lever; and
3) keep the Stapler pointed downward.
17. KEEP FACE, HANDS AND FEET AWAY FROM FIRING HEAD AT ALL TIMES.
Never place your face, hands or feet near the firing head.
18. PLACE STAPLER PROPERLY ON WORKPIECE.
Do not drive fasteners on top of other fasteners or with the Stapler at too steep of an angle; the fasteners can ricochet and hurt someone.
19. BE CAREFUL OF DOUBLE FIRE DUE TO RECOIL.
If the push lever is unintentionally allowed to recontact the workpiece following recoil, an unwanted fastener will be driven.
In order to avoid this undesirable double fire,
1) do not push the Stapler on the workpiece with strong force;
2) take the Stapler completely away from the workpiece using recoil, and keep the push lever away from the workpiece until the next desirable shot; and
3) pull the trigger and release it QUICKLY when performing intermittent operation (trigger fire).
20. DO NOT DRIVE FASTENERS INTO THIN BOARDS OR NEAR CORNERS AND EDGES OF WORKPIECE.
The fasteners can be driven through or away from the workpiece and hit someone.
21. NEVER DRIVE FASTENERS FROM BOTH SIDES OF A WALL AT THE SAME TIME.
The fasteners can be driven into and through the wall and hit a person on the opposite side.
22. CHECK FOR LIVE WIRES.
Avoid the risk of severe electrical shock by checking for live electrical wires that may be hidden by walls, floors or ceilings. Turn off the breaker switch to ensure there are no live wires.
23. NEVER CARRY STAPLER BY HOSE.
24. DO NOT OVERREACH.
Keep proper footing and balance at all times
SAFETY - Continued
WARNING
25. NEVER USE STAPLER WHICH IS DEFECTIVE OR OPERATING ABNORMALLY.
If the Stapler appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.
26. DO NOT DISCONNECT AIR HOSE FROM STAPLER WITH FINGER ON TRIGGER.
The Stapler can fire when re-connected to an air supply.
27.DISCONNECT AIR HOSE FROM STAPLER WHEN:
1) doing maintenance and inspection;
2) loading fasteners;
3) clearing a jam;
4) it is not in use;
5) leaving work area;
6) moving it to another location; and
7) handing it to another person.
Never attempt to clear a jam or repair the Stapler unless you have disconnected air hose from the Stapler and removed all remaining fasteners from the Stapler.
The Stapler should never be left unattended since people who are not familiar with the Stapler might handle it and injure the themselves.
28. STAY ALERT.
Watch what you are doing. Use common sense. Do not operate the Stapler when you are tired. The Stapler should never be used by you if you are under the influence of alcohol, drugs or medication that makes you drowsy.
29. HANDLE STAPLER CORRECTLY.
Operate the Stapler according to this Manual. Never allow the Stapler to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.
30. NEVER USE STAPLER FOR APPLICATIONS OTHER THAN THOSE SPECIFIED IN THIS MANUAL.
31. HANDLE STAPLER CAREFULLY.
Because of high air pressure in the Stapler, cracks in the surface are dangerous.
To avoid this, do not drop the Stapler or strike the Stapler against hard surfaces; and do not scratch or engrave signs on the Stapler. Handle the Stapler carefully.
32. MAINTAIN STAPLER WITH CARE.
Keep the Stapler clean and lubricated for better and safer performance.
33. USE ONLY PARTS, ACCESSORIES OR FASTENERS SUPPLIED OR RECOMMENDED BY HITACHI.
Unauthorized parts, accessories, or fasteners may void your warranty and can lead to malfunction and resulting injuries.
Only service personnel trained by Hitachi, distributor or employer shall repair the Stapler.
34. NEVER MODIFY OR ALTER A STAPLER.
Doing so may cause it to malfunction and personal injuries may result.
EMPLOYER'S RESPONSIBILITIES
- Ensure that this MANUAL is available to operators and personnel performing maintenance.
- Ensure that Staplers are used only when operators and others in work area are wearing EYE PROTECTOR.
-
Enforce the use of EYE PROTECTOR by operators and others in work area.
-
Keep Staplers in safe working order.
- Maintain Staplers properly.
- Ensure that Staplers which require repair are not further used before repair.
SAVE THIS MANUAL AND KEEP IT AVAILABLE FOR OTHERS!
OPERATION
NOTE:
The information contained in this Manual is designed to assist you in the safe operation of the Stapler.
Some illustrations in this Manual may show details or attachments that differ from those on your own Stapler.
NAME OF PARTS
Firing head (Outlet)
SPECIFICATIONS
| Operating pressure 70 – 120 psi (4.9 – 8.3 bar | 5 – 8.5 kgf/cm | 2) |
| Dimensions Length × Height × Width | 14-3/8" × 10-5/32" × 3" (365 mm × 258 mm × 76 mm) | |
| Weight 4.4 lbs. (2.0 kg) | ||
| Staple capacity 150 Staples | ||
| Air consumption | .040 ft3/cycle at 100 psi (1.1 ltr/cycle at 6.9 bar) (1.1 ltr/cycle at 7kgf/cm2) | |
STAPLE SELECTION
WARNING
- Be sure to use only the genuine HITACHI staples for the N5010A. The use of any other staples can result in tool malfunction and/or staple breakdown, leading to serious injuries.
Only staples shown in the Table below can be driven with this Stapler.
Dimensions of staples
| 16 Gauge 1/2" Crown staple | Min. Max. | |
| .064"(1.63 mm) 3/4"(19 mm) .052"(1.33 mm) | 2"(50 mm) |
ACCESSORIES
WARNING
Accessories other than those shown below can lead to malfunction and resulting injuries.
STANDARD ACCESSORIES
| ①Eye protector 1 | |
| ②Allen wrench for M5 screw 1 |
OPTIONAL ACCESSORIES
... sold separately
Sequential Trip Mechanism Kit (Code No.876762) (Single Shot Parts)
Pneumatic Tool Lubricant 1 oz. (30 cc) oil feeder (Code No.877153) 4 oz. (120 cc) oil feeder (Code No.874042) 1 quart (1 ltr) can (Code No.876212)
NOTE: Accessories are subject to change without any obligation on the part of HITACHI.
APPLCATIONS
- Construction work such as wall sheathing, roof decking, subflooring.
- Mobile and modular home construction.
- Making wooden boxes, and expendable pallets
BEFORE OPERATION
Read section titled "SAFETY" (pages 4-6).
Make sure of the following before operation.
WORKING ENVIRONMENT
WARNING
No flammable gas, liquid or other flammable objects at worksite.
Clear the area of children or unauthorized personnel.
AIR SUPPLY
DANGER
NEVER use oxygen or other bottled gases. Explosion may occur.
WARNING
- Never connect Stapler to pressure which potentially exceeds 200 psi (13.7 bar 14kgf/cm^2 ).
- Never use non relieving coupler on Stapler.
1. Power source
Use only clean, dry, regulated compressed air as a power source for this Stapler.
Air compressors used to supply compressed air to this Stapler must comply with the requirements of the latest version of ANSI Standard B 19.3 "Safety Standard For Compressors For Process Industries."
Moisture or oil in the air compressor may accelerate wear and corrosion in the Stapler. Drain daily.
2. Filter-Regulator-Lubricator
Use a regulator with a pressure range of 0-120 psi (0 -8.3 bar 0 - 8.5 kgf/cm ^2
Filter-regulator-lubricator units supply an optimum condition for the Stapler and extend the Stapler life. These units should always be used.
Filter The filter removes moisture and dirt mixed in compressed air. Drain daily unless fitted with an automatic drain. Keep the filter clean by regular maintenance.
Regulator ...... The regulator controls the operating pressure for safe operation of the Stapler. Inspect the regulator before operation to be sure it operates properly.
Lubricator .... The lubricator supplies an oil mist to the Stapler. Inspect the lubricator before operation to be sure the supply of lubricant is adequate. Use Hitachi pneumatic tool lubricant.
3. Air hose
Air hose must have a minimum working pressure rating of 150 psi (10.4 bar 10.6kgf/cm^2 ) or 150% of the maximum pressure produced in the system, whichever is higher.
4. Air consumption
Using the Air consumption table and the Air compressor size formula, find a correct compressor size.
Air consumption table
| psi 80 90 100 Operating pressure (bar) (5.5) (6.2) (6.9) (kgf/cm2) (5.6) (6.3) | (7) | ||
| Air consumption | ft3/cycle .028 (.032 .039 (Iltr/cycle) | (.8) | (1.1) |
Air compressor size formula
Amount of air required
=number of Staplers
× average staples driven each minute per Stapler × air consumption at given air pressure × safety factor (always 1.2)
Example: 3 Staplers (N5010A) operating at 100 psi driving 30 staples per minute
Amount of air required
= 3× 30× .039(1.1)× 1.2
= 4.2 CFM (ft^3 /min) (119 ltr/min)
After making the calculations as shown above, you should find a compressor providing 4.2 CFM of air that is required.
LUBRICATION
It is important that the Stapler be properly lubricated. Without proper lubrication, the Stapler will not work properly and parts will wear prematurely.
Use Hitachi pneumatic tool lubricant.
Do not use detergent oil or additives. These lubricants will harm the O-rings and other rubber parts. This will cause the Stapler to malfunction.
Filter-regulator-lubricator units should always be used.
Keep the lubricator filled with Hitachi pneumatic tool lubricant.
If a lubricator is not available, supply 5 - 10 drops of Hitachi pneumatic tool lubricant into the air plug on the Stapler twice a day.
COLD WEATHER CARE
Do not store the Stapler in a cold weather environment.
Keep the Stapler in a warm area until beginning the work.
Of the Stapler is already cold, bring it in a warm area and allow the Stapler to warm up before use.
① Reduce the air pressure to 64 psi (4.4 bar 4.5kgf/cm^2 ).
② Remove all staples from the Stapler.
③ Connect the air hose and free-fire (blank-fire) the Stapler.
The lowered air pressure will be enough to fire the Stapler.
Slow speed operation tends to warm up the moving part.
CAUTION
-Do not free-fire the Stapler at high pressure.
TESTING THE STAPLER
DANGER
Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications.
WARNING
- Never use Stapler unless push lever is operating properly.
Before actually beginning the stapling work, test the Stapler by using the checklist below. Conduct the tests in the following order.
If abnormal operation occurs, stop using the Stapler and contact a Hitachi authorized service center immediately.
(1) DISCONNECT AIR HOSE FROM STAPLER.
REMOVE ALL STAPLES FROM STAPLER.
ALL SCREWS MUST BE TIGHTENED. If any screws are loose, tighten them.
THE PUSH LEVER AND TRIGGER MUST MOVE SMOOTHLY.
(2) Adjust the air pressure to 70 psi (4.9 bar 5 kgf/cm ^2 ). Connect the air hose.
Do not load any staples in the Stapler.
THE STAPLER MUST NOT LEAK AIR.

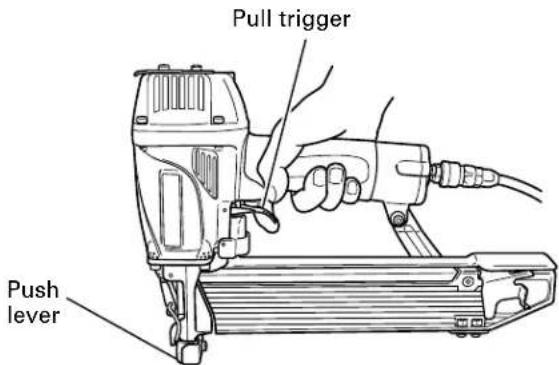

Hold the Stapler downward and pull the trigger.
THE STAPLER MUST NOT OPERATE.

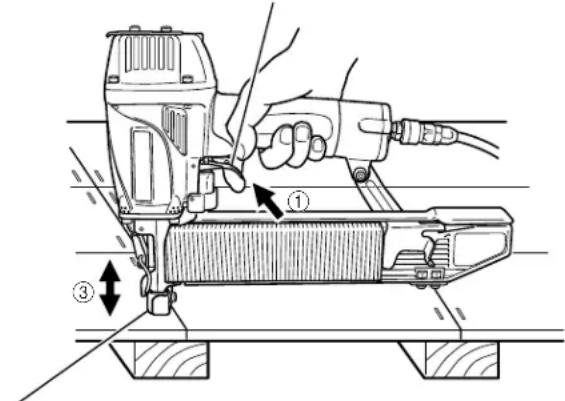

(3) With finger off the trigger, depress the push lever against the workpiece.
THE STAPLER MUST NOT OPERATE.
(4) Without touching the trigger, depress the push lever against the workpiece. Pull the trigger.
(5) With the Stapler off the workpiece, pull the trigger.
Depress the push lever against the workpiece.
(6) If no abnormal operation is observed, you may load staples in the Stapler. Drive staples into the workpiece that is the same type to be used in the actual application.
THE STAPLER MUST OPERATE PROPERLY.
ADJUSTING AIR PRESSURE
WARNING
Do not exceed 120 psi (8.3 bar 8.5 kgf/cm 2).
Adjust the air pressure at recommended operating pressure 70 - 120 psi (4.9 - 8.3 bar 5 - 8.5 kgf/cm²) according to the length of staples and the hardness of workpiece.
The correct air pressure is the lowest pressure which will do the job. Using the Stapler at a higher than required air pressure unnecessarily over stresses the Stapler.
LOADING STAPLES
WARNING
- When loading staples into Stapler, 1) do not pull trigger;
2) do not depress push lever; and
3) keep Stapler pointed downward.

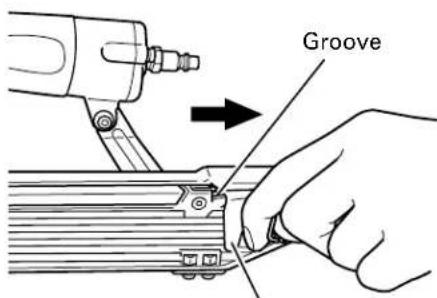

(1) Pull the staple feeder backward and attach it securely to a groove of the magazine.
Staple feeder
(2) Place the staple strip over the magazine. Make sure that the staple strip slides freely on the magazine.
Staple

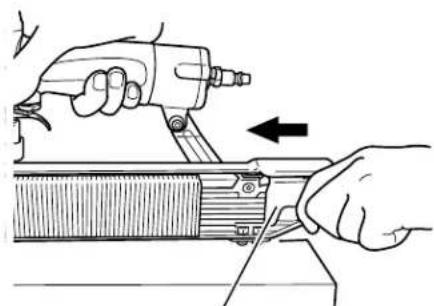

(3) Pull the staple feeder backward. Then, detach it from the groove of magazine and softly bring the staple back as if it were being gently pushed, avoiding any impact.
Staple feeder
The Stapler is now ready to operate.
CAUTION
If the staple feeder is released all of a sudden, it can return abruptly, causing deformation and/or scatter, eventually ending up in clogged staples.
Be absolutely sure to bring back the staple feeder, avoiding any impact.
STAPLER OPERATION
Read section titled "SAFETY"(pages 4-6).
DANGER
Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications.
WARNING
NEVER point tool at yourself or others in work area.
- Keep fingers AWAY from trigger when not driving staples to avoid accidental firing.
Choice of triggering method is important. Please read and understand "METHODS OF OPERATION" found below.
- Never place your face, hands or feet near firing head when using.
Do not drive staples on top of other staples or with Stapler at too steep of an angle; staples can ricochet and hurt someone.
In order to avoid double fire or unwanted ejection of a staple due to bouncing of the Stapler. 1) do not push Stapler on workpiece with strong force;
2) take Stapler away from workpiece using recoil;
3) release trigger quickly when performing trigger fire.
- Do not drive staples into thin boards or near corners and edges of workpiece. Staples can be driven through or away from workpiece and hit someone.
- Never drive staples from both sides of a wall at the same time. Staples can be driven into and through the wall and hit a person on the opposite side.
- Never use Stapler which is defective or operating abnormally.
Do not use Stapler as hammer. - Disconnect air hose from Stapler when:
1) adjusting the push lever piece;
2) it is not in use;
3) leaving work area;
4) moving it to another location; and
5) handing it to another person.
This Hitachi Stapler has a STANDARD CONTACT TRIP MECHANISM (Bounce Fire). An OPTIONAL SEQUENTIAL TRIP MECHANISM kit (SINGLE SHOT) is available as order part number 876762.
THE STANDARD CONTACT TRIP MECHANISM (Bounce Fire) is for use where rapid fastener placement is desired and must be operated in accordance with the following "Methods of Operation".
METHODS OF OPERATION
This Stapler is equipped with the push lever and does not operate unless the push lever is depressed (upward position).
There are two methods of operation to drive staples with this Stapler.
They are:
- Intermittent operation (Trigger fire):
- Continuous operation (Push lever fire):
(1) Intermittent operation (Trigger fire)

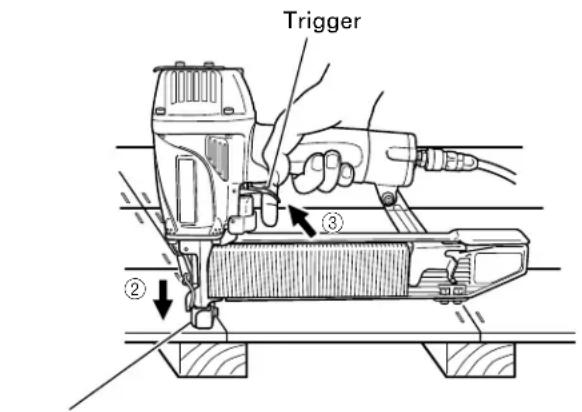

① Position the staple outlet on the workpiece with finger off the trigger.
② Depress the push lever firmly until it is completely depressed.
③ Pull the trigger to drive a staple.
④ Remove finger from the trigger.
To drive another staple, move the Stapler along the workpiece and repeat this procedure.
Push lever
(2) Continuous operation (Push lever fire)
WARNING
To avoid double firing or accidental firing due to recoil.
1) Do not press the stapler against the workpiece with excessive force.
2) Separate the stapler from the workpiece as it recoils after stapling.
① Pull the trigger with the Stapler off the workpiece.
② Depress the push lever against the workpiece to drive a staple.
③ Move the Stapler along the workpiece with a bouncing motion. Each depression of the push lever will drive a staple.
As soon as the desired number of staples have been driven, remove finger from the trigger.
Previously pull the trigger
Push lever
WARNING
- Keep your finger off the trigger except during fastening operation, because serious injury could result if the push lever accidentally contacts you or others in work area.
- Keep hands and body away from the discharge area. The Stapler with contact trip mechanism may bounce from the recoil of driving a fastener and unwanted subsequent fastener may be driven, possibly causing injury.
Some types of loaded staples can spark out of the muzzle during a nail driving operation. Exercise caution!
THE OPTIONAL SEQUENTIAL TRIP MECHANISM (SINGLE SHOT PARTS) is for use where precision fastener placement is desired and must be operated in accordance with the following "Method of Operation".
You must first depress the push lever (upward position) where you want to drive a staple and then pull the trigger. After the each staple is driven, completely release the trigger and lift the tool off the
work surface. An OPTIONALSEQUENTIAL TRIP MECHANISM may reduce the possibility of bodily injury to you or others in the work area. This is because it is less likely to drive an unwanted staple if you keep the trigger pulled and accidentally bump the push lever against yourself or others. An OPTIONALSEQUENTIAL TRIP MECHANISM may also reduce the speed of operation compared to the standard contact trip mechanism.
NOTE:
Both STANDARD CONTACT TRIP MECHANISM and OPTIONAL SEQUENTIAL TRIP MECHANISM are safe if used as described above and according to all warnings and instructions.
Always handle staples and package carefully. If staples are dropped, collating bond may be broken.
After stapling:
1) disconnect air hose from the Stapler;
2) remove all staples from the Stapler;
3) supply 5 - 10 drops of Hitachi pneumatic tool lubricant into the air plug on the Stapler; and
4) open the petcock on the air compressor tank to drain any moisture.
ADJUSTING THE STAPLING DEPTH
WARNING
- When adjusting the push lever piece, be sure to remove your finger from the trigger and disconnect the air hose from the stapler.
To assure that each nail penetrates to the same depth, be sure that:
1) the air pressure to the Stapler remains constant (regulator is installed and working properly), and
2) the Stapler is always held firmly against the workpiece.
If staples are driven too deep or shallow into the workpiece, adjust the stapling in the following order.

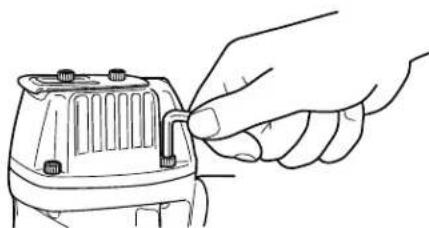

① DISCONNECT AIR HOSE FROM STAPLER.
② To adjust the driven-in depth of a staple, loosen the screw that secures a push lever piece. If the staple is driven in deeply, adjust the push lever piece to "down", and if it's driven in shallowly, adjust the push lever piece to "up".
Too deep
Too shallow
③ Tighten the screw to fasten the push lever piece when a suitable position is reached for a stapling test.
④ Connect the air hose. ALWAYS WEAR EYE PROTECTOR. Perform a stapling test.
⑥ DISCONNECT AIR HOSE FROM STAPLER.
⑥ Choose a suitable position for the push lever piece.
MAINTENANCE
NOTE:
The information contained in this Manual is designed to assist you in the safe maintenance of the Stapler.
Some illustrations in this Manual may show details or attachments that differ from those on your own Stapler.
MAINTENANCE AND INSPECTION
Read section titled "SAFETY" (pages 4-6).
WARNING
- Disconnect air hose and remove all staples from Stapler when:
1) doing maintenance and inspection; and 2) clearing a jam.
- Clearing a jam
Remove a jammed staple in the following order:
① DISCONNECT AIR HOSE.
② Remove all staples.

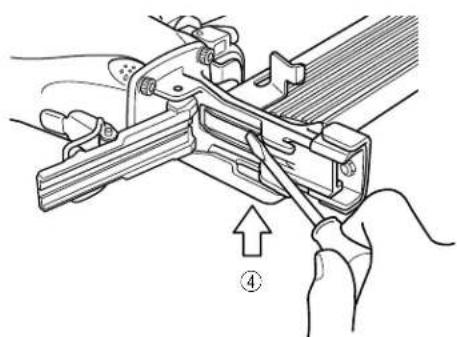

③ Release the lock lever and open the blade guide.
④ Remove the jammed staple with a slotted-head screwdriver.
⑤ Close the blade guide and latch.
In case of frequent jam, contact a Hitachi authorized service center.
- Storing
When not in use for an extended period, apply a thin coat of the lubricant to the steel parts to avoid rust.
Do not store the Stapler in a cold weather environment.
Keep the Stapler in a warm area.
When not in use, the Stapler should be stored in a warm and dry place.
Keep out of reach of children.
- WARNING LABEL
Change the WARNING LABEL if missing or damaged. A new WARNING LABEL is available from a Hitachi authorized service center.
- Maintenance chart (See page 16)
-
Operator troubleshooting (See page 16)
-
Service parts list
A:Item No.
B:Code No.
C: No. Used
D:Remarks
CAUTION
Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.
This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
MODIFICATIONS:
Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.
Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.
SERVICE AND REPAIRS
WARNING
-Only service personnel trained by Hitachi, distributor or employer shall repair the Stapler.
Use only parts supplied or recommended by Hitachi for repair.
All quality Staplers will eventually require servicing or replacement of parts because of wear from normal use.
NOTE:
Specifications are subject to change without any obligation on the part of HITACHI.
Maintenance chart
| ACTION WHY HOW | ||
| Drain air line filter daily. Prevent accumulation of moisture and Open manual pet dirt. | ||
| Keep lubricator filled. Keep the Stapler lubricated. Fill with Hitachi pneumatic tool | lubricant. | |
| Clean filter element - then blow air Pre-vent clogging of filter with dirt. Follow manufacturer's instructions. | ||
| Clean magazine and feeder Prevent a jam mechanism. | m. Blow clean daily. | |
| Keep push lever working properly. Promote operator safety and efficient Blow clean stapler operation. | ||
| Lubricate the Stapler after stapling. Extend the Stapler life. Supply 5 - 10 drops of lubricant into the Stapler. | ||
| Drain air compressor. Keep the Stapler operated properly. Open petcock on air compressor tank. |
Operator troubleshooting
Most minor problems can be resolved quickly and easily using the table below.
If problems persist, contact a Hitachi authorized service center for assistance.
| PROBLEM | CHECK METHOD | CORRECTION |
| Stapler operates but no staple is driven. | Check for a jam. | Clean jam per page 14. |
| Staple feeder damaged? | Replace staple feeder. | |
| Ribbon spring weakened or damaged? | Replace ribbon spring. | |
| Check for proper staples. | Use only recommended staples. | |
| Weak drive.Slow to cycle. | Check air pressure. | Increase air pressure.(Do not exceed 120 psi (8.3 bar, 8.5 kgf/cm2)) |
| Check position of stapling depth adjuster. | Readjust per page 13. | |
| — | Use Hitachi pneumatic tool lubricant. | |
| Driver blade worn? | Contact Hitachi for replacement. | |
| Piston O-ring worn or damaged? | ||
| Drives too deep. | Check air pressure. | Reduce air pressure.(Adjust 70 – 120 psi(4.9 – 8.3 bar 5 – 8.5 kgf/cm2)) |
| Check position of stapling depth adjuster. | Readjust per page 13. | |
| Skipping staplesIntermittent feed. | Check for proper staples. | Use only recommended staples. |
| Staple feeder damaged? | Replace staple feeder. | |
| Ribbon spring weakened or damaged? | Replace ribbon spring. | |
| Piston O-ring worn or damaged? | Contact Hitachi for replacement. | |
| Staples jam.Driven staple is bent. | Check for proper staples. | Use only recommended staples. |
| Driven blade worn? | Contact Hitachi for replacement. | |
| Drives properly during normal operation, but does not drive fully at faster stapling speeds. | Check inside diameter of air hose. | Use larger air hose. |
INFORMATIONS IMPORTANTES DE SECURITE
ACCESSIONS EN OPTION
A: No. élément
B: No. code
C: No. utilise
D: Remarques
ATTENTION
Minato-ku, Tokyo 108-6020, Japan
Distributed by
Hitachi Koki U.S.A., Ltd.
3950 Steve Reynolds Blvd.
Norcross, GA 30093
Hitachi Koki Canada Co.
450 Export Blvd. Unit B,
Mississauga ON L5T 2A4
711
Code No.C99168661
Printed in Taiwan
