FR 2460 - Deep fryer SEVERIN - Free user manual and instructions

Brand	SEVERIN
Model	FR 2460
Type	Oil-free hot air fryer
Power supply	220-240 V ~, 50/60 Hz
Maximum capacity	1 kg (for frozen fries)
Adjustable temperature	From 80°C to 200°C
Timer	Yes, with audible beep at end of cooking
Basket coating	Ceramic
Support coating	Ceramic
Cooking function	Hot air circulation, oil-free
Cleaning basket and support	Warm soapy water, do not put in dishwasher
Cleaning housing	Lint-free damp cloth
Safety	Hot surfaces indicated, hot steam
Warranty	2 years
After-sales service	Contact details in manual (e.g., Luxembourg [phone])
Included accessories	Frying basket, basket support, handle
Cord storage	Compartment at the back of the appliance

Frequently Asked Questions - FR 2460 SEVERIN

How to clean the basket and support of my SEVERIN FR 2460 air fryer?

After cooling, wash the basket and its support with warm soapy water. Do not put them in the dishwasher. Dry thoroughly before reuse.

Can I use oil in the air fryer?

No, this appliance is designed for oil-free cooking using hot air circulation. Adding oil could damage the appliance.

What is the maximum capacity of the air fryer?

The maximum capacity is approximately 1 kg for frozen fries. Do not exceed the MAX' mark in the basket.

How to proceed for first use?

Remove all packaging and stickers. Heat the empty appliance at 200°C for 15 minutes to eliminate odors. Ventilate the room. Then clean as indicated.

What are the cooking times for frozen fries?

For 1 kg of frozen fries, set the temperature to 200°C and the time between 20 and 25 minutes. Turn the fries halfway for even cooking.

How to adjust the temperature and cooking time?

Use the adjustment knobs on the housing: turn the 'Temperature' knob for heat and the 'Time' knob for duration. Cooking starts automatically.

Does the appliance turn off automatically at the end of cooking?

No, the appliance does not turn off automatically. An audible beep sounds at the end of the set time. You must then remove the basket and unplug the appliance.

Can I cook fresh foods like chicken or vegetables?

Yes, refer to the advice table in the manual. For example, fresh chicken pieces cook at 180°C for 20-25 minutes (turn once).

Where can I find after-sales service for my SEVERIN air fryer?

The contact details are provided in the manual. For example, for Luxembourg: Rue du Chateau d'Eau, 3364 Leudelange, Tel. [phone].

What to do if the air fryer does not work?

First check that the cord is properly plugged in and the outlet is powered. If the problem persists, contact SEVERIN customer service for repair.

USER MANUAL FR 2460 SEVERIN

Black electric air fryer with control knobs and a white handle (no visible text or symbols)

ART.-NO. FR 2460

GB Instructions for use

FR Mode d'emploi

Interior view of a black air fryer with visible mesh grille and control panel (no text or symbols)

DE

Heißluftfritteuse

QR code image containing encoded data, no visible human-readable text

oder unter

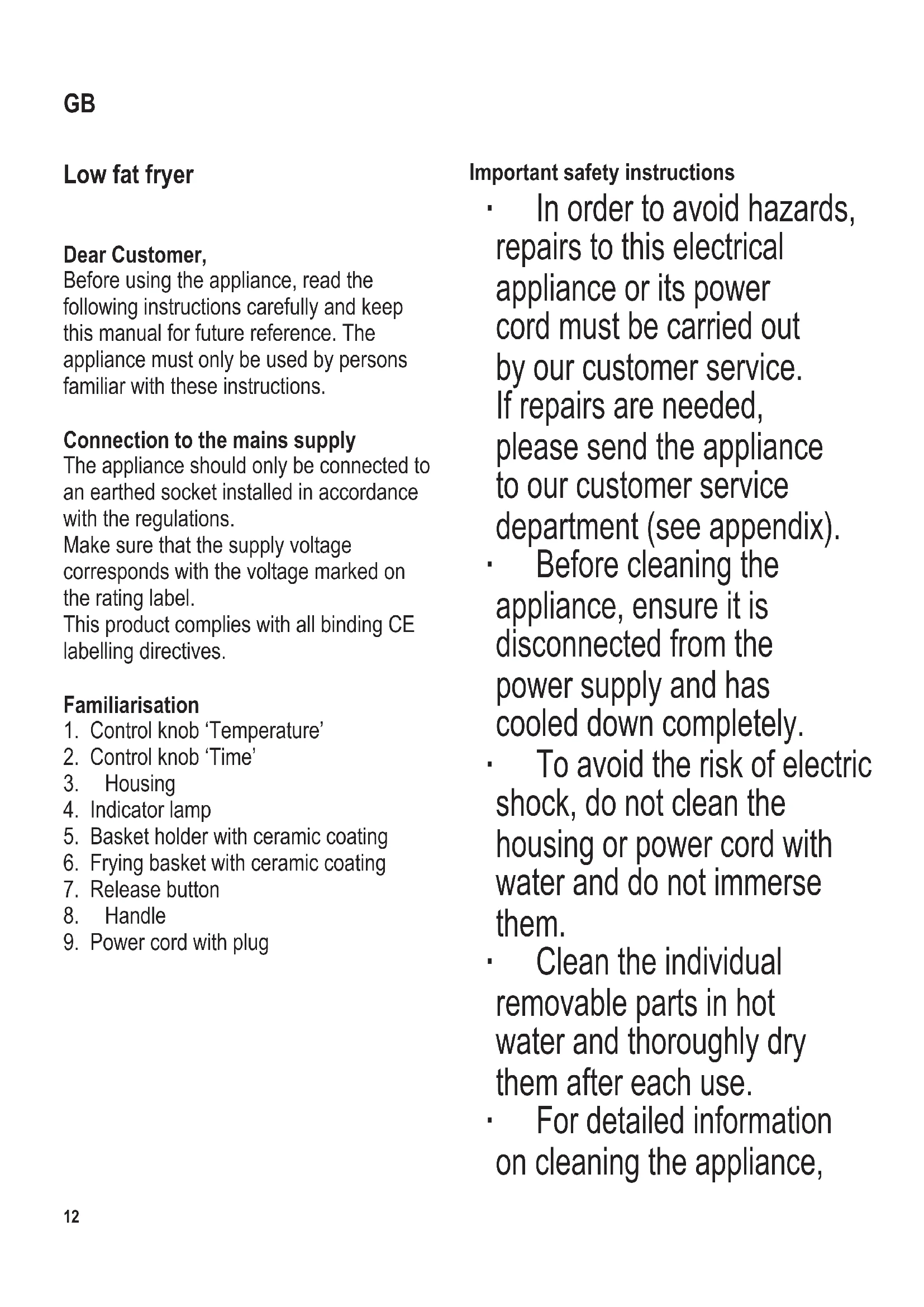

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations.

Make sure that the supply voltage corresponds with the voltage marked on the rating label.

This product complies with all binding CE labelling directives.

Familiarisation

1. Control knob 'Temperature'
2. Control knob 'Time'
3. Housing
4. Indicator lamp
5. Basket holder with ceramic coating
6. Frying basket with ceramic coating
7. Release button
8. Handle
9. Power cord with plug

Important safety instructions

- In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).

- Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.

- To avoid the risk of electric shock, do not clean the housing or power cord with water and do not immerse them.

- Clean the individual removable parts in hot water and thoroughly dry them after each use.

- For detailed information on cleaning the appliance,

please refer to the section Cleaning and care.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Place the appliance on a stable, heat-resistant work surface impervious to splashes and stains, with sufficient space around it.

- Caution: Once the basket holder has been removed, do not touch the interior of the fryer. The surface where the holder is inserted is marked with a warning sign 'Hot surfaces' Ⓗ, drawing your attention to this danger.

- Caution: When the basket holder is pulled out, hot steam is emitted. Steam is also emitted through the rear ventilation slots (△).

Keep your hands away from the area above the unit and do not lean over it.

- The food itself, the holder and the frying basket are hot. Always use the handle when touching the holder or basket. Wait for the food to cool down slightly before touching it.

• Always place the basket holder onto a heat-resistant surface.

- This appliance is intended for domestic or similar applications, such as the - staff kitchens in shops, offices and other similar working environments, - agricultural working environments, - by customers in hotels, motels etc. and similar accommodation, - in bed-and breakfast type environments.

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
• Children must not be permitted to play with the appliance.
• The appliance and its power cord must be kept

well away from children under 8 at all times.

• Caution: Keep any packaging materials well away from children - such materials are a potential source of danger, e.g. of suffocation.
• Do not leave the deep fryer unattended while in use.
• Do not operate the fryer without the basket fitted in its holder.
• Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance. In this case, please contact our customer service.
• Do not place the appliance underneath any wall-cupboards or hanging objects, nor directly by a wall or in a corner.
• Ensure that no inflammable materials are stored in the vicinity.
• Caution: Do not cover the ventilation slots.
• Caution: Do not allow the appliance or its power cord to touch hot surfaces or to come into contact with any heat sources. Do not allow the power cord to hang free; the cord must be kept well away from hot parts of the appliance.
• Let the appliance cool down sufficiently before moving it.

- Always remove the plug from the wall socket

• after use,
• in case of any malfunction, and
• before cleaning the appliance.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- Do not use metal kitchen utensils when adding or removing food, so as to avoid scratching the surface.

- Do not use the appliance unless the power cord has been fully extended from its storage compartment.

- No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

Intended use

- This appliance must only be used for cooking food. Any other use must be considered improper and may lead to personal injuries or material damage.

- Unlike conventional deep-fryers, this appliance is not intended to be used with oil or fat.

Before using for the first time

- Before using the appliance for the first time, remove any remaining packaging materials and stickers.

- Heat the appliance for 15 minutes to 200^ without any food. This will lessen the inherent smell of the appliance.

- Ensure adequate ventilation by opening windows or balcony doors.

- Clean the appliance afterwards as described in Cleaning and care.

Deep-frying

1. For information on cooking times and temperatures, refer to the table Air-frying recommendations below. These data are recommendations only and may vary depending on the nature of the food and personal taste.

2. Always place the unit on a dry, level, non-slip and heat-resistant surface impervious to contact with the rubber feet.

3. Prepare the food to be air-fried.

4. Pull the power cord to its full length from its storage compartment and connect the unit to the mains.

5. Put the food into the frying basket with the holder fitted. Make sure you do not exceed the ,MAX' marking.

6. Install the basket holder in the appliance. The appliance can only be operated with the holder properly fitted.

7. Set the desired temperature.

8. Set the desired cooking time. The indicator lamp comes on and the food is now being cooked.

9. A beep indicates that the pre-set processing time has elapsed.

10. Use the handle to remove the basket holder from the fryer.

11. Press the release on the basket handle and take out the basket.

12. Transfer the cooked food into a heat-resistant container.

13. Allow the basket holder and basket sufficient time to cool down.

14. Remove the plug from the wall socket.

15. Clean the basket holder and basket as described under Cleaning and care.

Air-frying recommendations

Symbol	Food Tips Temperature	Time
	French fries (deep-frozen)	Turn onceMax. 1 kgTurn repeatedly	200°C 20 – 25 min30 – 35 min
	Bacon 180°C 6 min
	Chicken parts (fresh)Chicken parts (deep-frozen)	Turn onceTurn once	180°C 20 – 25 min22 – 25 min,depending on thickness
	Shrimps (fresh)Shrimps (deep-frozen)		180°C 12 min	15 – 17 min
	Meat / Meat balls,hamburgers (small)	Turn once 180°C	10 – 16 min,	depending on thickness
	Small cakes in ovenproof cake-tins		180°C 12 min
	Vegetables, egzucchinicarrots	Turn onceTurn once	160°C	15 – 17 min10 – 12 min
	Fish Turn once 180°C 14 min

Useful hints for air-frying

• Note that the cooking times listed are only approximate.
  Depending on the type of food, the cooking times and temperatures may have to be adjusted.
• With larger quantities, the cooking time increases. We recommend frequent turning of the food.
• If the food turns out too dark, try lowering the temperature first, before shortening the cooking times.
• For nutritious, healthy deep-frying we recommend to use a temperature setting of no higher than 170°C when deep-frying amylaceous food, i.e. food with a higher-than-average starch content. With the reduced frying temperature, and with an equally reduced amount of food in the frying basket, the build-up of substances detrimental to health is limited to a minimum.
• There is a wide range of recipe ideas for your hot-air fryer

QR code image containing encoded data, no visible human-readable text

or under

www.severin.de/Service/recipes

Cleaning and care

• Before cleaning the appliance, ensure that the air fryer disconnected from the power supply and has completely cooled down.
• Caution: To avoid the risk of electric shock, do not clean the outside of the fryer or its power cord with any liquids and do not immerse either of them in water.

- To prevent scratches to the housing, the ceramic coating on the frying basket and its holder, do not use abrasives or harsh cleaning solutions.

- The frying basket and holder should be cleaned with hot soapy water. Wipe thoroughly dry afterwards.

• Caution: Do not put any parts in a dishwasher.
• The exterior of the housing and the surface where the basket holder is inserted may be cleaned with a damp, lint-free cloth.

Cable storage

Once the appliance has cooled down, the power cord can be put back into the storage compartment at the rear.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
