USER MANUAL LDX172C BLACK & DECKER

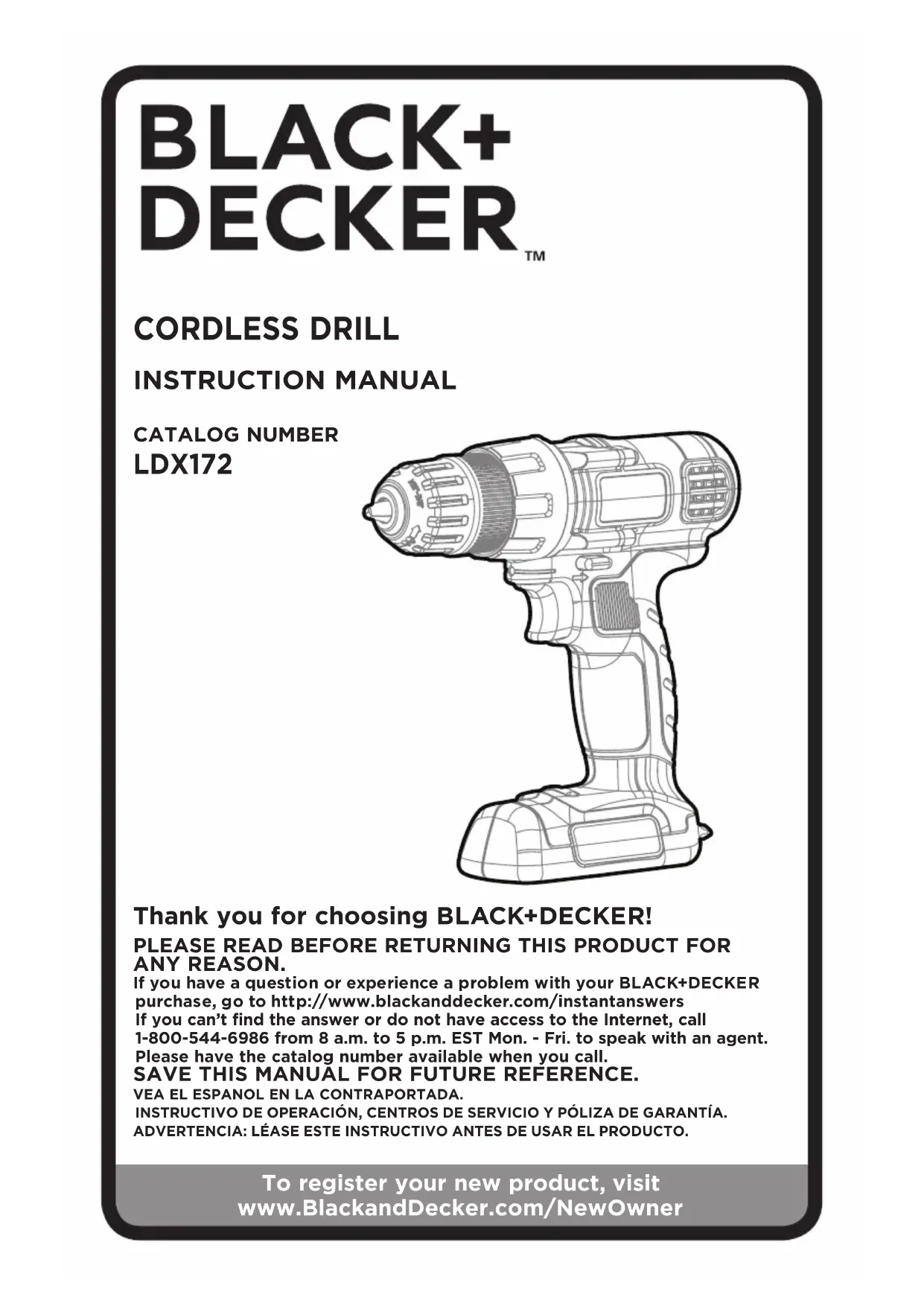

INSTRUCTION MANUAL CORDLESS DRILL Thank you for choosing BLACK+DECKER! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON. If you have a question or experience a problem with your BLACK+DECKER purchase, go to http://www.blackanddecker.com/instantanswers If you can’t find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call.SAVE THIS MANUAL FOR FUTURE REFERENCE.VEA EL ESPANOL EN LA CONTRAPORTADA.INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.CATALOG NUMBER LDX172 To register your new product, visit www.BlackandDecker.com/NewOwner2

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

DANGER: Indicates an imminently hazardous situation which, if not avoided,

will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury. CAUTION: Indicates a potentially haz ard ous situation which, if not avoided, may result in minor or mod er ate injury. NOTICE: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings and all instructions. Failure to

follow the warnings and instructions may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/ or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothingand gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SPECIFIC SAFETY RULES

• Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.

• Useauxiliaryhandle(s),ifsuppliedwiththetool.Lossofcontrolcancausepersonalinjury.

• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

• Whenworkingonaladderoronscaffoldingbesuretolaythetooldownonitsside when not in use. Some tools with large battery packs will stand upright but may be easily knocked over.

• Use clamps or another practical way to secure and support the work piece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

• Keep your hair, clothing, and gloves away from air vents. Air vents often cover moving parts in which these items can be caught.

• Hold tool firmly with two hands. Use auxiliary handle if provided. If auxiliary handle not provided, grip tool at bottom of battery. Loss of control can cause personal injury.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities contains chemicals known to the State of California to cause 3cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• leadfromlead-basedpaints,

• crystallinesilicafrombricksandcementandothermasonryproducts,and

• arsenicandchromiumfromchemically-treatedlumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause

serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: ALWAYS use safety glasses. Everyday eye glasses are NOT safety

glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• NIOSH/OSHA/MSHA respiratory protection SymbolS The label on your tool may include the following symbols. The symbols and their definitions are as follows: V .................. volts A ...................amperes Hz ................hertz W ..................watts min ..............minutes or AC .......alternating current or DC ...direct current

3. Torque Adjustment Collar

6. Screwdriver bit holder

• Do not disassemble or open, drop (mechanical abuse), crush, bend or deform, puncture, or shred.

• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, or expose to fire, excessive heat including soldering irons, or put in microwave oven.

• Only use the battery with a charging system specified by the manufacturer/supplier.

• Donotshort-circuitabatteryorallowmetallicorconductiveobjectstocontactboth battery terminals simultaneously.

• Dispose of used batteries promptly according to the manufacturer/supplier’s instructions.

• Improper battery use may result in a fire, explosion, or other hazard.

• Battery usage by children should be supervised.

WaRning: Never attempt to open the battery for any reason. If battery case is cracked

or damaged, do not insert into charger. Do not crush, drop or damage battery. Do not use a battery or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Damaged batteries should be returned to service center for recycling. Safety WaRningS and inStRuCtionS - CHaRging

1. This manual contains important safety and operating instructions.

2. Before using battery charger, read all instructions and cautionary warnings on battery

charger and product using battery. CAUTION: To reduce the risk of injury, use charger only with this product. Batteries in other products may burst causing personal injury or damage.

3. Do not expose charger to rain or snow.

4. Use of an attachment not recommended or sold by BLACK+DECKER may result in a

risk of fire, electric shock, or injury to persons.

5. To reduce risk of damage to electric plug and cord, pull by plug rather than cord

when disconnecting charger.

6. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise

subjected to damage or stress.

7. An extension cord should not be used unless absolutely necessary. Use of improper

extension cord could result in a risk of fire, electric shock or electrocution. a.Two-wirecordscanbeusedwith2-wireor3-wireextensioncords.Onlyround jacketed extension cords should be used, and we recommend that they be listed by Underwriters Laboratories (U.L.). If the extension is to be used outside, the cord must be suitable for outdoor use. Any cord marked for outdoor use can also be used for indoor work. The letters “W” or “WA” on the cord jacket indicate that the cord is suitable for outdoor use. b. An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety, and to prevent loss of power and overheating. The smaller the gauge number of the wire, the greater the capacity of the cable; that is, 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each extension contains at least the minimum wire size. Chart for minimum wire size (AWG) of Extension Cords Nameplate rating AMPS – 0 – 10.0 TotalExtensionCordLength(ft)0-2526-5051-100101-150 (0-7,6m)(7,6-15,2m)(15,2-30,4m)(30,4-45,7m) Wire Gauge 18 16 16 14

8. Use only the supplied charger when charging your tool. The use of any other charger

could damage the tool or create a hazardous condition.

9. Use only one charger when charging.

10. Do not attempt to open the charger. There are no customer serviceable parts inside.

Return to any authorized BLACK+DECKER service center.

11. DO NOT incinerate the tool or batteries even if they are severely damaged or

completely worn out. The batteries can explode in a fire.

12. Do not incinerate the battery even if it is severely damaged or is completely

worn out. The batteries can explode in a fire. Toxic fumes and materials are created when lithium ion batteries are burned.

13. Do not charge or use battery in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust. Inserting or removing the drill from the charger may ignite the dust or fumes.

514. If battery contents come into contact with the skin, immediately wash area with mild

soap and water. If battery liquid gets into the eye, rinse water over the open eye for three minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.

WaRning: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.

CHaRging PRoCeduRe THE BATTERIES IN YOUR TOOL ARE NOT FULLY CHARGED AT THE FACTORY. BEFORE ATTEMPTING TO CHARGE THEM, THOROUGHLY READ ALL OF THE SAFETY INSTRUCTIONS. To charge your tool, follow the steps below.

1. Plug the charger into any standard 120 Volt 60 Hz

2. Insert the charger plug (9) into the charging port (5)

as shown in figure A. The charging indicator LED (8) will flash, indicating that the battery inside the drill is being charged. The completion of charge is indicated by the LED (8) remaining on continuously.

3. Let the tool charge initially for 13 hours. After the

initial charge, under normal usage, your tool should be fully charged in 12 to 15 hours. iMPoRtant CHaRging noteS

1. After normal usage, your tool should be fully charged in 3 to 9 hours. Your tool was

sent from the factory in an uncharged condition. Before attempting to use it, it must be charged for at least 9 hours.

2. DO NOT charge the batteries in an air temperature below 40°F (4,5° C) or above

105°F (+40,5 °C). This is important and will prevent serious damage to the batteries. Longest life and best performance can be obtained if batteries are charged when air temperature is about 75°F (23,8° C).

3. While charging, the charger may hum and become warm to touch. This is a normal

condition and does not indicate a problem.

4. If the batteries do not charge properly—(1) Check current at receptacle by plugging

in a lamp or other appliance. (2) Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights. (3) Move charger and tool to a surrounding air temperature of 40°F (4,5° C) to 105°F (+40,5° C). (4) If the receptacle and temperature are OK, and you do not get proper charging, take or send the tool and charger to your local BLACK+DECKER service center. See Tools Electric in yellow pages.

5. The tool should be recharged when it fails to produce sufficient power on jobs which

were easily done previously. DO NOT CONTINUE using product with its batteries in a depleted condition. oPeRating inStRuCtionS tRiggeR SWitCH & ReVeRSing Button (figuRe B)

• ThedrillisturnedONandOFFbypullingandreleasingthetriggerswitch(1).

• Aforward/reversecontrolbutton(2) determines the direction of the tool and also serves as a lock off button.

• Toselectforwardrotation,releasethe trigger switch and depress the forward/ reverse control button to the left.

• Toselectreverse,depresstheforward/ reverse control button the opposite direction. NOTE: The center position of the control button locks the tool in the off position. When changing the position of the control button, be sure the trigger is released.

8toRQue ContRol (figuRe C) This tool is fitted with a torque adjustment collar (3) to select the operating mode and to set the torque for tightening screws. Large screws and hard workpiece materials require a higher torque setting than small screws and soft workpiece materials.

• Fordrillinginwood,metalandplastics,set the collar to the drilling position symbol .

• Forscrewdriving,setthecollartothedesired setting. If you do not yet know the appropriate setting, proceed as follows:

• Setthecollartothelowesttorque setting.

• Tightenthefirstscrew.

• Iftheclutchratchetsbeforethedesiredresultisachieved,increasethecollar setting and continue tightening the screw. Repeat until you reach the correct setting. Use this setting for the remaining screws. keyleSS CHuCk (figuRe d)

WaRning: Makecertainthelock-off

button is engaged to prevent switch actuation before installing or removing accessories. To insert a drill bit or other accessory:

1. Grasp the rear half of the chuck (4)

with one hand and use your other hand to rotate the front half (4a) in the counterclockwise direction, as viewed from the chuck end.

2. Insert the bit or other accessory fully into

the chuck, and tighten securely by holding the rear half of the chuck and rotating the front portion in the clockwise direction as viewed from the chuck end.

WaRning: Do not attempt to tighten drill bits (or any other accessory) by gripping the

front part of the chuck and turning the tool on. Damage to the chuck and personal injury may occur when changing accessories. SCReW dRiVing For driving fasteners, the reversing button should be pushed to the left. Use reverse (button pushed to the right) for removing fasteners. When moving from forward to reverse, or vice versa, always release the trigger switch first. on BoaRd Bit StoRage Abitstorageslot(6)isbuilt-intotheareajustabovethebatterypack. dRilling

• Usesharpdrillbitsonly.

• Supportandsecureworkproperly,asinstructedintheSafetyInstructions.

• Useappropriateandrequiredsafetyequipment,asinstructedintheSafetyInstructions.

• Secureandmaintainworkarea,asinstructedintheSafetyInstructions.

• Runthedrillveryslowly,usinglightpressure,untiltheholeisstartedenoughtokeepthe drill bit from slipping out of it.

• Applypressureinastraightlinewiththebit.Useenoughpressuretokeepthebitbiting but not so much as to stall the motor or deflect the bit.

• Holdthedrillfirmlywithtwohands,onehandonthehandle,andtheother gripping the bottom around the battery area.

• DONOTCLICKTHETRIGGEROFASTALLEDDRILLOFFANDONINANATTEMPT TO START IT. DAMAGE TO THE DRILL CAN RESULT.

• Minimizestallingonbreakthroughbyreducingpressureandslowlydrillingthroughthe last part of the hole.

Holes in wood can be made with the same twist drill bits used for metal or with spade bits. These bits should be sharp and should be pulled out frequently when drilling to clear chips from the flutes.

Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass which should be drilled dry. The cutting lubricants that work best are sulfurized cutting oil or lard oil. MAINTENANCE Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid. IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service personnel, always using identical replacement parts. TROUBLESHOOTING Problem Possible Cause Possible Solution

• Unitwillnotstart. •Batterypacknotcharged. •Checkbatterypackcharging requirements.

• Batterypackwillnotcharge. •Chargernotpluggedin. •Plugchargerintoaworkingoutlet. Refer to “Important Charging Notes” for more details.

• Surroundingairtemperature•Movechargerandbatterypacktoa too hot or too cold. surrounding air temperature of above 40 degrees F (4.5°C) or below 105 degrees F (+40.5°C). For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK+DECKER help line at 1-800-544-6986. ACCESSORIES Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

WARNING: The use of any accessory not recommended for use with this tool could

be hazardous. RBRC SEAL

The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the lithium-ionbattery(orbatterypack)indicatesthatthecoststorecyclethe battery (or battery pack) at the end of its useful life have already been paid by BLACK+DECKER.Insomeareas,itisillegaltoplacespentlithium-ion batteries in the trash or municipal solid waste stream and the RBRC program provides an environmentally conscious alternative. RBRC in cooperation with BLACK+DECKER and other battery users, has established programsintheUnitedStatesandCanadatofacilitatethecollectionofspentlithium-ion batteries. Help protect our environment and conserve natural resources by returning the tool to an authorized BLACK+DECKER service center for recycling. You may also contact your local recycling center for information on where to drop off the spent battery, or call 1-800-8-BATTERY. 8ThisClassBdigitalapparatuscomplieswithCanadianICES-003. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiver is connected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This Class B digital apparatuscomplieswithCanadianICES-003. SERVICE INFORMATION All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit www.blackanddecker.com

FULL TWO YEAR WARRANTY

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways. The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges. The second option is to take or send the product (prepaid) to a BLACK+DECKER owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing,call1-800-544-6986forafreereplacement. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for warranty information. Imported by Black & Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286 U.S.A. 9Consulter le site Web www.BlackandDecker.com/NewOwner pour enregistrer votre nouveau produit.
