USER MANUAL AS255 BLACK & DECKER

Please Read and Save this Use and Care Book

Accessories/Parts (USA/Canada)

IMPORTANT SAFETY INSTRUCTIONS

When using your iron, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING.
Use iron only for its intended use.
To protect against a risk of electric shock, do not immerse the iron in water or other liquid.
The iron should always be turned off (refer to "How to Use" section) before plugging into or unplugging from an outlet. Never yank cord to disconnect from outlet; instead grasp plug and pull to disconnect.
Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around cord wrap when storing.
Always disconnect iron from electrical outlet when filling with or emptying of water, and when not in use.
Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron, take it to a qualified serviceman for examination and repair. Or, call the appropriate toll-free number listed on the cover of this manual. Incorrect reassembly can cause a risk of electric shock when the iron is used.
- Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down or use the surge of steam — there may be hot water in the water tank. Avoid rapid movement of iron to minimize hot water spillage.

SPECIAL INSTRUCTIONS

To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS.

Soft-Touch Parts

Note: The soft-touch parts of this unit are free of natural rubber and latex. They are safe for individuals allergic or sensitive to these materials.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

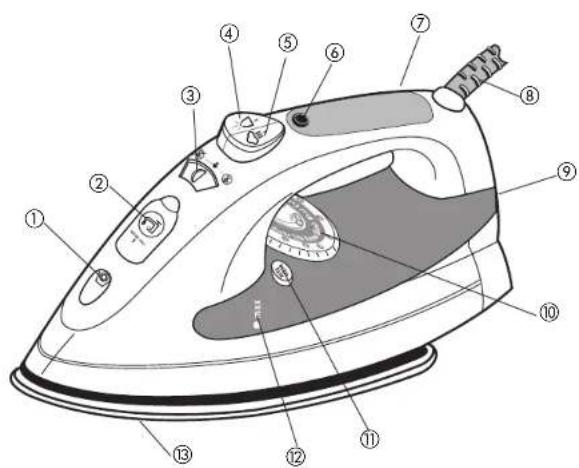

Product may vary slightly from what is illustrated.

1. Spray nozzle
2. Water-fill cover
3. Dry/steam selector
4. Spray button
5. Steam button
6. Temperature-ready and auto shutoff light
7. Comfort GripTM handle
8. 360^ pivoting cord
9. Heel rest
10. Fabric-select dial
11. AUTO CLEAN button
12. Water tank
13. Soleplate

Symbols

Steam

Spray

Dry

How to Use

This appliance is for household use only.

GETTING STARTED

Remove any labels, stickers or tags attached to the body or solcplate of the iron. Note: Use ordinary tap water for ironing. Do not use water processed through a home softening system.

Important: For optimum performance, let the iron stand for 90 seconds before beginning to iron.

IRONING WITH STEAM

Filling Water Tank

1. Open the water-fill cover (A).

1. Tilt the iron and using a clean measuring cup, pour water into opening until the water reaches the MAX level mark on the water tank (B). Do not overfill.
2. Close the water-fill cover.

1. Plug in the iron. The temperature-ready light glows (C).

Tip: If unsure of a garment's fiber, test a small area (on an inside seam or hem) before ironing.

1. Move the dry/steam selector to the desired steam level (D).

1. Turn the fabric-select dial to appropriate steam selling (between 4 and 6) for your fabric (E). Read garment's label to help you determine fabric type.
   The temperature-ready light glows until it reaches the appropriate temperature.
2. It then glows on and off during ironing. This is normal.
3. When finished ironing, turn the fabric-select dial to lowest heat setting, move the dry/steam selector to unplug the iron.

Surge of Steam

Use to remove stubborn creases.

1. With water tank filled to the MAX mark, turn the fabric-select dial to at least setting 4 and wait for the temperature-ready light to go off.
2. To remove tough wrinkles, pump the button at 5-second intervals for a concentrated blast of steam.
3. When finished ironing, turn the fabric-select dial to lowest heat setting, move the dry/steam selector to and unplug the iron.

Vertical Steam

Use for removing wrinkles from hanging clothes and drapes.
1. Hang the garment to be steamed on a clothes hanger (curtains or drapes can be steamed once they are hung).

1. Move the dry/steam selector to

2. Hold the iron close to, but not touching, the fabric.
   4.Pull the fabric tight in your free hand and pump the button as you move the iron over the fabric (F).

3. When finished ironing, turn the fabric-select dial to lowest heat setting, move the dry/steam selector to unplug the iron.

IRONING WITH SPRAY

Use to dampen tough wrinkles at any setting (G).

1. Be sure the iron is filled with water.
2. On first use, pump the button several times.

DRY IRONING

1. Make sure dry/steam selector is set to 8 You may want to empty the water (see "Emptying Water Tank After Ironing - Optional").

2. Turn the fabric-select dial to the desired setting.
   Read garment's label to help you determine fabric type.
   The temperature-ready light glows until it reaches the appropriate temperature.

3. It then glows on and off during ironing.
4. When finished ironing, turn fabric-select dial to lowest setting, unplug the iron and place it on its heel rest.
5. Move the dry/steam selector to

EMPTYING WATER TANK AFTER IRONING (OPTIONAL)

Note: It is not necessary to empty the water after each use.

1. Turn the fabric-select dial to the lowest setting.
2. Unplug the iron and let it cool.
3. Open the water-fill cover.

1. Empty the water by holding the iron over a sink with the tip pointing down. Water will empty out of water-fill opening (H).

SPECIAL FEATURES

ANTI-DRIP SYSTEM

The anti-drip system prevents water spotting at low temperatures.

10-MINUTE AUTO SHUTOFF

1. If you leave the iron on its heel rest without moving it, the iron will automatically shut off after 10 minutes. The auto shutoff indicator light blinks to let you know that the iron has stopped healing. To turn it back on, move the iron until it starts healing again.

2. When finished, unplug the iron and stand it on its heel rest.

3. Move the dry/steam selector to

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING OUTSIDE SURFACES

1. Make sure iron is unplugged and has cooled completely.

2. Wipe the soleplate and outer surfaces with a soft cloth dampened with water and a mild household detergent. Never use abrasives, heavy-duty cleansers, vinegar or scouring pads that may scratch or discolor the iron.

3. After cleaning, plug in the iron.

4. Steam iron over an old cloth to remove any residue from the steam vents.

AUTO CLEANING

To keep the steam vents free of any buildup, follow these instructions about once a month.

1. Fill the tank with water well below the MAX line.
2. Plug in the iron.
3. Turn the fabric-select dial to 6 and stand the iron on its heel rest. Allow it to heat until the auto shutoff indicator light goes out and comes on again.
4. Turn fabric-select dial to lowest setting, unplug the iron and hold over a sink with the soleplate facing down.

1. Press and hold the AUTO CLEAN button. Be careful, as hot water and steam will come out of the steam vents (f). Continue to hold AUTO CLEAN button until all the water has emptied, or until you feel all mineral deposits have been flushed. If necessary, rock iron side to side and front to back.
2. When finished, release the button, stand the iron on its heel rest and plug it in. Heat for about 2 minutes to dry out any remaining water.

STORING YOUR IRON

1. Unplug the iron and allow it to cool.
2. Check that the dry/steam selector is set to
3. Store vertically on its heel rest to prevent water leaking from the soleplate.

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
  If you need parts or accessories, please call 1-800-738-0245.
  What does your warranty not cover?
• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.
