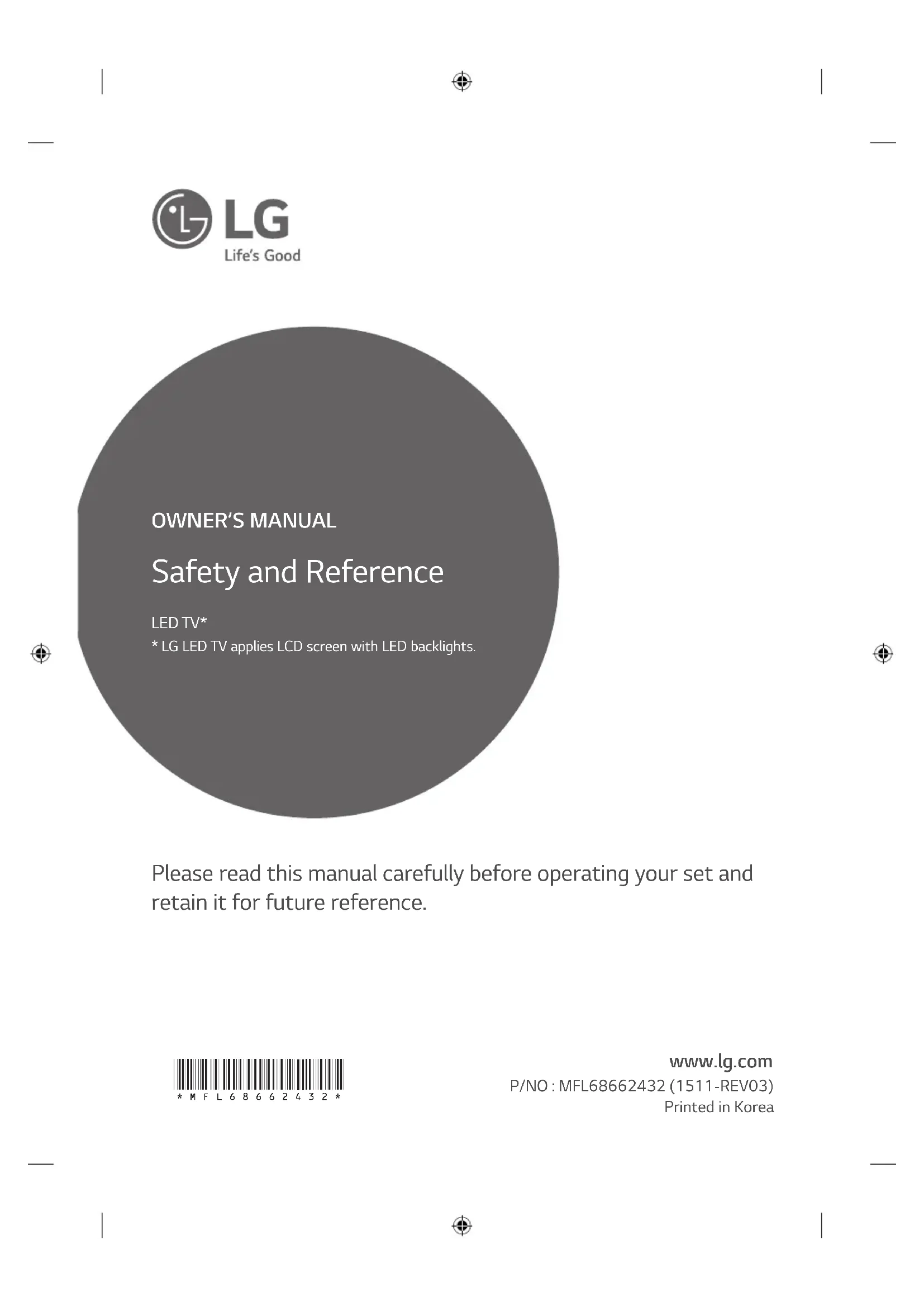

USER MANUAL 42LF5809 LG

Safety and Reference

LED TV*

• LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

Safety instructions

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and/or remote control in the following environments:

A location exposed to direct sunlight
An area with high humidity such as a bathroom
Near any heat source such as stoves and other devices that produce heat
Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
An area exposed to rain or wind
Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / fire hazard.

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/ cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local service centre.

The product has been impacted by shock
The product has been damaged.
Foreign objects have entered the product
The product produced smoke or a strange smell

This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or fire.

Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.

CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from overheating.

The distance between the product and the wall should be more than 10cm
- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
Do not install the product on a carpet or cushion.
Make sure the air vent is not blocked by a tablecloth or curtain.
therwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and color of the panel depending on your viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image for a prolonged period of time may cause image sticking. Avoid displaying a fixed image on the TV screen for a long period of time.

Generated sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.

Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction.

Preparing

NOTE

• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
  The available menus and options may differ from the input source or product model that you are using.
  New features may be added to this TV in the future.
  The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
  The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.
  The items supplied with your product may vary depending on the model.
  Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10mm thick and 18mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types) -High-Speed HDM^10 / ^14 Cable (3 m or less) High-Speed HDM^10 / ^14 Cable with Ethernet (3 m or less)

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
  Any damage or injuries caused by using unapproved items are not covered by the warranty.
  Some models have a thin film attached on to the screen and this must not be removed.
• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
  Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

Depending on model)

AN-VC5**Smart camera	AN-MR500Magic Remote	AN-WF500Wi-Fi/Bluetooth Dongle
LG Audio Device

• You can use the Magic Remote and LG Audio Device(Wireless) only when you are using the Wi-Fi/Bluetooth Dongle.

Maintenance

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

It is recommended to move the TV in the box or packing material that the TV originally came in.
- Before moving or lifting the TV, disconnect the power cord and all cables.
- When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing / bending of frame chassis as it may damage screen.
• When handling the TV, be careful not to damage the protruding joystick button.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

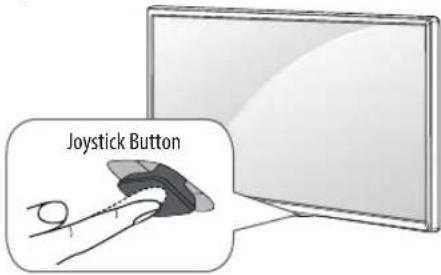

Using the joystick button

(Image shown may differ from your TV.)

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.

Basic functions

	Power On	When the TV is turned off, place your finger on the joystick button and press it once and release it.
	Power Off	When the TV is turned on, place your finger on the joystick button and press it once for a few seconds and release it. (However, if the Menu button is on the screen, pressing and holding the joystick button will let you exit the Menu.)
	Volume Control	If you place your finger over the joystick button and move it left or right, you can adjust the volume level you want.
	Programmes Control	If you place your finger over the joystick button and move it up or down, you can scrolls through the saved programmes you want.

Adjusting the menu

When the TV is turned on, press the joystick button one time. You can adjust the Menu items moving the joystick button up, down, left or right.

	Turns the power off.
×	Cleared on-screen displays and returns to TV viewing.
	Changes the input source.
	Accesses the main menu.

NOTE

• When your finger over the joystick button and push it to the up, down, left or right, be careful not to press the joystick button. If you press the joystick button first, you may not be able to adjust the volume level and saved programmes.

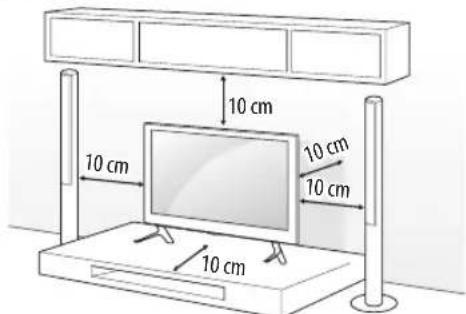

Mounting on a table

(Image shown may differ from your TV.)

1 Lift and tilt the TV into its upright position on a table.

• Leave a 10 cm (minimum) space from the wall for proper ventilation.

2 Connect the power cord to a wall outlet.

CAUTION

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.

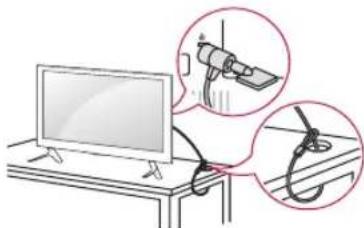

Using the kensington security system

(This feature is not available for all models.)

Image shown may differ from your TV.

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com. Connect the Kensington security system cable between the TV and a table.

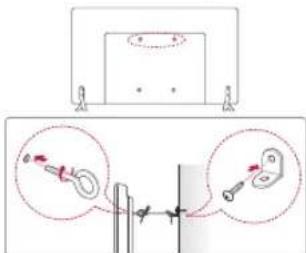

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

CAUTION

Make sure that children do not climb on or hang on the TV.

NOTE

Use a platform or cabinet that is strong and large enough to support the TV securely.
- Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

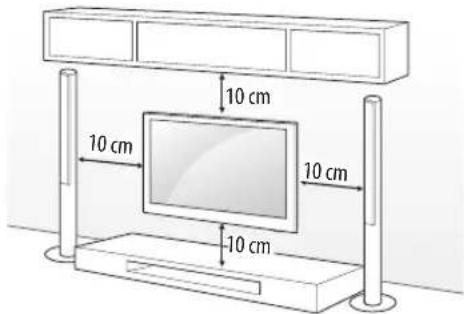

Mounting on a wall

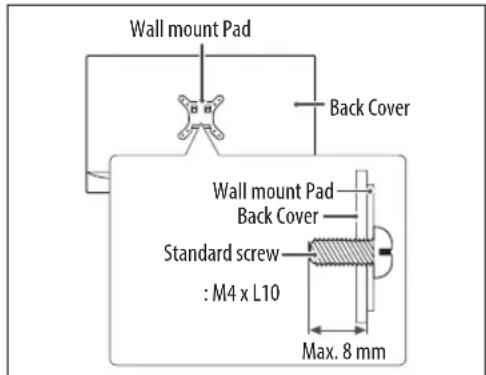

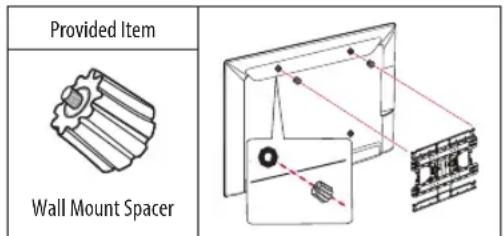

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG's wall mount bracket. LG's wall mount bracket is easy to move with cables connected. When you do not use LG's wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing fixed wall mounts.

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase (Wall mounting bracket)

Model 22LF49** 28LF49**
VESA (mm) (A x B) 75 x	75 100 x 100
Standard screw M4 X L	L10 M4 X L10
Number of screws 4 4
Wall mount bracket	LSW140B LSW140B
Model 32LF58** 42/50	55LF58**
VESA (mm) (A x B) 200	x 200 400 x 400
Standard screw M6 M6
Number of screws 4 4
Wall mount bracket	LSW240B	LSW440B
	MSW240	MSW240

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
  If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.
• Screw length from outer surface of back cover should be under 8 mm. (Only LF49**)

Connections (notifications)

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

This TV does not support HEVC codec.
- The external device connection may differ from the model.
- Connect external devices to the TV regardless of the order of the TV port.
- If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
Refer to the external equipment's manual for operating instructions.
If you connect a gaming device to the TV, use the cable supplied with the gaming device.
- In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
- In PC mode, some resolution settings may not work properly depending on the graphics card.

Antenna connection

Connect the TV to a wall antenna socket with an RF cable (75Ω).

Use a signal splitter to use more than 2 TVs.
- If the image quality is poor, install a signal amplifier properly to improve the image quality.
If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
An antenna cable and converter are not supplied.
Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75Ω).

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
  The length of screws may differ depending on the wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount.
• When attaching a wall mounting bracket to the TV, insert the wall mount spacers into the TV wall mount holes to adjust the vertical angle of the TV. (Only when the item of the following form is provided)

Adapter connection

Depending on model)

CAUTION

Please be sure to connect the TV to the AC-DC power adapter before connecting the TV's power plug to a wall power outlet.

Euro scart connection

Depending on model)

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable.

Output Type Current input mode	AV1 (TV Out°)
Digital TV Digital TV
Analogue TV, AV	Analogue TVComponent
HDMI

1 TV Out: Outputs Analogue TV or Digital TV signals.

Any Euro cart cable used must be signal shielded.

CI module connection

Depending on model)

View the encrypted (pay) services in digital TV mode.

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
  If the TV does not display any video and audio when Cl + CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

USB connection

Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the TV.

Other connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.

NOTE

Supported HDMI Audio format:

Dolby Digital (32 kHz, 44.1 kHz, 48 kHz), DTS (44.1 kHz, 48 kHz),

PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz) (Depending on model)

Remote control

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.
  The remote control will not be included for all sales market.

Make sure to point the remote control toward the remote control sensor on the TV.

Depending on model)

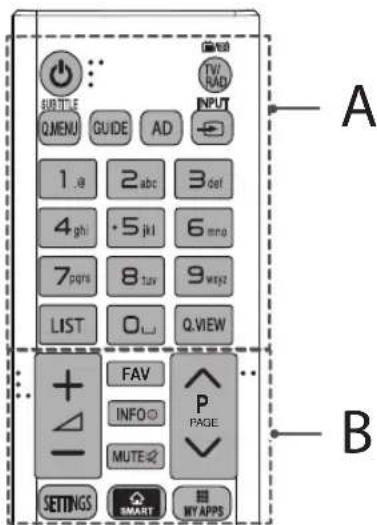

A

(POWER) Turns the TV on or off.

TV/RAD Selects Radio, TV and DTV programme.

SUBTITLE Recalls your preferred subtitle in digital mode.

Q. MENU Accesses the quick menus.

GUIDE Shows programme guide.

AD By Pressing AD button, audio descriptions function will be enabled.

INPUTges the input source.

Number buttons Enters numbers.

LIST Accesses the saved programme list.

L (Space) Opens an empty space on the screen keyboard.

Q.VIEW Returns to the previously viewed programme.

B

+Adjusts the volume level.

FAV Accesses your favourite programme list.

INFO ① Views the information of the current programme and screen.

MUTE flutes all sounds.

ScrolIe through the saved programmes.

PAGE MOVesthe previous or next screen.

SETTINGS Accesses the main menus.

SARSES the Home menu.

Mtharssthe list of Apps.

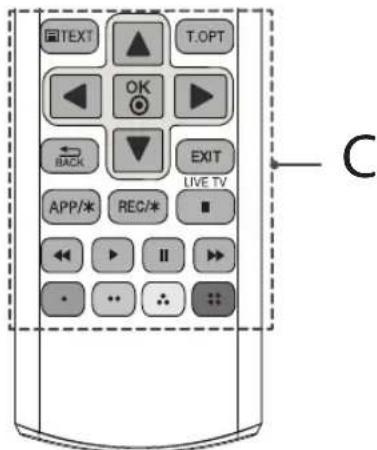

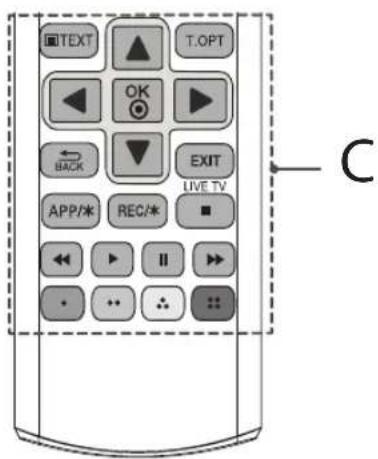

C

Teletext buttons (E)EXTb0rPs are used for teletext.

Navigation buttons (up/down/left/right) ScrolIs through menus or options.

OK Selects menus or options and confirms your input.

BACK Returns to the previous level.

EXIT Clears on-screen displays and returns to TV viewing.

APP/* Selects the MHP TV menu source. (Depending on model)

RECRKsTto record and displays record menu. (Only Time Machine *supposed model) (Depending on model)

LIVE TV Returns to LIVE TV.

Control buttons (■, ▷, ↓, ←) Controls the Premium contents, Time Machine ^Ready or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine ^Ready ).

Coloured buttons These access special functions in some menus.

Red,Green,Yellow,Blue

Depending on model)

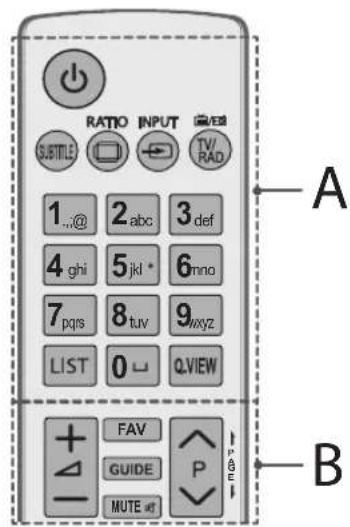

A

(POWER) Turns the TV on or off.

SUBTITLE Recalls your preferred subtitle in digital mode.

RAE0es an image.

INCHages the input source.

TV/RAD Selects Radio, TV and DTV programme.

Number buttons Enters numbers.

LIST Accesses the saved programme list.

Space) Opens an empty space on the screen keyboard.

Q.VIEW Returns to the previously viewed programme.

B

+Δ-Adjusts the volume level.

FAV Accesses your favourite programme list.

GUIDE Shows programme guide.

MUTE omutes all sounds.

ScrolIsh through the saved programmes.

PAGE Moves to the previous or next screen.

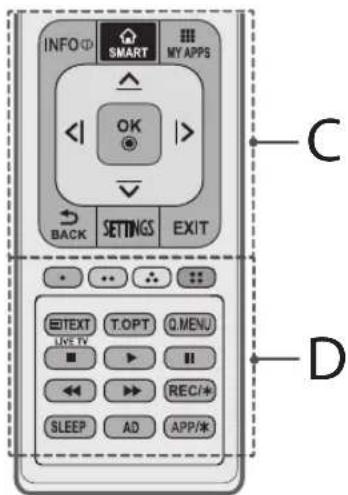

C

INFO ① Views the information of the current programme and screen.

SMARSES the Home menu.

MSAPs the list of Apps.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

业 BACK Returns to the previous level.

SETTINGS Accesses the main menus.

EXIT Clears on-screen displays and returns to TV viewing.

D

Coloured buttons These access special functions in some menus.

Red,Green,Yellow,Blue

Teletext buttons (TEXT/0.0)se buttons are used for teletext.

Q. MENU Accesses the quick menus.

LIVE TV Returns to LIVE TV.

Control buttons (■, ▶, II, ←, →) Controls the Premium contents, Time Machine ^Ready or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine ^Ready ).

REC/Starts to record and displays record menu. (Only Time Machine*supported model) (Depending on model)

SLEEP Sets the sleep timer.

AD By Pressing AD button, audio descriptions function will be enabled.

APP/Selects the MHP TV menu source. (Depending on model)

Licenses

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Open source software notice information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource. lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

External control device setup

To obtain the external control device setup information, please visit www.lg.com.

Troubleshooting

Cannot control the TV with the remote control.

• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote control.
• Check if the batteries are still working and properly installed to to.

No image display and no sound is produced.

Check if the product is turned on.
- Check if the power cord is connected to a wall outlet.
- Check if there is a problem in the wall outlet by connecting other products.

The TV turns off suddenly.

• Check the power control settings. The power supply may be interrupted.
• Check if the Automatic Standby (Depending on model) / Sleep Timer/Off Time is activated in the TIME settings.
  If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

When connecting to the PC (HDMI), 'No signal' or 'Invalid Format' is displayed.

• Turn the TV off/on using the remote control.
• Reconnect the HDMI cable.
• Restart the PC with the TV on.

Specifications

Wireless LAN module specification

Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.
This device should be installed and operated with minimum distance 20cm between the device and your body. And this phrase is for the general statement for consideration of user environment.

C∈0197①

Wireless LAN module (TWFM-B006D) specification
Standard IEEE802.11a/b/g/n
Frequency Range	2400 to 2483.5 MHz 5150 to 5250 MHz 5725 to 5850 MHz (for Non EU)
Output Power (Max.)	802.11a: 11 dBm 802.11b: 14 dBm 802.11g: 10.5 dBm 802.11n - 2.4 GHz: 11 dBm 802.11n - 5 GHz: 12.5 dBm

BENUTZERHANDBUCH

PCM (32 kHz, 44,1 kHz, 48 kHz, 96 kHz, 192 kHz) (Selon le modelele)

Télécommande

PCM (32 kHz, 44,1 kHz, 48 kHz, 96 kHz, 192 kHz) (In base al modello)

Telecomando

Mny tonoBteite to npoiov oe eepn ie npaejBoLc paoikouatw.

O npenei va apnoete apket anootaon metaeun cEwepiknc kepaiac KAI TOW YPAJUMN NkETPOBDOTnOC, WOTE N KEPAIA V MNUV Epeoi ENAPN ME TIC YPAJMEc akoum KAI OE NEPINTWON NOU NEOI. YnpexIKIVbUOC NkETPONnEiac.

Mny tonotheite to npoiov oe npen onwoc aotn papia n kekaiuevec
enipaveiec.Anopoyete emion ta npen onou unapxyoukpaabaoi n
onou dev evivalduvatn n anpnc ornpieTou npoiovtoc.
Aiaopopetiká, to npoiov mnoepi va neei na atpatanei, e anoteaegua
tnv npokantpauatmuohn cniuac oto npoiov.

Eav eykataaetae tnu thaeopaon o faan, th npenei va labetae metpa npokieevou v anotpeyete nvy atpmon tou npoiovtc. diaopoptika, to npoiov monei v neei kai v npokaleei paumatio.

AV KOIEETA TOIOTIOE TTOPOIOV OE ToIOX, PNOAPOATE TIV TUNKBAON OTNIPEVC VESA (PNOAPETIA EAPNTMA) OTN NIOW NLEUPA TOPOIOVTOC.OTAV XPOAPOIOIEITE TN ENITOIXA BAONC OTNIPEC (PNOAPETIA EAPNTMA) VA TNY EYKAATAOAN TNC OOUKEUNC, OTEPEOTENPOOektA,VA VA MNUNEOI.

Na xpnoiopoiite m ovo ta eapntjata nov opicio kataokauaotnC.

Kata nTv EYkataoTaon Tc Kepaiac, ouBouLeuteiEeav apoio 1nEeTPOyo. Ynpexi kivduovoc npkayiac nEeTponlaic

Suvotata va diatneite anootaan touaioctov 2 woc 7 opec tn diaywia diataon tnc oovnc otav napakoloutheite tnAeopaan. Hnapakoloobn gn tnAeopaanc yia meyalo xpvikodiatonma unopei va npokalaeoi boh opaan.

Na xnpoionoei e moov kaobopioevo tuno mntapiac.
Aiaopopetiku, umpxie kivvoc bao cto tnlexepiotpio.

Mny xpnoonoeite KAnovpOyies pnatapie Tautoxpova ne naiec. Ynapei kivouoc unePepmuavont wv npataiw kal diappoic.

Ounatapiec 6ev npenei va eKtiEeai OE uepeboaik thepounta, onwc Eiva to quc tou niou, kacia kal nkeptpikec 8epaotpc.

MHN tonotheetie n enavaopptcfoevc unatapie cto qoppti.

Beaowte onyev unapxov avtkeieva metacou tntexiptnpoi kai tou aioentnpa.

To ona Tou nAexepiopniou npoei va aaiowtheta ano to ooc tou hiaou n aanduvatn nnyn foWTOC. Tny nepiTwn aut, eWote to wtoio so 8omega.

KataTn ouvdoen Ewstepiuov ouakeuw, onwc Kovodc
Bivteonaiyduwv, ovoiTa kawda ouvdoanc va exuv enapkec
mko. Diapopetika, to npoiov mopei va neei, me anotelaeqa Tnv
npokan tpaumiaou n cnaac stpioiv.

Mny evpyonoeite/anevepyonoeite to npoiov ouvodovtac n anouuvodovtac to qic tou kalwdiou ano tyn npica. (Mny xnpouonoeite to piic peuipatoC wiciaoknt.) Ynapxei kivduoc pokknc mnuaviknc baaicn nakktonnxiac.

Na tnpieTe Tc napakawO oyiec Ecaepioou, yia va anotpeEETnv Uepepavon Tou npoiovtoc.

H anostraonetaou npoiovtoc kau tou toixou 0 npenei va evar eyaotepn ano 10 ek.
MnV tonotheite to npioov oE mepocxwpic Eaepioo (n.x. oe paip n e vtouan).
Mny tonotheite T npoiov enawv ox xai n paiai ap.
Φoovtiote ta avoiymu Ta Eaepiou va nyn anoppaoovta anotpaneOqavtaikouptivec.

MUTE 1yaaon oawtwv hXw.

APKUion ota anothekeuEvApoupaMa.

PAGE Metakivnon atny nponyouevn n tven eovn.

SETTINGI PpOaon Ota Kupiaevo.

SPhpaon oApxikoevo.

MAPRKeTnAiaTaTOWeapuoyw.

C

Kouma teletext（国Tataoμma

Xpnooioovtai yia to teletext.

Koumi aonnoe (navw/kaw/aiotepa/deia) Koi on ta eouo n c moyec.

OK@Eepyonoinan evo h enaiowk aenbetaiaow tw kataxwpnoew.

BACK Emotpoq oTo nponyuuevo enine8o.

EXIT iaypaip oawtwv evdeieewou nou epaivicovtaotnyoohyn kai EtntopopnOtv KAVOVNIPOBAnTnAeopaoc.

APP* Enuoyi nnc npoeaeuoc tou evoou MHP TV. (Avooya to oovrlo)

REC* Ekkivnon yyypaqnc kai npoBoaI tou evoe yypapnc. (mvoTo oovtlo Time MachineReady) (Avaloya e to ovvtlo)

LIVE TV EIOIOTPOOPN OIN LEIOTUPYIA LIVE TV (ZONTANH THAEOPAZH).

Koupié éxyxou (，，II，，Eéxyoc tw nepiexoyew Premium,twv μeov Time MachineReady n SmartShare n twv ouβatow ouokewv SIMPLINK (USB n SIMPLINK n Time MachineReady).

Eypwkaouma Xpauonooovtaia TnV npoaaon e Eiokc Aitoupyie opioevuv mevo.

Kouma teletext (TEXT/ABTa Kaoumia xpoiOnoovTu ia to teletext.

Q.MENU PpOaBaaon Ota pynpyopa evou

LIVE TV Emotpoipn an tietropvlya LIVTV (ZONTANTHHAEOPA2H).

Koumtia eeyxou (1, 11, 1), Eeyxoc tweepieoxevow Premium, twy evo Time MachineReedy n SmartShare n tw oubetaow oukeuw SIMPLINK (USB n SIMPLINK n Time MachineReedy).

REC* Ekkivnon Evppaic Kai npoBoi tou evoe vppaipc. (movo to oovtelo Time MachineReady) (Avaloya uo tovtelo)

SLEEP P@muon wporc aneVeyp.

AD Platovtac to koumi AD, evpyoioietal n Aetroupyla nepiypapjc ryou.

APP* Emoyn Tnc npoeAeuonctou evou MHP TV. (Avooya e to ovoTae)

Adeltaxcpnoonc

OuooTnpioevec aoeic xponc evexetai va diaqepovv, avaoya e to movtelo. Ia nepioootepe n npopopie cxtikae tic aebiec xponc, EIOKEpBeite tsiuovwnww.1g.com.

DOLBY

DIGITALPLUS

图1

INTINUMULTIMEDINTERSEAS

HD

dt

2.0+Digital Out

GUIDE Prikaze spored.

GUIDE Prikaze spored.

MUTE klop vseh zvokov.

CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature 0 °C to 40 °C
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C
	Storage Humidity Less than 85 %

	Digital TV (Depending on model)	Analogue TV (Depending on model)
Television system	DVB-T (DVB-T/T2*)	PAL/SECAM B/G/I/D/K
	DVB-C	SECAM L/L'
	DVB-S/S2*
Programme coverage	VHF, UHF	VHF, UHF, CATV
	C-Band*, Ku-Band*
Maximum number of storable programmes	DVB-S/S2:6,000 DVB-T/T2/C & Analogue TV:1,500
External antenna impedance 75 Ω

• Only DVB-T2/C/S2 support models.

AC-DC Adaptor	22LF49**
	Manufacturer : Lien ChangModel : LCAP35Manufacturer : APDModel : DA-48F19
	Input: AC 100-240 V ~ 50/60 HzOutput: 19 V -2:53 A
	28LF49**
	Manufacturer : Lien ChangModel : LCAP39Manufacturer : APDModel : DA-65G19
	Input: AC 100-240 V ~ 50/60 HzOutput: 19 V -3:42 A

Regulatory

LG Recycling Policy (Only EU)

LG Electronics offers a customized e-waste take-back & recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recycling service voluntarily in some countries. LG Electronics evaluates products' recyclability at the design step using LG's recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment.

For more information about the LG Recycling Policy, please visit our global site at http://www/lg.com/global/sustainability/environment/take-back-recycling

Energy Saving

Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills. The following indications allow to reduce power consumption when the television is not being watched:

• Turning the television off at its mains supply, or un-plugging it, will cut energy use to zero for all televisions, and is recommended when the television is not being used for a long time, e.g. when on holiday,
• Putting the television into standby mode, will reduce energy consumption, but will still draw some power,
• Reducing the brightness of the screen will reduce energy use.

Isolator (Only Sweden, Norway)

• Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard.

Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)

Better for the environment...

High Energy Efficiency
Reduced CO2 emissions
- Designed to facilitate repair and recycling

... better for you.

EU Ecolabel:PL/22/004

LGE announced the 'LG Declaration for a Cleaner Environment' in 1994, and this ideal has served as a Guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertake environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the Concept of environment-friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These environmental characteristics are endorsed by the award of the European Commission as approval of the product environmental status for energy saving. Facilities for recycling and a host of other features.

The full list of criteria and more information on the eco label can be found at the web-site address : http://www.ecolabel.eu

Restriction of Hazardous Substances (Only Ukraine)

06mexeHHyKpaiHn Ha HaraBHiCTb He6e3neuHnx peoBmH

The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.
- YctaKyBaHbBiNObiAcBmOramTexHnHoro perIaMeHTy 0do 6MExeHHo BnKOpCTaHH He6e3neHnxpeOBN B eEKeTpHOMy i eEKeTPOHHOMy 0bnadHaHI.

Packing Information (Only Russia, Kazakhstan, Belarus)

Pycckn

CIMBOI 電 _ 日 nuiueboi npoyuimnpimmeHcTBCOTBcTBnCTxHmecKm perlanentom TaMOxehHoro coo3aO6e30naCHOTyanaokBKn 005/2011 uka3bBaET haTO, ytoynakOBKa daHORIO npOyKTa he npedHa3aHeHa nnoBtOPHO uCIOB3OBAHN noDneKHTytin3aun.ynakOBky daHORIO npOyKTa 3anPeaaTc HcNlB3ObaTb dnxpaHEHn nuieboipoyukim.

Ka3aKawa

CnBON KeenDnK OaKaTbH 005/2011 TexnKaIbIK pernaMeTIHe cKeK KOnDaHbIaNbI JxHe OcbI eHIMHiKanTaMaCbIH ekHui pet naIaHaHyra apHaImaRaHbH xHe XoOFA JxataTbHbH KepceTei. OcbI eHIMHI KantamacBH a3bIK-TyNik EHmepin caTay yuH naiIaHaHyra TbIbIM calBaHaDbI.

Pycckn

CMBON «Netra Me6nca» yka3bIaET Ha BO3MOKHOCTb YTNIN3aUNyNAKOBKn. CMBON MOKeT 6bIT bONINHEO603HaeHHem MaTePnAa yNakOBKn B VnDE UΦpOBOrO H/NN 6yKBeHHOrO 6o3HaueHHn.

Kazakwa

CunBON KANTamaHbI KOIO MymKHiDirIH KepcTei. CunBON caNdbIK KOI KHe/Hemece eipin 6enrinepi TyPiHderi KantamaMaTePnAblHbH 6eRicimeH ToJIbTbIpybIyMymKiH.

LG

Life's Good

Please contact LG First.

If you have any inquiries or comments, please contact

LG customer information centre.

Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

Digital Video Broadcasting

www/lg.com

LG Customer Information Centre
Country	LG Service	Country	LG Service
Österreich 0	810 144 131 Nederland 0900 543	$454
Belgien 015 20	00 255 Norge 815 691 54
Luxembourg	0032 15 200255 Polska 801 54 54	54
Бulgaria	07001 54 54 Portugal 808 78 54 54
Česka Rep. 8	10 555 810 Romania	031 228 3542
Danmark 78	79 64 54 Slovensko 0850 111 154
Suomi	0800 0 54 54	Espana	963 05 05 00
France	3220 dites LG au tapez 54	Sverige 0770	54 54 54
Deutschland	01806 11 54 11 (0,20€ pro Annu aus dem Festnetz der DTAG; Mobilfunk max. 0,60€ pro Annu)	Schweiz 0848	543 543
Еλάδα	801 11 200 900, 210 4800 564	United Kingdom	0344 847 5454
		Pôscnia	8 800 200 7676
Magyarország	06 40 54 54 Eesti	800	9990
Éire	01 686 9454	Уkraine	0 800 303 000
Italia	199600099	Казх CTAN	8 8000 805 805, 2255(GSM)
Бер�арсь	8 820 0071 1111
Latvia	8 0200 201	Узбенистан	8 800 120 2222
Lietuva	880008081	Кырль CTAN	0-800-805-8050
Türkeye	444 6 543	Slovenija	080 543 543
