USER MANUAL DBP 90 PRO TEKA

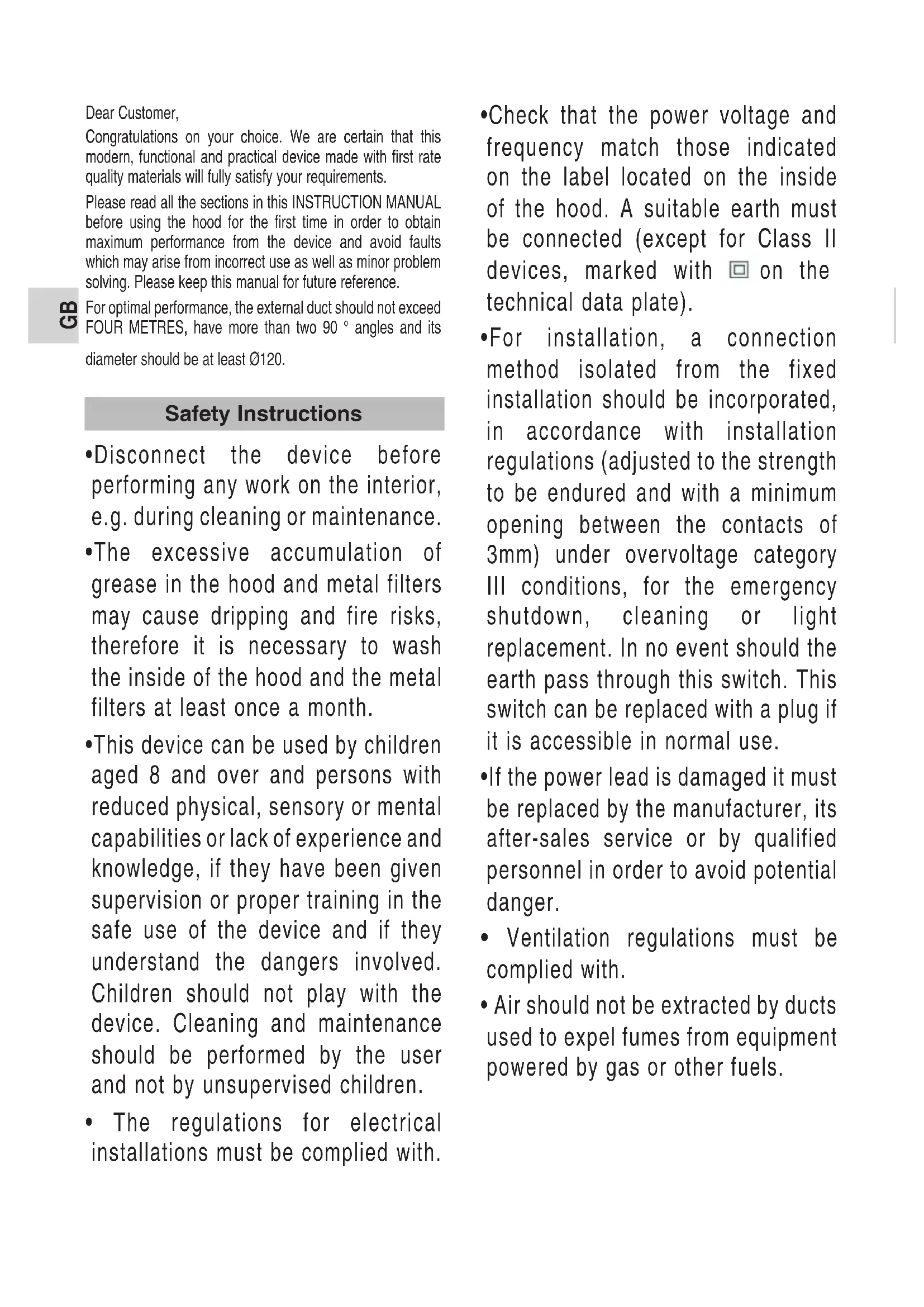

• Disconnect the device before performing any work on the interior, e.g. during cleaning or maintenance.

• The excessive accumulation of grease in the hood and metal filters may cause dripping and fire risks, therefore it is necessary to wash the inside of the hood and the metal filters at least once a month.

• This device can be used by children aged 8 and over and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or proper training in the safe use of the device and if they understand the dangers involved. Children should not play with the device. Cleaning and maintenance should be performed by the user and not by unsupervised children.

• The regulations for electrical installations must be complied with.

• Check that the power voltage and frequency match those indicated on the label located on the inside of the hood. A suitable earth must be connected (except for Class II devices, marked with on the technical data plate).

• For installation, a connection method isolated from the fixed installation should be incorporated, in accordance with installation regulations (adjusted to the strength to be endured and with a minimum opening between the contacts of 3mm) under overvoltage category III conditions, for the emergency shutdown, cleaning or light replacement. In no event should the earth pass through this switch. This switch can be replaced with a plug if it is accessible in normal use.

• If the power lead is damaged it must be replaced by the manufacturer, its after-sales service or by qualified personnel in order to avoid potential danger.

Ventilation regulations must be complied with.

• Air should not be extracted by ducts used to expel fumes from equipment powered by gas or other fuels. Safety Instructions•The room must be provided with adequate ventilation. When the extractor hood operates at the same time as other appliances powered by energy other than electricity, the air outlet pressure must not exceed 4 Pa (4x10

• Do not produce flames under the hood.

• The bottom of the hood must be fitted at least 65cm above gas or combination hobs. Observe the minimum limits set by worktop manufacturer’s. This distance may be reduced if mentioned in the hood installation instructions.

• Accessible parts can be heated when used with cooking appliances.

• Never leave gas burning without a pan above it. The grease accumulated in the filters may drip or catch fire when the temperature is increased.

• Avoid cooking under the hood if the metal filters are not fitted e.g. while they are being cleaned in the dishwasher.

• We recommend you wear gloves and use extra caution when cleaning the inside of the hood.

• Your hood is designed for domestic use and only for the extraction and purification of gases from food preparation. Use for other purposes is at your own risk and may be dangerous.The manufacturer is not responsible for damage caused by improper use of the device.

• For repairs please contact the manufacturer’s nearest Technical Assistance Department which will always use genuine parts. Repairs or modifications by unauthorized personnel may result in damage to equipment or malfunction, endangering safety.

• This device complies with the European Directive 2012/19/EU on electrical and electronic devices entitled “Electrical and Electronic Equipment Waste “. The directive provides the framework applicable throughout the European Union for the return and recycling of electrical and electronic equipment waste [symbol] responsible for his/her safety. Keep children away from the device and never let them play with it .

• The installation instructions are defined on the images at the beginning of this user manual.

• First, remove the protective foil from the back of the appliance and, following installation, remove the foil completely.

• To remove the filters from their fittings, press lightly on the locks and then pull them off.

• The metal filters can be cleaned by soaking them in hot water with neutral detergent until the fat dissolves and then rinsing them under the tap or using special anti-grease products. They can also be washed in a dishwasher. In this case, it is advisable to stack them vertically to avoid food residues to stick to them.

• Cleaning in a dishwasher may damage the metallic surface (blackening it), although this will not affect its fat retention capacity.

• Once clean, leave them to dry off and then fit them onto the kitchen hood. Cleaning the metal filters Lamps Proceed as follows:

• Remove the metal filters.

• Change the broken/burnt out lamp.

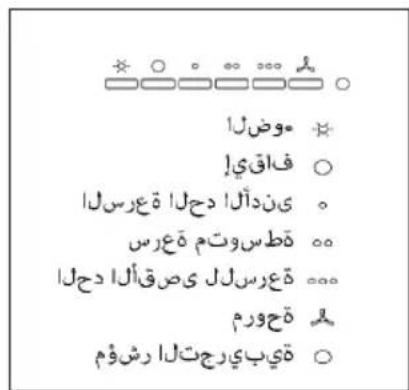

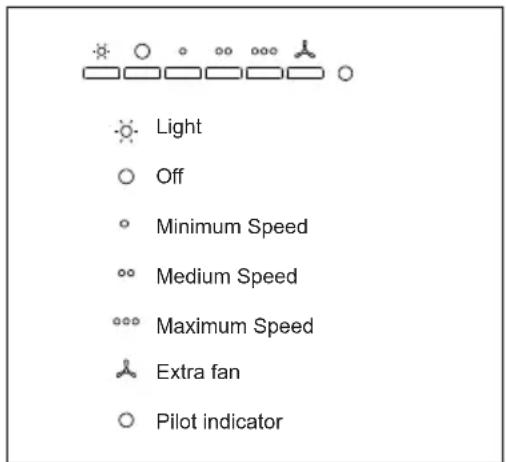

• Fit the metal filters. Instructions for use Light Off Minimum Speed Medium Speed Maximum Speed Extra fan Pilot indicator During cleaning and maintenance work, make sure the safety instructions are complied with. Cleaning and maintenance You can activate or deactivate the cooker hood by operating the functions shown in the diagram. Switch on the extractor fan a few minutes before you start to cook in order to ensure that a steady air flow has been established before fumes appear. Allow the extractor fan to run for several minutes after you have finished cooking in order to expel all the grease from the outlet duct. This prevents the return of grease, smoke and smells. Cleaning the hood body

• If your kitchen hood is made of stainless steel, use proprietary cleaners mentioned in the product instructions.

• If your kitchen hood is painted, use lukewarm water and a neutral soap.

• Never use metallic scourers, nor abrasive or corrosive products.

• Dry the kitchen hood using a cloth that does not produce fibres.

• Do not use vapour cleaners.Active charcoal filters (Optional)

• To install the active carbon filter follow the instructions supplied with it.

• The manufacturer reserves the right to make any corrections it deems necessary to its devices without damaging its essential characteristics.

• It is possible that with the installation of carbon filters, a reduction in the extraction flow can be observed in the hood.
