USER MANUAL GVC D1013BS CANDY

Safety Reminders	3
Drain Hose Kit: Fitting Instructions	8
Preparing the Load	9
Controls and Indicators	10
Selecting the Programme	11
Door and Filter	12
Condenser	13
Operation	14
Cleaning and Routine Maintenance	14
Troubleshooting	15
Customer Service	15

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

SAFETY REMINDS

Use

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

• WARNING Misuse of a tumble dryer may create a fire hazard.

• This appliances is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops , offices and other working environments;

• Farm houses
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments"

A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.

If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use ( even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.'

• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.

• Do not allow children to play with the machine or its controls.

• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

• WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty.
• Lint and fluff must not be allowed to collect on the floor around the outside of the machine.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
  The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
  Maximum load drying weight: see energy label.

The Laundry

• Do not dry unwashed items in the tumble dryer.
• WARNING Do not tumble dry fabrics treated with dry cleaning fluids.
• WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.
• Always refer to the laundry care labels for directions on suitability for drying.
• Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.
• Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
• Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

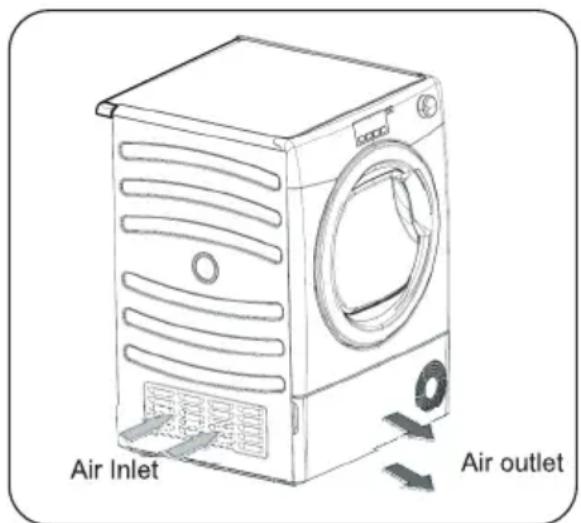

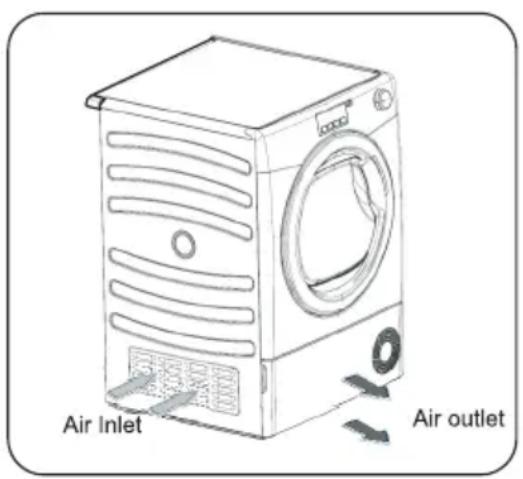

Ventilation

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
• Installing the rear of the appliance close to a wall or vertical surface.
• There should be a gap of at least 12mm between the machine and any obstructions. The inlet and outlet should be kept clear of obstruction. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.
• Check regularly that the air flowing through the dryer is not restricted.
• Check frequently the fluff filter after use, and clean, if necessary.
• Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet
• NEVER install the dryer up against curtains.
• In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the follow configuration.

-Stacking kit Mod 35100019: for minimum washing machine depth 49 cm -Stacking kit Mod 35900120: for minimum washing machine depth 51 cm

The stacking kit shall be one of that above, obtainable from our spa service.

The stacking kit shall be one of that above, obtainable from our spare service.

The instructions for installation and any fixing attachments, are provided with the staking kit.

Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between +2^ and +35^ . Please note that operating in cold condition (between +2 and +15^ ) might simply some water condensation and water drops on floor.

Environmental Issues

• All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
  To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the doorlock.

European Directive 2012/19/EU

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose property all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household assets.

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 10A.

Electricity can be extremely dangerous.

This appliance must be earthed.
The socket outlet and the plug on the appliance must be of the same type.
Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has been installed.

CE Appliance complies with European Directive 2004/108/EC, 2006/95/EC and subsequent amendments.

You may be charged for a service call if a problem with your machine is caused by incorrect installation.
If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.
A Do not plug the machine in and switch it

DRAIN HOSE : FITTING INSTRUCTIONS

To avoid emptying the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

The kit consists of:1 hose and 1 tap.

WARNING! Switch off and remove the ble dryer plug from the electricity supply pre carrying out any work.

Fit the Hose as Follows:

1.Tilt the machine backwards.

1. The waste water pipe is situated at the left -hand side of the machine (see the picture). A grey hose connects to the bridge at the left hand side of the machine. Using pliers, remove the pipe retaining clip from the bridge.

3.Pull the hose off the bridge connection.

1. Attach the black hose from the kit, (using the connector and pipe clips supplied), to the hose removed from the bridge connection.

1. Place the tap supplied by the kit to close the remaing hose.

1. Once the machine is in place the feet should be adjusted to ensure that the new hose does not kink when pushing the tumble dryer into position.

1. Connect the new drain hose to the waste Water pipe.

1. Connect to the mains electricity supply.

PREPARED THE LOAD

Before using the tumble dryer for the first time:
- Please read this instruction book thoroughly.
- Remove all items packed inside drum.
- Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

• Try to dry the maximum weight of laundry, this will save time and electricity.
• Check that the filter is clean before every drying cycle.

NEVER

• Exceed the maximum weight, this will waste time and electricity.
• Put dripping wet items into the tumble dryer, this may damage the appliance.

Do not overload the drum, large items when wet can exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

Cottons

Max. 10Kg

9 Kg

8 Kg

7 Kg

6 Kg

Synthetics

Max. 4 Kg

4 Kg

4 Kg

3,5 Kg

3 Kg

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.
Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

-By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

- By drying level

Sort into: iron dry, cupboard dry, etc. For delicate articles press the Delicates button to select low drying temperature.

CONTROLS AND INDICATORS

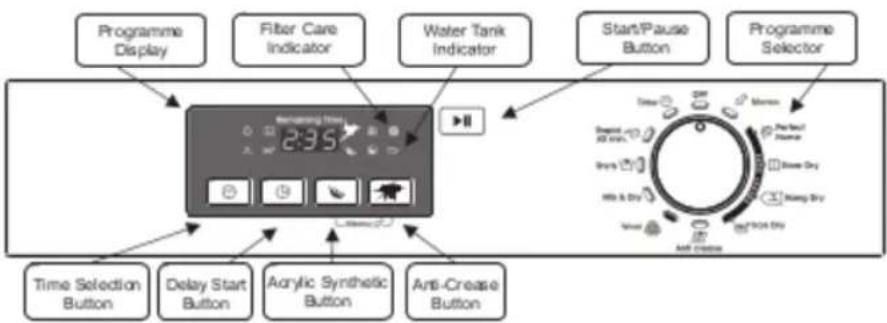

Control Panel and Indicator Lights

Knob: You can turn it in both directions to choose the required programme.

Time selection To modify the drying timing of required programme; it works only with certain programmes.

Delay start: To delay the start of the drying cycle and to dry your laundry when electricity costs less (please see dedicated section)

Delicate fabrics : When pulled, this indicator tums off and this new one ‰ tums on; with this special function, the drying temperature is lower to better protect your delicate clothes.

Anti- Crease Button - Select the anti-crease function at the end of drying cycle. The drum keeps moving at regular phases to refresh the laundry.

Cool down : This indicator turns on during the final cool phase of the cycle.

Start/Pause: To start the programme required or to pause the cycle.

Automatic programmes: Depending on desired programme, specific indicators turn on (please see "programme list")

Filter care : When on, please clean the filters.

SELECTING THE PROGRAMME

PROGRAMME DESCRIPTION

Perfect Home

Store Dry

Hang Dry

Iron Dry

Anti Crease

Wool

Woolen clothes: the program can be used to dry up to 1kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are more heavy, edges can be a bit wet: it is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle.

Attention: felting process of wool is irreversible; please dry exclusively clothes with symbol (symbol "ok tumble"); this program is not indicated for acrylic clothes.

Mix & Dry

Shirts

Rapid 40 Min.

The Rapid 40^ programme allows a drying cycle to be completed quickly. This is an ideal programme for having dry, refreshed and ready-to-wear clothes in less than 40^ . This special programme constantly monitors the temperature in the drum. The maximum load is 2kg and the programme is suitable for all types of fabrics where tumble drying is appropriate.

Time

Memo

Memo Program allows to re-perform a program that the user has saved before, without selecting the correct sequence of program selector positions and option buttons for that particular program.

DOOR and FILTER

Pull on handle to open the door.

To restart the dryer, close the door and press Start / Pause button

WARNING! When the tumble dryer is in use, a drum and door may be VERY HOT. Never go to a tumble dryer before the end of the drying time unless all items are quickly removed and read out so that the heat is dissipated.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

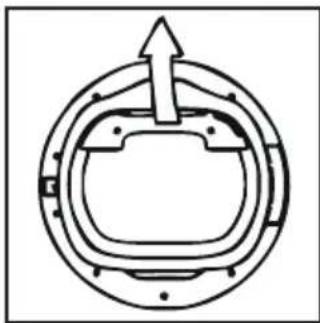

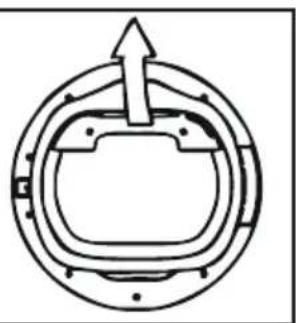

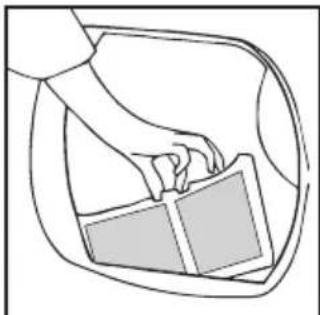

1.Pull the filter upwards.

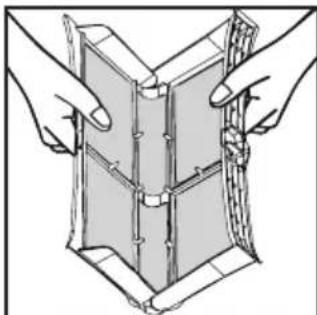

2. Open filter as shown.
3. Gently remove lint using a soft brush or your fingertips.
4. Snap the filter together and push back into place.

Filter Care Indicator

Lights when the needs cleaning.

If the laundry is not drying check that the filter is not clogged.

DO NOT USE WATER TO CLEAN THE FILTER

WARNING! If you open the door mid cycle, are the cool-down cycle has completed, then it may be hot. Please use extreme caution in attempting to empty the water reservoir along the cycle.

WATER CONTAINER

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full the indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To Remove the Container

1. Gently pull out the water container holding the handle.
   When it is full the water container will weigh about 6kg

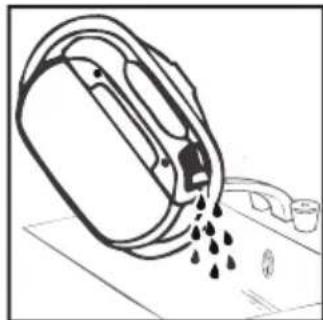

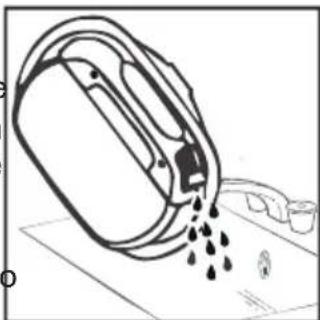

2. Tilt the water container to empty the water out through the spout.

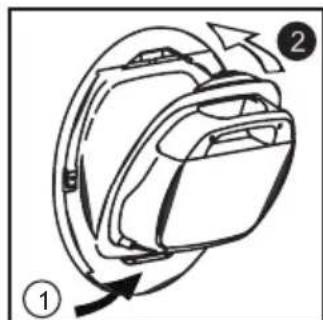

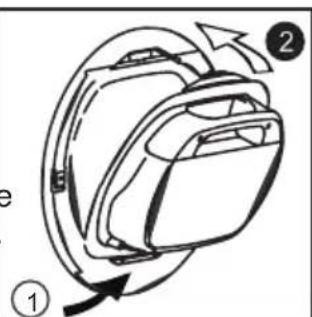

When empty, replace the water container back as shown; first insert the base of the container into position as shown then gentle push the top into position.
3. Press Button to restart the cycle.

NOTE: If you have the option of drainage near to the dryer you can use the discharge kit to provide a permanent drainage for the water collected in the container of the dryer
This means that you don't have to empty the water container.

WARNING! If you open the door mid cycle, before the cool-down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

CONDenser

Important: Always switch off and remove the plug from the electricity supply before cleaning the condenser.

To maintain the efficiency of the dryer regularly check that the condenser is clean.

To Remove the Condenser

1.Remove the kickplate.

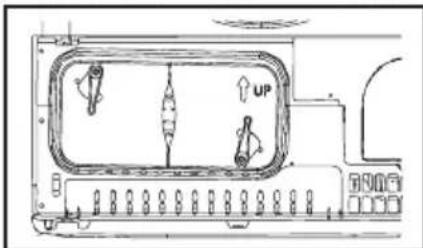

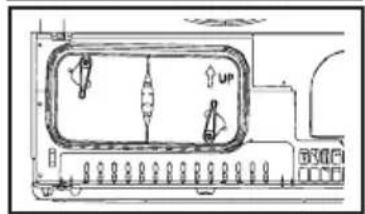

1. Turn the two locking levers anti-clockwise and pull out the condenser.

3.Pull out the condenser unit.

1. Gently remove any dust or fluff with a cloth, then wash the unit by holding it under a running tap turning it so that water flows between the plates, to remove any dust or fluff.

2. Check the gasket position after cleaning. Fit the gasket in to the groove if it is misaligned.

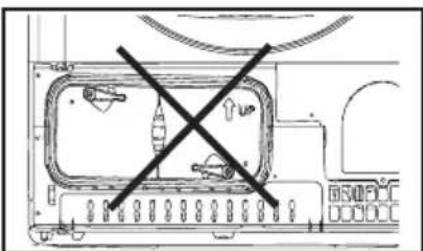

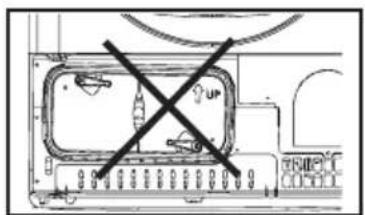

3. Refit the condenser ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise. Be sure that condenser unit fixed to the basement tightly.

4. Refit the kickplate.

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door pushing it slowly until you hear the door 'click' shut.
3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).
4. If drying synthetics, acrylics or delicate items, press the button to reduce the heat level.

The indicator will light up when the machine is in low heat setting. To deselect in the first few minutes of the programme, press the button, after this time reset the machine to change the setting.

1. Press the button. The dryer will start automatically and the indicator above the button will be continuously lit.
2. If the door is opened during the programme to check the laundry, it is necessary to press III to recommence drying after the door has been closed.
3. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
4. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automatic programs in order to obtain a proper drying.

OPERATION

Delay Start Function

The Delay Start Function allows the user to delay the start of the drying cycle by 1 to 24 hours.

When the function is first selected the display will show a delay of 1 hour, subsequent presses of the button will increase the delay with 1 hour steps.

To commence the programme press and the appliance will complete the drying cycle at the end of this time. The indicator light will flash to indicate that the start delay is in progress.

Cancelling and Resetting the Programme

To cancel a programme press the button for 3 seconds. In the TIME CONTROL display 0:00 Light will flash to indicate that it has been reset.

CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
  Regularly clean the condenser.
  After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
• Wipe the outside of the machine and the door with a soft cloth.
  DO NOT use abrasive pads or cleaning agents.
• To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load may be very hot.

IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance.

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

WARNING! The Drum, door and load may be very hot.

Drying Guide

The standard cycle HANG DRY ( ) is the most energy efficient and best suited for drying normal wet cotton laundry.

The table in last page shows the approximate times and energy consumption of the main drying programmes.

Capacity (as energy label)	6 kg	7 kg	8 kg	9 kg / 10 kg
Power consumption of off-mode	0,20 W	0,25 W	0,20 W	0,15 W
Power consumption of on-mode	0,75 W	0,80 W	0,80 W	0,75 W

Information for Test Laboratory

EN 61121 Programme Programme To Use

-DRY COTTON

-HANGDRY

-IRON DRY COTTON

-IRON DRY

-EASY-CARE TEXTILE

-HANG DRY + SYNTHETIC

Technical Specifications

Drum capacity 115

Maximum load See energy label

Height 85 cm

Width 60 cm

Depth 60~cm

Energy class See energy label

TROUBLESHOOTING

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

Have you selected the correct drying time/programme?
- Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
Does the filter need cleaning?
*Is the dryer overloaded?
Haa that 10 anin has oarad from a ravino

The dryer is noisy...

• Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

• Does the filter need cleaning?
  The indicator is on...
• Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

Is found to be in working order.
- Has not been installed in accordance with the installation instructions.
Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS.

INDICE

Caa aalalalalalalalalalalalalalalalalalalalalalalal

[Durante gli ultimi 15 minuti (approximativamente)] I can also sometimes refer to this book.

Passo Massimo di Azugatori
Capi in ottofo	Max.	10 Kg	9 Kg	8 Kg	7 Kg	6 Kg
Capi astraticl	Max.	4 Kg	4 Kg	4 Kg	3.5 Kg	3 Kg

O6cnyroByBaHHaKOpncTyBaayB 85

Bydnaacka, 03haomtec3 Bka3aHMM iNCTpyKziam Ta cTporo cnidyTe im npn BHKOpunctaHHi npnady. L8 6poWypa mictb Baxnnbi pekomehdaui dny 6e3neuHoro BHKOpunctaHHy, yctahOBKn, 06cnyrobyBaHHa, a TAKOJ DeaKi npakTuHi nopadi dny 6ilbwh epeKTNBHO KOPNCtBuHHa npnadom.

36epiraTe ycIO DOKyMeHToIIO B HAdiHOMy Micci IaNnBWoO BVKnOpNCtAHn, a6o Ira nOdaJIbXx BlaChNKIB daHOrO npInaMy.

Будь lacka, nepeBipTe haBhICTb HAcTyHnX позицi, 3a3HaueHnx HxKYe, як HаDAIOTbcR pa30M 3 npINAqOM:

• IHCtpyKci3 ekcnnyataaii
  -「rapaHTiHnTaIoh
  MapkyBaHH eHeproepeKTHBHOCTi

Ipekehntecb y TOMy, zo npna He 6yno nookxeno nid yac TpaHcnopTybaHH. Y BnanaKy nookxxeHH, 3BepHiTbcr do cepBichoro ueHTpy (rpyna komnaii 3 06cnyroBaHHKopncTyBaivCandy). HeBnkoHaHH Bnue3raDaHx yMOB MoKe cnpuHHInr HeCnpa BHOCTi Bpo6oti npnala. Y BnanaKy HnpaBnIbHoro BnKOpNCtAHN rnpaHy, Bam Heo6XiHo 6yde 3anNaTtn 3a BnKnK cepBicHOi CnyXb.

3AXODN BE3NEKNI

BukopncTaHH

• Пплад доЗвягьсь використовыати дітам BiД 8 рokіВ та Людм 3 0бмжениms φi3ичним, ceHCOPHm n a6o pO3ymOBnM MOЖЛВОCTЯМN, a TAKOK HeDOCBIDUchEhM KOpIcTByBaYam 3a yMOBn 3di'chEHHaHЯу 3a HIMN a6o NaDAHnЯ IM NOrCHEHb ⅢOdo 6e3neuHOrO vNkopIcTaHnЯ пиJaDy Ta pO3ymiHnЯ HIMN NOB'raHnx i3 ZHM He6e3neK. He dO3BOJnyTe dIrym rpatncs 3 prnPaNOM. DiTAM 3a6bOpOHЯeTBcR BvKOnHyBaTn YIusEHnЯ Ta O6CnyroBvBaHnЯ npalbHOi MaunHN.
• YBAGA HenpaBnIbHe BnKOpNCTaHHaCyuapKn dIy 6iIN3Hm MoKe npn3BeCTn Do BnHnKHeHHaNoXeKi.
• Bci npnilaTn ToproBoi MapKn Candy npn3NaueHi IJRA BnKOpNCTaHHr TInbKn y DoMaunHbOMy rocnoapCTBi.
  BnKOpncTaHnY cIbOrO npJaDy 3 iHsoIO MeToO, HIX y DOMaShhOBMy roCnoapCTBi a6o no6yTi, HanpNKnaI, KomepuiHe BnKOpncTaHHra ekCneptAmn a6o CneuaIbHo HaBueHmN KopNCtUBaUaMn, 3abOpOHaETbcra.

BnKOpNCTaHnЯ npUaNy He 3a BnIeONIcaHm npu3HaueHnM MoKe 3MeHsHTn CToPOK cnyx6b npUaNy Ta CToTn npuynHOo anyJIOBaHHraPaHTiBnPo6Hnka.

• Hikon He BCTaHOBIOHTe cyuapky 6n3bKO Do 3aHaBicOK, Ta nepekoHaIteCb, 1o peyi He naiaOTb 3a cyuapky Ta He HaKoJIyOTbcr TaM.

• Прилад He NOBHeH 6yTN BCTaHOBJIeHIM 3a DBepnMa, 30 3amKauTbCra, 3a PO3CyBnMn DBepnMa a6o DBepnMa, 3 peTJAMn Ha npOTnJIeXHi CTOpOHi Do cyuapKn.

He cywiB C cywapci HeBnnpaH peyi.
- YBAGA He cywiTb TkaHHn, o6po6JIeHi MInOuHm 3aC06om Ha 6e3BOJHi OCHOBI.
- YBAGA Nopincti rymobi matepiann, 3a DejKx o6ctabnH, npn Harpibahhi MOxytb 3aropitncs yJXOM cmo3aImaHH. Peyi, Bnpo6IeHi 3 nopncToi rym (naTeKcHa nHa), wanouchn dnyu, BOHOHePOnHKHI TKAHNH, Bnpo6n Ha pe3INHOBI oCHOBI ta OJr a6o NODyUKN 3 nopncTO-rymoBOIO npoklaadkoH, HE MOXHA cyuHTN B cyuapzi.
-3aBxДn 3BepTaIe yBaIy Ha eTnKeTKn Ha 6iIn3Hi ДЯ Bka3iBOK IIOdo cyuHn.
-Перед 3аВаHTажehнямdo cyшаркn,Одяг NOВиен 6уТи BИСушeнmВ npaJIbHiMaShNiY BiДnobiДHomy peЖиMi a6o BИчавлeн pyKaMuN. He peKOMeHdUcTbcSra3aBaHTaJxByBatn do cyшapkn MOKpni OdЯr.
- KapmaHn NOBHHi 6yTu NpeBipeni Ha HauBHiCTb B Hnx 3aNaJIbHuOk Ta cipHkiB, Ta HIKOJIH He BnKOpncToByte JERko3aMncti PiDInH 6iJa npJnaDy.
·HIKOJIH He 3aBaHTaJyIte Do npuJaDy 3aHaBicKn i3 cKNoBOJOKHa. B3aEmoJia IHsOro OJary 3 CKNoBOJOKHom MoKe CnpuHHTn IOdpa3HeHHa ShKipN.
BnBeHnBocKy,pei neped cyuHnM B cyuapci nobHHi 6yTIN Bnpani B rapuii Boi 3 BeNkoIO KjIbKICTU MIOOTO 3aco6v.
- KoHdNzioHepn (nom'kUyBaui) IJRA 6IIN3HN, a6o cxOxj 3ac06n, cIiD BVKOpNCTOBvBaTn 3rIDHO 3 Bka3IBKaMNI OIO IO IXhBOrO BVKOpNCtAHHJ.

• KimhaT, B kii BCTaHOBNeHcUapKy, NOBnHa MaTn HadiHy BeHTnIaIHy CnCTeMy, Ka 3a6e3neuNTb 3aNo6irAHNr NoBn Ra3iB, IIO BTaIgYcTBcR B KIMHaTy, BiD npInpaID, IIO BnKOpNCTOByOTb IHsi BnIN NaINBa, BKIIouaIOUcN BiIDKpITN BOHOh
• BntjxHe nobitpy He noBHHo BiIDBOINTnC8 Do dIMOXOy, kN BnKOpNCTOByeTbC8 DnB BiDBeDeHn8 DNMy BiD npuIaIb, 0o BnKOpNCTOByOTb ra3 a6o iHsi BnI naiBa.
• Perugia npo nepebiprte, 06 cnpkyjnzio nobitprB cyupci He maanepeokod.
  -Пись ВИКОРИСТАНHAприладу,перевягte Фільър пилу Та чистсь. нору у разi Heo6xIDHOCtI.
  BxiD Ta Bxid NOBITpI NOBHHI 3diHcHOBaTnC8 6e3 nepeWkoJ. DJIa3a6e3neueHnraPHOI BeHTnlaqii, npocTip MIX HxKHBOu qAcTHNOHpUpaNy Ta NiIIOrOHe NOBHeH 6yTu 3akpntm. Mix npuaDom Ta 6yd-b-koIO nepeWKoDOIO NOBHHO 6yTu 50HaMeHwe 12 MM.
  3anobiraTe naHnTo haKoNueHHo peey 3a cyuapko, ockIbKn Ce MoKe cnpuHNHTn nepeWKOJxAHNraC npKyJyIi NOBITpR.
  HIKOJIH He BCTaHOBNIoTe cyuapky 6iJa 3aHaBicok.

He BcTaHOBJIOnTe npnlaB B npmiiUeHHI 3 Hn3bKOIO TemnepaTyPO, a6o B npmiiUeHHI de e pN3NK 3aMeP3aHH. Pn TEmnpaTyPi 6bn3bKi I Do TOuKN 3aMeP3aHH, npnlaD He MoKe npauBOBatn npabINbHO, Ta E pN3NK NOxKOJKeHH, kso BOda 3aMeP3He B rIdpABNIiHi cNCTem BiPO6y. INa BnCOKoi npOdyKTHBHOCTI npnAHy, HABKOJIuHr TemnepaTypa, nobHHa 6byTN B MeXax BiD + 2°C Do + 35°C. ByNb lacka, 3BepHITb yBary, lo np npobOTiBXONODHomy npmiiUeHI, 3 TemnepaTyPOB iD +2 Do +15° C, MoKe yTBOpOBaTncb KOHDeHCAT Ta KpanPi BoND Ha NiIDNo3i

3AXODN BE3NEKNI

• Yci BnKOpncTahi nakyBaIbHi MaTepiAne ekOnorIyHo 6e3neuHmTa NiIaIraToB NOBTOPHOMy BnKOpncTahHIO. Byb IacKa, DOnOMoxItb No36yTuNcY yNaKOBKn WJnxom BnKOpncTAHHRe KOnorIyHO 6e3neuHnx MeToDIB. BiNoBIDHn OprAh y BaWOMy Micti 3MoXe Haatn Bam iHOpMaUIO npo DoCTynHi MeToDnyTnJIi3aui.
  -Дя 6e3neuhoi yTuNi3aui cywapKn, BiD'edHaIte Bnky BiD po3eKn, BiDpiXTe Ka6enb XNBneHnTa yTuNi3yIne NOro pa3om 3 BuNkoHO.ДЯ 3anobirAHn CnTyaui, KOnN DiTn MoKyTB 3akpTN Ce6e B npnadi, 3HIMtB DBePHi Netni a60 3amKn.

Cbponecbla DnpekTnBa 2012/19/EC

Ue npnna n03haueho 3riHNO 3
DnpeKTHBOHO CBponeiCbKoro CoO3y
2012/19/EU 0do BixoDiB
eNeKtpnHOro Ta eNeKtpoHHoro
0bnHaHHa (BEEO).

BEEOMictaTb k 3abpydHIOUoyi peoOBHH (aki MOxytb cnpuHNrN HeratNBH i HacnIDKn dIy DOBkllna), TAK i OCHOBHI elemehn (aki MOxHa BnKOpNCTOByBaTH NOBtOHO). IJIy HALEXHORO BnDAJIeHHBcix 3abpydHIOUoxpeoOBHH i 3bnpaHHa Ta yTNIIZauii Bcix MATEPIANIB BaxKNBO, a6N NOBODJKeHH 3 BEEO BiD6yBaNoC3 DoTPMaHHM CneuaIbHnx npouedyp.

Pomajn MoKyb BiirpaBAtn BaxnBy poIy 3anobiraHHi BNHKHeHHIO 3arpo3n DOBkiJIIO BiD BEEO; nra yx BaxnBO DoTPmYBaTnC OCHOBHX npaBnI:

He MoXHa NOBOdntuc3 BEEO, 3i 3BnuaHUMN DOMaUHIMN BiDxOdaMn;

-BEEO cnid 3daBAtn Do BiIDNOiDnHnx NyKtIB 3bnpaHH,oprAHI3OBaHHx MicceBmMoprAHaMn BnaI a6o Bnpo6nKaMn Y npOaBcMn Takoro 0bnadHaHH. Y 6araTbox KpaIHax BEEO BeNkX p03Mpib MoKe 3bnpaTncr y Micqx npoxnBaHHc CnoXnBaivB.
Y 6araTbox KpaiaHax npn NOKyni HOBOr npnlaDy npoDaBIO MoXHa NOBepHyTN CTapn NpnilaD, kKm ToM Mae 3a6patn 6e3 DoaTKOBoI PNaT, kKIo CTape 0bnaHaHH e EKBiBaIeHTHO TIny Ta Mae Taki cami fYHKui, kI HOBe ObnaHaHH.

Cepbichn zentp

-Дязабe3neueHЯндиHoI Ta epeKTHBHOi p6oTn npnnaMy peKOMeHdyEmo 3BepTaTncn no Donomory abo lopopeMOHTy npnady nIwe do ynoBHobaxeHoro MaICTpa BiIDNOBIDHoro cepBicHoro ueHTpy.

！ 阿KIO npnlaH He npaHc HaleXHM YHOM, a6o nonamabCBy BmKHITb NOro Ta BiD'EDHaTe BNky Bd po3eKn. 3BepHiTbc Da cepBicHorO ceHTpy zoDo MOxNIBORo peMOHTy

BmOrn do eJeKToxKnBneHna

Cywapka npaue npn Hanpy3i 220-240B 50r odnofoa3HOI Mepeki. IpekoHaTeCb, 0o 6Jok XNBHeHHcTahOBHTb OOnaHMeHwe 10A.

EneKtpoeHepri MoKe cTaHOBHTn Ha3BnuaHy 3arpo3y.

DAnH npnlaI IOBHeH 6yTu 3a3EmneHM.

Po3eTka Ta BnIka Ha npIaDi NOBHHi 6yTN OndHoroTnny.

He BnKOpncToByte TpiHnKn Ta/a6o noDobKyBaui.

PpHnad NOBHeH 6yTH BCTaHOBHeH N TaKHM HOM, 6yna MoXnHBicTB BNrTn BNky 3 po3eKn NiCnBA NKOpNCtAHN npHaNy.

DpoTn B uHpyi XNBHeHH MaHOt b p3Hi KOJIbOpN BiINOBIDHO Do HAcTyNHx HanaWtYBaHb:

BlaaknTHm

HEITPAJIbHNI PIID HAPPYTOIO

KopnueBn

3A3EMJIEHNI

3eJehn ta KOBtN

PpHnad, MapKOBaHn no3HaUKOIO CE, BiDnOBiDaac cTaHdapTam CbponeNcbKOI DnpeKtBn 89/336/ECC, 73/23/ECC 3 noaJIbShmN 3MiHaMn Ta donOBHeHHaMn.

Ley npictpi BIDNOBidae cyuacnmb BMoram npabn 6e3neKn .Takox dobmo do BaWoRO biOMa, 0o ue Bupi6 ceptnikobahn 3rIdHO 3 BMORAMn 6e3neKn opraHOM no ceptnifkaii npomncnoBoi npodykui DepxaabHM KOMITEOM YkpaHH 3 nHTaHb TexHiHOro peryIIOBAHH Ta cNoXHBQoi nonitNk depxabHa cnCTema ceptnifikaui YkpCENP0.
A Kaio shyop XnBneHHa daHomy npniladi nozkodkeHni, Bih NOBHeH 6ytu 3amHeHm CneiaJbHni shypom, kKIMoXHa OTPMaTn JIUSE B cnyk6i 3anachnx Detanei. Bih NOBHeH 6ytu BCTaHOBneHm KOMneteHTHM npaicIBHKOM.
He niknouaTe npnaT a He npneHnyte Ioro do MepeKi,do nobHOi ycTaHOBKn.ДЯ BaWo 6e3neKc, cyapka nobHHa 6ytb BCTaHOBNeHa HaneKHIM YINHom. Jkso y Bac BNHKn 6yDb-aki NITAHNg 0do ycTaHOBKn npnady, 3BepHiTbcr Do cepBichoro ueHTpy 3a nopaoIO.

PerynIOBaHHa onopn

KoII npnIaOCTaTOHOBCTAHOBNeHO,Heo6xIDHO BIDPERyIbBATN ONOPY TAKIM YINOM,IO6 BIH CT0B HA NOBepXHi pIBHO.

3ЛИВНМ 施瓦格：IHCTPYKцЯ 3 MOHTAXY

Uo6 yHnKHyTn cnopoXHeHHa EMHOCTI DnBn nicna KoxHoro uKny cyuKn, Boda moxe 3nBaTncb 6e3nocepEnbO B KaHaiauiHn Tpy6onpoBOD. 3nBHa Tpy6a NOBnHha 6ytn po3TaWOBaHa B 6e3nocepEni 6n3bKOcTi DO cyuKn.

KoMnNeKT cKaJaAcTbC8 3:1 uHaHra i 1 KpaHa.

YBAGA! Npeed npoBeHnM 6yDb- knx po6it, BiKJIOUITb npuad BiD eNeKTpnuHOi Mepexi.

BctaHOBiBt bIJIaHR HAcTynHm YHOM

1. P03BepHITb cyuINbHy MaunHy 3aHbOIO nAHeNeIO Do ce6e.
2. Tpy6a dna ctoky BODn 3haxoDntbcra Ha npabin ctopoHimaiHHN (INB. fOTO). Cipn nn Hn iiknouaetbca Do nepexidnka Ha nibin ctopoHimaHHn. BnkopncTobyu npnackory6ci, 3himt b 3 aTncka 3 nepexidnka.
3. BiTyrHITb wnaHr Bi nepexiDnka.
4. PpNkpiniTb YOpHn ⅢaHr 3 KOMnneKtY, (3 BnKOpNCtaHHa M po3'Emy i Tpy6hNx XOMyTiB, 10 BxOJaTb B KOMnNEKT NOCTaBKn).

1. Nomicitb kpaH (Noctabnaetbcra B KOMnneKti).

1. Npeed BCTaHOBHeHnM cyuNbHOI MaunHn Ha Micue ekcnnyata u i, BiDperyIOHTe HIXKN TAK 06 He nepenHaBCN HOBNI Jn Ahr ni cJRA BCTaHOBHeHHcUAPKn B Notpi6He Micue.

7.Пдкючы HOBN 3ивншангdo Tpy6o npOBOy.

8.Пдключы cywnbHy MaunHy do eNeKtpomepexi.

ПИДГOTOBКА ДО 3ABAHTAXKEHHЯ

INPNUHNEHHIΦINbTPAHE BNIKOPNCTOByTE BOY.

EMHICTbДЯ BODN

Boda, 60 BndaTbC3 6IIN3Hn nIac npoccy cyiHH, 3bnpaTbC8 B emHicTB BCEpHi DBepuT cyuapKn. Pn 3anOBHeHHc EMHOCTi Ha naHeli ynpabInHH 3acBtNbC8 IHNkATOp , I Body 3 KOHTeHepa HEOxIDHO BVNTu. Tm He MeHs, MPeKoMeHdyEmo BNHBaTu BODy 3 KOHTeHepa nicra KOKHO rukny cyiHH.

PIMITKA: npotarom nepux Dekeibkox uknib BnKOpncTahHra HOBoI MaunHn B EMHOcti 6yde Ha6upatncb dyke mano Bodn, ocknbKn B nepuy Yepry 3anOBHIOCTbcra BHyTpiuHi pe3epByap.

Uo6 dictatn emhictb

1. Akypatno BntarHitb NOTOK, NOKN BIn He 3HIMetbcn NOBHCIO. TpmaTe NotoK oboma pykam. KOnn BIHNOBHN,EMHICTb DnBn6yde BaxNTn 6n3bKO 4Kr.

1. Haxunitb emHictb DnBODN, 0o6 3nTn Body yepe3 3aHiOTBip.

PnabHO 3acyHbTe npOxHIO eMHicTb DnB OAnHa3aHaMicue.

3AΦIKCYI TE I OJIOXEHHY E MHOCTI, HATNUCHYBUN HA HEI.

1PIMITKA:KuOyBacEMOXNBiCtb NiikIoueHHKaHani3auiDcUwapKn,Bn MOKeTe BIKOPNCOTByBATN 3INBHN KOMNKeT, AKN 3a6e3neye NoCTiHNN 3INB BOH,00 3bnpaetbcrywapkoTo.ToDi BiDnaDe Heo6xHicTh OUnsATN NotOK 3 BDOIO BpyHy. BcInΦopMaia,oo CTocyETbcr cKnadaHHa KOMNKeTMy,MICTHTbcYBiIDNOiDHOMY KOHBepTi.

KOHДЕHCATOP

Baxnbo:pepeuueHHKoHcHcTopa 3aBXn BmkaTe cyapky 3 MepeKi eNkTPOXNBHeHH Ta BmMaTe wTenCeIbHy BNKy 3 pO3eTK.

Дя пдгиманг eфektubhoi po6otn cywapkn perynarpho nepebiprayte, n He 3a6pydneHn komnpecop.

Uo6 3nTn KOHdeHcTOp

1. 3Himits 3axnchy HauknaKy.
2. NObepHItb DbA CToNOpHi Baxeni npOTn rOuHHNKOBoi CTpiKN i BuTgHITb KOHDeHcAtop.
3. BntaHItb KOHdeHcATOp.
4. AkypaTHo BnDanitb nIbOPc raHcyipkoH,notimnpomnte npncpti,tpmaOuy noRo nIDCTpyMeHem BOu TaKUMHHOM，06BOda TeKnaMIXNactnHaMn DnBnDaJIeHHaNlyIBOPcy.
5. BctaHObitb KOHdEHCATOp Ha Micue, nepeKoHaBunc b, 10 po6nte ue npabnblHM uHHOM (rK Noka3aHo cTpiKIO) i wTOBXHiTb dIy Ioro fikcaui. 3aifikcyiTe Dba Baxeni, nobepHyBUn ix 3a rOdnHHNKOBOc TpiKIO.
6. NocTaBte Ha Micce 3axnchyHaKnaKy

BVKOPNCTAHH

1. BIDKpNTe DBepraTa i 3aBaHTaxTe 6iIN3Hy B 6apa6aH. IpekoHaIteCb, 0o 3aBaHTaxyBaHa 6iIN3Ha He nepekoDkae 3aKpTTm DBepaT.
   2.ObepexHo 3akpnTe DBepuTa, nobilbHo HATnCKaHouHa Hnx, NOK He Nouyete "KnaauOny"3Byk 3akpTTA DBepzT.
2. Повернл дисьни поррам Дя вибору notpi6hoi nporpaMu cywiHn (dNb. Pokaxnk nporpaM).
   4.Якwo Bn cywnte cnHTeTnHi TkaHnH, akpniloBi TkaHHn a6o deIikatHi peyi, HATNCiTB Ha KhoNky 0,io6 3HN3NTPiBHeH HarpiBy.KoN MaunHa HanaWToBaHa Ha HeBucOky Temnepatypy, npuy 3 KhoNko 6yde CbitNTcra IHdkaTop.DJra cKacyBaHH nporpaMn B nepwi XBUNHH II BNUKOHAAHr HaTNCiTB Ha KhoNky nicna Yoro Notpi6HO CKHyTN yCTaHOBKn MaunHn, 0o6 3MiHHTn HAcTpOmy.
3. Hatncihb Ha KhoNky D Cwapka 3anyctntbcra ABTomatnuHo i 6yde noCTiHc CBITNTscnI INdkatop DRY.
   6.Якwo Bn BiDkpnnn DBepuTa dna nepeBipKn 6iIn3Hn NiD Yac BnKoHaHH nporpaMn, Heo6xIDHO HATNCHTN DIII ,Oo6 BiHOBNTn npoec cyinHn nicna 3akpTTa DBepuT.
4. Koln zukn i nde do 3aBepweHH, Maunha yBiJe B f3y oxoJoxeHH, i 6iN3Ha 6yde nepeKnDaTncb, o6dyBaOuNCb npoxoJOnHM NOBITpM, 3aBdAny Omy peyi oxoJOnKjYOTbcra.
5. Konn nporpama 3aBepuNTbcra, 3arOpntbcra iHdkatop END.
   9.Писязавершеницклубаранбудenerpioinduho obeptaTncs,so6 minimi3yBatnyTBOpEHncklaDOK.uceTpNBatmEdoBIMKHEHHmaunHna6oDo BIDkpTTaDBepqT.

!He BiKpBaiTe DBepi NiI yac BIKOHaHHA BAtOMaTHUHOI nporpaMn, IJIr TORO, 06OB OTPMATN npabInbHNI pOuec cyuHHra.

BVKOPNUCTAHH

UCYHEHRA HECNPABHOCTEN

PnHn HecpabBhocTei

Hecnpabhocti, kIMoKHa ycyHytn camOCTiHo

Ipeed TmJ K 3BepHyTncJ do cnyXbO 6cnyroByBaHH CnoXnBaiv 3a TexHIO KOHCyIbTaic, 6yd Jnacka, CKOpNCaTIteC HabeHeHM HxKHe nepenikom HecnpabHocTei, kI MoXHa YcyHyTn camocTiHNo. KaI npN 3BepHeHHI Do cnyXbO 6cnyroByBaHH CnoXnBaiv 6yde BnABneHo, 0o MaunHa npaue HopMaJIbHo, a6o npauOBana HnnpaBnIbHo uee3 II HenpaBnIbHe BCTAHOBHeHH Nn BVKnOpNCtAHH, KopNCTyBaU y DOBeTeBCa CNNatUTn 3a HaadHi NOcLytn.

KIO nicn npoBeHnpeKomeHdoBaHnx nepeBipok HecnpaBHicTb ycHyTN He Bdaetbcra, Telefohynte do cny6n 06cnyrobyBaHH nOxNBaiv3a KOHCyIbTaucio.

Yac, 3aHnwaTbc8 Do 3aBepweHH np60t, MoXe 3MinHOBATnc npotraom uKny cyuHH. Cen Yac noctiHo nepeBiprcbcr npotraom uKny cyuHH dNr OTPMaHH naKpaOoi ouHKn yacy. Yac, kNBIdo6paxactbc8 Ha dinCnnei, MoXe 3MeHswBaTnc a6o 36IbWyBatnc npotraom uKny, ce c HopMaJIbHNM.

Yac cyuHHaHTo DOBrn / 6iIN3Ha He c DOCTaTHbO CyXoH...

• Yu npabunbHo Bn6paHo Yac/nporpamy dny cyuHH?
  -Чи 6уна 6ииз ha 3aHaДTO BONOrO? Ch 6уно II HanexKHO BiJxato B npalbHi MaunHia a6o BpyuHy?
• Yu notpe6ye φínbtp ouhiéHHa?
  -Чи несяваразкена сушарka?
  -Чусын Вибрано onцio 20 i3 nonepeHboro uNKny?

Cyuapka He npaioe...

• Yn noaetbcra eNeKtpnuHa Hanpyra Ha cywapky? IpepeipTe ue 3a DonomoroH Inworo npnay, HapnknaD, HactinbHOJnAMn.
• Yn npabnIbHo NiKlNoeHo wTeNceIb do po3eKn eNeKtpuHoiMepexi?
• Yu Henpyra BeneKtpomepexi?
• Yu He 3ropiB 3an06ixHnK?
• YN NOBHCIO 3aunHeNO DBepTa?
  -ЧИ BBIMKHeHO cyuapky -як 3a ДОПOMOrOВ ВIMnKaчжИБлЕнгЯ,Тak i ВIMnKaчHa npalbHi MaunHi?
• 6yIbBv6paHoc a6o nporpamc yuHH?
• 6yno MaunHy 3HOBy BBIMKHeHo nicna BiKpTTA DBePrt?

Cyuapka 3aHaTo wymntb...

Bumkhitb cywapky Ta 3Bephitbcra 3a KOHCyIbTaucieIO do cnyk6n 06cnyroByBaHHcnoXNBaivB.

Togntb iHdkaTop

• Yu notpe6ye φiNbtp ouuüeHHa?

Topb iHdkaTOp

• Yn notpi6Ho 3nTn BODy 3 EMHOCTI nra BOIN?

CNYKBAOOBCYROBYAHHNCNOXNBACH

Ko nicra 3aBepweHH Bcix peKomeHdoBaHnx nepeBipok npo6nema i3 cywapko 3aJnwaetbcra, 3BeptaHTecra, 6ydI nacka, do cnyx6n o6cnyrobyBaHH CNOXBauIB 3a KOHCyNbTaUciEIO.

Фахицслукь можут haадати donomory y Bnpiшени npoбlemn 3a Teleфонom abo y3rodnu yapc BiDbidaHna Фaxibuem dlya obcnyrobybaHHra yMOBAMn rapaHTii. Прет сноЖвачеви може 6yTN BnCTabNeHo paxyOK 3a Haadahня nocnyr 3a HЯВHOCTi OdHiEi 3 TaKnx o6ctabHH:

MaHbBnBnAocBpo6OmyCTaHI;
MaunHy BCTaHOBneHo He npabnIbHo 6e3 ypaxyBaHHaBIOBIDHXyka3iBOK;
MaunHa BnKOpncTOByBaJnac HnnpaBnIbHo.

3anachi yactnHH

3aBxDn BnKOpNCTOByTe NlWe opnHaJIbHi 3anachi YactHI, OTPMaHI 6e3nocepEnHbO BiD cnYk6n 06cnyroByBaHHcNoKBaivB.

Cny6a 06cnyroByBaHHcnoXnBauiB

3 nntaHb 06cnyroByBaHHra Ta peMOHTy 3BeptaIteCra Do CBOeMicueBoi Cnyx6n 06cnyroByBaHHra CnoXnBaivB.

Bnpo6HnK He Hece BiDnOBiDaIbHocTi y 3B'ra3ky 3 MoXJIHBmN DpykapcbKmN NOMIKAMN B cIbOMy 6yKnTei. Bnpo6HnK 3aIIHa CBOcI npOIO npABO Ha MOnIΦikaio CBOcI npOdyKciI 6e3 3MHN II OCHOBHX XapaKTepncTnK.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste.

• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

GIAS Service

To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

Elektriske Krav

WARNING! When the tumble dryer is in use, a drum and door may be VERY HOT. Never go to a tumble dryer before the end of the drying time unless all items are quickly removed and read out so that the heat is dissipated.

Filter

VIGTIGT: For at bevare tørretumblerens effektivitet skal det kontrolleres, at fnugfiltret er rent for hver tørrecyklus.

1. Traek filtret opad.

2. Abn filtrret som vist.

3. Fjern forsigt
   bomuldsfibrene meden blod borste eller
   fingerspidserne.

Capacitance (mA) (volts)	8 kg	7 kg	8 kg	8 kg (10A)
Power consumption of the case	1225W	1.25W	0.25W	0.15W
Power consumption of the case	1275W	1.80W	0.80W	0.75W

Oplysninger til Testlaboratorium

EN 11121 Program Program till at home

FEJLFINDING

Egnet for torking it rketrommel.

Capacitance (mA·org·f.u.m)	8 kg	7 kg	8 kg	8 kg (104g)
Power consumption of a device	0.25A	0.25A	0.25A	0.15A
Power consumption of a device	0.75A	0.80A	0.85A	0.75A

Capacity (oregulatory)	8 kg	7 kg	8 kg	9 kg = 10 kg
Power consumption of effluent	0.2500	0.2500	0.2500	0.3500
Power consumption of on-mode	0.7500	0.8000	0.8000	0.7500

EepapooTe Tov oWlnva ouupwva tis odnyies:

1. είρετη Σιοκεύπρος τα πίω

2. O uopoaawlvaç
   aTOXETeUoNGs BpiaKETAI
   OTN DEIa PLEUPa TNS
   OuOKeUNc (DEITE Nv
   EIKOVA).Evac ykpi
   OWANVAC EVWVEaI UTo
   OUVDETIKo OTN V
   APIOTEPn PLEUPa TNS
   OuOKeUNc.M E Tn
   BOnTheIaTevOaS,
   αaipéoTe aTTO
   OUVDETIKo TO TIAOTpaki
   Tou OuyKpATEi Tov
   OWlNA.

3. TpaBnETov OAnV aTO TO OUVETIKO.

1. SuvéOTE Tov maúpo Oωλñva Tou πakétou (xροιμοTiOiwyTac Tou σύνδεσμo & TTo TIIaθpaki γia ωλñva Tou πapéχετai), ΘO Oωλñva Tou εχεTE α φαIρεσειαπó Ouvδεtiko.

2. To Tn oE n oE to
   Bpuəki, Tou TApexetai
   OTo Tnaketo, yia va
   KλεioeT ToV
   EvantoueivavTa oWAnva.

6.Epooov toTIOeTnoeTe Tn OoKEun oac otn O wOtn θ eon, PPOa aPouoTe Ta TIOapakia EtoI WOTc O vocawac va n OTPaBwVt Otav uEtaKiviteTo OTeyWtnpio.

1. SuVbEoTe To veo OwAnva aTTOoTpayyIOns OTNV UOppon.

Now try to obtain the answer by using the following method.

• △aβαατινροακτίασιντο τοραν γεγαρβαδοδηγαλν.
  Apapant oka ta ebn mou dov avonuaa t jao aoru tumavo.
  KoMTTOE TO EWTPOI TO TUMAVU KAI TYMOTPA
  uippoTAYU aotmukovtue TUGVAKOVNI TU
  muopai va kafot OTN TAPOPA.

Ppoetoiqaia twpouxw

BepaWBeTe on ta pouxa Tou npoknai va ateywate vai katoan yia atnyuwa a erpiatpapko atyywnipio. atowc auto umoekvntar ora ta oujba apovriag ckeb6ac. EExte on dka ra kauimia vai kauumwve ka oirretic eivai abies. Tupiar ta pouya to jdae. Tomaeartare ta pouya atro tufnava xupicva ta mtdic, ya va unmupeurou.

Mn OTEYWUVETE OTO OTEYWHTIPO:

palaiva, peraefura, euaiaotra upaayata, valav kaiarz, euaiaotrrs davirek, upaayata ueta aekic biakaoyntv, evuayata uie biakaoyminka ato PVC nepua, nanoura yuvvaanr, oynaiq anamusunovacauokn.

Egoikovopon evpycias

TanoBencir a t mpiatpapko atyuvmppo maovuayouu yauv atupre kala ie to xepn atn uynnpo. Oao mto atnyd evai ra pouya, rado npopoc evai a xpvos atnyvuaorcs knt er eakovujitarnkxprh evpyia.

NANTA

Bépaúpá	Méy	10 Kg	9 Kg	8 Kg	7 Kg	6 Kg
Zúar octηδ	Méy	4 Kg	4 Kg	4 Kg	3.5 Kg	3 Kg

TaivopnoTe to poptio wS ehs

Kardaojulalapovr8a

Auro ytopeire va toBpite oTo kaloapoi e cawtepkip pap):

KarAnko yia otynuwa oTn pOpoKo otynvampa.

Etmywaa at rappopko atynmnpo at npnkepckpa.

Tnyuoyo or ppoqko atynwto yor o yunhepxpaia.

Mny to orcyvovte ae nepiotpogko orryvuaio.

Ev eva 8oocvexyexneta apovntoc,mptnva 8oupanod onev cwhataalno yia mcpotpokdo atynuua.

Kardmoaormaaiaayos

OTo a qopio dai yucuIepo amT uovukkntra Tou ateywtnpou. yupic ta poqa anya je to mao (mX, mTeic cmo Actnckawpu).

Kata turoupoog

BaoBaxpo/ Aucu: nntotoc, ba@kaepa cipoi.

Zuvetika: Mmokc, mokauo, apouc knt. ato mukatopn n mukupio, kooa ka pktcs hlaqba/avtnetic.

·

Capacitance (me energy)	6 kg	7 kg	8 kg	9 kg:104g
Power consumption of cell	52500	5.20 10	5.20 10	0.1500
Power consumption of non-cell	0.7500	0.80 10	0.80 10	0.7500

ANTIMETONIENPOBAHMATON
