Risorette MC108687.1 - Multi-cooker Emerio - Free user manual and instructions

USER MANUAL Risorette MC108687.1 Emerio

Multi cooker-Risorette (EN)

Multikocher-Risorette (DE)

1. Read all instructions carefully.
2. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children aged less than 8 years.
5. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
6. Children shall not play with the appliance.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
8. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "cleaning and maintenance" of the manual.
9. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
10. Do not touch hot surfaces. Use handles.
11. Adult supervision is necessary when operating any appliance near children.
12. Unplug appliance from the wall outlet when not in use and before cleaning. Allow the appliance to cool

completely before adding or removing the pot.

1. Do not operate the appliance if the cord has been damaged, or if the appliance malfunctions or is damaged in any way. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
2. Never put water or any liquid into the outer pot.
3. Never plug in the power cord without the inner pot inside the cooker.
4. Any use of accessory attachments not recommended by the manufacturer may cause hazards.
5. Do not use outdoors.
6. Do not let cord dangle or hang over the edge of table or counter tops, or allow it to touch hot surfaces.
7. Do not place the appliance on or near gas or electric burners, on a stovetop or in an oven.
8. Exercise extreme caution when moving or handling appliances containing hot oil or other liquids.
9. Do not use this appliance for any other purpose but its intended use.
10. Always unplug after use. Your cooker's power will remain on unless unplugged.
11. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
12. Use the appliance on a flat, dry and heat resistance surface.

FEATURES

1. Lid
2. Non-stick cooking pot
3. Steam basket
4. Control panel

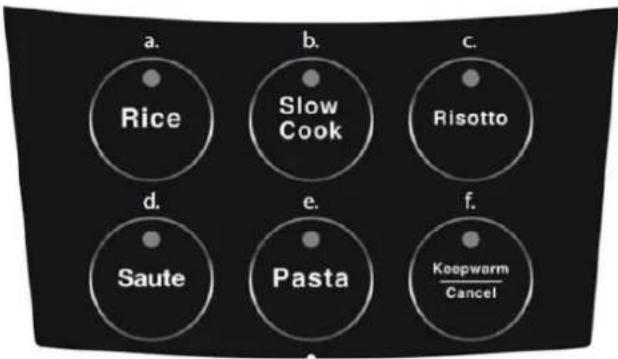

Control panel:

a. Rice
b. Slow cook
c. Risotto
d. Saute
e. Pasta
f. Keepwarm / Cancel

OPERATION

Before first use:

1. Before using wash the accessory parts first. Simply wash with warm soapy water, rinse and dry. Your appliance is now ready for its first use.
2. Place the base on the dry, level, heat resistant surface, away from the edge of the work surface. Do not use on the floor.
3. Place the inner pot inside the cooker before operating.
4. When ready to cook, plug the cord into the appliance first and then into the wall outlet. A buzz sound will be heard. The indicator light of "Keepwarm / Cancel" button flickers in blue. The machine is under standby condition.

NOTE: The first time you use your appliance you may experience a small amount of smoke or a slight smell. This is just the manufacturing residues burning off. It is not a fault or a cause for concern and will soon dissipate.

Use - Cooking functions:

ATTENTION: the machine will start working after 8 seconds you press the functional buttons. If you wish to stop working during cooking, press the button "Keepwarm / Cancel".

a. "Rice" function:

• When the appliance is under standby condition, put the appropriate amount of rice and water into the inner pot according to the scale mark inside the inner pot. (For example: if you put 2 cups of rice into

the inner pot, then add the water until it reaches the scale mark "2".)

• Press the "Rice" button. The indicator lamp of this button lights up in blue. After 8 seconds, the rice cooking function begins to work. The process time of rice cooking differs from the amount of the rice. It costs about 27 to 48 minutes to finish the rice cooking. Once the rice is ready, a warning tone will be sent for 5 times, which means the cooking is ended and the machine will turn to the keep warm status.

Rice / finishing time chart

Amount of rice	Finishing time
2 cups	20-28 minutes
4 cups	33-38 minutes
6 cups	36-40 minutes
8 cups	38-42 minutes
10 cups	40-44 minutes

**** "Rice" function can cook the BROWN RICE. The maximum capacity of brown rice is 6 cups.

Amount of Brown Rice	Add water	Finishing time
2 cups	3 cups	38~44 minutes
4 cups	5 cups	43~47 minutes
6 cups	7 cups	50~54 minutes

b. "Slow cook" function:

• Put the moderate amount of food to be steamed and simmered into the inner pot under the standby condition. Then add the moderate amount of water.
• Press the "Slow Cook" button. The indicator lamp of this button lights up in blue. After 8 seconds, the slow cook function begins to work.
• During cooking, the temperature of food in the inner pot could reach over 65^ in 2 hours. For 2 to 4 hours it reaches 65^ to 95^ and after 4 hours it reaches 95^ to 98^ . The whole process costs 8 hours. Once the food is ready, a warning tone will be sent for 5 times, which means the cooking is ended and the machine will turn to the keep warm status. NOTE: should you have a recipe that requires less cooking time (The fixed cooking time is 8 hours.) then you will need to switch off the appliance manually by pressing the "Keepwarm/Cancel" button.

c. "Risotto" function:

• Put the moderate amount of edible oil into the inner pot under the standby condition, and then press the "Risotto" button. The indicator lamp of this button lights up in blue. After 8 seconds, the agitator blade on the motor begins to run. Make sure that it is correctly located by twisting it both ways, it should stop at both directions if located properly.

Agitator blade

• After 2-3 minutes of preheating, add moderate amount of rice (refer to the guidelines for brown rice when using this function.). Do not add water / stock at this stage. NOTE: if your recipe requires onions or garlic then add them at this stage to allow them to brown with the rice. Observe the rice and when

it has started to brown add water / stock according to your recipe.

• The appliance will continue to cook your risotto for around another 30 minutes. After approximately 20 minutes, the agitator blade will stop, the buzzer will sound and after 10 minutes the appliance will turn to the keep warm status. NOTE: if you wish you can now add additional cooked ingredients to your risotto, carefully stirring them in and allowing them to warm through.

d. "Saute" function:

• Put the moderate amount of edible oil into the inner pot under the standby condition, and then press the "Saute" button. The indicator lamp of this button lights up in blue. After 8 seconds, the agitator blade on the motor begins to run. Make sure that it is correctly located by twisting it both ways, it should stop at both directions if located properly. NOTE: If you don't wish to use the stirrer function then simply don't fit the agitator blade.
  After approximately 10 minutes of preheating, the buzzer will sound. The temperature of the pot will be around 120^ to 140^ . Add the food that you wish to sauté into the inner pot.
• Let the appliance continue to work until you are happy with the results. Then press the "Keepwarm/Cancel" button to turn your appliance to standby condition. When have served the food turn off and unplug the appliance allowing it to cool before cleaning. NOTE: The appliance is programmed to switch to standby condition after 30 minutes of sauté cooking.

e. "Pasta" function:

• Under the standby condition, add the appropriate amount of water to reach the scale mark "9" (the scales line between 8 and 10) inside the inner pot.
• Put the steam basket onto the appliance and then press the "Pasta" button. The indicator light illuminates in blue. After 8 seconds, the appliance starts working.
  After approximately 25 minutes, the buzzer begins to ring for 10 times. It is the time to put the pasta into the steam basket. Let the appliance continue to work and after approximately 10-12 minutes, the buzzer will sound 30 times, which means the cooking is ended and the machine will turn to the standby condition. Your pasta is now ready to serve.

f. "Keep warm / Cancel" function:

• When you are using one of the appliance modes, a single press of the "Keepwarm / Cancel" button will cause the appliance to enter "Cancel" mode and stop the cooking process immediately.
• A second press switches the unit to "Keep Warm" mode. This maintains a temperature of 60^ to 80^ for 12 hours after which it will switch to "Cancel" (Standby).

ALWAYS USE OVEN GLOVES/MITTS WHEN REMOVIDING THE LID AND/OR THE COOKING POTS AFTER OR DURING COOKING.

Important tips:

• IMPORTANT: Important - Do not overfill your appliance. Always leave a space of around 2.5cm from the top of the inner pot to allow for expansion and for the contents to boil.
• Only use plastic or wooden utensils for stirring etc. Metal utensils will damage the non-stick surfaces on the pots.
• Use oven mitts when handling the lid or the pots of the appliance as they will become very hot during cooking and remain hot for some time afterwards, so care is required at all times.
• During and after use the lid becomes HOT. To prevent a hazard occurring, always remove the lid slowly with the inside of the lid directed away from you and other persons so that the steam escapes gradually. Condensation dropping from the inside of the lid will also be hot.

CLEANING AND MAINTENANCE

Before cleaning your appliance, always unplug and allow it to cool completely.
Clean the external surfaces of the appliance with a soft, damp, lint free cloth.
- Wash the cooking pots, agitator blade and glass lid in warm, soapy water. Rinse and dry thoroughly.
- Do not use a scouring pad or other abrasive materials. This can damage the non-stick surfaces of your cooking pots.

TECHNICAL DATA

Supply voltage: 220 - 240V 50 / 60Hz

Power consumption: 1000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19-EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the

retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Holland B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]
