Product type	Digital watch
Brand	Calypso
Model	K5741
Display	Liquid crystal digital display (LCD)
Backlight	Light emitting diode (LED), activated by pressing button C for 3 seconds
Main functions	Normal time (12/24h format), chronograph (1/100 s, max 23h59'59), daily alarm, dual time zone, perpetual calendar until 2099
Power source	Battery (type not specified, estimated standard coin cell)
Buttons	4 buttons: A (reset / setting), B (mode), C (light), D (start/stop)
Water resistance	Not specified, avoid contact with water (do not use while swimming or diving)
Case material	Resin/plastic (estimated)
Dimensions	Approximately 45 mm diameter (estimated)
Weight	Approximately 50 g (estimated)
Care and cleaning	Clean with a soft cloth and clean water; avoid chemical products (soap, etc.)
Safety	Do not open the case; avoid violent shocks, extreme temperatures, strong electric fields
General information	Digital watch with chronograph, alarm and dual time zone functions. Manual available in multiple languages.

Frequently Asked Questions - K5741 Calypso

How to set the time on the Calypso K5741 watch?

In normal time mode, press button A until the seconds flash. Use D to reset the seconds to zero, then B to cycle through hours, minutes, year, month, date. Adjust each value with D. Press A to exit.

How to set the alarm?

In alarm mode (selected with B), press A to make the hours flash. Use D to set the hour, B to switch to minutes, then D for minutes. Press A to exit. Turn alarm on/off with D in alarm mode.

How to use the chronograph?

In chronograph mode, press D to start. Press D again to stop. Press A to reset. For split time, press A during timing; press again to resume normal display.

How to turn on the backlight?

In any mode, press button C to illuminate the display for about 3 seconds.

How to switch between 12h and 24h format?

In normal time mode, press button A (without holding) to toggle between 12 and 24 hour formats.

How to set the dual time zone?

In dual time zone mode, press A until the hours flash. Use D to set the hours, B to switch to minutes, then D for minutes (in 30-minute increments). Press A to exit.

Is the watch water-resistant?

The manual does not specify a water resistance level. It is not recommended to press buttons underwater or use it while swimming or diving. Avoid any contact with water.

How to clean the watch?

Clean it with a soft cloth and clean water only. Do not use chemical products, especially soap.

What to do if condensation appears inside the watch?

Have it checked immediately, as water can corrode electronic components. Avoid opening the case yourself.

How to recycle the watch at end of life?

In accordance with WEEE regulations, deposit it at an approved point of sale or authorized collection for electronic equipment recycling.

USER MANUAL K5741 Calypso

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

IKMD14314T (R)

DIGITAL

■ MANUAL DE INSTRUCCIONES 4
■ INSTRUCTION MANUAL 14
■ MANUEL D'INSTRUCTION 24
■ BETRIEBSANLEITUNG 34
■ MANUALE DI FUNZIONAMENTO 44
■ MANUALDEINSTRUÇÕES54

A "— FR-16 " D " 12:45 37:00 B "— C "

4

CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO CALYPSO

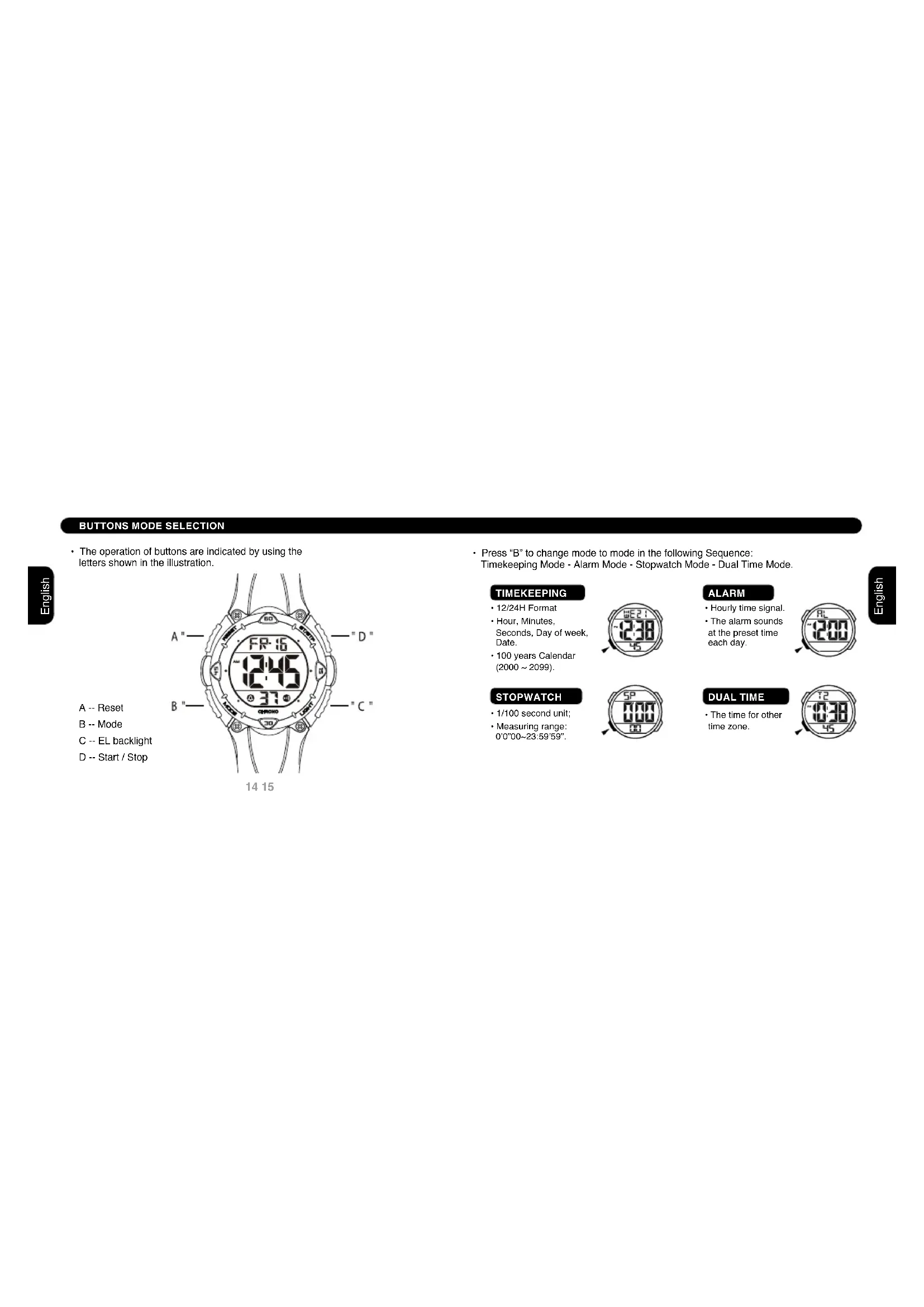

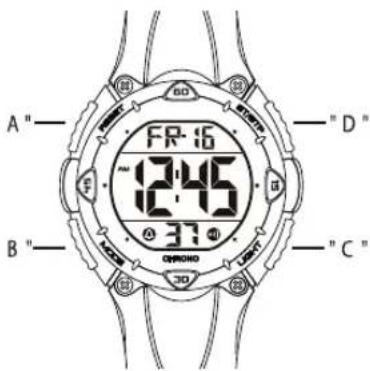

BUTTONS MODE SELECTION

- The operation of buttons are indicated by using the letters shown in the illustration.

A -- Reset

B -- Mode

C -- EL backlight

D -- Start / Stop

A "— FR-16 "D " 12:45 A 37 00 B "— C" 3D

14 15

- Press "B" to change mode to mode in the following Sequence: Timekeeping Mode - Alarm Mode - Stopwatch Mode - Dual Time Mode.

TIMEKEEPING

• 12/24H Format
• Hour, Minutes, Seconds, Day of week, Date.

• 100 years Calendar

(2000 \~ 2099)

ALARM

• Hourly time signal.
• The alarm sounds at the preset time each day.

STOPWATCH

• 1/100 second unit;
  • Measuring range: 0'0"00\~23:59'59".

DUAL TIME

• The time for other time zone.

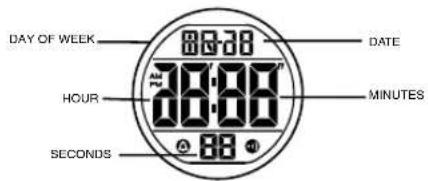

DISPLAY TIMEKEEPING

• The screen shown in below:

DAY OF WEEK 8:00:30 HOUR 26:00 SECONDS @ 88 ① DATE MINUTES

BACKLIGHT

- The backlight that uses an EL (electro-luminescent) cause the display to glow for easy reading in the dark.

Use EL Backlight

- In any mode, press "C" to illuminate the display about 3 seconds.

12/24H Format

- In the timekeeping mode, press "A" to switch between 12/24H formats.

Time Setting

1. In the timekeeping mode, press and hold "A" until the seconds to flash (flashing indicated in set mode).

1. Press "D" to reset the seconds.

1. Press "B" change to the next selection.

Calendar

- In the timekeeping mode, press and hold "D" to display: Year, Month, Date

1. Press "D" to increase the number, press and hold to increase at high speed.
2. Repeat step 3 and 4, the selection in the following sequence: Seconds - Hour - Minutes - Year Month - Date.
3. Press "A" to exit the set state, after you set(The day of week is automatically displayed in accordance with year, month and date setting).

Alarm and Chime

- In the alarm mode, press "D" to on/off the alarm and chime in the following sequences: Alarm & Chime off - Alarm on Chime on - Alarm & Chime on.

Alarm Time Setting

1. In the alarm mode, press "A" the hour to flash(flashing indicated in set mode.
2. Press "D" to increase the hour, press and hold to increase at high speed.
3. Press "B" to select the minutes.
4. Press "D" to increase the minutes, press and hold to increase at high speed.
5. Press "A" to exit the set state, after you set.
6. The alarm sounds at the preset time each day for about 60 seconds, press any button to break it.

STOPWATCHALARM

A Lap Time Split Time

1. In the stopwatch mode, press "D" to start the stopwatch.
2. To stop the stopwatch by pressing "D" again.
3. Press "A" to reset the stopwatch.

1. In the stopwatch mode, press "D" to start the stopwatch.
2. Press "A" to display the split time, stopwatch timing continues internally.
3. Press "A" to clear the split time and to continue time measurement.
4. Repeat step 2 and 3, you can measure themulti split time.
5. Press "D" to stop the stopwatch.

DUAL TIME

CARE OF YOUR WATCH

Dual Time Setting

1. In the dual time mode, press "A" the hour to flash (flashing indicated in set mode).
   2.2. Press "D" to increase the hour, press and hold to increase at high speed.
2. Press "B" to select the minutes.
3. Press "D" to change the minutes(press once change 30 minutes).
4. Press "A" to exit the set state, after you set.

1. This watch contains electronic components. Never attempt to open the case or remove the back cover.
2. Do not operate push buttons below the surface of the water while swimming or diving.
3. Should water or condensation appear in the watch, have the watch checked immediately. Corrosion of electronic parts can occur inside the case.
4. Avoid severe impact. The watch is designed to withstand impact under normal use. It is inadvisable to subject it to severe impact of rough usage.
5. Avoid exposing the watch to extreme temperature.
6. Clean the watch with soft cloth and clean water only. Avoid using chemicals.
7. Keep your watch away from the conditions of strong electric field and estatic electricity.

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your watch making products at any of our retail outlets or any other authorized collection's selective collection, processing, rating and recycling of these products helps to safeguarding the environment and protecting our health.
