USER MANUAL N5008AC2 HITACHI

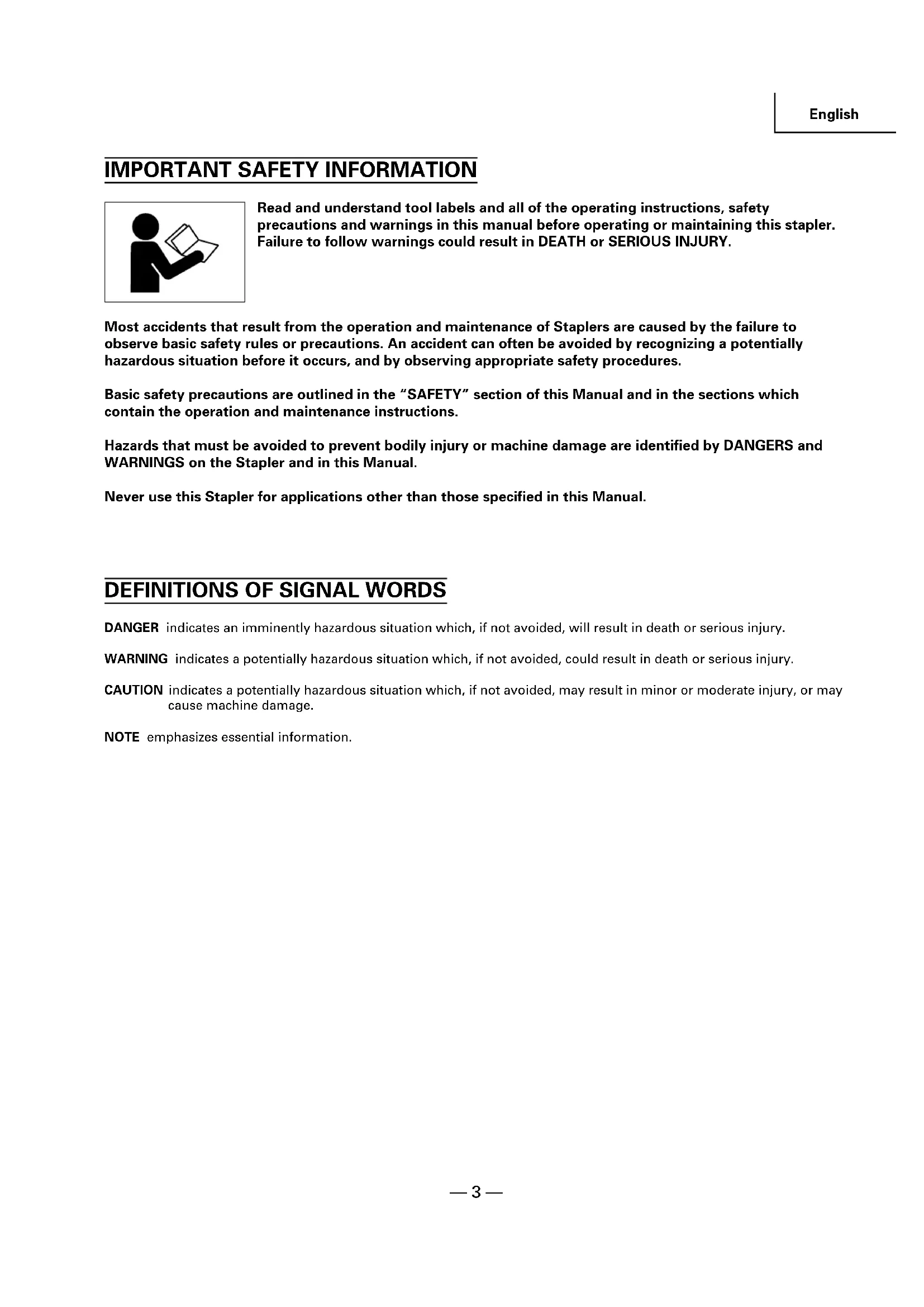

Read and understand tool labels and all of the operating instructions, safety precautions and warnings in this manual before operating or maintaining this stapler. Failure to follow warnings could result in DEATH or SERIOUS INJURY. Most accidents that result from the operation and maintenance of Staplers are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identified by DANGERS and WARNINGS on the Stapler and in this Manual. Never use this Stapler for applications other than those specified in this Manual.

DEFINITIONS OF SIGNAL WORDS

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. 01Eng_N5008AC2_US 08/7/18, 11:103— 4 — English SAFETY

When operating the Stapler, always wear safety glasses with side shields, and make sure others in work area wear safety glasses, too. Safety glasses must conform to the requirements of American National Standards Institute, ANSI Z87.1 and provide protection against flying particles both from the front and side. The employer must enforce the use of safety glasses by the Stapler operator and others in work area.

2. NEVER USE OXYGEN OR OTHER BOTTLED GASES. EXPLOSION MAY OCCUR.

Never use oxygen, combustible gases or any other bottled gases as a power source for the Stapler. Use of the above gases is dangerous, as the Stapler will explode. Use only clean, dry, regulated compressed air. WARNING

3. NEVER POINT TOOL AT YOURSELF OR OTHERS IN WORK AREA.

Always assume the Stapler contains fasteners. Never point the Stapler at yourself toward yourself or others, whether it contains fasteners or not. If fasteners are mistakenly driven, it can lead to severe injuries. Never engage in horseplay with the Stapler. Respect the Stapler as a working implement.

4. KEEP FINGERS AWAY FROM TRIGGER WHEN NOT DRIVING FASTENERS TO AVOID ACCIDENTAL FIRING.

Never carry the Stapler with finger on trigger since you could drive a fastener unintentionally and injure yourself or someone else. Always carry the Stapler by the handle only.

5. CHOICE OF TRIGGERING METHOD IS IMPORTANT.

Read and understand section titled “METHODS OF OPERATION.” (pages 12 – 13)

Do not exceed maximum recommended air pressure 120 psi (8.3 bar

Never connect the Stapler to pressure which potentially exceeds 200 psi (13.7 bar 14 kgf/cm

) as the Stapler can burst.

7. ALWAYS WEAR EAR AND HEAD PROTECTION.

Always wear ear protection to protect your ears from loud noise. Always wear head protection to protect your head from flying objects. 01Eng_N5008AC2_US 08/7/18, 11:114— 5 — English

8. STORE STAPLER PROPERLY.

When not in use, the Stapler should be stored in a dryplace. Keep out of reach of children. Lock the storagearea.

9. KEEP WORK AREA CLEAN.

Cluttered areas invite injuries. Clear all work areas ofunnecessary tools, debris, furniture, etc.

10. NEVER USE IN PRESENCE OF FLAMMABLE

LIQUIDS OR GASES. The Stapler produces sparks during operation.Never use the Stapler in sites containing lacquer,paint, benzine, thinner, gasoline, gases, adhesiveagents, and other materials which are combustible orexplosive.

11. KEEP VISITORS AWAY.

Do not let visitors handle the Stapler.All visitors should be kept safely away from workarea.

Do not wear loose clothing or jewelry as they can becaught in moving parts.Rubber gloves and nonskid footwear arerecommended when working outdoors.Wear protective hair covering to contain long hair.

13. NEVER USE NON RELIEVING COUPLER ON

STAPLER. If a non relieving coupler is used on the Stapler, theStapler can remain charged with air afterdisconnecting and thus will be able to drive a fastenereven after disconnecting.The Stapler and air hose must have a hose couplingsuch that all pressure is removed from the Staplerwhen the coupling joint is disconnected.

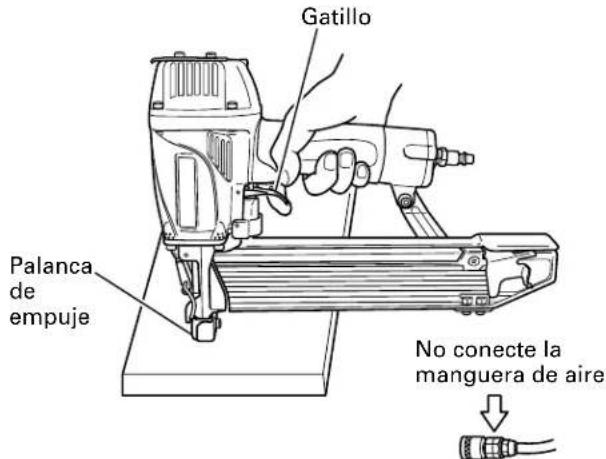

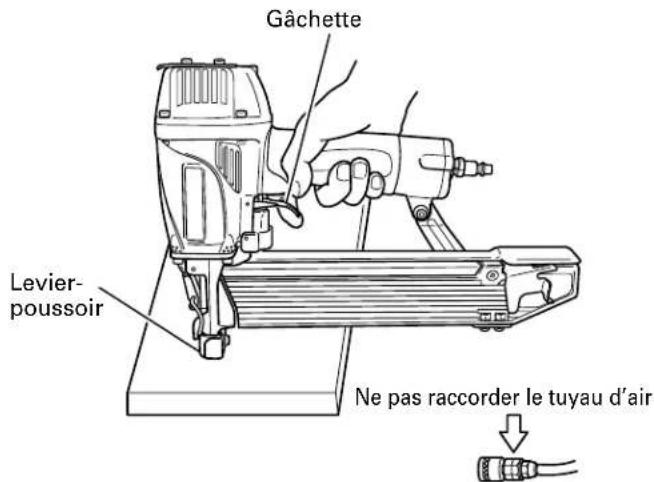

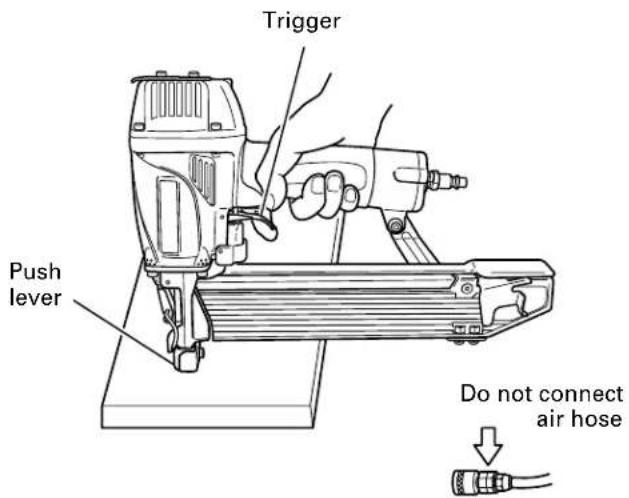

14. CHECK PUSH LEVER BEFORE USE.

Make sure the push lever operates properly. (Thepush lever may be called “Safety”.) Never use theStapler unless the push lever is operating properly,otherwise the Stapler could drive a fastenerunexpectedly. Do not tamper with or remove the pushlever, otherwise the push lever becomes inoperable.

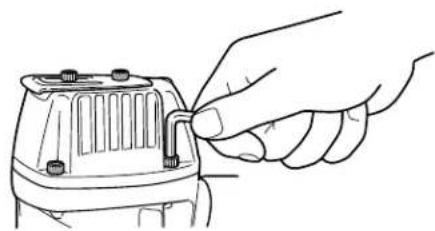

15. KEEP ALL SCREWS AND COVERS TIGHTLY IN

PLACE. Keep all screws and covers tightly mounted. Checktheir condition periodically.Never use the Stapler if parts are missing ordamaged.

16. DO NOT LOAD FASTENERS WITH TRIGGER

PULLED OR PUSH LEVER DEPRESSED. When loading fasteners into the Stapler or whenconnecting the air hose,1) do not pull the trigger;2) do not depress the push lever; and3) keep the Stapler pointed downward.

17. KEEP FACE, HANDS AND FEET AWAY FROM

FIRING HEAD AT ALL TIMES. Never place your face, hands or feet near the firinghead.

18. PLACE STAPLER PROPERLY ON WORKPIECE.

Do not drive fasteners on top of other fasteners orwith the Stapler at too steep of an angle; the fastenerscan ricochet and hurt someone.

19. BE CAREFUL OF DOUBLE FIRE DUE TO RECOIL.

If the push lever is unintentionally allowed to re-contact the workpiece following recoil, an unwantedfastener will be driven.In order to avoid this undesirable double fire,1) do not push the Stapler on the workpiece withstrong force;2) take the Stapler completely away from theworkpiece using recoil, and keep the push leveraway from the workpiece until the next desirableshot; and3) pull the trigger and release it QUICKLY whenperforming intermittent operation (trigger fire).

20. DO NOT DRIVE FASTENERS INTO THIN

BOARDS OR NEAR CORNERS AND EDGES OF WORKPIECE. The fasteners can be driven through or away from theworkpiece and hit someone.

21. NEVER DRIVE FASTENERS FROM BOTH SIDES

OF A WALL AT THE SAME TIME. The fasteners can be driven into and through the walland hit a person on the opposite side.

22. CHECK FOR LIVE WIRES.

Avoid the risk of severe electrical shock by checkingfor live electrical wires that may be hidden by walls,floors or ceilings. Turn off the breaker switch toensure there are no live wires.

Keep proper footing and balance at all times SAFETY — Continued WARNING 01Eng_N5008AC2_US 08/7/18, 11:115— 6 — English25. NEVER USE STAPLER WHICH IS DEFECTIVE OROPERATING ABNORMALLY.If the Stapler appears to be operating unusually,making strange noises, or otherwise appearsdefective, stop using it immediately and arrange forrepairs by a Hitachi authorized service center.26. DO NOT DISCONNECT AIR HOSE FROMSTAPLER WITH FINGER ON TRIGGER.The Stapler can fire when re-connected to an airsupply.27. DISCONNECT AIR HOSE FROM STAPLER WHEN:1) doing maintenance and inspection;2) loading fasteners;3) clearing a jam;4) it is not in use;5) leaving work area;6) moving it to another location; and7) handing it to another person.Never attempt to clear a jam or repair the Staplerunless you have disconnected air hose from theStapler and removed all remaining fasteners from theStapler.The Stapler should never be left unattended sincepeople who are not familiar with the Stapler mighthandle it and injure the themselves.28. STAY ALERT.Watch what you are doing. Use common sense.Do not operate the Stapler when you are tired.The Stapler should never be used by you if you areunder the influence of alcohol, drugs or medicationthat makes you drowsy. SAFETY — Continued WARNING 29. HANDLE STAPLER CORRECTLY.Operate the Stapler according to this Manual.Never allow the Stapler to be operated by children,individuals unfamiliar with its operation orunauthorized personnel.30. NEVER USE STAPLER FOR APPLICATIONSOTHER THAN THOSE SPECIFIED IN THISMANUAL.31. HANDLE STAPLER CAREFULLY.Because of high air pressure in the Stapler, cracks inthe surface are dangerous.To avoid this, do not drop the Stapler or strike theStapler against hard surfaces; and do not scratch orengrave signs on the Stapler. Handle the Staplercarefully.32. MAINTAIN STAPLER WITH CARE.Keep the Stapler clean and lubricated for better andsafer performance.33. USE ONLY PARTS, ACCESSORIES ORFASTENERS SUPPLIED OR RECOMMENDED BYHITACHI.Unauthorized parts, accessories, or fasteners mayvoid your warranty and can lead to malfunction andresulting injuries.Only service personnel trained by Hitachi, distributoror employer shall repair the Stapler.34. NEVER MODIFY OR ALTER A STAPLER.Doing so may cause it to malfunction and personalinjuries may result.

EMPLOYER’S RESPONSIBILITIES

1. Ensure that this MANUAL is available to operatorsand personnel performing maintenance.2. Ensure that Staplers are used only when operatorsand others in work area are wearing EYE PROTECTOR.3. Enforce the use of EYE PROTECTOR by operators andothers in work area.4. Keep Staplers in safe working order.5. Maintain Staplers properly.6. Ensure that Staplers which require repair are notfurther used before repair.

SAVE THIS MANUAL AND

KEEP IT AVAILABLE FOR OTHERS! 01Eng_N5008AC2_US 08/7/18, 11:116— 7 — English OPERATION NOTE: The information contained in this Manual is designed to assist you in the safe operation of the Stapler. Some illustrations in this Manual may show details or attachments that differ from those on your own Stapler.

Piston O-ring Piston Nose Driver blade Lock lever Blade guide Push lever Firing head (Outlet) Staple feeder Push lever piece Magazine assembly Magazine cover Air plug Cap Body Trigger Exhaust cover 01Eng_N5008AC2_US 08/7/18, 11:117— 8 — English STAPLE SELECTION WARNING 䢇 Be sure to use only the genuine HITACHI staples for the N5008AC2. The use of any other staples can result in tool malfunction and/or staple breakdown, leading to serious injuries. Only staples shown in the Table below can be driven with this Stapler. Dimensions of staples Min. Max. ACCESSORIES WARNING 䢇 Accessories other than those shown below can lead to malfunction and resulting injuries. STANDARD ACCESSORIES OPTIONAL ACCESSORIES ... sold separately 䡬 Sequential Trip Mechanism Kit (Code No. 876762) (Single Shot Parts) 䡬 Pneumatic Tool Lubricant 1 oz. (30 cc) oil feeder (Code No.877153) 4 oz. (120 cc) oil feeder (Code No.874042) 1 quart (1 ltr) can (Code No.876212) NOTE: Accessories are subject to change without any obligation on the part of HITACHI. APPLICATIONS 䡬 Construction work such as wall sheathing, roof decking, subflooring. 䡬 Mobile and modular home construction. 䡬 Making wooden boxes, and expendable pallets. BEFORE OPERATION Read section titled “SAFETY” (pages 4 – 6). Make sure of the following before operation. WORKING ENVIRONMENT WARNING 䢇 No flammable gas, liquid or other flammable objects at worksite. 䢇 Clear the area of children or unauthorized personnel. AIR SUPPLY DANGER 䢇 NEVER use oxygen or other bottled gases. Explosion may occur. SPECIFICATIONS Operating pressure 70 – 120 psi (4.9 – 8.3 bar 5 – 8.5 kgf/cm

Dimensions 14-3/8" × 10-5/32" × 3" Length × Height × Width (365 mm × 258 mm × 76 mm) Weight 4.4 lbs. (2.0 kg) Staple capacity 150 Staples .040 ft

/cycle at 100 psi Air consumption (1.1 ltr/cycle at 6.9 bar) (1.1 ltr/cycle at 7kgf/cm

1 Eye protector 1 2 Allen wrench for M5 screw 1 16 Gauge 7/16"Crown staple 01Eng_N5008AC2_US 08/7/18, 11:118— 9 — English WARNING 䢇 Never connect Stapler to pressure which potentially exceeds 200 psi (13.7 bar 14 kgf/cm

䡬 Use only clean, dry, regulated compressed air as a power source for this Stapler. 䡬 Air compressors used to supply compressed air to this Stapler must comply with the requirements of the latest version of ANSI Standard B 19.3 “Safety Standard For Compressors For Process Industries.” 䡬 Moisture or oil in the air compressor may accelerate wear and corrosion in the Stapler. Drain daily.

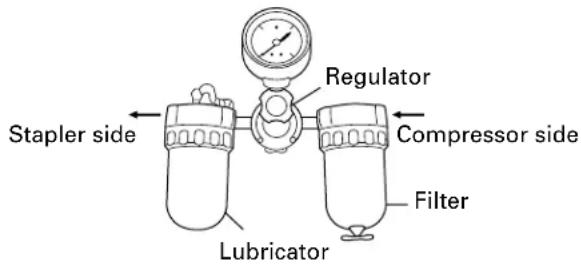

2. Filter-Regulator-Lubricator

䡬 Use a regulator with a pressure range of 0 – 120 psi (0 – 8.3 bar 0 – 8.5 kgf/cm

䡬 Filter-regulator-lubricator units supply an optimum condition for the Stapler and extend the Stapler life. These units should always be used. Filter ................. The filter removes moisture and dirt mixed in compressed air. Drain daily unless fitted with an automatic drain. Keep the filter clean by regular maintenance. Regulator ......... The regulator controls the operating pressure for safe operation of the Stapler. Inspect the regulator before operation to be sure it operates properly. Lubricator ........ The lubricator supplies an oil mist to the Stapler. Inspect the lubricator before operation to be sure the supply of lubricant is adequate. Use Hitachi pneumatic tool lubricant.

Air hose must have a minimum working pressure rating of 150 psi (10.4 bar 10.6 kgf/cm

) or 150% of the maximum pressure produced in the system, whichever is higher.

Using the Air consumption table and the Air compressor size formula, find a correct compressor size. Air consumption table Air compressor size formula Amount of air required =number of Staplers × average staples driven each minute per Stapler × air consumption at given air pressure × safety factor (always 1.2) Example: 3 Staplers (N5008AC2) operating at 100 psi driving 30 staples per minute Amount of air required =3 × 30 × .040 (1.1) × 1.2 =4.2 CFM (ft

/min) (119 ltr/min) After making the calculations as shown above, you should find a compressor providing 4.2 CFM of air that is required. LUBRICATION It is important that the Stapler be properly lubricated. Without proper lubrication, the Stapler will not work properly and parts will wear prematurely. 䡬 Use Hitachi pneumatic tool lubricant. Do not use detergent oil or additives. These lubricants will harm the O-rings and other rubber parts. This will cause the Stapler to malfunction. 䡬 Filter-regulator-lubricator units should always be used. Keep the lubricator filled with Hitachi pneumatic tool lubricant. 䡬 If a lubricator is not available, supply 5 – 10 drops of Hitachi pneumatic tool lubricant into the air plug on the Stapler twice a day.

䡬 Do not store the Stapler in a cold weather environment. Keep the Stapler in a warm area until beginning the work. 䡬 If the Stapler is already cold, bring it in a warm area and allow the Stapler to warm up before use. 1 Reduce the air pressure to 64 psi (4.4 bar 4.5 kgf/

2 Remove all staples from the Stapler. 3 Connect the air hose and free-fire (blank-fire) the Stapler. The lowered air pressure will be enough to free- fire the Stapler. Slow speed operation tends to warm up the moving part. CAUTION 䢇 Do not free-fire the Stapler at high pressure. Stapler side Filter Lubricator Compressor side Regulator psi 80 90 100 Operating pressure (bar) (5.5) (6.2) (6.9) (kgf/cm

) (5.6) (6.3) (7) Air consumption

DANGER 䢇 Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications. WARNING 䢇 Never use Stapler unless push lever is operating properly. Before actually beginning the stapling work, test the Stapler by using the checklist below. Conduct the tests in the following order. If abnormal operation occurs, stop using the Stapler and contact a Hitachi authorized service center immediately. (1) DISCONNECT AIR HOSE FROM STAPLER. REMOVE ALL STAPLES FROM STAPLER. 䡺 ALL SCREWS MUST BE TIGHTENED. If any screws are loose, tighten them. 䡺 THE PUSH LEVER AND TRIGGER MUST MOVE SMOOTHLY. (2) Adjust the air pressure to 70 psi (4.9 bar 5 kgf/cm

Connect the air hose. Do not load any staples in the Stapler. 䡺 THE STAPLER MUST NOT LEAK AIR. Hold the Stapler downward and pull the trigger. 䡺 THE STAPLER MUST NOT OPERATE. (3) With finger off the trigger, depress the push lever against the workpiece. 䡺 THE STAPLER MUST NOT OPERATE. (4) Without touching the trigger, depress the push lever against the workpiece. Pull the trigger. 䡺 THE STAPLER MUST OPERATE. (5) With the Stapler off the workpiece, pull the trigger. Depress the push lever against the workpiece. 䡺 THE STAPLER MUST OPERATE. (6) If no abnormal operation is observed, you may load staples in the Stapler. Drive staples into the workpiece that is the same type to be used in the actual application. 䡺 THE STAPLER MUST OPERATE PROPERLY. Pull trigger Push lever Do not pull trigger Depress push lever Trigger Push lever Do not connect air hose 01Eng_N5008AC2_US 08/7/18, 11:1110— 11 — English

Adjust the air pressure at recommended operating pressure 70 – 120 psi (4.9 – 8.3 bar 5 – 8.5 kgf/cm

according to the length of staples and the hardness of workpiece. The correct air pressure is the lowest pressure which will do the job. Using the Stapler at a higher than required air pressure unnecessarily over stresses the Stapler. LOADING STAPLES WARNING 䢇 When loading staples into Stapler,

3) keep Stapler pointed downward.

(1) Pull the staple feeder backward and attach it securely to a groove of the magazine. (2) Place the staple strip over the magazine. Make sure that the staple strip slides freely on the magazine. (3) Pull the staple feeder backward. Then, detach it from the groove of magazine and softly bring the staple back as if it were being gently pushed, avoiding any impact. The Stapler is now ready to operate. CAUTION If the staple feeder is released all of a sudden, it can return abruptly, causing deformation and/or scatter, eventually ending up in clogged staples. Be absolutely sure to bring back the staple feeder, avoiding any impact. STAPLER OPERATION Read section titled “SAFETY”(pages 4 – 6). DANGER 䢇 Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications. WARNING 䢇 NEVER point tool at yourself or others in work area. 䢇 Keep fingers AWAY from trigger when not driving staples to avoid accidental firing. 䢇 Choice of triggering method is important. Please read and understand “METHODS OF OPERATION” found below. 䢇 Never place your face, hands or feet near firing head when using. 䢇 Do not drive staples on top of other staples or with Stapler at too steep of an angle; staples can ricochet and hurt someone. 䢇 In order to avoid double fire or unwanted ejection of a staple due to bouncing of the Stapler.

1) do not push Stapler on workpiece with strong

2) take Stapler away from workpiece using

recoil; Groove Staple feeder Staple feeder Staple Magazine 01Eng_N5008AC2_US 08/7/18, 11:1111— 12 — English

3) release trigger quickly when performing

trigger fire. 䢇 Do not drive staples into thin boards or near corners and edges of workpiece. Staples can be driven through or away from workpiece and hit someone. 䢇 Never drive staples from both sides of a wall at the same time. Staples can be driven into and through the wall and hit a person on the opposite side. 䢇 Never use Stapler which is defective or operating abnormally. 䢇 Do not use Stapler as hammer. 䢇 Disconnect air hose from Stapler when:

1) adjusting the push lever piece;

2) it is not in use;

3) leaving work area;

4) moving it to another location; and

5) handing it to another person.

This Hitachi Stapler has a STANDARD CONTACT TRIP MECHANISM (Bounce Fire). An OPTIONAL SEQUENTIAL TRIP MECHANISM kit (SINGLE SHOT) is available as order part number 876762. THE STANDARD CONTACT TRIP MECHANISM (Bounce Fire) is for use where rapid fastener placement is desired and must be operated in accordance with the following “Methods of Operation”.

METHODS OF OPERATION

This Stapler is equipped with the push lever and does not operate unless the push lever is depressed (upward position). There are two methods of operation to drive staples with this Stapler. They are:

1. Intermittent operation (Trigger fire):

2. Continuous operation (Push lever fire):

(1) Intermittent operation (Trigger fire) 1 Position the staple outlet on the workpiece with finger off the trigger. 2 Depress the push lever firmly until it is completely depressed. 3 Pull the trigger to drive a staple. 4 Remove finger from the trigger. To drive another staple, move the Stapler along the workpiece and repeat this procedure. (2) Continuous operation (Push lever fire) WARNING 䢇 To avoid double firing or accidental firing due to recoil.

1) Do not press the stapler against the

workpiece with excessive force.

2) Separate the stapler from the workpiece as it

recoils after stapling. 1 Pull the trigger with the Stapler off the workpiece. 2 Depress the push lever against the workpiece to drive a staple. 3 Move the Stapler along the workpiece with a bouncing motion. Each depression of the push lever will drive a staple. As soon as the desired number of staples have been driven, remove finger from the trigger. WARNING 䢇 Keep your finger off the trigger except during fastening operation, because serious injury could result if the push lever accidentally contacts you or others in work area. 䢇 Keep hands and body away from the discharge area. The Stapler with contact trip mechanism may bounce from the recoil of driving a fastener and unwanted subsequent fastener may be driven, possibly causing injury. 䢇 Some types of loaded staples can spark out of the muzzle during a nail driving operation. Exercise caution!

THE OPTIONAL SEQUENTIAL TRIP MECHANISM (SINGLE

SHOT PARTS) is for use where precision fastener placement is desired and must be operated in accordance with the following “Method of Operation”. You must first depress the push lever (upward position) where you want to drive a staple and then pull the trigger. After the each staple is driven, completely release the trigger and lift the tool off the Trigger Push lever

Previously pull the trigger

01Eng_N5008AC2_US 08/7/18, 11:1112— 13 — English work surface. An OPTIONAL SEQUENTIAL TRIP MECHANISM may reduce the possibility of bodily injury to you or others in the work area. This is because it is less likely to drive an unwanted staple if you keep the trigger pulled and accidentally bump the push lever against yourself or others. An OPTIONAL SEQUENTIAL TRIP MECHANISM may also reduce the speed of operation compared to the standard contact trip mechanism. NOTE: 䢇 Both STANDARD CONTACT TRIP MECHANISM and OPTIONAL SEQUENTIAL TRIP MECHANISM are safe if used as described above and according to all warnings and instructions. 䢇 Always handle staples and package carefully. If staples are dropped, collating bond may be broken. 䢇 After stapling:

1) disconnect air hose from the Stapler;

2) remove all staples from the Stapler;

3) supply 5 – 10 drops of Hitachi pneumatic tool

lubricant into the air plug on the Stapler; and

4) open the petcock on the air compressor tank to

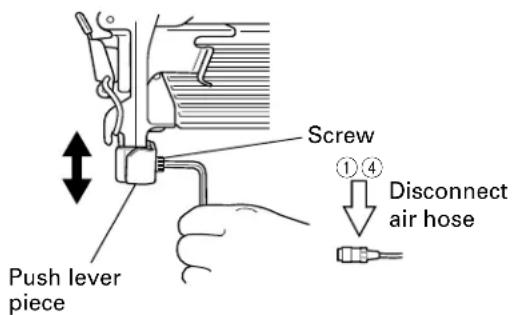

DEPTH WARNING 䢇 When adjusting the push lever piece, be sure to remove your finger from the trigger and disconnect the air hose from the stapler. To assure that each nail penetrates to the same depth, be sure that:

1) the air pressure to the Stapler remains constant

(regulator is installed and working properly), and

2) the Stapler is always held firmly against the

workpiece. If staples are driven too deep or shallow into the workpiece, adjust the stapling in the following order. 1 DISCONNECT AIR HOSE FROM STAPLER. 2 To adjust the driven-in depth of a staple, loosen the screw that secures a push lever piece. If the staple is driven in deeply, adjust the push lever piece to ”down”, and if it’s driven in shallowly, adjust the push lever piece to “up”. 3 Tighten the screw to fasten the push lever piece when a suitable position is reached for a stapling test. 4 Connect the air hose. ALWAYS WEAR EYE PROTECTOR. Perform a stapling test. 5 DISCONNECT AIR HOSE FROM STAPLER. 6 Choose a suitable position for the push lever piece. Push lever piece Disconnect air hose

Screw Too deep Too shallow 01Eng_N5008AC2_US 08/7/18, 11:1113— 14 — English MAINTENANCE NOTE:The information contained in this Manual is designed to assist you in the safe maintenance ofthe Stapler.Some illustrations in this Manual may show details or attachments that differ from those onyour own Stapler.

MAINTENANCE AND INSPECTION

Read section titled “SAFETY” (pages 4 – 6). WARNING 䢇 Disconnect air hose and remove all staples fromStapler when:1) doing maintenance and inspection; and2) clearing a jam.

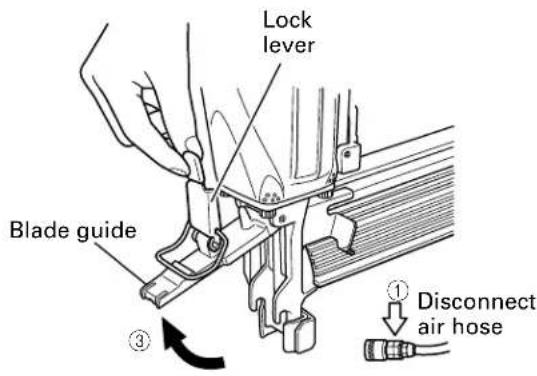

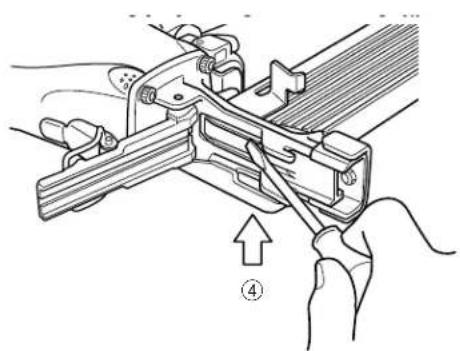

Remove a jammed staple in the following order:1 DISCONNECT AIR HOSE.2 Remove all staples.3 Release the lock lever and open the blade guide.4 Remove the jammed staple with a slotted-headscrewdriver.5 Close the blade guide and latch.6 In case of frequent jam, contact a Hitachiauthorized service center.

When not in use for an extended period, apply a thincoat of the lubricant to the steel parts to avoid rust. 䡬 Do not store the Stapler in a cold weather environment.Keep the Stapler in a warm area. 䡬 When not in use, the Stapler should be stored in a warm and dry place.Keep out of reach of children.

Change the WARNING LABEL if missing or damaged.A new WARNING LABEL is available from a Hitachiauthorized service center.

CAUTION 䢇 Repair, modification and inspection of Hitachi PowerTools must be carried out by a Hitachi AuthorizedService Center.This Parts List will be helpful if presented with thetool to the Hitachi Authorized Service Center whenrequesting repair or other maintenance. In theoperation and maintenance of power tools, the safetyregulations and standards prescribed in each countrymust be observed. MODIFICATIONS: Hitachi Power Tools are constantly being improved andmodified to incorporate the latest technologicaladvancements.Accordingly, some parts may be changed without priornotice. Lock leverBlade guideDisconnectair hose

WARNING 䢇 Only service personnel trained by Hitachi, distributor or employer shall repair the Stapler. 䢇 Use only parts supplied or recommended by Hitachi for repair. All quality Staplers will eventually require servicing or replacement of parts because of wear from normal use. NOTE: Specifications are subject to change without any obligation on the part of HITACHI. 01Eng_N5008AC2_US 08/7/18, 11:1115— 16 — English Maintenance chart

Drain air line filter daily. Prevent accumulation of moisture and Open manual petcock. dirt. Keep lubricator filled. Keep the Stapler lubricated. Fill with Hitachi pneumatic tool lubricant. Clean filter element — then blow air Prevent clogging of filter with dirt. Follow manufacturer’s instructions. through filter in direction opposite to normal flow. Clean magazine and feeder Prevent a jam. Blow clean daily. mechanism. Keep push lever working properly. Promote operator safety and efficient Blow clean daily. Stapler operation. Lubricate the Stapler after stapling. Extend the Stapler life. Supply 5 – 10 drops of lubricant into the Stapler. Drain air compressor. Keep the Stapler operated properly. Open petcock on air compressor tank. Operator troubleshooting Most minor problems can be resolved quickly and easily using the table below. If problems persist, contact a Hitachi authorized service center for assistance. Check for a jam. Staple feeder damaged? Ribbon spring weakened or damaged? Check for proper staples. Check air pressure. Check position of stapling depth adjuster.

Driver blade worn? Piston O-ring worn or damaged? Check air pressure. Check position of stapling depth adjuster. Check for proper staples. Staple feeder damaged? Ribbon spring weakened or damaged? Piston O-ring worn or damaged? Check for proper staples. Driven blade worn? Check inside diameter of air hose.

PROBLEM CHECK METHOD CORRECTION

Readjust per page 13. Use only recommended staples. Replace staple feeder. Replace ribbon spring. Contact Hitachi for replacement. Use only recommended staples. Contact Hitachi for replacement. Use larger air hose. Stapler operates but no staple is driven. Weak drive. Slow to cycle. Drives too deep. Skipping staples Intermittent feed. Staples jam. Driven staple is bent. Drives properly during normal operation, but does not drive fully at faster stapling speeds. 01Eng_N5008AC2_US 08/7/18, 11:1116— 17 — Français

502 SAFETY GLASSES 1 Item No. Part Name Q’TY 03Spa_N5008AC2_US 08/7/18, 11:1347809 Code No. C99173961 Printed in Taiwan Issued by Hitachi Koki Co., Ltd. Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan Distributed by Hitachi Koki U.S.A., Ltd. 3950 Steve Reynolds Blvd. Norcross, GA 30093 Hitachi Koki Canada Co. 450 Export Blvd. Unit B, Mississauga ON L5T 2A4 03Spa_N5008AC2_US 08/7/18, 11:1348
