USER MANUAL GF1234 BLACK & DECKER

Line drawing of a lawn mower with handlebars and front wheels (no text or symbols)

GF834

GF934

GF1034

GF1234

GF1438

GF1838

A

Line drawing of a lawn mower with adjustable arm and handle (no text or symbols)

Technical line drawing of a mechanical assembly with a bolt and clamped component (no text or symbols)

Line drawing of a mechanical clamp or lever with a handle and base, labeled B2 (no text or symbols on the diagram itself)

Technical line drawing of two cylindrical components with mounting holes, labeled B3 (no text or symbols on the diagram itself)

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Technical line drawing of a mechanical bracket assembly with screws and a pin (no text or symbols)

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

C2

D1 a 2 3 4 1 b ↓ ×

Line drawing of a rope knot with a spring-like connector (no text or symbols)

D3 D4

Line drawing of a lawn mower on an inclined plane (no text or symbols)

D5 D6

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

D7

Line drawing of a lawn mower on a slope, no text or symbols present

F1

Technical line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

English

Italiano

Deutsch

Français

Nederlands

Español

Português

Ελληνικά

Danmark

Suomi

Norge

Sverige

BLACK&

DECKER®

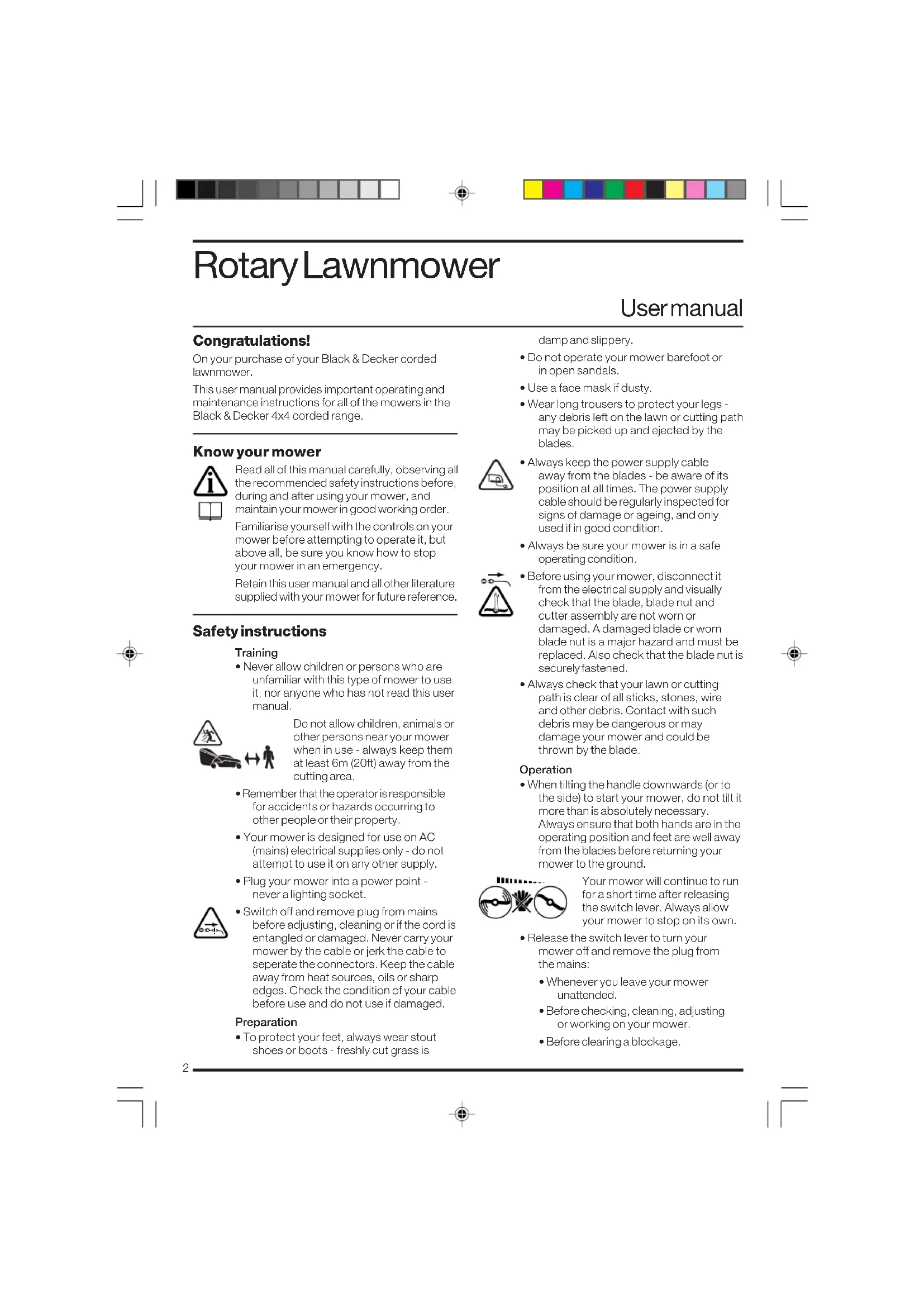

Rotary Lawnmower

User manual

Congratulations!

On your purchase of your Black & Decker corded lawnmower.

This user manual provides important operating and maintenance instructions for all of the mowers in the Black & Decker 4x4 corded range.

Know your mower

Read all of this manual carefully, observing all the recommended safety instructions before, during and after using your mower, and maintain your mower in good working order.

Familiarise yourself with the controls on your mower before attempting to operate it, but above all, be sure you know how to stop your mower in an emergency.

Retain this user manual and all other literature supplied with your mower for future reference.

Safety instructions

Training

- Never allow children or persons who are unfamiliar with this type of mower to use it, nor anyone who has not read this user manual.

Do not allow children, animals or other persons near your mower when in use - always keep them at least 6m (20ft) away from the cutting area.

• Remember that the operator is responsible for accidents or hazards occurring to other people or their property.
• Your mower is designed for use on AC (mains) electrical supplies only - do not attempt to use it on any other supply.
• Plug your mower into a power point - never a lighting socket.
• Switch off and remove plug from mains before adjusting, cleaning or if the cord is entangled or damaged. Never carry your mower by the cable or jerk the cable to separate the connectors. Keep the cable away from heat sources, oils or sharp edges. Check the condition of your cable before use and do not use if damaged.

Preparation

• To protect your feet, always wear stout shoes or boots - freshly cut grass is

damp and slippery.

• Do not operate your mower barefoot or in open sandals.
• Use a face mask if dusty.

• Wear long trousers to protect your legs - any debris left on the lawn or cutting path may be picked up and ejected by the blades.

• Always keep the power supply cable away from the blades - be aware of its position at all times. The power supply cable should be regularly inspected for signs of damage or ageing, and only used if in good condition.
  • Always be sure your mower is in a safe operating condition.

• Before using your mower, disconnect it from the electrical supply and visually check that the blade, blade nut and cutter assembly are not worn or damaged. A damaged blade or worn blade nut is a major hazard and must be replaced. Also check that the blade nut is securely fastened.
• Always check that your lawn or cutting path is clear of all sticks, stones, wire and other debris. Contact with such debris may be dangerous or may damage your mower and could be thrown by the blade.

Operation

- When tilting the handle downwards (or to the side) to start your mower, do not tilt it more than is absolutely necessary. Always ensure that both hands are in the operating position and feet are well away from the blades before returning your mower to the ground.

Your mower will continue to run for a short time after releasing the switch lever. Always allow your mower to stop on its own.

- Release the switch lever to turn your mower off and remove the plug from the mains:

• Whenever you leave your mower unattended.
• Before checking, cleaning, adjusting or working on your mower.
  • Before clearing a blockage.

ENGLISH

• If your mower starts to vibrate abnormally (check immediately).
  • After striking a foreign object, inspect your mower for damage and make repairs as necessary.

• Never run your mower whilst lying on its side or attempt to stop the blade - always allow it to stop on its own.

• Do not put hands or feet near or under rotating parts.
• Keep clear of discharge openings at all times.
• Do not use your mower in the rain and do not allow it to get wet. Avoid using your mower in wet grass, if possible.
• Use your mower only in daylight or good artificial light.
• Do not pull machine towards you or walk backwards when mowing.
• Do not cross gravel paths or roads whilst the blade is rotating.
  • Always be sure of your footing, particularly on slopes.
  • Always cut across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes.
• Do not cut excessively steep slopes and always wear non-slip footwear.
• Check the grassbox for wear or damage and replace if necessary. Never use your mower without the grassbox in place.
• Walk, never run. Do not force your mower.
• Never pick up or carry your mower while the motor is running.
• Ensure the blade has stopped rotating and take extreme care before lifting your mower for and during transportation.
• Never operate your mower with defective guards or shields.

Maintenance and storage

• Store your mower in a dry place when not in use, out of the reach of children.
  • Always disconnect from the electrical supply before cleaning.
• Do not use solvents or cleaning fluids to clean your mower - use a blunt scraper to remove grass and dirt.
• Do not operate your mower if any parts are defective; discard all defective parts and fit new parts before use.
• Keep all nuts, bolts and screws tight to be sure your mower is in a safe working condition.

- Use only Black & Decker recommended replacement parts and accessories.

Black & Decker's policy is one of continuous improvement to our products and, as such, we reserve the right to change product specifications without prior notice.

Double insulation

Your mower is double insulated. This means that all external metal parts are electrically isolated from the power supply. This is achieved by placing an extra insulation barrier between the electrical and mechanical parts. Double insulation means greater electrical safety and obviates the necessity of having your mower earthed.

Electrical safety

Increased safety can be obtained by having a qualified electrician install a high sensitivity (30mA) circuit breaker in the house wiring. If you do not have such a circuit breaker installed, or you do not wish to have one installed, then we strongly recommend that the electrical power to your mower be supplied through a high sensitivity residual current device (RCD). The RCD is designed to provide a high degree of personal protection against harmful electric current should fault conditions occur.

Warning! The use of an RCD or other circuit breaker unit does not release the operator of your mower from the safety instructions and safe working practices given in this manual.

Electrical safety (UK only)

Your mower should always be switched off at the mains before disconnecting any plug and socket connector or extension cables.

Fuse replacement

If your mower is supplied with cable fitted with a non-re-wireable plug:

• The plug is fitted with a 13 amp fuse which is the recommended fuse for your mower.
• Only use replacement fuses which are approved to BS1362.

- When changing the fuse in your plug, always ensure the fuse cover is refitted. If the fuse cover is missing or damaged do not use the plug.

Note: Fuses do not give personal protection against electric shock.

Plug replacement

• Disconnect the plug from the supply.
• Cut off the plug and dispose of immediately. Insertion of a detached plug into a 13 amp socket outlet may result in electric shock.
• Only fit BS1363A approved plugs fitted with the correctly rated fuse.

- The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for "Live" (L) and blue is for "Neutral" (N).

- Before replacing the top cover of the mains plug ensure that the cable restraint is holding the outer sheath on the cable firmly and that the two leads are correctly fixed at the terminal screws.

Fit a BS1363A approved resilient plug

Connect blue to N (neutral)

Fit the E N the

recommended fuse approved to BS1362

Connect brown to L (live)

Make sure that the outer sheath of the cable is held firmly by the clamp

230 volts AC only Never use a light socket

Warning! Never connect live or neutral wires to the earth pin marked "E" or 12

Note: Do not wire an extension cable directly into your mower yourself. Instead, take your mower to your nearest Black & Decker service agent.

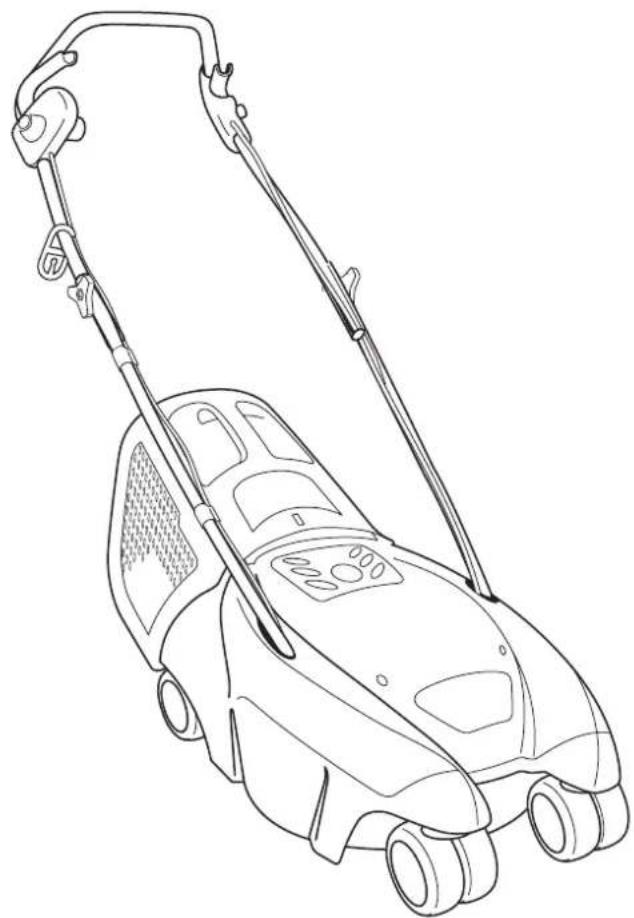

Features (Fig. A)

Your purchase of a Black & Decker lawnmower gives you a product combining quality with modern design and the following features to provide safe, efficient and easy mowing.

• Lock-off safety switch to prevent accidental starting of your mower.
• A blade brake for added safety. Stops the blade rotating within 3 seconds once the switchbox lever is released.

• Large handle wing nuts for easy assembly and storage.
- 14 height of cut positions which provides the flexibility to deal with most grass conditions.
- The height of cut is easily adjusted by rotating the height adjustment knob to the desired setting. Rotating the knob adjusts all four wheels in one action.
- Your mower has 360° rotating wheels for maximum manoeuvrability, which allows cutting right up to the edge of the lawn as well as around obstructions.
- The rear wheels are lockable to enable accurate straight-line cutting.
- Tough, durable plastic deck which will not rust and contributes to low noise and low vibration.
- Powerful and efficient induction motor which gives effective cutting and bagging in all reasonable conditions and a low noise level as well as low maintenance.
- Ergonomically designed upswept handle for comfortable use and ease of pushing.
- Easy grassbox removal.
- Cable restraint helps keep the cable out of the way and prevents the cable socket being accidentally pulled and disconnected.

Carton contents

The carton contains:

1 Lawnmower body

1 Handle assembly (3 parts)

1 Grassbox assembly (2 parts)

1 Cable restraint

1 Spanner/scraper

1 Screwdriver

2 Wing nuts

2 Washers

2 Shaped washers

2 Bolts for upper handle

2 Bolts for lower handle

5 Screws for grassbox

2 Cable clips

1 Instruction manual

- Carefully unpack all parts.

Assembling the handle

• Place the mower with its wheels on a firm and level surface.

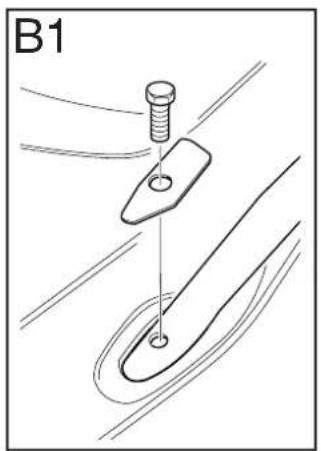

• Insert the handle bars into the openings as shown in fig. B1, so that the curve makes them widen at the top.
• Secure each of the bars with a bolt and shaped washer as shown. Securely tighten the bolt using the spanner supplied.

B1

B2

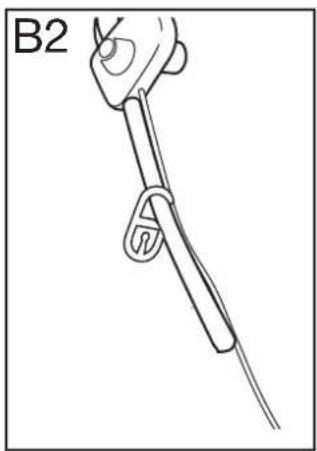

- Slide the cable restraint onto the U-shaped handle below the black switchbox.

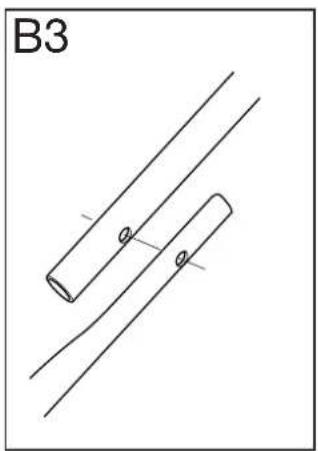

B3

- Place the U-shaped upper handle bar onto the bars as shown.

B4

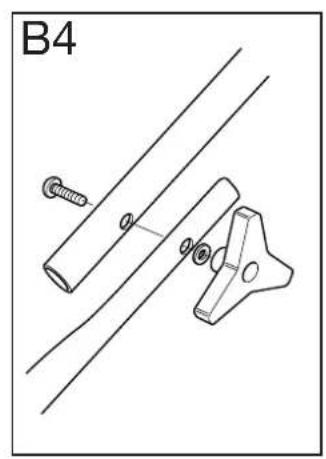

- Secure the upper handle bar using the bolts, washers and wing nuts as shown.

!

- Secure the cables to the handle using the cable clips supplied. Do not use any tools to tighten the wing nuts.

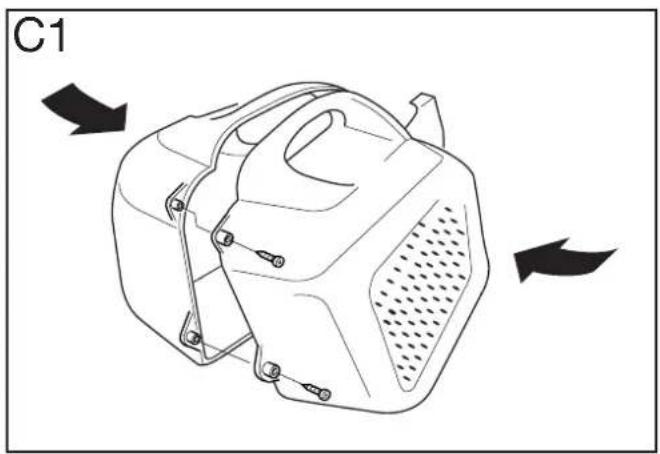

Grassbox assembly (Fig. C)

The grassbox comes supplied in two halves. In order to assemble proceed as follows:

C1

• Align the two halves of the grassbox as shown.
• Fit the two halves together with the 5 screws, using the screwdriver supplied.

C2

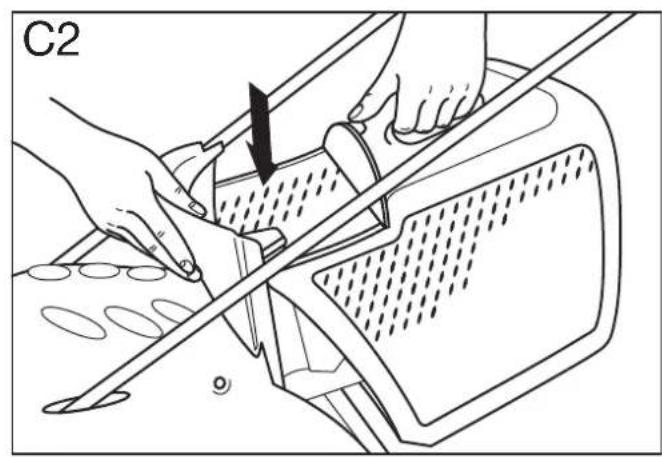

Fitting the grassbox to your mower:
- The spring loaded rear flap is lifted and the top of the grassbox is placed over the mounting.
- The rear flap can now be released to lock the grassbox into position.

Removing the grassbox from your mower: The full grassbox may be removed by raising the grassflap, freeing the grassbox from its mounting and resting it on the lawn. The grassflap can be gently lowered, leaving both hands free to lift the full grassbox.

How to use your mower (Fig. D)

!

Observe all of the relevant warnings when using your mower.

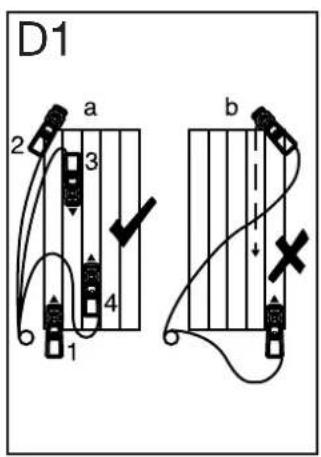

We recommend the directional method of operation to obtain the maximum cutting performance from your mower and to reduce the risk of the trailing extension lead from entering the cutting path.

D1

- Place the bulk of the supply cable on the lawn close to the starting point.

ENGLISH

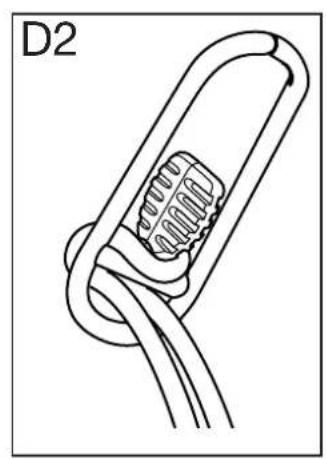

To fix the cable to the restraint, proceed as follows:

- Bring the socket end of the extension cable from behind and connect it to your mower plug.

- Form a loop on your extension cable close to the cable restraint.

- Push the loop through the slot from the opposite side of the restraint hook, position the loop over the hook and pull the cable back through the slot. Your cable will now be restrained.

- The extension cable should now fall away from your mower and behind the operator, ready for use.

!

Warning! Do not attempt to operate your mower with one hand - you must guide it with both hands.

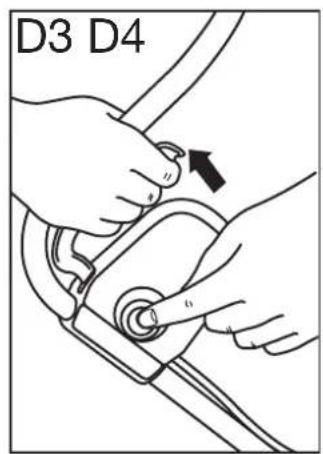

D3

- Tilt the handle downwards to slightly raise the front of your mower and to reduce the risk of lawn damage whilst starting, depress the safety lock-off button on the switchbox and whilst still depressed pull the switch lever towards you. Your mower will start and you can now allow the lock-off button to be released and lower your mower to its proper cutting position, and commence cutting using both hands to guide it.

I→U

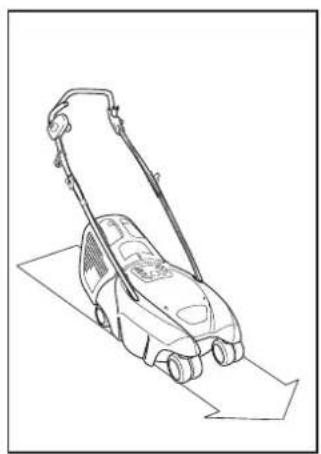

- Proceed down the cutting area as shown in Fig. D1 (a), working from position 1 towards position 2 and, on reaching position 2, turn to the right and proceed towards position 3. Continue to the end of the cutting area, turn to the left and proceed towards position 4. Continue in the same manner as shown in Fig. D1 (a), always working away from the cable. Do not adopt the method as shown in Fig. D1 (b), working towards the cable, as this is dangerous practice.

- Ensure the cable is clear of the mower when manoeuvring around obstructions or when edging.

Note: Your mower has 360^ rotating wheels for maximum manoeuvrability. The rear wheels can be locked into position for straight, accurate, cutting as follows:

- Push the mower forwards until all the wheels rotate towards the rear of the mower.

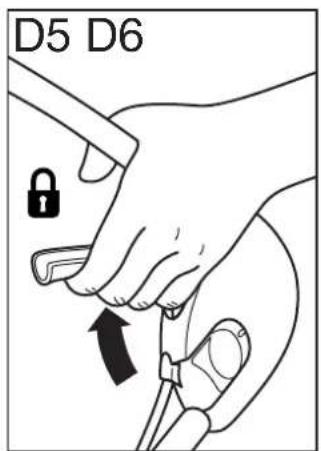

- Pull the locking lever on the left-hand side of the mower until the ratchet engages.

D6 D7

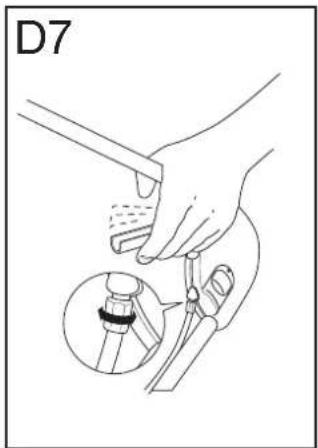

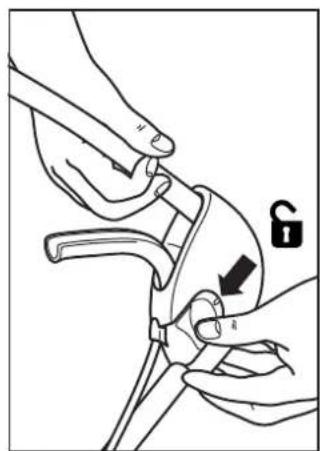

• To unlock the wheels push the release button forwards.
• Should the lever fully engage on the ratchet, but the rear wheels not lock into place, then release the lever, unscrew the cable adjustment by one turn and re-engage the lever and ratchet. Repeat until the wheels fully lock into position.

Your mower will continue to operate whilst you are pulling the switch lever. To stop your mower release the switch lever.

When you have finished using your mower we recommend that you clean all debris from it before putting it away. Refer to the 'Care and maintenance' section.

Note: To obtain the best results cut your lawn or grass area regularly and do not cut when the grass is wet.

If, when mowing, loose grass is seen to be scattering from beneath your mower, the grassbag is probably full and should be emptied.

Overload protection (GF1838 only)

The GF1838 is fitted with an internal overload protector which will switch off the motor if the unit is being used in excessively long grass at a low height of cut, or if it is being forced into long grass. If the motor stops in these conditions there is not a fault with the mower. It should be left to cool for 10 minutes and then tilted slightly and run without moving for 1 to 2 minutes. The height of the cut should be set to maximum and after cutting at that height be reduced to the desired level.

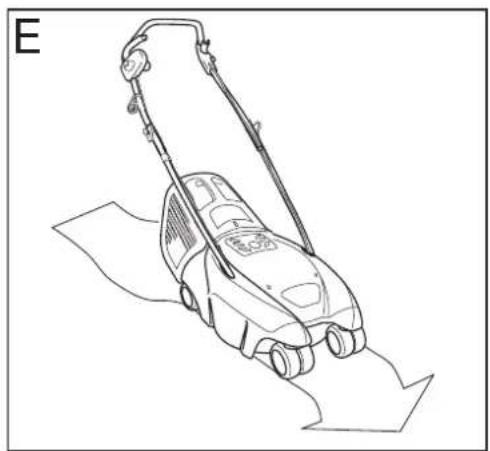

Manoeuverability (Fig. E)

Your mower has fully rotating wheels and as such is capable of manoeuvring around trees posts and other objects. It also allows accurate mowing of contoured features in your garden like flower beds.

For maximum manoeuvrability release the rear wheel locking mechanism by pushing the release button forwards.

When manoeuvring your mower always use the cable restraint and ensure that the cable is out of the way of the desired cutting area.

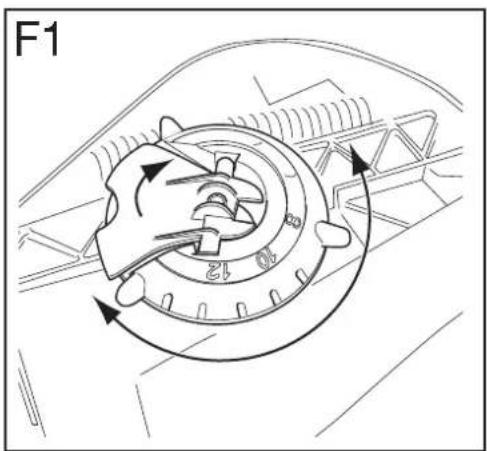

Height of cut adjustment (Fig. F)

Warning! Disconnect your mower from the electrical supply before making any adjustment and give the blade time to stop rotating: the cutting blades are sharp.

• Flip the lever outwards and hold it firmly.
• Using the lever, rotate the knob to set the desired height of cut.

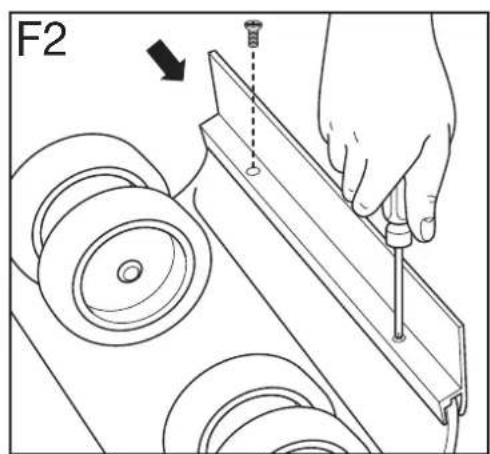

F2

• Flip the lever back to lock the knob.
• To produce a stripe on your lawn, first slide the striping flap in position and fix with the 2 screws provided, then adjust the height of cut to a low position (UK only).

Note: For longer or uneven growth lawns (particularly the first cut of the season) first use a higher height setting and then finish with a second cut to the desired length.

Blade maintenance

The steel blade is designed to give a fine finish in long or tough grass. The blade will continue to cut even when it has become blunt or burred. There is no need for it to be razor sharp.

If, however, because of damage or wear the cutting performance deteriorates, then your mower may require a new blade, or at least the existing blade to be sharpened.

We recommend that the steel blade is sharpened or a new blade fitted at the beginning of each season.

Replacement blades are available from Black & Decker service agents.

Warning! When fitting a new blade use only the Black_ & Decker replacement part specified for your mower - do not attempt to fit any other blade.

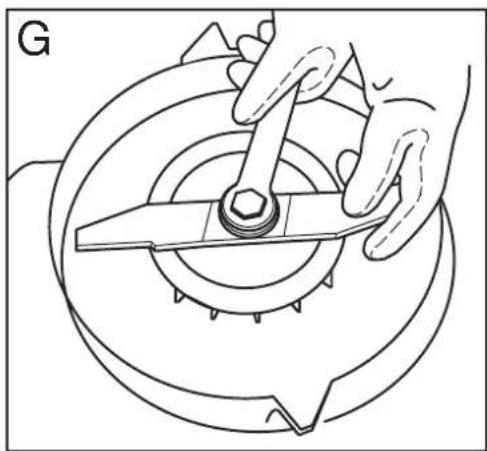

Fitting a new blade (Fig. G)

Observe all the relevant warnings before changing the blade.

Warning! Disconnect your mower from the electrical supply before changing the blade.

• Tum your mower over on its side so that the underside of the cutter cover is exposed.
• Using a cloth placed over the blade or heavy duty gloves to protect your hands, grip the blade and, using the spanner provided, loosen and remove the nut from the motor spindle. Turn the nut in an anti-clockwise direction to loosen it.
• The blade can now be replaced and the washer and bolt reassembled.

Note: Do not remove the impeller for any reason.

Note: Some mowers are fitted with a clutch washer, between the blade nut and the blade, which must be reassembled at all times.

Handy hints

- On long grass, above 10cm (4 inches), use two cuts to get a close finish. We recommend that the

first cut should be taken with the blade set at maximum height of cut and the second taken with it set at medium or close. This will prove to be easier and give a better overall finish to your lawn.

Care and maintenance

The advice given in this section covers the general care and maintenance of the main body of your mower. Advice relating to the blades is given in "Maintenance of blades".

Warning! Do not use an extension cable which shows signs of damage. Fit a new cable completely - do not make any permanent or temporary repairs.

• Always keep your mower clean and free from grass cuttings, especially the underside of the cutter deck, the air vents and the wheels.
- Check all electrical cables at regular intervals, looking for signs of wear, abrasion or other damage.
- At the end of each cutting session we recommend that the build up of grass on the underside of the cutter cover is removed using a blunt scraper.
- Clean all plastic components with a damp cloth.

Caution: Do not use solvents or cleaning fluids as these may damage the plastic components of your mower.

Fault finding

If your mower does not operate correctly, use the following table to locate the problem.

Warning! Always disconnect your mower from the electrical supply before carrying out any inspection.

Symptoms Possible cause Remedy

Motor buzzes Blade jammed. Disconnect from but blade does the electrical not move. supply. Remove

obstruction from the blade.

No noise and Faulty electrical Disconnect from blade does connection. the electrical not move. supply.

Plug your mower into an alternative compatible electrical supply.

ENGLISH

Symptoms Possible cause Remedy

No noise and Faulty electrical Fit a new fuse. blade does connection. Re-tighten and not move. check all electrical

connections in extension cables. Re-set RCD in accordance with instructions.

No noise and GF1838 only See section on blade does Overload Overload not move. protector protection. activated.

Protecting the environment

Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

• The product has been used for trade, professional or hire purposes;
• The product has been subjected to misuse or neglect;
• The product has sustained damage through foreign objects, substances or accidents;

ENGLISH

• Repairs have been attempted by other persons than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Other outdoor tools

Black & Decker has a full range of outdoor power tools that make life in the garden easy. If you would like further information on the following products, please contact our Service and Information Centre (see the address page towards the end of this manual) or your local Black & Decker retailer.

String trimmers

Chainsaws

Cordless shear

Hedgetrimmers

Lawnmowers

Lawnrakers

Leafbusters

Shredders

Not all products are available in all countries.

EC Declaration of Conformity

GF834/GF934/GF1034/GF1234/GF1438/GF1838

Black & Decker declares that these tools conform to:

98/37/EC, 89/336/EEC, 73/23/EEC, EN 55014, EN 60335, EN 61000,

2000/14/EC, Lawn mower, L ≤ 50 cm, Annex VIII, No. 0086

B.S.I., HP2 4SQ, United Kingdom

Level of sound pressure, measured according to 2000/14/EC:

L, (sound pressure) dB(A) 79

L_out^BA (acoustic power) dB(A) 93

L_WA^WA (guaranteed) dB(A) 96

Hand/arm weighted vibration value according to EN 50144: < 2.5 m/s ^4

Brian Cooke

Director of Engineering

Spennymoor, County Durham DL16 6JG

United Kingdom

1-12-2001

Tosaerbarotativo

Spennymoor, County Durham DL16 6JG, United Kingdom 1-12-2001

Rasenmäher

Bedienungsanleitung

B.S.I., HP2 4SQ, United Kingdom

Director of Engineering

Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

1-12-2001

Tondeuse rotative

Noticed'utilisation

Félicitations!

Spennymoor, County Durham DL16 6JG,

Royaume-Uni

1-12-2001

Cirkelmaaier

Gebruiksaanwijzing

Gefeliciteerd!

B.S.I., HP2 4SQ, United Kingdom

Director of Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

1-12-2001

Spennymoor, County Durham DL16 6JG,

United Kingdom

1-12-2001

2000/14/CEE, corta-relvas, L ≤ 50 cm, Annex VIII, No. 0086

B.S.I., HP2 4SQ, Reino Unido

98/37/CEE, 89/336/CEE, 73/23/CEE,

EN 55014, EN 60335, EN 61000,

Spennymoor, County Durham DL16 6JG,

United Kingdom

1-12-2001

Reservedele / reparationer

B.S.I., HP2 4SQ, United Kingdom

Director of Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

1-12-2001

Ruohonleikkuri

Käyttöohje

Vigtigt!

Director of Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

1-12-2001

Roterende gressklipper

Bruksanvisning

Viktig!

GF1234/GF1438/GF1838

B.S.I., HP2 4SQ, England

Lydnivået, målt i henhold til 2000/14/E∅F:

L_pA	(lydnivå)	dB(A)	79
L_WA	(lydeffekt)	dB(A)	93
L_WVA	(garantert)	dB(A)	96

Den veide geometriske middelverdien av

Director of Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

1-12-2001

Rotorgräsklippare

Bruksanvisning

Grattis!

B.S.I., HP2 4SQ, England

Director of Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

1-12-2001

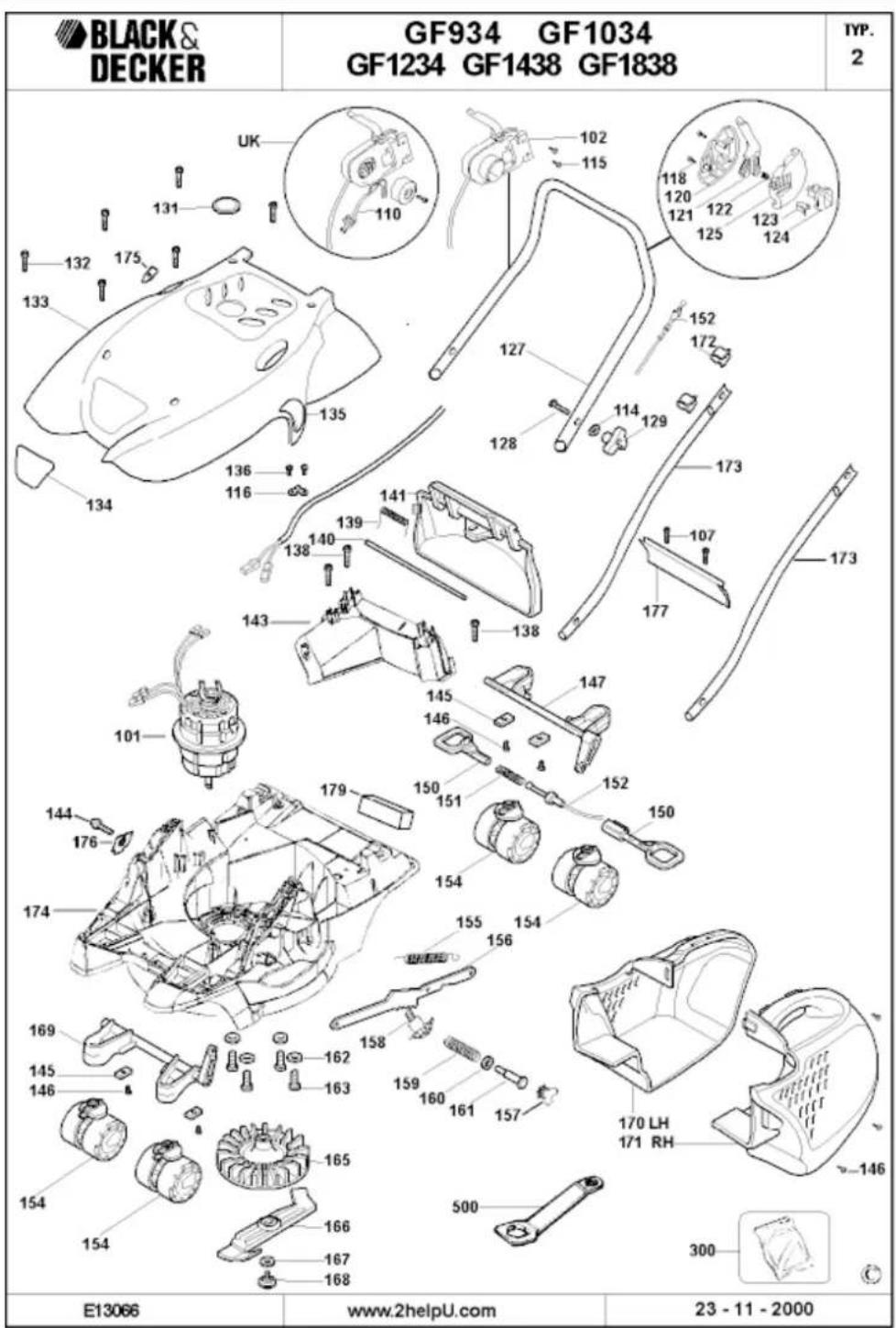

BLACK & DECKER GF934 GF1034 GF1234 GF1438 GF1838 TYP. 2 UK 102 115 118 120 121 122 123 124 131 110 127 152 172 128 114 129 173 107 173 135 136 116 141 139 140 138 143 138 145 146 147 150 151 152 150 154 155 154 156 169 162 158 159 160 161 157 170 LH 171 RH -146 E13066 www.2helpU.com 23 - 11 - 2000

Australia DEWALT Industrial Power Tool Company Tel. [phone] Clarice Road, Box Hill, Victoria 3128 Fax [phone]
Belgique/België Black & Decker (Belgium) N.V. Tel. [phone]Weihoek 1, 1930 Zaventem Fax [phone]
Danmark Black & Decker Tel. [phone]Hejrevang 26B, 3450 Allerød Fax [phone]Internet: www.blackdecker.dk
Deutschland Black & Decker GmbH Tel. [phone]Black & Decker Str. 40, D - 65510 Idstein Fax [phone]
Ελλάς Black & Decker (Ελλάς) A.E. Τηλ. [phone]Στράβωνος 7 & Βουλιαγμένης 159 Φαξ [phone]Γλυφάδα 16674, Ελλάδα Service [phone]
España Black & Decker Spain Tel. [phone]Parque de Negocios "Mas Blau" Fax [phone]Edificio Muntadas, c/Bergadá, 1, Of. A608820 El Prat de Llobregat (Barcelona)
France	Black & Decker (France) S.A.S.B.P. 21, 69571 Dardilly Cédex	Tel. [phone]Fax [phone]
Helvetia	Eduard LuggenBlack & Decker-Service SchweizIndustriestrasse 1 / Postfach 3238157 Dielsdorf	Tel. [phone]Fax [phone]
Italia	Black & Decker Italia SpAViale Elvezia 220052 Monza (MI)	Tel. [phone]Fax [phone]Numero verde 800-213935
Nederland	Black & Decker (Nederland) BVFlorijnstraat 10, 4879 AH Etten-Leur	Tel. [phone]Fax [phone]
New Zealand	Black & Decker Tel. [phone] Hugo Johnson DrivePenrose, Auckland, New Zealand	Fax [phone]
Norge	Black & Decker (Norge) A/SPostboks 248, Leirdal, 1011 OsloInternet: www.blackdecker.no	Tlf. 22 90 99 00Fax [phone]
Österreich	Black & Decker Vertriebsges.m.b.H Tel. [phone]Erlaaerstraße 165, 1231 Wien	Fax [phone]
Portugal	Black & Decker Tel. [phone]Rua Egas Moniz 173,2766-651 S. João do Estoril	Fax [phone]
South Africa	Black & Decker South Africa (Pty) LtdPhysical address:39 Commerce CrescentEastgate, ext. 12, Sandton, Kramerville 2148Postal address:Postnet Suite 107, Private Bag X65Halfway House 1685	Tel. [phone]Fax [phone]
Suomi Black & Decker Oy Palotie 3, 01610 Vantaa	Puh: [phone]Fax: [phone]
	Black & Decker Oy,Brandvägen 3, 01610 Vanda	Tel: [phone]Fax: [phone]
Sverige	Black & Decker ABBox 603, 421 26 Västra Frölunda,Besöksadr. Ekonomivägen 11	Tel: [phone]Fax: [phone]
Türkiye	Black & Decker Merkez ServisDudullu Cad. Kerembey Sok. No. 1Küçükbakkalköy/Istanbul	Tel. [phone]Faks 0216 455 20 52
United Kingdom	Black & Decker Tel. [phone] Bath RoadSlough, Berkshire SL1 3YD	Fax [phone]Helpline 01753 574277

Indkøbsdato Kaufdatum
