USER MANUAL DS 48160 B IN Orbegozo

EXAUSTOR - MANUAL DE INSTRUÇÕES

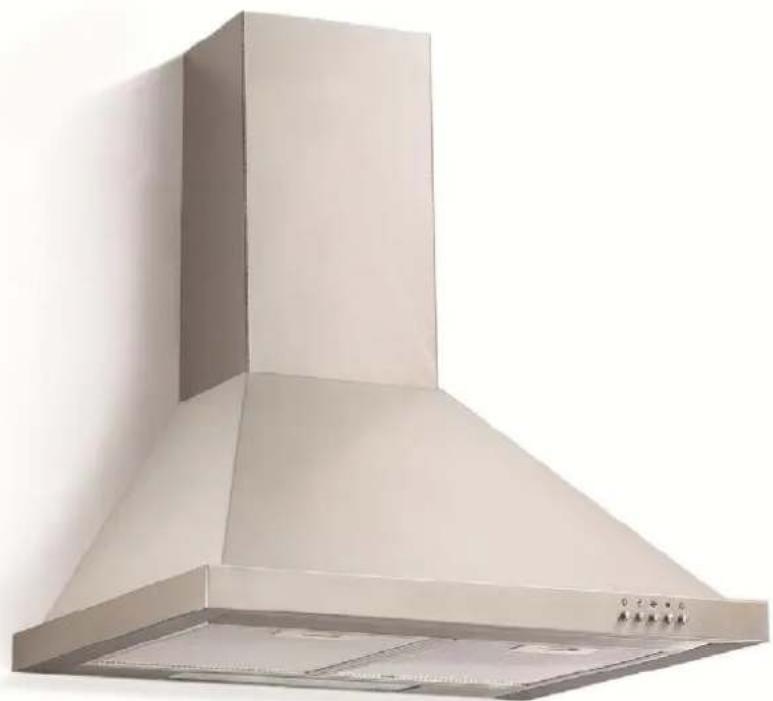

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

DS 48160/70/90 B IN

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Stop Low Mid High Light pic6C

Oil soot filter mesh Oil soot filter mesh Oil soot filter mesh Oil soot filter mesh 1 7 C6 6ibegozo

Diagram showing a mechanical or structural component with two downward-pointing arrows and an arrow, no text or symbols present.

Oil sooot filter mesh | Malla del filtro de aceite

Technical line drawing of a ceiling-mounted device with an inset showing a cylindrical component (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a bracket detail (no text or symbols)

LAMPARA LED DE 2.5W Max

Open Close 2

AC 220-240V/50Hz L N E MOTOR High speed Mid speed Low speed Control switch Light

AC 220-240V/50Hz L N E High speed Mid speed Low speed Control switch MOTOR Light

PARÁMETROS PRINCIPALES

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Please ask the technical person to do the assembling.

16. The cooker hood and its filter mesh should be clean regularly in order to keep in good working order.
17. Do not attempt to check the filters while the hood is in operation.
18. Do not obstruct the ventilation slots for discharging the air.
19. Do not touch the lamps or the lamp diffusers after prolonged use of the hood.
20. The manufacturer will not be held liable for damages caused by failure to follow the foregoing instructions.
21. When food is fried care should be taken that the oil does not overheat and catch fire.
22. Ventilation should be provided convenient to the room if used simultaneously a sucker for kitchen and appliances powered by gas or other fuel.

- Risk of fire if the cleaning is not carried out according to instructions.

- Do not flambé under the hood.

- CAUTION: Accessible parts may become hot when used with cooking appliances.

- Exhaust air should not be sent by conductors used to evacuate fumes from equipment powered by gas or other fuel.

- The minimum distance between elements of cooking and the bottom of the hood must be at least 65cm if the hood is installed on a gas cooking element. If the instructions for installation of gas cooking element to indicate a greater distance, should be taken into account. The distance of 65cm cannot be reduced.

- The regulations regarding air evacuation must be respected.

NOTICE

1. Thank you for choosing our cooker hood. Please read the instruction manual carefully before use.
2. The installation work must be undertaken by a qualified and competent fitter.
3. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text.

The cooker hood is used on 220-240V\~50Hz.

FEATURE

1. The cooker hood uses high quality materials, and is made with a streamlined design.
2. Equipped with a large power low noise electric motor and centrifugal leaf, it produces strong suction, low
   noise, non stick grease filter and easy to clean.
3. Special wind tunnel construction and oil collector design, free dirt will be absorbed in a second.

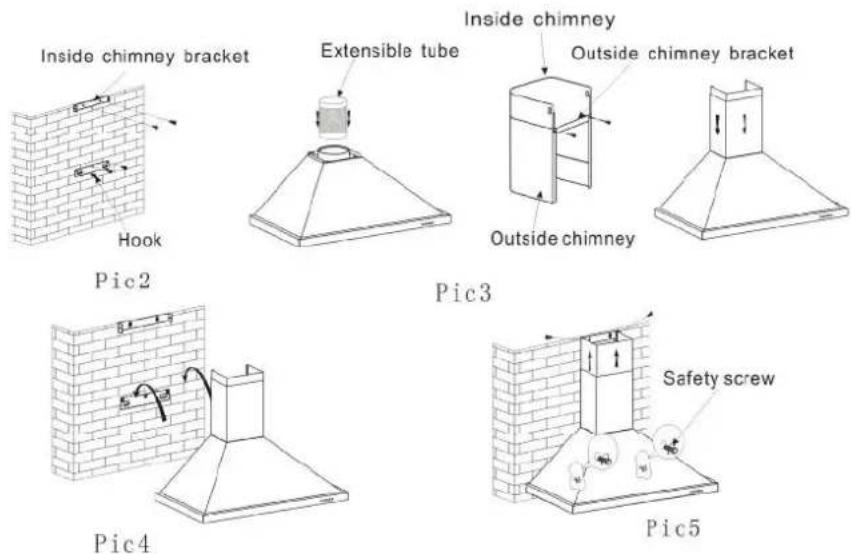

INSTALLATION

1. For optimum performance the extractor hood should be installed

65cm 75cm

approximately 65-75 cm above the worktop.

1. The hood is supplied with screws and rawlplugs which are suitable for most types of wall and ceiling. However it is advisable to consult a qualified technician to ensure that the materials are right for your wall or ceiling. The wall or ceiling must be strong enough to support the weight of the hood.

2. Electrical connection: The mains current must match the current stated on the characteristics label situated inside the Hood. If the plug included is correct, connect the hood to a socket which meets safety requirements in an accessible location. If the hood includes a direct mains connection, use a double pole switch with a minimum distance between open contacts of 3 mm (accessible).

3. For wall installation drill three 8 mm holes every 100 mm in line with the hook of the hood.

4. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw, after adjusting the position, fix the body with safety screw. See Pic 5.

Inside chimney bracket Hook Pic2 Extensible tube Inside chimney Outside chimney bracket Outside chimney Pic3 Pic4 Safety screw Pic5

Note: The two safety vents are positioned on the back casing, with diameter of 6mm.

1. Insert the raw plugs.

2. Fix the hook to the wall and install the plate.

3. Fix the one-way valve with the screws supplied, add the reductor and the soot tube, and draw it outwards.

4. Place on the wall (Figure 4).

5. Calculate the final height of the U-shaped section and pull the inside of the U-shaped section up to the correct height.

6. Secure the template in the lower tube using the screws supplied to mark out and drill two 8 mm holes in the wall (Figure 2).

7. Finally, drill two 8 mm holes in a suitable p lace in line with the second plate (Figure E) and tighten the two screws.

THE CLASS 1 HOOD MUST BE EARTHED

The connection should be made as follows;

BROWN	=	L (live)
BLUE	=	N (neutral)
YELLOW/GREEN	=	Earth

THE CLASS 2 HOOD MUST NOT BE EARTHED

Second class hoods with the characteristics label containing the double square symbol.

The connection should be made as follows;

BROWN = L (live) BLUE = N (neutral)

NOTICE OF INSTALLATION

• Before installation, please ensure the area is clean to avoid suction of the remaining bits of broken wood and dust.
• It cannot share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube.
• The bending of ventilation tube should be ≥ 120^ , parallel or above the start point and should be connected to the external wall.

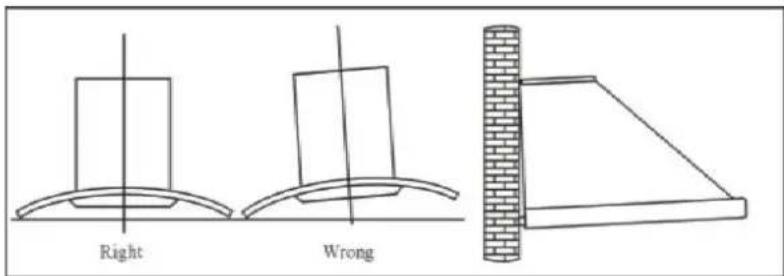

  • After installation, make sure that the extractor is level to avoid grease collection at one end.

Right Wrong

Pic5

USE

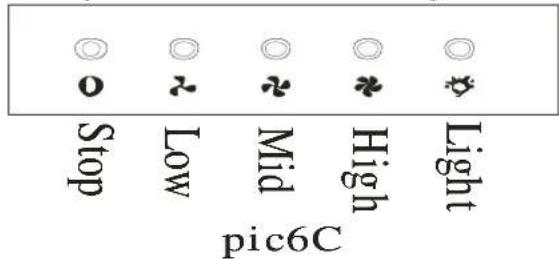

Speed adjustment .See pictures Push button

1. Push stop button, and the motor will stop.
2. Push the Low button, the buzzer will buzz once, and the motor runs at low speed.
3. Push the high button, the buzzer will buzz once, and the motor runs at mid speed.
4. Push the High button, the buzzer will buzz once, and the motor runs at high speed.
5. Push the light button and the two lights will come on. Push it again and the light will turn off.

Stop Low Mid High Light pic6C

MAINTENANCE

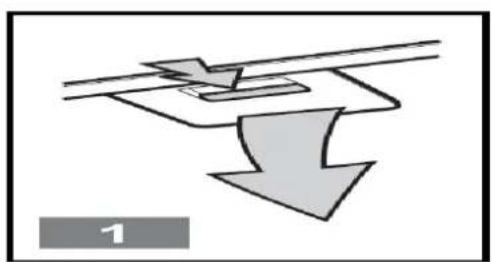

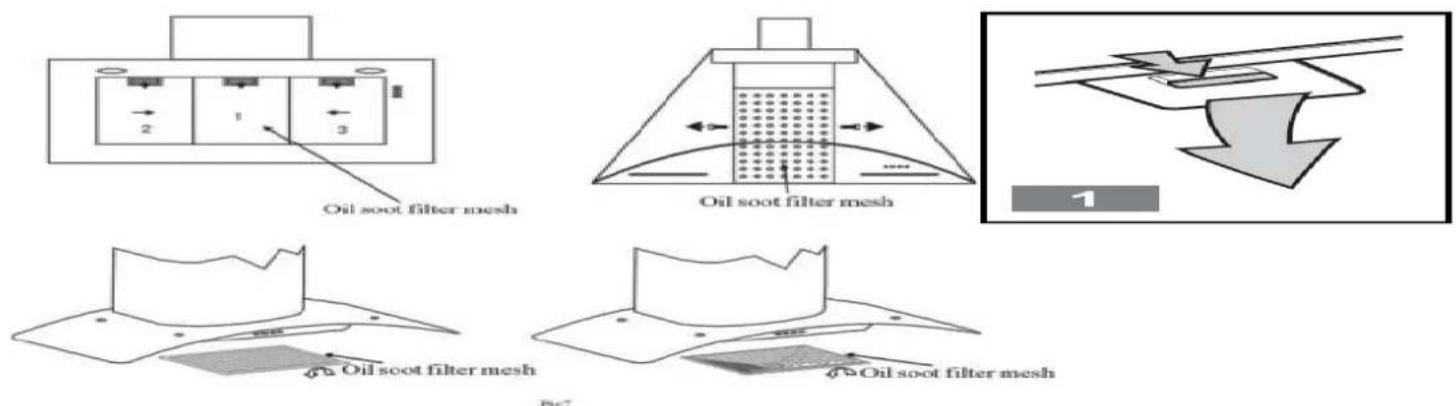

1 The cleaning of the carbon grease filter mesh

The filter mesh is made of high-density stainless steel. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below.

Method 1: Put the mesh into 40-50 c clean water, pour on detergent, and soak for 2-3 mins. Wear gloves and clean with a soft brush. Please do not apply too much pressure, as the mesh is delicate and will damage easy.

Method 2: If instructed to do so, it can be put into a dishwasher, set the temperature at around 60 degrees.

Oil soot filter mesh Oil soot filter mesh 1 Oil soot filter mesh Oil soot filter mesh

2 Notice of cleaning cooker hood.

A. To protect the main body from corrosion over a long period of time, the cooker hood should be cleaned with hot water plus non corrosive detergent every two months.
B. Please do not use abrasive detergent for it will damage the body.
C. Keep the motor and other spare parts free from water, as this will cause damage to the appliance.
D. Before cleaning the appliance please remember to cut off power
E. The carbon filter shouldn't be exposed to heat.
F. Please don't tear open the fixed bar around the carbon filter
G. If the plug or cord is damaged, please call an authorised after sales service to replace it.

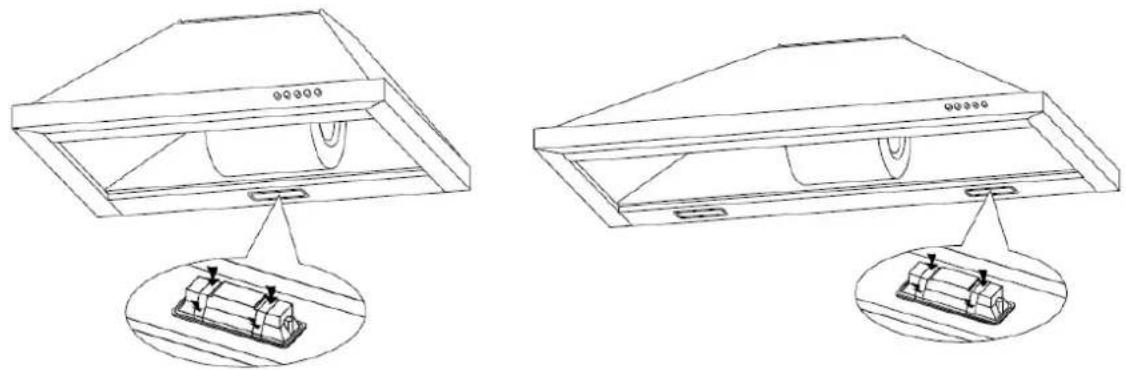

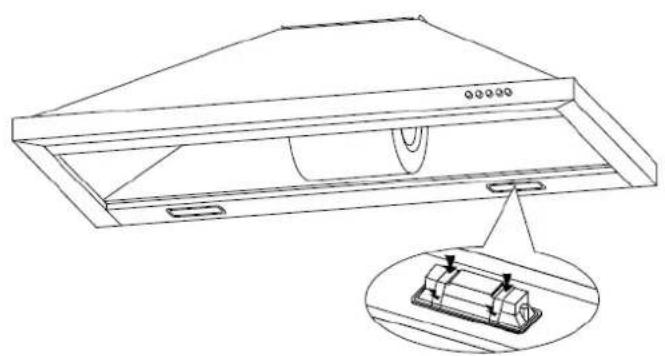

BULB REPLACEMENT

Note: if the bulb is faulty, replace immediately.

1. Disconnect from the mains.
2. Remove aluminium filter.
3. Replace burnt out bulb(s).
4. Replace Aluminium Filter.

Technical line drawings of two views of a ceiling-mounted device with internal components and mounting brackets (no text or symbols)

LED 2.5W MAX

SETTING UP AND CHANGING THE ACTIVE CARBON FILTER

This system is used in locations without ducting to the outside or when it is not possible to install such ducting.

Disconnect the machine from the mains.

A. Remove metal filters.

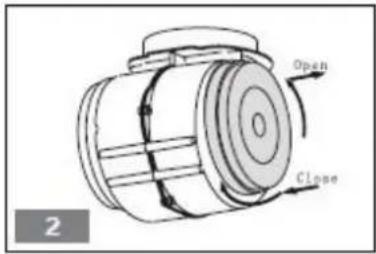

B. The circular filters (Figure 2) are located at either end of the motor. Turn the carbon filters anti-clockwise until they are unscrewed.

C. Apply reverse procedure to install the carbon filter.

Open Close 2

Warning: the active carbon filter cannot be washed or recycled. It should be changed at least every four months.

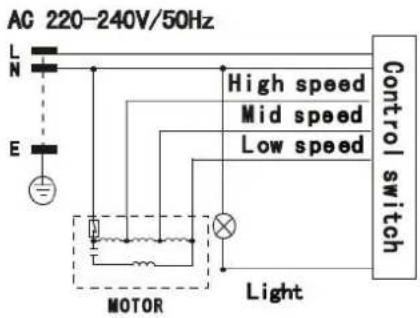

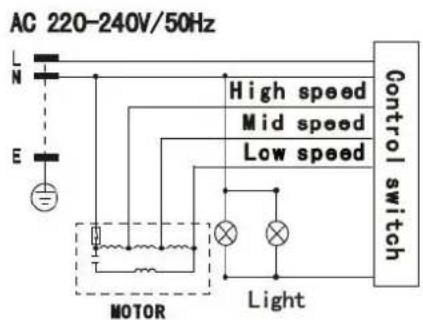

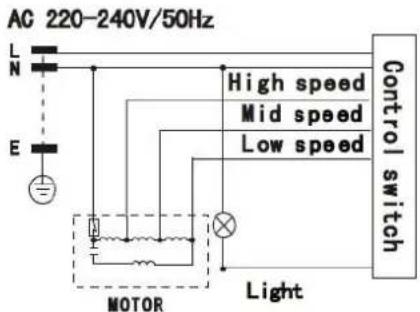

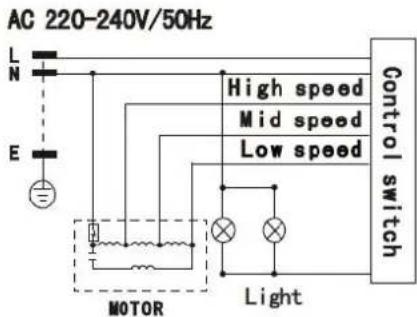

ELECTRICAL DIAGRAM.

AC 220-240V/50Hz L N E MOTOR High speed Mid speed Low speed Control switch Light

AC 220-240V/50Hz L N E MOTOR High speed Mid speed Low speed Control switch Light

MAIN PARAMETERS

Rated Input	220V-240V, 50Hz
Rated Power	192W / 194W
Lighting Power	2WX1 / 2WX2
Motor Power	190W
Drive Mode	Single Motor
Speed	Speed I Speed II Speed III
Air tube diameter	150MM
Air output	≥630m3/h
Air pressure	≥250Pa
Noise	≤70Db(A)

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

FRANÇAIS

AVIS DE SÉCURITÉ

Stop Low Mid High Light pic6C

ENTRETIEN

Oil soot filter mesh Oil soot filter mesh Oil soot filter mesh Oil soot filter mesh Oil soot filter mesh 1

Technical line drawing of a ceiling-mounted device with an inset showing a component (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a cylindrical component (no text or symbols)

AMOULES 2.5 W MAX

MONTAGE ET REMPLACEMENT DU FILTRE À CHARBON ACTIF

Open Close 2

AC 220-240V/50Hz L N E MOTOR High speed Mid speed Low speed Control switch Light

AC 220-240V/50Hz L N E MOTOR High speed Mid speed Low speed Control switch Light

Stop Low Mid High Light pic6C

MANUTENÇÃO

1. A limpeza da rede de carbono do filtro de gordura

Oil soot filter mesh Oil soot filter mesh 1 Oil soot filter mesh Oil soot filter mesh Pic7 C6 Ribegožo 30

Technical line drawing of a ceiling-mounted device with an inset showing a component (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a bracket detail (no text or symbols)

LAMPADA LED 2.5 W MAX

Open Close 2

DIAGRAM A ELÉCTRICO

AC 220-240V/50Hz L N E High speed Mid speed Low speed Control switch MOTOR Light

AC 220-240V/50Hz L N E MOTOR High speed Mid speed Low speed Control switch Light

PARÂMETROS PRINCIPAIS
