HU 1000 - Humidifier Orbegozo - Free user manual and instructions

Product type	Bottle humidifier
Brand	Orbegozo
Model	HU 1000
Tank capacity	Plastic bottle up to 0.5 L (not included)
Humidification type	Ultrasonic
Steam output	Adjustable via rotary knob (MAX)
Power supply	220-240 V ~ 50/60 Hz (via mains adapter)
Power consumption	Approx. 20 W
Dimensions	Not specified
Weight	Not specified
Main features	Steam control, operation indicator light, bottle adapter
Auto shut-off	No (stops steam flow when bottle is empty)
Control type	Mechanical rotary knob
Indicator light	Yes
Main material	Plastic
Color	White (not confirmed)
Usage surface	Stable, flat and horizontal
Maintenance and cleaning	Unplug before cleaning; empty water if not used; clean regularly
Safety	Do not immerse in water; do not use with wet hands; keep out of reach of children
Spare parts and repairability	Contact authorized technical service ([e-mail])
Included accessories	Bottle adapter, user manual

Frequently Asked Questions - HU 1000 Orbegozo

How to install the Orbegozo HU 1000 humidifier?

Place the adapter on the neck of a plastic bottle (max 0.5 L) by pressing firmly. Then, insert the assembly into the hole of the device cover by turning slightly to fit. Plug in the mains adapter and turn the control knob to MAX to start.

What type of bottle to use?

Use a standard plastic bottle with a maximum capacity of 0.5 liter. Make sure the neck is compatible with the supplied adapter.

Why is there no steam output?

Check that the bottle is filled with water and that the adapter is properly fitted. Make sure the device is plugged in and the control knob is turned to a sufficient position (MAX). If the indicator does not light up, check the power supply.

How to adjust the steam output?

Turn the control knob in the direction indicated MAX to increase the output, or towards MIN to reduce it. The indicator lights up when the device is operating.

Does the humidifier shut off automatically?

No, the device does not have automatic shut-off. It stops producing steam when the bottle is empty. You then need to refill the bottle and put it back.

How to clean the humidifier?

Always unplug the device before cleaning. Empty the remaining water and clean the removable parts with a damp cloth. Never immerse the device in water.

Can I use the humidifier without a bottle?

No, the device is designed to work with a plastic bottle via the supplied adapter. Without a bottle, the humidifier cannot operate.

What to do if the device stops working?

Check the electrical outlet and power cord. If the problem persists, contact the authorized technical service at [e-mail].

Is this humidifier suitable for a child's room?

Yes, but under supervision. The device can be used by children over 8 years old with supervision. Keep it out of reach of children under 8 years old and do not leave packaging within their reach.

Where can I download the manual?

The complete manual is available free of charge in PDF format on the website notice-facile.com or via customer service by writing to [e-mail].

USER MANUAL HU 1000 Orbegozo

White and blue portable water dispenser with a water bottle, no visible text or symbols on the device itself.

HU 1000

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference.

Line drawing of a kitchen appliance and a spray bottle, both without any text or symbols

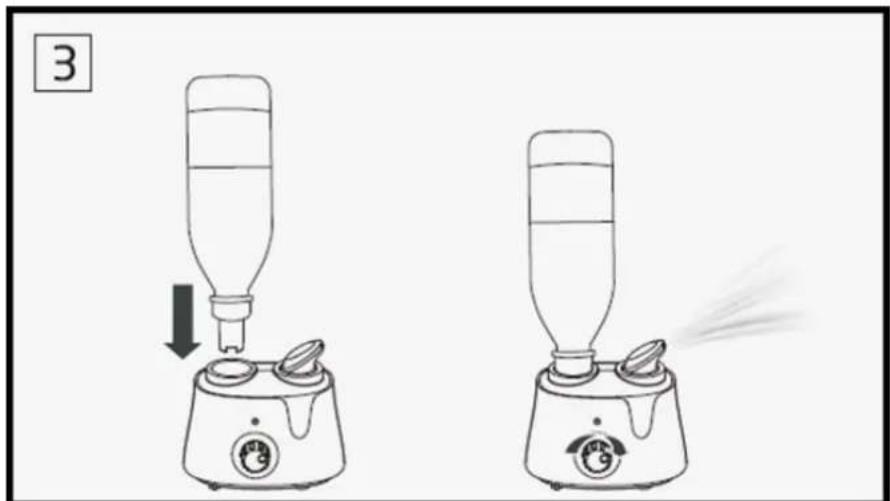

Two identical hand-drawn diagrams of a water purifier with a dropping funnel and emitting mist, labeled with number 3 (no text or symbols on the devices themselves)

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid a hazard.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]
14. WARNING: In case of misuse, there is a risk of possible injury.

Special Safety Instructions

• Use the device only for the intended purpose.
• To avoid damage from the escaping mist, the device must not be placed on the floor

• Do not expose the air humidifier to direct sunlight.

• Always place the appliance on a stable, level and horizontal surface when you use it.

• Do not insert any objects into openings on the device.
• Ensure that the device is placed on a firm, flat surface that is not susceptible to moisture, is not raised and that it cannot be knocked over. Do not insert any objects into openings on the device.

Use the device and switch off

The humidifier must be placed always over a flat surface

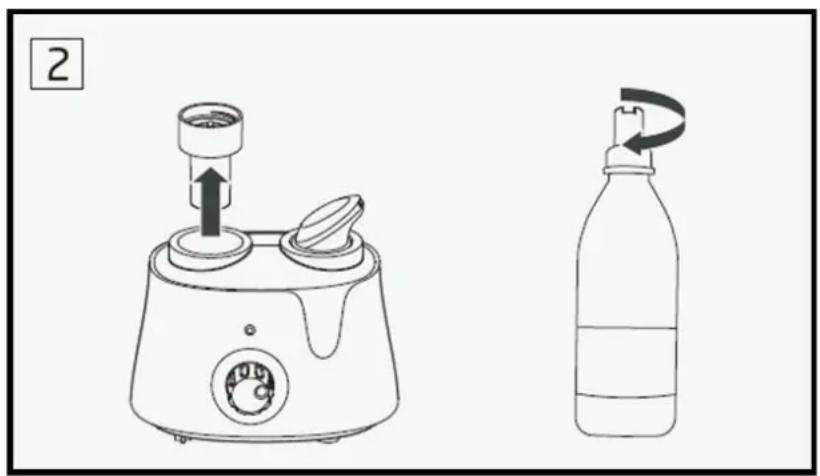

Place the bottle adaptor in the mouth of the plastic bottle and press to leave it correctly placed

• Take out the cap
• Open the water bottle
• Tighten the cap and water bottle
• Put the water bottle to the bottom base
• Check the voltage, then inserted the plug fully
• Turn on the switch

Attention: It is advisable to use a bottle with no more than 0.5 litres capacity.

Line drawing of a kitchen blender and a spray bottle, both without any text or symbols

Illustration of two identical handwashers with liquid and a brush, showing a step 3 (no text or symbols)

Cleaning and maintenance

• Never submerge the base in water.
- Empty the water from the base unit via the side rim. Ensure that no water gets inside the device, e.g. via the air outlet or the control dial.
- Completely clean the bottle and the air humidifier if the device has not been used for over three days.
- Clean the device using only the methods specified.
- Do not use any solvent-based cleaning products.
- Use only a mild detergent or vinegar/vinegar-based cleaner to perform cleaning or disinfection work.
• Make sure that the ultrasonic membrane always remains free from lime scale so as to ensure a long service life

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the EMC directive 2004/108/EC.

FRANÇAIS

Line drawing of a kitchen appliance with a lid and handle, alongside a bottle with a curved arrow indicating motion (no text or symbols)

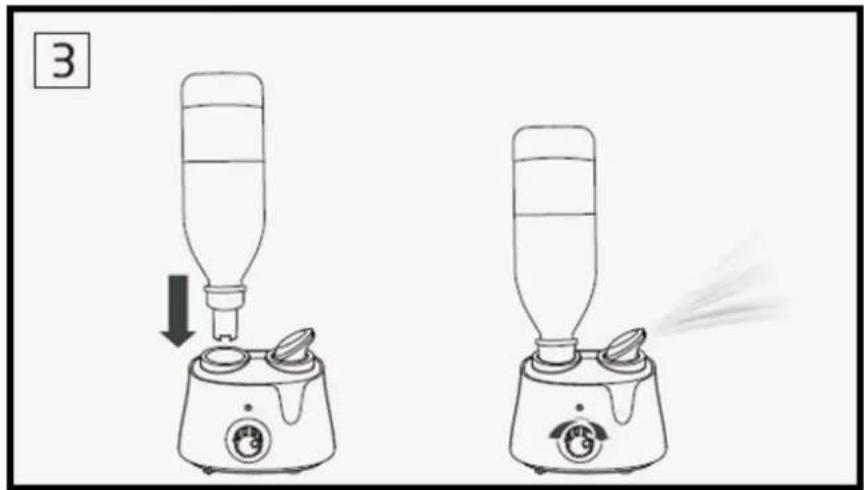

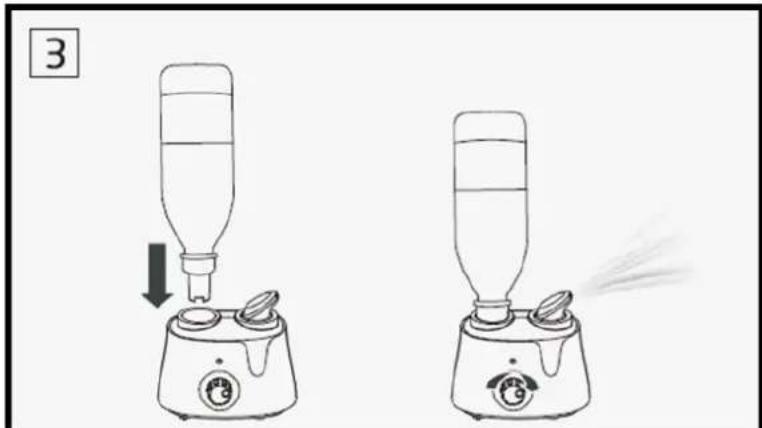

Two identical hand-drawn diagrams of a water purifier with liquid and bubbles, showing a drop and exhaust (no text or symbols)

MAINTENANCE ET NETTOYAGE

Line drawing of a kitchen appliance with a lid and a bottle, showing a step-by-step assembly (no text or symbols)

Illustration of two identical handwashing machines with a downward arrow indicating compression or disinfection (no text or symbols)
