HU 2031 - Humidifier Orbegozo - Free user manual and instructions

Product type	Ultrasonic humidifier
Brand	Orbegozo
Model	HU 2031
Power supply	220-240 V ~ 50/60 Hz
Power	25 W
Tank capacity	3.3 L
Steam output	≥ 250 ml/h
Approximate dimensions (L x W x H)	250 x 200 x 300 mm
Approximate weight	1.8 kg
Automatic shut-off	Yes, if water runs out
Steam output adjustment	Yes, via rotary knob
Indicator light	Red when tank is empty
Recommended water type	Cold tap water, no additives
Maintenance	Clean the tank after each use; clean the transducer regularly
Cleaning	Soft damp cloth; do not immerse the appliance; do not use abrasive detergents
Safety	Do not use without water; unplug before cleaning; keep out of reach of children
Usage	On a flat, stable surface, away from heat sources
Warranty	Refer to the provided warranty certificate

Frequently Asked Questions - HU 2031 Orbegozo

How to use the Orbegozo HU 2031 humidifier?

Place the base on a flat surface, fill the tank with cold tap water (no additives), replace it on the base, plug in the appliance and adjust the steam output with the rotary knob. Make sure the nozzle is not directed at walls or furniture.

What to do if my humidifier does not produce steam?

First check that the appliance is plugged in and turned on. If the red light is on, the tank is empty: fill it. If the tank is full but no steam, the transducer may be dirty: clean it gently. See the troubleshooting table in the manual.

Why does the humidifier produce a bad odor?

This can happen if the appliance is new: leave the tank open in the shade for 12 hours. If the odor persists, the water is dirty or stagnant: clean the tank and change the water regularly.

How to clean the humidifier?

Turn off and unplug the appliance. Wipe the exterior with a soft damp cloth (a little dish soap if necessary). Rinse the tank with clean water after each use. Never immerse the base. Use a soft cloth for the transducer, without abrasive products.

Why is there an abnormal noise?

Abnormal noise can come from a nearly empty tank (fill it) or an unstable surface (place the appliance on a flat, stable surface). If the noise persists, contact technical support.

What water to use in the humidifier?

Use only ordinary cold tap water. Never add salt, essential oils, perfumes or other additives, as they can damage the appliance and be harmful to health.

How often to fill the tank?

The frequency depends on the steam setting and room size. With a 3.3 L tank and a flow rate of 250 ml/h, the runtime can reach about 13 hours at most. Fill as soon as the red light comes on.

How to adjust the steam output?

Turn the rotary knob located on the base of the humidifier. Increase the output for a larger or drier room, decrease it if condensation appears on windows.

What does the red light mean?

The red light comes on when the water tank is empty. The appliance automatically stops steam production to prevent damage. Fill the tank with cold water to resume normal operation.

Can the humidifier be used in a child's room?

Yes, but under supervision. The appliance can be used by children over 8 years old with supervision. Keep the appliance and cable out of reach of children under 8. Do not let children play with the appliance.

USER MANUAL HU 2031 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Unplug the unit for filling and cleaning.

16. Never disassembly the basin unit without consult qualified personnel.
17. Never change the cable wire without consult qualified personnel.
18. Do not add detergents, chemical solutions which are not made by our company into the unit.
19. Any modifications or adjustments to the unit without our company's authorization may cause inconvenience and harm to the user.
20. Please switch off the unit and disconnect the main supply immediately when the unit gives out strange smell or abnormal noise. In case repair is needed, it has to be done by qualified personnel.
21. Do not switch on the unit when there is no water in the water basin.

22. Do not clean the transduction with abrasive materials.

23. Do not put the unit into water, or let water into the basin unit.

24. Place the unit on a smooth and flat surface.
25. Place the unit away from heat and direct sunshine.
26. Direct mist should be away from furniture and electrical appliances.
27. Keep the unit under normal room temperature, and do not use it under extreme cool temperature for unit harmless.

BEFORE START

What exactly is Relative Humidity?

Relative humidity is the percentage of the actual water vapor contains to the saturated water vapor contains under the same definite temperature and space. We normally mark it with % RH . Atmospheric air always contains water vapor, the percentage of which depends on the meteorological conditions. The higher the temperature is the more the air keeps water vapor. Therefore, we use the concept of "relative humidity".

When the cold air is heated up to the comfort temperature in winter, the relative percentage of the water vapor falls, which means, the relative humidity drops. In order to keep a comfortable and health environment at home, we need some artificial addition of water or water vapor to room air – that's air humidification.

Virtues of Orbegozo humidifiers

• To increase and to regulate relative humidity of the room air.
• To eliminate electrostatic charges.
• To keep your appearance fit and protect your skin.
• To adjust room temperature.

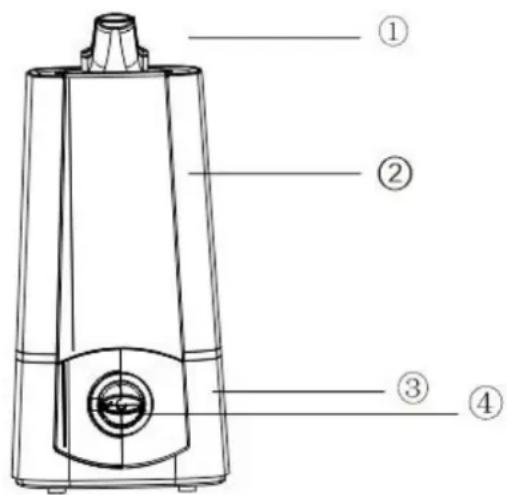

DESCRIPTION OF THE PARTS

1. Nozzle
2. Water Tank
3. Unit base
4. ON/OFF and mist adjust knob

USER INSTRUCTIONS

1. Place the base of unit on a smooth level surface.
2. Remove the water tank and fill using the water filling hatch from underneath the tank.
3. Pour plain cold tap water into the tank.
4. Always use distilled water and never add anything to the water (e.g. salt, oils, perfumes, etc ...).
5. Ensure that you tighten the cap on the filling hatch securely.

1. Place the tank onto the base
2. Plug the appliance into the power outlet.
3. The mist intensity can be adjusted by turning the Mist Intensity Control knob until the desired amount of mist is emitted from the nozzle.
4. Ensure that the mist output nozzle is directed away from walls and furniture.
5. When the humidifier runs out of water, the appliance will automatically switch off the steam production mechanism and indicator light will light in red.
6. The steam production time and emission quantity may vary depending on the water hardness.

OTHER FEATURES

In cold weather, windows, and even some walls may fog or develop frost from excessive indoor humidity. If this occurs, reduce the mist intensity setting to avoid damage from condensed water dripping on windowsills.

Too much humidity in the room may allow moisture to accumulate on surfaces where bacteria and fungi can grow. Collected moisture may also harm furniture, and walls, especially wallpaper.

To eliminate too much humidity, especially in a small room, leave the room door open, add adjust the mist intensity control setting.

CARE AND MAINTENANCE

1. Switch the appliance off and unplug it.
2. Wipe the body of the appliance off with a soft damp cloth. If necessary use a little washing-up liquid.
3. Rinse the water tank with clean water after each use. To dry for storage, wipe with a soft clean cloth.
4. Do not use detergents to clean any part of the unit that normally contains water. Detergents can interfere with the performance of the unit.
5. Do not immerse the humidifier in water or any other liquid.
6. Do not use harsh or abrasive cleaning agents or solvents.

CHECK THE MALFUNCTION AND REPAIR

If your humidifier can't work, please ask the service department to repair:

MALFUNCTION	CAUSATION	RESOLVE METHODS
1. With no wind and mist	Didn't connect the power supply	Connect the humidifier from the power supply
	Didn't turn on the humidifier	Switch on the unit
2. The unit with wind but no mist	No water in the water tank	Fill water in water tank
3.Smelly mist	New humidifier	Open water tank, put it in shadow for 12 hours.
	Dirty water or long-time to store water in water tank	Clean the water tank, fill clean water in.
4. The unit with no wind and mist	Too much water in the base flume	Empty the flume, then close the cap of water tank.
5.Little mist comes out of the nozzle	Dirty ultrasonic transducer	Clean the transducer
	Dirty water or long-time to store water in water tank	Clean the water tank, fill clean water in.
6.Abnormal noise	Caused by little water in water tank.	Fill water in water tank.
	Resonance from table-board	Place on a stable level surface.

TECHNICAL CHARACTERISTICS

Model No.	HU 2031		Consumption	25W
Voltage	220-240V		Moisture output	≥250ml/h
Frequency	50/60Hz		Water tank Capacity	3.3 Litres

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal

waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
