USER MANUAL CTP644C CANDY

Thank you for purchasing the CANDY induction hob. Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference.

By placing the CE C E marking on this product, we declare, on our own responsibility, compliance to all the European safety, health and environmental requirements stated in the legislation for this product. Asapplicable, the parts of this appliance are compliant to:

REGULATION (EC) No 1935/2004 on materials and articles intended to come into contact with food.

Safety Reminding and Maintenance:

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
  Children under 8 Year of age must be kept away from the appliance unless they are continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
• appliance in a safe way and understand the hazards involved. Children must not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• WARNING: Danger of fire: do not store items on the cooking surfaces.

• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not use a steam cleaner for cleaning operations
• Metallic objects such as knives, forks, spoons and sauce pan lids must not be placed on the hob surface as they can get hot. Any spillage should be removed from the lid before opening.
• The hob surface must be allowed to cool down before closing the lid.
• After use, switch off the hob element by its control. Do not rely on the pan detector.
• This appliance is not intended to be operated by means of an external timer or separate remote - control system.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

WARNING: Use oly hob guards designed by manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• Always use the appropriate cookware.
• Always place the pan in the center of the unit that you are cooking on.
• Do not place anything on control panel.

• Do not use the surface as a cutting board.

• The means for disconnection must be incorporated in the fi ed wiring in accordance with the wiring rules.- The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the applicance.

• The hob surface must be allowed to cool down before closing the lid.- CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously

Dear Customer:

Thank you for purchasing the CANDY induction hob. We hope it will give many year service.

Please read this instruction manual carefully before using the hob and keep it in a for future reference.

Product Introduction

The induction hob caters for all kind of cooking electromagnetic cookingzones, and its micro-computerised controls and multi-functions, mating ideal choce todays family.

Manufactured with specially imported materials, the CANDY induction hob is extremely fit friendly, durable and safe.

Working Principle

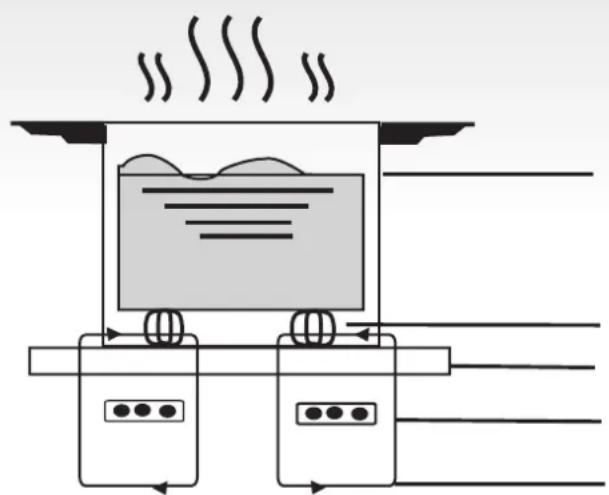

The induction hob comprises a coil, a hotplate made of ferromagnetic material and a system. Electrical current generates a powerful magnetic field through the coil. This produces a large number of vortices which in turn generate heat which is then transmitted through the cookingzone to the cooking vessel.

iron pot
magnetic circuit
ceramic glass plate
induction coil
Induced currents

Safety

Installation

This hob was specially designed for domestic use.

In its constant search to improve its product CANDY reserves the right to modify any technical, programme or aesthetic aspects of the appliance at any time.

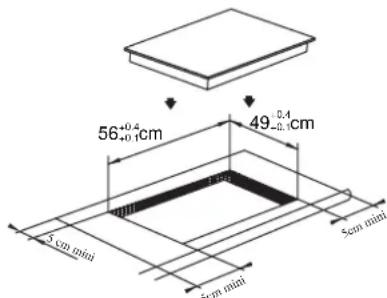

Cut a hole in the worktop of the dimensionshown in the diagram below. A minimum of50 mm space should be left around the hoThe worktop should be at least 30 mm thand made of heat-resistant material. As shown in Figure (1)

Protection from over-heating

A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off.

Detection of small or non-magnetic items

When a pan with a diameter of less than 80 mm, or some other small item (e.g. knife, fork, key) or a non-magnetic pan (e.g. aluminium) has been left on the hob, a buzzer sounds for approximately one minute, after which the hob goes automatically on to standby.

Figure (1)

Residual heat warning

When the hob has been operating for some time, there will be some residual heat. The letter 2H"lt appears to warn you to keep away from

Auto shutdown

Another safety feature of the induction hob is a shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

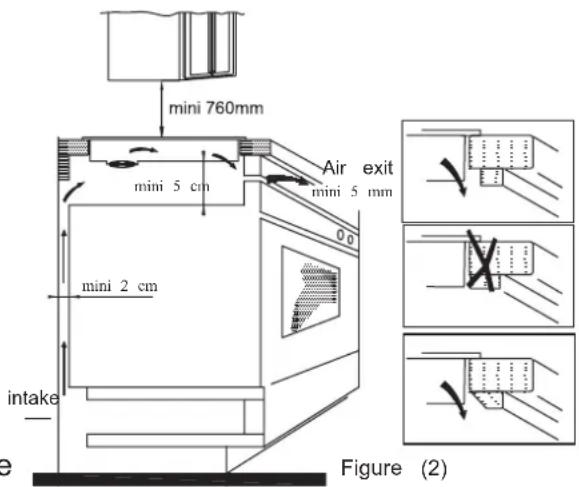

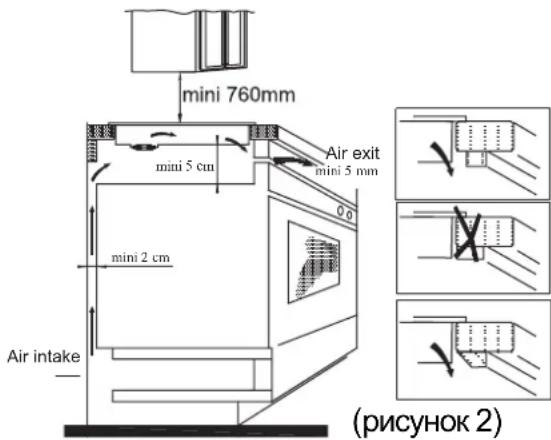

Make sure the hob is correctly installed as shown in Figure 2.

Figure (2)

Power level	The heating zone shut down automatically after
1~3	8 hours
4~6	4 hours
7~9	2 hours

When the pan is removed from the cooking zone, it stops heating immediately and switches itself off after the buzzer has sounded for one minute.

Warning: Anyone who has been fitted with NB: For safety, the gap between the hob a heart pacemaker should consult a doctor before cupboard above it should be at least 7 using the induction hotplate. mm.

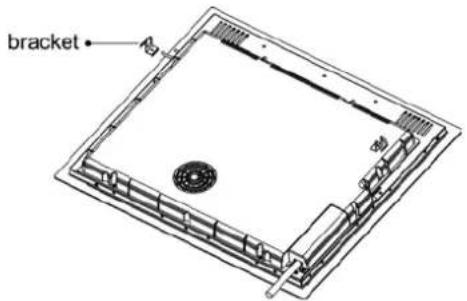

1. Fix the hob to the worktop using the Iffothe appliance is being connected directly brackets on the base of the hob. The positions supply, an omnipolar circuit break of the brackets can be adjusted according to be installed with a minimum gap of the thickness of the top. between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.

The cable must not be bent or compressed. The cable must be checked regularly and only replaced by a properly qualified person.

Warnings:

(1) The induction hob must be installed by a properly qualified person. We have our own qualified installers. Never try to install the appliance yourself. Cera
(2) The induction hob must not be installed above refrigerators, freezers, dishwashers or tumble dryers.
(3) The induction hob should be installed so that optimum radiation of heat is possible.
(4) The wall and the area above the hob should be able to withstand heat.
(5) To avoid any damage, the sandwich layer and adhesive should be heat-resistant. S

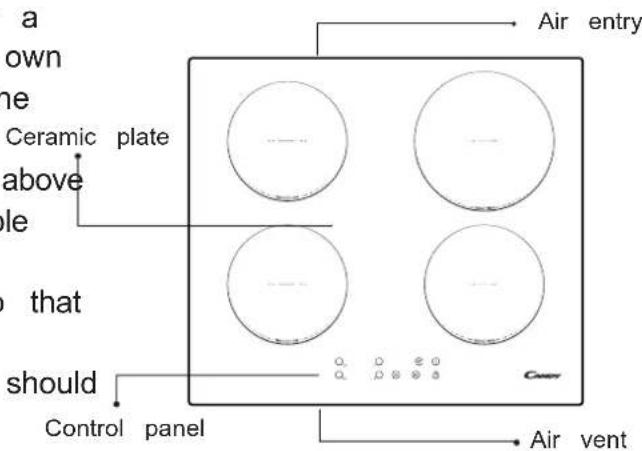

Diagram of induction hob:

4. Connection to power supply

The socket should be connected in compliance with the relevant standard, to a single-pole circuit breaker. The method of connection is shown in Figure 3.

Figure (3)

Voltage	Wire connection
380-415V 3N~	1 2 L1 L2 Black Brown	3 4 N Blue	5 1 Yellow/Green
220-240V~	1 2 L Black & Brown	3 4 N Blue	5 1 Yellow/Green

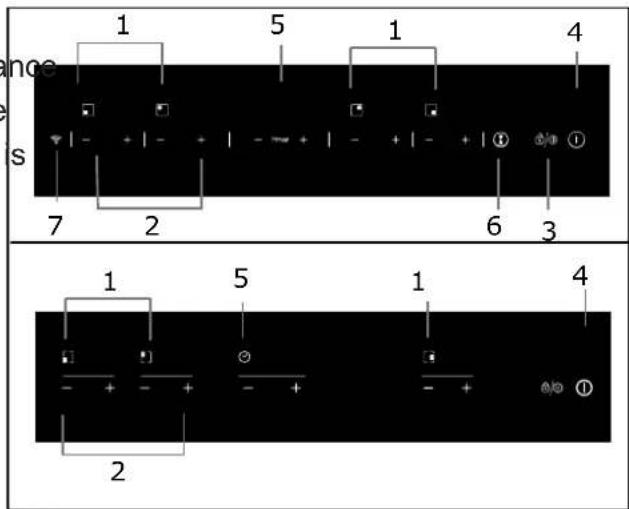

Schematic diagram of the control panel

1. Heating zone selection controls 2. Power / Timer regulating key
   3.Keylock/Pause control 4.ON/OFF control

If the cable is damaged or needs replacing this control should be done by an after-sales technician. Flexible Area control ( Some models are without it) using the proper tools, so as to avoid any accidents.

Instructions for Use

Preparation before using:

When the power is switched on, the buzzer will set sound once and all the indicators will come off for one second and then go out. The hob is in standby mode.

Place the pan in the centre of the cooking zone.

decreases the time by one minute. When the
er will
set time exceeds 99 minutes, it will automatica
the on
return to0" minutes. If the" and "+" keys are
is now
pressed simultaneously, the indicator will display

Operating instructions

When the ON/OFF key is pressed, all the indicators show-. Select the power level by pressing the"or"-key for the relevant hotplate. To begin with the indicator "Shows Adjust up or down by pressing"dhe"key. If you press and-"keys simultaneously, the power setting return\$0"and the cooking zone switches off.

See the table on Page for the power speciected zone."

to each cooking zone.

NB: When the ON/OFF key is pressed, the induction hob returns to standby mode if no other operation is carried out within oneminit

1. Select the power level of the cooking zone and then press "thimer"key. The timer can now be set.
   By. When the timing indicator has been flashing for 5 seconds, the settime will be automatically confirmed.
2. After selecting a set time, confirm by press the "Timer" key.
3. Once the "Timer" is confirmed, a dot appears on the bottom right of the power level of the

Timer cancellation

After setting the time again, hold down the timer key for 5 seconds. This will cancel the timer and the indicator will reveal to

Timing function

Press the timing key and the indicator will flashing. Then set the time for between 1 99 minutes, by pressing "t" and "-" keys.

Pressing the + " key once increases the time by one minute; pressing " -thkey once

Safety mode

To ensure the safety of children, the induction hob is fitted with an interlock device.

To lock: hold down"litterlock"; the hob then goes int'nterlock" mode, the timer shows "Lo" and the rest of the keysated except the "ON/OFF" key.

Unlicking

ABD down t'Interlock" key for 2 seconds andthe hob will return to normal working.

Double zones (On models CID633DC & CTP634DC)

In this zone can be used a cookware with the diameter between 160mm and 290mm in order to have more flexibility on the zone."

FLEXIBLE AREA(Only for models-CTP634DC & CTP644C & CCTP644CWIFI)

This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime.
- Free area is made of two independent inductors that can be controlled separately.

As big zone

1. To activate the free area as a single big zone, Touching the Flexible Area control.

1. As a big zone, we suggest the used as the follow:

Cookware: 250mm or 280mm diameter cookware (Square or Oval cookware are acceptable)

We don't recommend other operations except for above mentioned three operations because it might effect the heating of appliance

As two independent zones

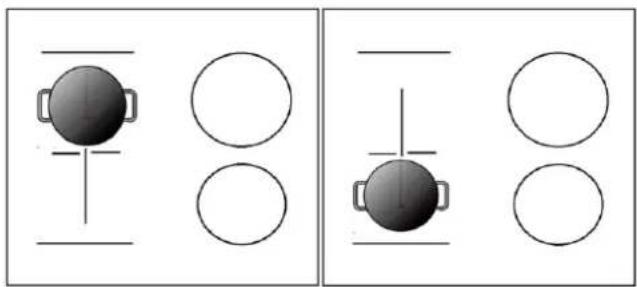

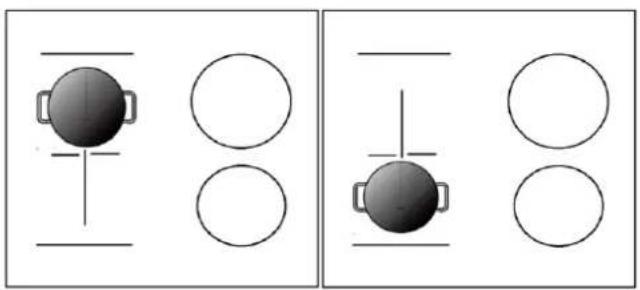

To use the flexible area as two different zones, you can have two choices of heating.

(a) Put a pan on the right up side or the right down side of the flexible zone.

(b)Put two pans on both sides of the flexible zone.

Notice: Make sure the pan is bigger than 12cm.

WIFI function(Only for CTP644CWIFI)

First of all, you should download Simply-Fy and install to your portable device. Then enroll your induction hob.

Refer to annex for details.

To use the WIFI function, switch the hob on and press the WIFI key. The wifi LED flash fast for 5 seconds which means the WIFI module is booting. If the WIFI module connects the router, the wifi LED will remain on all the time. Otherwise, the WIFI LED will be flashing in cycles of 1 second on 1second off. If connect correctly, you can find many hob information from Simply-Fy, e.g. Zone power, remaining heat time.

Boost mode

Touching the heating zone selection control, then touching "+" . Make sure the display shows "9". Touching the "+" button again, the zone indicator show "b" and the power reach Max

Cancel the Boost mode

Touching the "-" button to cancel the Boost function, then the cooking zone will revert to its original setting. Touching "-" and "+" control together, the cooking zone switch off and the boost function cancel automatically

• The cooking zone returns to its original setting after 5 minutes

Note: It is recommended that the cooker hood suction is switched on few minutes prior to cooking and switched off few minutes after terminating cooking.

Pause Mode

• You can pause the heating instead of shutting the hob off.
• When entering the Pause mode, all the controls except the ON/OFF control are disabled.

To enter pause mode
Touch the lock/pause control.	All the indicator will show " 11"
To unlock the controls
Touch the lock/pause control.

When the hob is in the pause mode, all the controls are disable except the ON/OFF ① , you can always turn the induction hob off with the ON/OFF ① control in an emergency.

Power Management Function

• it is possible to set a maximum power absorption level for the induction hob, choosing up to different power ranges.
• induction hobs are able to limit themselves automatically in order to work at lower power level, to avoid the risk of overloading.

To enter Power Management Function

Turn on the hob, then Press at the same time the "+" (timer) and key lock.

The timer indicator will show "P5" which means power level 5. The default mode is on 7.0Kw/ 7.1Kw.

To switch to another level

press + / - from the timer There are 5 power levels, from "P1" to "p5". The timer indicator will show one of them.

"P1": the maximum power is 2.5Kw.
"P2": the maximum power is 3.5Kw.
"P3": the maximum power is 4.5Kw.
"P4": the maximum power is 5.5Kw.
"P5": the maximum power is 7.0Kw/ 7.1Kw.

Confirmation and Exit Power Management Function

Press at the same time + (timer) and key lock for Then the hob will be turned off. confirmation.

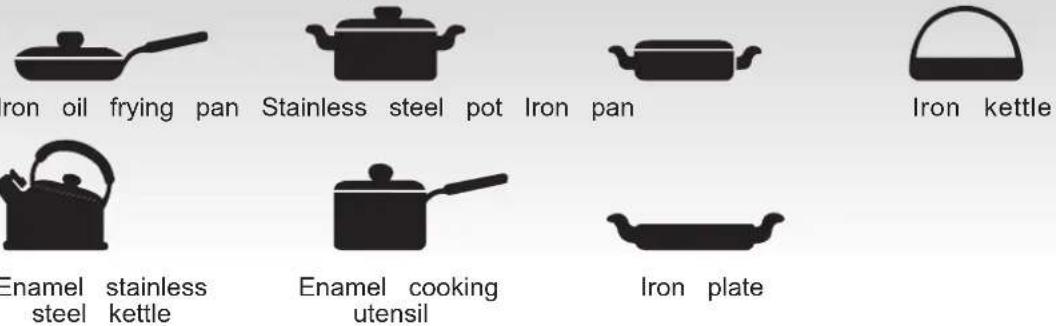

Selection of cooking vessels

You may have a number of different cooking vessels

This induction hob can identify a variety of cooking vessels, which you can take one of the following methods:

Place the vessel on the cooking zone. If the corresponding cooking zone disp a power level, then the vessel is sutabashs, then the vessel is not suitable for use with the induction hob.

2 Hold a magnet to the vessel. If the magnet is attracted to the vessel, it is for use with the induction hob.

NB: The base of the vessel must contain magnetic material.

It must have a flat bottom with a diameter of more than 14 cm.

3 Use pans whose diameter is as large as the graphic of the zone selected.

Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140mm could be undetected by the hob.

Cleanness and Maintenance

The surface of the induction hob may be easily cleaned in the following way:

Type of contamination	Method of cleaning	Cleaning materials
Light Immersion	in hot water and wipe dry Cleaning	sponge
Rings and lime scale	Apply white vinegar to the area, wipe a soft cloth or use a commercially available product	Special adhesive for ceramic glass
Sweetmeat, melted aluminium or plastics	Use a special scraper for ceramic glass to remove residue (a silicon product best)	special adhesive for ceramic glass

NB: Disconnect the power supply before cleaning.

Failure Display and Inspection

If any abnormality occurs, the induction hob will automatically go into protective mode and one of the following codes:

Fault Possible cause Solutions
F0/F1/F2	Fan failure	Contact the supplier
F3-F8	Temperature sensor failure	Contact the supplier
E1/E2	Abnormal voltage in power supply	Check if power supply is normal. Power on after power sup returns to normal.
E3/E4	Abnormal temperature	Check the pan
E5/E6	Poor heat radiation in cooking zone	Restart when cooking zone cools down

The above table shows how to assess and check common faults.

Do not dismantle the appliance yourself, otherwise you may damage the induction hob.

Customer Care Service

If a fault should occur, before calling After Sales Service, please do the following:

-Check that the appliance is correctly plugged in

-Read the failure and display table above

If you are still unable to resolve the problem, switch off the appliance, do not try to and call

After Sales Service.

Special Declaration

The contents of this manual have been carefully checked. However, the company cannot be held responsible for any misprints or omissions. Also, any technical modifications may be included in a revised version of the manual without notice. The appearance and colour of the appliance in this manual may differ from the actual one.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

This appliance is labelled in compliance with European directive 2012/ IBC for Waste Electrical and Electronic Equipment (WEEE).

By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

Protection anti-surchauffe

IIO6bIe IepeKbI n3JeNnB, Bbl3BaHbIe He6peKHO TpaHCnOpTnpOBKO n XpaHeHem n3JeNnA, He noJnxKAT 6ecnNaTHOMy rapaHTnHOMy peMOHTy.

3.YctaHOBka n 3KcnplyaTaunia

BecnIaTHbI rapaHTnHbI peMOHT He npOn3BOIDTCra, ecJI N depeKT n3dEJIINy Bbl3BaH: HnPaBnIbHbIM NOKIOUeHNEM 3deJIIN K CETAM 3NEKTPO, BOIO I ra3OChA6KeHHN, a TAKKe HECoOTBeTCTBnEM npaMeTpOB BblIeYka3aHHbIX cTeEN npaMeTpAM, IpeDbABJREMbIM 06a3aTeNbHbIMn FocydapCTBeHHbIMn CtaHdaptAmn INHCTpyKuNei no 3KcPnyatau; INCNoJIb3OBaHHeM 3deJIINr HE B COOTBeTCTBnC INHCTpyKuNei no 3KcPnyatau, a TAKKe He6pexHOJ 3KcPIyatauJe, NOBNEKlIMN BO3HNIKHOBEHne MExAHuecknx INI INDpyrNX TINOB DepeKToB;

IcNoJIb3OBAHnEM N3eJIy He B COOTBETCTBn C ero npraMbIM Ha3HaueHHe M IJI H E B DOMaUHnx HyKdax.

4. PemOH

BecnIaTHbI rapaHTHbI pEmOHr He npOn3BOIDTcR, ecJIu 3dJIeHe:
IMeET CJIeDbI NOCTOpOHHeRo BMeUaTeJIbCTBa IIN PemaHTa He yIpONHOmOeHHbIMn fIpMOJ
JIuCaM;
IMeET HecAHKcIOHnpOBaHHbIe cInpMoN u3MeHEnra KOHCTpyKcIMN IIN HeInpNeEMJIeMble
KOMJIeKTyUoUne;
IMeET NOBpeXdEHNr, Bbl3BaHHbIe HENpeDcKa3yEmbIMn RAJIeHnAIMN I DeiCTBnAIMN CTUXNI;
IMeET NOBpeXdEHNr, Bbl3BaHHbIe NCIOJIb3OBAHnEM HeCTaHdApTHbIX IN HeInpNeEMJIeMbIX
pacXODHbIX MaTePnaIOB IN PrnHaIaJIeXHOCTe;
IMeET NOBpeXdEHNr, Bbl3BaHHbIe IOnaDaHnEM BHUTpb I3DeJIINr NOCTOPOHHX IpEIMTOB,
arpeCCNBbIX BeIeCTB, XIBOTbIX INI HaceKOMbIX;
HE IMeET cepINHOrO Homepa IIN erO HEBO3MOxHO yCTaHOBtB.
Gamma He pacnpoCTpaHReTcR Ha pacXODHbIe MaTePnaJIbI n akceccyapbl.

5. OTBETCTBEHHOCTb

ΦnnpMa He HecET OTBcTCTBeHHocTH 3a IIO60I npuHHeHHbI Bam n OkpykaIoUm yuep6 r npuHHe HapuWeHn npabIn NcHcTpKcNn NO 3KnPyatau, B OcObeHHocTN Bb3BaHHbI HnPaBnBnIM NODKNIOeHnEM N3DeJIa K CetAM 3JeKTo, BOo N ra3OCha6KeHn, IN HeDOnyCTnMbIM OTKIOHeHnA MnpaMeTPOB B BblSepeuNCleHHbx CTeX, HnPaBnBHOJ 3KcPnyatauNe, HecAHKUnOHnPOBAHHbIM pEmoHTOM, NCNOb3OBaHNem N3DeJIa Hne I Pramomy Ha3NaueHIO.
BBoD N3deJIa B 3KcPnyatauIO u DopabOTKa CeTe 3JeKTo, BOo N ra3OCha6KeHn dJa COBMeCTnMOCTn C N3DeJIeM He YBIAOTc8 OHOJ OTBcTCTBeHHocTN φnPmbI N φnPmoH He ONlaNuBaOTc.
B clyuae Bo3NKHOBeHn KaNX-ri6o npo6Lnem C BaUM N3DeJIeM, nepe TEm kak BblBaTb MacTepa, npobepbTe npabNJbHOCTb UcTaHOBk N ΦyHKUnOHnPOBaHn B COOTBeTCTBn C NcHTpyKzne no 3KcPnyatauIN. Onnaty BblOBA Bbl6yTe npou3BOdntb 3a Cboi Cuet, ecnn N3DeJIe 6blno B pa6OeM CoCtOAHn INI 6blNo HnPaBnJIbHO yCTaHOBNeHO INI INCNoB3OBAHO.

YBaXaEmbl KIneHT,

XOTIM no6laorodapntb Bac 3a TO, yTO Bbl octaHOBNi CBOB BBIOp Ha INdyKUHOHOB BapouHoi naneHN CANDY - np6ope, KOtOpBI, 6e3 COMHeHn, Ha npOTxKeHm MHOrnx JET ydoBnetbopNT Baun notpe6hOCTn.

BHHMaTeIbHO npOHTaIe DaHHOe pyKOBOcTBo npeEd TeM, KaK npNCTyIuNTb K 3KcNJIyaTaUIN npIbopa, H 6epexKHO xpaHnte erO, YTObbl B 6dyuem Bbl MOrJIn O6paTntbcra K HeMy BMOMeHT Heo6xOdImocTn.

BVeDeHne

Hndykuohna Bapouhna naneoc6ha yobTbOpntb MHOROHCHeHHbI HyKdbi, CB3aHHbIE c npiroTOBHeHem NnUcCNoC6om 3JNEKTpOMarHHTHO HArpeBa 6Naoradap MHoroofyHKuHOHaNbHO CnCTeMe ynpabHeHnRArpoEHbIM Mkponpoceccopom, YTO DeJaTe ee IDeaHbIM peWeHnEM dnn COBpeMbo

3TOT 3JIeKtpo6bIToB0 npu6op, BblIOJHHeHHbI N3 CneUaJIbHbIX MaTePnaIOB, OTNIuaeTcN pOcTOToB HcNOJIb3OBaHN, IpOCHCTbIO N HaDeJXHOCTbIO.

PpHcnp pa60tbI

3aunTa nyTem aBTOMaTNUeCKORo BblKNIUOeHnA

Функия abTomatNueCKOTo BbIKJIOUeHne npedCTaBnIeT c6oB dONOLHTeJIbHyIO 3auNTy BaWei INdyKuHOHNo BapOHOH NaHeNi, KOtOpaABTOMATNUeCKN NOkIIOUaETcR, ecNI PO 3abIBuHBOCTn NaHeNb OCTaETcR BKIOUeHHoB. Bpemr CpaBaTBaHnA ABTOMaTHueCKOTo BblIOUeHnRA BApOHOH NaHeNi 3aBNCIT OT NcNOJb3yEmOro yPOBnRA MOUHOCTN B COOTBeTCTBmC pINBeDEHHo HNXe TabInCeI:

Уровень Мошноctи 1-3	HarpeBaTeьньнay 30на авTomatynchecк OTKПючaETСЧЕЗ 8 уасВ
4-6	4 уасa
7-9	2 уасa

Korda no 3aBepseHIO npoecca BapKn KacptpOJI CHIMaETcra, INdykUHOHHa BApOHa NaHeIb 60nbIe He HarpeBaet I NocJe POnaCh 3BykoBOr OnHaI npoJOnKeHbHOCTbIO OKOIO 1 MNHyTBI OTKlIOyaeTcra.

Приимеанne:

JIuca,NCIOJIb3yIouNe 3JIeKTPokapDIOCTMMyJITOpbl, MOrY T 3KcNIIyATnIpOBAb TaHHbI PnIBop TOIbKO pa3peUeHn CBOero NeaUero Bpaua.

MOHTaX

Дллорадok MOHTака

1. Bbipe3aTb npoem Ha nobepxHocTn ukaΦa, co6JIIOJa pa3Mepbl, yka3aHHbIe Ha cepTeXe; IJRA npABINbHOrO MOHTaxa Heo6xOIMO, UTO6bl OT NaHEJN Do KpaEB ONOPHOI NOBepxHOCTN OCTaBAIOCB He MeHee 5 cm. Y6eINTbcra, TTO TOIuHa ONOPHOI NOBepxHOCTN, B KOTOpYIO BCTpaINBaETCBApe, 30 MM, N TTO NOBepxHOCTB BbINOJIHeHa IN3 JapocToKoro MaTePnAa B UcJIAX N36ExAHn ee DeOpMaUIn IOD BO3dEiCTBnEM TEIIa, BblJeJIeMORO BapOCHOn PaHeNbIO (pncyHOK 1).

(pncyHOK1)

2.ОБаTeIbHOb npOBepNTb, qTo6bl INdYKUHOHHa BapOCHa NaHeJIb 6blna IpoHOBMOHTnPOBaHa B OOnOpHyIO NOBepXHOCTb N XopoIo BEHTINIpOBaJIacb (pucyHok 2).

PpmeHHe:pacCTOaHHe MeKdY BapOuHOc NaHeJIbIO I paCNoJoxeHHbIM BblIe PpeDMeTOM He DOnJxHO 6bITb MeHee 760 MM.

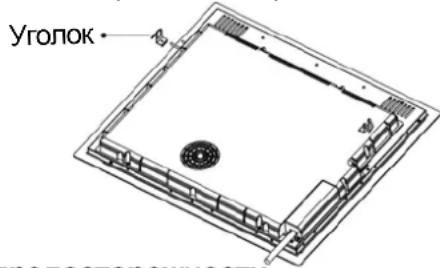

3.Посл e yctaHOBKn BapOuHoi nAHeJI N 3aФИКСИРОВаТь ee YeTbIPbMЯ yTOIkaMn K ONOPHO NOBepXHOCTN ( KaK NOKa3aHo Ha pIcYHke).OTpeRyIINpOBAt b KaJdbi OTdeJIbHbI yTOJOK B 3aBNCIMOCTN OT TOJIUHNbl ONOPHO NOBepXHOCTN.

MepbI npedoctopoxhoctn

(1) MoHTaK INyKUHOHHO BapOuHOI NaHeJI N OJIXeH OcyUeCTBnTbCRA KBaJIINΦNlUPOBaHHbIM TEXHnueCKIM nepcoHaIOM. He nbITaIteCb npOBectyn yCTaHOBky cAmOCToRrTeJIbHO.
(2) HeIb3a MOHTnpoBaTb INDyKUHOHHyOBAPoHyIO NaHeJIb Ha XONoIINbHNkAx,NCyIDOMOEuHBIX NII CyUNBHBIX MaI
(3) Heo6xOIMO yCTaHOBnTb INdyKmOHHyu BapOCHyIO nAHeJIb TaKIM 06pa3OM, YTO6bl ObecneHTb ONTMaIbHbI OTBOJ TeIIa.
(4)CTeHKn n 30Ha, HaxOJaUneCn POnIHHdyKuHOHHoB BApOCHoN NaHeJIbIO, DOnJXHbI6bITb JxapocToKIMM.
(5)YTo6bI n36eKaTb NOBpeKdEHN, TOHKa PJIeHka, C NOMOuIbIO KOTOpOI BapOuHaN IOBepXHOCTb PrnKlneNBaeTc K OOnOPHOI NOBepxHOCTN, DoJXHa 6bITb JApocToiKOi.

4.ПоdkлioуенkeTи 3ЛeКТрОNTaHЯ

IopKIOHHe K cETn 3JIeKTPoNTaHnA D0JXHO npOBODtbcra KBaINOpNcIPoBAHHbIM nepcoHaJOM B COOTBETCTBn C DeiCTBYIOUMM HOpMaTnBaMn. Cxema CoednHeHn NaHeJIn noka3aHa Ha pncyHke 3.

IoproTOBka nepei nCnoJIb3OBaHHeM:

Cpa3y Xe nocne BKNIOHcHnBapOHa

NOBepxHOCTb NOaET 3ByKOBOI CnHaJI, BCE

CBETOIOIObl MNTAHT B TeueHne 1 MNHyTbI,

0603Haay, yTO BapOyHaa NOBepxHOCTb HaXoNTc

B peKIMe OXnDaHn.

IocTabTb KAcTpHJIO B BblpaHHyIO

HarpeBaTeNbHyIO 3OHy.

3KcnnyaTaUna

IocJe HaxatnKaJbNtIN "BKN./BbIKJ." Bce CBeToNDIObl NOKa3bIBaHOT CmB0l "-. Bb16paTb HArpeBaTeJIbHyU 3OHy, B KOTOpOH HaxoHTcR KaCTPNO; CBToNDIO, yPOBHR MOUHOCTN Bb16paHHo 3Ohbl HaHTet MrrAub. HaxaTb KNaBNIy "+" nIi -", Ha IInCnIe OTO6pa3NTcR 6a3OBoe 3NaueHne 5, HAcTPOuTB Ha XeJaEMbl IyPOBEHb C NOMUbIO KNaBNIu "+" nIi -". OdHOBpemeHHo HaxIMMaK NaBNIuY +" n KNaBNIuY "-", 3NaHeHHI PpeDbUdLnx HAcTpoEk OShyIHTcR HArpeBaTeJIbHa 3OHa BapOuHOJ NaHeJI N BbIKIIOHaeTcR.

B Ta6nue Ha Ctp. 89yka3aH MaKcImaIbHbI yPOBeHb MOUHOCTN DnA KAKDoH HarpeBaTeJIbHOI 30HbI NaHeN.

PnmeHne: Ecn nocJe HkaTna KnaBnJn "BKl./BblKl."Ha naHeJI B TeueHne 1 MmHyT He npOBODTCaKnx-ri6o OepauN, INdyKIOHOHna BapOHNaHnIb nepexOHT B pexIM OxndaHn.

Функця TAIMEP

Пи Нжати Клавиш TAVIMEP, CBetODnДдИСЛСЕп НЧИHAET MIRATь, И мохно 3адаВаТьВБЕМ ПИROTOВLEHЯ.С NOMOДБЮ Kлавиш ＋"И ＂ВЕРМ HAcTpanBaETCB BДиANA3Ое OT 1do99MнHT.Пи Нжати Kлавиш ＋" 3нauЧЕНeHACTpОнуВeLIMHBAeTCB C WaROM B 1 MнHyTu;Пи Hжати Kлавиш ＋" 3нauЧЕНe HAcTpОнК

ymehblaaetcA 3IaromB1MnHyTu.IpeBbcNIB99 MInHyT, 3NaueHHe NaCTPOIK TaMepa aBTOMATUHeCKn yCTaHaBnBaETcR Ha0.Ppn ODHOBPeMeHHOM Haxatm KnaBn“+” n“- “3NaueHHe Ha DnCnIe Bo3BpaJaaetcK0.

IoTBePxDeHne fynKuNTAIMEP

1. BbIbpaTb ypoBeHb MOUHOCTn HxKHOH HarpeBaTeJIbHOH 3OHbl, HaxKaTb KJabNluy "TaIMep" N 3aDaTb Bpemr.
2. Iocne TOrO, KaT TaIeMep MInaet B TeueHne npn6m3ntbHo 5 cekyHd, 3daHHOe Bpemr abTomatHeckn IOITBepKdaetc.
3. 3aIb INIePbI BpemeHn, HaxaTb KIaNbIuIy "TAIMEP" Ipy npOBepKn 3aHaHHoro 3HaueHna.
4. Пи нахаши Ha «Таймер» Визу спра в появяетс Точka obo3haueHne ypoBнЯ MOшноCTN Bbl6paHHOJ 3OHbl.

OTmeHaФyHKUIN TAIMEP

HaxaTb ydepKnBaTb HaxaToN KnaBnSy "TaIMeP" B TeueHne 5 cekyHd dIy OTMeHbI 3aHaHHo neped 3TNM fynkCIn. HaIncnlee oTo6pa3ntc0.

Бezonachoe coCToHne

Дяобсесеня 630anacnoctn DeTei HdkyuOHHa NaHeIbObOpydoBaHa 6NOKINOBKoI DЯ 6NOKIOBKN: HaxMITE KHOKNY "Interlock", NaHeIb NepeIeT B COCTOHNIE 6NOKIOBKn "Interlock", Ha TaIMepe NOrBNTcA HaIINCb "Lo". BCE KHOKN, 3a NCKJIIOUeHneM ON/OFF pa6oTaTb He 6yDyT.

Pa36JIOKINPOBka

HaXMMTe uYdePxNBAaTe KHOKNy 2ceKyHdbI KHOKNy "Interlock", naHeJIb BepHeTcB pa6Ooee COCTOHNHe

ДВОИHBIE 3OHbI (TOЛько Дпma Моделс CID633DC, CTP634DC)

B daHHo 3OHe MoXHO nCnoIb3OBaTb nocuDy dnaMeTpOM ot 160 do 290 MM, TTo6bl noJyHTb 6OJIbSe BO3MOKHOCTeI.

TnBKA OBJACTb (ToIbko IINr MoJeIeN CTP634DC & CTP644C & CCTP644CWIFI)

• Ho Heo6xOaHMoCTn 3Ta 0bactb MoKet HcNoIb3OBaTbCg KaK eINHa 3OHa INN KaK DBe 3OHbI pNtroBJIeHHN
  Cbo6oHnaOBnactbcoCTOnTn3DByHXHe3aBnCmblx INHyKTophix 3JemeHTOB,KaxdbI N3 KOTOpbIX IMeET CBOH CNTcEMYynpabJIeHH.

IcnoB3OBAHne eINHO6Jbwo30hbl

1.ДяВКЛHOUeHnCBO6OJHOnOBaCTN BpeXIMe eHINHO 60JIbWo3OHbI Heo6xOIMo HaxaTb Ha KhoNky «ГИбкЯOBlaCTb».

2.ПиИСОЛБЗОВАHIM60JIbIOW3OHIbIИЗROTOВITeIbpeKOMEHyJET:

Nocya: Dnametnpocydbl 250 MM mnn 280 MM (DOnyctmkaBapatna Hnn OaBbna)

I3ROTOBNTeJIpeKOMeHdyETNCNOb3oBaTbTolbKOyKa3aHHbIE TpBapnaHTpa3MeueHn;INbIE BapnaHTbIMORYT I3MeHHTbHaPbeBaTeJbHyO cnoc6HoCT np6opa.

NcnoB30BaHne DByx 3OH

IINONB3OBAHn I6Ko OBaHbHa

(a) NocTaBbTe NoCydy B BepxHIO UIN HIXKHOI npaByO oBlaactb r6k03Onbl.

(b) IocTaBbTe DBe CKOBOpObI NO 06eIM CTOpOHm Tn6KoN 6nactn.

PpmeuHHe: Nocya He doJnxHa 6bItb MeHee 12 cm.

ФункиWA-Fl(ToJIbKOДЯCTP64CWIFI)

Ipejde Bcero, heo6xOIMO ckaaTb npnloKeHne Simply-Fy n yctaHOBt b ero Ha nopTaTHBHe yCTpoiCTBO. 3aTeM 3apeHnCTpnpyIe B hem BaUy HNDyKUNOHHy KOHOpky.

CM. nOpa6HocTN B npnIOKeHNM

Дя ИСПОЛБЗОВАнгФУHKUIN Wi-Fi BKNIOHTE KOHΦOPKу ИHAKMITE KONKY WIFl. CBETOДИОНь INHДИКATOP Wi-Fi 6ydt E6bIcTPO MIRaTB TceHne 5 cekyn. 3TO O3HaayeT, qTO MOyJb Wi-Fi 3arpykaetc. EcnmoDyJb Wi-Fi NOdkNIOUeH K poyTepy, CBETOДIOHbI INHДИKATOP Wi-Fi 6ydt HENpepbIBHO ropetb. B npoTINBHom Cnyae CBETOДIOHbI INHДИKATOP Wi-Fi 6ydt MIRaTB C INHTepBaIOM B 1 cekyHdy. PpI npaBInbHom NOdkNIOUeHm MOxHo HaITM MHORO INHΦOpMaUNB Simply-Fy, HAnpIMep, MoUHOCbT 30HbI, OCTaBWeecB Bpem HApeBa.

Pexim 6bIcTporo HarpeBa

IOTPOHbTecbdo KHOKN Bbl6opa 30HbI HArpeBa, 3aTeM HaxMMte «+». Ha DnCnnee DoJXHO OTo6pa3Ntbcra «9».

BHOBb DoTPOHbTEcB DO KHOKN «+», ИДИКaTOP 3OHbI NOKaKET «b» I MOUHOCb I OCTnHET MaKcMmaJIbHOrO npeDena.

OTmeHa pexnma 6bictporo HarpeBa

Дя OTmehы Функши 6ьICTporo HarpeBa DoTpoHbTecb Do KhoNKn «-», 3OHa npiroTOBJIeHnЯ ПИш CBepHTcB N3HaayaJIbHbIM HAcTpoiKaM.

OndHOBpeMeHHo HaxMnte KHOKNK 一 + 一 N I 一 - 一 .30Ha npriROTOBHeHnI\PiuN BBIKIOHTc, npOn3oJTe ABToMaTnuecka OTMeHaФyHKuN 6bICTpOro HarpeBa.

• Yepe3 5 MmHyT 30Ha npHrTOBJIeHnI NIIu CBepHeTc K N3HaJaIbHbIM HacTpOiKaM.

Приимechи: ИзrogenыpekomendуетВКлочаТь Выгжky 3a HeCKoЛьКOMHyTdoHaayama npiroTOBJIeHnЯ ПИSi, a BbIKIQUaTb Yepe3 HeCKOЛьКOMHyTпосл OkOHuaHnЯ rOTOBKn.

Nay3a

BmeTo BbIKIOueHn BapOuHO nAHeN MoXHO NOCTaBtB HArpeB Ha nay3y.
Bo Bpemr deHCTBnpeXmna nay3bpa6oTaETToIbKO KhONKa BKJI/BblKJI,ocTalhbHe - HeT.

Hnue kactpnoI dOJXHO 6bITb nIOCKM, DnaMeTpom 6oJee 14 cm.

• | Kπacc 3aùntbǐ OT nopaxhénry TOKOM
• Serial number / CepinHbI Homep: 33800842 - 0920 0001

CepnHbI HOMep coCTOnT n3 16 uΦp. IepBbIe 8 uΦp - KoI MoDEnI. CJeIyIoUne 4 uΦpbl - daTa npOn3BOJcTBa (roI, HeJeI). PocJIeHNHe 4 uΦpbl - 3aBOJcKne Homepa.

Ynctka n texo6cnyxnbHne

IobepxHocTb BapouHoi naHeJIIM MOXHO YnCTHTb CneDyIOUIm 06pa3OM:

CJYKBA CEPBnCHO OBCJyKBAHN KJINEHTOB

IpeTeM, KaK 3BOHnTb B Cnyx6y cepBnCHoro 06CnyxuBaHHa

B cnyae BO3HKnHOBeHHn HEnoJaOK B pa6Ote np60pa peKOMeHdyTe:

• y6eHtbc8, yTO wTeNceJI npaBnIbHO nOIOcEINHeH K 3JIeKTPuYeCKoI po3ETke;

• npoHTaTb npBBeHHyIO BblSe Ta6nucy C NO BblBHeHIO HeNCnpaBHOCTeN.

Ecni npuHnHa HncnpaBHOCTn He yctaHOJIeHa:

BbIKIIOHTb npI6Op, He pa36IpaTb erO I IO3BOHITb B cIyK6y cepBnCHOrO 06cIyKINBaHnKJIeHTOB.

CneuaJIbHaJeKnapaun

Bcra HnΦopMaZna, npuBeHnHa B DaHHOM pyKOoDCTBe, 6bIa TuaTeNbHO npOBepHa. Tem He MeHee, npOn3BOIDTeNb He HeceT OTBETCTBeHHOCTn 3a OUn6Kn, DOnyUeHHbIe npi NeaTn. Kpome TorO, B cIyae BbIXOda HOBo PeDAKznnpyKOoDCTBa NO EKcnIyatauN, B Hero MOryt 6bITb BHOceHbI TexHnueckne N3MeHEnn 6e3 PpeDbapntelbHorO yBeDomJeHn. N3o6paXeHne N3DeJIIn COOTBETCTByET DeIcTBNTbHoCTn.

BHIMAHHE: He BbI6paCbIBaTb DaHHbI npH6Op, KaO obHyBle 6bITOBbl OTxOdbI. OH NpDnEKNr pa3dJIbHOyTuIN3aUIN.

Hactoian 3eKtpueckn np6op BbINOHNB COOTBeCTBUN C eBponeckO dupeKTHBOI 2012/19/CE no yTNIIN3aun 3eKtpueckoro n 3eKtpOHHO 6opdyoBaHna.

CobHDoHeHne DnpeKTHB, KacaIoUxCxra yTIN3aun DaHHoro np6opa, NOMoraet npedOTbpaNTb yuep6, KOtOpbIM MoXeT 6bItb HaHeceH OKpykaIooJe CpeDe n 3DopOBbIO B pe3yIbTaTe 06bIcHoi yTIN3aUN. 3TOT cIMBOJ O3HaayEt, YTO IN3dJIne He NOdJeKHT yTIN3aUN B KaueCTBe 6bITOBbIX OTXIOB, a DOJXHO 6bITb HAnpaBNeHO B OprAHN3aUN, 3aHmAoUyIOc C6OpOM 3JeKTPnuCeCKNX i 3JeKTPoHNbIX KOMNOHETOB.

Iyne 60one noopbHn HOpMaun no nepepaOke n ytnn3aun 3TOro n3deJna o6paNTbcB MeHTbI cHTp yTNn3aun OTXoOB INB Maar3NH, rE 6blno npno6peTeHO n3dne.

CepBnC npOdykun Bcex Mapok rpynnbI Candy, opnHnaHbHbIe 3aNaChbIe qactN, paCXoDhble MaTePnAbIb, akCEccyapbl
