Product Type	Analog wristwatch
Brand	Zeades
Model	Petit Voyage ZWA01271
Category	Watch
Power Source	Button cell battery (SR927W or SR621SW depending on variant)
Main Functions	Hours, minutes, seconds, date, day, 24-hour, chronograph (depending on variant)
Movement Type	Analog quartz
Case Dimensions	Approximately 40 mm diameter (estimate)
Weight	Approximately 80 g (estimate)
Case Material	Stainless steel (likely)
Water Resistance	3 ATM (splash resistant, estimate)
Crystal	Mineral (estimate)
Care and Cleaning	Clean with a soft, dry cloth. Avoid chemicals and prolonged immersion.
Safety	Avoid shocks, magnetic fields, and water exposure if not waterproof. Do not operate the crown underwater.
Available Spare Parts	Standard battery, crown, hands
Repairability	Battery replacement by a watchmaker. Other repairs by a professional watchmaker.

Frequently Asked Questions - Petit Voyage ZWA01271 Zeades

How to set the time on the Petit Voyage ZWA01271 watch?

Pull the crown to the second click. Turn the crown to set the hour and minute hands. Once set, push the crown back to normal position: the small seconds hand starts moving, indicating the watch is running.

How to set the date?

Pull the crown to the first click. Turn the crown counterclockwise to set the date. Avoid setting the date between 9 PM and 1 AM, as the day change may not occur correctly. Return the crown to normal position after setting.

How to use the chronograph?

Press button A to start timing. Press button A again to stop. Press button B to reset the chronograph hands to zero. The chronograph measures up to 59 minutes 59 seconds or 11 hours 59 minutes 59 seconds depending on the model.

What to do if the chronograph seconds hand does not return to zero after reset?

Pull the crown to the second click. Press button A to move the chronograph seconds hand to the 12 o'clock (zero) position. Press continuously to advance quickly. Once at zero, push the crown back to normal position.

The watch has stopped working, what should I do?

First check if the battery is dead. Replace the battery with a new one (SR927W or SR621SW depending on the model). If the problem persists, consult a watchmaker.

When to replace the watch battery?

The battery usually lasts 1 to 2 years. Replace it as soon as the watch slows down or stops. Use a battery type SR927W or SR621SW depending on the caliber. Replacement is recommended by a watchmaker.

Is the watch waterproof?

Water resistance is not specified in the manual. As a precaution, avoid any contact with water. Consider it only splash resistant (estimated 3 ATM). Do not submerge it or use it in the shower.

How to set the day on the watch?

For models with day display, pull the crown to the first click. Turn it very slowly clockwise to advance the day hand. Do not stop between two days. Preferably set between 3 AM and 11 AM to avoid interference.

How to set the second time (24-hour)?

Pull the crown to the first click. Turn the crown counterclockwise to set the 24-hour hand. This adjustment is independent of the main time. Return the crown to normal position once set.

How to maintain the watch?

Clean the case and bracelet with a soft, dry cloth. Avoid solvents, alcohol, and exposure to extreme temperatures. Have the watch serviced every 3 to 5 years by a watchmaker to maintain proper function.

USER MANUAL Petit Voyage ZWA01271 Zeades

Hour hand Second hand Minute hand 2nd position 1st position Normal crown position *Date

Date position may be located at different position depends on models.

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   *If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

24H CHRONO, TIME & DATE—

Chronograph function : center second hand chronograph 1/1 sec.

Timing up to 59 minutes 59 seconds

Battery: SR927W

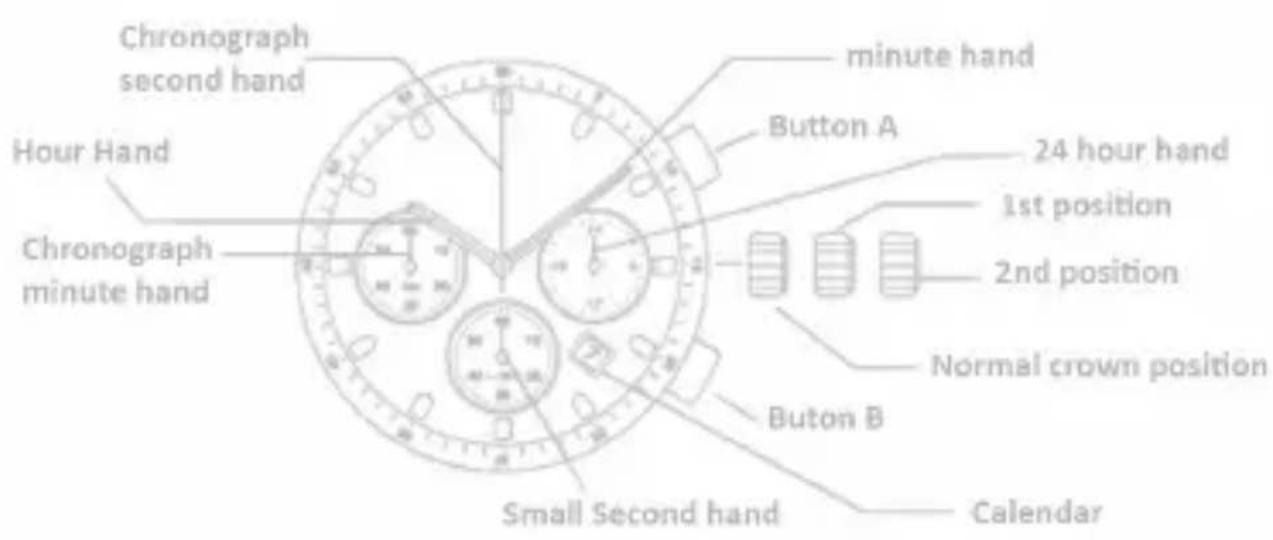

A/ DISPLAYS & BUTTONS

Chronograph second hand hour Hand Chronograph minute hand Minute hand Button A 24 hour hand 1st position 2nd position Normal crown position Button B Small Second hand Calendar

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   *If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand and chronograph minute hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown

* Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

12H CHRONO, TIME & DATE—

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 11 hours 59 minutes 59 seconds. Battery : sr927w

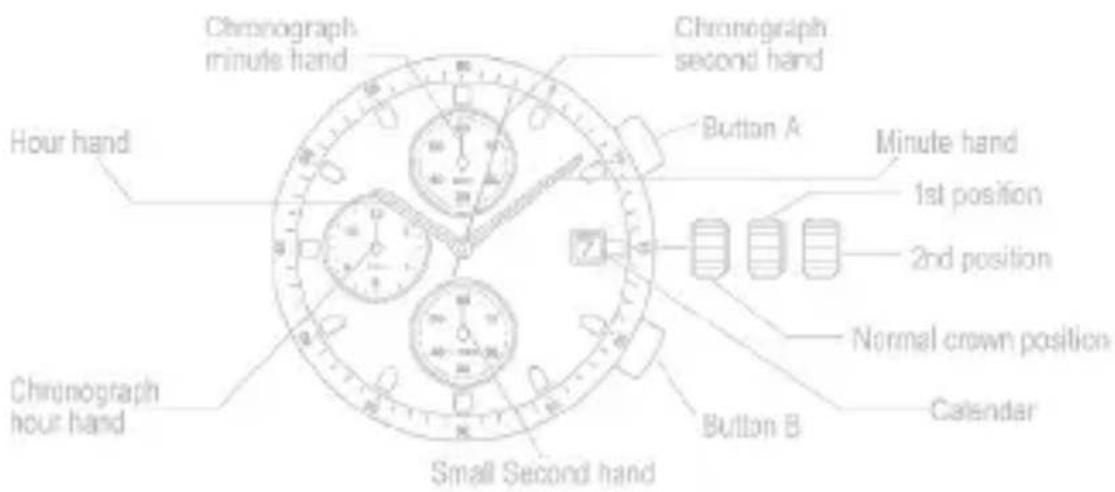

A/ DISPLAYS & BUTTONS

Chronograph minute hand Chronograph second hand Hour hand Button A Minute hand 1st position 2nd position Normal crown position Clockup hour hand Button B Calendar Small Second hand

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.
   * If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 11 hours 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 11 hours 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand, chronograph minute hand, and chronograph hour hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The Chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown to the normal position.

* Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

MULTIFUNCTIONS

Analog quarts watch designed with multi hands, to enhanced perfection. The hands, in the small displays, show day, date & 24 hour time. Battery: sr621sw

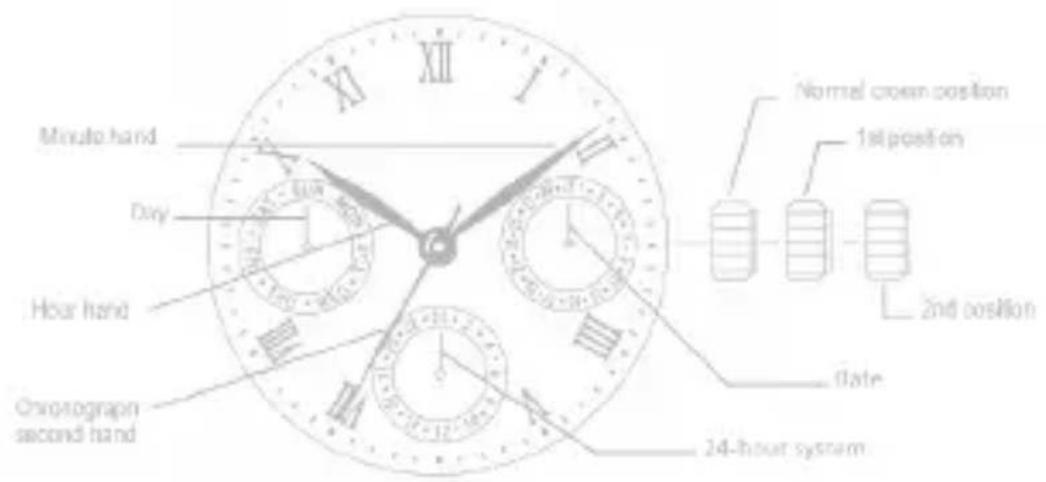

A/ DISPLAYS & BUTTONS

Minute hand Day Hour hand Ochographn second hand Normal crown position 1st position 2nd position Gate 24-hour system

The three small dials are arranged in one of two kinds, depending on each model. All of them are operated similarly, however.

B/ SETTING THE DAY OF THE WEEK (9 O'CLOCK POSITION, CLOCKWISE)

Set the day by pulling out the crown to second click position and rotating it forward (to rotate the hour and minute hands clockwise).

If the day is set by rotating the crown backyard (rotating the hour and minute hands counter-clockwise), the date may not be changed.

Note : The day is changed during the period from about 0:00 AM to about 5:30 AM

C/ SETTING THE DATE (3 O'CLOCK POSITION, CLOCKWISE)

Quick change function : Pull the crown out to the first click position and set the date by rotating the crown backyard. If the date is set between 9:00 PM and 0:00 AM, the date will not change correctly.

D/ SETTING THE SECOND, MINUTE, HOUR, 24 HOUR, DAY

The second, minute, hour, 24-hour system, and day are set by the same operation.

Pull out the crown to the second click position when the second hand reaches the 12-o'clock position to stop the second hand there. Rotate the crown forward (to rotate the hour and minute hands clockwise) to set the day.

The day hand moves forward 1 step each time the 24-hour hand rotates a round. You cannot set the day by rotating the crown in reverse. After setting the day, set the hour and minute hands. Check a.m. or p.m. by the 24-hour hand.

When setting the minute hand, put it 4 or 5 minutes forward from the current time, and then return it to the current time.

After setting the time, push in the crown to the normal position, synchronizing with the time signal.

The second hand starts moving again at the time when the crown is pushed back.

Notes : (1) The day and date are changed during the period from 0:00 a.m. to 5:30 a.m. (2) The day and date hands rotate only forward.

E/ SETTING PROCEDURE

MULTI EYES WITH RETROGRADE DAY FUNCTION \_\_\_\_

Caliber No. JR00, JR10, JR20

Battery: SR621SW

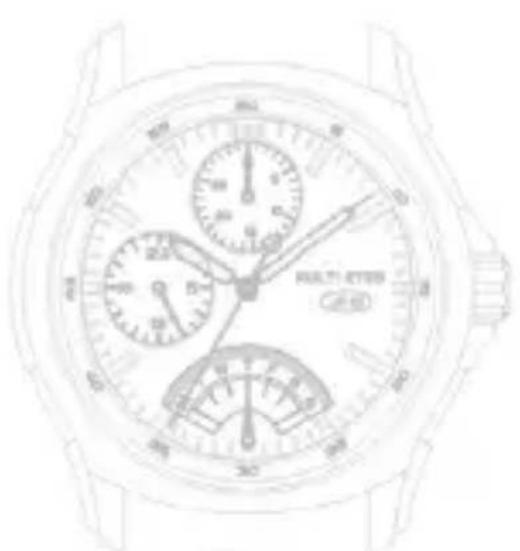

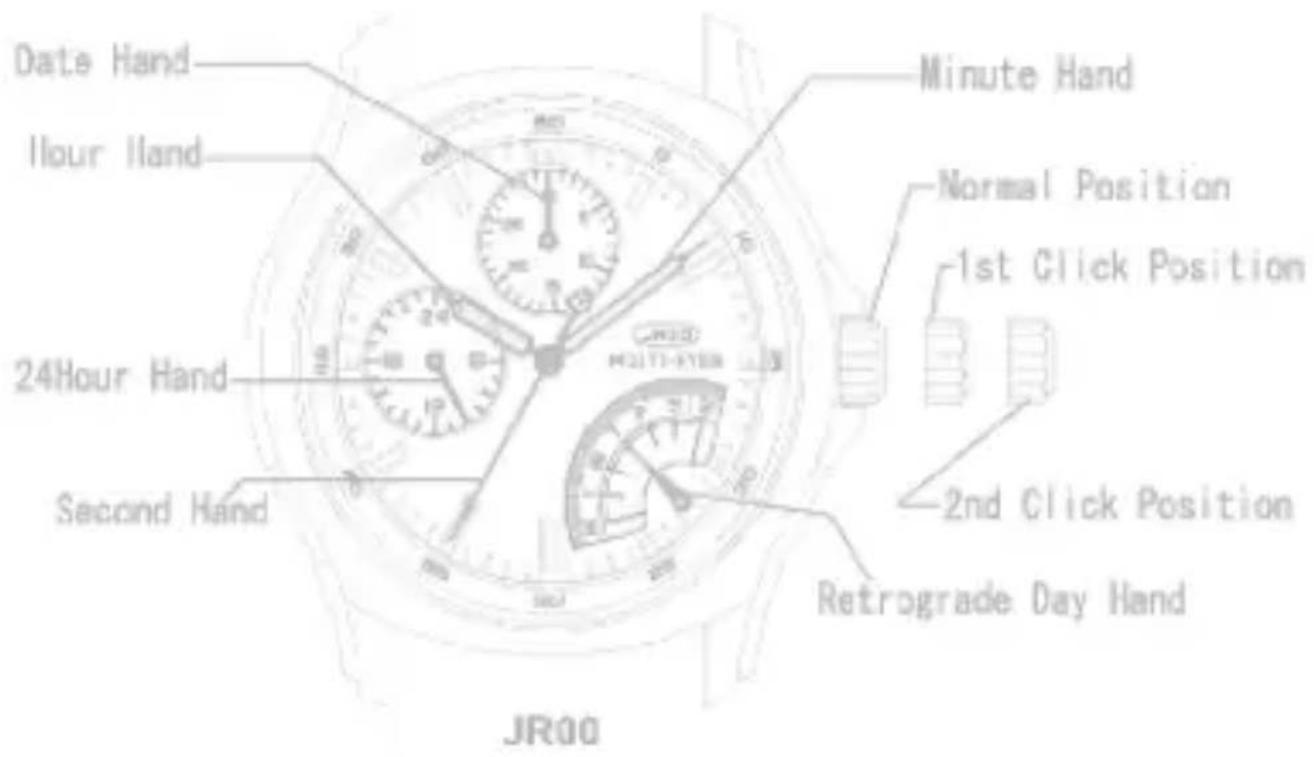

A/ DISPLAYS & BUTTONS

Date Hand Hour Hand 24Hour Hand Second Hand JR00 Minute Hand Normal Position 1st Click Position 2nd Click Position Retrograde Day Hand

MULTI-ETESO OFF-10

JR10

HOLLY 2018 2018 1.6 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

JR20

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Click Position.
2. Turn the crown to set hour and minute hands.

C/ SETTING THE DATE

* Please do not set the date between 9:00PM and 1:00AM

1. Pull the crown out to the 1st Click Position.
2. Turn the crown counter-clockwise to set the date
3. After the date has been set, push the crown back to the normal position.

D/ SETTING THE DAY

* Please do not set the date between 11:00PM and 3:00AM

1. Pull the crown out to the 1st Click Position.

2. Turn the crown clockwise very slowly to set the day.

* Please do not stop when the hand is between the day like the following picture.

Please do not stop when the day hand is in this position. Figure. 1 Please set the day hand just positioned on the day scale Figure. 2

*If the day hand stops at a position like Fig.1, please turn the crown clockwise very slowly and stop soon after the day hand positioned like Fig.2.

1. After the day has been set, push the crown back to the normal position.

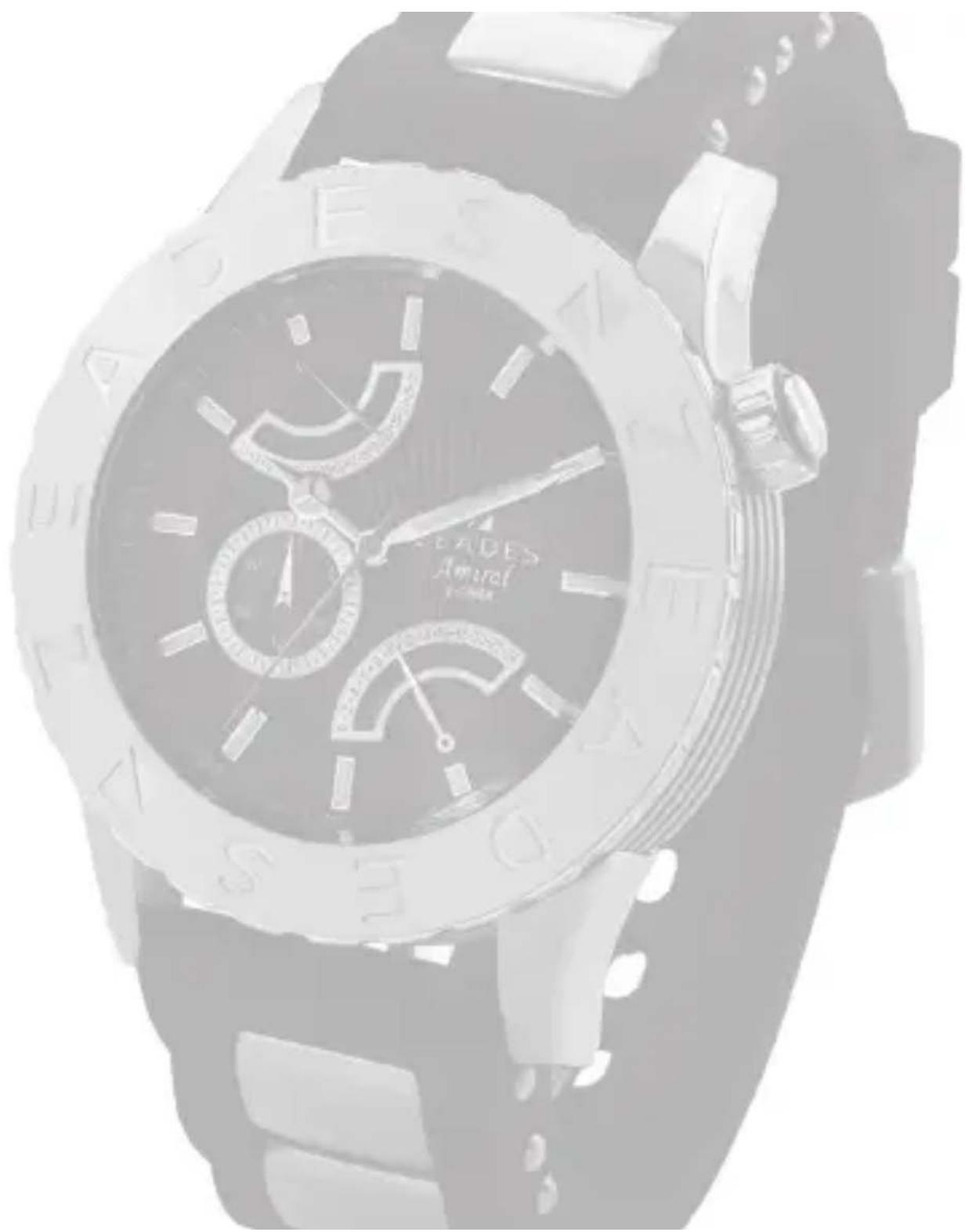

Close-up of a luxury wristwatch with dual dials and a watch face (no visible text or symbols)

FLYBACK / DUAL TIME

Caliber No. GP52

Battery: SR920SW

A/ DISPLAYS & BUTTONS

Date (1-31) Hour hand 24 hour hand Second hand Minute hand 1st position 2nd position Normal crown position 2nd Time (0 hour to 24 hours)

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown clockwise to set the date.
   * If the date is set between the hours of around 9:00 PM and 2:00 AM, the date may not change the following day.
3. After the date has been set, push the crown back to the normal position.

D/ SETTING THE 2nd TIME (24 HOURS)

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the 2nd time (24H).
3. After the 2nd time (24H) has been set, push the crown back to the normal position.

Pour toute question concernant notre service après-vente, contactez / For any after-sale service inquiry, please contact :

[e-mail]

Scanned text of contract clauses

Collections and E-Shop

www.zeades.com

MANUEL D'UTILISATION

DATE & HEURE

A/ RÉGLAGE DE L'HEURE

A/ INDICATIONS & BOUTONS

A/ INDICATIONS & BOUTONS

A/ INDICATIONS & BOUTONS

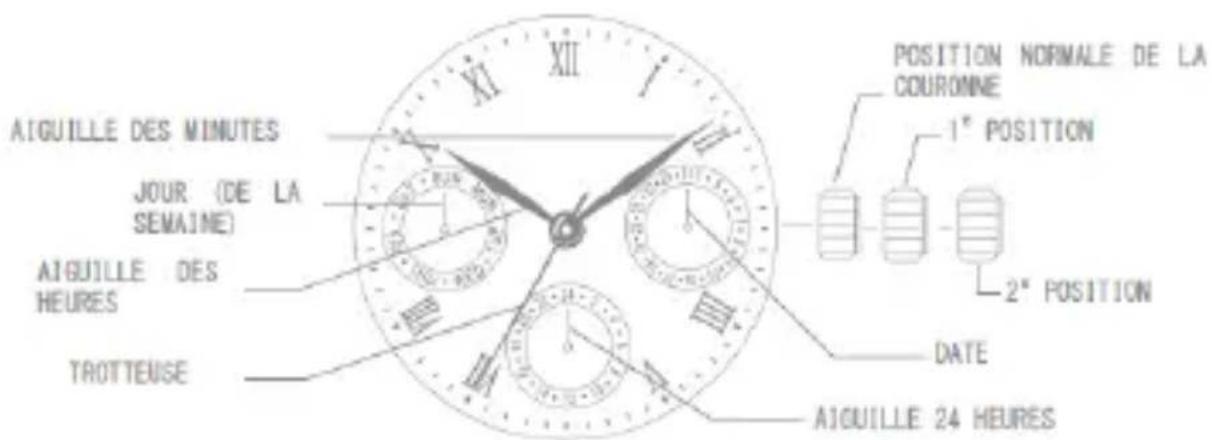

AIGUILLE DES MINUTES JOUR (DE LA SEMAINE) AIGUILLE DES HEURES TROTTEUSE XII XI XII POSITION NORMALE DE LA COURONNE 1° POSITION 2° POSITION DATE AIGUILLE 24 HEURES

B/ RÉGLAGE DU JOUR

MTWTFBS Figure. 1

M T F S S M T F S S Figure. 2

Close-up of a luxury wristwatch with dual dials and a watch face (no visible text or symbols)

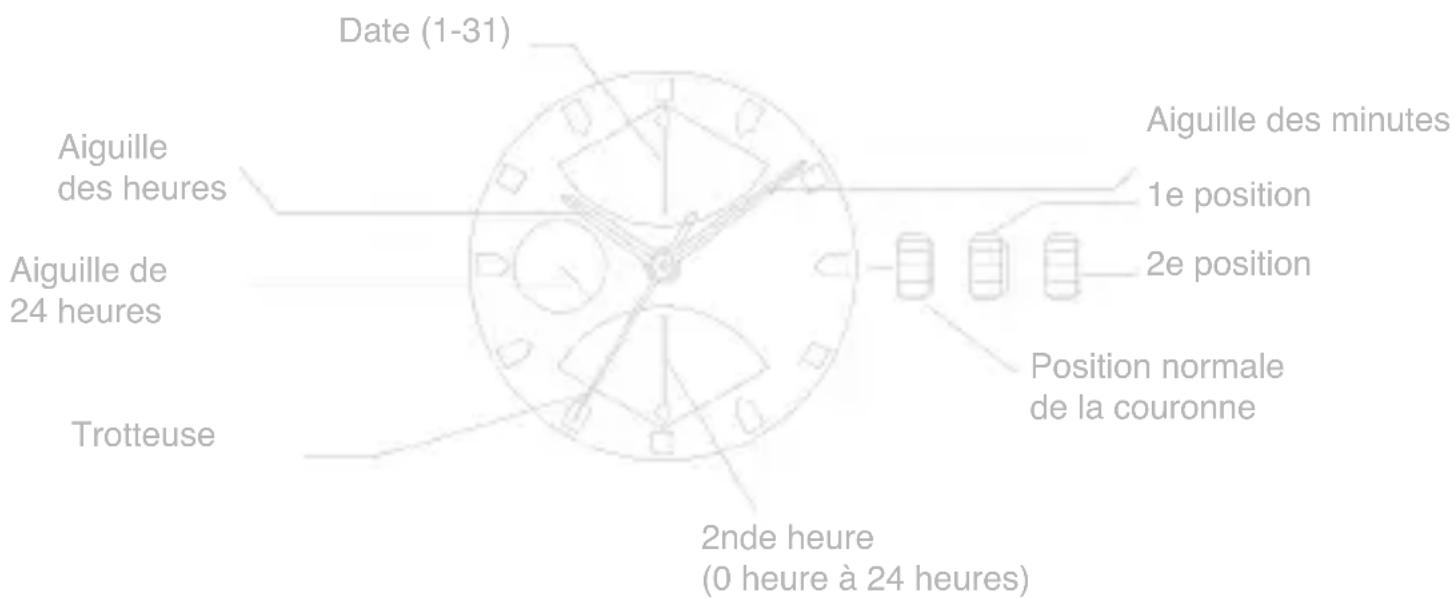

MOUVEMENT RETROGRADE DOUBLE FUSEAU —

Calibre : GP52

Pile : SR920SW

A/ INDICATIONS & BOUTONS
