La Royale ZWA01141 - Watch Zeades - Free user manual and instructions

Brand	Zeades
Model	La Royale ZWA01141
Category	Watch
Movement Type	Analog Quartz
Power Source	Button cell battery (SR927W, SR621SW or SR920SW depending on caliber)
Main Functions	Hours, minutes, seconds, date, chronograph (up to 59 min 59 s or 11 h 59 min 59 s depending on version), day, 24-hour, dual time zone (depending on version)
Time Setting	Crown in position 2
Date Setting	Crown in position 1, turn counterclockwise
Day Setting	Crown in position 1, turn clockwise slowly (except for multifunction models)
Chronograph Usage	Button A: start/stop; button B: reset
Chronograph Reset	If the second hand does not return to zero, pull the crown to position 2, press A to adjust
Precautions	Do not set the date between 9 PM and 1 AM to avoid malfunction
Specific Battery	SR927W for 24h/12h chrono; SR621SW for multifunctions; SR920SW for retrograde dual time zone
After-Sales Service	[e-mail]
Manual Languages	French, English

Frequently Asked Questions - La Royale ZWA01141 Zeades

How to set the time on my Zeades La Royale ZWA01141 watch?

Pull the crown to the 2nd click. Turn it to set the hour and minute hands. Then push the crown back to the normal position so that the second hand starts.

How to set the date?

Pull the crown to the 1st click. Turn it counterclockwise to adjust the date. Avoid setting the date between 9 PM and 1 AM to ensure correct switching the next day.

How to use the chronograph?

Press button A to start or stop the chronograph. Press button B to reset the hands to zero. The stopwatch can measure up to 59 minutes 59 seconds or 11 hours 59 minutes 59 seconds depending on the model.

What to do if the chronograph second hand does not return to zero?

Pull the crown to the 2nd click. Press button A repeatedly or hold it down to place the second hand at the 12 o'clock (zero) position. Then push the crown back to the normal position.

How to set the day?

For models with day display, pull the crown to the 1st position. Turn it very slowly clockwise to advance the day hand. Stop exactly on the desired day. Caution: do not set the day between 11 PM and 3 AM.

Can I set the date between 9 PM and 1 AM?

No, it is not recommended to set the date during this time range as the switching mechanism is engaged. This could damage the movement or cause an incorrect jump the next day.

What type of battery does the watch use?

The battery type depends on the caliber: SR927W for 24h/12h chrono versions, SR621SW for multifunctions, and SR920SW for retrograde dual time zone models. Check the caliber indicated on the case back.

How to change the battery of my watch?

Battery replacement is a delicate operation. We recommend entrusting this task to a professional watchmaker to avoid damaging the movement or seals.

Is the Zeades La Royale watch waterproof?

The manual does not specify the water resistance level. As a precaution, avoid prolonged contact with water and remove the watch before swimming or showering.

Where to find more information or after-sales service?

For any questions, contact customer service by email at [e-mail]. The complete manual is available for download at notice-facile.com.

USER MANUAL La Royale ZWA01141 Zeades

Date position may be located at different position depends on models.

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.

*If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

1. After the date has been set, push the crown back to the normal position.

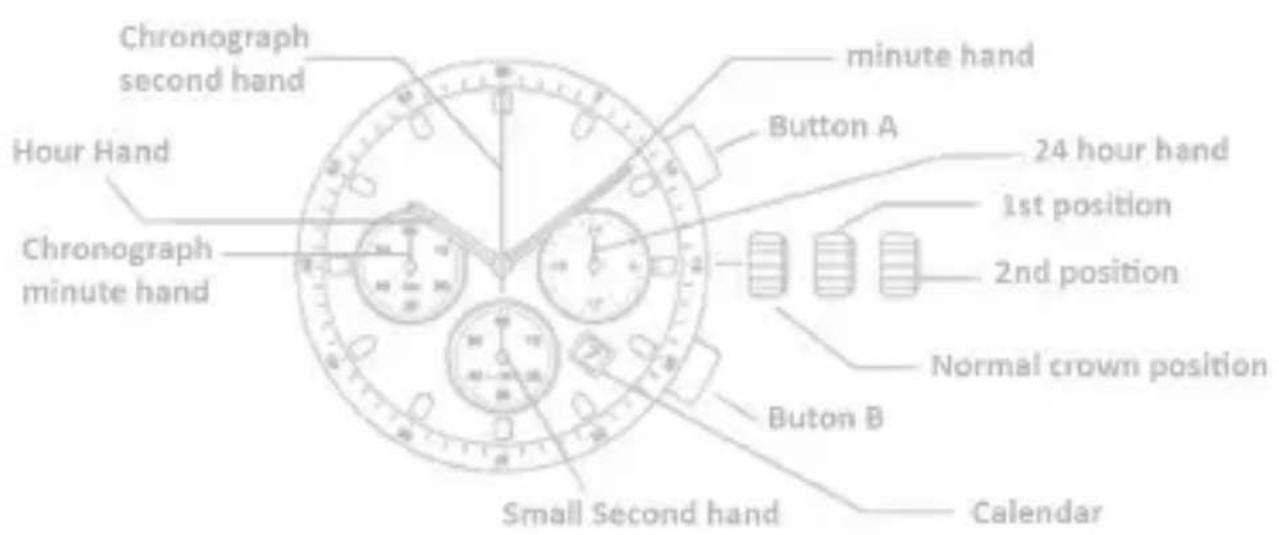

24H CHRONO, TIME & DATE

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 59 minutes 59 seconds Battery: SR927W

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the date.

*If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

1. After the date has been set, push the crown back to the normal position.

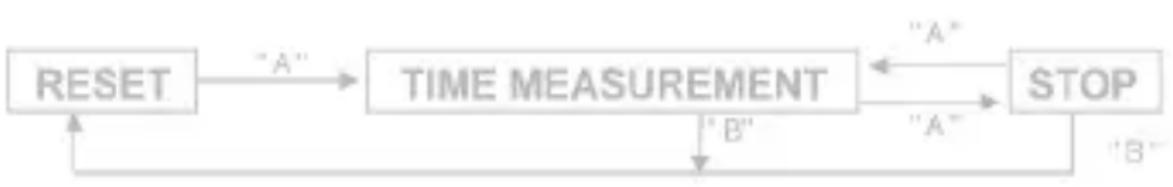

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand and chronograph minute hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The chronograph hand can be advanced rapidly by continuously pressing button «A».

3. Once the hand have been zeroed, return the crown

4. Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

12H CHRONO, TIME & DATE

Chronograph function : center second hand chronograph 1/1 sec. Timing up to 11 hours 59 minutes 59 seconds. Battery: sr927w

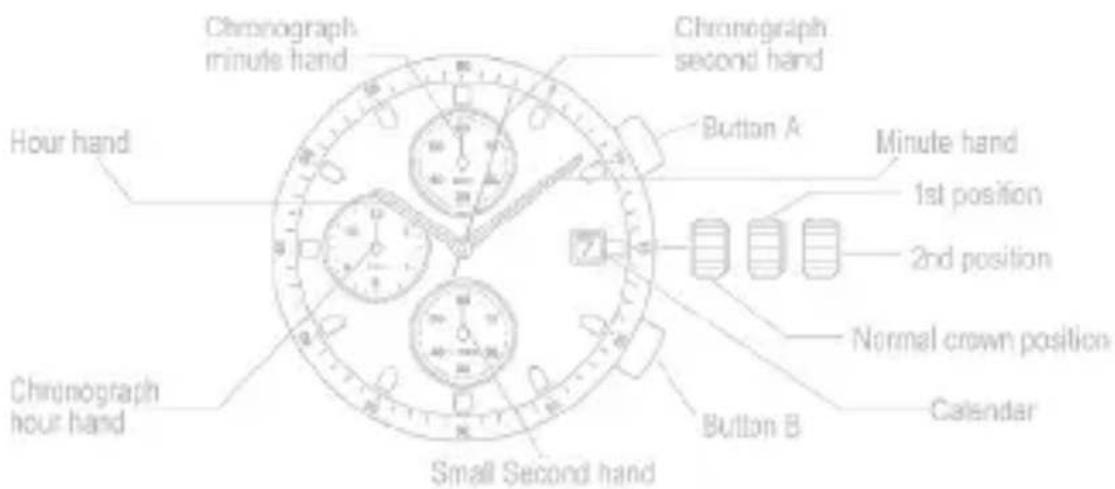

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.

2. Turn the crown counter-clockwise to set the date.

3. If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change the following day.

4. After the date has been set, push the crown back to the normal position.

D/ USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 11 hours 59 minutes 59 seconds.

The chronograph second hand keeps continuously for 11 hours 59 minutes 59 seconds after starting.

Measuring time with the chronograph :

1. The chronograph can be started and stopped each time button «A» is pressed.
2. Pressing button «B» resets the chronograph and the chronograph second hand, chronograph minute hand, and chronograph hour hand return to zero position.

E/ CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.
2. Press button «A» to set the chronograph second hand to the zero position. The Chronograph hand can be advanced rapidly by continuously pressing button «A».
3. Once the hand have been zeroed, return the crown to the normal position.

*Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

MULTIFUNCTIONS

Analog quarts watch designed with multi hands, to enhanced perfection. The hands, in the small displays, show day, date & 24 hour time. Battery: sr621sw

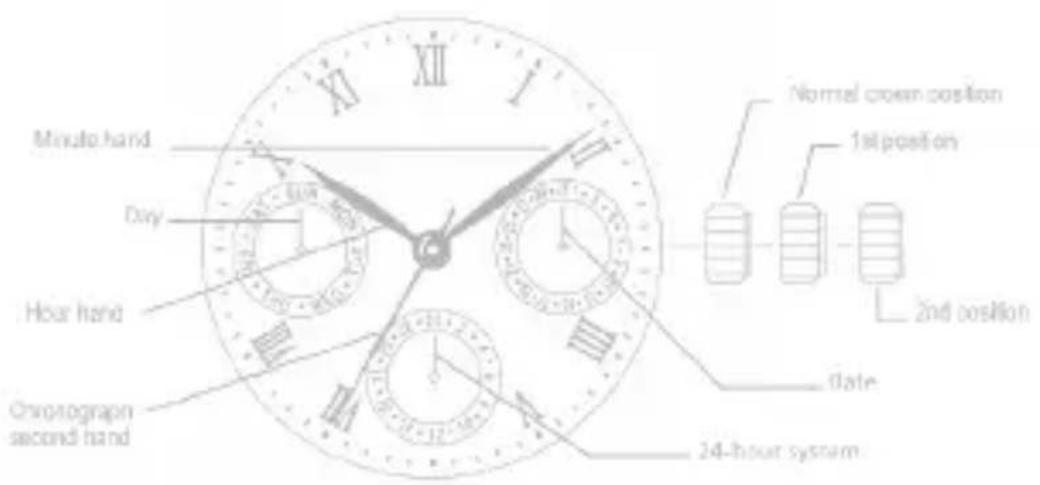

A/ DISPLAYS & BUTTONS

The three small dials are arranged in one of two kinds, depending on each model. All of them are operated similarly, however.

B/ SETTING THE DAY OF THE WEEK (9 O'CLOCK POSITION, CLOCKWISE)

Set the day by pulling out the crown to second click position and rotating it forward (to rotate the hour and minute hands clockwise).

If the day is set by rotating the crown backyard (rotating the hour and minute hands counter-clockwise), the date may not be changed.

Note: The day is changed during the period from about 0:00 AM to about 5:30 AM

C/ SETTING THE DATE (3 O'CLOCK POSITION, CLOCKWISE)

Quick change function : Pull the crown out to the first click position and set the date by rotating the crown backyard. If the date is set between 9:00 PM and 0:00 AM, the date will not change correctly.

D/ SETTING THE SECOND, MINUTE, HOUR, 24 HOUR, DAY

The second, minute, hour, 24-hour system, and day are set by the same operation.

Pull out the crown to the second click position when the second hand reaches the 12-o'clock position to stop the second hand there. Rotate the crown forward (to rotate the hour and minute hands clockwise) to set the day.

The day hand moves forward 1 step each time the 24-hour hand rotates a round. You cannot set the day by rotating the crown in reverse. After setting the day, set the hour and minute hands. Check a.m. or p.m. by the 24-hour hand.

When setting the minute hand, put it 4 or 5 minutes forward from the current time, and then return it to the current time.

After setting the time, push in the crown to the normal position, synchronizing with the time signal.

The second hand starts moving again at the time when the crown is pushed back.

Notes: (1) The day and date are changed during the period from 0:00 a.m. to 5:30 a.m. (2) The day and date hands rotate only forward.

E/SETTING PROCEDURE

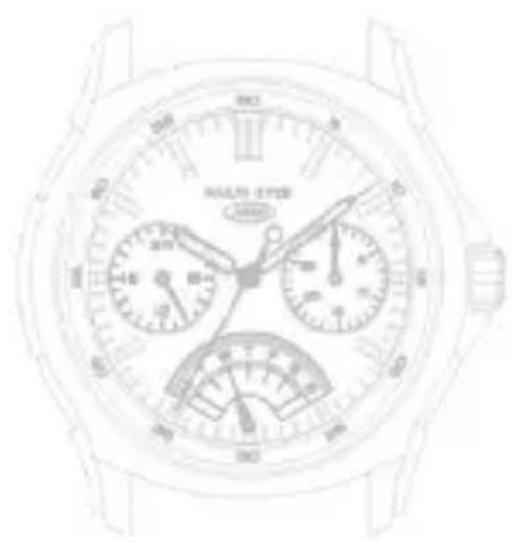

MULTI EYES WITH RETROGRADE DAY FUNCTION

Caliber No.JR00, JR10, JR20

Battery:SR621SW

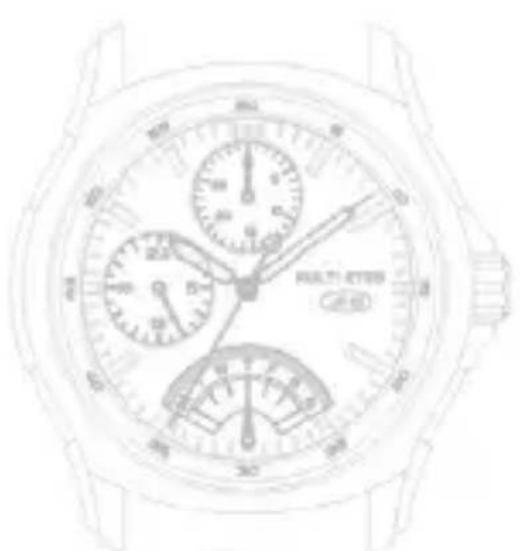

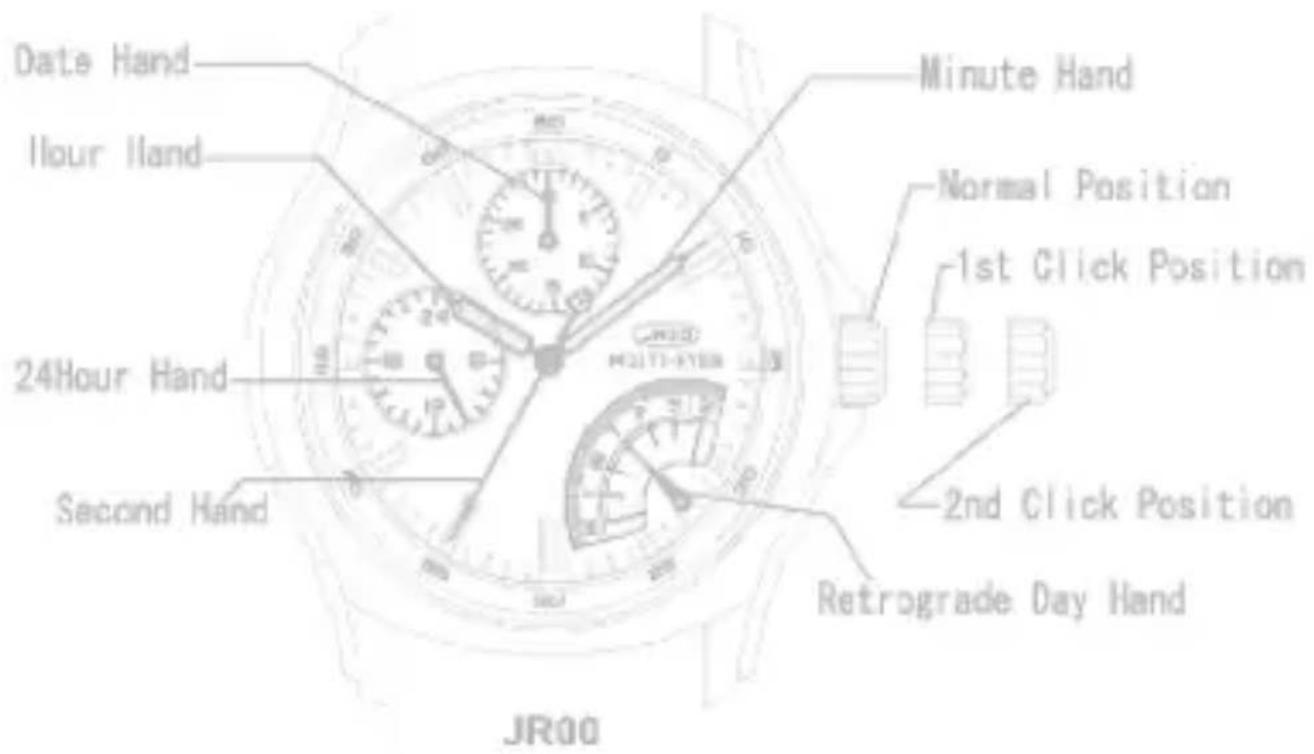

A/ DISPLAYS & BUTTONS

JR10

JR20

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Click Position.
2. Turn the crown to set hour and minute hands.

C/ SETTING THE DATE

• Please do not set the date between 9:00PM and 1:00AM

• Pull the crown out to the 1st Click Position.

• Turn the crown counter-clockwise to set the date
• After the date has been set, push the crown back to the normal position.

D/ SETTING THE DAY

• Please do not set the date between 11:00PM and 3:00AM

• Pull the crown out to the 1st Click Position.

• Turn the crown clockwise very slowly to set the day.

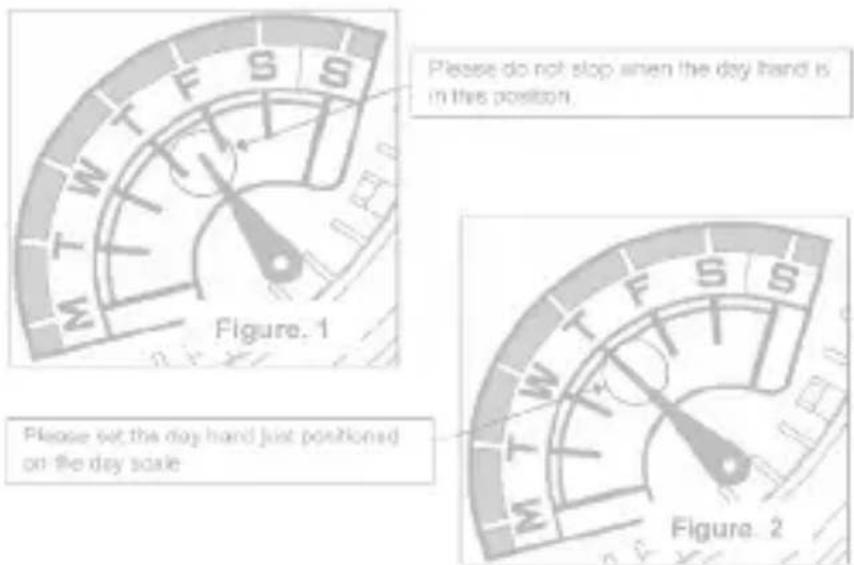

• Please do not stop when the hand is between the day like the following picture.

*If the day hand stops at a position like Fig.1, please turn the crown clockwise very slowly and stop soon after the day hand positioned like Fig.2.

1. After the day has been set, push the crown back to the normal position.

FLYBACK / DUAL TIME

Caliber No. GP52

Battery:SR920SW

A/ DISPLAYS & BUTTONS

B/ SETTING THE TIME

1. Pull the crown out to the 2nd Position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, second hand begins to run.

C/ SETTING THE DATE

1. Pull the crown out to the 1st position.

2. Turn the crown clockwise to set the date.

3. If the date is set between the hours of around 9:00 PM and 2:00 AM, the date may not change the following day.

4. After the date has been set, push the crown back to the normal position.

D/ SETTING THE 2nd TIME (24 HOURS)

1. Pull the crown out to the 1st position.
2. Turn the crown counter-clockwise to set the 2nd time (24H).
3. After the 2nd time (24H) has been set, push the crown back to the normal position.

Pour toute question concernant notre service après-vente, contactez /For any after-sale service inquiry, please contact:

[e-mail]

Collections and E-Shop

www.zeades.com

MANUEL D'UTILISATION

DATE & HEURE

A/ RÉGLAGE DE L'HEURE

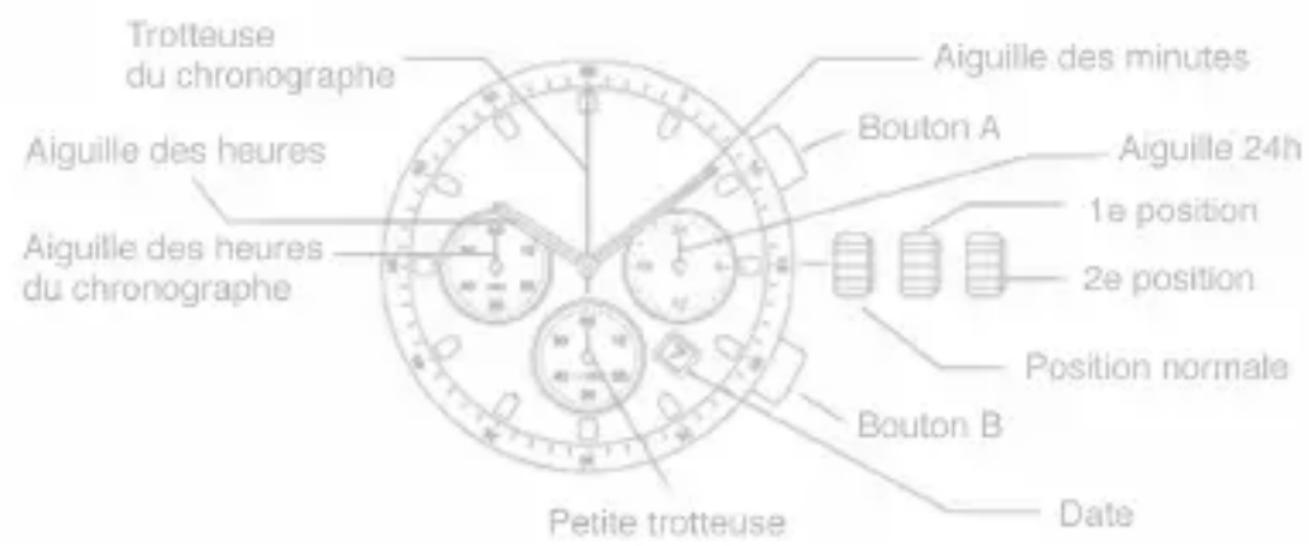

A/ INDICATIONS & BOUTONS

B/ RÉGLAGE DE L'IIEURE

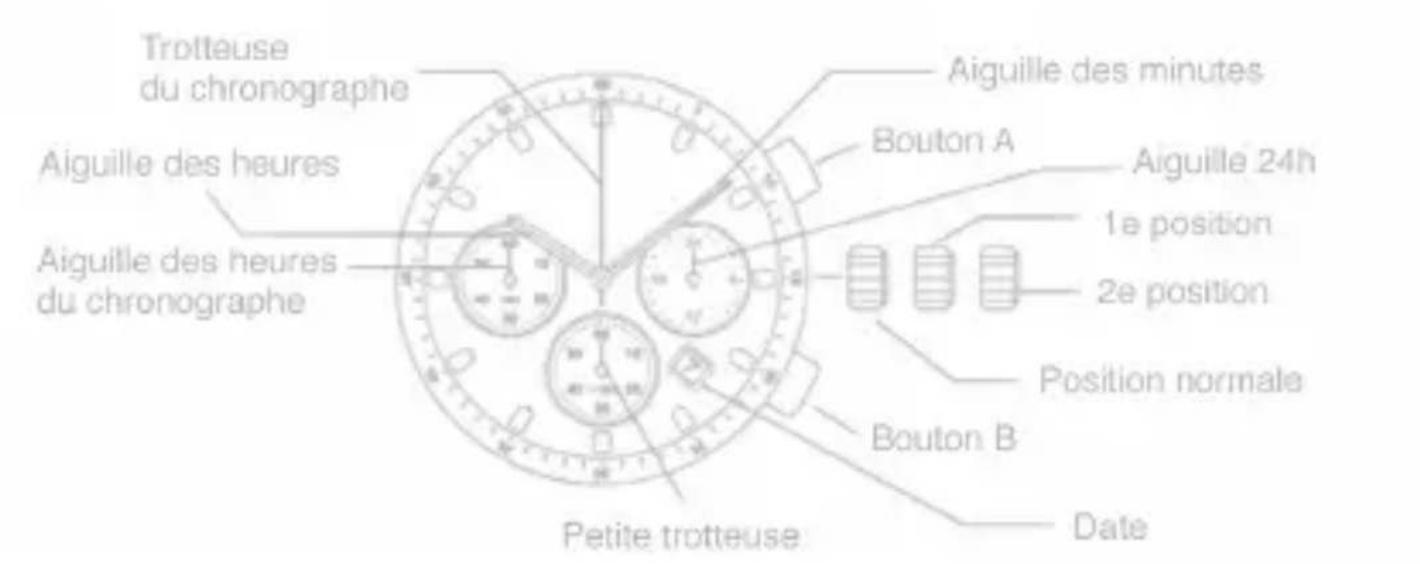

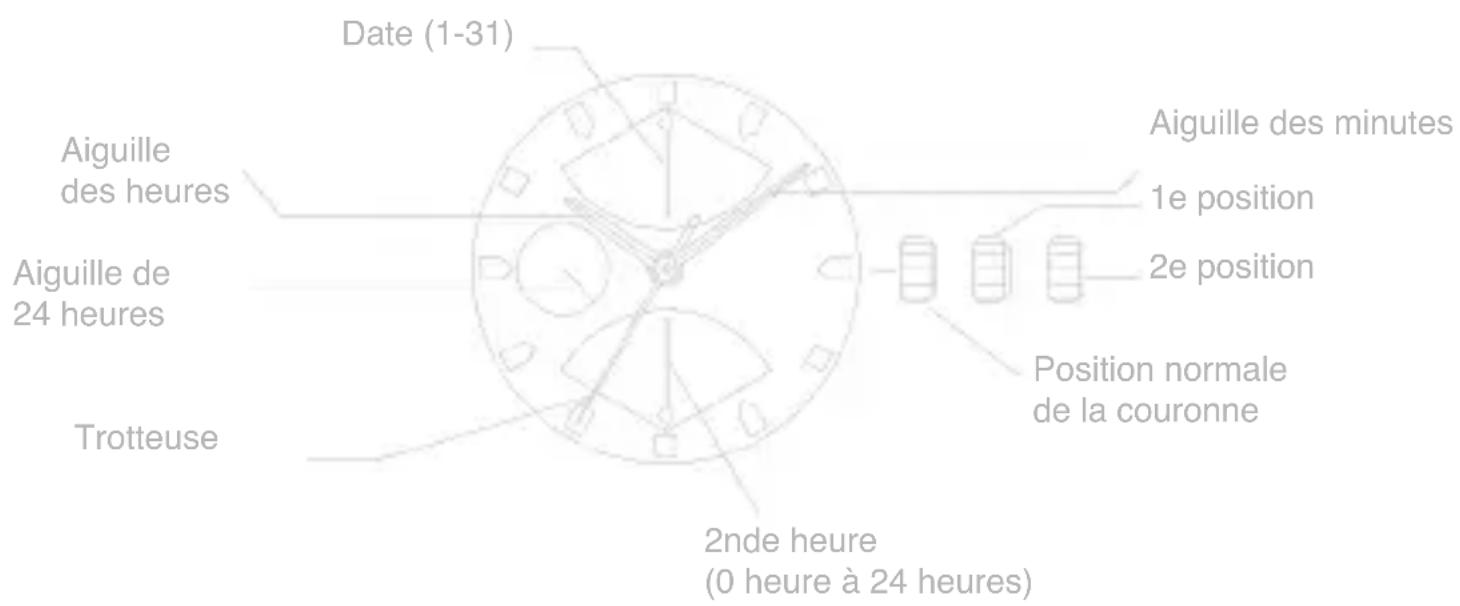

A/INDICATIONS & BOUTONS

B/ RÉGLAGE DE L'IIEURE

A/ INDICATIONS & BOUTONS

B/ RÉGLAGE DE L'HEURE
