USER MANUAL WX314.1 WORX

*Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WX314 (300-329-designation of machinery, representative of Impact Drill)

Voltage	230-240V~50Hz
Power input 550W
No load speed 0-2300/min
Impact rate 0-36800/min
Chuck capacity 13mm
Drilling capacity
Masonry 13mm
Wood 25mm
Steel 10mm
Protection class	☐/II
Machine weight	2.1kg

NOISE INFORMATION

A weighted sound pressure L	pA: 85dB(A)
A weighted sound power L	wA: 96dB(A)
KPA& KWA	3.0dB(A)
Wear ear protection when sound pressure is over 80dB(A)

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:
Impact drilling into concrete	Vibration emission value ah = 6.83m/s2
	Uncertainty K = 1.5m/s2
Drilling into metal	Vibration emission value ah = 2.44 m/s2
	Uncertainty K = 1.5m/s2

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on

the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained.

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when

the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimize your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^ or less.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSIONS

Auxiliary handle 1

Depth gauge 1

We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

HAND DRILL SAFETY INSTRUCTIONS

1. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SYMBOLS

To reduce the risk of injury, user must read instruction manual.

Double insulation

Warning

Wear eye protection

Wear ear protection

Wear dust mask

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

OPERATION INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The machine is intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and plastic. Machines with electronic control and right/left rotation are also suitable for thread-cutting.

1. AUXILIARY HANDLE (See Fig. A)

Slide the handle onto the drill and rotate to the desired working position. To clamp the auxiliary handle rotates the handgrip clockwise. To loosen the auxiliary handle rotate the hand grip anti-clockwise. Always use the auxiliary handle.

2. INSTALLING THE DEPTH GAUGE (See Fig.B)

The depth gauge can be used to set a constant depth to drill. To use the depth gauge, loosen the handle by rotating the bottom section of handle anti-clockwise. Insert the depth gauge through hole in handle. Slide the depth gauge to required depth and tighten fully.

3. INSERTING A TOOL INTO CHUCK (See Fig. C1, C2)

To open the chuck jaws rotate the front section of the chuck while holding the rear section. Insert the drill bit between the chuck jaws and rotate the front section in the opposite direction while holding the rear section.

Ensure that the drill bit is in the center of the chuck jaws. Finally, firmly rotate the two separate chuck sections in opposite directions.

Your drill bit is now locked in the chuck.

4. ON/OFF SWITCH

Depress the switch to start the tool and release it to stop your tool.

5. SWITCH LOCK-ON BUTTON (See Fig. D)

Depress on/off switch then lock-on button, release on/off switch first and lock-on button second. Your switch is now locked on for continuous use. To switch off your tool just

depress and release the on/off switch.

6. VARIABLE SPEED CONTROL (See Fig. E)

Adjust the variable speed control to increase or decrease the speed according to the material and accessory to be used (also possible during no load operation). Low speed will provide low torque and high speed gives higher torque.

7. FORWARD AND REVERSE ROTATION CONTROL (See Fig. F)

For drilling use forward rotation marked "L" (lever is moved to the left). Only use reverse rotation marked "R" (lever is moved to the right) to release a jammed drill bit.

NOTE: Never move the forward/ reverse switch whilst the drill in operation or the on/off switch is locked as this will damage the drill.

8. HAMMER OR DRILLING CONTROL (See Fig. G)

When drilling masonry and concrete choose the hammer position. When drilling in wood, metal, plastic, choose the drill position.

WORKING HINTS FOR YOUR DRILL

1. Drilling masonry and concrete

Select the drill/impact action selector switch to the "hammer symbol" position. Tungsten carbide drill bits should always be used for drilling masonry, concrete etc with a high speed.

2. Drilling steel

Select the drill/impact action selector switch to the "drill symbol" position. HSS drill bits should always be used for drilling steel with a lower speed.

3. Pilot holes

When drilling a large hole in tough material (i.e. steel), we recommend drilling a small pilot hole first before using a large drill bit.

4. Drilling tiles

Select the drill/impact action selector switch to the "drill symbol" position to drill the tile.

When tile has been penetrated, switch over to "hammer symbol" position.

5. Cool the motor

If your power tool becomes too hot, set the speed to maximum and run no load for 2-3 minutes to cool the motor.

MAINTENANCE

Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

TROUBLESHOOTING

1. If your drill will not operate, check the power at the mains plug.
2. If the drill is not drilling properly, check the drill bit for sharpness, replace drill bit if worn. Check that the drill is set to forward rotation for normal use.
3. If a fault can not be rectified return the drill to an authorized dealer for repair.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

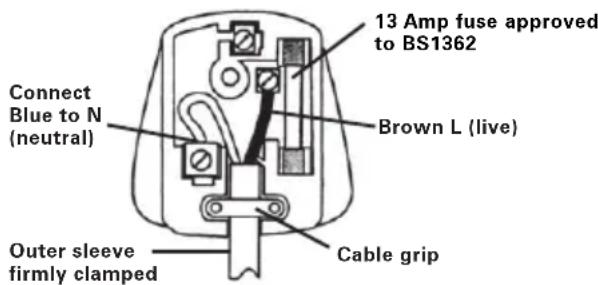

PLUG REPLACEMENT (UK & IRELAND ONLY)

If you need to replace the fitted plug then follow the instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance with the following code:

Blue - Neutral

Brown - Live

As the colors of the wires in the mains lead of thisappliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured blue must be connected to the terminal which is marked with N. The wire which is coloured brown must be connected to the terminal which is marked with L.

WARNING: Never connect live or

neutral wires to the earth terminal of the

plug. Only fit an approved BS1363/A plug and the correct rated fuse.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

DECLARATION OF CONFORMITY

Declare that the product, Description WORX Impact drill Type WX314 (300-329-designation of machinery, representative of Impact Drill) Function Boring holes in various materials

Complies with the following directives, Machinery directive 2006/42/EC Electromagnetic compatibility directive 2004/108/EC RoHS directive 2011/65/EU

Standards conform to EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-1

The person authorized to compile the technical file,
Name Russell Nicholson
Address Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK

2012/11/20
Leo Yue
POSITEC Quality Manager
