Popcorn & Crepes Maker 41050 - Popcorn machine KORONA - Free user manual and instructions

Product type	Popcorn maker and crepe maker
Brand	Korona
Model	41050
Category	Popcorn maker
Mains voltage	220-240 V ~ 50/60 Hz
Nominal power	800 W
Protection class	I
Maximum corn capacity	60 g
Included accessories	Bowl, lid, measuring cup, measuring spoon, batter spreader
Main functions	Preparation of popcorn and crepes
Plate coating	Non-stick
Usage type	Domestic only
Cleaning	Damp cloth, do not immerse
Safety	Insulated handle, automatic shut-off via thermostat, overheat protection
Manufacturer warranty	2 years
Repairability	Spare parts available on request

Frequently Asked Questions - Popcorn & Crepes Maker 41050 KORONA

How to make popcorn with the device?

Pour a spoonful of oil onto the hot plate, add a maximum of 60 g of corn, close the bowl, remove the lid, turn on the device and shake gently until the kernels pop (about 5 to 6 minutes). Then unplug and turn the device over to serve.

What is the maximum corn capacity?

The maximum capacity is 60 g of corn kernels per use.

Can you make crepes with this device?

Yes, the device also allows you to cook crepes. Use the cooking plate without the lid, pour the batter and spread it with the included spreader.

How to clean the device?

Unplug and let it cool completely. Clean the housing and the plate with a damp cloth. The measuring cup, spoon, and bowl can be washed in warm soapy water. Do not immerse the device in water.

What utensils to use to avoid damaging the coating?

Use a wooden spatula or heat-resistant plastic. Avoid metal or sharp objects that could damage the non-stick coating.

Does the device turn off automatically?

The device is equipped with a thermostat that regulates the temperature: the indicator light turns on and off to maintain constant heat, but there is no automatic shut-off. Always unplug after use.

What to do if the popcorn burns or sticks?

Make sure not to exceed 60 g of corn and to use enough oil. Shake the device during cooking to prevent the kernels from sticking.

Can I use the device outdoors?

No, the device is designed for indoor use only. Do not use it outdoors or near a water source.

How to know if the device is preheated?

Turn on the device: the indicator light turns on. After about 1.5 to 2 minutes, it turns off, indicating that the cooking temperature is reached.

What is the warranty period?

The Korona manufacturer warranty is 2 years from the date of purchase, covering material and manufacturing defects. Keep your proof of purchase.

USER MANUAL Popcorn & Crepes Maker 41050 KORONA

Popcorn and Crepes Maker

Français

Mode d'emploi

(or use less acc. to your liking)

1 El Wasser

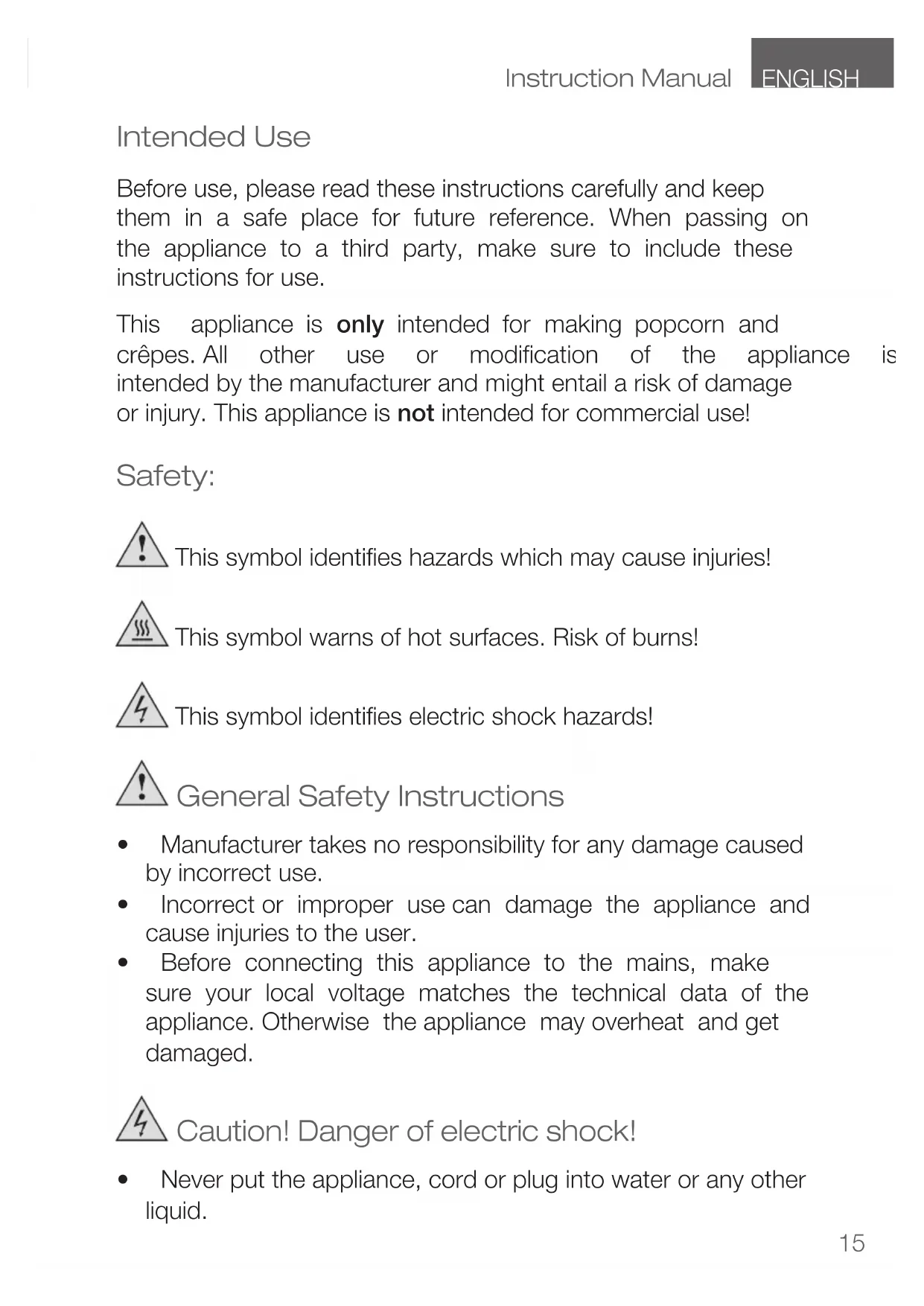

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for making popcorn and crêpes. All other use or modification of the appliance is intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.

• Do not use the appliance near a sink or wash basin.

• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
  Always unplug your appliance when it is not in use, and before cleaning.
  Always pull the plug - not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
  in case of malfunction.
• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.

• Never attempt to drive any objects into the appliance.

• Never attempt to open the housing yourself!

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

• Only use the appliance for its intended purpose and as described in this manual.
• Place the appliance on an even and heat-resistant surface. Do not place it on top of a metal surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Danger of serious burns!
• Do not move the appliance during operation.
• Do not exceed max of measuring cup (60 g).
• Always use a flat wooden or heat resistant plastic spatula to remove the popcorn/crepes from the cooking plate. Never use any sharp or metal objects (e.g. knife, metal spatula, etc.) as they would damage the non-stick coating of plate.
• Always unplug the appliance after use and let it completely cool down before cleaning.
• Do not use the appliance close to or under inflammable objects, e.g. curtains, wall cabinets.
• During operation, never leave the appliance unattended
• Adhere to a minimum wall distance of 5cm .
• Attention: Foods with a high oil and fat content might easily ignite and catch fire.
• CAUTION: This appliance must not be supplied through an external switching device, such as an external timer, or connected to a circuit that is regularly switched on and off by the utility.

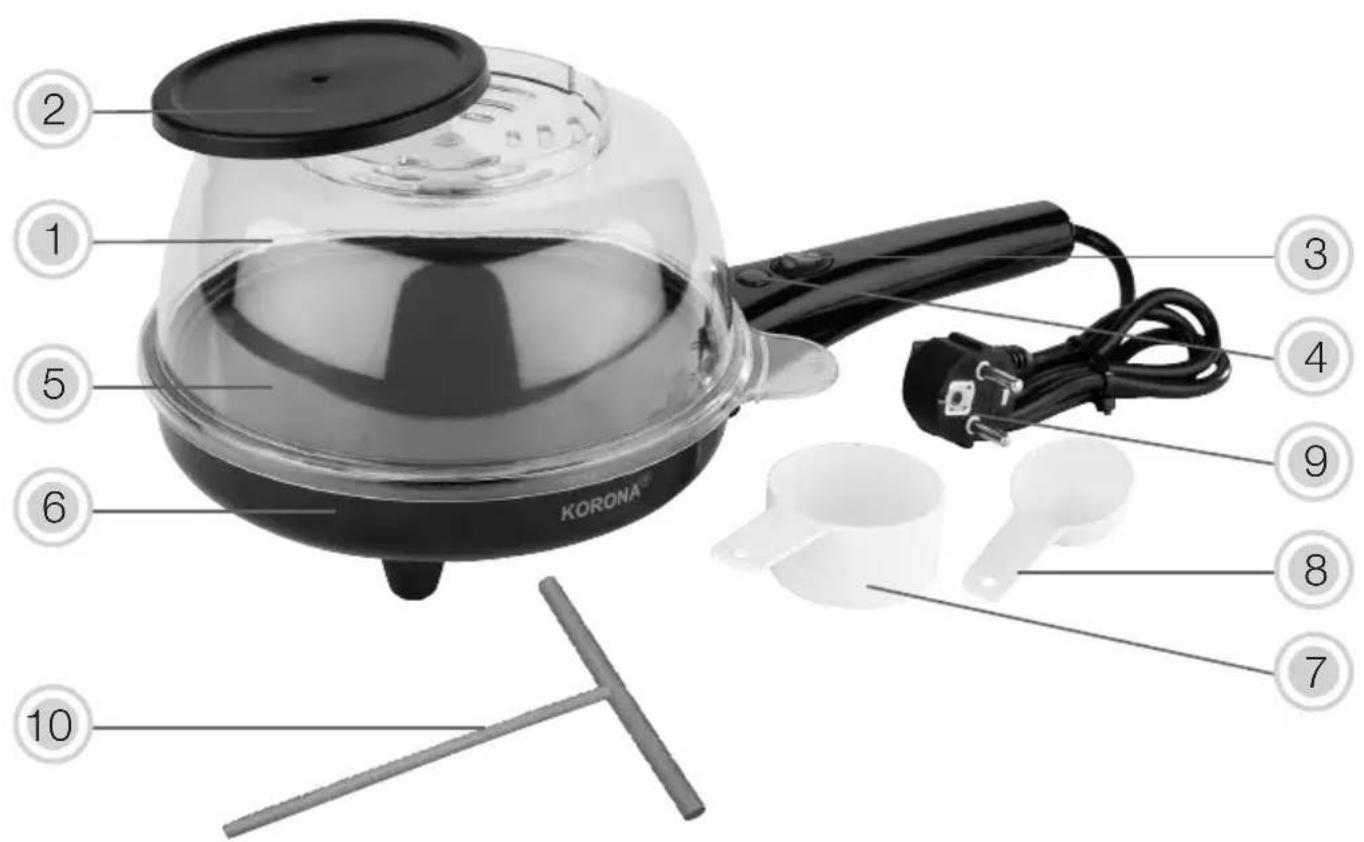

Product Description

1. Bowl
2. Lid
3. On/Off button
4. Indicator light
5. Non-stick cooking plate
6. Base
7. Popcorn kernel measuring cup (60 g)
8. Oil measuring spoon
9. Power cord and plug
10. Crépe spreader

Before First Use

Remove all packaging material and check whether the appliance is complete. Fully unwind the power cord (9) and connect the appliance to a properly installed wall socket. Do not use the appliance if it shows any signs of damage.

The cooking plate (5) has a protective coating. To remove the protective layers on the heating elements, apply some oil on the cooking plate (5) using a brush or a piece of paper kitchen towel and heat up the cooking plate (5) for about 5 minutes. This could cause a slight build-up of smoke and odour. This doesn't cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated!

After this process your popcorn maker is ready for operation.

Once the appliance has completely cooled down, clean it as described under Cleaning and Care.

Warning: Plastic bags are a danger to toddlers and

babies, therefore keep them away to avoid suffocation.

Operation

The temperature of accessible surfaces may be high

during operation. Therefore, do not touch the appliance

during and/or immediately after operation.

Tip: Make sure to gather all your supplies needed for making popcorn (popcorn, measuring spoon for popcorn and oil, cooking oil, etc.), before switching on the appliance.

1. Place the appliance on an even and heat-resistant surface. Do not place it on top of a metal surface.
2. Fill the measuring spoon (8) with some oil than a tbsp.) and pour the oil on the cooking plate (5).
3. Fill the popcorn measuring cup (7) with popcorn kernels and pour them on the oiled cooking plate (5). Do not exceed the max. amount of one cup (60 g).
4. To close the appliance attach the bowl (1) to the base (6). Press it slightly down and turn it clockwise securely engaged. Pay attention to the lock symbol on the appliance. Make sure that the bowl is properly secured on the base.
5. Remove the lid (2) from the bowl (1) to allow the steam to vent from the bowl.
6. Connect the appliance to a properly installed and accessible socket.
7. Switch the appliance on by pressing the On/Off (3) button. The indicator light (4) lights up in red and the heating up process starts.
8. After approx. 1 12 - 2 minutes the indicator light (4) goes off and the heating up process is finished.
9. In order to avoid popcorn sticking to the plate (5) and burn, hold the appliance on its handle and gently shake it occasionally.
10. It will take approx. 5 - 6 minutes for the popcorn kernels to pop.
11. Once the kernels have popped, switch off the appliance, disconnect it from the mains and re-attach the lid (2) to the popcorn bowl (1).
12. Hold the appliance firmly by its handle and carefully flip the appliance 180^ . Use pot handlers to avoid burns.
13. Remove the bowl (1) from the appliance by turning the bowl (1) into anti-clockwise direction.

The popcorn bowl (1) can now be used to serve your popcorn in. Enjoy!

Before continuing to make more popcorn, let the appliance cool down for approx. 10 minutes.

You can also use the appliance to prepare some crêpes!

During this process the bowl will not be attached to

the appliance!

Tip: Prepare your crêpes batter in advance.

1. Place the appliance on an even and heat-resistant surface. Do not place it on top of a metal surface.
2. Fill the measuring spoon (8) with some oil (not more than a tbsp.) and pour the oil on the cooking plate.
3. Connect the appliance to a properly installed and easily accessible socket.
4. Switch the appliance on by pressing the On/Off (3) button. The indicator light (4) lights up in red and the heating up process starts.
5. After approx. 112 - 2 minutes the indicator light (4) goes off and the heating up process is finished.
6. Add some batter on the cooking plate (5) and ev distribute it with the crêpe spreader (10) on the cooking plate (5). Bake it golden brown on both sides. As crêpes have to be thin, do not add too much batter, in order to avoid overflowing. Only use a heat resistant plastic spatula or a wooden spatula, when turning and removing the crêpes.
7. Once the baking process is finished, switch off the appliance and disconnect it from the mains.

Thermostat:

During operation, an integrated thermostat switches the

appliance on and off to ensure a constant temperature. This is

indicated by the indicator light (4) cycling on and off.

Popcorn varieties

Sweet / Salty

30 g butter

20 g sugar or salt

(or use less acc. to your liking)

1 tbsp water

Combine the butter, sugar/salt, water and heat gently

combined. Leave to cool and stir. Pour the mixture over the

popcorn and coat thoroughly.

Chocolate

90 g butter

40 g sugar

2 tbsp unsweetened cocoa powder

Combine the butter, sugar, cocoa powder and heat gently

until melted. Leave to cool and stir. Pour the mixture over the

popcorn and coat thoroughly.

Chilli Lime

30 g butter

1 tbsp of chilli pepper

1 / 2 tbsp. salt

Zest of 2 limes

Heat the butter until melted. Combine the chilli pepper, salt and lime zest. Pour the melted butter over the popcorn, add the chili lime mixture and coat thoroughly.

These are only a few options, create your popcorn variety to your own liking!

Crêpes Recipe

Ingredients:

1 egg

125 ml milk

4 tbsp mineral water

pinch of salt

50 g flour

Preparation:

Mix egg, milk, water and salt. Add the flour and mix it until the batter is smooth. Let the batter rest for approx. 10 minutes.

Cleaning and Care

Due to hygienic reasons clean your appliance on a regular basis, best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation.

Before cleaning, always switch off the appliance, at it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

When cleaning the appliance or accessories never use any aggressive cleaning agents and/or other hard objects.

Clean the base (6) and the plate (5) with a moistened soft cloth.

The Popcorn kernel measuring cup (7) and oil measuring spoon (8) as well as the bowl (1) can be cleaned in warm water using some dishwashing detergent. They are not dishwasher safe.

Cleaning and user maintenance shall not be made by a user without supervision.

Storage

Disconnect the appliance from the mains after each use and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection

points for disposal or your local dealer.

Your Popcorn and Crêpes Maker 41050 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V ~ 50 / 60 Hz

Rated Power: 800 W

Protection Class: I

Technical data are subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance instructions
  for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
  for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service

Am Steinbach 8

59872 Meschede-Enste

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
