USER MANUAL U1813CH ROTEL

Black rotel cooking pot with a lid and control knob (no visible text or symbols on the pot itself)

• GEBRAUCHSANWEISUNG
- MODE D'EMPLOI
• ISTRUZIONI PER L'USO
• INSTRUCTIONS FOR USE

CE RoHS 只

D/F/I/E

Exploded view diagram of a kitchen appliance with labeled parts including a pan, steamer, and spatula

Deutsch	Français	Italiano	English
1. Deckel2. Platte zum Grillen und Braten3. Röstpfanne4. Sockel mit Heizspirale5. Temperaturkontroll-schalter mit Kontroll-lampe6. Holzspachtel7. Teigverteiler	1. Couvercle2. Plaque de cuisson et grillades3. Poêle4. Socle chauffant avec résistance en spirale5. Thermostat et voy-ant lumineux6. Spatule en bois7. Râteau à crêpes	1. Coperchio2. Piastra per cottura3. Padella4. Corpo parte inferiore con elemento riscal-dante a spirale5. Termostato e spia lu-minosa6. Spatola di legno7. Spatola stendi im-pasto	1. Lid2. Grilling and frying plate3. Roasting pan4. Heating base with spiral heater5. Temperature control knob with indicator light6. Wooden spatula7. Batter spreader

TECHNISCHE DATEN

- Safety instructions.... 26

- Applications....28

- Before first use .... 28

• Using the multi-roaster 28

- Roasting, Frying, Grilling, Baking.... 29

Roasted chestnuts....29

Baked potatoes....29

Grilling meat, sausages, fish and vegetables....29

Frying pancakes, omelettes, tortillas, crepes.... 30

- Cleaning and maintenance.... 30

- Disposal 30

D/F/I/E....31

• Garantie / Garantie / Garanzia / Warranty 31

Deutsch

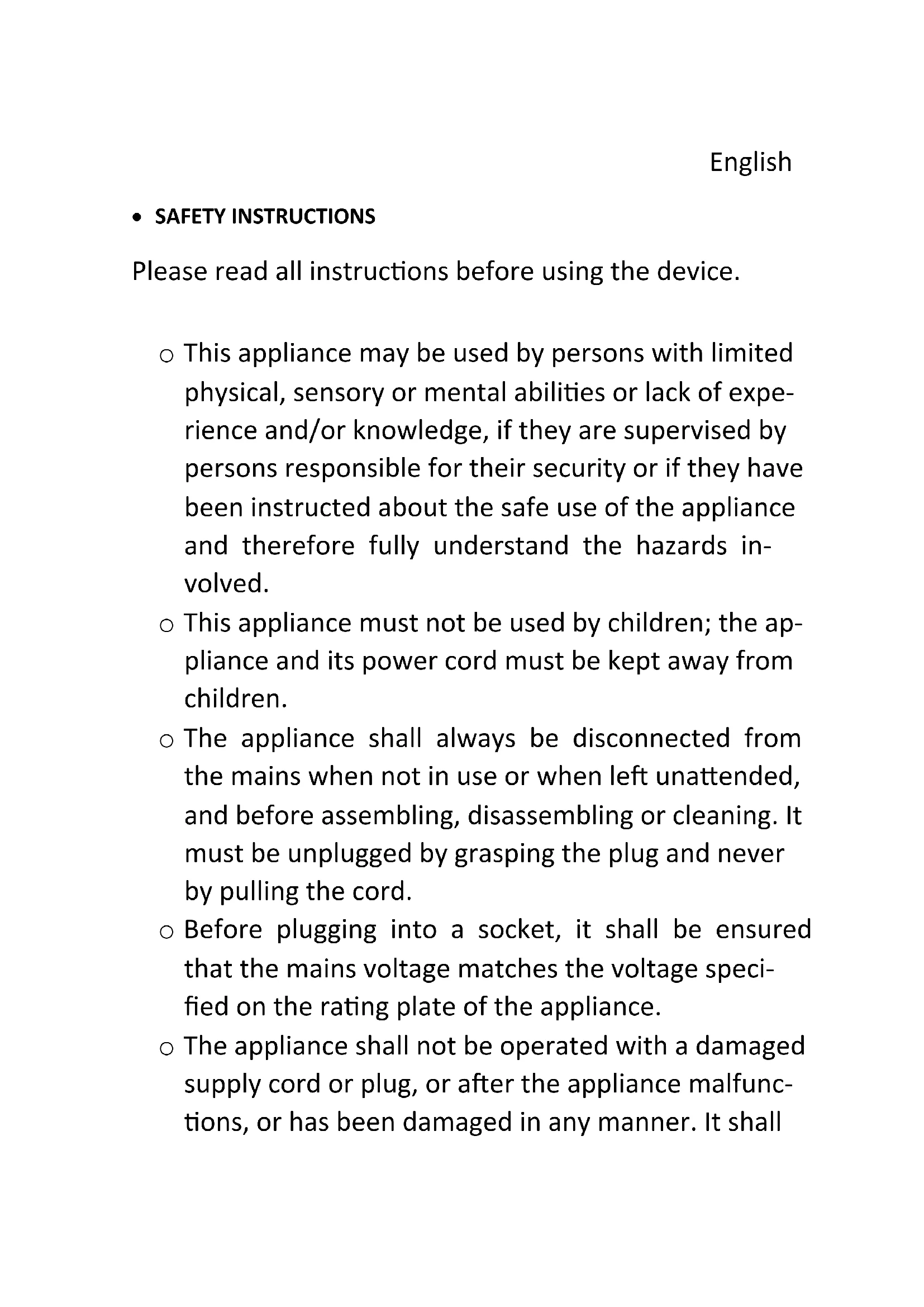

Please read all instructions before using the device.

• This appliance may be used by persons with limited physical, sensory or mental abilities or lack of experience and/or knowledge, if they are supervised by persons responsible for their security or if they have been instructed about the safe use of the appliance and therefore fully understand the hazards involved.
  ○ This appliance must not be used by children; the appliance and its power cord must be kept away from children.
• The appliance shall always be disconnected from the mains when not in use or when left unattended, and before assembling, disassembling or cleaning. It must be unplugged by grasping the plug and never by pulling the cord.
  Before plugging into a socket, it shall be ensured that the mains voltage matches the voltage specified on the rating plate of the appliance.
• The appliance shall not be operated with a damaged supply cord or plug, or after the appliance malfunctions, or has been damaged in any manner. It shall

be returned to the nearest authorized service facility for examination, repair or adjustment.

• Incorrect repair attempt, assembly, or use of any accessory attachment not recommended or sold by the manufacturer may cause fire, electric shock or personal injury and will void the manufacturer's warranty.
• To avoid any hazards, the motor base of the appliance, its cord or plug shall not be immersed into water or any other fluid.
• The use of the appliance shall be avoided near sinks or other vessels containing water, and with wet hands.
  ○ The power cord shall not touch hot surfaces.
  ○ CAUTION - HOT: Burns can occur from touching the surfaces of the appliance once it is switched on.
• The use of metal cooking utensils is not recommended to cook with the appliance, as they may damage its surface.
• This appliance is designed for domestic, indoor use only.

- APPLICATIONS

• The multi-roaster is designed for roasting chestnuts and cook baked potatoes.
  Thanks to its two-sided non-stick grilling and frying plate, it is a perfect allrounder as well. Ideal for grilling chops, chicken wings, burgers, skewers, sausages, vegetables and fish on its ribbed side, the flat one allows you to cook pancakes, omelettes, crepes, tortillas, French toast etc.

- BEFORE FIRST USE

○ Remove all packaging materials and any promotional stickers before switching on the device
○ Clean the cooking plate on both sides with a soft cloth dampened in warm water and dry thoroughly.
☐ For best results, pour and spread a few drops of vegetable oil or cooking spray on the plate.

NOTE: when turning on the appliance for the first time, you may notice an unpleasant smell or light smoke that tend to be given off when an appliance is new. This does not affect its safety and will not be longer noticeable after a few minutes. Let the unladen appliance heat up at its maximum temperature in a well-ventilated room for ten minutes before first use.

• USING THE MULTI-ROASTER

• Place the heating base of the multi-roaster on a dry and even surface.
  ○ Set the desired accessory (roasting pan or two-sided non-stick plate) including the lid on the base unit.
• Plug the unit into an earthed outlet. Turn the temperature control knob to "HOT" to pre-heat the appliance 5 to 10 minutes.
  ○ After use, turn the knob to "MIN" again and let the multi-roaster cool down before any further handling.

NOTE: set the knob to "HOT" for roasting, grilling, frying and baking. The setting "WARM" is intended to keep all ingredients warm.

WARNING: the appliance becomes very hot during operation. Do not touch hot surfaces but use its handles, lid and knob.

• ROASTING, FRYING, GRILLING, BAKING

Roasted chestnuts

• Set the roasting pan onto the heating base.
• Score the chestnuts on the round side with a sharp knife. Briefly soak them in water.
• Add all chestnuts in the roasting pan, close the lid and switch on the appliance, by rotating the temperature control knob on position "HOT".
  Turn over the chestnuts with the enclosed wooden spatula after 10 minutes and roast for approx. 15 to 20 minutes with the lid on, until all chestnuts split open.
• After use, turn the knob to "MIN" and let the multi-roaster cool down.

Baked potatoes

• Set the roasting pan onto the heating base. Close the lid and preheat the appliance for 5-10 minutes on position "HOT".
• Wrap the washed and dry potatoes in aluminium foil, distribute them evenly in the pan and bake for approx. 20 to 30 minutes with the lid on.
• DO NOT use any fat or oil.
• After use, turn the knob to "MIN" and let the multi-roaster cool down.

NOTE: if you wish to roast meat or vegetables on the additional grill plate for the same meal, we recommend to prepare the baked potatoes first. Wrapped in foil, they will stay nice and warm for quite a long time.

Grilling meat, sausages, fish and vegetables

• Set the two-sided plate with the ribbed side facing up on the heating base and preheat the appliance on position "HOT" with the lid on, for approximately 5 to 10 minutes.
• Put meat, chops, etc. on the plate and grill on position "HOT", long enough to suit your taste or the food to be prepared.
• Turn over the food from time to time, using wooden or rubber utensils.
• After use, turn the knob to "MIN" and let the multi-roaster cool down.

NOTE: use fat sparingly to avoid splashing.

CAUTION: never use metal tongs or knife as these may damage the non-stick coating of the grill plate.

Frying pancakes, omelettes, tortillas, crepes

• Set the two-sided plate with the flat side facing up on the heating base and pre-heat the appliance on position "HOT" with the lid on, for approx. 5 to 10 minutes.
• Gently pour some batter (pancake mix, eggs, tortilla etc.) on the frying plate, spread it with the enclosed spreader or equivalent wooden or rubber utensil, and turn over as needed.
• After use, turn the knob to "MIN" and let the multi-roaster cool down.

NOTE: lightly grease the plate before cooking the first pancake.

CAUTION: never use metal spatula or cutlery as these may damage the non-stick coating of the frying plate.

- CLEANING AND MAINTENANCE

Turn the temperature control knob to "MIN", unplug the appliance and allow it to cool down before cleaning.
- DO NOT immerse the heating base into water!
○ Wipe off the body of the appliance, the plate and the pan with a damp cloth and mild detergent. Do not use anything harsh or abrasive cleaners or tools that can scratch or damage the non-stick coating of the plate.
- Grease the two-sided plate with a little vegetable oil after use to preserve its non-stick coating.
- Regularly check the power cord hose for wear and damage, particularly where it enters the product as well as the plug.
- Store the multi-roaster in a cool and dry place.

- DISPOSAL

• For proper disposal, please return device to a retailer, a service agent or Rotel AG.
  European Directive 2012/19/EC concerning Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately to optimise the cost of re-using and recycling materials comprising the machine, while preventing potential damage to public health and the environment. The crossed-out wheeled bin symbol appears on all products to remind owners of the obligations regarding separate waste collection. Owners should contact their local authorities or appliance dealers for further information concerning the correct disposal of household appliances.

This appliance conforms to the following EU directives:

2014/35/EU (Low Voltage Directive)

2014/30/EU (Electromagnetic Compatibility Directive)

• GARANTIE / GARANTIE / GARANZIA / WARRANTY

• 2 JAHRE GARANTIE
• 2 ANS DE GARANTIE
• 2 ANNI DI GARANZIA
• 2 YEARS WARRANTY

○ Warranty commitment

We commit ourselves to repair this device free of charge, should a failure occur within the period of warranty despite proper handling. We repair all defects caused by material or manufacturing faults. The guarantee will be fulfilled either by repairing the device or replacing the defective parts, according to our judgement. A warranty does not cover damages due to wearing parts, damages and defects caused by improper handling or maintenance (such as limescale and commercial use). It will only be granted if either the warranty card stating date of purchase, dealer's stamp and signature, or the purchase receipt is sent with the device to the relevant after-sales service (see address below). Devices shall be returned in their original packaging. Transport costs are to be borne by the purchaser. Remember to specify your address to your sending, as well as a short declaration about the failure, shall the defect not be obvious.

Servicestation:

Service après-vente: Rotel AG
