USER MANUAL CDR1004 Nordic Home Culture

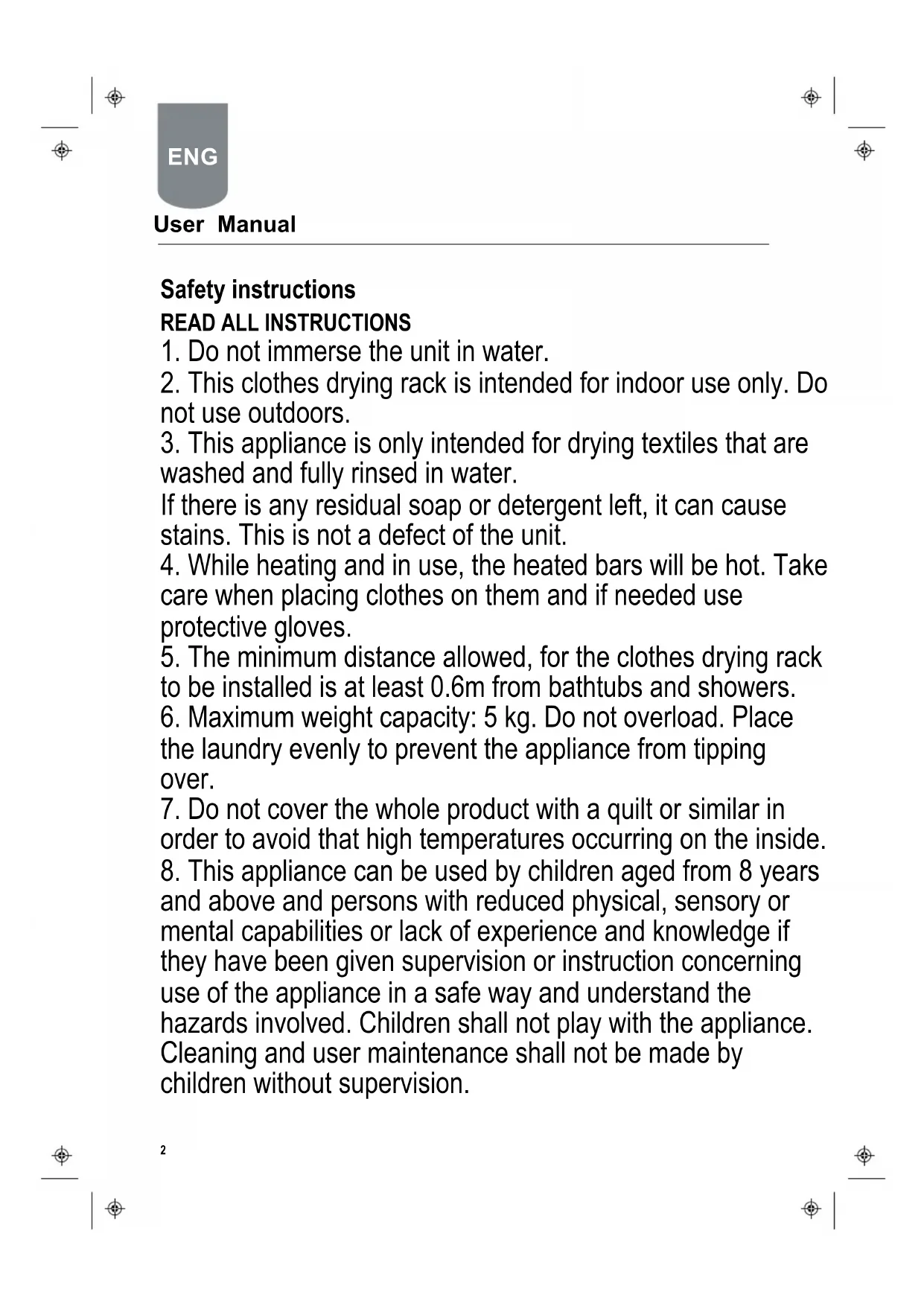

1. Do not immerse the unit in water.

2. This clothes drying rack is intended for indoor use only. Do

3. This appliance is only intended for drying textiles that are

washed and fully rinsed in water. If there is any residual soap or detergent left, it can cause stains. This is not a defect of the unit.

4. While heating and in use, the heated bars will be hot. Take

care when placing clothes on them and if needed use protective gloves.

5. The minimum distance allowed, for the clothes drying rack

to be installed is at least 0.6m from bathtubs and showers.

6. Maximum weight capacity: 5 kg. Do not overload. Place

the laundry evenly to prevent the appliance from tipping over.

7. Do not cover the whole product with a quilt or similar in

order to avoid that high temperatures occurring on the inside.

8. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. ENG User Manual3

9. Do not leave the clothes drying rack unattended while it is

10. Always switch off and unplug the clothes drying rack

when it is not in use or before cleaning.

11. Do not operate the clothes drying rack with a damaged

cord or plug or after the clothes drying rack has been dropped or damaged in any manner. Bring the clothes drying rack to the manufacturer or the retailer, or similarly qualified person for examination, electrical or mechanical adjustment, or repair.

12. Never place the clothes drying rack where it may fall into

a bathtub or other water containers.

13. Do not cover the cable with carpets, cable protectors or

14. Do not unplug by pulling on the cable. To unplug, grasp

the plug, not the cable. The use of an extension cable is not recommended.

15. The clothes drying rack must not be placed immediately

below a socket-outlet.

16. To disconnect the clothes drying rack, remove the plug

from the power outlet.

17. Do not use it in an area with gasoline, paints, or

18. Use this clothes drying rack only as described in this

manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

19. This clothes drying rack only operates in upright position.

20. Allow the appliance to cool down before storage.

21. Fold the appliance flat and then store the clothes drying

rack, in a cool dry location when not in use.

22. Any other servicing should be performed by an

authorized service representative.

SAVE THESE INSTRUCTIONS

ENG User Manual5 a) Unfold the appliance Installation

1. Completely unfold the unit.

2. Place the appliance on a smooth and level surface near a

3. Make sure that the plastic clips are fully to the edge.

4. Finally: Put some laundry on to test that the appliance is

stable. IP22 This product is IP22 rated. An electrical socket rated at IP22 is protected against:

• Solid objects over 12 mm - ex. insertion of fingers.

• Direct sprays of water up to 15° from the vertical - ex. damage or unsafe due to vertically or nearly vertically dripping water. Safety instructions

1. Never place the clothes drying rack where it may fall into a

bathtub or other water containers.

2. The minimum distance allowed, for the clothes drying rack

to be installed is 0.6m from bathtubs and showers.

3. Use this clothes drying rack only as described in this

manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

4. The device must be installed in such a manner that contacts

and other control functions may not be touched at the same time as you are taking a shower or bath.

5. If you feel unsure about installation, contact a certified

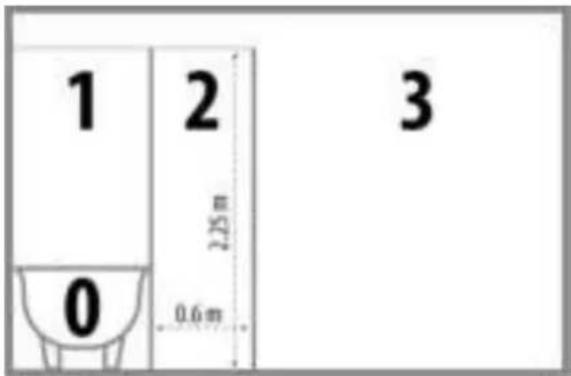

electrian. 0 = Area 0 1 = Area 1 2 = Area 2 3 = Unclassified area Products rated as IP 22 may only be installed in: area 3 = Unclassified area. Usage instructions [CDR-1000]

1. Press the power switch to power off.

2. Plug the power cord into an electrical outlet.

3. Press the power switch to power on. The clothes drying

rack will then heat up.

4. Let the clothes dry. Reposition laundry to ensure even

5. When the laundry is dry, press the power switch to power

off and unplug the appliance from the power outlet. Usage instructions [CDR-1004]

1. Plug the power cord into an electrical outlet.

2. Press the power button to power on/off.

3. Temperature control “▼°C▲” : Has 3 modes (01, 02, 03)

01 = Low temperature 02 = Medium temperature 03 = High temperature Press the “▼” and “▲” buttons to change between the modes.

Each time ▲ is pressed the timer increases with 30 mins. Each time ▼ is pressed the timer decreases with 30 mins. Possible settings are from off to 7. (0.5=30 mins, 7 = 7 hours) When the timer runs out the appliance will turn itself off automatically. Default setting for the timer is off.

5. Let the clothes dry. Reposition laundry to ensure even

6. When the laundry is dry, press the power switch to power

off and unplug the appliance from the power outlet. ENG User Manual6 Product features Voltage: 220-240 V AC, 50Hz Effect: 220 W IP 22 Max weight: 5 kg Warranty The warranty period is 3 years. Support More product information can be found at www.deltaco.eu. Disposal of electric and electronic devices EC Directive 2012/19/EU This product is not to be treated as regular household waste but must be returned to a collection point for recycling electric and electronic devices. Further information is available from your municipality, your municipality’s waste disposal services, or the retailer where you purchased your product. ENG User Manual7 Säkerhetsinstruktioner
