Product type	Towel warmer
Brand	Nordic Home Culture
Model	CDR1002
Power supply	220-240 V AC, 50 Hz
Power	90 W
IP rating	IP22
Dimensions (H x W x D)	440 mm x 360 mm (estimated)
Weight	Approximately 5 kg (estimated)
Use	Heating and drying towels
Installation	Freestanding or wall-mounted
Installation zone	Non-classified zone (zone 3) at 0.6 m from bathtubs and showers
Minimum distance from floor	600 mm
Package contents	Elements A to G (mounting provided)
Warranty	3 years
Care and cleaning	Disconnect before cleaning, do not immerse
Safety	Do not use if damaged, installation by a qualified electrician
Surface temperature	Hot to the touch, may vary depending on ambient temperature
Compatibility	For towels, do not use with items containing oil

Frequently Asked Questions - CDR1002 Nordic Home Culture

How to install the CDR1002 towel warmer?

The installation can be freestanding or wall-mounted. For wall mounting, follow the provided illustrations. A minimum distance of 600 mm from the floor and 0.6 m from bathtubs/showers is required. Call a qualified electrician for the electrical connection.

Can I use this device in a bathroom?

Yes, but only in the non-classified zone (zone 3) according to IP22 standards. It must not be installed less than 0.6 m from a bathtub or shower.

What is the power of the CDR1002?

The power is 90 W with a power supply of 220-240 V AC, 50 Hz.

How to clean the towel warmer?

Always unplug the device before cleaning. Use a soft, dry cloth. Never immerse the device in water or any other liquid.

What is the warranty of the product?

The warranty period is 3 years from the date of purchase.

What to do if the power cord is damaged?

If the cord or device is damaged, it must be replaced or repaired by a qualified electrician. Do not use the device as is.

What are the items provided with the device?

The package contains elements A (1x), B (4x), C (2x), D (4x), E (8x), F (8x), G (4x) for assembly. Refer to the manual for identification.

Can the towel warmer be used as supplementary heating?

This device is designed only for heating and drying towels. It is not intended to heat a room.

Are there precautions for children?

Yes, the device must be installed at least 600 mm from the floor to prevent children from touching it. Children should not clean or maintain the device without supervision.

How to dispose of the product at end of life?

Do not dispose of the device with household waste. In accordance with EC Directive 2012/19/EU, take it to a collection point for the recycling of electrical and electronic waste.

USER MANUAL CDR1002 Nordic Home Culture

Metal ladder with horizontal bars and a small red indicator light at the base (no text or symbols visible)

CDR-1002

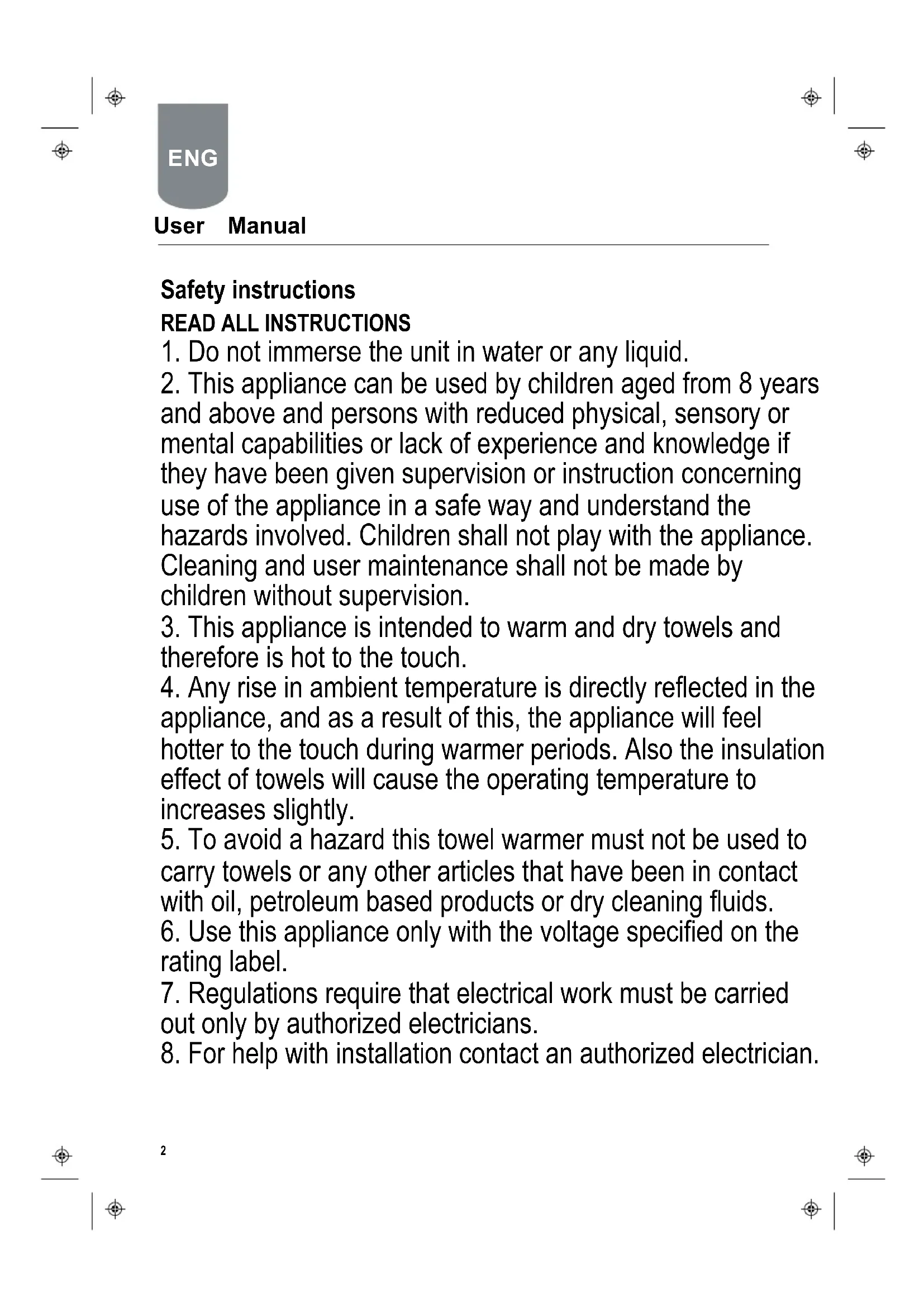

Safety instructions

READ ALL INSTRUCTIONS

1. Do not immerse the unit in water or any liquid.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

3. This appliance is intended to warm and dry towels and therefore is hot to the touch.

4. Any rise in ambient temperature is directly reflected in the appliance, and as a result of this, the appliance will feel hotter to the touch during warmer periods. Also the insulation effect of towels will cause the operating temperature to increases slightly.

5. To avoid a hazard this towel warmer must not be used to carry towels or any other articles that have been in contact with oil, petroleum based products or dry cleaning fluids.

6. Use this appliance only with the voltage specified on the rating label.

7. Regulations require that electrical work must be carried out only by authorized electricians.

8. For help with installation contact an authorized electrician.

9. In order to avoid a hazard for children. This product must be installed with a minimum distance of 600 mm from the floor to the bottom edge of the product.

10. Never use the appliance if it malfunctioning or has a damaged exterior or it has a damaged cable. If the power cable or appliance is damaged, it must be replaced or repaired by an authorized electrician.
11. Before cleaning always unplug the appliance from the power supply.

SAVE THESE INSTRUCTIONS

ENG

User Manual

IP22

This product is IP22 rated.

An electrical socket rated at IP22 is protected against:

- Solid objects over 12 mm - ex. insertion of fingers.

- Direct sprays of water up to 15^ from the vertical - ex. damage or unsafe due to vertically or nearly vertically dripping water.

Safety instructions

1. Never place the appliance where it may fall into a bathtub or other water containers.

2. The minimum distance allowed, for the appliance to be installed is 0.6m from bathtubs and showers.

3. Use this appliance only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

4. The device must be installed in such a manner that contacts and other control functions may not be touched at the same time as you are taking a shower or bath.

5. If you feel unsure about installation, contact a certified electrician.

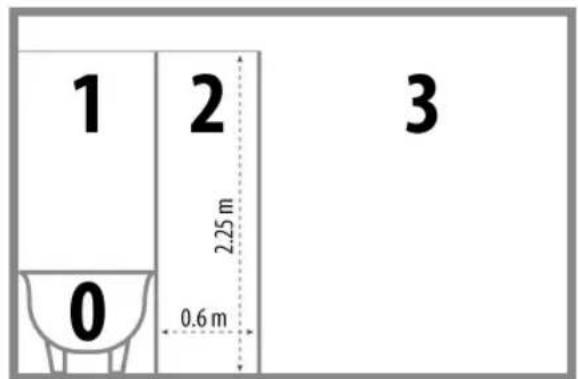

1 2 3 0 2.25 m 0.6 m

0 = Area 0

1 = Area 1

2 = Area 2

3 = Unclassified area

Products rated as IP 22 may only be installed in: area 3 = Unclassified area.

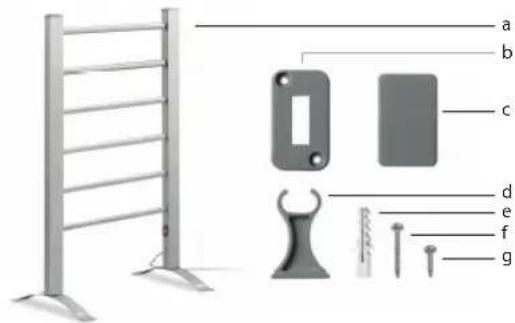

Package list

a b c d e f g

Included in the package:

Electrical installation

This appliance must be installed in accordance with the relevant wiring rules and regulations and in particular those regulations which cover installation of appliances and accessories in wet areas such as bathrooms, showers, laundries and other areas with fixed water containers.

In accordance with local standards this appliance is required to be connected to a power supply that includes an earthed circuit.

Contact an authorized electrician for help with installing this product.

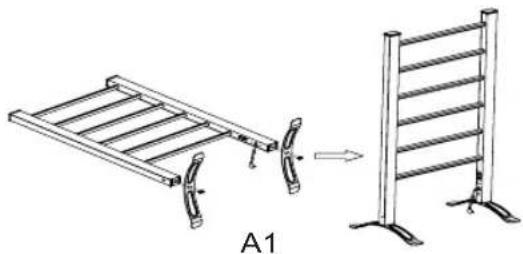

Freestanding installation

1. For installation in wet areas, please see section "IP 22" and section "Electrical installation".
2. Assemble the product, make sure the supporting feet are properly attached.
3. Lift up the product to standing position.
4. Put some laundry or towels on the product, and turn it on.

Diagram showing a ladder mechanism and its corresponding vertical ladder structure, labeled A1 (no text or symbols on the diagram itself)

Simple line drawing of a ladder with a paper labeled '乙' on top, no text or symbols present

A2

Disposal of electric and electronic devices EC Directive 2012/19/EU

This product is not to be treated as regular household waste but must be returned to a collection point for recycling electric and electronic devices. Further information is available from your municipality, your municipality's waste disposal services, or the retailer where you purchased your product.

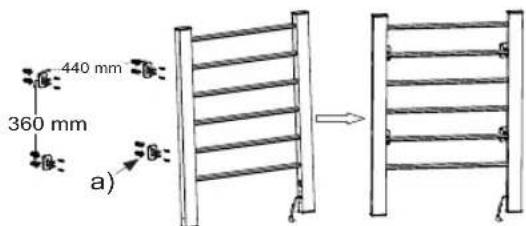

Wall mount installation

1. For installation in wet areas, please see section "IP 22" and section "Electrical installation".
2. Mount the product to the wall. See the below illustrations for details.
3. Put some laundry or towels on the product, and turn it on.

440 mm 360 mm a)

B1

B2

Illustrated detail for wall mount installation.

Product features

Power: 220-240 V AC, 50Hz

Effect: 90 W

IP22

Warranty

The warranty period is 3 years.

Support

More product information can be found at www.deltaco.eu.
