Brand	Steba
Model	KS1
Product type	Fan heater (supplementary heating)
Rated thermal output	1800 W (max) / 900 W (min)
Power supply	230 V ~ 50/60 Hz
Operating modes	Off, cool air, warm air (1000 W), very hot air (1800 W)
Thermostat	Mechanical, adjustable
Alarm indicator	Indicates overheating or malfunction
Overheat protection	Yes, automatic shutdown in case of overheating
Filter	Removable, washable with water
Maintenance	Clean the filter every 6 months; use a dry cloth for the device
Recommended use	Well-insulated room, for private use, indoor only
Safety distance	1 meter from flammable objects (air outlet), 50 cm at the back
Operating ambient temperature	5 °C to 30 °C
After-sales service	Steba Elektrogeräte GmbH & Co.KG, Pointstr. 2, 96129 Strullendorf
Spare parts	Filter, power cable (repair by authorized service)
Repairability	Repairs exclusively by a qualified electrician

Frequently Asked Questions - KS1 STEBA

How to clean the filter of the Steba KS1?

Unplug the device and let it cool down. Press the closing hook, remove the filter and wash it with clean water. Put it back after drying. Clean the filter every 6 months.

What is the maximum power of the fan heater?

The rated thermal output is 1800 W (very hot air). In warm air mode, it is 1000 W.

What to do if the device overheats?

Let the device cool down for 15 minutes. Check that no obstacles obstruct the air inlet or outlet. Eliminate the cause (dust, proximity of objects). Restart the device.

Can I use the Steba KS1 in a bathroom?

No, the device must not be used near a shower, bathtub, sink, or swimming pool. It is designed for dry rooms.

How to adjust the thermostat?

Turn the thermostat to maximum until the desired temperature is reached, then slowly turn it back until you hear a 'click' (stop). Then turn slightly clockwise to maintain the room temperature.

Can the device be used with an extension cord?

Yes, provided the extension cord has a cross-section of at least 1.5 mm². If using a power strip, do not exceed 3680 W total (16 A).

What does the alarm indicator mean?

The red light turns on in case of overheating or malfunction. It does not light up during normal operation.

Can I cover the device?

No, never cover the device while operating. This could cause overheating and fire.

What are the dimensions of the Steba KS1?

The exact dimensions are not specified in the manual. It is a compact fan heater type device.

How to obtain a translation of the manual?

On the download page, select your language and enter your email address to receive a translated version.

USER MANUAL KS1 STEBA

GB: This product is only suitable for well insulated spaces or occasional use.

Instructions for use 11

Mode d'emploi 19

PE fur Polyethylen, die Kennziffer 02 fur PE-HD, 04 fur PE-LD, PP

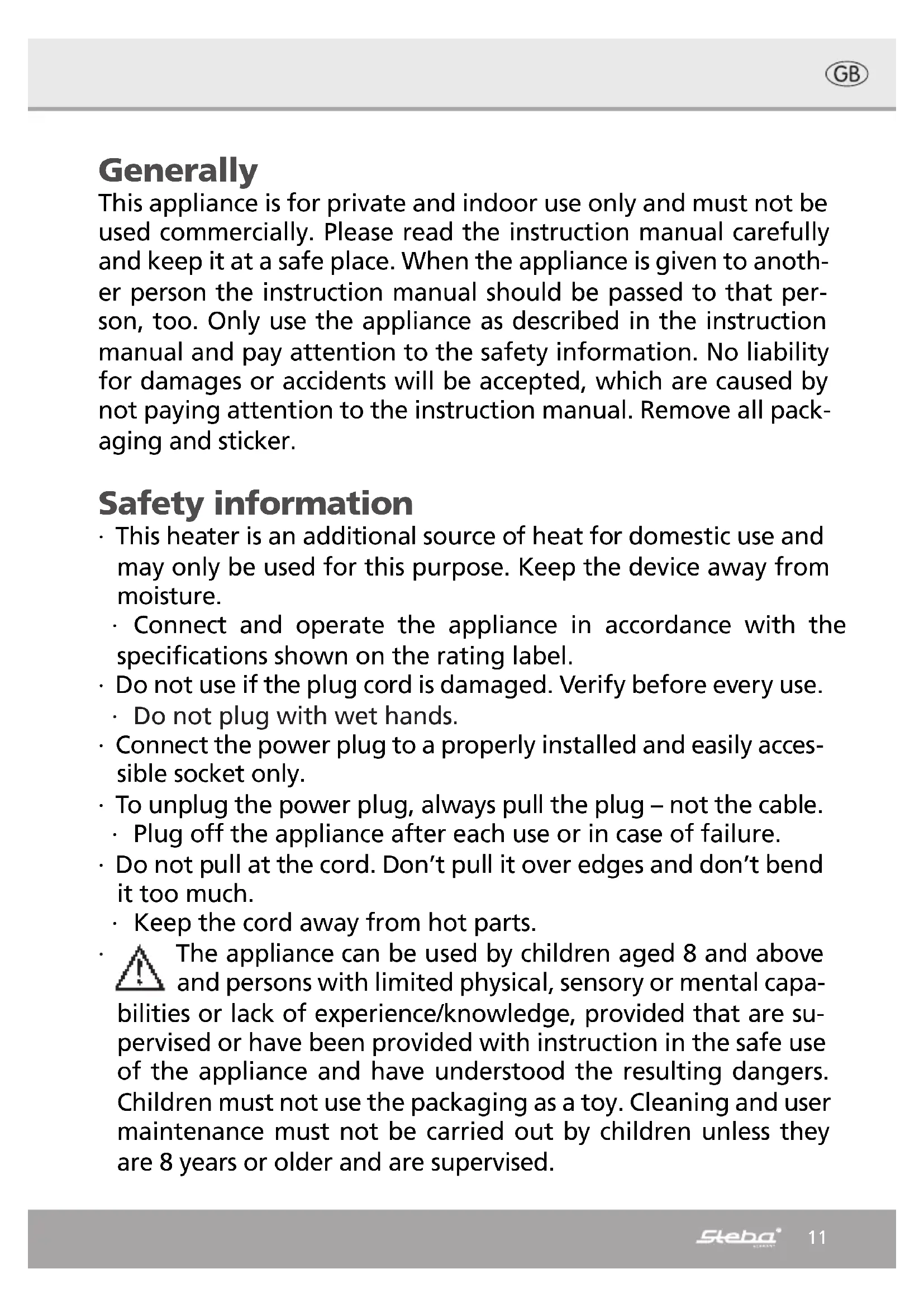

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker.

Safety information

• This heater is an additional source of heat for domestic use and may only be used for this purpose. Keep the device away from moisture.

• Connect and operate the appliance in accordance with the specifications shown on the rating label.

• Do not use if the plug cord is damaged. Verify before every use.

• Do not plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.

• To unplug the power plug, always pull the plug – not the cable.

• Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
• The appliance must not be operated using a timer or a separate remote system!

• Don't leave your home while the appliance is in function: ensure that the switch is in the OFF (0) position.

• Do not leave the appliance outdoors or in a damp area.

WARNING:

In order to avoid overheating, do not cover the heater. Do not hang anything on the heater and do not cover it while it's working.

• Never immerse the unit in water.

• During operation, place the heater in a safe position:

o far (1 mt.) from inflammable objects or furniture.
o if wall mounted, not fixed to wooden or synthetic plastic surfaces.
o leaving the air outlet space free: 1 mt. of free space in front of the heater and 50~cm of free space behind it.
o not located directly below a socket-outlet.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

• The device gets hot, only transport after it cooled down.

• Only use the device as described in this manual.

• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

• Before initial use: Heat up the device for about 15 min. to eliminate the smell of newness.

Attention! Device gets hot. Risk of Burns! Parts of this product may be very hot during operation. The air outlet gets hot during operation. Special attention is when children or vulnerable persons are present.

• If an extension cable is used, it has to have a cross-section of 1.5mm^2 . A cable drum must always be unwound.
• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more then 3680 watts due to fire hazard.
• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
• Do not use the heater in rooms with explosive gas or while using inflammable solvents or varnish or glues.

Cleaning

· Attention!

Pull the plug before cleaning.

• Never immerse the unit into water.

• This product is fitted with a filter to protect the heating element from dust and dirt.

• The filter is removable to be cleaned easily with water.

• To remove the filter just unlock the tab by pressing on it and pull towards you as shown in picture 12.

• To keep the heater in perfect condition, clean the filter once every six months REMEMBERING TO PUT IT BACK AGAIN AFTERWARDS.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

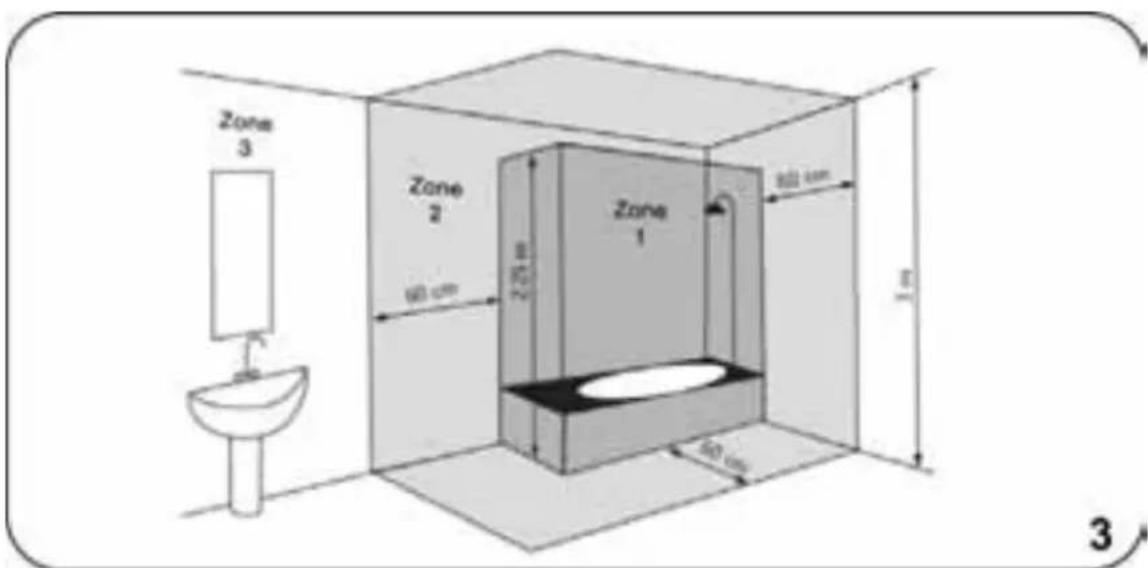

• The appliance must not be used near showers, bathtubs, sinks or swimming pools.
• The adjusting knobs should never be accessible to persons who are in the shower or bathtub to prevent any touching with wet hands.

Operation

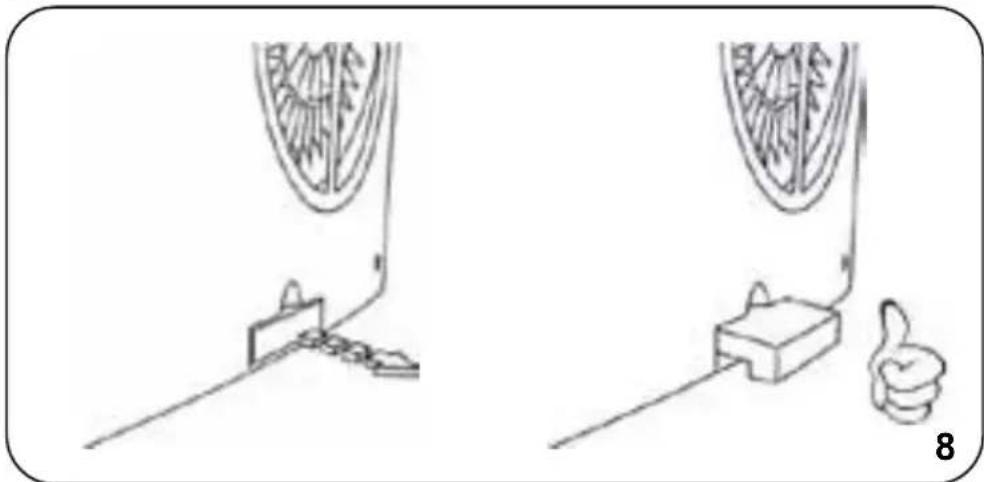

• Extract the foot placed on the back of the appliance as shown in picture 8. Just pull it until you hear a "click" and check that the foot is firmly locked in its extracted position.

• The switch is used to control heater's functioning selecting the off condition, cold air ventilation, warm air (1000W) or hot air (1800W).

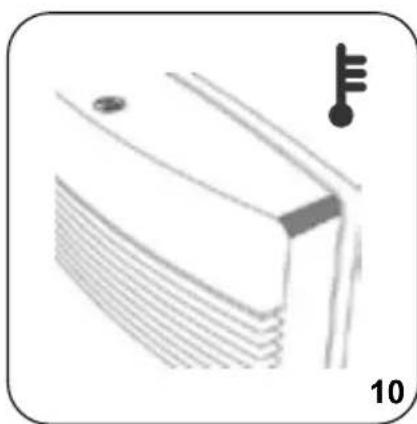

• The heater is also equipped with an alarm light (picture 10) that switches on in case of overheating/ malfunctioning. It is not a power control light and, consequently, it will not switch on during normal functioning.

• Do not put anything on the heater to avoid any overheating/malfunctioning.

Thermostat

• In a room with a temperature exceeding 30^ , the thermostat does not turn on the fan heater even if it is at maximum.
• Vice-versa, in a room with a very low temperature (below 5^ ), it is normal that the thermostat keeps the heater constantly on, even if it is at minimum.
  To optimise the use of the thermostat, proceed as follows:

o turn the thermostat knob to maximum and wait until a comfortable temperature is reached.
o then turn the thermostat knob anti-clockwise until you hear a "click" and the heater turns off.
o turn the thermostat knob clockwise just a little.
o in this position, the thermostat will maintain the selected ambient temperature.

Troubleshooting

• In the event of overheating, the safety device on the appliance automatically disabled the heating elements and motor. As a result, the heater stops working. In this case:

o Turn off the fan heater and allow it to cool down for about 15 minutes.
o Eliminate any other possible reasons for overheating (e.g.: obstructions in front of the air inlet/outlet grilles, build-ups of dirt).
o Turn on the fan heater again and check it works correctly.

Maintenance

This product does not require any special maintenance.
- Clean the product with a dry cloth once every 6 months.
If the product requires repairing, contact an authorised technical service centre.

Information requirements for electric local space heaters

Model identifier: Litho KS 1
Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Heat output				Auxiliary electricity consumption
Nominal heat output	Pnom	1,8	kW	At nominal heat output	elmax	0 kW
Minimum heat output (indicative)	Pmin	0,9	kW	At minimum heat output	elmin	0 kW
Maximum continuous heat output	Pmax,c	1,8	kW	In standby mode	elsb	0 kW
Item Unit
Type of heat input, for electric storage local space heaters only (select one)
manual heat charge control, with integrated thermostat							NO
manual heat charge control with room and/or outdoor temperature feedback							NO
electronic heat charge control with room and/or outdoor temperature feedback							NO
fan assisted heat output							NO
Type of heat output/room temperature control (select one)
single stage heat output and no room temperature control							NO
Two or more manual stages, no room temperature control							NO
with mechanic thermostat room temperature control							YES
with electronic room temperature control							NO
electronic room temperature control plus day timer							NO
electronic room temperature control plus week timer							NO
Other control options (multiple selections possible)
room temperature control, with presence detection							NO
room temperature control, with open window detection							NO
with distance control option							NO
with adaptive start control							NO
with working time limitation							NO
with black bulb sensor							NO
Contact details	Steba Elektrogeräte GmbH & Co.KG Pointstr. 2 96129 Strullendorf

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
