USER MANUAL VE.701 Beper

• MOUSTIQUAIRE MANUEL D'INSTRUCTIONS

Exterior view of a beper vacuum cleaner with blue mesh enclosure (no visible text or symbols)

ITALIANO pag. 3

ENGLISH pag. 8

FRANÇAIS pag. 13

DEUTSCH pag. 18

ESPAÑOL pag. 23

ΕΛΛΗΝΙΚΗ pag. 28

For further information and/or for instructions for use in other languages, please visit: beper.com

Fig. 1

1 2 3-4 5

Fig. 2

Close-up of a shopping cart interior with mesh grille and partial view (no visible text or symbols)

Close-up of a mechanical device with wires and components, no visible text or symbols

Close-up of hands operating a mechanical device with a grid-patterned handle (no visible text or symbols)

Close-up of a mechanical component with metallic parts and a central shaft (no visible text or symbols)

AVVERTENZE GENERALI

LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPAREC-CHIO.

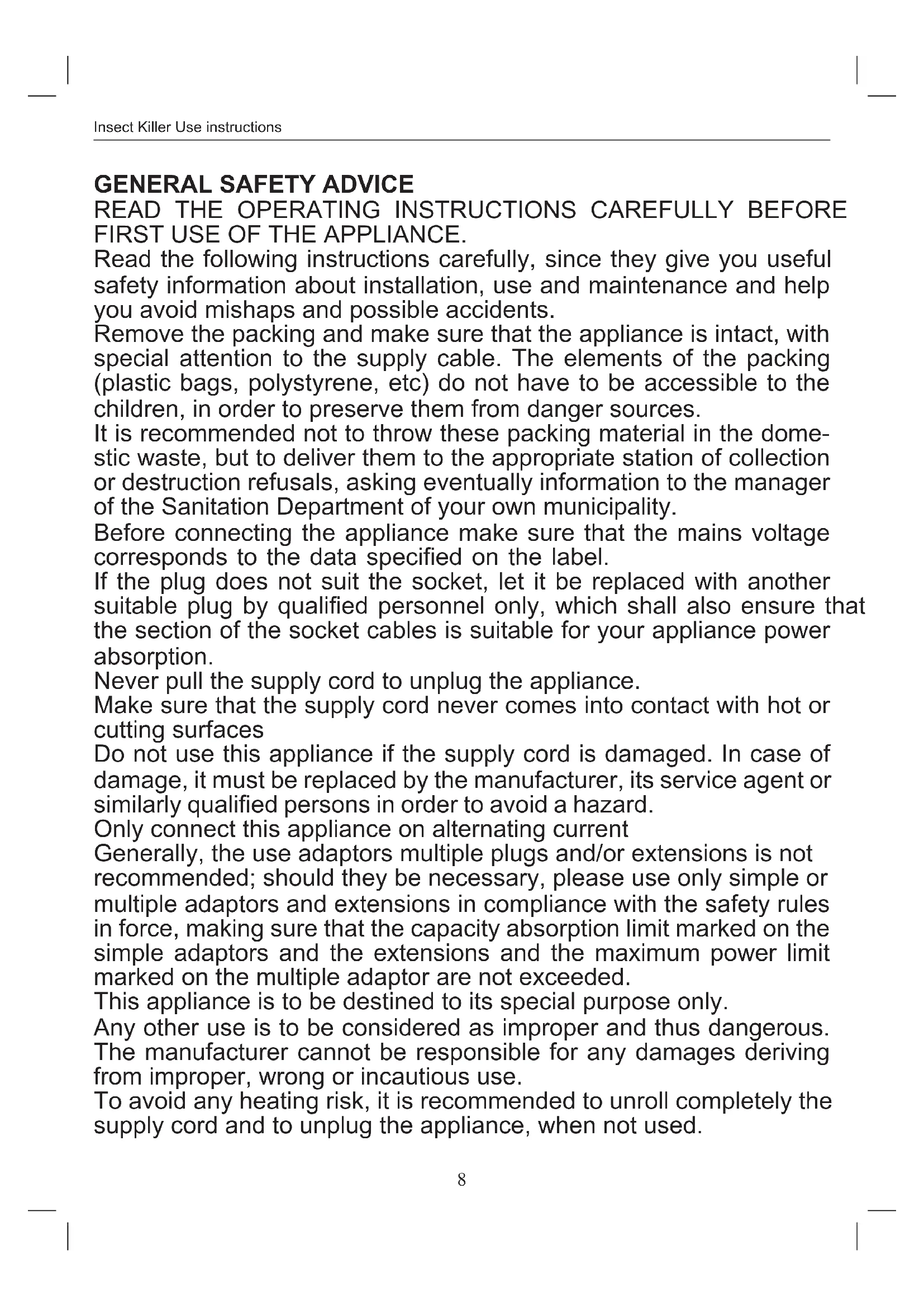

GENERAL SAFETY ADVICE

READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE FIRST USE OF THE APPLIANCE.

Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.

Remove the packing and make sure that the appliance is intact, with special attention to the supply cable. The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources.

It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.

Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.

If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.

Never pull the supply cord to unplug the appliance.

Make sure that the supply cord never comes into contact with hot or cutting surfaces

Do not use this appliance if the supply cord is damaged. In case of damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Only connect this appliance on alternating current

Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.

This appliance is to be destined to its special purpose only.

Any other use is to be considered as improper and thus dangerous.

The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.

To avoid any heating risk, it is recommended to unroll completely the supply cord and to unplug the appliance, when not used.

Before cleaning, always unplug the appliance.

To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.

Do not hold the appliance with wet hands or feet.

Do not hold the appliance with naked feet.

Do not expose the appliance to atmospheric agents such as rain, wind, snow, hail.

Do not use the appliance near explosives, highly flammable materials, gases, burning flames, heaters.

Do not allow children, disabled people or every people without experience or technical ability to use the appliance if they are not properly watched over. Close supervision is necessary when any appliance used by or near children.

Make sure that children do not play with this appliance.

If you decide not to use the appliance any longer, make it unservice-able by simply cutting the supply cable after disconnecting the plug from the socket.

ALSO MAKE ANY DANGEROUS PARTS UNSERVICE-ABLE, ESPECIALLY FOR CHILDREN WHO COULD PLAY WITH THE APPLIANCE.

INSTRUCTION FOR USE

Place the electric insect killer on a stable surface, minimum at 240 cm high from the ground.

Do not place the electric insect killer on inflammable objects or near gas, smoke explosive substances or steam.

Do not place the electric insect killer near curtains, shower/bath, swimming pool, or near any damp place; keep away from heat sources higher than 50^ C. Do not expose the appliance to rain, sun, etc...

Do not put your hands/fingers or any objects into the protection grid.

Do not cover the electric insect killer with fabric or others materials; that could be very dangerous and cause fire.

Do not use the electric insect killer near opened windows or doors that could be dangerous in case of bad weather conditions.

If the appliance is wet, do not use it until it is completely dry.

Do not touch the electric insect killer with damp or wet hands, or if you do not wear shoes.

Do not pull on the supply cord to unplug the appliance.

Always unplug the electric insect killer if you need to move it, to clean it, to assembly or disassembly the appliance.

Attention: do not fold the intern metallic grid.

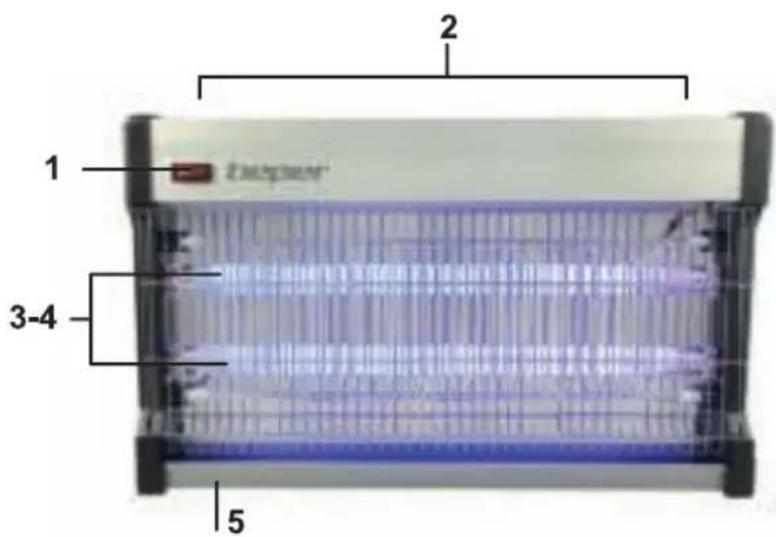

PRODUCT AND ACCESSORIES

1. Switch on/off
2. Fixing chain
   3.4. Neon lights (15W)
3. Slide base plate

INSTRUCTION FOR USE

Place the appliance following carefully the instructions mentioned above.

Plug the supply cord in the supply power.

Switch on the appliance by pressing the button on/off (1).

The Neon lights (3 and 4) will light and the insects naturally attracted by the UV light will fly to the electric metallic grid and will be fulminated instantaneously.

The insects will fall into the slide base plate (5).

After use, switch off the appliance by pressing the button on/off (1).

CLEANING AND CARE

Cleaning of the slide base plate and the grid

Before cleaning, switch off the appliance and unplug the supply cord.

Remove the slide base plate (5), empty and wash it using a detergent.

Replace the slide base plate.

Clean the metallic grid into the appliance with a flexible brush. Do not let insects on the grid.

Do not use metallic products to clean the appliance.

The plastic external parts can be cleaned with a soft cloth, water and natural detergent. Do not immerge into water.

Make sure that every parts are completely dry before using again.

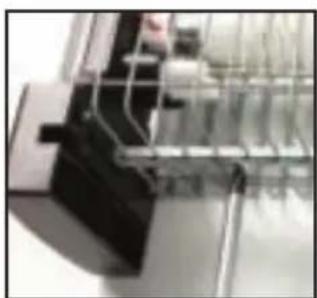

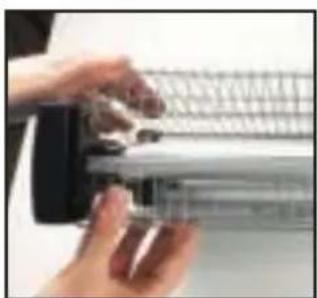

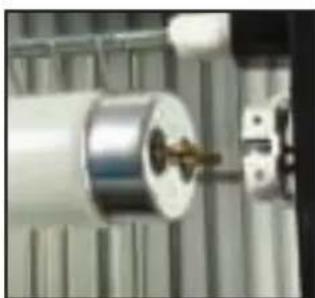

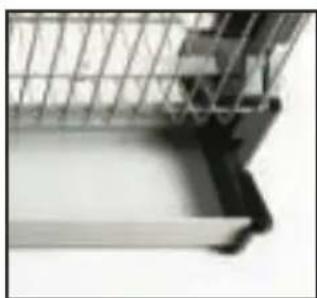

Replace UV neons Fig.2

To replace the UV neon, follow these steps:

1. Before starting any operation MAKE SURE TO UNPLUG THE DEVICE.
2. Take out the slide base plate.
3. Remove the screws from the bottom of the insect killer with a screwdriver.
4. Remove the two external protection grids.
5. Replace the tubes (as shown in the figure).
6. Reassemble the insect killer by repating these operations backwards

Attention: Make sure that the spare parts have the same features.

TECHNICAL DATA

Power: 30W

Power supply: 220-240V\~50-60Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

GUARANTEE CERTIFICATE

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

GUARANTEE CONDITIONS

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• The appliance has not been tampered with, otherwise it is not maintainable.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

TECHNICAL ASSISTANCE

Even after the guarantee period we will always pay attention to repairs for defected appliances.

For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

CONTACT YOUR DISTRIBUTOR IN YOUR COUNTRY OR ATER SALES DEPARTMENT BEPER. E-MAIL [e-mail] WHICH WILL FORWARD YOUR ENQUIRIES TO YOUR DISTRIBUTOR.

PRECAUTIONS GENERALES

LIRE ATTENTIVEMENT LES INSTRUCTIONS SUIVANTES AVANT LA PREMIERE UTILISATION DE L'APPAREIL.

DESCRIPTION DU PRODUIT Fig.1

CONDITIONS DE GARANTIE

PRODUCTO Y ELEMENTOS ACCSESORIOS Fig.1

1. Interruptor encendido-apagado;
2. Colgantes;
   3.4. Tubos luminosos 2x15 Vatios;
   5.Bandeja extraible recoje-insectos;
