USER MANUAL NT 301 Tact Te Kärcher

NT 30/1 Tact Te M NT 40/1 Tact Te M NT 50/1 Tact Te M

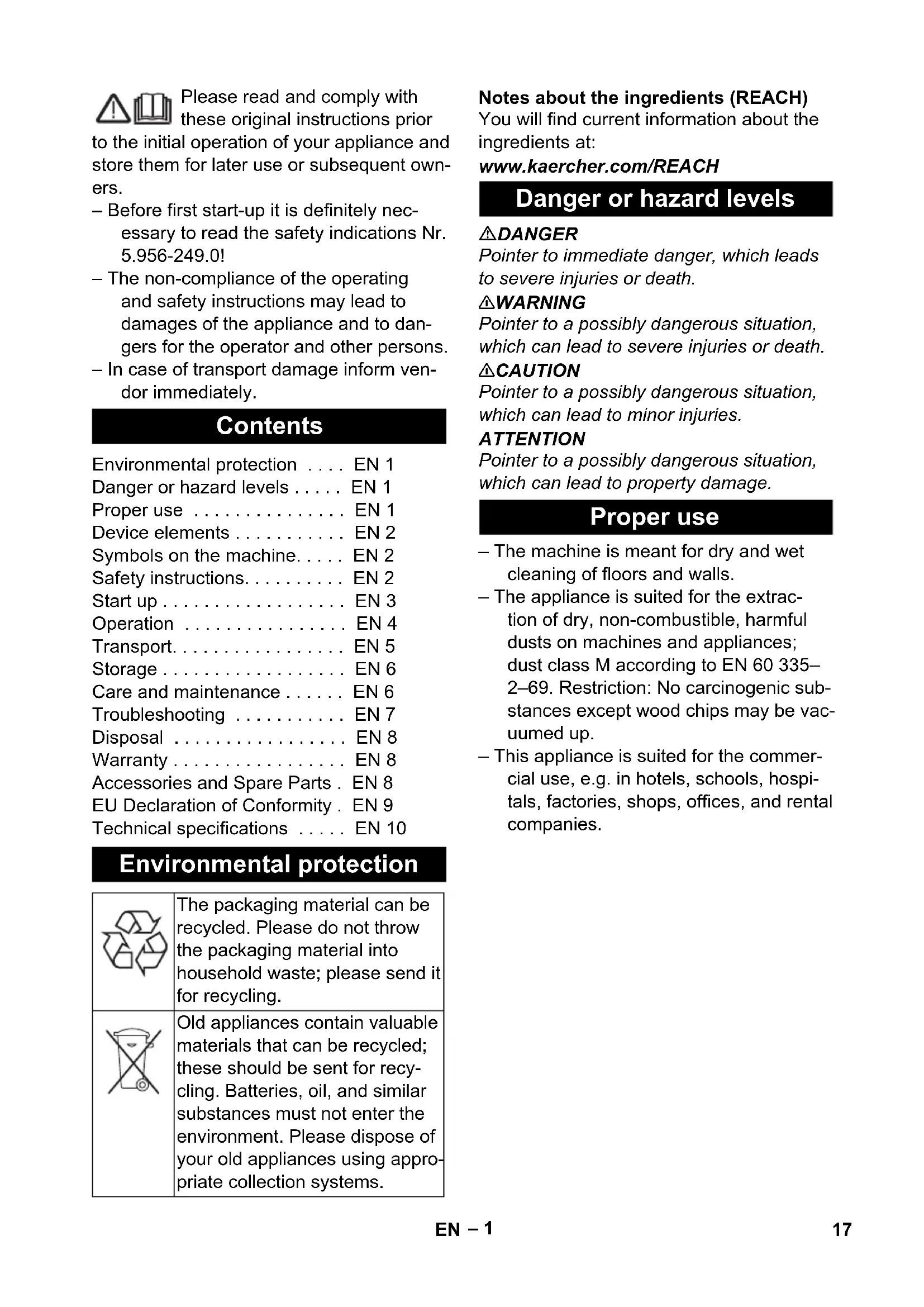

Teile-Nr. Kabellänge EU 6.650-665.0 7,5 m GB 6.650-728.0 7,5 m CH 6.650-726.0 7,5 m AU 6.650-727.0 7,5 m 16 DE– 1 Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent own- ers. – Before first start-up it is definitely nec- essary to read the safety indications Nr. 5.956-249.0! – The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dan- gers for the operator and other persons. – In case of transport damage inform ven- dor immediately. Notes about the ingredients (REACH) You will find current information about the ingredients at: www.kaercher.com/REACH DANGER Pointer to immediate danger, which leads to severe injuries or death. 몇 WARNING Pointer to a possibly dangerous situation, which can lead to severe injuries or death. 몇 CAUTION Pointer to a possibly dangerous situation, which can lead to minor injuries. ATTENTION Pointer to a possibly dangerous situation, which can lead to property damage. – The machine is meant for dry and wet cleaning of floors and walls. – The appliance is suited for the extrac- tion of dry, non-combustible, harmful dusts on machines and appliances; dust class M according to EN 60 335– 2–69. Restriction: No carcinogenic sub- stances except wood chips may be vac- uumed up. – This appliance is suited for the commer- cial use, e.g. in hotels, schools, hospi- tals, factories, shops, offices, and rental companies. Contents Environmental protection ... EN 1 Danger or hazard levels ... EN 1 Proper use ... EN 1 Device elements ... EN 2 Symbols on the machine... EN 2 Safety instructions... EN 2 Start up ... EN 3 Operation ... EN 4 Transport... EN 5 Storage ... EN 6 Care and maintenance ... EN 6 Troubleshooting ... EN 7 Disposal ... EN 8 Warranty ... EN 8 Accessories and Spare Parts . EN 8 EU Declaration of Conformity . EN 9 Technical specifications ... EN 10 Environmental protection The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling. Old appliances contain valuable materials that can be recycled; these should be sent for recy- cling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appro- priate collection systems. Danger or hazard levels Proper use 17EN– 2 1 Electrodes 2 Suction support 3 Suction hose 4 Hose hook 5 Push handle lock (NT 50/1 only) 6 Crevice nozzle 7 Air outlet, working air 8 Suction head 9 Suction head lock 10 Recessed grip 11 Dirt receptacle 12 Steering roller 13 Handle 14 Air inlet, motor cooling air 15 Stopper 16 Floor nozzle 17 Suction tube 18 Stop for tool box 19 Rubber sleeve, screwable 20 Fixing eyelet 21 Filter cover 22 Carrying handle 23 Suction force regulator (continuous) 24 Tool adapter 25 Push handle (NT 50/1 only) 26 Rotary switch for suction hose cross section 27 Scale of the suction hose cross section 28 Rotating knob with suction output regu- lation 29 Socket 30 Floor nozzle holder 31 Drain hose (NT 50/1 only) 32 Holder for suction pipe 33 Cable hook (NT 50/1 only) 34 Bender 35 Power cord 36 Bender holder (NT 30/1, NT 40/1 only) 37 Filter frame 38 Flat fold filter (PES) 39 Filter dedusting 40 Nameplate DANGER – When the outgoing air is carried back into the room, a sufficient ventilation rate L in the room must be ensured. To comply with the required limit values the carried back volume flow must be 50% of the fresh air volume flow (room vol- ume V

) at maxi- mum. Without a specific ventilation sys- tem the following applies: L

– Only persons trained in the use of the machine and the handling of substanc- es for which the machine is to be used including training in the safe disposal of the sucked-in material may use the ma- chine. – This appliance contains harmful dust. Evacuation and maintenance work, in- cluding the disposal of the dust collec- tion containers, may only be performed by specialists who wear the appropriate protective equipment. – Do not use the appliance without the complete filtering system. Device elements Symbols on the machine

WARNING: This unit contains hazardous

dust. Emptying and maintenance, includ- ing the removal of the dust bag, may only be carried out by someone who is familiar with the unit and wearing suitable protec- tive gear. Do not switch on the unit until the complete filter system has been installed and the function of the volume-flow control has been tested. Flat fold filter (PES) Order No. 6.907-662.0 Flat fold filter (PTFE) Order No. 6.907-455.0 Safety instructions

18 EN– 3 – Please follow the safety regulations ap- plicable to the materials that are to be treated. – Press the parking brake to the steering roller for a secure footing. The device may move uncontrollably if the parking brake is open. If the device is operated without a flat fold filter, it automatically switches off. The appliance allows 2 operating modes: 1 Industry vacuum cleaner mode (socket not used) 2 Dedusting mode (socket used) Connect the suction hose and insert the suction nozzle or connect to the dust- generating device depending on the op- erating mode. 몇 WARNING The flat pleated filter must always be in place while vacuuming. 몇 WARNING Do not vacuum without the filter elements; otherwise, the suction motor can get dam- aged and this can be hazardous to health on account of increased release of fine dust particles. The horn blows (interval tone) when the air speed falls below 20 m/s. Note: The horn reacts to negative pressure. Set the rotary switch to the correct suc- tion hose cross-section. The horn blows (permanent tone) when the cooling air filter is clogged. Allow appliance to cool down. Clean/re- place the cooling air filter. Static charge is deflected by providing earthing to the connection nozzles. This prevents the formation of sparks and cur- rent shocks with attachments with electrical conductivity (included in the delivery). – NT 30/1: The device is equipped with a fleece filter bag with a lock cap, order no. 2.889-154.0 (5 units). – NT 40/1, NT 50/1: The device is equipped with a fleece filter bag with a lock cap, order no. 2.889-155.0 (5 units). – The device is equiped with a dust bag with cable ties, order no. 2.889-231.0 (10 pieces). Note: You can use this appliance to take up all types of dust up to dust class M. It is stat- utorily necessary to use a dust collection bag (see Filter systems for order number). Note: The appliance is suited as industrial vacuum cleaner and as dedusting device for the mobile operation to take up dry, non- combustible dusts with AGW values great- er than or equal to 0.1 mg/m

– When vacuuming up fine dust, an addi- tional fleece filter bag or a dust bag must additionally be used. Illustration Release and remove the suction head. Insert the fleece filter bag. Insert and lock the suction head. Illustration Release and remove the suction head. Insert the disposal bag. Pull disposal bag over the container. Make sure that the marking line is situ- ated within the container and both ven- tilation holes are positioned at the back of the container. Insert and lock the suction head. Safety Devices Monitoring of the flat fold filter Start up Horn Interval tone Permanent tone Anti-static system Dry vacuum cleaning Install fleece filter bag Installing the dust disposal bag 19EN– 4 DANGER No dusts hazardous to health should be sucked in during wet vacuuming. Illustration Remove the brush strips. Install the rubber lips. Illustration Precisely fit the plug into the suction connection. Insert the plug up to the stop. Illustration Release and remove the suction head. Pull out the fleece filter bag on the flange towards the top. Tightly close the fleece filter bag with lock cap. Dispose of the fleece filter bag accord- ing to the local provisions. Insert and lock the suction head. – To suck wet dirt, first remove the fleece filter bag. Illustration Release and remove the suction head. Put the disposal bag over. Tightly close the disposal bag with ca- ble tie underneath the opening. Remove disposal bag. Dispose of the disposal bag according to the local provisions. Insert and lock the suction head. – To suck wet dirt, always remove the dis- posal bag. NT 50/1 only: Illustration Drain off dirty water through the drain- age hose. – If wet dirt is vacuumed with the uphol- stery or crevice nozzle, or if water is sucked up from a container, it is recom- mended to deactivate the "automatic fil- ter cleaning" function. – If the maximum liquid level is reached the appliance will turn off automatically. – In case of non-conductive liquids (such as emulsion drilling fluids, oils, and greases) the appliance is not turned off when the container is full. The filling level must be continu- ously monitored and the container must be emptied in time. – After the wet vacuuming: Clean the flat folded filter with the filter cleaning. Clean the electrodes with a brush. Clean the container with a damp rag and dry it. Illustration The suction hose is equipped with a clip system. All accessories with a nominal width of 35 mm can be connected. Plug in the mains plug. Set the rotary switch to the desired pro- gram. Wet vacuum cleaning Inserting the rubber lips Close the suction connection Remove the fleece filter bag Removing the dust disposal bag Drain off dirt water General Clip connection Operation Rotating knob Appliance OFF – Appliance ON – Automatic filter cleaning: OFF – Set the suction output (min - max) – Appliance ON – Automatic filter cleaning:

– Set the suction output (min - max) (eco = energy saver mode) Turning on the Appliance 20 EN– 5 DANGER Risk of injury and damage! The socket out- let is only for the connection of power tools to the vacuum cleaner. Any other use of the socket outlet is not permitted. Connect the mains plug of the electric power tool to the vacuum cleaner. The vacuum cleaner is in standby mode. Switch on the appliance at the rotating knob. Note: The vacuum cleaner is turned on and off automatically with the electric power tool. Note: The vacuum cleaner starts automat- ically within 0.5 seconds and continues to run for 15 seconds after the power tool has being switched off. Note: Please refer to "Technical specifica- tions" for the power connection specifica- tions of the power tools. Illustration Remove the elbow from the suction hose. Attach the tool adapter to the suction hose. Illustration Connect the tool adapter to the electric power tool. Note: The different suction hose sections are required to allow an adjustment to the connection sections of the processing tools. Set the minimum volume flow for the suction hose cross section at the rotary switch. The scale displays the suction hose cross section. Note: To use the appliance as dedusting device for the mobile operation (processing tool connected to the vacuum cleaner) the built-in monitoring must be adjusted to the connected processing tool (dust-generat- ing device). This means that the user must be warned if the minimum volume flow of 20 m/s that is required for the suction is fall- en short of. The appliance has an special filter cleaning system that is particularly effective with fine dust. The flat pleated filter is automatically cleaned every 7.5/15/60 seconds (depend- ing on the application) through an air jet (pulsating sound). Set the rotary switch to program 2 (TACT AUTO). Illustration Power dedusting (especially with se- vere soiling of the flat pleated filter): Set the rotary switch to program 2, cover the suction tube or the bender with your hand and wait for the automatic filter dedusting (every 15 seconds). Switch off the appliance at the rotating knob. Pull out the mains plug. Empty the container. Vacuum and wipe the appliance inside and outside with a damp cloth. NT 50/1 only: Loosen the push handle lock and adjust the push handle. Illustration Store the suction hose and the mains cable as shown in the illustration. Place the appliance in a dry room and secure it from unauthorized use. 몇 CAUTION Risk of injury and damage! Observe the weight of the appliance when you transport it. Close the suction connection, see wet vacuuming. Working with electrical power tools Automatic filter cleaning Turn off the appliance After each operation Fold the push handle in/out Storing the Appliance Transport 21EN– 6 Remove the suction pipe with the floor nozzle from the holder. Hold the appli- ance by the handle and at the suction pipe to transport it, not by the push han- dle. When transporting in vehicles, secure the appliance according to the guide- lines from slipping and tipping over. 몇 CAUTION Risk of injury and damage! Note the weight of the appliance in case of storage. This appliance must only be stored in inte- rior rooms. DANGER First pull out the plug from the mains before carrying out any tasks on the machine. Dust extracting machines are safeguards for the prevention or elimination of hazards defined in the regulations of BGV A1. – In order to carry out maintenance work, the user must disassemble, clean and service the unit, in so far as this is pos- sible without endangering maintenance personnel and other persons. Suitable precautions include decontamination before the unit is disassembled. Pre- cautions must be taken for local filtered forced air ventilation at the place where the unit is disassembled, the cleaning of the maintenance surface and suitable protection of the personnel. – The outside of the unit should be cleaned thoroughly and any harmful substances removed. Alternatively, a sealed coating may be applied before the unit is removed from the danger ar- ea. All unit parts are to be considered contaminated when they are removed from the danger area. To avoid distribu- tion of the dust, you must take the ap- propriate measures. – In the framework of maintenance and repair work all contaminated objects that cannot be cleaned satisfactorily must be disposed of. Such objects must be disposed of in impermeable bags in accordance with the valid provisions for the disposal of such waste. – When transporting or maintaining the device, the suction opening must be closed with the plug. 몇 WARNING Safety equipment for preventing hazards must be serviced and maintained regularly. This means that the manufacturer's staff or persons trained by the manufacturer must check the equipment for proper functioning at least once a year, i.e. check for leaks, fil- ter damage, functioning of the controlling elements, etc. ATTENTION Risk of damage! Do not use detergents containing silicone to clean. – No outside help is required for carrying out basic maintenance and cleaning. – The appliance surface and the inside of the container should be cleaned regu- larly using a damp cloth. DANGER Risk due to dust hazardous to health. Al- ways use disposal clothing and P2 or higher breath-safe masks while carrying out main- tenance tasks (such as changing filters). Illustration Open filter door. Remove filter frame. Take out the flat folded filter. Dispose of the used flat-folded filter ac- cording to the statutory provisions. Remove the dirt that has accumulated on the pure air side. Insert new flat-folded filter. During placement, make sure that the flat fold filter rests against all sides. Insert filter frame. Close the filter door, it must lock into place. Storage Care and maintenance Exchanging the flat pleated filter 22 EN– 7 Illustration Close the suction connection, see wet vacuuming. Illustration Release and remove the suction head. Pull out the fleece filter bag on the flange towards the top. Tightly close the fleece filter bag with lock cap. Dispose of the fleece filter bag accord- ing to the local provisions. Insert the new fleece filter bag. Insert and lock the suction head. Illustration Release and remove the suction head. Put the disposal bag over. Tightly close the disposal bag with ca- ble tie underneath the opening. Remove disposal bag. Dispose of the disposal bag according to the local provisions. Insert the new disposal bag. Pull disposal bag over the container. Make sure that the marking line is situ- ated within the container and both ven- tilation holes are positioned at the back of the container. Insert and lock the suction head. Illustration Allow device to cool down. Release the cooling air flaps with screwdriver and swivel them out. Clean (vacuum, wash) or replace the cooling air filter. Fold in the cooling air flaps and snap them in place. Release and remove the suction head. Clean the electrodes with a brush. Insert and lock the suction head. DANGER First pull out the plug from the mains before carrying out any tasks on the machine. Note: In case of a failure (e.g. filter break- age) the appliance must be turned off im- mediately. The failure must be remedied before the appliance is put into operation again. Check the receptacle and the fuse of the power supply. Check the power cable, the power plug, the electrodes and the receptacle of the device. Turn on the appliance. Empty the container. Insert flat folded filter. Turn off the appliance and wait for 5 sec- onds, turn it on again after 5 seconds. Clean the electrodes as well as the space between the electrodes with a brush. Remove blockages in the suction noz- zle, suction tube, suction hose, or flat pleated filter. Replacing the full fleece filter bag. Replace the filled disposal bag Ensure the filter cover properly locks into place. Replace the flat pleated filter. NT 50/1 only: Check drain pipe for leaks. Replacing the fleece filter bag/dust bag Close the suction connection Exchange the fleece filter bag Replace the disposal bag Clean/replace the cooling air filter Cleaning the electrodes Troubleshooting Suction turbine does not run Suction turbine turns off Suction turbine does not start again after the container has been emptied Suction capacity decreases 23EN– 8 Illustration Check/correct the correct positioning of the flat pleated filter. Replace the flat pleated filter. Clean the electrodes as well as the space between the electrodes with a brush. Continuously check the filling level in case of non-conductive liquid. Set the rotary switch to the correct suc- tion hose cross-section. If the fleece filter bag is full and the min- imum volume flow is fallen short of it has to be replaced. If the disposal bag is full and the mini- mum volume flow is fallen short of it has to be replaced. Replace the flat pleated filter. Allow appliance to cool down. Clean/re- place the cooling air filter. Suction hose is not connected. Inform Customer Service. Inform Customer Service. If malfunction can not be fixed, the de- vice must be checked by customer ser- vice. At the end of its lifetime the appliance is to be disposed of according to the statutory provisions. The warranty terms published by the rele- vant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in man- ufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com. Dust comes out while vacuuming Automatic shut-off (wet vacuum cleaning) does not react Horn sounds - interval tone Horn sounds - permanent tone Automatic filter cleaning is not working Automatic filter cleaning cannot be switched off Automatic filter cleaning cannot be switched on Customer Service Disposal Warranty Accessories and Spare Parts 24 EN– 9 We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. 5.966-337 The undersigned act on behalf and under the power of attorney of the company man- agement. Authorised Documentation Representative S. Reiser Alfred Kärcher GmbH Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Phone: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2017/01/01 EU Declaration of Conformity Product: Wet and dry vacuum cleaner Type: 1.148-xxx Relevant EU Directives 2006/42/EC (+2009/127/EC) 2014/30/EU 2011/65/EU Applied harmonized standards EN 55014–1: 2006+A1: 2009+A2: 2011 EN 55014–2: 2015 EN 60335–1 EN 60335–2–69 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN 62233: 2008 EN 50581 Applied national standards

Type of protection -- IPX4 IPX4 IPX4 Protective class -- I I I Diameter of the suction hose mm 35 35 35 Length of the suction hose m 4.0 4.0 4.0 Length x width x height mm 560 x 370 x

www.kaercher.com/REACH
