43UM7000PLA - Television LG - Free user manual and instructions

Product Type	LED TV (LCD screen with LED backlight)
Screen Size	43 inches (109 cm)
Resolution	4K UHD (3840 x 2160 pixels)
Tuner	DVB-T/T2/C/S/S2 (digital) and PAL/SECAM (analog)
Connectivity	HDMI (x3), USB (x2), LAN Ethernet, Wi-Fi 802.11a/b/g/n/ac, Bluetooth
Supported audio formats	Dolby Digital, Dolby Digital Plus, DTS, PCM (depending on model)
Power Supply	100-240 V ~ 50/60 Hz (depending on country)
Wall mount (VESA standard)	200 x 200 mm
Remote Control	Magic Remote (AN-MR19BA) Bluetooth compatible
Smart Features	Smart TV, app access, SmartShare, automatic software update
Maintenance	Wipe with a soft, dry cloth; do not use chemicals or water directly on the screen
Safety	Do not expose to rain, moisture, or heat sources; use a sturdy wall mount; unplug during thunderstorms
Repairability	Use only LG approved parts; contact customer service for any repairs
Warranty	Refer to the warranty terms provided with the product

Frequently Asked Questions - 43UM7000PLA LG

How to install the TV on a wall mount?

Make sure the wall mount is VESA 200x200 mm compatible. Attach the eye bolts to the back of the TV, tie a strong cord between the bolts and the wall mount for added safety. Use the provided screws or those conforming to VESA standards. It is recommended to hire a professional.

Why isn't my Magic Remote working?

Check that the batteries are installed correctly (polarity respected) and are charged. Point the remote towards the TV sensor. If it is not paired, press and hold the OK button while pointing at the TV. If the problem persists, restart the TV.

How to connect a game console to the TV?

Use a certified HDMI cable to connect the console to one of the TV's HDMI ports. Select the corresponding input source using the INPUT button on the remote. For optimal quality, enable HDMI ULTRA HD Deep Colour in the settings if your console supports 4K.

What to do if the screen does not turn on?

Check that the power cord is properly connected to the TV and the wall outlet. Test the outlet with another device. Press the POWER button on the TV (under the panel) or on the remote. If nothing happens, unplug the cord, wait 30 seconds, and plug it back in.

How to update the TV software?

Go to [Settings] > [All Settings] > [General] > [About This TV] > [Updates]. You can enable automatic updates. Make sure the TV is connected to the Internet. The update may take a few minutes.

What is the procedure for cleaning the screen?

Unplug the TV. Use a soft, dry cloth (microfiber) to gently wipe the screen. Never spray water or cleaner directly on the screen. If necessary, lightly dampen the cloth with water and wring it well before wiping. Do not use solvents, alcohol, or abrasive products.

Can I use an uncertified HDMI cable?

It is recommended to use a certified HDMI cable with the HDMI logo. Uncertified cables may cause no display or connection errors, especially for 4K content. For optimal reliability, use a high-speed cable (max. 3 m).

How to access network settings?

Press the Settings button on the remote, select [All Settings], then [Connection]. You can choose a wired (Ethernet) or Wi-Fi connection. For Wi-Fi, select the network and enter the security key if necessary. Check the connection status in [Advanced Wi-Fi Settings].

What does the message 'No signal' mean?

This means the selected input source is not receiving any signal. Check that the connected device (antenna, console, etc.) is turned on and properly connected. Make sure you have selected the correct input source with the INPUT button. If using an antenna, check its orientation.

Where to find the TV serial number?

The serial number is indicated on a label on the back and side of the TV. It is also mentioned in the menu [Settings] > [All Settings] > [General] > [About This TV]. Note it down for any technical support.

USER MANUAL 43UM7000PLA LG

MANUEL D'UTILISATION

Sécurité et ↔

Téléviseur LED*

RISQUE D'LECTROCUTION NE PAS OUVRIR

AVERTISSEMENT: AFIN DE RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU L'ARRÊRÉ). AUCUNE PIECE N'EST REPARABLE PAR L'UTILISATEUR LUI-MÉME. CONFIEZ L'ENTRETIEN DE CET APPAREIL À UN PERSONNEL QUALIFIÉ.

• Image shown may differ from your TV.
• Image shown on a PC or mobile phone may vary depending on the OS(Operating System).
• App icon positions may vary on the platform, depending on the software version.

Network Settings

1 Press the Settings) on the remote to access the settings menu. Point the 1 Settings] icon and select by pressing the Wheel (OK) button on the remote.

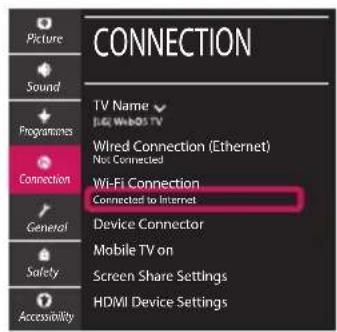

4 If the connection is successful, the "[Connected to Internet]" is displayed.

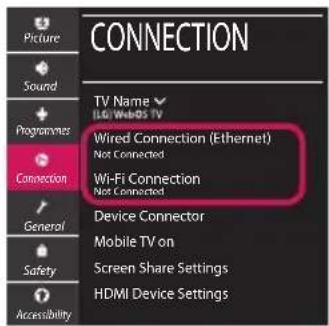

2 Select the [Connection] [Wired Connection(Ethernet)] or [Wi-Fi Connection].

You can check the status of connection in [Advanced Wi-Fi settings].

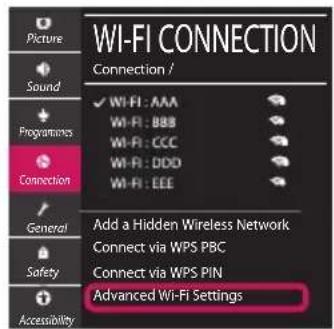

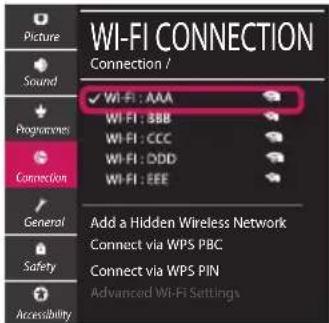

3 The device automatically tries to connect to the network available (wired network first). When you select the [Wi-Fi Connection], the network list available is displayed. Choose the network you wish to use.

For wireless AP (Router) that have the symbol, you need to enter the security key.

Troubleshooting Network Problems

1 Press the Settings) on the remote to access the settings menu. Point the (A) Settings] icon and select by pressing the Wheel (OK) button on the remote.

2 Select the [Connection] [Wired Connection (Ethernet)] or [Wi-Fi Connection] [Advanced Wi-Fi Settings].

→

Follow the instructions below that correlate to your network status.

Check the TV or the AP (Router).

When X appears next to TV:

1 Check the connection status of the TV, AP (Router).
Power off and power on the TV, AP (Router).
If you are using a static IP, enter the IP directly.
Contact internet service provider or AP (Router) company.

Check the AP (Router) or consult your Internet service provider.

When X appears next to Gateway:

Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
2 Initialize (Reset) the AP (Router).
Contact internet service provider or AP (Router) company.

When X appears next to DNS:

Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
Initialize (Reset) the AP (Router).
3 Check that the MAC address of the TV/AP (Router) is registered with your Internet service provider. (The MAC address displayed on the right pane of the network status window should be registered with your Internet service provider.)
4 Check the AP (Router) manufacturer's website to make sure your router has the latest firmware version installed.

SmartShare Connection to Smartphone

1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network.
2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones).
3 Enable your smartphone to share content files with other devices.
4 Select the file type you want to play (movie, audio or photo).
5 Select a movie, music or photo file to play on the TV.
6 Play the media file to view and enjoy it on your TV.

Updating the TV Firmware

• If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes.

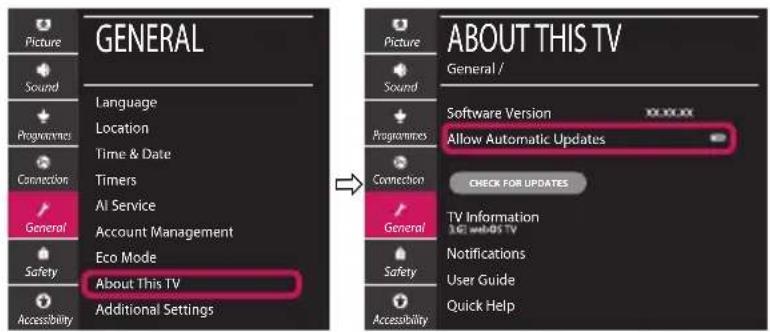

1 (Settings) [All Settings] [General] [About This TV] [CHECK FOR UPDATES]
2 After checking the version of the software, update it. If you check the "[Allow Automatic Updates]", you can update the software automatically.
