Product type	Sports smartwatch
Brand	TicWatch
Model	S2
Operating system	Wear OS by Google
Display	1.39-inch AMOLED, 400 x 400 pixels, 287 ppi
Processor	Qualcomm Snapdragon Wear 2100
RAM	512 MB
Storage memory	4 GB
Bluetooth connectivity	Bluetooth 4.1 / BLE
Wi-Fi connectivity	Wi-Fi 802.11 b/g/n 2.4 GHz
GPS	GPS / GLONASS / BeiDou
Sensors	Optical heart rate monitor, accelerometer, gyroscope
Battery	415 mAh lithium-ion
Strap width	22 mm
Smartphone compatibility	Android 4.4+ / iOS 9.0+
Voice assistant	Built-in Google Assistant
Pre-installed apps	Google Fit, Mobvoi
Charging	Magnetic charger
Box contents	Smartwatch, charger, user manual
Care	Clean with a soft dry cloth

Frequently Asked Questions - S2 TicWatch

How to pair the TicWatch S2 with my smartphone?

Download the Wear OS by Google app on your smartphone. Turn on the watch by pressing the crown, select your language, enable Bluetooth, and open the app. Follow the pairing instructions. Then install the Mobvoi app to sync fitness data.

How to change the watch face?

Long press on the home screen to access watch face selection. Swipe to choose a watch face and tap to confirm. You can also customize some watch faces via the Mobvoi app.

How to connect a Bluetooth headset to the watch?

Go to Settings > Connectivity > Bluetooth > Available devices. The watch searches for devices. Select your headset to establish the connection.

What to do if the watch does not turn on?

Make sure the battery is charged. Connect the magnetic charger to the watch. If it still does not turn on, perform a reset by holding the crown for 15 seconds. Contact customer service if the problem persists.

How to measure my heart rate?

The watch has an optical heart rate monitor. Open the Google Fit app or the dedicated Mobvoi app to start a measurement. Wear the watch properly on your wrist for accurate data.

Is the watch waterproof?

The manual does not mention any waterproof certification. As a precaution, avoid wearing the watch underwater or during water activities.

How to reset the watch to factory settings?

Go to Settings > System > About > Reset or hold the crown for 15 seconds. Confirm the reset. Note that all data will be erased.

What is the battery life?

Typical battery life is about 1 to 2 days depending on usage. The 415 mAh battery may last less with GPS or active sports tracking.

How to update the watch software?

Updates are done via the Wear OS by Google app on the connected smartphone. Make sure the watch is connected to Wi-Fi and charged. Updates install automatically.

Where to find the watch serial number?

The serial number can be found in Settings > System > About on the watch. It may also be printed on the case or packaging.

USER MANUAL S2 TicWatch

Line drawing of a wristwatch with analog clock face and minute hand (no text or symbols)

Kroon:

Line drawing of a USB cable with a circular connector (no text or symbols)

Magnetische contact oplaadbasis

((802.11 b/g/n) (2.4GHz) HT20 for FCC, IC. 2412MHz

- 2472MHz (802.11 b/g/n) (2.4GHz) HT20 for CE.

Adress: Building 2-106, 1690 Cailun Road, Shanghai (China)

Email: [e-mail]

Simple line drawing of a wristwatch with hour and minute hands (no text or symbols)

Couronne:

Line drawing of a USB cable with a circular connector (no text or symbols)

((802.11 b/g/n) (2.4GHz) HT20 for FCC, IC. 2412MHz

- 2472MHz (802.11 b/g/n) (2.4GHz) HT20 for CE.

Fabricant: Shanghai Mobvoi Information Technology Company Limited.

Adresse: Building 2-106, 1690 Cailun Road, Shanghai (China)

Email: [e-mail]

Simple line drawing of a wristwatch with hour and minute hands (no text or symbols)

Krone Uhr:

Line drawing of a USB cable with a circular connector (no text or symbols)

((802.11 b/g/n) (2.4GHz) HT20 for FCC, IC. 2412MHz

- 2472MHz (802.11 b/g/n) (2.4GHz) HT20 for CE.

Adresse: Building 2-106, 1690 Cailun Road, Shanghai (China)

Email: [e-mail]

Tic-Benelux is part of TJM Imports B.V. ©2019

Welcome to TicWatch - S2/E2

Developed by the Mobvoi and powered by Wear OS by Google™, the TicWatch line of smartwartches are a perfect blend of both software and hardware.

Mobvoi is an artificial intelligence company which specializes in numerous areas of technology such as voice recognition, semantic analysis, speech synthesis, vertical search and smart notifications are just to name a few. Till date, it has completed six rounds of funding w 2

Accessories and appearance - S2/E2

Included in the box are the TicWatch smartwatch, a magnetic contact charger, and a product manual.

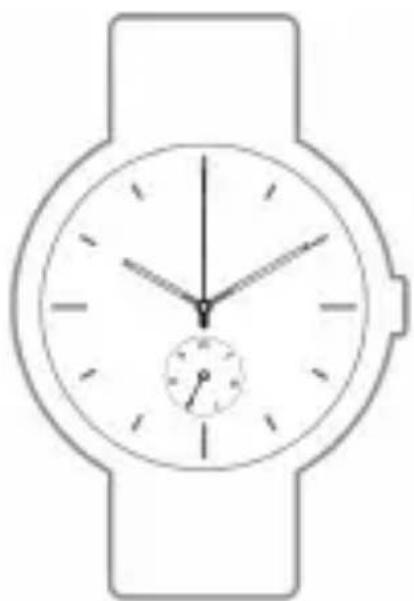

Line drawing of a wristwatch with analog clock face and minute hand (no text or symbols)

Crown:

Long press while powered off: power on Long press while powered on: activate The Google Assistant

1-click while powered on click: app menu

Screen:

1.4 inch full round dial

Resolution:

400x400 pixels

Strap width:

22mm

Accessories and appearance - S2/E2

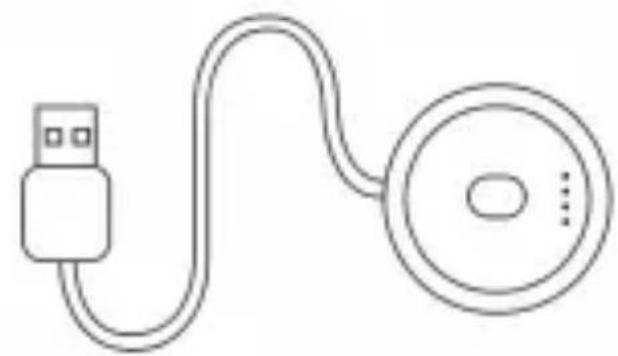

Line drawing of a USB cable with a circular connector (no text or symbols)

Magnetic contact charger

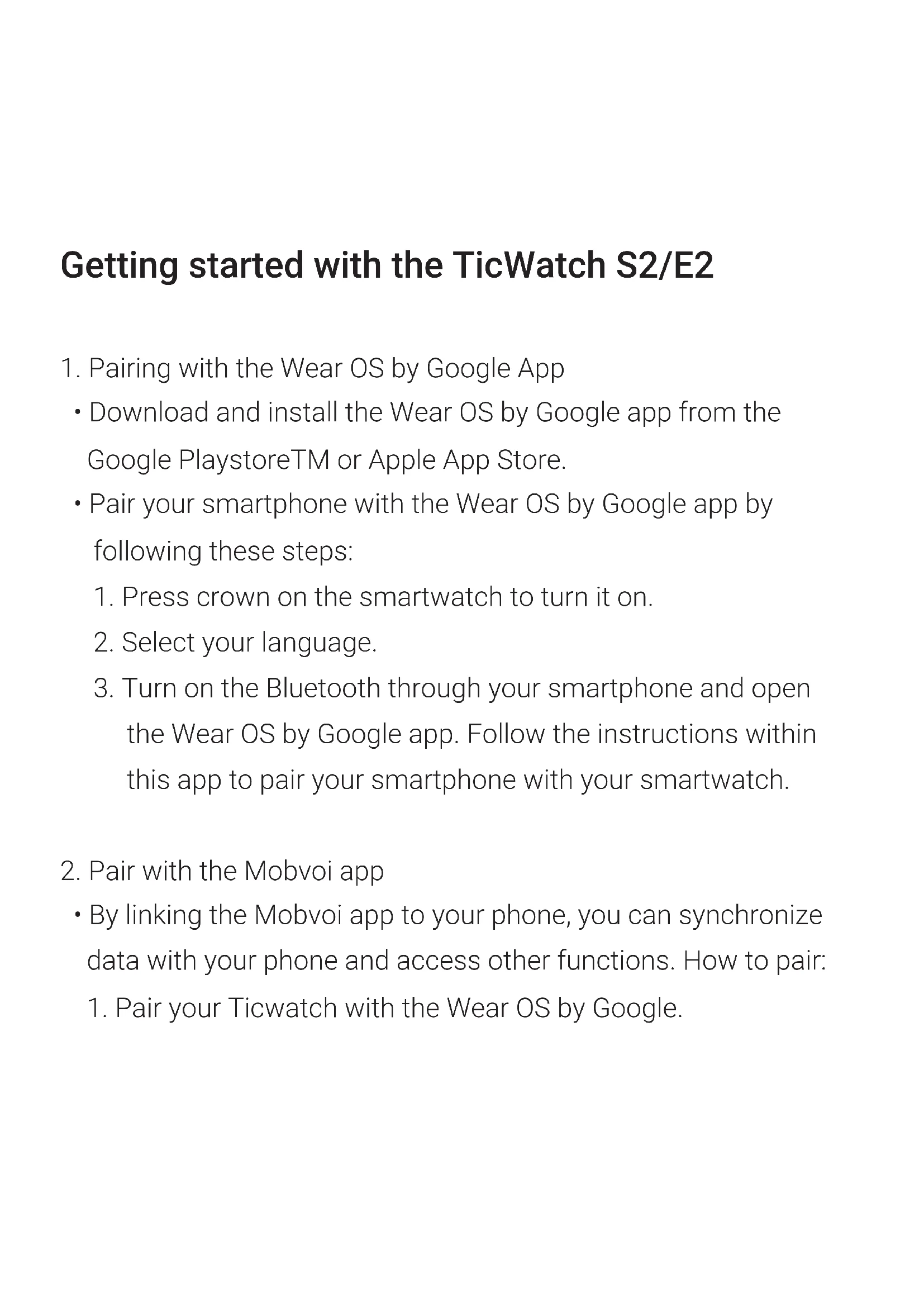

Getting started with the TicWatch S2/E2

1. Pairing with the Wear OS by Google App

2. Download and install the Wear OS by Google app from the Google PlaystoreTM or Apple App Store.

3. Pair your smartphone with the Wear OS by Google app by following these steps:

4. Press crown on the smartwatch to turn it on.

5. Select your language.

6. Turn on the Bluetooth through your smartphone and open the Wear OS by Google app. Follow the instructions within this app to pair your smartphone with your smartwatch.

7. Pair with the Mobvoi app

- By linking the Mobvoi app to your phone, you can synchronize data with your phone and access other functions. How to pair:

1. Pair your Ticwatch with the Wear OS by Google.

Getting started with the TicWatch S2/E2

1. Download the Ticwatch app from the Google Playstore or the Apple App store.
2. Start the pair process.

iPhone

When your smartwatch is successfully paired with the Wear OS by Google app, you need to pair with the Ticwatch app again to synchronize the data from your smartphone.

- Instructions:

1. Pair your smartwath with the Wear Os by Google app and go to the Ticwatch app. Log in or create a new Mobvoi account and click on start.
2. Select your smartwatch name on your phone and let the pair process begin. (You can find the smartwatch name under Settings> System> About)
3. Click "ok" when the devices are paired.

Getting started with the TicWatch S2/E2

Android

When your smartwatch is paired with the Wear OS by Google app, you download the Ticwatch App and log in with an existing account or create a new one. The app should immediately report that the devices are paired. You do not need to pair again.

Important: You must first pair your smartwatch and smartphone with the Wear OS by Google app. When this is successful you pair with the Ticwatch app. The other way around does not work. It is also important that you do not follow these steps via the Bluetooth interface.

Your smartphone must use Android 4.4 or higher and / or iOS 9.0 or higher. When your smartphone and smartwatch are connected successfully, it will display “connected”.

Getting started with the TicWatch S2/E2

If you can not successfully pair, the smartwatch can not be used. Reset the smartwatch and restart it. Restart your smartphone and turn the Bluetooth on again and restart the pair process.

Pair more smartwatches to your phone

If you like, you can pair multiple smartwatches to your smartphone. Note: You can't do this with an iPhone. But you can only pair your watch with one phone at a time.

If you have more than one phone that you want to pair with yoursmartwatch, or you own multiple smartwatches, keep in mind:

One smartwatch and multiple phones

You can't pair one watch with multiple phones at the same time. You can switch which phone your watch is paired with, but you

Getting started with the TicWatch S2/E2

need to reset your watch to factory settings first. Then you can pair your watch to the new phone.

Multiple smartwatches and one phone

Note: You can't do this with an iPhone.

You can pair multiple smartwatches to a single phone. Simply repeat the pairing steps for each smartwatch. Below the smartwatch you'll see if it's connected or disconnected. Your smartwatch will be disconnected if it can't communicate with your phone or if you've chosen to disconnect it from the settings.

Trouble pairing existing watch to a new phone

You can pair an existing smartwatch with a new phone, but you need to reset your watch to factory settings first. Then you can pair your smartwatch.

Getting started with the TicWatch S2/E2

Connect to Wi-Fi

Your watch can automatically connect to saved Wi-Fi networks when it loses the Bluetooth connection with your phone.

1. If your screen is dim, tap it to wake up the smartwatch.
2. Swipe down from the top of the screen.
3. Tap Settings. If you don't see it right away, swipe left and tap Settings.
4. Turn on Wi-Fi. Scroll down and tap Connectivity. If Wi-Fi is set to off, tap Wi-Fi to switch it to Automatic.

Add or change your watch's Wi-Fi network

1. If your screen is dim, tap it to wake up the watch.
2. Swipe down from the top of the screen.
3. Tap Settings. If you don't see it right away, swipe left and tap Settings.
4. Set up the new network. Scroll down and tap Connectivity and then

Getting started with the TicWatch S2/E2

Note: To enter a password if a password is required, tap Enter on phone. When prompted, enter the password on your phone. Then tap Connect.

Note: Your watch can't connect to Wi-Fi networks that take you to a page before you can connect (for example, Wi-Fi networks at places like hotels or coffee shops).

Connect to known networks

As long as your smartwatch's Wi-Fi is on, it'll connect automatically to Wi-Fi networks saved in your phone. Note: This doesn't work on iPhones.

Connect Bluetooth devices to your smartwatch

You can pair Bluetooth accessories, such as headphones or a

Getting started with the TicWatch S2/E2

1. If your screen is dim, tap the screen to wake up the watch.
2. Swipe down from the top of the screen.
3. Tap Settings and then Connectivity and then Bluetooth and then Available devices.
4. Your watch will search for nearby devices. When you see the name of your headphones, tap it to connect.

Connect a Bluetooth device that has an app

Some Bluetooth devices, like heart rate monitors, come with an app for your watch. If you have one of these:

1. Open its app on your smartwatch.
2. Follow the instructions to pair the accessory to your smartwatch.

Note: ANT+ accessories can't be paired with Wear OS by Google smartwatches.

Common operating gestures S2/E2

Display screen Press this button to the application list to open. Hold this button to the Activate Google Assistant.
Click	Confirm.
Swipe left Activate	Google Fit.
Swipe right Activate	Google Assistant.
Swipe up View and manage notifications.
Swipe down Access the fast shadow setting.
Long press Select a watch face that suits you style fits.

Parameter information S2/E2

Screen AMOLED screen and display

1.4 inch / 400 x 400 px / 287 ppi

Processor Snapdragon Wear 2100

Memory 512 M RAm + 4 GB ROM

Bluetooth 2.4 GHz Bluetooth V4.1 / BLE

GPS GPS / GLONASS / Beidou

Wifi 2.4 GHz 802.11 b/g/n

Sensor Dynamic optical heart rate monitor, speed sensor, gyroscope

Capacity 415 mAh

Output BT classic & EDR 9.95 dBM

BLE 1.33 dBm - Wifi 13.34 dBm

Works by 2402MHz - 2480MHz (BT/BT4.1) 2412MHz - 2462 MHz

((802.11 b/g/n) (2.4GHz) HT20 for FCC, IC. 2412MHz

- 2472MHz (802.11 b/g/n) (2.4GHz) HT20 for CE.

Parameter informatie S2/E2 and Contact

*The contents of these specifications can be changed without prior notice. Look for more info on the official website (www.mobvoi.com).

Customer service: Please get in touch if you have any issues or problems:

Manufacturer: Shanghai Mobvoi Information Technology Company Limited.

Adress: Building 2-106, 1690 Cailun Road, Shanghai (China)

Email: [e-mail]

Imporer: Tic-Benelux is part of TJM Imports B.V.

Two black smartwatches with orange and black design, one displaying a speedometer showing 12:345 and the other displaying 10:09 (no readable text or symbols)

Handleiding

Visit the official Ticwatch website for more information:

https://www.mobvoi.com

Contact us if you have problems:

[e-mail]

Manufacturer:

Shanghai Mobvoi Information Technology Company Limited.

Adress: Building 2-106, 1690 Cailun Road, China (Shanghai) Free trade area.

Importer:

Tic-Benelux is part of TJM Imports B.V.

Adress: Zompstraat 8, 8102 HX Raalte, Netherlands.

Website: www.tic-benelux.nl

Email: [e-mail]
