THANK YOU for choosing this DÖRR quality product.

Please read the instruction manual and safety hints carefully before fi rst use. Keep this instruction manual together with the device for fu-ture use. If other people use this device, make this instruction manual available. This instruction manual is part of the device and must be supplied with the device in case of sale.

DÖRR is not liable for damages caused by improper use or the failure to observe the instruction manual and safety hints.

01 | SAFETY HINTS

• Do not look directly into the LED and do not direct the light beam into the eyes of humans or animals. CAUTION: Looking into the light for an extended period of time may cause an irreversible damage to the retina.
  • Only for the illumination for photographic purposes. Not suited for permanent room lightning.
• Ensure sufficient ventilation during operation. After use, please switch the device off.
• Only operate with the supplied original power adaptor. Do not use an extension cord.
• When using with a light stand (optional): To avoid tilting of the LED light, align the Strip Light over a widely spread tripod leg. Make sure that the light stand stands on an even and dry ground. Light stands are optionally available from DÖRR in specialist stores.
  The housing and the barndoors heat up slightly during operation – turn off the LED light after use and allow it to cool down before touching the housing or the barndoors, or before stowing the device in the bag.
• When unfolding or retracting, as well as when aligning the barndoors there is a risk that your fingers get caught. Watch your fingers.
  • Do not operate or touch the device with wet hands.
• Protect the device from rain, moisture, direct sunlight and extreme temperatures.
• Protect the device against impacts. Do not use the device if it has been dropped. In this case a qualified electrician should inspect the device before you use it again.
  Do not attempt to repair the device by yourself. Risk of electric shock! When service or repair is required, contact qualified service personnel.
  • People with physical or cognitive disabilities should use the device with supervision.
  • People with cardiac pacemakers, defibrillators or any other electrical implants should maintain a minimum distance of 30 cm, as the device generates magnetic fields.
  Do not use the device nearby mobile phones and devices that generate strong electromagnetic fields (e.g. electric engines).
  This device is not a toy. To prevent accidents and suffocation keep the device, the accessories and the packing materials away from children and pets.
• Protect the device against dirt. Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfiber cloth to clean the outer parts of the device. Before cleaning make sure to switch off the device and take off from power supply!
• Store the device in a dust-free, dry and cool place.
  If the device is defective or without any further use, dispose of the device according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities.

02 | PRODUCT DESCRIPTION

The DÖRR DSL-224 LED Strip Light offers light with a narrow beam angle, which can easily be adjusted with the lateral barndoors. Thus it is possible to create interesting light effects such as precise edges and silhouettes, ideal for nude and maternity photography. The diff user plate ensures soft light for portrait shots. With the supplied ball head and the fl exible goose neck the Strip light can be mounted into any position.

• Colour temperature 5500 K (daylight)
- Brightness dimmable
• For horizontal or vertical mounting
• Sturdy metal housing with barndoors
• Supplied with ball head, flexible goose neck, AC adaptor and spacious bag

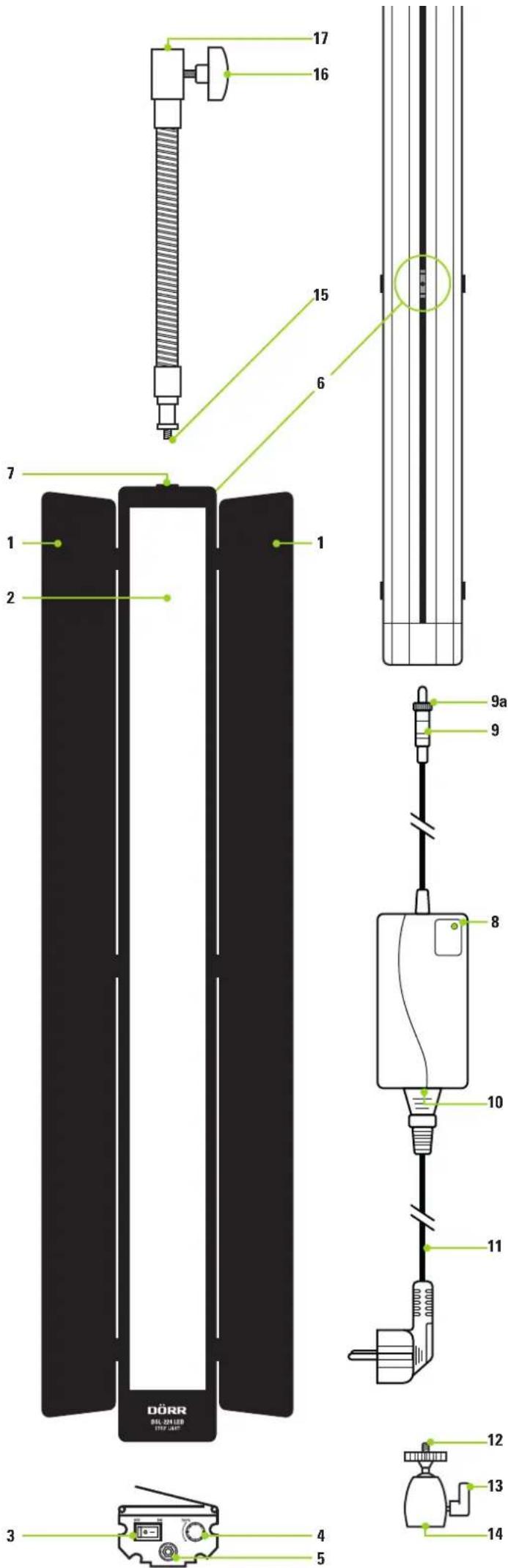

03 | NOMENCLATURE

STRIP LIGHT

1 Barndoors
2 Diff usor plate
3 Main switch

Position 0 = OFF

Position I = ON

4 Brightness control
5 Socket for AC power adapter
6 Movable ¼" tripod mount
7 ¼" tripod mount

AC POWER ADAPTER

8 LED indicator
9 Connection plug

9a) Screw lock

10 Socket for power cable
11 Power cable

BALL HEAD

12 ¼° mounting screw
13 Locking screw
14 ¼" tripod mount

GOOSE NECK

15 ¼" mounting screw
16 Locking screw
17 Socket for light stand with spigot

04 | MOUNTING

Screw the 14 " mounting screw (15) into the 14 " tripod mount, to connect the ball head with the goose neck.

For vertical mounting, screw the 14 " mounting screw (12) of ball head into the 14 " tripod mount (7) of the Strip Light.

For horizontal mounting, screw the 14 " mounting screw (12) of ball head into the moveable 14 " tripod mount (6) on the rear side of the Strip Light.

Attach the socket (17) of the goose neck to a light stand with spigot (light stand optional) and tighten in the locking screw (16).

17 16 15 6 7 1 2 1 9a 9 8 10 11 3 4 5 13 12 14 DÖRR BEL ZON LED TROP LINE

ACAUTION

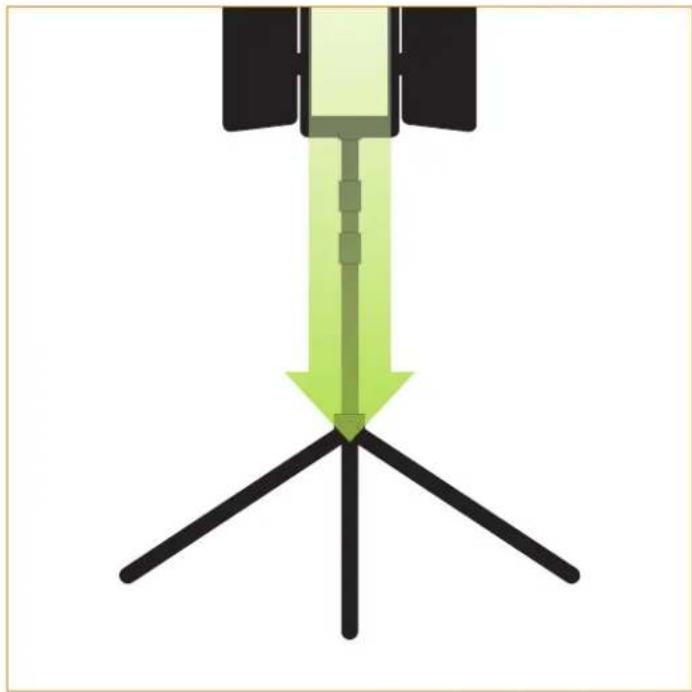

To avoid tilting of the LED light, align the Strip Light over a widely spread tripod leg. Make sure that the light stand stands on an even and dry ground.

Diagram showing a device with three legs and a green arrow indicating downward motion (no text or symbols)

NOTE Light stands are optionally available from DÖRR in specialist stores.

05 | FIRST USE/OPERATION

CAUTION

Before connecting or disconnecting cable connections, make sure that the Strip Light is switched off (main switch (3) on position 0 = off).

05.1 POWER CONNECTION

Insert the connection plug of the AC power adapter (9) into the socket (5) of the Strip Light.

To hold the cable in place screw the screw lock (9a) upward.

Before disconnecting the cable, please make sure to unscrew the screw lock (9a) first.

Insert the power cable (11) into the socket (10) of AC power adapter and connect with a main supply. The LED indicator (8) lights up GREEN.

• Turn on the Strip Light at the main switch (3, position I = ON).
  • To adjust the brightness, turn the brightness control (4).
  • With the barn doors you can place the light in the desired direction.

CAUTION

• Never leave the Strip Light unattended while operation.
The housing and the barndoors heat up slightly during operation - turn off the LED light after use and allow it to cool down before touching the housing or the barndoors, or before stowing the device in the bag.
After use, please switch off the Strip Light at the main switch (3, position 0 = Off) and disconnect from main power.

06 | CLEANING AND STORAGE

Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfi ber cloth to clean the outer parts of the device. Make sure to take off the device from power before cleaning! Store the device in a dust-free, dry and cool place. This device is not a toy – keep it out of reach of children. Keep away from pets.

07 | TECHNICAL SPECIFICATIONS

Number of LEDs 224, white
Colour temperature max. 5500 ± 200 K
Power 55 W
Beam angle 90°
Colour rendering index (CRI) ≥95 R	a
Illuminance approx. 1,0 m: 1000 Lux
Operating voltage DC 15 V 4 A
Operation with	Power adapter AC 100 ~ 240 V 50/60 Hz(included)
Dimensions housing approx.	850 x 85 x 60 mm
Dimensions illuminated area approx.	780 x 65 mm
Weight Strip Light approx.	1610 g
Weight incl. accessories and bag approx.	3050 g

08 | SCOPE OF DELIVERY

1 Strip Light DSL-224
1 AC power adapter
1 Goose neck
1 Ball head
1 Bag
1 Safety hints

09 | DISPOSAL, CE MARKING

09.1 DISPOSAL, CE MARKING

The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electronic equipment, which became European law in February 2003. The main purpose of this directive is to prevent electronic waste. Recycling and other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means that used electrical and electronic products should not be disposed of with general household waste. It is your responsibility to dispose of all your electronic or electrical waste at designated collection points. Disposing of this product correctly will help to save valuable resources and it is a significant contribution to protect our environment as well as human health. For more information about the correct disposal of electrical and electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer or the manufacturer of this device.

09.2 ROHS CONFORMITY

This product is compliant with the European directive 2011/65/EU of June 08, 2011 for the restriction of use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments.

09.3 CE MARKING

The CE marking complies with the European directives.
