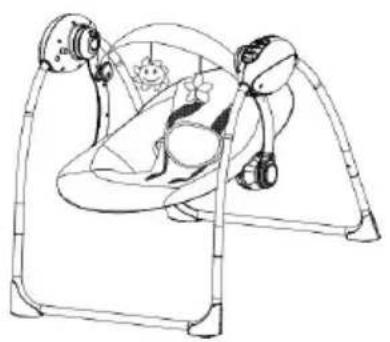

USER MANUAL Noa Topmark

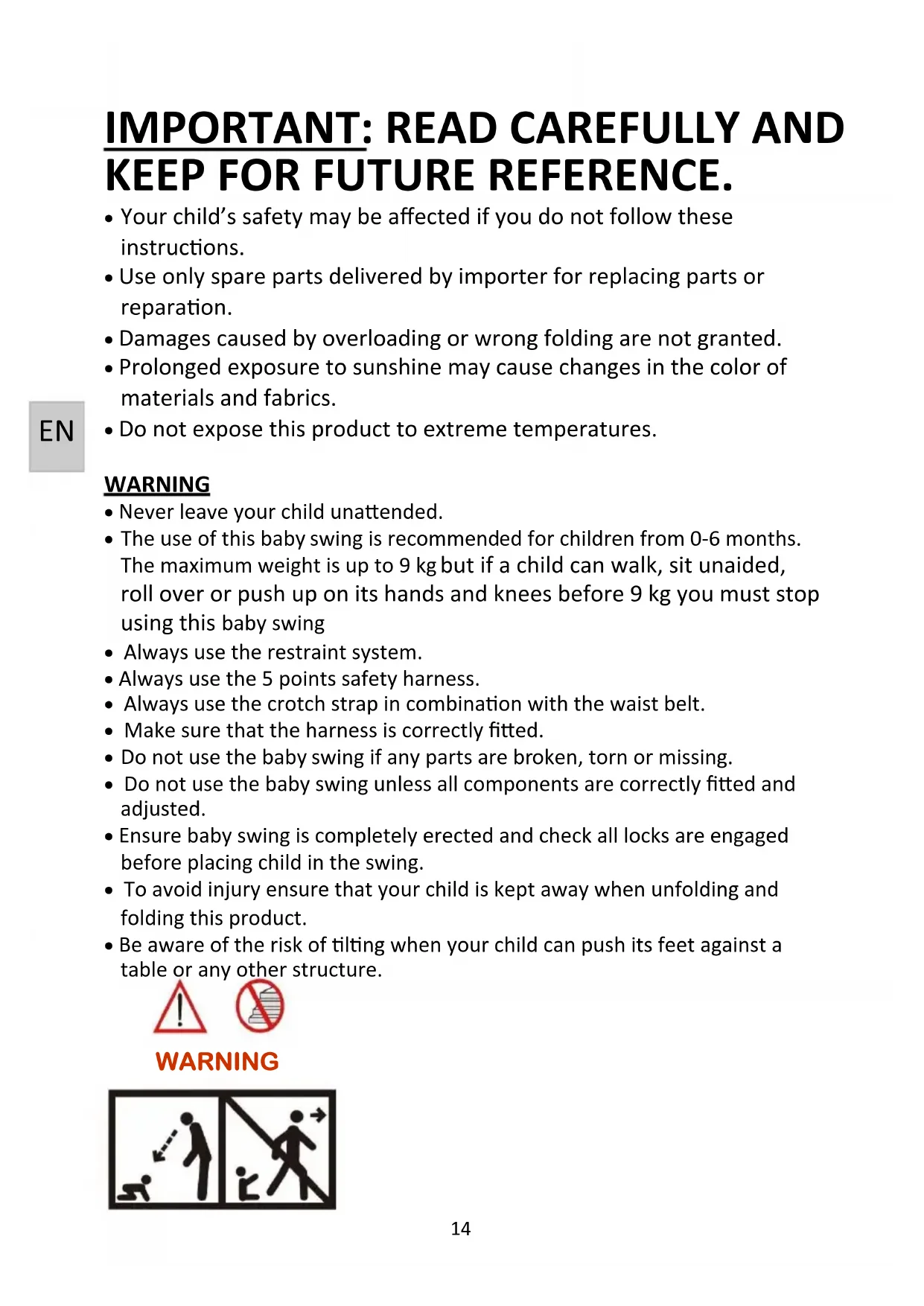

IMPORTANT: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• Your child's safety may be affected if you do not follow these instructions.
• Use only spare parts delivered by importer for replacing parts or reparation.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the color of materials and fabrics.
• Do not expose this product to extreme temperatures.

WARNING

• Never leave your child unattended.
• The use of this baby swing is recommended for children from 0-6 months. The maximum weight is up to 9kg but if a child can walk, sit unaided, roll over or push up on its hands and knees before 9kg you must stop using this baby swing
  Always use the restraint system.
  Always use the 5 points safety harness.
• Always use the crotch strap in combination with the waist belt.
• Make sure that the harness is correctly fitted.
• Do not use the baby swing if any parts are broken, torn or missing.
• Do not use the baby swing unless all components are correctly fitted and adjusted.
• Ensure baby swing is completely erected and check all locks are engaged before placing child in the swing.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Be aware of the risk of tilting when your child can push its feet against a table or any other structure.

WARNING

• Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the baby swing.
• Avoid hot liquids, power cables and other possible dangers may come within range of a child.
• Do not let your child play with this product, it is not a toy.
• Do not use swing in high place such as on table, desk, stairs to prevent falling.
• Never use swing on soft place to avoid suffocating (such as bed and sofa).
• Do not place items with a string around child's neck (pacifier cords, hood strings etc).
• Do not allow strings to hang into baby swing, including blind cords or suspended toys other than what is eventually provided with this product.
• Do not allow more children, as baby swing may become unstable.
• Do not use accessories or replacement parts other than the ones recommended by instruction manual.
• Accessories which are not approved by the manufacturer shall not be used.
• Only replacement parts supplied or recommend by the manufacturer/distributor shall be used.
• Do not allow any children, animals or other object to be placed under or near the chair while child is seated in the chair.
• The product must be assembled by an adult.
• Never put chair near steps or stairs.
• Never move the baby swing when the child is seated inside.
• Always place the baby swing on a horizontal, stable surface.
• This product is not intended for prolonged periods of sleeping.
• This product does not replace a cot or bed, if your child need to sleep, it should be placed in a suitable cot or bed.
• Do not hang anything on the toy bar except the toys.
• Never use the toy bar to lift and move the baby swing.
  Assure the toy bar is correctly assembled on both sides of the baby swing.
• To avoid injury, please remove the toys when the child is able to grab them with hands and/or feet.
• Never fold when baby is in the swing.
• Make sure the player volume is set in a low position.

ASSEMBLING

Check if following spare parts are in the box:

	Front and back leg tube	2 pcs.
	Tube—Main model with control panel	1 pc.
	Tube - Assist Model	1 pc.
	Seat frame with boom tubes and seat cover	1 pc.
	Toy frame	1 pc.
Adapter and user manual 1 pc, plum blossom button 2 pcs., cap button 2 pcs, davit cover 2 pcs.		1 bag

ASSEMBLING

Note that the fabric patterns, colour pictures and accessories on this product in this instruction manual may vary from that of the product that you have purchased.

If one or more of the above mentioned spare parts are missing or broken, please contact the store where you bought the product, before using.

WARNING:

Please keep all packaging material away from babies and children, to prevent suffocation.

WARNING: Only to be installed by an adult!

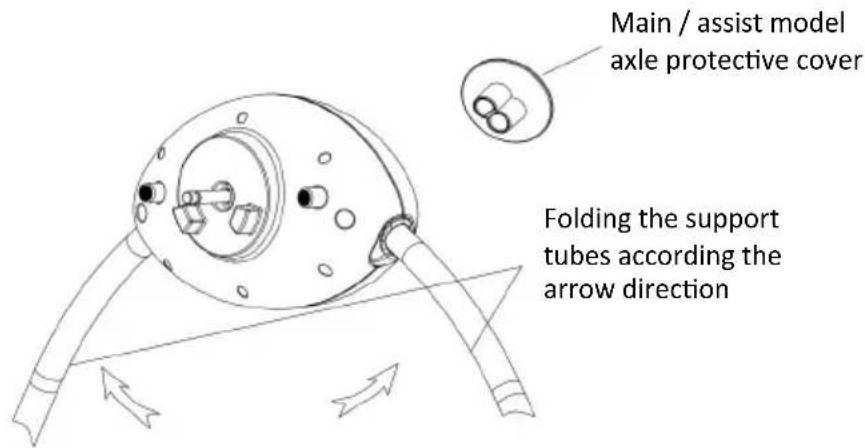

1. Opening the support tube towards the both sides of main model and assist model (pressing down the button and meanwhile folding the support tube towards the middle for folding). Note: the main / assist model axle protective cover is not part of the product, just use for protect the main assist model axle when package.

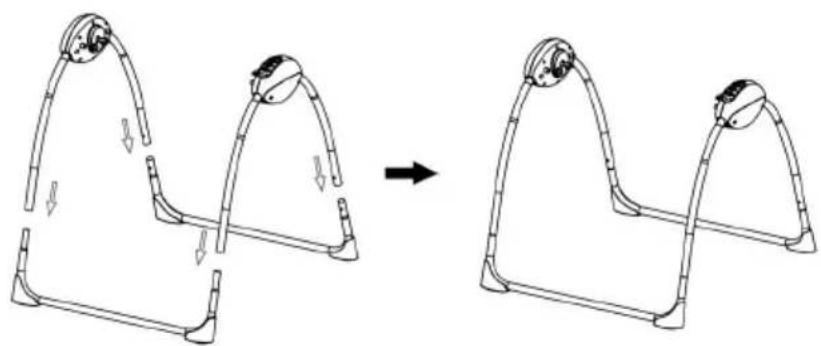

1. As shown in below pictures, insert the front back and back leg tube into the support tube of main model and assist model and make sure the shrapnel inside the tube should pop well.

ASSEMBLING

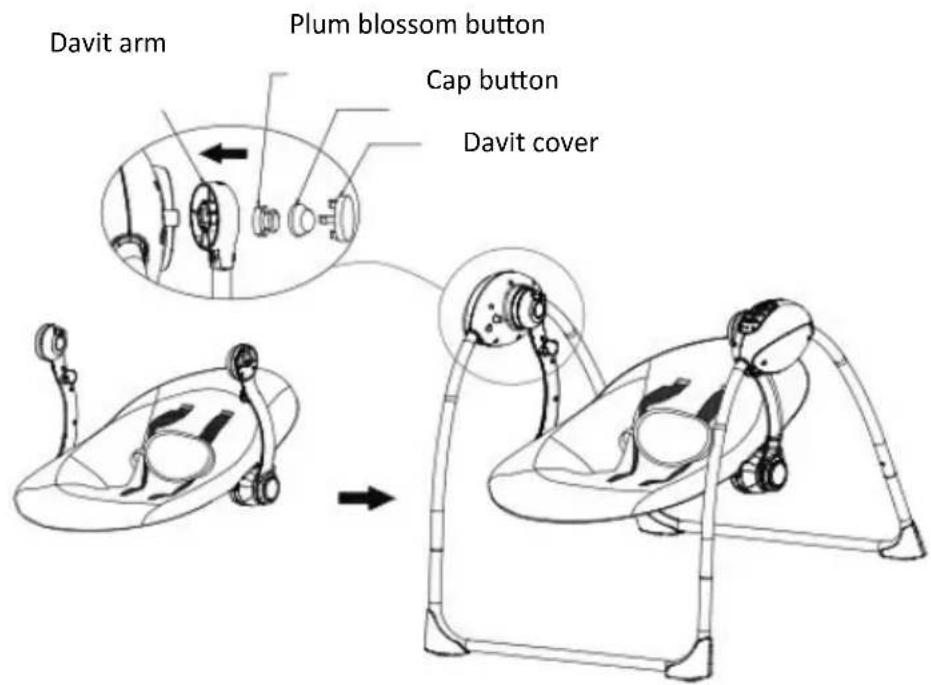

1. Assemble the seat frame to the shaft of main model and assist model, then cover the plum blossom button, cap button and davit cover as shown in below pictures; Try to pull the boom tube after installation to make sure it reached in position (Install round and flat side of iron shaft should be aligned).

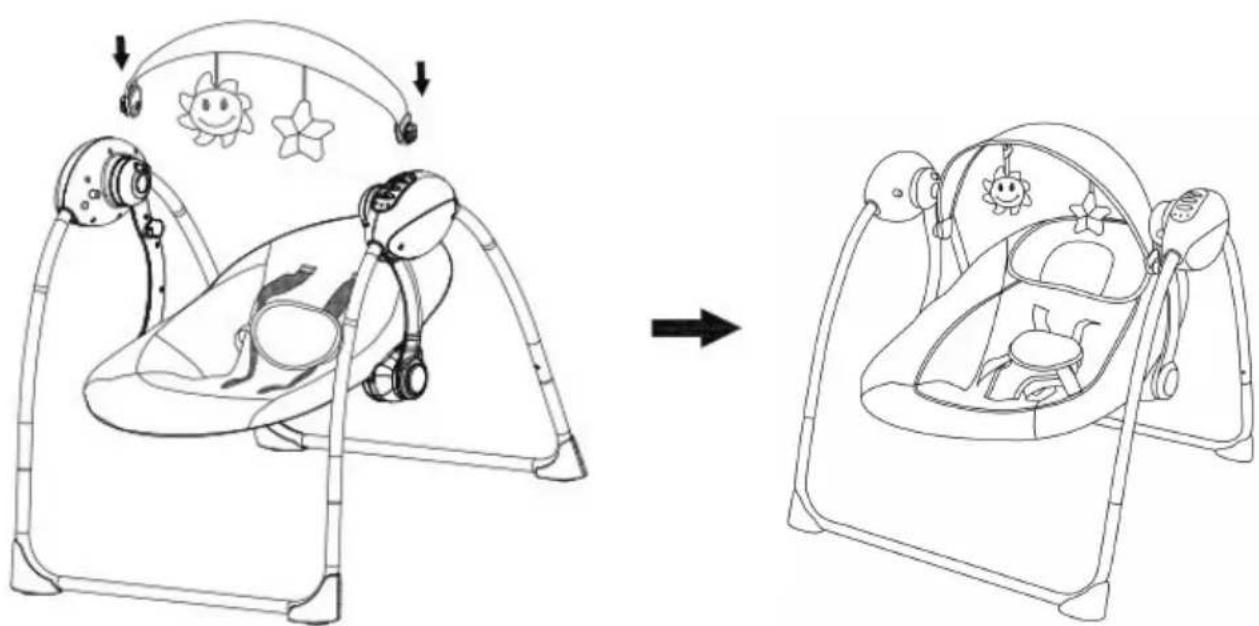

1. As shown in below picture, the ends of toys frame insert into the toy base.

USING

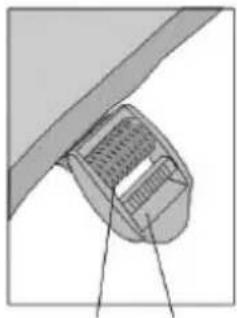

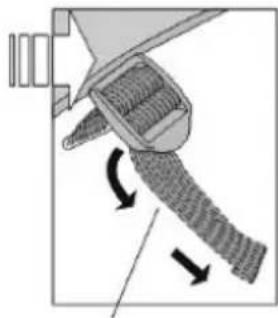

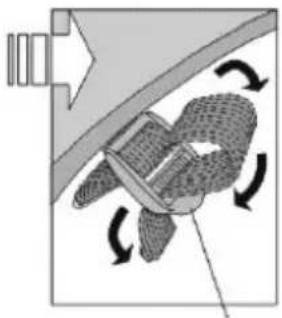

1. Fix the shoulder tape according to below pictures.

Top Bottom

The belt is out from top

Overturn from bottom

Fasten the belt

2 USING 5-POINT SAFETYBELT

WARNING: ALWAYS USE THE CROTCH STRAP WITH SAFETY BELTS.

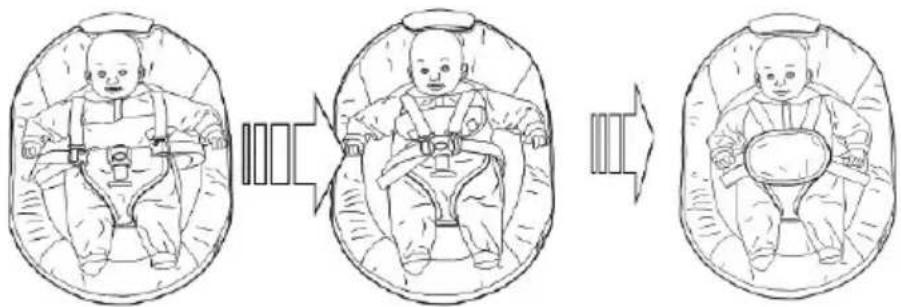

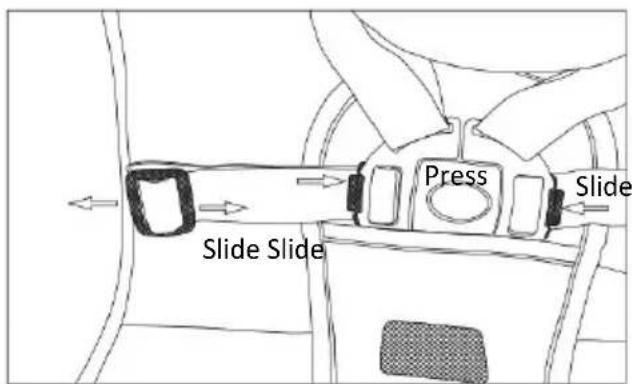

Lock buckle parts of hip belts together into the cross belt (belt between the legs) until secure click is heard. then cover it with the pad.

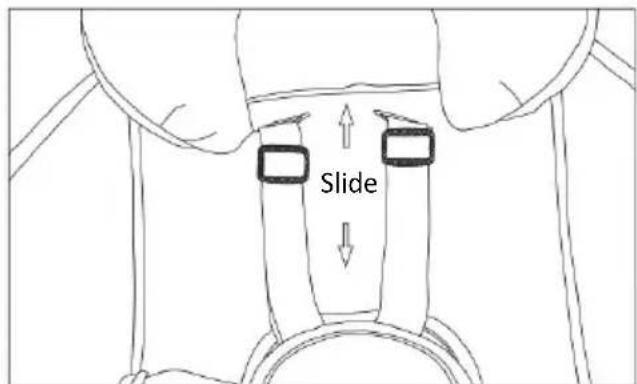

Adjust shoulder, hip and crotch belt to the right length to fit your child. To release belt just push the button. As in the following picture, 5 point safety harness will protect your baby secure and comfortable.

USING

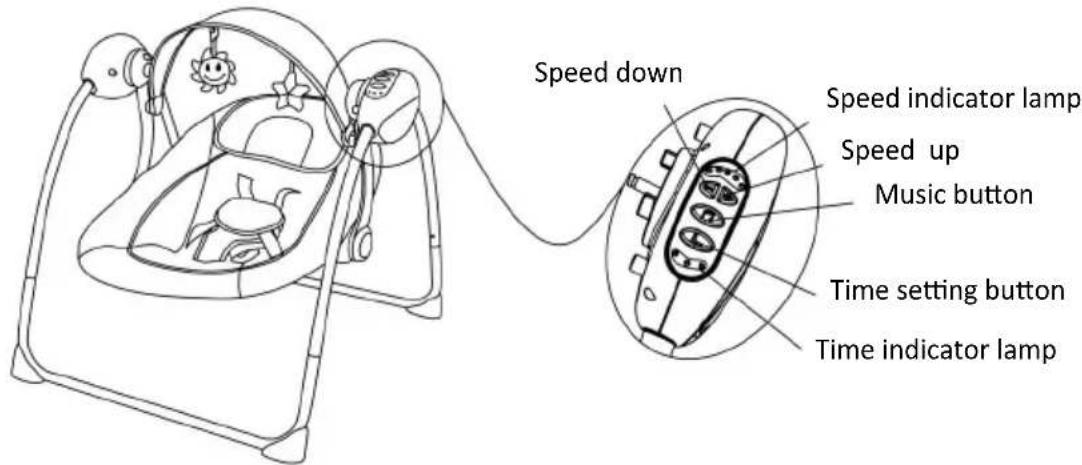

1. FUNCTIONS OF CONTROL PANEL:

(a) Swing function: Five swing speeds with indicator lamp available. Press "+" for speed up and "-" for speed down (as shown in below photo).
(b) There are three time settings available, press the first time then one indicator lamp lights for 8 minutes, press the second time for 15 minutes, press the third time for 30 minutes, all the functions will stop once the settled time reach, then the swing will turn to rest situation to save electric. If don't start time setting functions, all other functions are working until power off.
(c) Music button: press once to start the music, press the second to fourth time to adjust the music volume bigger. Press the fifth to stop music, press the sixth to play the next music (total 12pcs 4 chords music).

1. Baby swing can be used by 4^*1.5V AA batteries or adapter

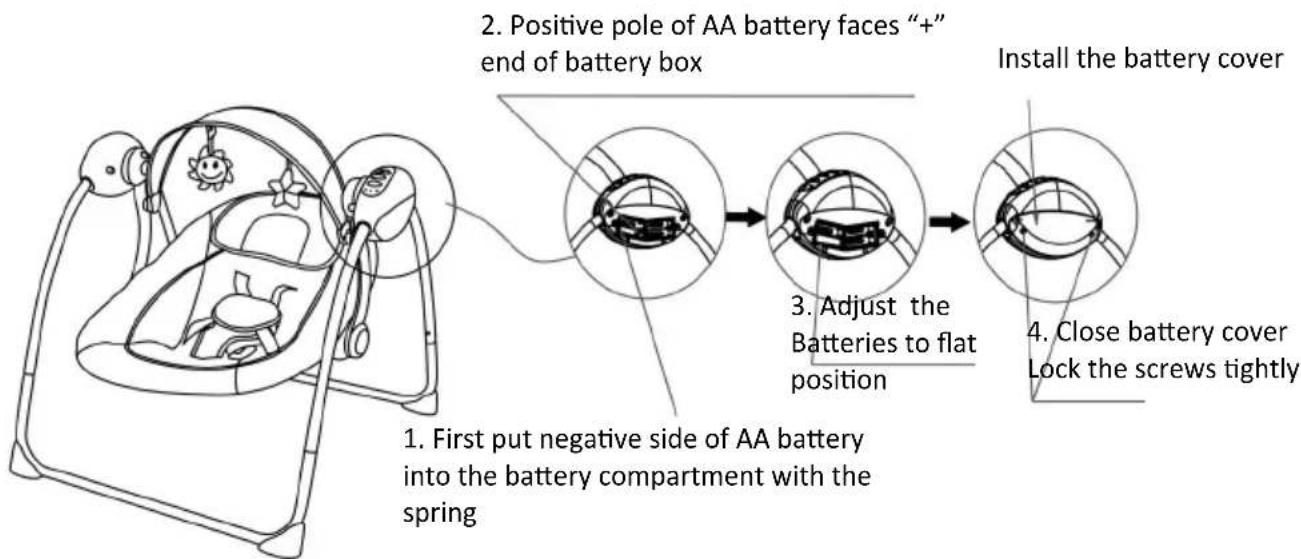

1) Put the batteries into main model: as shown, loosen the screw by screwdriver, then remove the battery cover and put the batteries according to the correct polarity into the battery compartment, finally cover and fix the battery cover. The same way to remove the battery out from the battery cover.

USING

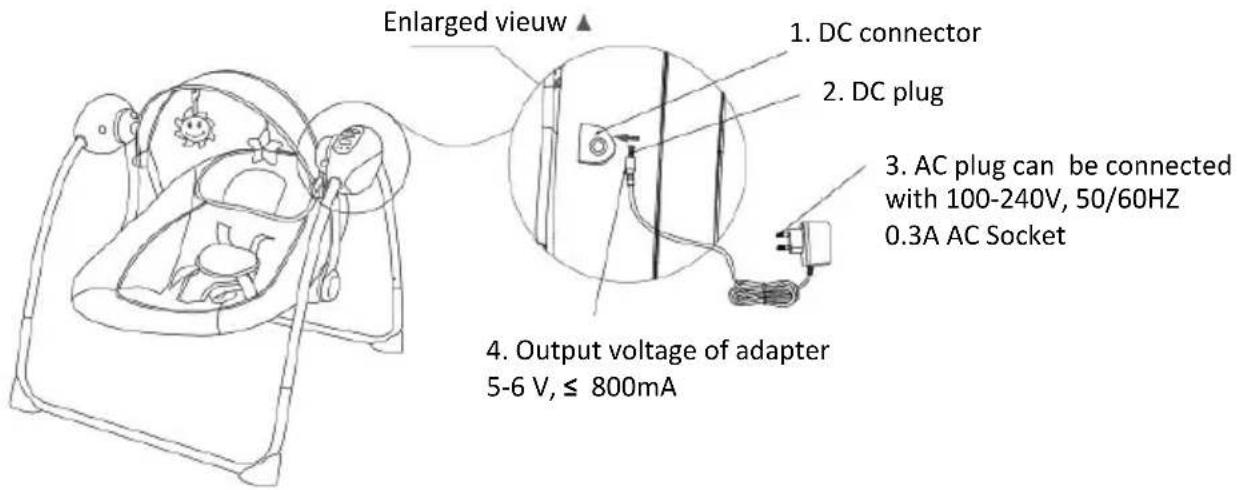

1. As following picture, insert adapter DC plug into DC connector, AC plug into 100-240V 50/60 Hz 0.3 A AC socket.

EN

WARNING: SAFETY OF THE ELECTRICAL PARTS

• Non-rechargeable batteries are not to be recharged.
• Rechargeable battery can only be charged under adult supervision.
• Rechargeable batteries are to be removed from the baby swing before being charged.
• Different types of batteries or old and new batteries cannot be mixed.
• Batteries must be inserted with the correct polarity.
• Exhausted batteries must be removed from the baby swing.
• The supply terminals must not to be short circuited.
• Always keep the battery away from the child, do not let your child play with it.
• Only batteries of the same or equivalent type as recommended must be used.
• Adapter should be away from baby and children when use adapter power on.
• Adapter used with the baby swing must be regularly checked for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they shall not be used.
• Adapter provided by this swing can be used for this item. Input voltage of adapter should be 100 - 240V 50 / 60Hz0.3A , output voltage 5 - 6V≤ 800mA .
• Keep away from children, when you use the adapter.

USING

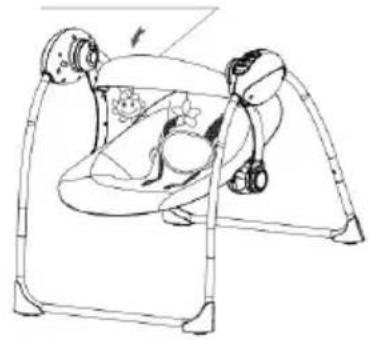

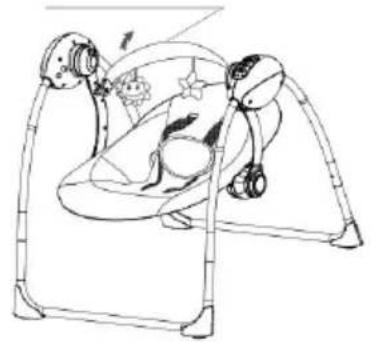

1. Six positions for adjustable toy frame, 2 positions on front, 3 positions on back as below picture.

EN

3. Positions adjustment on back

2. Positions adjustment on front

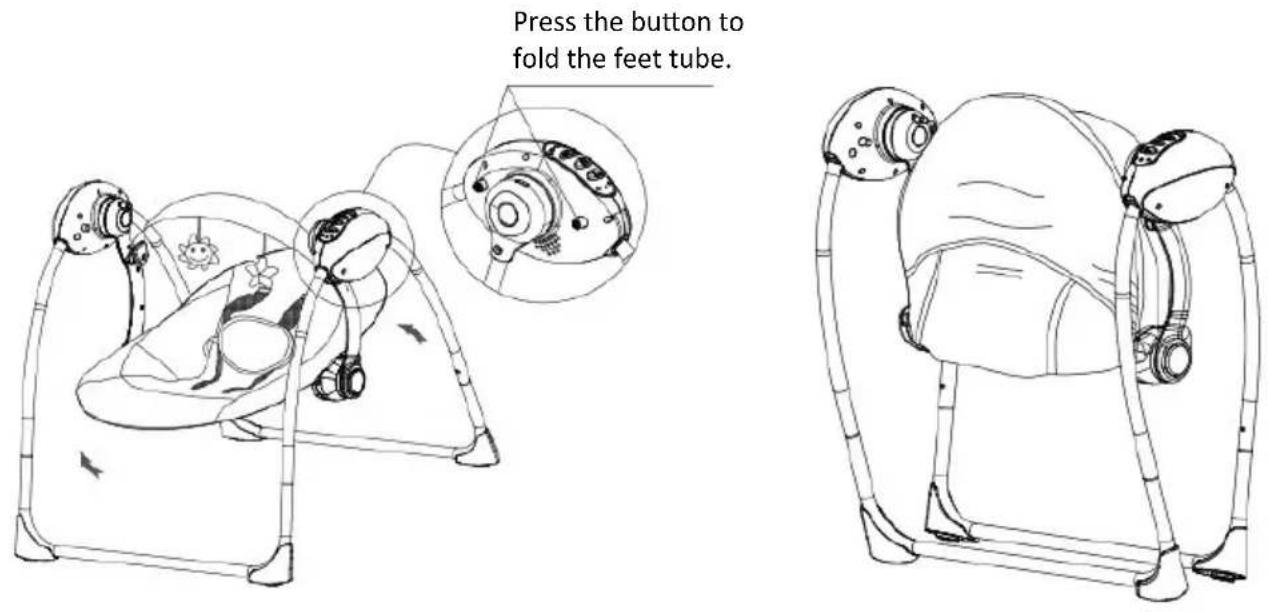

1. Folding, press the folding button, fold the seat and lock it with snap button, then fold the tube inside.

WARNING!: The baby should leave the swing and make the swing stop working before folding the baby swing.

TROUBLE SHOOTING

Probable problems	Solutions
Suddenly stops swinging and playing music.	Batteries are not assembled correctly, or low batteries and electricity is not enough.
No functions after starting	Check whether polarity of batteries is in correct position.
Press button, alarm song comes out.	Low battery, change new battery.
Shake thoroughly.	Check if the folding joint is opened completely. If not open it completely.
Long time no use. Take the batteries out.

EN

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of time.

Do not use abrasive cleaners. Do not soak in water. The chassis may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Keep it away from rain or water and a very hot or dusty environment, it can damage the circuit board.

Always store your product in a clean dry place.

Do not leave in the boot of car.

Excessive exposure to sunlight and/ or strong heat will make the plastic parts age and colours will fade.

Should parts become stiff, squeak or difficult to operate ensure dirt is not the cause.

When storing baby swing, never stack other items on top of it, this may damage the baby swing.

Do not dry clean or use bleach.

Do not machine wash, tumble or spin dry, unless the care labelling on the product permits these methods.

Inlay may be wiped with soap or mild detergent and rinsed with warm water. Allow it to dry completely before folding or storing it away.

In some climates the parts may be affected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well ventilated area.

Always check parts regularly for tightness of screws, nuts and other fasteners, tighten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only parts and accessories approved by the supplier.

GUARANTEE

We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the product.

Damages caused by overloading or wrong folding are not granted.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the first owner and is not transferable.

Top Mark BV

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 16232: 2013
