USER MANUAL JARO 3000 MA BRENNENSTUHL

GB Operating instructions.... 5

Diagram showing a cross-shaped object transforming into a rectangular block with diagonal lines (no text or symbols)

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Technical diagram of an electrical enclosure with numbered components and labeled parts

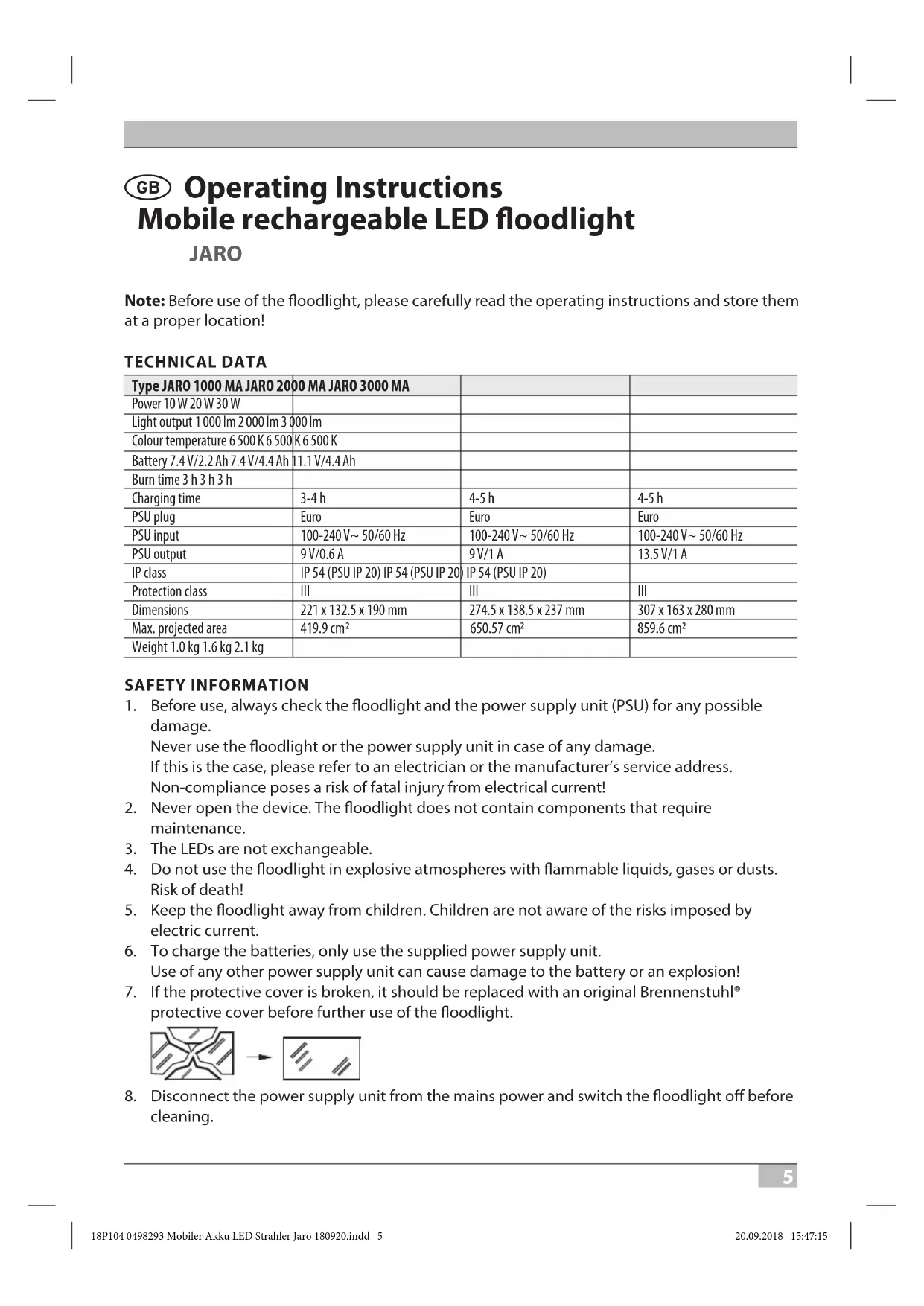

GB Operating Instructions Mobile rechargeable LED floodlight

JARO

Note: Before use of the floodlight, please carefully read the operating instructions and store them at a proper location!

TECHNICAL DATA

Type JARO 1000 MA JARO 2000 MA JARO 3000 MA
Power 10 W 20 W 30 W
Light output 1 000 lm 2 000 lm 3 000 lm
Colour temperature 6 500 K 6 500 K 6 500 K
Battery 7.4 V/2.2 Ah 7.4 V/4.4 Ah 11.1 V/4.4 Ah
Burn time 3 h 3 h 3 h
Charging time	3-4 h	4-5 h	4-5 h
PSU plug	Euro	Euro	Euro
PSU input	100-240 V~ 50/60 Hz	100-240 V~ 50/60 Hz	100-240 V~ 50/60 Hz
PSU output	9 V/0.6 A	9 V/1 A	13.5 V/1 A
IP class	IP 54 (PSU IP 20) IP 54 (PSU IP 20)	IP 54 (PSU IP 20)
Protection class	III	III	III
Dimensions	221 x 132.5 x 190 mm	274.5 x 138.5 x 237 mm	307 x 163 x 280 mm
Max. projected area	419.9 cm ^2	650.57 cm ^2	859.6 cm ^2
Weight 1.0 kg 1.6 kg 2.1 kg

SAFETY INFORMATION

1. Before use, always check the floodlight and the power supply unit (PSU) for any possible damage.

Never use the floodlight or the power supply unit in case of any damage.

If this is the case, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

1. Never open the device. The floodlight does not contain components that require maintenance.

2. The LEDs are not exchangeable.

3. Do not use the floodlight in explosive atmospheres with flammable liquids, gases or dusts. Risk of death!

4. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.

5. To charge the batteries, only use the supplied power supply unit.

Use of any other power supply unit can cause damage to the battery or an explosion!

1. If the protective cover is broken, it should be replaced with an original Brennenstuhl® protective cover before further use of the floodlight.

Diagram showing a cross-shaped pattern transforming into a rectangle with diagonal lines (no text or symbols)

1. Disconnect the power supply unit from the mains power and switch the floodlight off before cleaning.

2. To avoid dazzling or blinding, do not look directly into the light.

3. During the charging process, the product is not IP54-compliant (dust-protected and protected against splashing water).

INTENDED USE

This LED floodlight is suitable for general indoor and outdoor lighting.

SETTING UP AND SWITCHING ON THE FLOODLIGHT

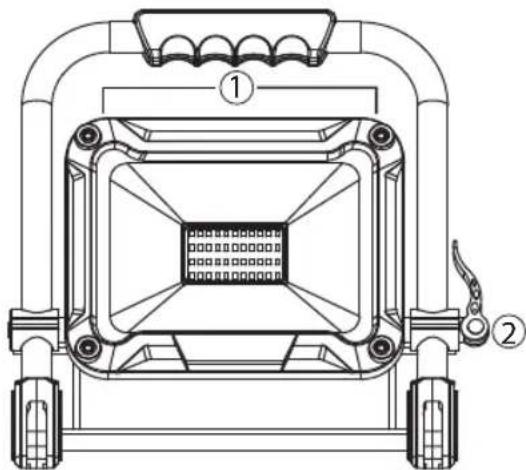

Place the floodlight on a dry and level surface. The inclination of the floodlight is adjustable. To do so, loosen the lateral quick release ^② , turn the lamp head into the desired position and lock the quick release again.

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

Technical diagram of a device rear panel with numbered components and labeled parts

SWITCHING THE FLOODLIGHT ON/OFF

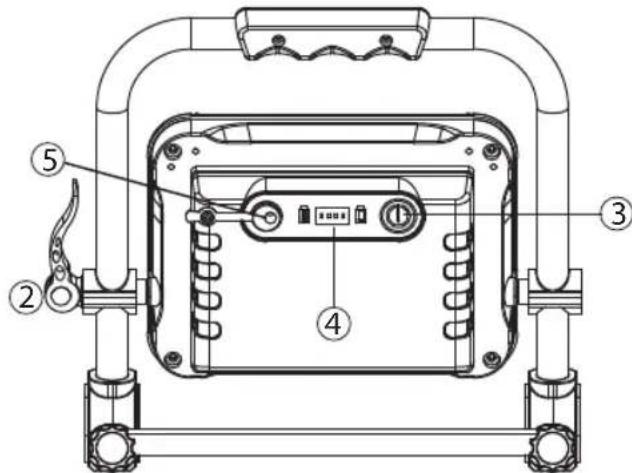

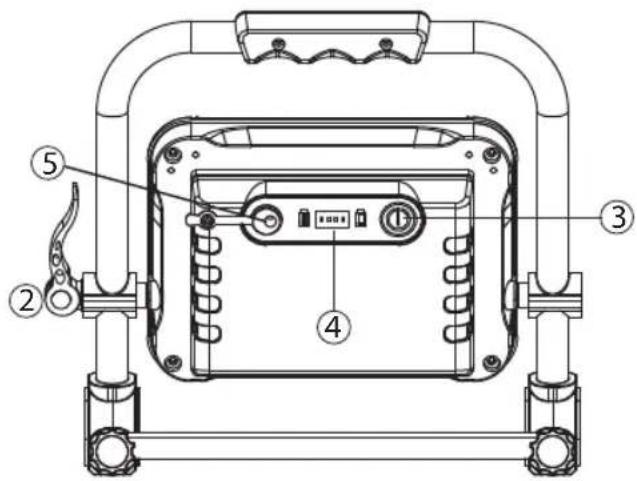

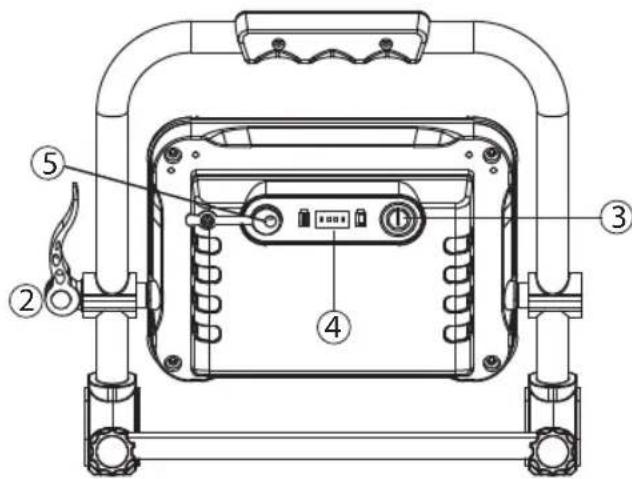

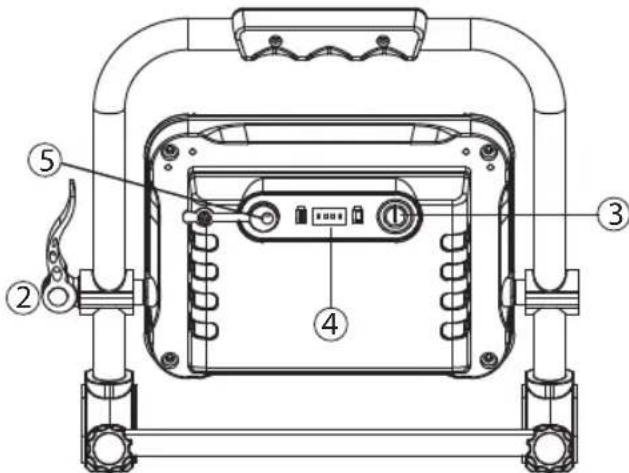

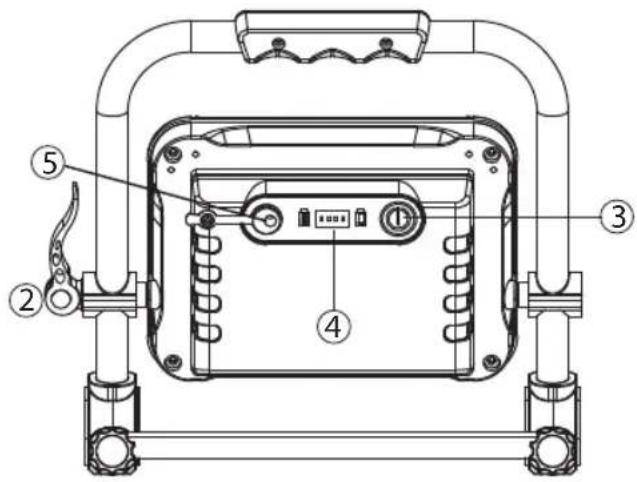

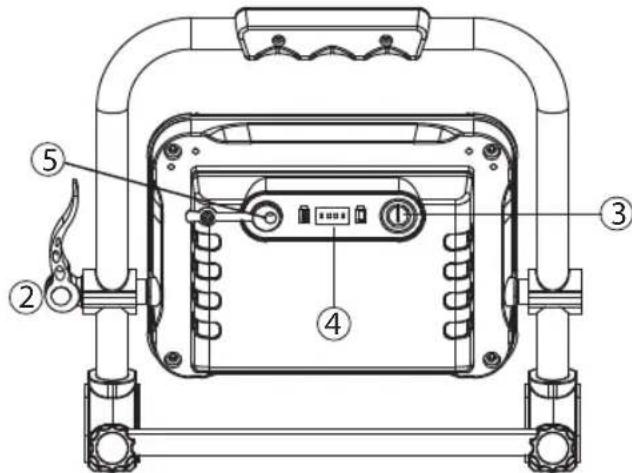

Use the switch ③ on the back to switch the floodlight on. Press the switch multiple times to set the brightness to 100%, then 50%, then 10% and then "off". The lower the brightness selected, the longer the floodlight will burn. If the switch is left in any of its "on" positions for longer than 3 seconds, then pressing it once again will always turn it off.

BATTERY STATUS INDICATOR

Indicates the current battery charge, showing how much energy is still available. The battery status indicator ④ appears automatically when the light is switched on. While the battery is charging, the status indicator ④ shows the battery's charge level. If all 4 LEDs are lit, the battery is fully charged. If the battery is almost empty, the LED light flashes 5 times and the battery status indicator ④ flashes continuously. Afterwards, the light will remain on for approx. 10 minutes before the light is switched off by the deep discharge protection function. This ensures sufficient time to change the battery or complete work.

CHARGING THE BATTERY

• To ensure optimum function, we recommend fully discharging the battery on the first use and fully charging it afterwards.
• The charging port ⑤ is located under the cover cap on the front of the battery.
• The charging status of the battery is indicated by the battery status indicator (see description above). If all 4 LEDs are lit, the battery is fully charged.

• Please note: If the floodlight is switched on with the supplied power supply unit while charging, then the battery will no longer charge.

• If the device is not used for longer periods of time, charge the battery at regular intervals of approx. 3 months to ensure a long service life.
  • After charging, always close the charging port with the cover cap.

MAINTENANCE

The light source of this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced.

CLEANING

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

Incorrect disposal of batteries is harmful to the environment!

Batteries must not be disposed of in household waste. They might contain toxic heavy metals and shall be subjected to hazardous waste treatment. Dispose of exhausted batteries at your local collection points.

DECLARATION OF CONFORMITY

The declaration of conformity is stored at the manufacturer's.
