USER MANUAL Glide Unisex 200.000 SILKN

1. Summary of Test Results

Test	Standard	Class/ Severity level	Test result
Documentation (IEC 60601-1-2 sections 4 and 5)
General requirements General requirements for EMC	section 4.1.1.	--	Complies
External labels	section 5.1	--	Complies
Conformity of Users' Manual	section 5.2.1	--	Complies
Accuracy of Technical Description	section 5.2.2	--	Complies
Emission (IEC 60601-1-2 section 6.1)
Conducted emission Freq. range:150 kHz - 30 MHz	sec. 6.1.1 & CISPR 11	Group 1 Class B 230 VAC mains; 120 VAC mains	Complies
Radiated emission Freq. range: 30 - 1000 MHz	sec. 6.1.1 & CISPR 11	Group 1 Class B	Complies
Harmonic current emission test	sec. 6.1.3.1 & IEC 61000-3-2	230AC mains	Test NA
Voltage changes, Voltage fluctuations and Flicker test	sec. 6.1.3.2 & IEC 61000-3-3	230AC mains	Complies
Immunity (IEC 60601-1-2 section 6.2)
Immunity from Electrostatic discharge (ESD)	sec. 6.2.2 & IEC 61000-4-2	6 kV contact discharges & 8 kV air discharges	Complies
Immunity from radiated electromagnetic fields	sec. 6.2.3 & IEC 61000-4-3	3.0 V/m 80 MHz ± 2.5 GHz, 80% AM, 1kHz	Complies
Immunity from Electrical Fast transient (EFT)	sec. 6.2.4 & IEC 61000-4-4	± 2.0 kV Tr/Th - 5/50 ns, 5 kHz on 230AC mains	Complies
Immunity from Surge	sec. 6.2.5 & IEC 61000-4-5	±1.0 kV DM/ 2.0kV CM Tr/Th - 1.2/50 (6/20) μs on 230 VAC mains	Complies
Immunity from conducted disturbances induced by radio-frequency fields	sec. 6.2.6 & IEC 61000-4-6	3.0 VRMS 0.15+ 80 MHz, 80% AM 1kHz	Complies
Immunity from Voltage interruptions	sec. 6.2.7 & IEC 61000-4-11	100 % - 10 ms; 60% - 100 ms; 30% - 500 ms; 100% - 5sec on 230/ 120VAC mains	Complies

Approved: Eng. Yuri Rozenberg
Position: Head of EMC Branch

Written by: Galit Gorodetsky Position: Technical Writer

Electronics and Telematics Laboratory April 7,2013

Name: Alexander Karlinas
Position: Testing Engineer

Name: Michael Feldman
Position: Testing Engineer

Copyright 2013 © Home Skinovations Ltd. All rights reserved. Print date: 02/2015

Home Skinovations Ltd. reserves the right to make changes to its products or specifications to improve performance, reliability, or manufacturability. Information furnished by Home Skinovations Ltd. is believed to be accurate and reliable at the time of publication. However, Home Skinovations Ltd. assumes no responsibility for its use. No license is granted by its implication or otherwise under any patent or patent rights of Home Skinovations Ltd.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Home Skinovations Ltd.

Data is subject to change without notification.

Home Skinovations Ltd. has patents and pending patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. The furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual property rights except as expressly provided in any written agreement from Home Skinovations Ltd. Specifications are subject to change without notice.

Home Skinovations Ltd. Tavor Building, Shaar Yokneam POB 533, Yokneam 20692, ISRAEL www.silkn.com, [e-mail]

Table of Contents

I.1.Silk'n GlideTM device description 2
1.2. Package contents 2

I.Before You Start 2
2. Silk'n Glide™ Intended Use 3
3. Safety with Silk'n GlideTM 3
4.Contraindications 4
5.Do not use Silk'n GlideTM if: 6
6. Avoid using Silk'n GlideTM if any of the following applies: 7
7. Possible Side Effects using Silk'n Glide™ 8
8. Long Term Hair Removal the Silk'n Glide™ Way 9
9. Get Started! 10
9.1.What to Expect when treating with Silk'n GlideTM? 13
9.2. After treating with Silk'n GlideTM 13
10. Maintenance of Silk'n Glide™ 13
10.1.Cleaning Silk'n GlideTM 13
I. Troubleshooting 14
11.1. "My Silk'n GlideTM does not start." 14
I1.2."A light pulse is not emitted when I press the PULSE SWITCH" 14
12. Customer Service 15
13. Specifications 15

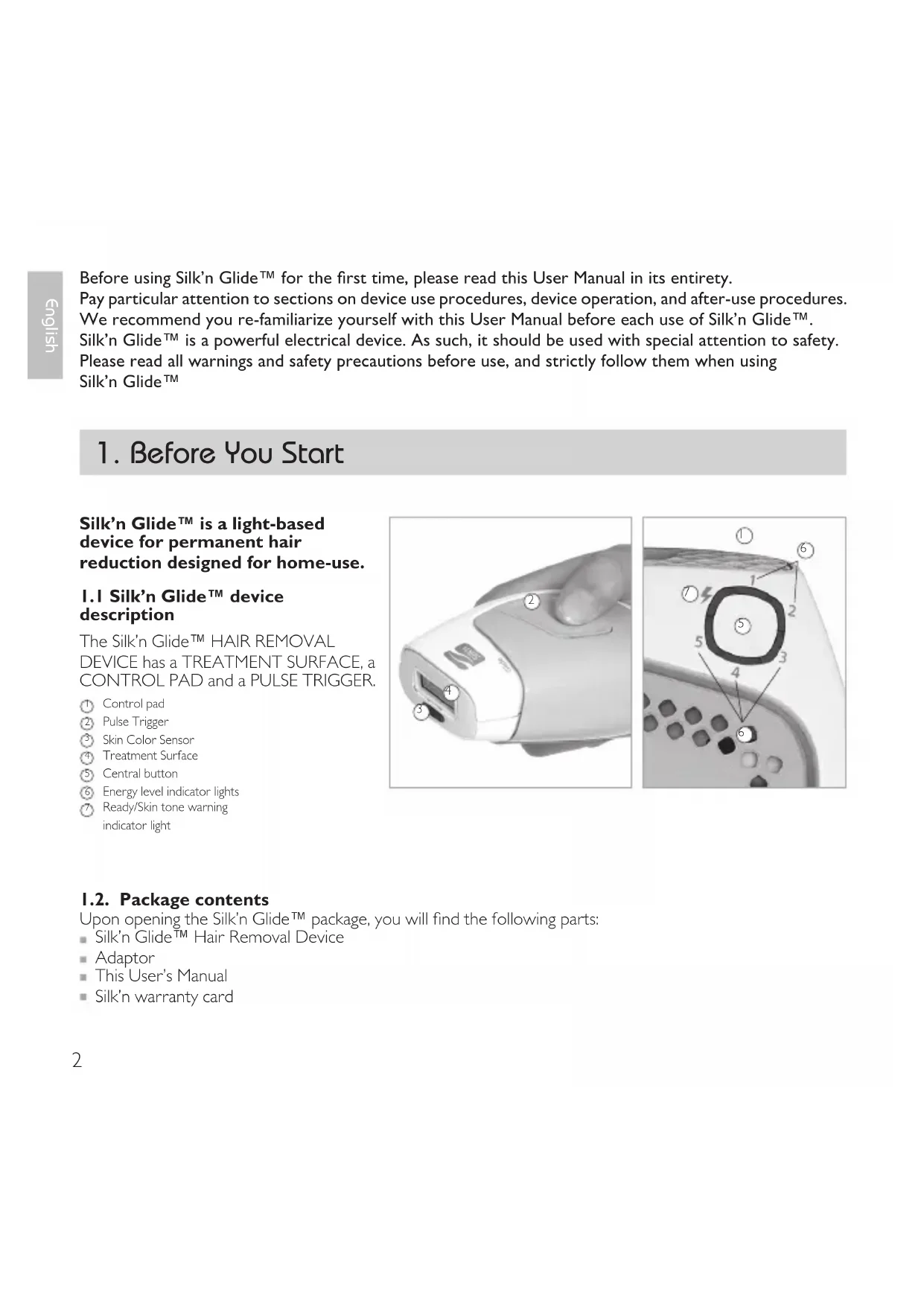

Before using Silk'n Glide™ for the first time, please read this User Manual in its entirety.

Pay particular attention to sections on device use procedures, device operation, and after-use procedures.

We recommend you re-familiarize yourself with this User Manual before each use of Silk'n Glide™.

Silk'n Glide™ is a powerful electrical device. As such, it should be used with special attention to safety.

Please read all warnings and safety precautions before use, and strictly follow them when using

Silk'n Glide™

1. Before You Start

Silk'n Glide™ is a light-based device for permanent hair reduction designed for home-use.

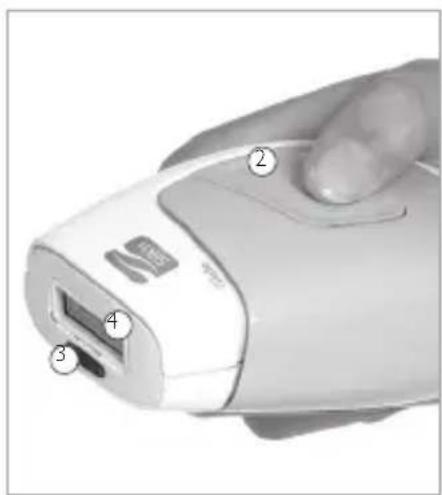

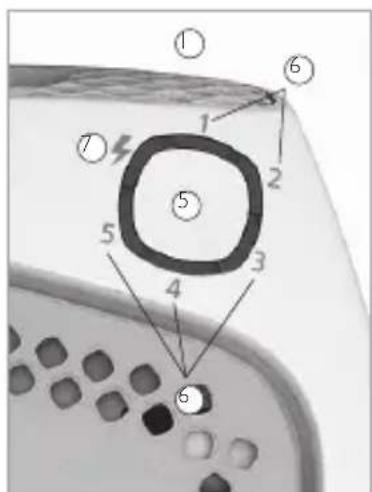

I.1 Silk'n Glide™ device description

The Silk'n Glide™ HAIR REMOVAL DEVICE has a TREATMENT SURFACE, a CONTROL PAD and a PULSE TRIGGER.

Control pad
Pulse Trigger
Skin Color Sensor
Treatment Surface
Central button
Energy level indicator lights
Ready/Skin tone warning

indicator light

1.2. Package contents

Upon opening the Silk'n Glide™ package, you will find the following parts:

Silk'n Glide™ Hair Removal Device
Adaptor
This User's Manual
Silk'n warranty card

2. Silk'n Glide™ Intended Use

Silk'n Glide™ is intended for removal of unwanted hair. Silk'n Glide™ is also intended to effect long term, or permanent hair reduction. Permanent hair reduction is defined as a long-term stable reduction in the number of hairs re-growing after a treatment regime.

Silk'n Glide™ may be used to remove unwanted body hair. Ideal body areas for Silk'n Glide™ use include the underarms, bikini line, arms, legs, face, back, shoulders and chest.

3. Safety with Silk'n Glide™

With Silk'n Glide™ Safety Comes First.

HPL™ technology in Silk'n Glide™ - Superior safety with lower energy level:

Home Pulsed Light™ technology is able to achieve long-term hair removal results at a fraction of the energy level used in other light-based hair removal equipment. The low energy used in Silk'n Glide™ reduces its potential to cause harm or complications, and contributes to your overall safety.

Silk'n Glide™ protects your skin:

Light based hair removal is not suitable for naturally darker skin tones or tanned skin. Silk'n Glide™ comes with a built-in SKIN COLOR SENSOR that is designed to measure the complexion of the applied surface and enable application only on suitable skin complexions. This unique safety feature will not let you treat where your skin is too dark or too tanned.

Furthermore, the 3cm^2 TREATMENT SURFACE through which pulses of light are delivered is recessed inside the device. This enables Glide™ to protect your skin by avoiding direct contact between the TREATMENT SURFACE and the skin.

Silk'n Glide™ protects your eyes:

Silk'n Glide™ has a built-in safety feature for eye protection. It has been designed so that a light pulse can not be emitted when the TREATMENT SURFACE is facing open air. The safety feature enables treatment only when the TREATMENT SURFACE is in contact with the tissue.

4. Contraindications

Important Safety Information - Read Before Use!

Silk'n Glide™ is not designed for everyone. Please read and consider the information in the following section before use. For further information and personalized advice you may also visit www.silkn.com or your local Silk'n™ domain. Hair removal by lasers or intense pulsed light sources can cause increased hair growth in some individuals. Based upon currently available data, the highest risk groups for this response are females of Mediterranean, Middle Eastern and South Asian heritage treated on the face and neck.

Warning Possible results Safety Tip
Do not use Silk'n Glide™ on the naturally darkest skin complexion. NotSafe! See hair and skin color chart on the package.	Treating dark skin with Silk'n Glide™ can result in adverse effects such as redness and skin discomfort	A unique SKIN COLOR SENSOR is embedded in Silk'n Glide™ to measure the treated skin complexion at the beginning of each session and occasionally during the session. The SKIN COLOR SENSOR ensures that pulses will only be emitted on suitable skin tones.
Do not use Silk'n Glide™ energy levels 2-5 on tanned skin or after recent sun exposure (including artificial tanning machines). Do not expose treated areas to the sun.	Treating with Silk'n Glide™ energy levels 2-5 before or after any sun exposure can result in adverse effects such as redness and skin discomfort. Tanned skin particularly following sun exposure, contains large quantities of the pigment Melanin. This applies to all skin types and complexions, including those which don't seem to tan quickly. The presence of large quantities of Melanin exposes the skin to higher risk when using any method of light based hair removal.	If you are using any energy level higher than the lowest, avoid exposure to the sun for 4 weeks before and 2 weeks after your Silk'n Glide™ treatment! Sun exposure includes unprotected exposure to direct sunlight of over 15 minutes continuously, or unprotected exposure to diffused sunlight of over 1 hour continuously. To protect recently treated skin when exposed to sunlight, be sure to thoroughly apply sunscreen SPF 30 or higher, for 2 weeks after each hair removal session. Silk'n Glide's lowest energy level (1) is designed especially for safe use even after sun exposure. After sun exposure you may continue using Silk'n Glide™, but only at the lowest energy level.
Never use Silk'n Glide™ around or near the eyes.	Although, Silk'n Glide™ can be used for the treatment of facial hair, extra caution should be used on the face to avoid the eyes.	Silk'n Glide™ has a built-in safety feature for eye protection. It has been designed so that a light pulse can not be emitted when the TREATMENT SURFACE is facing open air. The Pulse Trigger enables treatment only when the TREATMENT SURFACE is in contact with the tissue.
Do not treat on tattoos or permanent makeup, dark brown or black spots, (such as large freckles, birth marks, moles or warts), nipples, genitals or lips.	Treating any area with the Silk'n Glide™ that is dark in color or has more pigment can result in adverse effects such as burns, blisters, and skin color changes (hyper- or hypopigmentation).	Cover area with material that will not absorb the light such as a white cloth or white medical tape.
Do not treat on active eczema, psoriasis, lesions, open wounds or infections (cold sores), abnormal skin conditions caused by systemic or metabolic deseseases (diabetes for example)	Light based treatments can cause adverse reactions on already sensitive areas.	Wait for the effected area to heal before using Silk'n Glide™.
A treatment area that has a history of herpes outbreaks.	Light based treatments can cause adverse reactions on already sensitive areas.	Consult your physician to recieve preventative treatment before using Silk'n Glide™.
Do not treat with Silk'n Glide™ if you are pregnant or nursing.	Hormonal changes during pregnancy could increase skin sensitivity and the risk of adverse effects.
Do not treat on areas where you may want hair to grow.	Results are permanent.
Keep Silk'n Glide™ away from water! Do not place or store Silk'n Glide™ where it can fall, be pushed or placed into a tub, sink or any other vessel containing water.	This may cause severe electrocution.	Do not use Silk'n Glide™: while bathing or if it becomes damp or wet. Unplug immediately if it has fallen into water.
Warning Possible results Safety Tip
Do not attempt to open or repair your Silk'n Glide™ device.	Opening Silk'n Glide™ may expose you to dangerous electrical components and to pulsed light energy, either of which may cause serious bodily harm and/or permanent eye injury. It may also damage your device and will void your warranty.	Please contact Silk'n™ Customer Service if you have a broken or damaged device in need of repair.

5. Do not use Silk'n Glide™ if:

The device is operated by any plugs, attachments, or accessories other than those provided with your Glide™	the attachments or accessories are not recommended by Home Skinovations Ltd.	Stop use immediately and contact Silk'n™ Customer Service.
it has a damaged cord or plug.	Keep the power cord away from heated surfaces.	Stop use immediately and contact Silk'n™ Customer Service.
you see or smell smoke when it is in use.		Stop use immediately and contact Silk'n™ Customer Service.
it is not working properly or if it appears to be damaged.		Stop use immediately and contact Silk'n™ Customer Service.
its SKIN COLOR SENSOR is cracked, or broken.		Stop use immediately and contact Silk'n™ Customer Service.
the outer shell is cracked or is coming apart.		Stop use immediately and contact Silk'n™ Customer Service.

6. Avoid using Silk'n Glide™ if any of the following applies:

History of keloidal scar formation.	Consult with your physician prior to using Silk'n Glide™.
If you suffer from epilepsy.
If you have a disease related to photosensitivity, such as porphyria, polymorphic light eruption, solar urticaria, lupus, etc.
If you have a history of skin cancer or areas of potential skin malignancies.
If you have received radiation therapy or chemotherapy treatments within the past 3 months.
If you have any other condition which in your physician's opinion would make it unsafe for you to be treated.
If your skin was treated with a physician-prescribed drug within the past 6 months, please consult with your physician.

7. Possible side effects using Silk'n Glide™

When used according to the instructions, side effects and complications associated with the use of Silk'n Glide™ are uncommon. However every cosmetic procedure, including those designed for home use, involves some degree of risk. Therefore it is important that you understand and accept the risks and complications that can occur with pulsed light hair removal systems designed for home use.

Adverse Reaction	Degree of Risk
Minor Skin Discomfort – Although home pulsed light hair removal is generally very well-tolerated, most users do feel some mild discomfort during use, usually described as being a mild stinging sensation on the treated skin areas. The stinging sensation usually lasts during the time of the application itself or for a few minutes thereafter. Anything beyond this minor discomfort is abnormal and means that either you should not continue to use Silk'n Glide™ because you are unable to tolerate the hair removal application, or that the energy level setting is too high.	Minor
Skin Redness – Your skin may become red right after using Silk'n Glide™ or within 24 hours of using Silk'n Glide™. Redness generally clears up within 24 hours. See your doctor if redness does not go away within 2 to 3 days.	Minor
Increased Sensitivity to Skin – The skin of the treated area is more sensitive so you may encounter dryness or flaking of the skin.	Minor
Pigment Changes – Silk'n Glide™ targets the hair shaft, in particular the pigmented cells in the hair follicle and the hair follicle itself. Nevertheless there is risk of temporary hyperpigmentation (increased pigment or brown discoloration) or hypopigmentation (whitening) to the surrounding skin. This risk of changes in skin pigmentation is higher for people with darker skin tones. Usually discoloration or changes to skin pigment are temporary and permanent hyperpigmentation or hypopigmentation rarely occur.	Rare
Excessive Redness and Swelling – In rare cases treated skin may become very red and swollen. This is more common in sensitive areas of the body. The redness and swelling should subside within 2 to 7 days and should be treated with frequent applications of ice. Gentle cleansing is OK, but one should avoid exposure to sun.	Rare

8. Long Term Hair Removal the Silk'n Glide™ Way

A typical full hair growth cycle may take 18-24 months. During this time multiple Glide™ sessions may be required in order to achieve permanent hair removal.

The efficiency of hair removal varies from person to person according to body area, hair color, and how Silk'n Glide™ is used.

Typical Silk'n Glide™ hair removal plan during a full hair growth cycle:

Treatments 1-4 - plan two weeks apart

Treatments 5-7 - plan four weeks apart

Treatments 8+ -treat as needed, until desired results are achieved.

Expected Treatment Outcome for Hair Removal

Fitzpatrick skin type	Hair Color	Light Fluence [J/cm2]	Anatomic area of the body2	Average Number of Treatments	Effectiveness (% of hair removal/regrowth)1
I-IV	Light brown to brown	3-4.5	Lower or upper legs 60% Hair reduction
			Arms Session 10-12, approx. 50% Hair reduction apart. 60% Hair reduction
			Bikini Line four weeks apart.
			Underarms 55% Hair reduction
I-IV Brown to black 3-4.5			Lower or upper legs 70% Hair reduction
			Arms Session 8-10, approx. 60% Hair reduction
			Bikini Line four weeks apart. 70% Hair reduction
			Underarms 65% Hair reduction

1. Individual response depends on hair type as well as biological factors that may affect hair growth patterns. Some users may respond quicker or slower than the average number of treatments.
2. One cannot expect permanent hair removal in a single or even double treatment sessions. The duration of the resting period for hair follicles also depends on the body area.

9. Get Started!

I. Remove Silk'n Glide™ HAIR REMOVAL DEVICE and other components from box.
2. Plug the ADAPTOR cord into the Silk'n Glide™ HAIR REMOVAL DEVICE socket.
3. Plug the ADAPTOR into an electrical outlet. All indicator lights in the CONTROL PAD will turn on and off repeatedly in a circular motion.

Your Silk'n Glide™ is now ready to start.

Treat with Silk'n Glide™ safely and properly!

Choose areas to treat that have not had recent exposure to the sun.

1. The skin of the treatment areas should be shaved, clean, dry and free of any powders, antiperspirants or deodorants. Do not wax, pluck or tweeze the hair out. Shaving is an important step to get the results you want! Best results will be reached when you shave 3 days prior to the treatment or when the hair is 1 - 2mm - 3/32 inch.
2. Press the CENTRAL BUTTON. The device will turn on, the Energy Level I INDICATOR LIGHT will turn on and a fan sound will start.
3. Approximately 1 second after pressing the CENTRAL BUTTON, the READY/SKIN TONE WARNING INDICATOR LIGHT will turn on. The device is then ready for you to trigger the first pulse at the lowest energy level.

4. If this is your first treatment - Choose the energy level. GlideTM offers 5 levels of energy from I (the lowest) to 5 (the highest). To choose the right energy level for your first treatment, test each treatment area separately:

5. Place the TREATMENT SURFACE on the skin and press the trigger to deliver one pulse. If you did not experience abnormal discomfort press the CENTRAL BUTTON again. This will increase the energy level. Deliver one pulse on a different spot at energy level 2.

6. Continue testing at increased energy levels until you have reached the highest level that you feel comfortable with. If within one hour you experience no adverse effects, you can start your full treatment at that energy level.
   Repeat this test for each body part you intend to treat.

7. Set the energy level. To set an energy level higher or lower, press the CENTRAL BUTTON repeatedly to increase the energy level from 1 to 5 and from 5 directly back to 1, until the desired energy level is set. The ENERGY LEVEL INDICATOR LIGHTS will indicate the energy level setting. (For details see "Energy Level" chapter inside this user manual).

Energy Level

Energy level determines the intensity of the Silk'n Glide™ light pulse delivered to your skin. As energy level increases, so does hair removal results as well as the risk of possible side effects and complications. Glide™ offers 5 levels of energy from 1 (the lowest) to 5 (the highest), represented by 5 ENERGY LEVEL INDICATOR LIGHTS.

The energy level set for the treatments determines the number of pulses the device can produce. Whenever Silk'n Glide™ is turned on its energy level will automatically be reset to the lowest energy level. Only one ENERGY LEVEL INDICATOR LIGHT will be on. To set the energy level, press the CENTRAL BUTTON repeatedly to increase the energy level from 1 to 5 and from 5 directly back to 1.

1. Apply the TREATMENT SURFACE to the skin, making sure the skin is spread evenly and smoothly. As soon as the TREATMENT SURFACE is in full contact with the skin, the READY/SKIN TONE WARNING INDICATOR LIGHT will start blinking slowly.
2. Press the PULSE TRIGGER. The device will first determine the color of your skin. If the color of the skin is light enough for safe application, the device will flash a pulse of light onto your skin, and the READY/SKIN TONE WARNING INDICATOR LIGHT will turn off. You will see a bright flash of light and simultaneously hear a subtle pop sound, which is a normal noise for the device. You will feel a mild sensation of warmth and tingling.

Silk'n Glide™ will immediately recharge for the next pulse.

After a few seconds (depending on the set energy level) the READY/SKIN TONE WARNING INDICATOR LIGHT will turn on again, and start blinking slowly when attached again to the skin.

I I. Remove the TREATMENT SURFACE from the treated area of skin.
12. Choose a method of application for your session. Glide™ can be applied in two ways: "Pulsing" and "Gliding" (for more details see application methods frame below).

For the PULSING method, follow steps 9-1 I above on another spot repeatedly until the entire area is fully covered.
- For the GLIDING method, hold the PULSE TRIGGER down continuously, and slide the device smoothly along the treated area.

If your skin blisters or burns, STOP USE IMMEDIATELY!

Methods of application

PULSING

PULSING is the best technique for working with higher energy levels as it enables better control of skin coverage. When pulsing, Glide™ pulses should be administered in rows, starting at one end of each row

and progressing sequentially towards the other end helping you avoid treating the same area more than once or overlapping skin areas. When pulsing, the Silk'n Glide™ TREATMENT SURFACE is designed to create temporary pressure marks on the treated area. In every repositioning of the TREATMENT SURFACE use these pressure marks to guide you for proper positioning of the next pulse, avoiding both gaps and overlaps between pulses.

Try to avoid overlapping pulses!

Do not treat the same area of skin more than once per hair removal session! Treating the same area of skin more than once per session increases the likelihood of adverse effects.

GLIDING

GLIDING is the best way to work within the low energy levels and achieve a fast and more efficient session. When Gliding, hold the PULSE TRIGGER down continuously, and using a slow, sliding motion while keeping contact with the skin, smoothly move the device along the treated area. In the lower energy levels the device takes only 1-1.5 seconds to recharge between pulses and provides a nonstop sequence of flashes.

If your skin blisters or burns, STOP USE IMMEDIATELY!

The Skin Color Sensor

Light-based hair removal on darker skin tones can result in adverse effects such as burns, blisters, and skin color changes (hyper- or hypo-pigmentation).

To prevent such misuse, a unique SKIN COLOR SENSOR in Silk'n Glide™ measures the treated skin complexion at the beginning of each session and occasionally during the session. If the SKIN COLOR SENSOR detects a skin tone that is too dark for Silk'n Glide™ application, the device will automatically stop emitting pulses.

If you see no light pulse and the READY/SKIN TONE WARNING INDICATOR LIGHT is rapidly blinking, this is an indication that your skin tone, measured by the SKIN COLOR SENSOR, is too dark for safe application. Try using the device on a different body part or contact Silk'n™ support.

9.1. What to Expect when treating with Silk'n Glide™?

For many people, using Silk'n Glide™ may be their first experience with a light-based device designed for home use. Silk'n Glide™ is simple to use, and hair removal sessions go by quickly. During a Silk'n Glide™ session it is normal to experience and feel:

A Fan Noise - The cooling fan in Silk'n Glide™ makes noise similar to a hairdryer. This is normal.
A Pop Sound with Each Pulse - When a pulse of HPL™ light is activated, it is normal to hear a subtle pop sound simultaneously with the flash of light.
- A Sensation of Warmth and Tingling - During each pulse of light it is normal to feel a mild sensation of warmth and tingling from the light energy.
Some Mild Red or Pink Color - During and just after your Silk'n Glide™ session it is not uncommon to see some very mild, pink-like color of the skin. This is usually most noticeable around the hairs themselves. However if you see full redness of the skin, blistering or burns stop use of Silk'n Glide™ immediately.

9.2. After treating with Silk'n Glide™

1. When Glide™ session has been completed turn Glide™ off by giving the CENTRAL BUTTON an extended press. Be sure to remember the last energy level setting you used, as it will not be restored when turning Glide™ on again.
2. Unplug the ADAPTOR cord from the electrical outlet.
3. After each hair removal session it is recommended that you clean your Silk'n Glide™ device, especially the TREATMENT SURFACE (See: "Cleaning Silk'n Glide™").
4. After cleaning, it is recommended to store your Silk'n Glide™ device in its original box, and keep it away from water.

Skin care following hair removal session

Do not expose areas of skin treated in energy levels 2-5 to the sun. Be sure to carefully protect the treated skin with sunscreen, throughout the hair removal period and for at least 2 weeks following the last Silk'n Glide™ session.

10. Maintenance of Silk'n Glide™

10.1. Cleaning Silk'n Glide™

After each hair removal session, it is recommended to clean your Silk'n Glide™ device, and especially the TREATMENT SURFACE.

I. Unplug Silk'n Glide™ before cleaning.
2. Use a dry, clean cloth and a specially formulated cleaning detergent for electronic equipment to gently wipe Silk'n Glide™ surface, and especially the TREATMENT SURFACE.

Never immerse Silk'n Glide™ or any of its parts in water!

11. Troubleshooting

I I.1. "My Silk'n Glide™ does not start."

Make sure the ADAPTOR is properly connected to the Glide™ device.
Make sure the ADAPTOR is plugged into an electrical outlet on the wall.

11.2. "A light pulse is not emitted when I press the PULSE TRIGGER"

Make sure that the READY/SKIN TONE WARNING INDICATOR LIGHT is blinking slowly to ensure you have good contact with the skin and that the TREATMENT SURFACE is evenly and firmly pressed to the skin. For your safety, the PULSE TRIGGER will activate a pulse only if the TREATMENT SURFACE is firmly pressed against the skin.

• Check the SKIN TONE WARNING INDICATOR LIGHT. If it blinks rapidly, this is an indication that your skin tone, measured by the SKIN COLOR SENSOR, is too dark for safe application. Try using the device on a different body part or contact Silk'n™ support.
  If the SKIN TONE WARNING INDICATOR LIGHT is constantly on, together with any number of indicator lights, you have a system error. If this problem persists, contact your local Glide™ Customer Service Center.
  If these problems persist, contact your local Silk'n™ Customer Service Center.
• Check if all lights are blinking together in a circle. If so, unplug the device from its power source. The device has reached its End of Life stage. This device is to be orderly disposed of. Deliver your old equipment to the nearest electronic waste collection point for safe and efficient disposal.

Do not attempt to open or repair your Silk'n Glide™ device. Only authorized Silk'n™ repair centers are permitted to perform repairs.

Opening Silk'n Glide™ may expose you to dangerous electrical components and to pulsed light energy, either of which may cause serious bodily damage and/or permanent eye injury.

Trying to open Silk'n Glide™ may also damage the device and will void your warranty.

Please contact Silk'n™ Customer Service if you have a broken or damaged device in need or repair.

12. Customer Service

For more information about Silk'n™ products please visit your local Silk'n™ website, www.silkn.eu or www. silkn.com.

If your device is broken, damaged, in need of repair, or for any other user assistance, please contact your local Silk'n™ Customer Service:

For USA and Canada customers: I-877-DO-SILKN / I-877-367-4556, [e-mail]

For customers in other countries: [e-mail]

13. Specifications

Spot Size 0.9cm x 3cm [2.7cm²]
Technology Home Pulsed Light™
Max Energy Level Max 5J/cm²
Wavelength 475-1200nm
Charging Time/Power Source Continuous operation
Electrical Requirements 100-240VAC, 2A
Time Needed to Treat Lower Legs 6 minutes on average
Operation and Safety		Skin Color Sensor seamlessly ensures use only on appropriate skin types
Package Size 223x221x90 cm
System weight 200gr
Temperature	Operating 10°C to 35°C
	Storage -40 to +70°C
Relative Humidity	Operating 30 to 75%rH
	Storage 10 to 90%rH
Atmospheric pressure	Operating 700 to 1060hPa
	Storage 500 to 1060hPa
Adaptor Rated		Model: KSA24A1200150HU KSAPV0361200300D5 100-240V; 50-60Hz 0.5A 100-240V; 50-60Hz 0.9A

Home Skinovations Ltd. Tavor Building, Shaar Yokneam POB 533, Yokneam 20692, ISRAEL www.silkn.com, [e-mail]

Table des matieres

Home Skinovations Ltd. Tavor Building, Shaar Yokneam POB 533, Yokneam 20692, ISRAEL www.silkn.com, [e-mail]

Inhoudsopgave

4. Contra-indications

Home Skinovations Ltd. Tavor Building, Shaar Yokneam POB 533, Yokneam 20692, ISRAEL www.silkn.com, [e-mail]

Nivakaç Περιεχομένων

1. Piv Ekvnoe 62
   1.1. Pepiyaqn oukeunc Silk'n Glide 62
   1.2.Iepiexóeva ouokeuacic 62
2. Evδεδειγμενη Xρήση τοι Silk'n Glide™ 63
3. Aovaiia to Silk'n Glide 63
   4.AvTeVdelta 64
4. Mny xpoiooioe to Silk'n GlideTM eav: 66
   6.AnoovetyeTn xpon tou Silk'n Glide" av 1oxu kati ano ta akoloutheta: 67
5. Πιθανες Παρενέργειες της χρήσετου Silk'n Glide™ 68
6. Makpoxpovia anotpixwn to GlideTM 69
7. 3ekivnoTe 70
   9.1. Ti va περιμένετε anó τη χρόση τοῦ Silk'n Glide™; 73
   9.2.Metá thv eapauyn tou Silk'n GldeTM 73
8. EvtnpnoTou Silk'n GlideTM 74
   10.1. Kaopiooc Tou Silk'n GlideTM 74
9. Aviμετωπιον Προβληματων 74
   11.1. "To Silk'n GlideTM 8ev 8ouAeuei." 74
   11.2."ev ekneepetai naooc ootav niEOW tov AIAKONTH PAAMOY." 74
10. Eeunnpetno nEaTow 75
11. TeXViKa Xapaktnpiotika 75

Piv xpoioioe to Silk'n Gide™ ia npwtn oopa,napakaiaote va diaafoe ooknpo to napov Eyxepidio XpnoTn. Awote iiaitepn npooxniotc vta n diadikaoia xpnonc tnc ouakeun, to xepioo tro c ouokeun kai tic diaiakaoiec meta th xpon.2ac ouviotouve va ouuoueote lavavto napov Eyxepidio XpnoTn piv ano katheta xpnon tou Silk'n GideTM.To Silk'n GideTM eivai ia nlektpikn oukeun kai wc ek toutou th a npenei va xpoioonoietai me idaiatepn npooxyni a tvn aoopaia oc.. Napakaiaote va diaiaoe te olec ti npoeioloioeic kai npoovlaeaic aoopaiaic priv tn xponkai va tic akoloueite auotnpa otav xpoioonoieite to Silk'n GideTM

1. Πριν Εεκίνησετε

Home Skinovations Ltd. Tavor Building, Shaar Yokneam POB 533, Yokneam 20692, ISRAEL www.silkn.com, [e-mail]

Innholdsfortegnelse

Prova unnga overlappende pulser!

Home Skinovations Ltd. Tavor Building, Shaar Yokneam POB 533, Yokneam 20692, ISRAEL www.silkn.com, [e-mail]

Sisälto

Home Skinovations Ltd. Tavor Building, Shaar Yokneam POB 533, Yokneam 20692, ISRAEL www.silkn.com, [e-mail]

Home Skinovations Ltd. Tavor Building, Shaar Yokneam POB 533, Yokneam 20692, ISRAEL www.silkn.com, [e-mail]

Indholdsfortegnelse

Forsog at undgå overlappende pulse!

Home Skinovations Ltd. Tavor Building, Shaar Yokneam POB 533, Yokneam 20692, ISRAEL www.silkn.com, [e-mail]

Indices

Home Skinovations Ltd. Tavor Building, Shaar Yokneam POB 533, Yokneam 20692, ISRAELE www.silkn.com, [e-mail]

Indices

WEEE - Waste Electrical and Electronic Equipment

CE Mark

Do not use this appliance in a wet surrounding.

Degree of protection against ingress water: ordinary

This device is not suitable for use in the presence of flammable anesthetic mixture with air or with Oxygen or Nitrous Oxide.

HomeSkinovations ^TM [e-mail] www.silkn.com
