USER MANUAL RLV3120 HONEYWELL

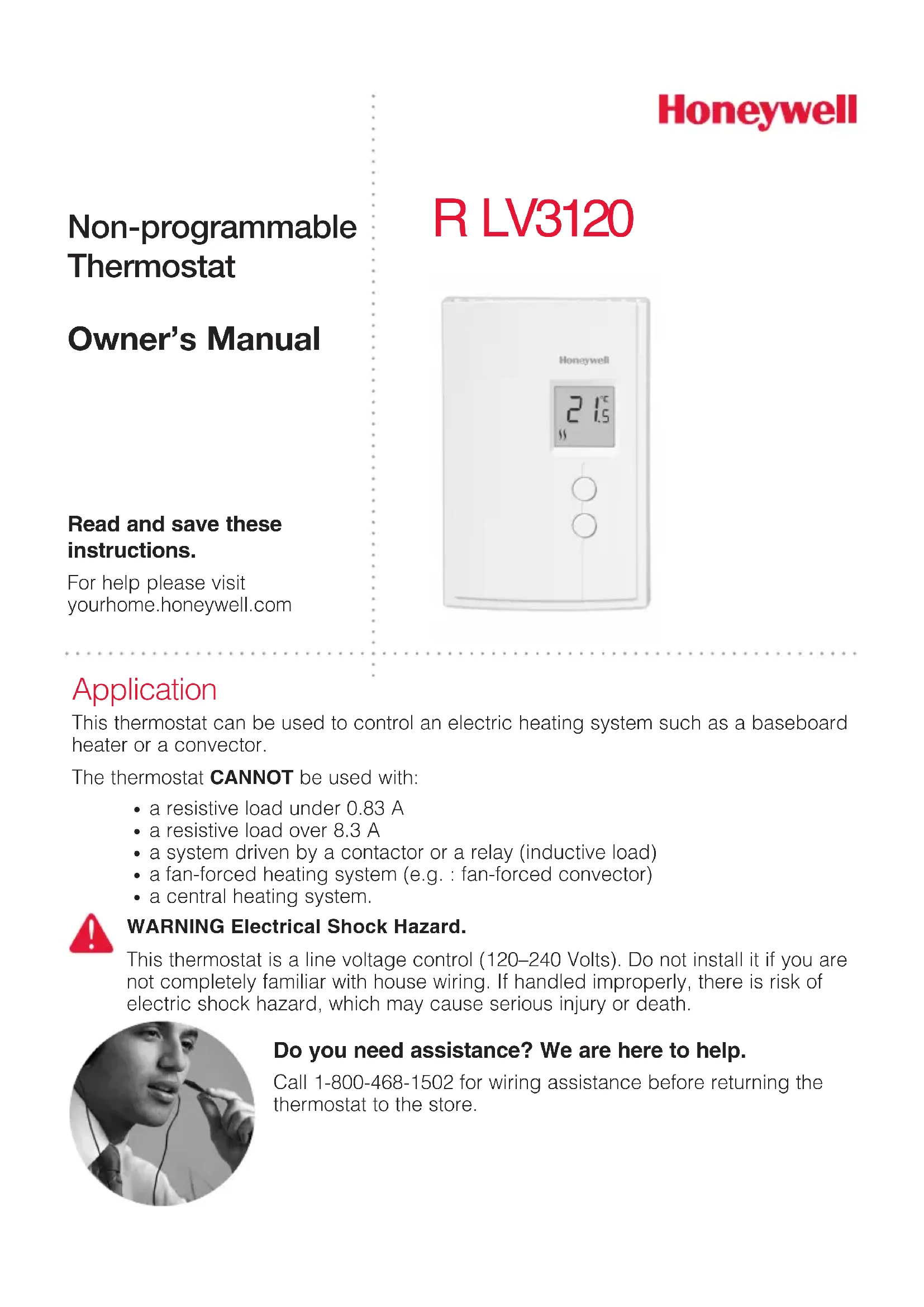

Owner’s Manual Read and save these instructions. For help please visit yourhome.honeywell.com R LV3120 Non-programmable Thermostat Application This thermostat can be used to control an electric heating system such as a baseboard heater or a convector.The thermostat CANNOT be used with:• a resistive load under 0.83 A• a resistive load over 8.3 A• a system driven by a contactor or a relay (inductive load)• a fan-forced heating system (e.g. : fan-forced convector)• a central heating system.WARNING Electrical Shock Hazard.This thermostat is a line voltage control (120–240 Volts). Do not install it if you are not completely familiar with house wiring. If handled improperly, there is risk of electric shock hazard, which may cause serious injury or death. Do you need assistance? We are here to help. Call 1-800-468-1502 for wiring assistance before returning the thermostat to the store.2

ATTENTION: MERCURY RECYCLING NOTICE

This product does not contain mercury. However, this product may replace a product that contains mercury. Mercury and products containing mercury should not be discarded in household trash. For more information on how and where to properly recycle a thermostat containing mercury in the United States, please refer to the Thermostat Recycling Corporation at www.thermostat-recycle.org. For mercury thermostat recycling in Canada, please refer to Switch the Stat at www.switchthestat.ca NO MERCURY

• One (1) thermostat• Two (2) 6-32 mounting screws• Two (2) solderless connectors Temperature display and setting Up button Down button Appears when the setpoint is displayed Temperature display Heating intensity indicator (No image appears when heating is off.) The thermostat normally displays the actual (ambient) temperature.

• To view the setpoint temperature, briefly press the Up or Down button. The setpoint will be displayed for 5 seconds.

• To change the setpoint temperature, press the Up or Down button until the desired value is displayed.3 Removing the faceplate WARNING

AVOID ELECTRIC SHOCK. Loosen the screw holding the faceplate to the base. The screw cannot be completely removed and remains captive on the base. Remove the faceplate from the base by pulling the bottom half. 4-wire Installation2-wire Installation Wiring Connect either one of the thermostat wires to the heater wire and the other one to the power supply wire using solderless connectors for copper wires. NOTE: All cables and connections must conform to the local electrical code. Special CO/ALR solderless connectors must be used when connecting with aluminium conductors. Power supply Power supply4 Installing the faceplate Install the base onto an electrical box. Reinstall the faceplate on the base and secure it in place with the screw. Selecting the temperature display format To select the temperature display format:

1. Press the Up and Down buttons for three seconds. The

format currently used will be indicated on the screen.

2. Press the Up or Down button to change the format.

3. Press the Up and Down buttons for one second (or wait

for one minute) to return to the normal display. NOTE: Keep the air vents of thermostat clean and unobstructed at all times. Troubleshooting Problem Solution(s) Thermostat is hot. This is normal. Displayed temperature is wrong. Remediate if any the following conditions exists:

• The thermostat is exposed to air draft.

• The sticker on the thermostat’s screen has not been removed.

• The thermostat is located near or above a heat source such as a light dimmer. Display disappears and reappears after a few minutes. The thermal protection device on the heater has temporarily opened. This can happen if the heater is obstructed by furniture or curtain and has overheated, or if the heater’s thermal protection device is too sensitive.5 Specifications Supply: 120/240 VAC, 60 Hz Minimum load: 0.83 A (resistive only) 200 W @ 240 V AC 100 W @ 120 V AC Maximum load: 8.3 A (resistive only) 2000 W @ 240 VAC 1000 W @ 120 VAC Display range: 0 °C to 50 °C (32 °F to 99 °F) Setpoint range: 5 °C to 30 °C (40 °F to 85 °F) Storage: -20 °C to 50 °C (-4 °F to 120 °F) Heating cycle length: 15 seconds Permanent memory: You do not need to adjust the temperature following a power outage.Automation and Control Solutions Honeywell International Inc. 1985 Douglas Drive North Golden Valley, MN 55422 yourhome.honeywell.com ® U.S. Registered Trademark. © 2015 Honeywell International Inc. 33-00149EF—01 M.S. 09-15 Printed in U.S.A. 33-00149EF-01 1-year limited warranty Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option). If the product is defective, (i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or (ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1985 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you. This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect or malfunction was caused by damage which occurred while the product was in the possession of a consumer. Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you. THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE-YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-468-1502.R LV3120 Veuillez lire le mode d’emploi et le conserver en lieu sûr. Pour obtenir de l’aide veuillez visiter yourhome.honeywell.com Manuel du propriétaire Thermostat non programmable Application Ce thermostat a été conçu pour commander un appareil de chauffage électrique tel qu’une plinthe chauffante ou un convecteur.Ce thermostat NE PEUT être utilisé avec :• une charge résistive inférieure à 0,83 A• une charge résistive supérieure à 8,3 A• un appareil muni d’un contacteur ou d’un relais (charge inductive)• un appareil muni d’un ventilateur (exemple : ventiloconvecteur)• un système de chauffage centralMISE EN GARDE : Risque de chocs électriques.Ne pas installer ce régulateur tension secteur (tension secteur de 120 V à 140 V) à moins d’être très familier avec les raccordements électriques et l’installation des régulateurs tension secteur. Une mauvaise manipulation lors de l’installation peut causer des blessures graves ou la mort. Besoin d’aide? Nous sommes à votre service. Composer le 1-800-468-1502 pour obtenir de l’aide au raccordement avant de retourner le thermostat au magasin.8
