USER MANUAL Boulder 100 GOAL ZERO

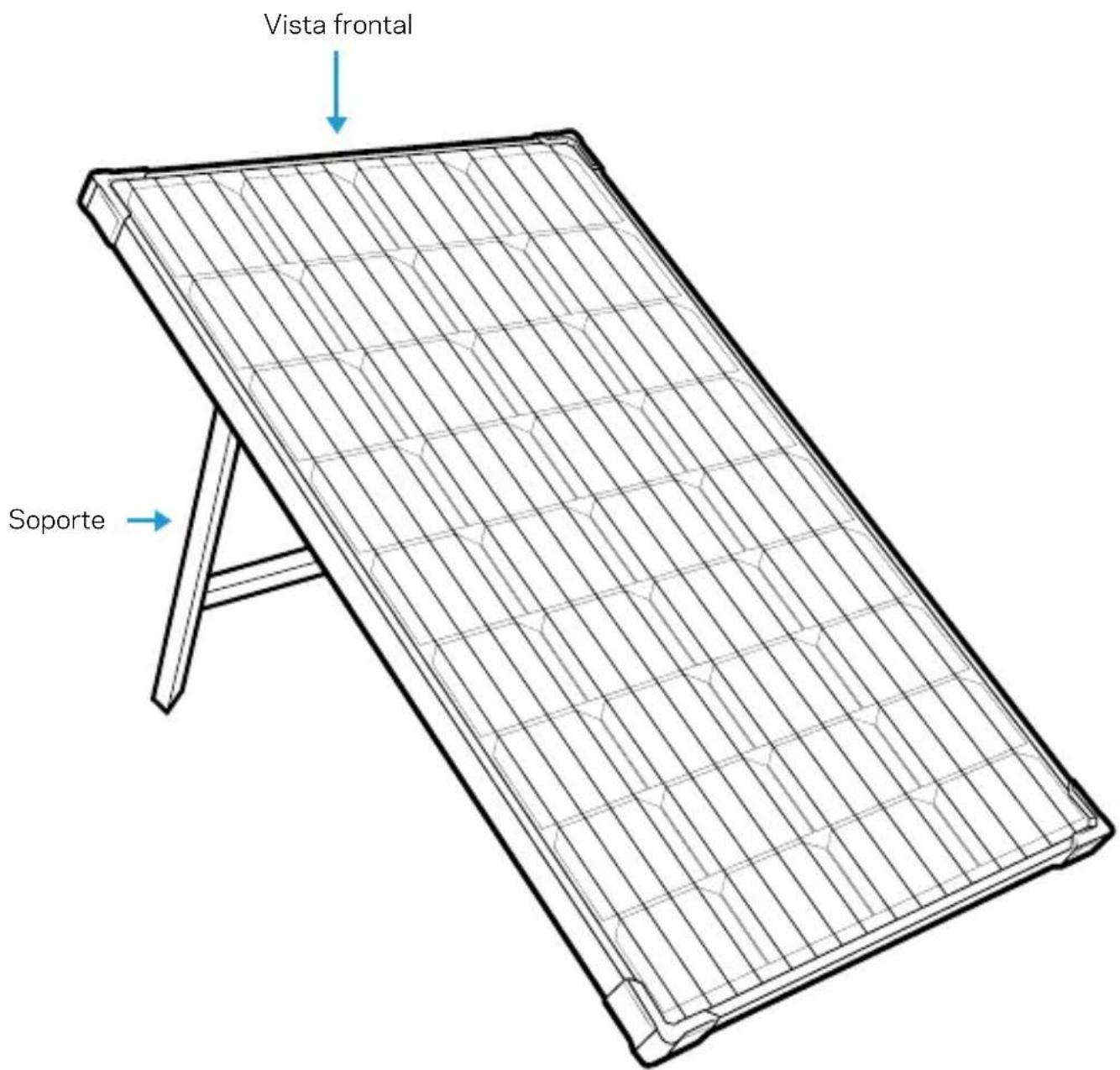

Kickstand Front View3

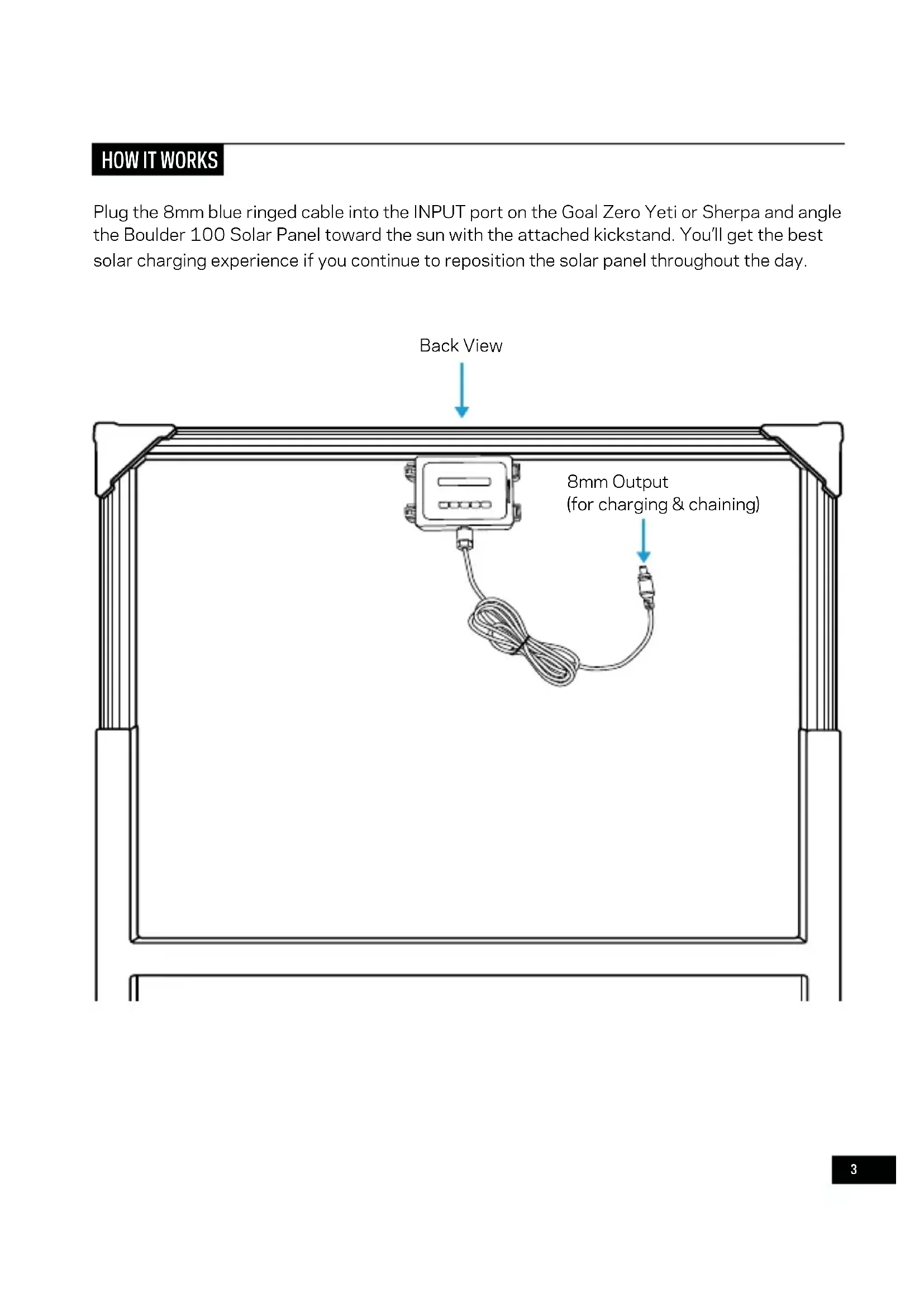

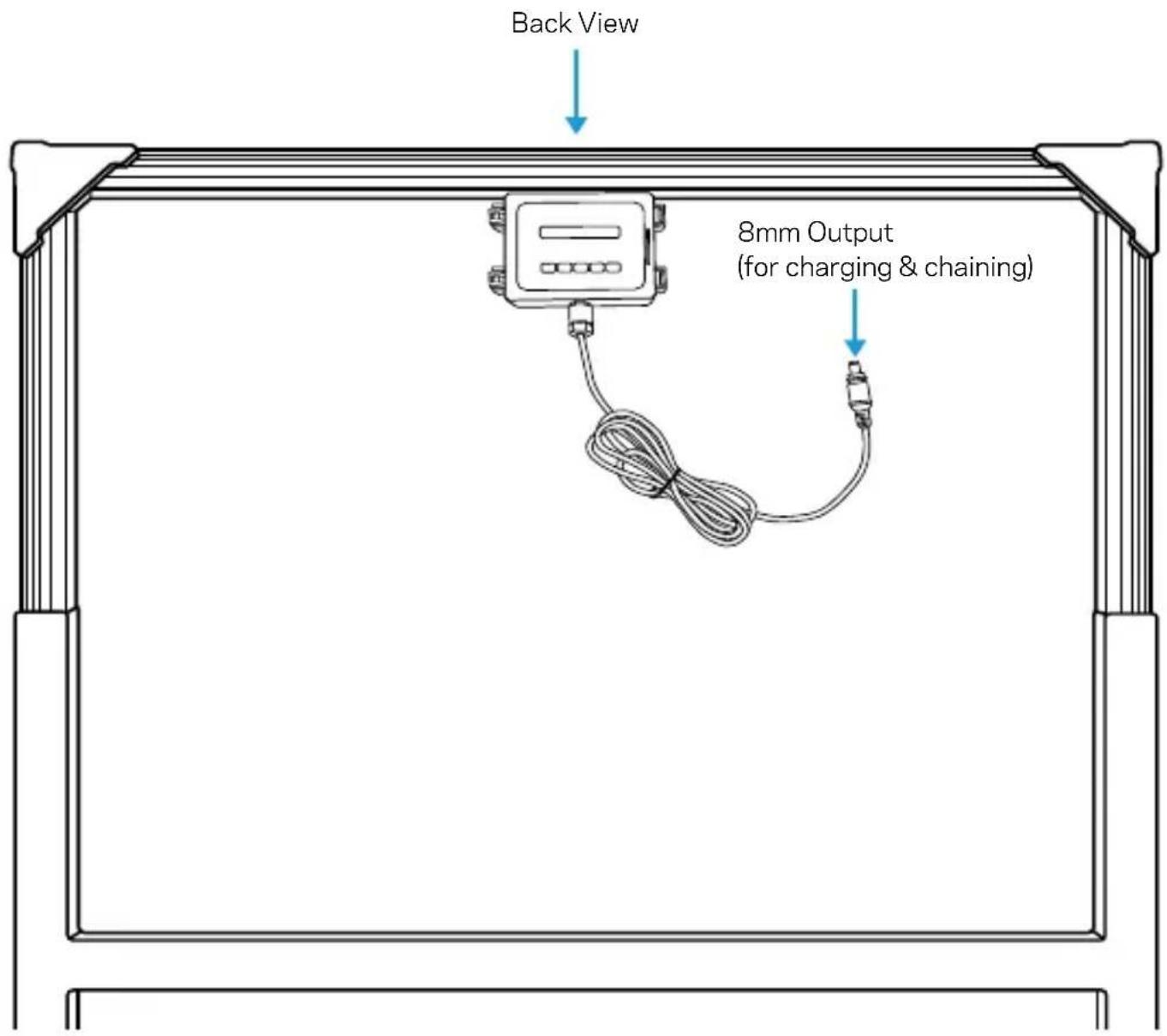

Plug the 8mm blue ringed cable into the INPUT port on the Goal Zero Yeti or Sherpa and angle the Boulder 100 Solar Panel toward the sun with the attached kickstand. You’ll get the best solar charging experience if you continue to reposition the solar panel throughout the day. 8mm Output (for charging & chaining) Back View4 To chain Boulder 100 Solar Panels together, and for Boulder configurations over 150W, you’ll need to purchase a combiner cable from Goal Zero. Give our customer solutions center a call for help picking the right cable for your setup.

TECHNICAL SPECIFICATIONS Boulder 100 Solar Panel Charges the following Approx. Charge time GOAL ZERO Sherpa 50 3 hrs GOAL ZERO Sherpa 100 3-4 hrs GOAL ZERO Yeti 150 3-6 hrs GOAL ZERO Yeti 400 8-16 hrs GOAL ZERO Yeti 1400 29-57 hrs Solar Panel Rated Power 100W Open Circuit Voltage 18-22V Cell Type Monocrystalline Ports Solar port (blue, 8mm male) 14-22V, up to 7A (100W max) General Weight 20.1 lbs (9.1 kg) Dimensions 40.0 x 26.75 x 1.75 in (101.6 x 70.0 x 4.4 cm) Certs Warranty 12 months5 Q: Are the Boulder Solar Panels waterproof? A: Yes. The Boulders are designed to withstand the elements, so they’re great for permanent installations. What you’re recharging from the Boulders is what needs your help to stay dry, so keep those power packs and power stations covered up and protected from the dust, rain, and snow. Q: Can I chain a Boulder 100 with other Boulders? A: Depends on the panels. Yes, you can chain the Boulder 100 Solar Panel with other Boulders that have an 8mm input or input connector, like the Boulder 50 or the older Boulder 30, by inserting the 8mm blue-ringed connector of the Boulder 100 Solar Panel into the 8mm input of the other Boulder Solar Panel. When chaining Boulder Solar Panels in configurations over 150W, you’ll need to purchase a combiner cable from Goal Zero. Give our customer solutions center call to determine the right cable for your setup. Q: What can I charge directly from the Boulder Solar Panels? A: All of our Boulder Solar Panels are designed to charge Sherpa Power Packs and Goal Zero Yeti Portable Power Stations. If you’re looking to recharge things like headlamps, phones, and other USB devices, check out our foldable Nomad Solar Panels. Q: How long will it take to charge my Goal Zero Yeti from a Boulder Solar Panel? A: That depends on a few factors – how big the Yeti is, how big the Boulder is, how cloudy it is, how hot it is, just to name a few. We’ve created a handy calculator that takes all of these factors into consideration. Also, great news, all the Yetis allow for something called “pass-through power”, this means you can be trickle charging your Yeti and using it to power your gear, all at the same time. Q: Can I mount the Boulder Solar Panels to my roof? A: Sure can. We designed the new Boulders to work with traditional z brackets so they’re easier to install. Pairing a Boulder Solar Panel and Goal Zero Yeti Portable Power Station for a camper or van? Talk about a match made in heaven.

675 West 14600 South Bluffdale, UT 84065 1-888-794-6250 Designed in the U.S.A. Made in China Boulder is a trademark of Goal Zero. CA041917
