USER MANUAL Styline MFQ4850 BOSCH

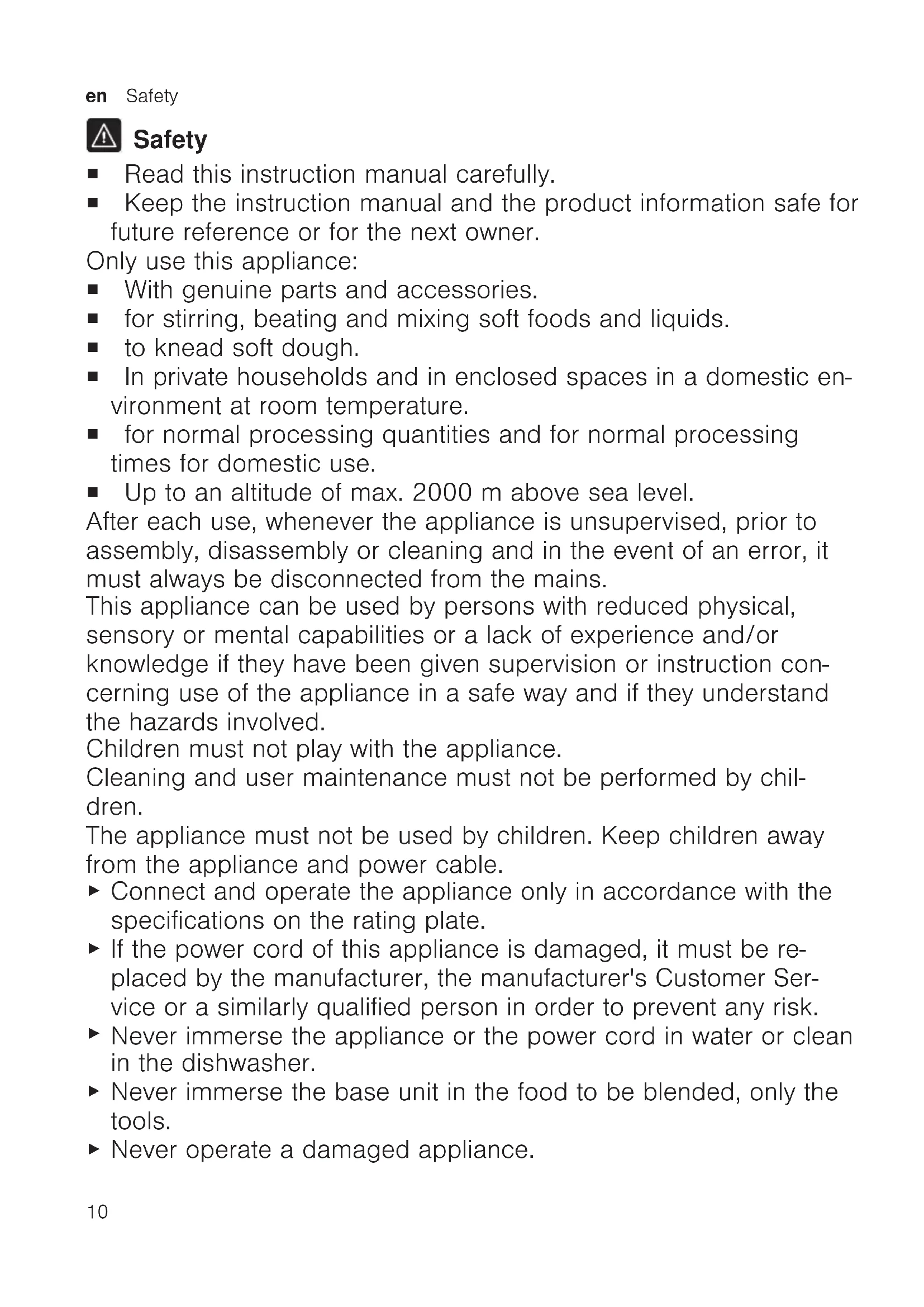

Safety ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. Only use this appliance: ¡ With genuine parts and accessories. ¡ for stirring, beating and mixing soft foods and liquids. ¡ to knead soft dough. ¡ In private households and in enclosed spaces in a domestic en- vironment at room temperature. ¡ for normal processing quantities and for normal processing times for domestic use. ¡ Up to an altitude of max. 2000m above sea level. After each use, whenever the appliance is unsupervised, prior to assembly, disassembly or cleaning and in the event of an error, it must always be disconnected from the mains. This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction con- cerning use of the appliance in a safe way and if they understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by chil- dren. The appliance must not be used by children. Keep children away from the appliance and power cable.

Connect and operate the appliance only in accordance with the specifications on the rating plate.

If the power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk.

Never immerse the appliance or the power cord in water or clean in the dishwasher.

Never immerse the base unit in the food to be blended, only the tools.

Never operate a damaged appliance.Avoiding material damage en Printed on 100% recycled paper 11

Never let the power cord come into contact with hot parts or be dragged over sharp edges.

Never place the appliance on or near hot surfaces.

After switching off, wait until the drive has come to a complete standstill.

Keep hands, hair, clothing and utensils away from rotating parts.

Never leave the appliance switched on if the power supply is in- terrupted. The appliance will automatically start up again follow- ing the interruption in the power supply.

Process hot food carefully.

Leave boiling food to cool down to at least 70°C before pro- cessing.

Follow the cleaning instructions.

Clean surfaces which come in contact with food before each use. Avoiding material damage Avoiding material damage Avoiding material damage

Do not operate the appliance at no-load.

Apertures (with lock) for inserting thetools

Self-closing rear aperture

High-speed hand blender

Depending on the model

separate operating instructions Note:If an accessory is not included in the scope of supply, it can be ordered from customer service. Operating elements Operating elements Operating elements Ejector button For removing the tools. Note:The Ejector button cannot be actu- ated unless the switch is in the position. Release buttons For removing the accessories from therear aperture. Switch Symbol Function switched off

Instantaneous switching (highest speed) press to theleft and hold inplace Note:When therear aperture is open, the selector switch will not function between levels and .en Tools 12 Printed on 100% recycled paper Tools Tools Tools Beating whisks The beating whisks are suitable for the following applications: ¡ beat egg whites or cream ¡ make light dough such as e.g. sponge mixture, cake mixture, pancake batter Note:To make mayonnaise, use the high- speed hand blender. Kneading hooks The kneading hook is suitable for making different doughs like yeast dough, bread dough, pizza, strudel or shortcrust pastry. Note:The maximum processing quantity is 500g of flour and ingredients. Processing food with the tools Processing food with the tools Processing food with the tools Notes ¡ Note theshape oftheplastic parts onthetools to avoid mixing up thetools! ¡ Insert the tools one after theother to pre- vent them from becoming entangled.

Application examples Application examples Application examples Always observe the maximum quantities and processing times in the table.

Overview of cleaning Overview of cleaning Overview of cleaning Clean the individual parts as indicated in the table.

Disposing of old appliance Disposing of old appliance Disposing of old appliance

Dispose of the appliance in an environ- mentally friendly manner. Information about current disposal meth- ods are available from your specialist dealer or local authority. This appliance is labelled in accordance with European Directive 2012/19/EU con- cerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appli- ances as applicable throughout the EU. Warranty conditions Warranty conditions Warranty conditions You can make warranty claims for your ap- pliance under the following conditions. The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was pur- chased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.Sécurité fr

Service world-wide Service world-wide Service world-wide Central Service Contacts

United Arab Emirates,

Great Britain BSH Home Appliances Ltd. Grand Union House, Old Wolverton Road, Wolverton Milton Keynes MK12 5PT To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch- home.co.uk Or call Tel.: 0344 892 8979* *Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

Republic of Ireland BSH Home Appliances Ltd. M50 Business Park, Ballymount Road Up- per, Walkinstown Dublin 12 To arrange an engineer visit, to order spare parts and accessories or for product advice please call Tel.: 01450 2655* www.bosch-home.ie *Calls are charged at the basic rate, please check with your telephone service provider for exact charges

South Africa BSH Home Appliances (Pty) Ltd. 96 Fifteenth Road, Randjespark 1685 Midrand - Johannesburg Tel.: 086 002 6724 mailto:bsh@iopen.co.za mailto:applianceserviceza@bshg.com www.bosch-home.com/zaThank you for buying a Bosch Home Appliance! Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance

• Warranty extension options

• Discounts for accessories & spare-parts

• Digital manual and all appliance data at hand

• Easy access to Bosch Home Appliances Service Free and easy registration – also on mobile phones: www.bosch-home.com/welcome Looking for help? You'll find it here. Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directo- ry. *8001216581* 8001216581 (010817) de, en, fr, it, nl, da, no, sv, fi, es, pt, el, tr, pl, uk, ru, ar BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY A Bosch Company www.bosch-home.com Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom
