USER MANUAL AC5015 UFESA

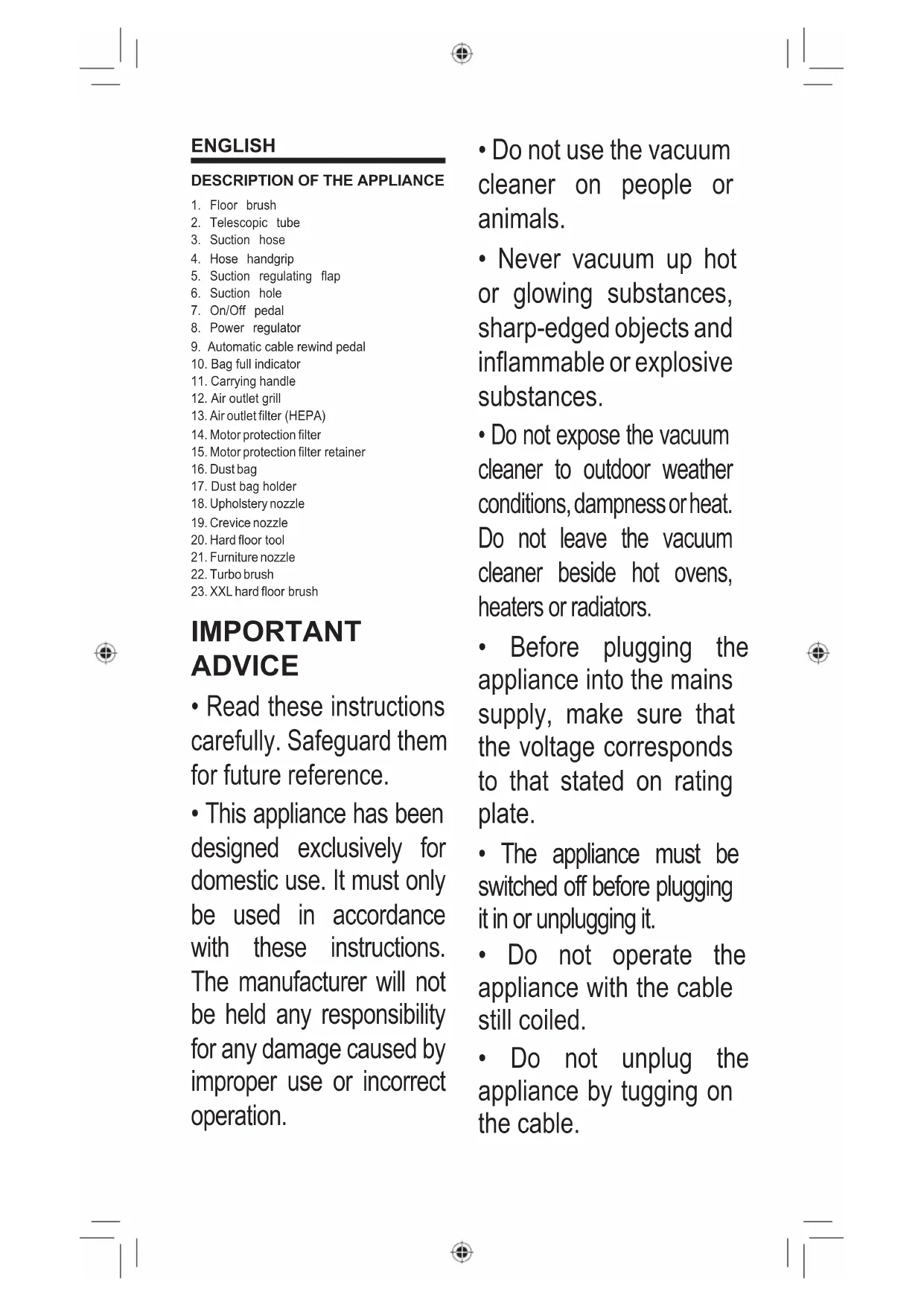

5. Suction regulating flap

• Read these instructions carefully. Safeguard them for future reference.

• This appliance has been designed exclusively for domestic use. It must only be used in accordance with these instructions. The manufacturer will not be held any responsibility for any damage caused by improper use or incorrect operation.

• Do not use the vacuum cleaner on people or animals.

• Never vacuum up hot or glowing substances, sharp-edged objects and inflammable or explosive substances.

• Do not expose the vacuum cleaner to outdoor weather conditions, dampness or heat. Do not leave the vacuum cleaner beside hot ovens, heaters or radiators.

• Before plugging the appliance into the mains supply, make sure that the voltage corresponds to that stated on rating plate.

• The appliance must be switched off before plugging it in or unplugging it.

• Do not operate the appliance with the cable still coiled.

• Do not unplug the appliance by tugging on the cable.• Unplug the vacuum cleaner from the mains supply when not in use and before proceeding to clean it or change the bags or filters.

• This vacuum cleaner must not be used without the dust bag and filters. This could damage the appliance.

• Never use the vacuum cleaner without a bag, or try to empty a full bag and reuse it.

• Do not use the vacuum cleaner if it is blocked, as this will reduce the air flow causing it to overheat, which may damage the appliance.

• Do not handle either the vacuum or the plug with wet hands. Do not immerse the appliance in water.

• Do not pull on either the cable or the suction tube to move the vacuum cleaner. Use the carrying handle.

• Do not use the appliance if either the cable or plug is damaged or if it can be detected that the appliance is not working correctly.

• When closing doors, make sure not to pinch the cable.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.• At the end of its life, the vacuum cleaner should be disposed of in an appropriate manner.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• ATTENTION: Do not use the vacuum cleaner to suck up building waste (cement, brick dust, rubble, etc.). These types of particles quickly clog up the pores in the dust bag causing the appliance to overheat.

SWITCHING ON AND OPERATION

- Insert the hose (3) into the suction hole (6) so that it clicks into position. Pressing down the release button will help you remove the hose (3). (Fig. 1) - Attach the telescopic tube (2) to the handgrip (4), and adjust the length to suit the user. (Fig. 2) - Fit the floor brush (1), accessory number 18, 19, 20, 21, 22 to the vacuum tube (Fig. 3). The accessary parts 18, 19, 21 can also be affixed to the handgrip (4) (Fig. 4). - Holding the power cord by the plug, pull out the required length and plug it into the mains socket. (Fig. 5) - Press the On/Off pedal (7), (Fig. 6). Regulate the power using the power regulator (8), and turn clockwise to increase power while turning anti-clockwise to reduce power (Fig. 7). The intensity can be regulated from the handgrip. Opening the flap (5) reduces suction, whereas closing it increases suction. (Fig. 8) - You can use the parking aid on the back of the vacuum cleaner if you wish to stop vacuuming for a short while. Slide the catch on the brush into the groove at the rear of the appliance (Fig. 9). - The wheels and 360° swivel joint and the carrying handle (11) make this vacuum cleaner extremely mobile. WHEN FINISHED When you have finished using the appliance, set the power regulator (8) to the minimum position and press the On/Off pedal. Press the automatic cable rewind pedal (9) to wind the cable back (Fig. 10). Clip the tube onto the vacuum cleaner in a vertical position (Fig. 11).

REPLACING AND MAINTAINING

Bag full indicator (10) When suction power decreases considerably and the bag full indicator lights up. This means that the dust bag (16) is full or that the hose, tube or filters are blocked. If this occurs, follow the instructions for changing the dust bag, cleaning the filters and unclog hose or tube. Changing the dust bag (16) - Open the cover by pressing down the release button. (Fig. 12) - Take the dust bag out of the dust bag holder (17). (Fig. 13) - Close the bag by pulling on the central flap and scrap it into a dust bin. (Fig. 14) - To fit a new bag, fold the flap back (Fig. 15). Insert the bag into the bag holder, following the direction of the guide-arrow. Make sure that it slots fully down into its housing and that it fits correctly. Close the cover. Important:

• There is a dust bag absence detector on the bag holder, the cover can not be closed if there is no bag fitted. Do not force it shut, check that the bag is fitted correctly. (Fig. 16)

• If the suction is irregular and the bag full indicator stays lit, check that there is nothing blocking the hose, tube or air inlet.Replacing the motor protection filter (14) It is advisable to replace the motor protection filters after changing the paper dust bags five times. With no bag in the vacuum cleaner, take the filter together with the retainer (15) out and put a new one in. (Fig. 17) Never use the vacuum cleaner without this filter fitted. Cleaning and replacing the HEPA filter (13) The HEPA filter (13) should be cleaned regularly by knocking out the dirt and rinsing. - Open the cover, take out the filter. (Fig. 18) - Tap it or wash it with water and mild detergent. Then leave it to completely dry. - It is advisable to clean the HEPA filter at least after six uses. After being washed for ten times it should be replaced. Ionization Feature This vacuum cleaner contains an built-in negative ions generator. Ions are naturally occurring electrically charged particles. The ionizing feature can make the outlet air clean and fresh. (Fig. 19) ACCESSORY Upholstery nozzle (18) This accessory has been designed to clean all types of upholstery. Crevice nozzle (19) Use this accessory to vacuum crevices and deep grooves and nooks, etc. Hard floor tool (20) This tool has been specially designed to clean hard floor surfaces, tiles and terracotta, the soft hair bristles brush over the surface picking up the dust but without damaging the floor. Furniture nozzle (21) This accessory is ideal for vacuum cleaning furniture and other delicate surface, prevent surfaces from being damaged.

TURBO BRUSH FOR RUGS &

CARPETS (22) (Only for AC5015) This brush is specially designed for cleaning rugs and carpets. The rotating brush beats gently against the carpet fibers for deeper cleaning. XXL hard floor brush (23) (Only for AC5010XXL) The XXL hard floor brush has a 33 % larger cleaning surface than common models, to enable an especially thorough cleaning of hard floors, tiles and terracotta. The soft hair bristles pick up the dust without damaging the floor surface. ADVICE ON DISPOSAL: Our goods come in optimized packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials. This product complies with EU Directive 2002/96/CE. The crossed wheelie bin symbol shown on the appliance indicates that when it comes to dispose of the product it must not be included in with household refuse. It must be taken to a special refuse collection point for electric and electronic appliances or returned to the distributor when purchasing a similar appliance. Under current refuse disposal regulations, users who fail to take discarded appliances to special refuse collection points may be penalized. Correct disposal of discarded appliances means that they can be recycled and processed ecologically, helping the environment and allowing materials used in the product to be reused. For more information on available waste disposal schemes contact your local refuse service or the shop where the product was purchased. Manufacturers and importers are responsible for ecological recycling, processing and disposal of products, whether directly or via a public system. Your local town council can provide you with information about how to dispose of obsolete appliance.FRANÇAIS
