Bark Control PBC1713465 - Rechargeable anti-bark collar PETSAFE - Free user manual and instructions

Product type	Rechargeable anti-bark collar
Brand	PetSafe
Model	Bark Control PBC1713465
Minimum dog weight	18 kg
Minimum dog age	6 months
Power	Rechargeable battery via universal adapter (full charge in less than 4 hours)
Battery life	3 to 6 months depending on use
Stimulation levels	10 levels (0 to 9)
Stimulation modes	Temperament learning, progressive stimulation, user-selected stimulation
Bark detection	Dual detection: sound sensor + vibration sensor (Perfect Bark™ technology)
Waterproof	Yes, waterproof collar
Display	Digital screen with LED indicators (green, blue, red) and level indicator
Safety shut-off	Automatic 3-minute shut-off if 15 barks in 1 minute 20 seconds
Maintenance	Clean the contact points and dog's neck weekly with a damp cloth
Usage precautions	Do not leave the collar on for more than 12 hours per day; check fit every 1 to 2 hours
Kit contents	Anti-bark collar, universal adapter, user manual
Warranty	3 years (limited non-transferable warranty, registration required within 30 days)

Frequently Asked Questions - Bark Control PBC1713465 PETSAFE

How does the PetSafe Bark Control anti-bark collar work?

The collar uses dual detection (sound sensor and vibration sensor) to distinguish your dog's barking from ambient noises. When both sensors agree, an electrostatic stimulation is delivered through the contact points.

How do I properly adjust the collar on my dog?

Place the collar high on the dog's neck near the ears, with the contact points centered under the neck, directly against the skin. The collar should be tight enough that you can slide one finger between the contact point and the neck. Do not shave the neck, but trim the hair if necessary for better contact.

What to do in case of skin irritation?

Stop using the collar until the irritation is completely healed. Clean the dog's neck and the contact points weekly. If irritation persists for more than 48 hours, consult a veterinarian. Do not leave the collar on for more than 12 hours per day.

How do I recharge the battery and how long does it last?

Remove the rubber cover, plug the universal charger into a wall outlet. Full charge takes less than 4 hours. Average battery life is 3 to 6 months depending on barking frequency. The red light flashing every 10 seconds indicates active charging, and green indicates a full charge.

What are the different stimulation modes?

Three modes are available: Temperament Learning (gradually increases the level until the dog stops barking), Progressive Stimulation (increases with each bark within 30 seconds, then decreases), and User-Selected Stimulation (you manually select the level from 0 to 9).

Is the collar waterproof?

Yes, the anti-bark collar is waterproof. However, make sure to properly replace the rubber cover on the charging port after each recharge to prevent debris from entering.

Can I use this collar on an aggressive dog?

No, this product is not recommended for aggressive dogs. If your dog tends to be aggressive, consult a veterinarian or professional trainer before use. Aggressive dogs could cause serious injuries.

Can I attach a leash to the anti-bark collar?

No, never attach a leash to the electronic collar as it would put excessive pressure on the contact points. Use a separate non-metallic collar or harness for the leash.

How do I know if the battery is low?

The battery icon on the digital screen shows one bar or less, and/or the LED flashes red 3 times every 5 seconds. Recharge the unit then.

What if my dog continues barking despite the stimulation?

Check that the collar is tight enough and the contact points touch the skin (trim hair if necessary). Recharge the battery. If the problem persists, contact PetSafe customer service.

USER MANUAL Bark Control PBC1713465 PETSAFE

Big Dog Rechargeable Bark Control

Collier anti-aboiements rechargeable pour grands chiens

Line drawing of a smartwatch with a dog icon and signal icon, enclosed in a circular frame (no text or symbols)

IMPORTANT SAFETY INFORMATION

Explanation of Attention Words and Symbols used in this guide

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

⚠ WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

CAUTION

CAUTION, used without the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in harm to your pet.

WARNING

• Not for use with aggressive dogs. Do not use this product if your dog is aggressive, or if your dog is prone to aggressive behaviour. Aggressive dogs can cause severe injury and even death to their owner and others. If you are unsure whether this product is appropriate for your dog, please consult your veterinarian or certified trainer.
• Risk of explosion if battery is replaced by an incorrect type. Do not short circuit, mix old and new batteries, dispose of in fire, or expose to water. When batteries are stored or disposed, they must be protected from shorting. Dispose of spent batteries properly.
• The PetSafe® Bark Control Collar is not a toy. Keep away from the reach of children. Use it only for its bark control purpose.

CAUTION

CAUTION

Risk of skin damage. Please read and follow the

instructions in this manual. Proper fit of the collar is important. A collar worn for too long or made too tight on the pet's neck may cause skin damage. Ranging from redness to pressure ulcers; this condition is commonly known as bed sores.

• Avoid leaving the collar on the dog for more than 12 hours per day.
• When possible reposition the collar on the pet's neck every 1 to 2 hours.
• Check the fit to prevent excessive pressure; follow the instructions in this manual.
• Never connect a lead to the electronic collar; it will cause excessive pressure on the contacts.
• When using a separate collar for a lead, don't put pressure on the electronic collar.
• Wash the dog's neck area and the contacts of the collar weekly with a damp cloth.
• Examine the contact area daily for signs of a rash or a sore.
• If a rash or sore is found, discontinue use of the collar until the skin has healed.
• If the condition persists beyond 48 hours, see your veterinarian.
• For additional information on bed sores and pressure necrosis, please visit our website.

CAUTION

These steps will help keep your pet safe and comfortable. Millions of pets are comfortable while they wear stainless steel contacts. Some pets are sensitive to contact pressure.

You may find after some time that your pet is very tolerant of the collar. If so, you may relax some of these precautions. It is important to continue daily checks of the contact area. If redness or sores are found, discontinue use until the skin has fully healed.

• The PetSafe® Bark Control Collar must be used only on healthy dogs. We recommend that you take your dog to a veterinarian before using the collar if he is not in good health.
• Do not shave the pet's neck as this may increase the risk of skin irritation.
• You should not make the collar any more tight than is required for good contact. A collar that is too tight will increase the risk of pressure necrosis in the contact area.

Thank you for choosing the PetSafe® brand. You and your pet deserve a companionship that includes memorable moments and a shared understanding together. Our products and training tools promote a lifestyle of protection, teaching, and love—essentials that influence memories for a lifetime. If you have any questions about our products or training your pet, please visit our website at www.petsafe.net or contact our Customer Care Centre. For a listing of Customer Care Centre telephone numbers, visit our website at www.petsafe.net.

To get the most protection out of your warranty, please register your product within 30 days at www.petsafe.net. By registering and keeping your receipt, you will enjoy the product's full warranty and should you ever need to call the Customer Care Centre, we will be able to help you faster. Most importantly, your valuable information will never be given or sold to anyone. Complete warranty information is available online at www.petsafe.net.

Table of Contents

Components....5

Features....5

How the PetSafe® Big Dog Rechargeable Bark Control Collar Works ..... 5

Key Definitions 6

Charging the Bark Control Collar 6

Fit the Bark Control Collar....7

Choose Between Three Bark Control Settings....9

What to Expect During Use of the Bark Control Collar 11

Frequently Asked Questions....12

Troubleshooting....12

Terms of Use and Limitation of Liability 13

Important Recycling Advice 14

Compliance 14

Warranty....14

Components

Line drawing of a mechanical device with a strap and central button (no text or symbols)

PetSafe® Big Dog Rechargeable Bark Control Collar

Simple line drawing of a mechanical device with a rectangular block and two attached cables (no text or symbols)

Universal Charging Adaptor

Operating Guide

Features

• 10 Levels of progressive static stimulation
- Choose between 3 static stimulation modes to fit your dog's temperament
• Rechargeable battery and Digital Display
- Patented Perfect Bark ^TM technology ensures your dog's bark is the only sound that will cause the static stimulation
- Waterproof

How the PetSafe® Big Dog Rechargeable Bark Control Collar Works

The PetSafe® Big Dog Rechargeable Bark Control Collar uses several features designed to shorten the training phase and promote good behaviour.

The Bark Control Collar has a unique patented sensor that provides the most reliable bark detection available. The Bark Control Collar uses both vibration and sound sensors (dual-detection) to discriminate each bark from other external noises. A static stimulation is administered through the Contact Points only if both the vibration from the vocal chords and the sound from the bark match the same criteria.

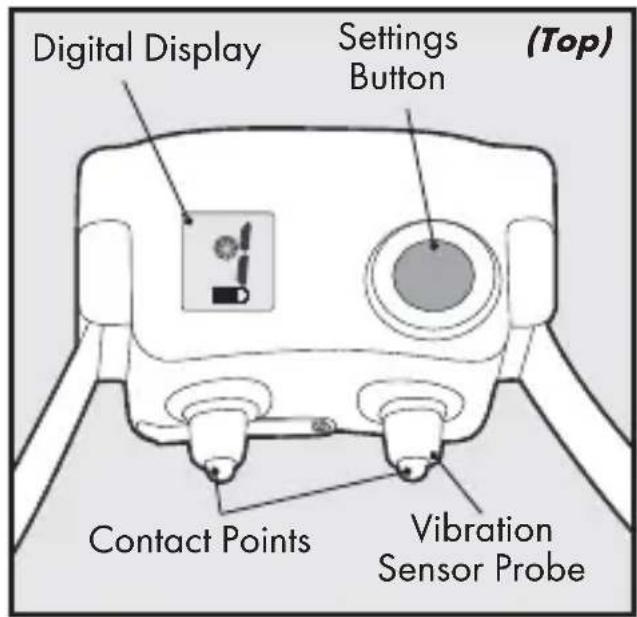

Key Definitions

Digital Display: Displays the current static stimulation mode based on light colour(s) and the numeric indicator. Also indicates the condition of the battery.

Settings Button: Adjusts the static stimulation mode and the level of static stimulation your dog receives when barking. Also used to turn the Bark Control Collar on and off.

Contact Points: Deliver the static stimulation.

Vibration Sensor Probe: Detects the vibrations of your dog's barking.

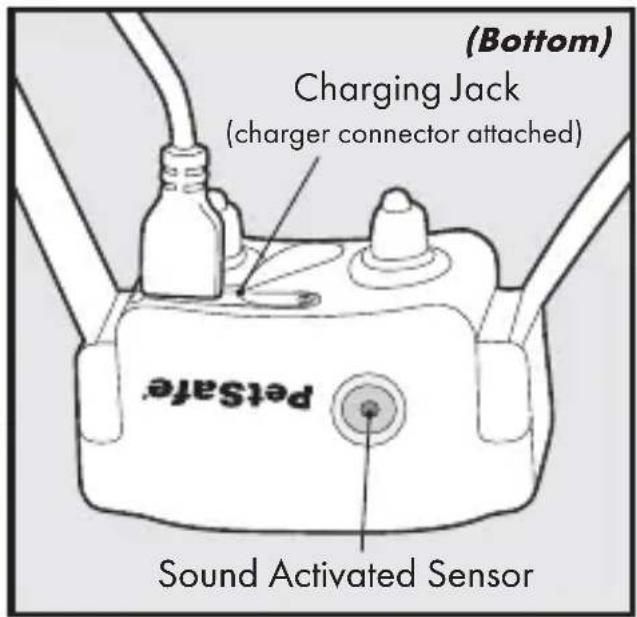

Charging Jack: For connecting the universal charging adapter. Although the bark control unit is waterproof, keep the rubber cover in place when not charging to keep debris out of the opening.

Sound-Activated Sensor: Detects your dog's bark.

STEP 1

Charging the Bark Control Collar

Before using the Bark Control Collar for the first time, be sure to charge the unit by following the steps described below.

Follow these steps to charge the battery:

1. Lift the rubber cover protecting the Charging Jack.
2. Connect the charger connector from the universal charging adaptor to the Charging Jack.

3. Plug the universal charging adaptor into a standard household electrical socket, using the appropriate adaptor plug. The Digital Display light will flash the sequence Green-Blue-Red to indicate that charging has started.

4. During charging, keep the Bark Control Collar in an open, well-ventilated area. The Digital Display light will flash red twice every 10 seconds to indicate that charging is active.

5. When charging is complete, the universal charging adaptor will automatically shut off, preventing overcharging. The Digital Display light will flash green twice every 10 seconds to indicate that charging is complete. Note: The battery should fully charge in less than 4 hours.
6. Remove the charger connector from the Charging Jack. The light will flash the sequence Red-Blue-Green to indicate the unit is no longer charging.
7. When charging is complete, replace the Charging Jack rubber cover and unplug the universal charging adaptor. The Bark Control Collar will automatically turn off when the battery charger is connected. Following a charge, turn the unit back on before using.

Note: When the unit indicates that the battery is low (battery icon on the Digital Display indicates 1 bar or less and/or the light fl ashes red 3 times every 5 seconds) it is time to recharge the unit. If the battery pack is very low (i.e. been used too long or stored for an extended period of time) it may take some time for the unit to indicate that charging has started. If the unit does not indicate that it is charging after 1 hour, please contact the Customer Care Centre.

Battery Life

Average battery life is 3 to 6 months, depending on how often your dog barks. However, due to greater use during your dog's training, your first battery charge may not last as long. To conserve battery life, turn the Bark Control Collar off when not in use.

STEP 2

Fit the Bark Control Collar

Important: The proper fit and placement of your Bark Control Collar is important for effective operation. The Contact Points must have direct contact with your dog's skin on the underside of his neck.

To assure a proper fit, please follow these steps:

1. Make sure the Bark Control unit is off.

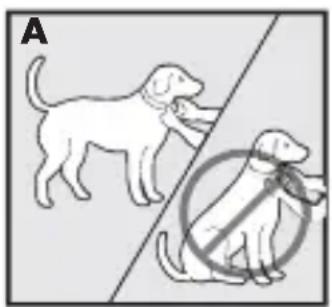

2. Have your dog standing comfortably (A).

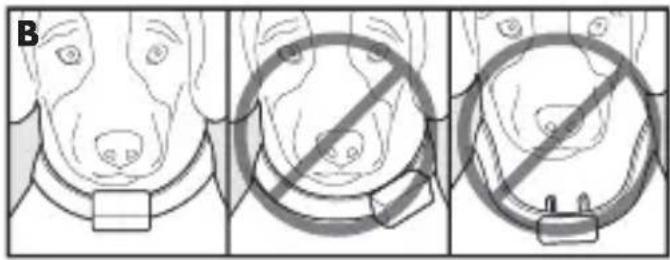

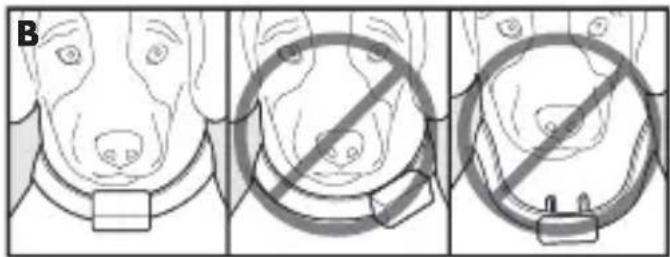

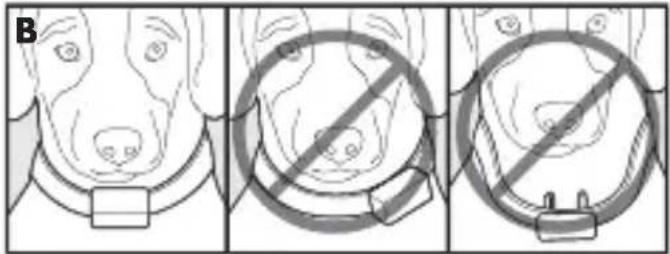

3. Place the Bark Control Collar on your dog's neck close to the ears. Centre the Contact Points underneath your dog's neck, touching the skin (B).

Illustration of two dog illustrations: one with a bite, the other with a crossed-out dog (no text or symbols)

Note: It is sometimes necessary to trim the hair around the Contact Points to make sure that contact is consistent.

Illustration of a dog being held by hands, showing two different positions (no text or symbols present)

CAUTION

Do not shave the pet's neck as this may increase the risk of skin irritation.

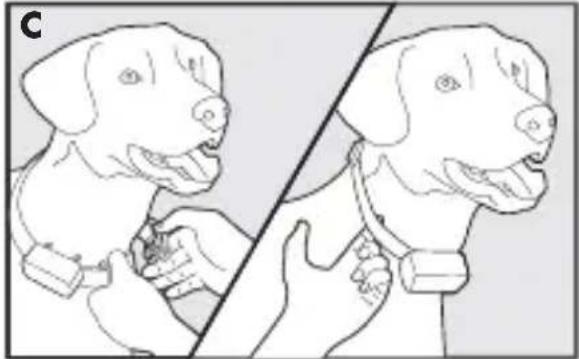

1. Check the tightness of the Bark Control Collar by inserting one finger between a Contact Point and the dog's neck (C). The fit should be snug but not constricting.

CAUTION

You should not make the collar any more tight than is required for good contact. A collar that is too tight will increase the risk of pressure necrosis in the contact area.

1. Allow your dog to wear the collar for several minutes, then recheck the fi t. Check the fi t again as your dog becomes more comfortable with the Bark Control Collar.

Care and Cleaning

- Your dog's neck and the Contact Points must be washed weekly with a damp cloth.

- Be sure that your pet's neck is thoroughly dry before placing the Bark Control Collar back on his neck.

CAUTION

Risk of skin damage.

• For comfort, safety and effectiveness of this product, please ensure that you check the fit of your pet's collar frequently. If any skin irritation is observed, discontinue the use of the collar for a few days. If the condition persists beyond 48 hours, see your veterinarian.
• Do not attach a lead to the collar. This can result in pulling the Contact Points too tightly against your pet's neck. Attach a lead to a separate, non-metallic collar or harness, making sure the extra collar does not put pressure on the Contact Points.
• Please refer to page 3 for additional information.

STEP 3

Choose Between Three Bark Control Settings

The Bark Control Collar has three bark control settings that allow you to choose how the static stimulation is delivered. The modes are indicated on the Digital Display by light colour(s) and the numeric indicator.

1. The patent pending Temperament Learning mode tracks the number of static stimulations needed to substantially reduce (and in most cases eliminate) the number of nuisance barks. The system provides 10 levels of static stimulation. It begins with a low-level static stimulation (Level 0). However, if excessive barking continues, the static stimulation intensity will increase with each successive bark (to a maximum of Level 9) until the barking stops. This static stimulation level becomes the starting level the next time the dog barks. Once your dog has learned to reduce his barking, the initial warning static stimulations are automatically reduced.
2. The Progressive Static Stimulation mode starts at the lowest level (Level 0) and progresses to the next level (to a maximum of Level 9) each time your dog barks within 30 seconds of the previous bark. If your dog does not bark again within 30 seconds, the static stimulation level will automatically reset to Level 0.
3. The User-Selected Static Stimulation mode allows you to manually select the static stimulation level (0-9). Note: In User-Selected mode, always start training at the lowest level of correction (Level 0). Watch how your dog reacts, and if necessary, progress to the next static stimulation level.

Note: As a built-in safety feature, if your dog barks 15 times or more within an 80 second period, the Bark Control Collar will automatically shut off for 3 minutes. This safety feature is active in all three modes of operation.

Temperament Learning Green light Green light Green light

Progressive Static Stimulation Blue light Green light

User-Selected Static Stimulation Number indicates active static stimulation level

Note: When the operating mode is changed, the static stimulation level is automatically reset to Level 0.

The Bark Control Collar has a single Settings Button that allows you to turn the unit on and off, display or change the current static stimulation mode, and change the static stimulation level. The following table describes how to perform the different tasks.

Task Steps to perform Indications

Turn the unit on	Press and release the Settings Button while the unit is off.	The light will fl ash green fi ve times and then display the current static stimulation mode.
Turn the unit off	Press the Settings Button until the Digital Display goes blank and the red light appears. Release the Settings Button.*	The light will fl ash red four times and the unit will turn off.
Display current static stimulation mode	Press and hold the Settings Button for less than 2 seconds before releasing it.	The unit will display the current static stimulation mode and battery condition.
Change active static stimulation mode	1. Press and hold the Settings Button for at least 5 seconds.2. Continue to hold the Settings Button to advance to the next available mode.3. When the desired mode is displayed, release the Settings Button.4. Once the Settings Button has been released for 5 seconds, the new static stimulation mode will activate.5. If the Settings Button is released too early, simply press it again within 5 seconds.	Mode will advance and be displayed.Every 2 seconds the mode will advance and be displayed.The selected mode will be displayed during this time.The Digital Display will fl ash four times and the unit will resume normal operation using the new static stimulation mode.**The mode will advance and continue as described in Step 2.

* If you continue to hold the Settings Button for more than 5 seconds, you will begin changing the static stimulation mode. You must release the Settings Button before attempting to turn off the unit.
** The light will fl ash every fi ve seconds to indicate the current mode.

What to Expect During Use of the Bark Control Collar

Important: Do not leave your dog alone the first few times he receives a static stimulation.

Place the Bark Control Collar properly on your dog and wait nearby until he barks. Most dogs will understand very quickly that the Bark Control Collar is disrupting their urge to bark and will relax and stop barking. Because the static stimulation from the Bark Control Collar may be surprising or startling at first, some dogs may bark more when they receive the initial static stimulation.

On rare occasions, a dog may get into a bark-static stimulation-bark-static stimulation cycle. If this happens, reassure your dog with calm, soothing tones. As your dog relaxes, he will understand that if he becomes quiet, he will not receive any more static stimulations. The small minority of dogs that have this reaction will only have it the first time they wear the Bark Control Collar.

You should notice a reduction in your dog's barking within the first couple of days that he wears the Bark Control Collar. At this point, it is important to remember the learning process is still not complete. Dogs will "test" this new learning experience and will increase their attempts to bark. This usually occurs during the second week a dog wears the Bark Control Collar. If this does occur, remain consistent and do not alter your use of the Bark Control Collar. You must place the Bark Control Collar on your dog in every situation when you expect him to be quiet. If your dog is not wearing the Bark Control Collar, he may resume barking and his learning would suffer a setback.

Frequently Asked Questions

Will another dog's bark set off the Bark Control Collar?	No. It includes dual detection which eliminates false static stimulations.
Will the Bark Control Collar work for my dog?	The Bark Control Collar is safe and effective for most breeds and sizes of dogs. However, the Big Dog Rechargeable Bark Control Collar is recommended for dogs 18+ kg. The system should only be used with pets who are over 6 months of age. If your pet is injured, or its mobility is otherwise impaired, contact your veterinarian or professional trainer before use.
Can I attach a lead to the Bark Control Collar?	No. This can result in pulling the Contact Points too tightly against your dog's neck. Attach a lead to a separate, non-metallic collar or a harness, making sure the extra collar does not put pressure on the Contact Points.

Troubleshooting

My dog keeps barking (does not respond to the static stimulation).	Tighten the Bark Control Collar and/or trim your dog's hair where the Contact Points touch his neck to ensure good skin contact.Charge the battery.If your dog still does not respond, contact the Customer Care Centre.
The Digital Display light(s) stopped fl ashing.	Ensure that the unit is turned on.Fully charge the battery.If the Digital Display light(s) still do not fl ash, contact the Customer Care Centre.

Terms of Use and Limitation of Liability

1. Terms of Use

Use of this Product is subject to your acceptance without modification of the terms, conditions and notices contained herein. Use of this Product implies acceptance of all such terms, conditions and notices. If you do not wish to accept these terms, conditions and notices, please return the Product, unused, in its original packaging and at your own cost and risk to the relevant customer care centre together with proof of purchase for a full refund.

Proper Use

This Product is designed for use with pets where training is desired. The specific temperament or size/weight of your pet may not be suitable for this Product (please refer to "How the PetSafe® Big Dog Rechargeable Bark Control Collar Works" in this Operating Guide). Radio Systems Corporation recommends that this Product is not used if your pet is aggressive and accepts no liability for determining suitability in individual cases. If you are unsure whether this Product is appropriate for your pet, please consult your veterinarian or certified trainer prior to use. Proper use includes, without limitation, reviewing the entire Operating Guide and any specific Caution statements.

2. No Unlawful or Prohibited Use

This Product is designed for use with pets only. This pet training device is not intended to harm, injure or provoke. Using this Product in a way that is not intended could result in violation of Federal, State or local laws.

3. Limitation of Liability

In no event shall Radio Systems Corporation or any of its associated companies be liable for (i) any indirect, punitive, incidental, special or consequential damage and/or (ii) any loss or damages whatsoever arising out of or connected with the misuse of this Product. The Purchaser assumes all risks and liability from the use of this Product to the fullest extent permissible by law. For the avoidance of doubt, nothing in this clause 4 shall limit Radio Systems Corporation's liability for human death or personal injury or fraud or fraudulent misrepresentation.

4. Modification of Terms and Conditions

Radio Systems Corporation reserves the right to change the terms, conditions and notices governing this Product from time to time. If such changes have been notified to you prior to your use of this Product, they shall be binding on you as if incorporated herein.

Important Recycling Advice

Please respect the Waste Electrical and Electronic Equipment regulations in your country. This equipment must be recycled. If you no longer require this equipment, do not place it in the normal municipal waste system. Please return it to where it was purchased in order that it can be placed in our recycling system. If this is not possible, please contact the Customer Care Centre for further information. For a listing of Customer Care Centre telephone numbers, visit our website at www.petsafe.net.

Compliance

CE - Europe

This equipment complies with the EMC and Low Voltage Directives. Unauthorised changes or modifications to the equipment that are not approved by Radio Systems Corporation may violate EU regulations, could void the user's authority to operate the equipment, and will void the warranty. The Declaration of Conformity can be found at: http://www.petsafe.net/customercare/eu_docs.php.

IC - Canada

This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications or changes could void the user's authority to operate this equipment.

ACMA - Australia

This device complies with the applicable EMC requirements specified by the ACMA (Australian Communications and Media Authority).

Warranty

Three Year Non-Transferrable Limited Warranty

This product has the benefit of a limited manufacturer's warranty. Complete details of the warranty applicable to this product and its terms can be found at www.petsafe.net and/or are available by sending a stamped addressed envelope to Radio Systems PetSafe Europe Ltd, 2nd Floor, Elgee Building, Market Square, Dundalk, Ireland.

Australia/New Zealand – In compliance with the Australian Consumer Law, Warranties Against Defects, effective January 1, 2012, warranty details of this Product are as follows:

Three Year Non-Transferrable Limited Warranty

What is covered: Radio Systems Australia Pty Ltd (hereinafter referred to as "Radio Systems") warrants to the original retail purchaser, and not any other purchaser or subsequent owner, that its product, when subject to normal and proper residential use, will be free from defects in material or workmanship for a period of three (3) years from the purchase date. An "original retail consumer purchaser" is a person or entity who originally purchases the Product, or a gift recipient of a new product that is unopened and in its original packaging. When serviced by Radio Systems Customer Service, Radio Systems covers labor and parts for the first three years of ownership; after the first three years, a service or upgrade charge will apply relative to replacement of the product with new or refurbished items at Radio Systems' sole discretion.

The limited warranty is non-transferrable and shall automatically terminate if the original retail consumer purchaser resells the Radio Systems product or transfers the property on which the Radio Systems product is installed. This Limited Warranty excludes accidental damage due to dog chews; lightning damage; or neglect, alteration, and misuse. Consumers who purchase products outside of Australia, New Zealand, or from an unauthorized dealer will need to return the Product to the original place of purchase for any warranty issues.

Please note that Radio Systems does not provide refunds, replacements, or upgrades for change of mind, or for any other reason outside of these Warranty terms.

Claims Procedure

Any claim made under this Warranty should be made directly to Radio Systems Australia Pty Ltd Customer Care Centre at:

Radio Systems Australia Pty Ltd PO Box 765, Mudgeeraba QLD 4213 Australia Residents: 1800 786 608 New Zealand Residents: 0800 543 054 Email: [e-mail]

To file a claim, a proof of purchase must be provided. Without a proof of purchase,

Radio Systems will not repair or replace faulty components. Radio Systems requests the Consumer to contact the Radio Systems Customer Care Centre to obtain a Warranty Return number, prior to sending the Product. Failure to do so may delay in the repair or replacement of the Product.

If the Product is deemed to be faulty within 30 days from date of original purchase, Radio Systems will organise for a replacement to be sent in advance of returning the faulty Product. A Post Bag will be included with the replacement Product for the return of the faulty Product. The Product must be returned within 7 days of receiving the replacement. If the Product is deemed to be faulty after 30 days from the date of original purchase, the consumer will be required to return the Product to Radio Systems at the consumer's own expense. Radio Systems will test and replace the faulty unit or its components and return to the consumer free of charge, provided the Product is within its said warranty period. This warranty is in addition to other rights and remedies available to you under the law. Radio Systems goods come with guarantees that cannot be excluded under the Australia Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Should you have any queries or require any further information, please contact our Customer Care Centre on 1800 786 608 (Australia) or 0800 543 054 (New Zealand).

Protected by U.S. patent 5,927,233. Other patents pending.

CONSIGNES DE SÉCURITÉ IMPORTANTES

Charge du collier anti-aboiements 21

Ajustement du collier anti-aboiements 22

Line drawing of a wrist strap device with a rectangular head and mounting feet (no text or symbols)

Collier anti-aboiements rechargeable pour grands chiens de PetSafe®

Simple line drawing of a mechanical device with a rectangular block and two attached cables (no text or symbols)

Charge du collier anti-aboiements

Illustration showing a dog walking on a diagonal line with a prohibition symbol below (no text or labels)

Illustration of a dog being held by a hand, showing two different positions (no text or symbols present)

ATTENTION

Simple diagram of a battery with a rotating wheel and a pointer, enclosed in a rounded square frame (no text or symbols)

Voyant lumineux vert

Simple icon showing two circular components connected to a battery, no text or symbols present

Voyant lumineux bleu Voyant lumineux vert

Line drawing of a wrist strap device with a rectangular head and mounting feet (no text or symbols)

Simple line drawing of a battery with a coiled cable and two leads (no text or symbols)

Universele oplaadadapter

Gebruiksaanwijzing

Productkenmerken

Illustration of two dog illustrations: one standing and holding a dog, the other sitting and holding a crossed-out dog (no text or symbols)

Illustration of a dog being held by a hand, showing two different positions (no text or symbols present)

VOORZICHTIG

Line drawing of a wrist strap device with a rectangular head and mounting feet (no text or symbols)

Collar antiladridos recargable para perros grandes PetSafe®

Simple line drawing of a mechanical device with a rectangular block and two attached cables (no text or symbols)

Adaptador universal

Illustration showing a dog being barred while a dog holds a prohibition sign (no text or symbols present)

Illustration of a dog being held by a hand, showing two different positions (no text or symbols present)

ATENCIÓN

Line drawing of a wrist strap device with a rectangular head and mounting feet (no text or symbols)

Simple line drawing of a mechanical device with a rectangular block and two attached cables (no text or symbols)

Guida all'uso

Caratteristiche

Illustration showing a dog being pulled out of its side versus a dog holding a prohibition sign (no text or symbols present)

Illustration of a dog being held by a hand, showing two different positions (no text or symbols present)

ATTENZIONE

Simple icon of a battery with a sunburst, no text or symbols present

Spia luminosa verde

Simple icon of a battery connected to two circular components (no text or symbols)

Spia luminosa blu Spia luminosa verde
Spia luminosa blu

dall'utente

Simple diagram with a battery, four blades, and a circular symbol (no text or labels)

Line drawing of a wrist strap device with a button and mounting bracket (no text or symbols)

Simple line drawing of a battery with a coiled cable and two leads (no text or symbols)

Universal-Ladegerät

Gebrauchsanweisung

Illustration of two dogs: one standing and one sitting, separated by a diagonal line (no text or symbols)

Illustration of a dog being held by a hand, showing two different positions (no text or symbols present)

VORSICHT

PetSafe ^® products are designed to enhance the relationship between you and your pet. To learn more about our extensive product range which includes Containment Systems, Training Systems, Bark Control, Pet Doors, Health & Wellness and Play & Challenge products, please visit www.petsafe.net.

Radio Systems Corporation

10427 PetSafe Way

Knoxville, TN 37932 USA

[phone]

www.petsafe.net

400-1680-19

PBC17-13465

PBC45-13466
