USER MANUAL Teppan Yaki Design N54K40N0 NEFF

Important safety information 10

Causes of damage. 11

Environmental protection 11

Environmentally-friendly disposal. 11

Getting to know the appliance. 11

Your new Teppan Yaki 11

The control panel. 12

Residual heat indicator 12

Before using for the first time. 12

Cleaning. 12

Heating the Teppan Yaki. 12

Setting the Teppan Yaki. 12

Setting the temperature 12

Keep warm setting. 12

Cleaning level 12

Switching off the rear heating zone. 12

Settings table. 13

Automatic time limit 13

Tips and tricks 14

Care and cleaning. 14

Cleaning the appliance. 14

Do not use these cleaners. 14

After-sales service. 15

Additional information on products, accessories, replacement parts and services can be found at www.neff

international.com and in the online shop www.neffeshop.com

Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.

This appliance is not intended for operation with an external clock timer or a remote control.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Risk of fire!

• Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
• The appliance becomes very hot and flammable materials could catch fire. Never store or use flammable objects (e.g. spray cans, cleaning agents) under the appliance or in its immediate vicinity. Never place flammable items on or in the appliance.

Risk of burns!

The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
- When the appliance cover is closed, heat will accumulate. Only close the appliance cover when the appliance has cooled down. Never switch the appliance on with the appliance cover closed. Do not rest food on the appliance cover or use it to keep food warm.

Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug

or switch off the fuse in the fuse box. Contact the after-sales service.

The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
Penetrating moisture may cause an electric shock. Do not use any high-pressure cleaners or steam cleaners.
A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in

the fuse box. Contact the after-sales service.

Causes of damage

The stainless steel grilling surface is sturdy and smooth, but, like any good pan, will show signs of use over time. These do not impair the product use. A slight yellowing of the stainless steel grilling surface is normal.

Caution!

Scratches or scores on the grilling surface: Never use a knife to cut on the grilling surface. Turn food using the spatula provided. Do not hit the grilling surface with the spatula.
If hard or sharp objects fall on the glass ceramic panel or the glass ceramic cover, damage could occur.
Glass ceramic cover: Only close the glass ceramic cover after the appliance has cooled down completely. Never switch the appliance on with the cover closed. Do not use the cover as a cooker surface or warming zone.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Getting to know the appliance

Here you can gain an overview of your new appliance's components and control panel.

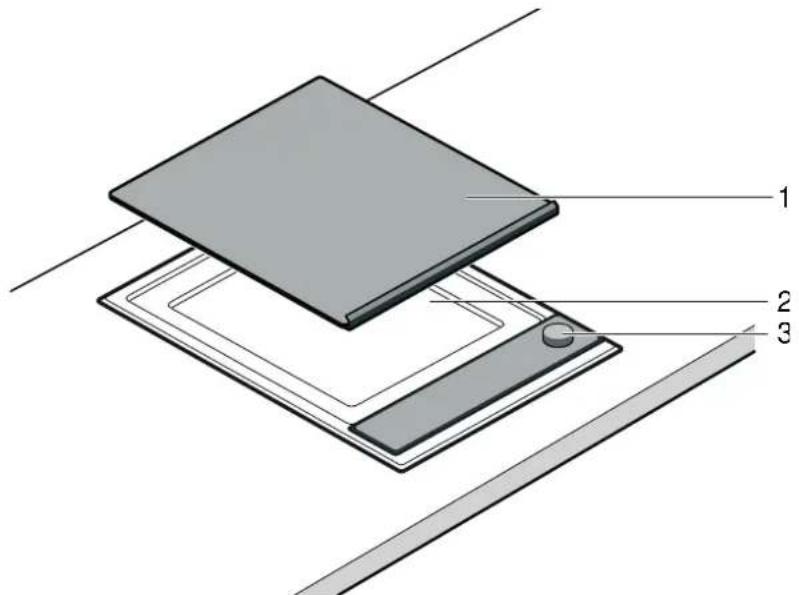

Your new Teppan Yaki

No. Designation

1 Glass ceramic cover
2	G	r	i	l	l	i	n	g
3	S	w	i	t	c	h

s u r f a c e

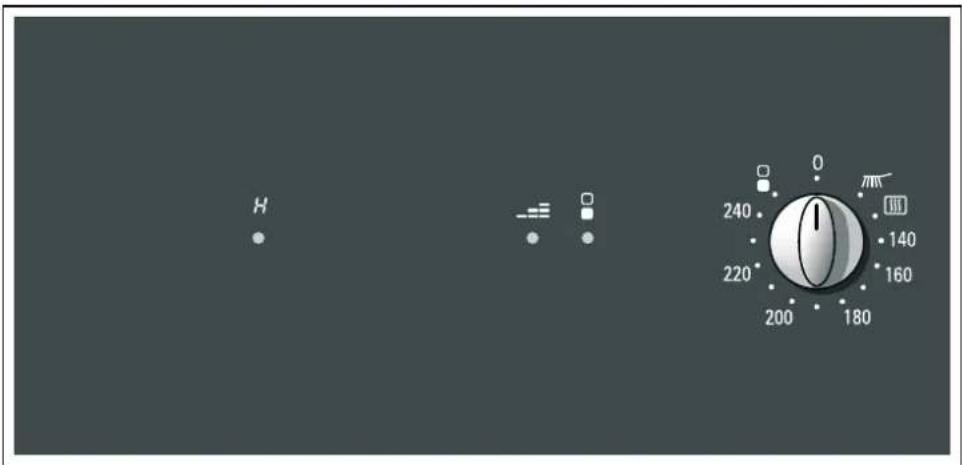

The control panel

Switch

140-240 °C Temperature

Cleaning level

Keep warm setting

Rear heating zone off

Displays

Residual heat

Heating

Rear heating zone off

Controls

When you touch a symbol, the respective function is activated.

Notes

The settings will remain unchanged if you touch several symbols at once. This allows you to wipe up spills on the control panel.
Always keep the controls dry. Moisture reduces their effectiveness.

Residual heat indicator

The Teppan Yaki has a residual heat indicator.

If an H appears in the display, the Teppan Yaki is still hot. The indicator goes out when the Teppan Yaki has cooled down sufficiently.

Before using for the first time

In this section, you can find out what you must do before using your Teppan Yaki to prepare food for the first time. Read the Safety information section beforehand.

Cleaning

Clean the Teppan Yaki thoroughly with lukewarm soapy water before first use.

Heating the Teppan Yaki

To get rid of the new cooker smell, heat up the empty Teppan Yaki. 30 minutes at 240^ is ideal.

Setting the Teppan Yaki

In this section, you can find out how to set the Teppan Yaki. The table shows temperatures and cooking times for various meals.

Setting the temperature

Set the temperature of the Teppan Yaki with the switch.

Once the set temperature is reached, the heating indicator goes out. Now you can place the food on the Teppan Yaki.

Note: The Teppan Yaki regulates the heat level by switching on and off. Even at maximum power, the heating can switch on and off.

Keep warm setting

Use the switch to select the keep warm setting.

Do not try to keep too much food warm at once. All food to be kept warm should be in contact with the grilling surface, as otherwise it will cool down. Do not keep food warm for too long as it will dry out.

Cleaning level

In cleaning level, the appliances heats up to 40^ . You can leave dirt to soak by adding some water and washing-up liquid to the grilling surface (max. 1 hour). After dissolving the dirt, you can begin cleaning.

Switching off the rear heating zone

When preparing small quantities, you can choose to use only the front zone. You can use the rear zone to keep the food warm.

Turn the switch to the right to the symbol and then back to the desired temperature. The display lights up. The rear heating zone is switched off.

Settings table

The details given in the tables are guidelines and apply to a preheated appliance. The values may vary depending on the type and amount of food to be grilled.

Only add the food when the preheating time has elapsed.

Meat/poultry

Food to be grilled Temperature Cooking time Quantity/thickness
Beef steak, medium* Sear at 230 - 240 °C 2 - 3 min. on each side approx. 2 cmContinue grilling at 180 °C 5 - 7 mins
Pork neck steak, boned 210 - 220 °C 15 - 20 mins approx. 2 cm
Pork medallions** 170 - 180 °C 13 - 17 mins max. 2 cm
Escalopes, pork or veal,breaded*** 190 - 200 °C 10 - 13 mins 0.5 - 1 cm
Turkey steak 210 - 220 °C 8 - 15 mins 1 - 1.5 cm
Chicken breast fillet	180 - 190 °C 15 - 20 mins 2.5 - 3 cm
Strips of meat, beef or pork, marinated****	200 - 210 °C	8 - 10 mins600 - 700 g
Turkey breast strips****	180 - 190 °C	7 - 9 mins600 - 700 g
Minced meat	230 - 240 °C 9 - 11 mins approx. 600 g
Hamburgers	180 - 190 °C 13 - 16 mins max. 1 cm
* e.g. entrecôte, fillet steak, rump steak. The steak is medium if meat juices escape.** Press firmly on the plate, turn several times.*** Use sufficient oil to prevent the breading from drying out and burning.**** Distribute the meat/poultry strips well, they should not touch each other.

Fish

Food to be grilled Temperature Cooking time Quantity/thickness
Fish fillet*	190 - 200 °C 7 - 10 mins approx. 2 cm
Salmon steak	170 - 180 °C 18 - 20 mins approx. 3 cm
Tuna steak	190 - 200 °C 18 - 20 mins approx. 3 cm
Prawns	210 - 220 °C 8 - 10 mins 30 g each
* Use suitable fish types for grilling, e.g. salmon, tuna, monkfish, perch, pike-perch. To prevent the fish fillets from sticking, you can toss them in flour before grilling. Start grilling skin side down and turn them only once, if possible.

Vegetables

Food to be grilled Temperature Cooking time Quantity/thickness
Carrots, julienne	190 - 200 °C	6 - 8 mins	approx. 500 g
Strips of pepper	200 - 210 °C	4 - 6 mins	approx. 500 g
Aubergines, sliced*	200 - 210 °C	6 - 8 mins	approx. 500 g
Courgettes, sliced	190 - 200 °C	6 - 8 mins	approx. 500 g
Onion rings	190 - 210 °C	5 - 7 mins	approx. 500 g
Mushrooms, sliced	230 - 240 °C 10 - 12 mins approx. 500 g
Potatoes, cooked, sliced	210 - 220 °C 10 - 12 mins approx. 500 g
* Before grilling, salt aubergines, leave to stand for 30 minutes and pat dry.

Automatic time limit

The automatic time limit is activated if the Teppan Yaki is in operation for more than 2 hours and you do not change the setting.

The heating element is switched off, the heating symbol goes out.

Turn the switch to 0. Then you can set it again.

Tips and tricks

• When the heating up light goes off, place the food on the appliance. This also applies when raising the temperature to fry a second item which requires a higher setting.
  Press the pieces of meat, poultry or fish flat onto the frying surface using the spatula. Only turn the meat, when it comes away from the surface easily, in order to protect the structure of the meat. Damaging the structure can cause juices to escape and results in the meat drying out.

• Keep the pieces of meat, poultry or fish apart so that they do not draw any liquid.

• Avoid pricking or cutting meat before or during frying, in order to retain meat juices.

• Do not salt the food before frying, to prevent liquid and soluble nutrients from escaping.
  Turn fish fillets in flour before frying. The fish will be easier to turn.
  Turn fish fillets only once if possible. Place fish onto the appliance with the skin facing downward.
  Use oil and fat that is suitable for frying, for example plant oil or concentrated butter.

Care and cleaning

In this chapter you will find tips on how to maintain and clean your appliance correctly.

Risk of electric shock!

Do not use high pressure washers or steam cleaners to clean the appliance.

Risk of burns!

The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.

Risk of burns!

When you add water or ice cubes to the hot grilling surface, it will spit and steam will form. Do not bend over the appliance. Keep a safe distance away.

Cleaning the appliance

Clean the appliance after each use, once it has cooled down. Burnt on residue is difficult to remove.

Remove rough residue with the spatula.

Ice cubes are better suited to cleaning the warm appliance than water as they create fewer splashes and less steam.

Remove residue of cleaning agent carefully before the next use.

Cleaning the warm appliance

1. Switch off the appliance. Leave to cool down for at least 15 minutes!
2. Place ice cubes or water on the grilling surface. Add a few squirts of washing-up liquid. Leave the dirt to soak.
   3.Only begin cleaning once the residual heat indicator has switched from H to ±bh

Cleaning the appliance when cold

1. Place some water and washing-up liquid on the grilling surface until it is just covered.
2. Switch on the appliance.Set cleaning level . Leave the dirt to soak (max. 1 hour).
3. After dissolving the dirt, you can begin cleaning.

Intermediate cleaning between two grilling processes

1. Switch off the appliance.
   2.Push 4 - 5 ice cubes over the hot grilling surface using the spatula.
   3.Remove dissolved dirt with the spatula.
2. Switch the appliance on again. Do not add food until the appliance has reached the set temperature again.

Appliance part/surface	Recommended cleaning
Grilling surface Remove fatty residues with washing-up liquid.Depending on the type of food, white flecks may remain on the grilling surface. Remove with lemon juice or vinegar. Then wipe thoroughly with a damp cloth. Lemon juice or vinegar must not come into contact with the control panel.
Grilling surface, burnt-on dirt	Brush stubborn dirt on the cold appli- ance with our grill cleaner gel (order no. 463582) and leave to act for at least 2 hours, or overnight in severe cases. Then rinse thoroughly and dry. Note the packaging instructions of the cleaner.
Stainless steel frame	Clean with a soft, damp cloth and some washing-up liquid.Use our stainless steel cleaner (order no. 464524) for stubborn dirt. This will give matt stainless steel shine again.
Control panel Clean with a soft, damp cloth and some washing-up liquid; the cloth should not be too wet. Dry off with a soft cloth.

Do not use these cleaners

Scouring or chemically aggressive cleaners
- Don't allow acidic cleaners (e.g. vinegar, citric acid, etc.) to get on the frame or panel.
Cleaners containing chlorine or with a high content of alcohol
Oven cleaner
Hard and scratchy sponges, brushes or scouring pads
Thoroughly wash out new sponge cloths before using them.

After-sales service

Our after-sales service is there for you if your appliance should need to be repaired. We are committed to find the best solution also in order to avoid an unnecessary call-out.

E number and FD number:

Please quote the E number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate.

Please note that a visit from an after-sales service engineer is not free of charge, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

GB 0844 8928989

Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

IE014502655

Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance.
