USER MANUAL Flexxo BCH3K255 BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/welcome

BBH3.../BCH3...

[en] Instruction manual 53

Exploded view diagram of a vacuum cleaner with numbered parts and exploded views

1 2 1 2

Diagram showing a vacuum cleaner's step-by-step installation, with labeled parts and a magnified detail view.

Diagram showing hair cleaning process: first step with cable, second step with power plug and electrical outlet, final step with control panel

4 5 1 2

Illustration of a vacuum cleaner next to a close-up of its mechanical component (no text or symbols visible)

Close-up of a metallic cylindrical device with a black arrow pointing to a component (no text or symbols visible)

Close-up of a mechanical component with a highlighted section showing internal structure (no text or symbols visible)

8 1 2 1 Click!

9 1 2 Click!

10 Click! 11

Metal trash bin with a bottle pouring liquid from above, showing motion (no text or symbols)

3D mechanical component diagram showing a cylindrical assembly with a downward arrow indicating motion (no text or symbols)

Two metallic mechanical components with a black arrow indicating a transformation or assembly (no text or symbols present)

Click!

Illustration of a mechanical component being poured into a trash bin (no text or symbols)

Illustration of a cylindrical mechanical component with a hand symbol in the corner (no text or labels)

Diagram of a mechanical component with an arrow indicating direction, showing internal structure (no text or symbols)

Illustration of a mechanical component being poured into a trash bin, with motion lines indicating particle movement (no text or symbols)

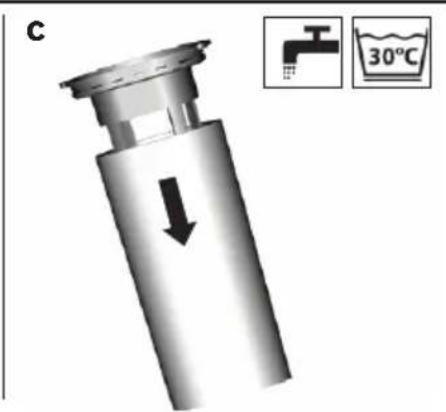

C 30°C

Illustration of a cylindrical object with a patterned lid and a metallic cylinder, accompanied by an hourglass icon with '24h' indicating 24 hours (no text or symbols on objects)

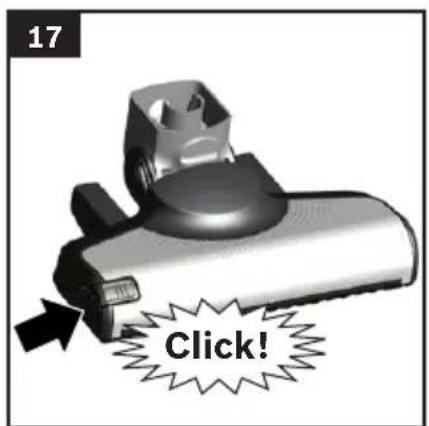

17 Click!

Safety information....10

Your vacuum cleaner....53

Please keep this instruction manual for future reference.

When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

Please read the information on intended use to ensure that you use the appliance correctly and safely.

Only use this appliance:

■ As specified in this instruction manual.
■ With genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
■ For cleaning surfaces.
In private households and in enclosed spaces in a domestic environment at room temperature.
■ Up to an altitude of max. 2000 m above sea level.

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

■ Vacuuming persons or animals.
■Vacuuming up:
- Hazardous, sharp-edged, hot or red-hot substances.
- Damp or liquid substances.
- Highly flammable or explosive substances and gases.
- Ash, soot from tiled stoves and central heating systems.
- Toner dust from printers and copiers.

Spare parts, accessories

Our original spare parts and original (special) accessories are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts and original (special) accessories. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning performance will remain consistently high throughout.

Please note:

- Using unsuitable or inferior-quality spare parts and (special) accessories can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

■ The appliance may be used by children over the age of 8 years and by persons with

reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and have understood the potential dangers of using the appliance.

■ Children must never play with the appliance.
■ Cleaning and user maintenance must never be carried out by children without supervision.
■ Plastic bags and films must be kept out of the reach of children and disposed of.

=>There is a risk of suffocation.

Proper use

■ To charge, only use the charging cable included in the scope of supply.
■ The charging cable must only be connected and operated as specified on the rating plate.
■ The appliance must only be stored and charged indoors.
■ Do not expose the appliance to temperatures below 0 °C or above 40 °C.
■ Never vacuum without the dust bag or dust container, motor protection or exhaust filter.

=> This may damage the vacuum cleaner.

• Keep the vacuum cleaner away from your head when using nozzles and tubes. => This could cause injury.
  ■ Do not use a damaged charging cable. Replace it with an original charging cable.
  ■ When disconnecting the charging cable from the mains, pull the plug itself to remove it; do not pull on the power cord.
  ■ Do not pull the charging cable over sharp edges or allow it to become trapped.
  ■ Before carrying out any work on the vacuum cleaner, switch off the appliance and disconnect it from the charging cable and the mains.
  ■ Do not operate the vacuum cleaner if it is damaged.
  ■ If a fault is detected, switch off the appliance and disconnect it from the charging cable and the mains.
  ■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.

■ In the following cases, you must stop the appliance immediately and contact the after-sales service:
- If you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance; - If the appliance has been dropped and damaged.

■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.

■ Do not pour flammable substances or substances containing alcohol onto the filters (motor protection filter, exhaust filter, etc.).

■ The vacuum cleaner is not suitable for use on construction sites. => Vacuuming up building rubble may damage the appliance.

■ Switch off the appliance when it is not in use.

For safety reasons, the appliance is fitted with an overheating protection system to safeguard the battery and motors. The appliance will switch off automatically if it or the battery is too hot.

=> The appliance will need around 30 minutes to cool down before it can be used again.

■ The packaging is designed to protect the vacuum cleaner from being damaged during transportation. We therefore recommend keeping the packaging for the purpose of future transportation.

Li-ion batteries

• Read all the safety information and instructions.
  => Failure to act in accordance with the safety information and instructions may result in electric shock, fire and/or serious injury.

- Keep all the safety information and instructions for future reference.

■ Protect the battery from heat sources, for example avoiding long periods in the sun and exposure to fire, as well as from water and moisture.

= Risk of explosion.

■ Fumes may be released if the battery is damaged or used improperly. Circulate fresh air, and seek medical assistance in the event of physical symptoms arising as a result of exposure.

=> The fumes may irritate the airway.

If the battery is used incorrectly, liquid may leak out of the battery. Avoid touching the liquid. In the event of accidental contact, rinse the affected area with water. If the liquid comes into contact with the eyes, seek medical assistance.

=> If battery liquid leaks, it can irritate or burn the skin.

Transportation information

The Li-ion batteries in the appliance are subject to the requirements of dangerous goods legislation. The batteries can be transported by the user by road without any further requirements. In the event that they are shipped by a third party (e.g. transported by air or freight carrier), special requirements regarding packaging and identification must be met. In this case, a dangerous goods expert must be consulted when preparing the goods for dispatch.

Information on disposal

Vacuum cleaners, batteries, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of the vacuum cleaner or the batteries in the household rubbish.

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■Old appliances

This appliance contains rechargeable lithium-ion batteries. The appliance must therefore only be disposed of by an authorised after-sales service or dealer.

■Batteries

Please follow the notes on transport.

Integrated batteries may only be removed by specialist personnel for the purpose of disposal. Opening the housing shell may damage the vacuum cleaner.

Only for qualified professional:

To remove the battery from the vacuum cleaner, press the on/off switch (Fig. 4) until the battery is fully discharged. Unscrew the screws on the housing and take off the housing shell to remove the battery. To prevent a short circuit, disconnect the battery connections individually one after the other and then insulate the terminals.

Even in the case of complete discharge, the battery still contains a residual capacity that may be released in the event of a short circuit.

fr

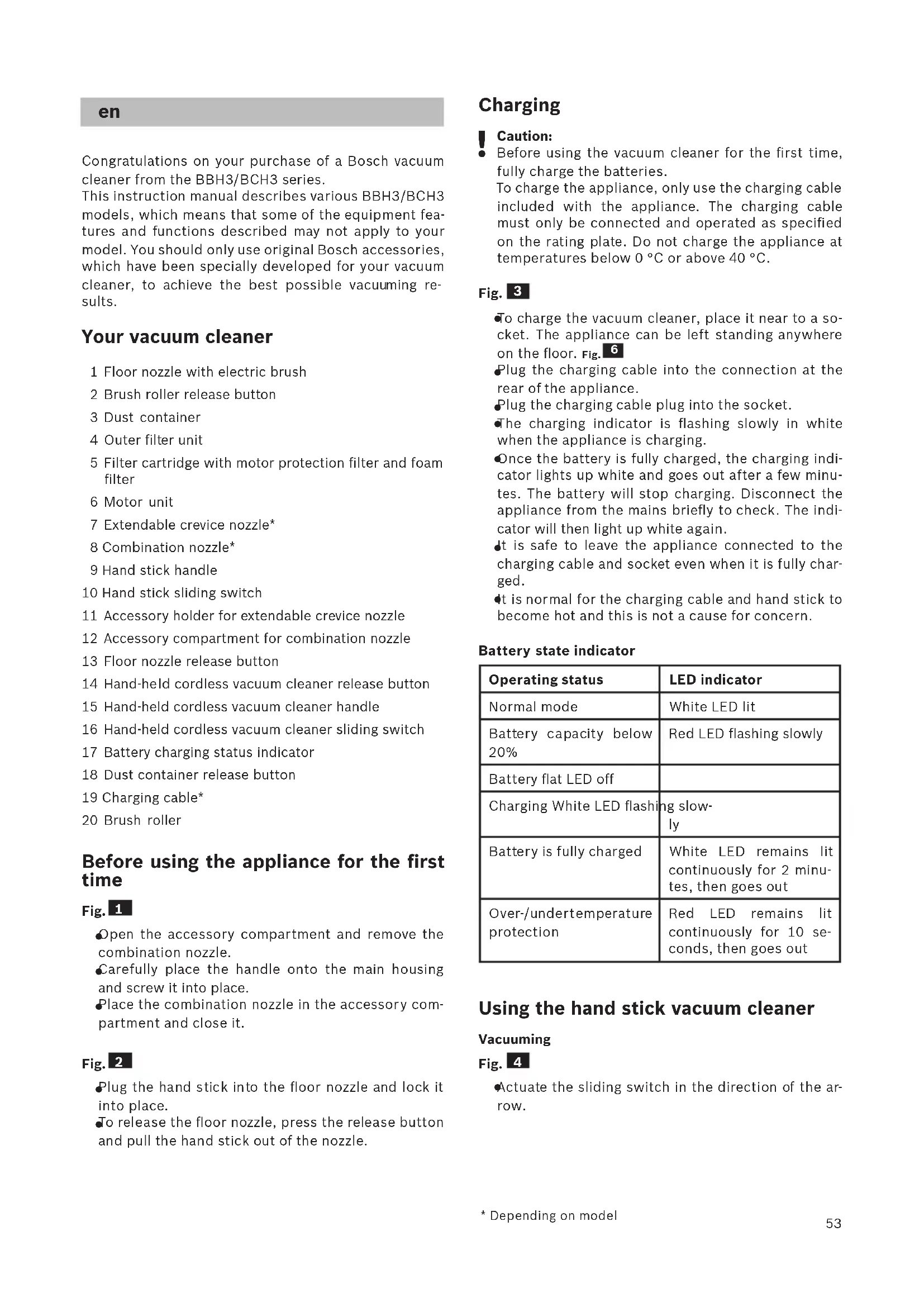

Congratulations on your purchase of a Bosch vacuum cleaner from the BBH3/BCH3 series.

This instruction manual describes various BBH3/BCH3 models, which means that some of the equipment features and functions described may not apply to your model. You should only use original Bosch accessories, which have been specially developed for your vacuum cleaner, to achieve the best possible vacuuming results.

Your vacuum cleaner

1 Floor nozzle with electric brush
2 Brush roller release button
3 Dust container
4 Outer filter unit
5 Filter cartridge with motor protection filter and foam filter
6 Motor unit
7 Extendable crevice nozzle*
8 Combination nozzle*
9 Hand stick handle

10 Hand stick sliding switch

11 Accessory holder for extendable crevice nozzle

12 Accessory compartment for combination nozzle

13 Floor nozzle release button

14 Hand-held cordless vacuum cleaner release button

15 Hand-held cordless vacuum cleaner handle

16 Hand-held cordless vacuum cleaner sliding switch

17 Battery charging status indicator

18 Dust container release button

19 Charging cable*

20 Brush roller

Before using the appliance for the first time

Fig. 1

Open the accessory compartment and remove the combination nozzle.

Carefully place the handle onto the main housing and screw it into place.

Place the combination nozzle in the accessory compartment and close it.

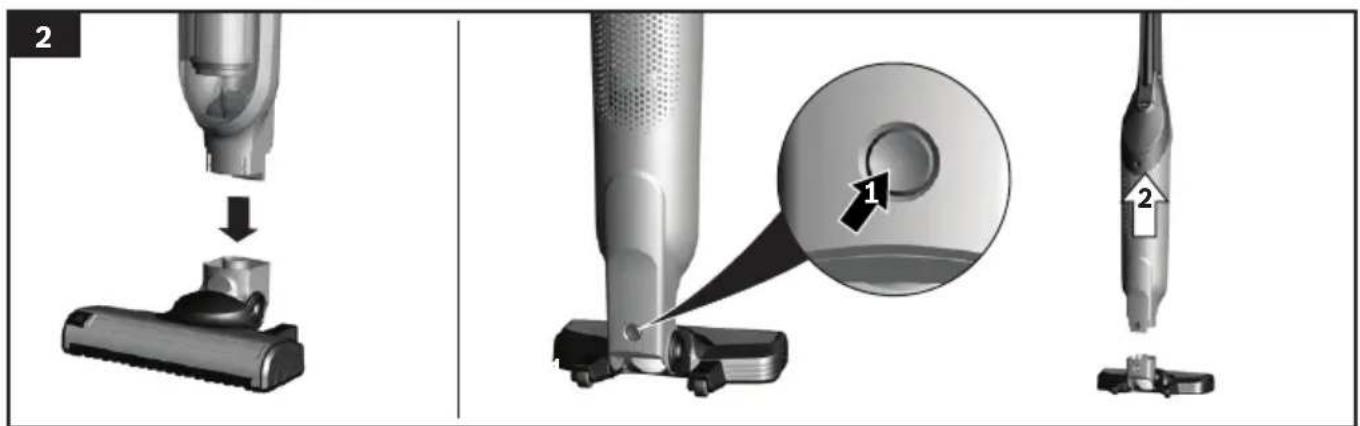

Fig. 2

Plug the hand stick into the floor nozzle and lock it into place.

To release the floor nozzle, press the release button and pull the hand stick out of the nozzle.

Charging

Caution:

- Before using the vacuum cleaner for the first time, fully charge the batteries.

To charge the appliance, only use the charging cable included with the appliance. The charging cable must only be connected and operated as specified on the rating plate. Do not charge the appliance at temperatures below 0 °C or above 40 °C.

Fig. 3

To charge the vacuum cleaner, place it near to a socket. The appliance can be left standing anywhere on the floor. Fig. 6

Plug the charging cable into the connection at the rear of the appliance.

Plug the charging cable plug into the socket.

The charging indicator is flashing slowly in white when the appliance is charging.

Once the battery is fully charged, the charging indicator lights up white and goes out after a few minutes. The battery will stop charging. Disconnect the appliance from the mains briefly to check. The indicator will then light up white again.

It is safe to leave the appliance connected to the charging cable and socket even when it is fully charged.

- it is normal for the charging cable and hand stick to become hot and this is not a cause for concern.

Battery state indicator

Operating status	LED indicator
Normal mode	White LED lit
Battery capacity below 20%	Red LED flashing slowly
Battery flat LED off
Charging White LED flashing slowly	white
Battery is fully charged	White LED remains lit continuously for 2 minutes, then goes out
Over-/undertemperature protection	Red LED remains lit continuously for 10 seconds, then goes out

Using the hand stick vacuum cleaner

Vacuuming

Fig. 4

- Actuate the sliding switch in the direction of the arrow.

Controlling the suction level

Fig. 5

Slide the sliding switch into the required position in order to set the suction power:

Position 1 1

Vacuuming with the electric brush switched on.

For routine cleaning tasks on all surfaces.

The appliance achieves the maximum run time at this level.

Position 2 2

Vacuuming with the electric brush switched on.

For stubborn cleaning tasks on all surfaces (carpets, in particular).

The appliance achieves a shorter runtime at this level.

Runtime

Like every other Li-Ion battery the battery is subject to natural wear as well. That means the battery capacity and thus runtime decrease over time. This is a natural aging process and not the result of a material/production failure or a product defect.

	BBH3/BCH325,2V	BBH3/BCH321,6V
On normal mode with electrical nozzle for normal cleaning tasks	Up to 55 min.	Up to 50 min.
Turbo mode with electrical floor nozzle or hand-held for demanding cleaning tasks	Up to 20 min.	Up to 18 min.

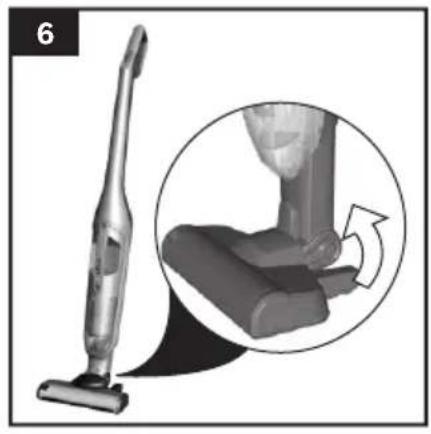

Fig. 6

During short pauses in vacuuming, the appliance can be left standing anywhere in the room. To do this, tilt the vacuum cleaner forwards slightly in the direction of the nozzle.

! Caution: When the appliance is left standing, it must be switched off because, if the brush is turning while the appliance is standing still, it could cause damage to the floor covering.

Using the hand-held cordless vacuum cleaner

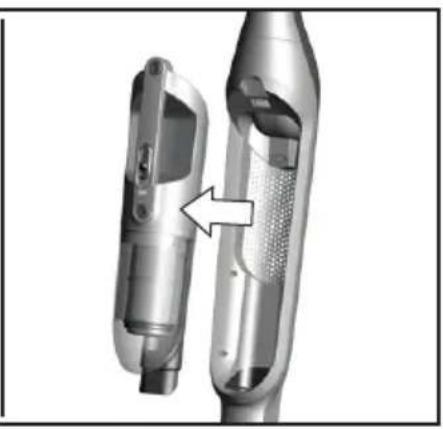

Fig. 7

Unlock the hand-held cordless vacuum cleaner by pressing the release button and remove it from the hand stick.

Vacuuming with accessories

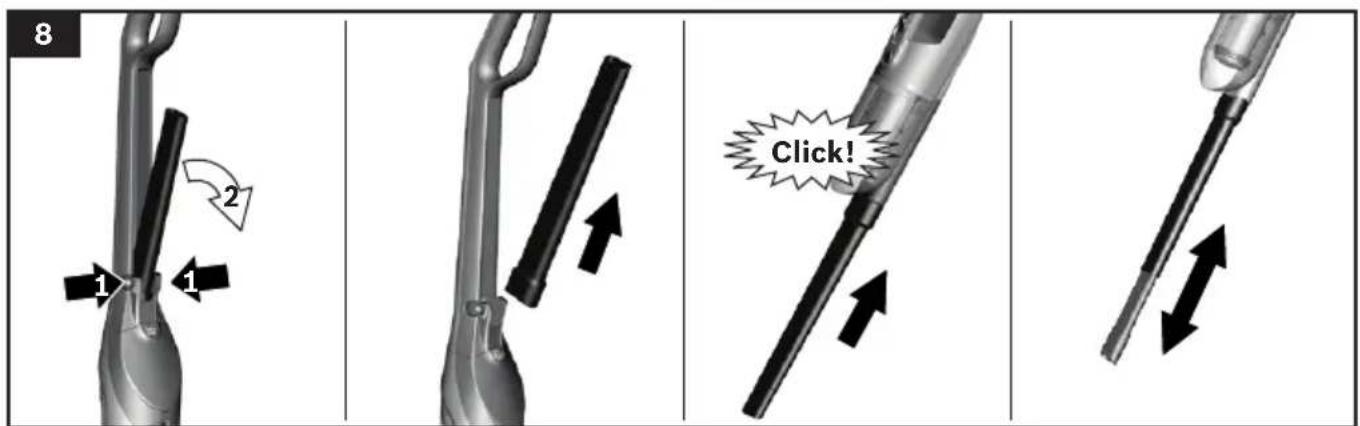

Fig. 8 Crevice nozzle

• For vacuuming in difficult-to-reach places and overhead.
• Open the accessory holder using the recessed grip and remove the crevice nozzle. Place it on the air intake opening of the cordless handheld vacuum cleaner and click into place.
• The crevice nozzle can be extended as required. To do this, press the unlock button, pull out the crevice nozzle and engage it in the end position.
  ●After use, push the crevice nozzle together again, place it in the accessory holder and close the holder.

Fig. 9 Combination nozzle

Combination nozzle with furniture brush and upholstery nozzle for vacuuming window frames, cupboards, furniture, etc.
- Open the accessory compartment and remove the combination nozzle. Place it on the air intake opening of the upright vacuum cleaner and click into place.
●The furniture brush attachment can be pushed to the side. The upholstery nozzle is located underneath.
●The combination nozzle can also be placed on the tip of the crevice nozzle.
●After use, place the combination nozzle back in the accessory compartment for storage, close the accessory compartment, clicking it into place.

Charging the hand-held cordless vacuum cleaner

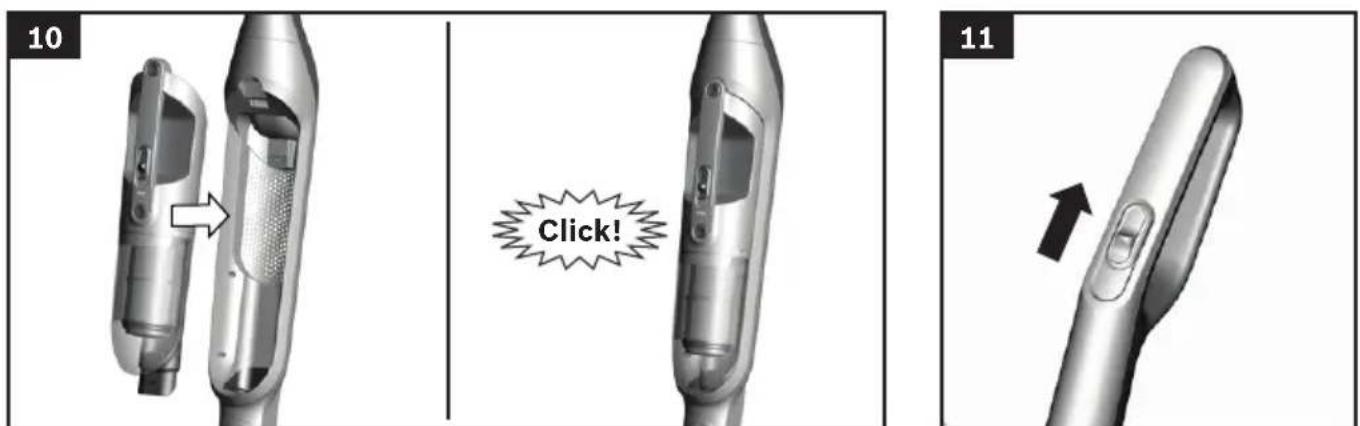

Fig. 10

- To charge the hand-held cordless vacuum cleaner, insert it into the hand stick and lock into place. Make sure that it is seated correctly.

After using the appliance

Fig. 11

●Switch off the appliance after vacuuming.

Emptying the dust container

In order to achieve the best possible vacuuming results, the dust container should be emptied after every use or, at the latest, when dust at one point in the dust container has reached the marking.

We recommend that you not fill the dust container beyond the marking, as this leads to considerable soiling of the filter.

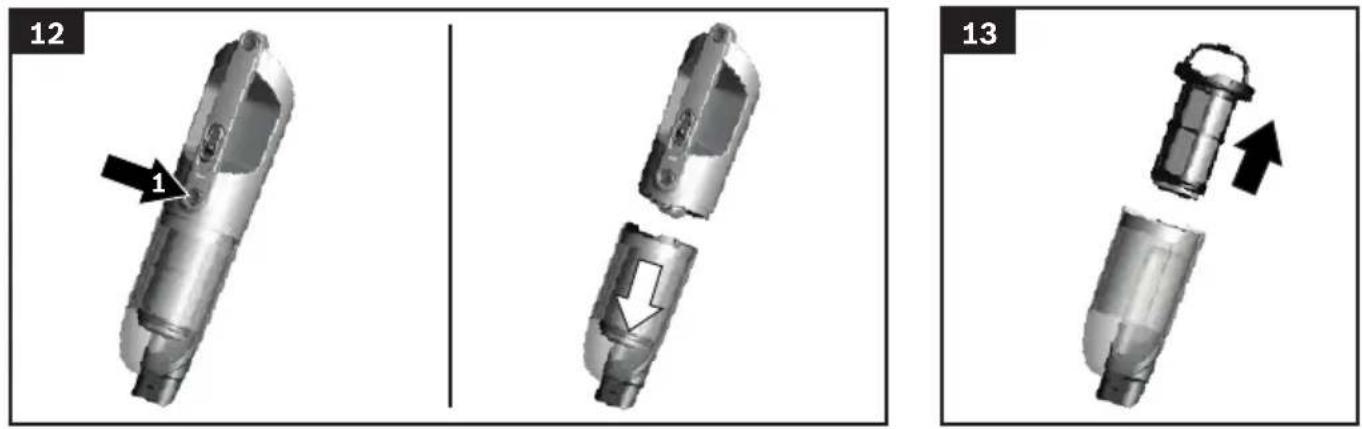

Fig. 12

• Remove the hand-held cordless vacuum cleaner from the hand stick. Fig. 7
• Using the release button, unlock the dust container and remove it from the motor unit.

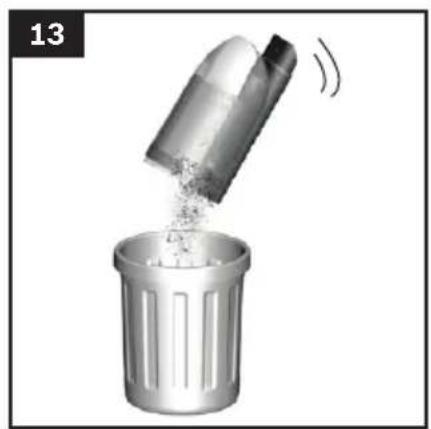

Fig. 13

●Take the filter unit out of the dust container.
●Empty the dust container.

Fig. 14

- Remove any dirt which may have been lodged underneath the container ejector opening.

a) Insert the filter unit into the dust container, making sure it is correctly seated
b) Insert the dust container in the appliance, so that it 'clicks' audibly into place

Caution: If you notice any resistance when inserting

the dust container, check that the filter is complete and that the filter unit and dust container are correctly seated.

Cleaning the filter

The outer filter unit and filter cartridge should be cleaned at regular intervals in order to ensure optimum operation of the vacuum cleaner.

! Caution: The filter can only be cleaned if the appliance is switched off.

Never vacuum without the outer filter unit and its fitted filter cartridge.

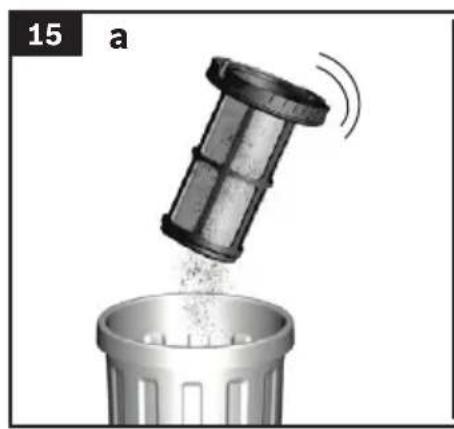

Fig. 15 Cleaning the outer filter unit

●Switch off the appliance. Fig. 11
- Remove the hand-held cordless vacuum cleaner from the hand stick. Fig. 7
- Using the release button, unlock the dust container and remove it from the motor unit. Fig. 12
●Take the filter unit out of the dust container.

a) It is usually sufficient to lightly shake or tap out the whole filter unit when the dust container is emptied in order to dislodge any particles of dirt.
b) If this is not sufficient, you can use a dry cloth to remove dirt particles from the surface.

Fig. 16 Cleaning the filter cartridge

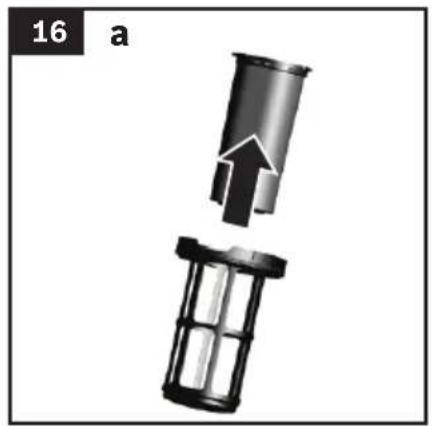

a) Remove the filter cartridge from the filter unit.

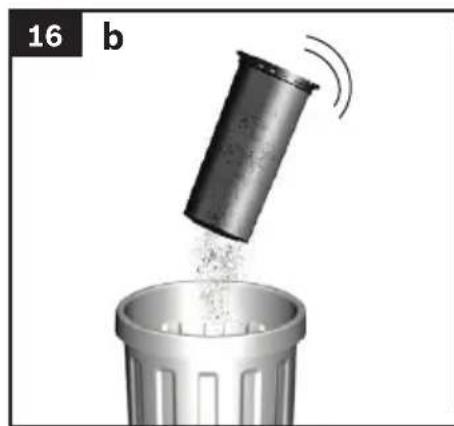

b) Firstly, clean the filter cartridge by tapping out the dirt.
c) Pull out the foam filter from the motor protection and rinse separately.

Allow the foam filter and motor protection filter to dry completely (approx. 24 hours)

●After fitting the foam filter, insert the filter unit into the dust container.

New filters can be obtained from our after-sales service, if required.

Cleaning the floor nozzle

Before carrying out any maintenance, switch off the vacuum cleaner and disconnect it from the charging cable.

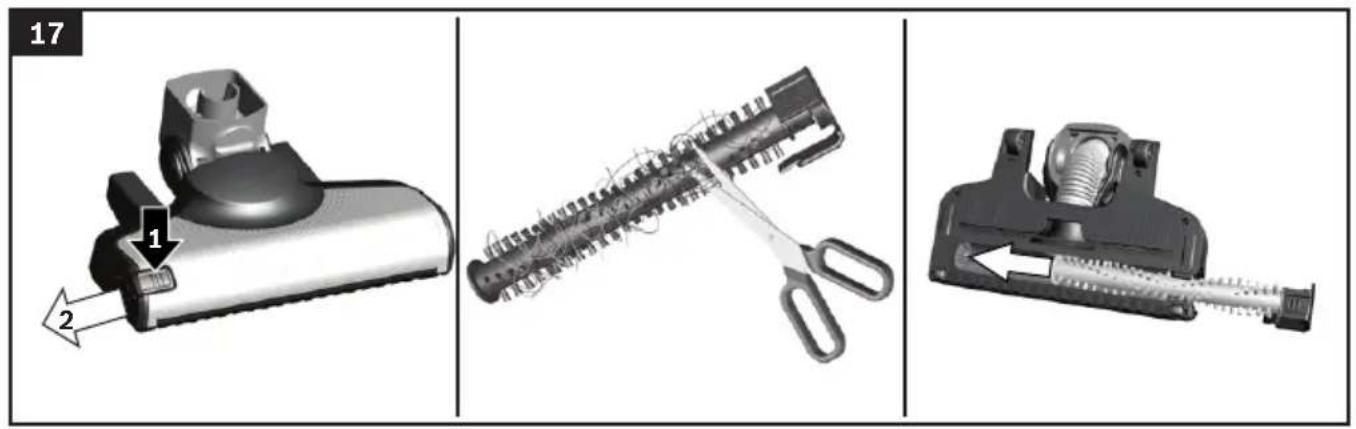

Fig. 17

• Use the release button to release the brush roller and pull it sideways out of the floor nozzle.
• Using the groove provided, cut through threads and hairs wound round the rollers with scissors.
• Push the brush roller in sideways along the guide rod in the floor tool and lock in place using the release button.

■ Caution: The floor nozzle must only be put into

operation with the brush roller fitted.

Caution:

- Floor nozzles are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). You must therefore check the underside of the floor tool at regular intervals. Worn undersides of floor nozzles may have sharp edges that can damage delicate hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor tools.

Care

Before cleaning the hand stick vacuum cleaner or handheld cordless vacuum cleaner, it must be switched off and disconnected from the charging cable. The vacuum cleaner and accessories can be cleaned using a standard commercially-available plastic cleaner.

Caution: Do not use abrasive materials, glass-
- cleaning agents or all-purpose cleaning products. Never immerse the vacuum cleaner in water.

Subject to technical modifications.

fr

AE United Arab Emirates,

BSH Home Appliances FZE

Round About 13, Plot Nr MO-0532A

Jebel Ali Free Zone - Dubai

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.com/ae

*Sun-Thu: 8am to 5pm (exclude public holidays)

AL Republika e Shqiperise, Albania

Elektro-Service sh.p.k

Rruga Kasem Shima, Kodi postar-1050

Prane Ures Mezezit

1023 Tirane

Tel.: [phone]; -131

mailto:[e-mail]

EXPERT Service

Rruga e Kavajes, Kulla B Nr 223/1 Kati I

1023 Tirane

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.com.au

*Mon-Fri 24 hours

Baku Service Company MMC

75-79, Bakikhanov Str.

Baku, AZ1007

Tel.: [phone]

mailto:[e-mail]

www.yurd.az

Optimal Elektronika MMC

Hasanoghlu 7B, Narimanov discrit

Baku, AZ1072

Tel.: 12 954

mailto:[e-mail]

www.optimal.az

BA Bosna i Hercegovina,

Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel./Fax: [phone]

mailto:[e-mail]

Business center FPI, floor 5,

Cherni vrah Blvd. 51B

1407 Sofia

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.bg

*Sat-Thu 7am to 5pm (exclude public holidays)

Building 3, No. 18 Qingjiang South Road,

Gulou District,

Nanjing, Jiangsu Province

Service Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.cn

*phone rate depends on the network used

CY Cyprus, Kúπρος

BSH Ikiakes Syskeves-Service

39, Arh. Makaariou III Str.

2407 Egomi/Nikosia (Lefkosia)

Tel.: [phone]

mailto:[e-mail]

CYN Turkish Rep. Of North Cyprus

Argas Limited Company

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk Or call

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GE Georgia

Elit Service Ltd.

Vake-Saburtalo district,

Intersection of Al. Kazbegi ave.

and Kavtaradze Str. 0186

Kavtaradze str. 1

Tbilisi

Tel.: [phone]

mailto:[e-mail]

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O . Athinon-Lamias & Potamou 20

14564 Kifisia

Unit 07, 23/F, CDW Building,

388 Castle Peak Road,

Tsuen Wan, New Territories,

Hong Kong

Tel.: [phone] (HK)

Toll free 0800 863 (Macao)

mailto:[e-mail]

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park,

Ballymount Road Upper,

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call

Tel.: [phone]*

www.bosch-home.ie

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

IL Israel

C/S/B/ Home Appliance Ltd.

1, Hamasger St.,

North Industrial Park

Lod, 7129801

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.in

*Mon-Sat: 8am to 8pm (exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

JO Jordan, الأردن

Diab Qawasmi & Sons Co.

Khaled Ben Al-Waleed Street,

Jabal Al Hussein (11121),

P.O. Box 212292

Amman

Tel.: [phone], -2650

Tel.: [phone]

mailto:[e-mail]

1201 ACE High Tech City 1 Building

775 Gyeongin-ro Youngdeungpo-gu

Seoul 07299 South Korea

Tel.: [phone]

mailto:[e-mail]

Business Center "Khan Tengri"

Almaty

Hotline: 5454*

mailto:[e-mail]

*Toll free from mobile only

LB Lebanon

Tehlni, Hana & Co.

Boulevard Dora 4043 Beyrouth,

P.O. Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

mailto:[e-mail]

www.balticcontinent.lt

UAB Emtoservis

S.R.L. "Rialto-Studio"

Lintel Investments and Management

Services Pvt. Ltd.

Ma. Maadheli, Majeedhee Magu

Malé

Tel.: [phone]

mailto:[e-mail]

www.lintel.com.mv

NL Nederlande, Netherlands

BSH Home Appliances Ltd

Level 3, Air NZ Building.

Smales Farm Business Park

74 Taharoto Road,

Takapuna

Auckland 0622

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.co.nz

*Mon-Fri: 8.30am to 5pm (exclude public holidays)

PK Pakistan, پاکستان

MEGA Home Appliances

Plaza 46-A, Commercial Sector XX,

Phase 3, DHA

Lahore

*Mon-Sat: 9am to 6pm (exclude public holidays)

PL Polska, Poland

SA Kingdom Saudi Arabia,

Abdul Latif Jameel Electronics and

Airconditioning Co. Ltd.

BOSCH Service centre, Kilo 5 Old Makkah

Road (Next to Toyota), Jamiah Dist.,

P.O. Box 7997

Jeddah 21472

Tel.: [phone]*

mailto:[e-mail]

www.aljelectronics.com.sa

*Sat-Thu: 8am to 11pm (exclude public holidays)

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.se

SG Singapore,新加坡

BSH Home Appliances Pte. Ltd.

38C Jalan Pemimpin, #01-01

Singapore 577180

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.com.sg

*Mon-Fri: 9am to 6pm, Sat: 9am to 1pm

(exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

Ital Thai Tower, 2034/31-39, 1st floor,

New Petchburi Road,

Bangkapi, Huay Kwang

Bangkok, 10310

Tel.: [phone]*

www.bosch-home.com/th

*Mon-Sat: 8am to 6pm (exclude public holidays)

TJ Tadschikistan, Чумхурии

Точикистон

P.E. Suhrob Muhitdinov

Shamsi street no: 67/A

Dushanbe

Tel.: [phone]

mailto:[e-mail]

Vostok Co. Ltd

Yakkacinarskaya street No: 144/4

Dushanbe

Tel.: [phone]

mailto:[e-mail]

www.volna.tj

TM Türkmenistan, Turkmenistan

Bayram Anna Yuryewna

Stariya marka, Atabeyeva str.

Spectrum mağaza

Ashgabat

Tel.: [phone]

mailto:[e-mail]

TR Türkiye, Turkey

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

mailto:[e-mail]

Republic of Uzbekistan

Elektronik Magnat

Beruni street No: 5/6

Tashkent

Tel.: [phone]

mailto:[e-mail]

XK Kosovo

Service-General SH.P.K

rr.Magjistralja Ferizaj Prishtine

70000 Ferizaj

Tel.: 00381 (0) 290 330 723

mailto:[e-mail]

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Omladinskih brigada 90E

11070 Novi Beograd

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd

96 Fifteenth Road, Randjespark

1685 Midrand - Johannesburg

Tel.: [phone]

mailto:[e-mail]

mailto:[e-mail]

www.bosch-home.com/za

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

de

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

fr

Simple line drawing of a trash bin with crossed x-marks (no text or symbols)

pt

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

Valid within Great Britain:

Imported to Great Britain by BSH Home Appliances Ltd.

Grand Union House

Old Wolverhampton Road

Wolverhampton, Milton Keynes

MK12 5PT

United Kingdom
