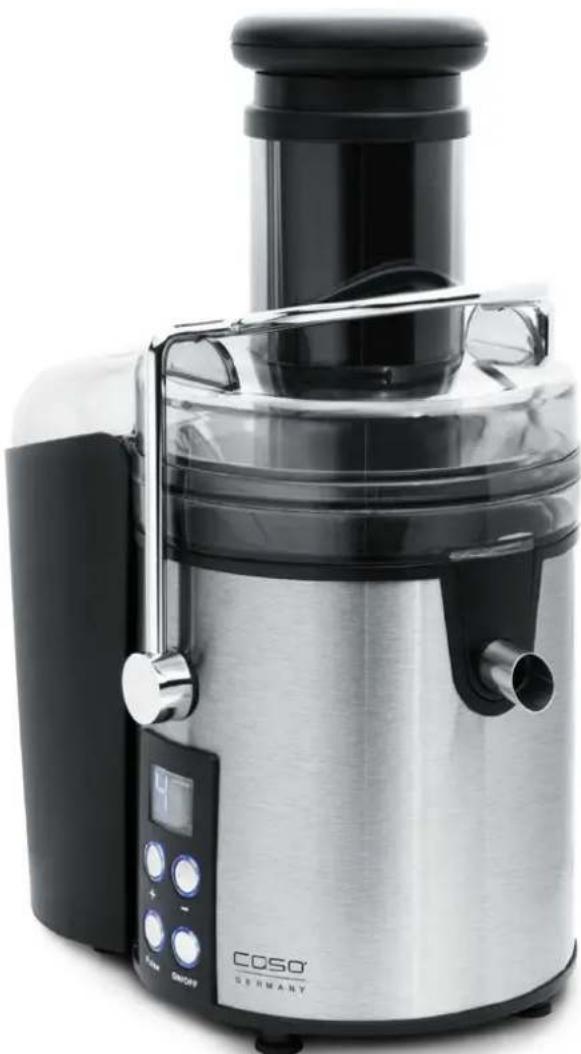

USER MANUAL PJ800 CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your Juicer PJ 800 will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

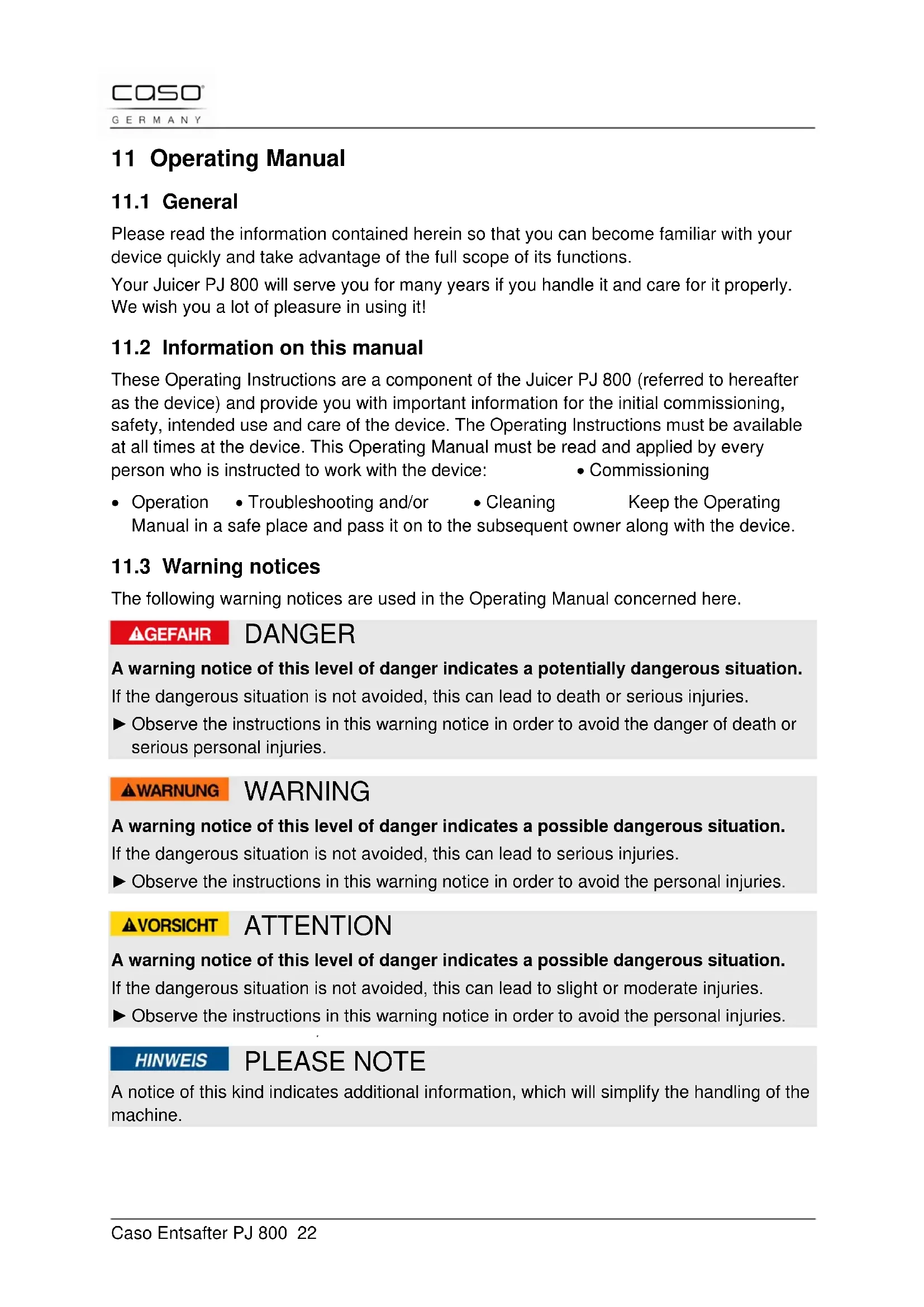

11.2 Information on this manual

These Operating Instructions are a component of the Juicer PJ 800 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: • Commissioning

• Operation • Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries.

PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.Caso Entsafter PJ 800 23

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual • Uses for non-intended purposes

• Improper repairs • Technical alterations, modifications of the device

• Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 12 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for

• Extracting juice from vegetables and/or fruit Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.Caso Entsafter PJ 800 24

12.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician. ► This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ► Children shall not play with the appliance. ► Cleaning and user maintenance shall not be made by children without supervision. ► Do not leave the device unsupervised when it is in operation. ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher. ► Do not overload the device and do not let it operate un-loaded. ► Do not empty the residue barrel before removing the plug out of the plug socket. ► Be sure the parts are properly assembled to original base and in place. ► Please correctly install all parts of the product before operating it. Make sure the transparent cover is well-covered and the handle is well-fastened. ► Do not use the device if the juicing net is damaged. ► Do not extract juice from any extremly hard food (e.g. nuts), fiber-rich food (e.g. sugarcane) or food with little juice (e.g. banana). ► The food must fulfil national standards. ► If you misuse the device it can lead to injuries. ► Do not use the device if the juicing net or the transparent cover are damaged or have visible cracks. ► Switch off the device and remove the plug before changing accessories or touching parts that move. ► Avoid contacting moving parts. ► Always make sure that the transparent cover is clamped securely in place before motor is turned on. Do not unfasten clamps while juicer is in operation.Caso Entsafter PJ 800 25 Please note ► Do not operate the device without the residue barrel in place. ► Do not use appliance for other than intended household use. Warning ► Do not put your hand in the feeing port, use the pushing bar. ► Do not put your fingers or other objects into the juicer while operation. If there is food stuck in the feeding port, only use the pushing bar or another piece of fruit/vegetable to push it down. When this fails, turn off the device and disassemble juicer to remove the remaining food. ► Unplug from the outlet when not in use and before cleaning and before putting on or taking of parts.

12.3 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician. ► Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.5 Safety information

Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► Packaging materials may not be used for playing. There is a danger of suffocation.Caso Entsafter PJ 800 26

12.6 Delivery scope and transport inspection

As a rule, the PJ 800 is delivered with the following components:

• Main machine • Juice jug • Operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.

12.8 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.9 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.

• Do not use the device outdoors.

• Choose the setup location in such a way that children cannot reach the device.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.Caso Entsafter PJ 800 27

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

• If you do not use the device very often, store it in a dry and well-circulated location to avoid that the motor getting damp and moldy.

12.10 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.Caso Entsafter PJ 800 28 13 Design and Function In this chapter, you'll find important information on the design and function of the device.

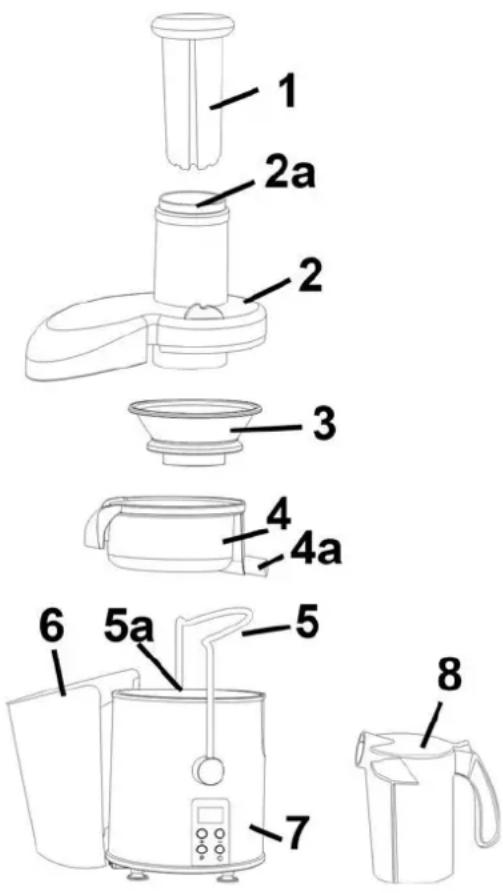

2. Transparent cover

1. Place main machine on the table.

2. Place middle ring on the main machine.

3. Assemble the juicing net carefully on the rotor

and clinch it with a soft clockwise rotation (deassembling: anti clockwise).

4. Place transparent cover on the middle ring.

5. Clinch residue barrel under the ejection and

around transparent cover.

6. Tight and clinch the handle.

7. Push juicer jug over the juicing noozle.

Please note ► This device is equipped with a safety lock. When the parts are not locked in properly, the motor will not turn on. ► Before juicing, first confirm that the juicing net and the rotor are clutched in position. ► When using the device for the first time, it may happen that a strange odor is caused by the engine by operating residues. This disappears with repeated use.

1. The opening of the feeding port has a really large diameter, so that entire apples or

pears can be put in for juicing. No cutting into pieces necessary – quick and easy.

2. The design is nice and simple, combined with structure. Easy to operate and to clean.

3. High speed motor with overheating protection – highly efficient, time and energy saving

and durable.Caso Entsafter PJ 800 29

4. The safety lock of the device is specially designed in order to ensure a safe and reliable

The rating plate with the connection and performance data can be founded beneath the device. 14 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Warning ► Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

14.1 . Before first use

Clean the device, see “cleaning“.

► Do not open the cover of juicer jug during using. In case power supply is on, do not put hand or any object into the device or feeding port, otherwise harmful accident may occur or the device may be damaged.

1. Connect the power, after you properly installed the device. The display blinks with„1“ as

2. Press the ON/OFF button. When the number turn from blinking to constantly lighting,

the device will start working. To stop the device press the ON/OFF button again. The number will blink again.

3. Press the + or – button to accelerate or decelerate the speed.

Lowest speed: 1, highest speed: 4.

4. If you need high speed for a short time, press “pulse” button. The device will work on

speed level 4 as long as you press the button. Speed level Fruit/ vegetable Rotating speed (r/min) 1 Grape/watermelon/peach etc. 7000 2 Citrus/orange/pear etc. 8800 3 Pineapple/cantaloupe etc. 10200 4 Apple/ginger etc. 12000Caso Entsafter PJ 800 30 Juicing vegetables and fruit Check speed level chart above to determine correct speed for the fruit/vegetable you are using. ► Let the device work for 1 min, then pause for 1 min and repeat this 3 times. Let the motor cool down completely before you use it again. This way the service life of the device will be prolonged and it will work more efficiently. 15 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

Attention Please observe the safety instructions, before cleaning your device ► Unplug the can opener when not in use and before any cleaning. ► Never immerse the can opener, cord or plug in water or other liquids and do not place in the dishwasher. ► The blades are really sharp. Handle them with care.

1. Before cleaning, please let the device cool down sufficiently and pull out the power wire.

2. Firstly, open the handle. Take out the transparent cover, juicing net, pushing bar, juice

jug and residue barrel. Clean them in clear water. Use a brush for cleaning.

3. Do not clean the main machine. Only wipe it with a damp cloth. The other parts

(pushing bar, cover, middle ring, residue barrel, juice jug) can be directly cleaned with water.

4. After cleaning, use a dry cloth to dry the appliance. Mount it and store it at a dry, safe

5. To clean the juicing noozle, firstly remove the middle ring.

6. The cutting teeth in the juicing net are very sharp. Please operate carefully.

7. The blades are very sharp. Hold them under running water to clean them, do not clean

them by hand. 16 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:Caso Entsafter PJ 800 31

16.1 Security advices

Attention ► Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer. ► Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

16.2 Troubleshooting

Problem Solution The device does not start.

• Please check whether the power plug is properly plugged.

• Please check whether the assembly is done according to assembly methods. The amount of juice is very little and residues are still damp.

• Check whether stale food is used.

• Food that was stored in the refrigerator for a long time must be soaked in clear water for at least 10 minutes before using them. Shutdown during use.

• Check whether too much food is used.

• Check whether the food contains hard cores. The device makes loud noise during use.

• If hard food is juiced, loud noise may appear. This is normal. Attention ► If above mentioned steps don't solve the problem, please contact your customer service.

17 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away.Caso Entsafter PJ 800 32 18 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 19 Technical Data Device PJ 800 Model GS-332P Item No.:
