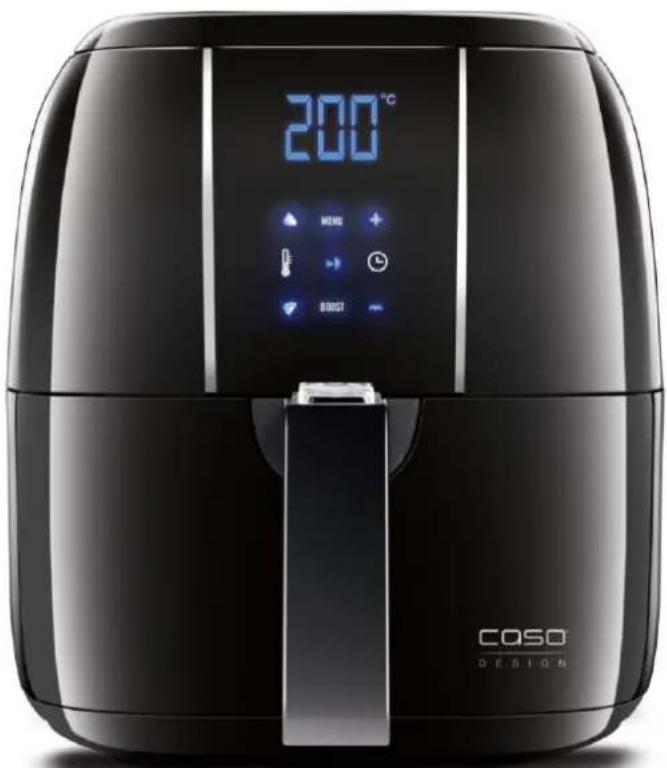

Original Operating Manual

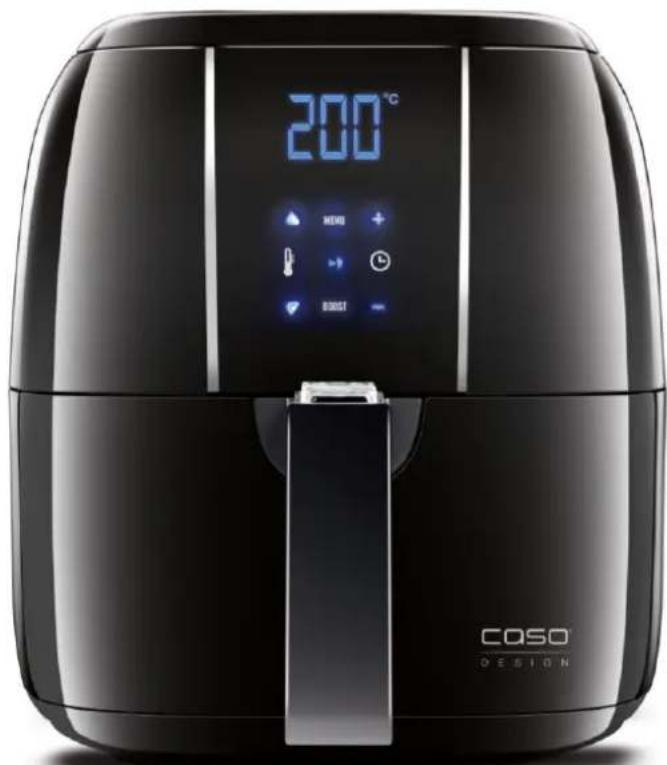

AF200 Fryer

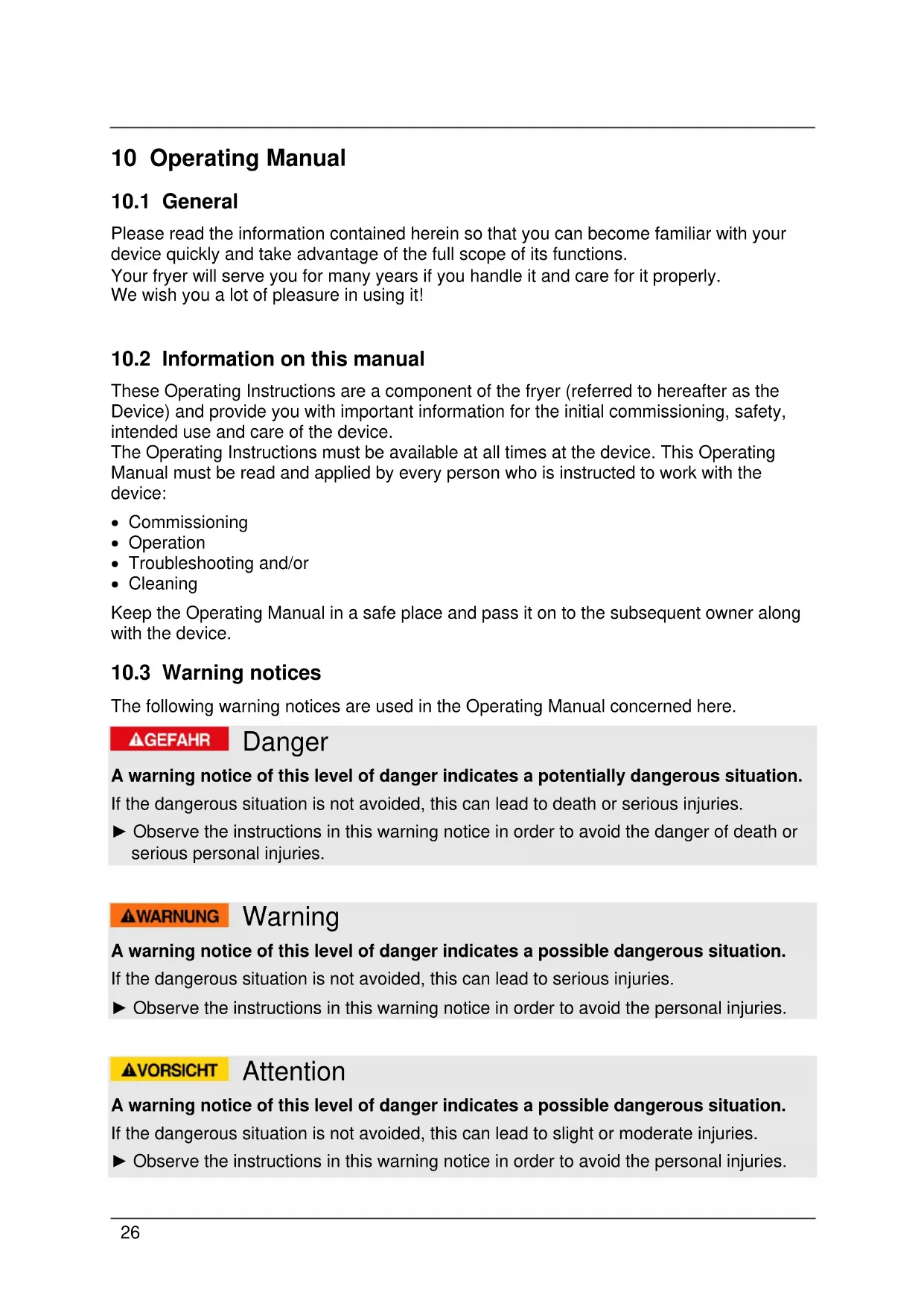

10 Operating Manual
10.1 General
Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.
Your fryer will serve you for many years if you handle it and care for it properly.
We wish you a lot of pleasure in using it!
These Operating Instructions are a component of the fryer (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.
The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:
Commissioning Operation - Troubleshooting and/or - Cleaning
Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.
10.3 Warning notices
The following warning notices are used in the Operating Manual concerned here.
▲DANGER
Danger
A warning notice of this level of danger indicates a potentially dangerous situation.
If the dangerous situation is not avoided, this can lead to death or serious injuries.
Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.
WARNING
Warning
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to serious injuries.
Observe the instructions in this warning notice in order to avoid the personal injuries.
CAUTION
Attention
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to slight or moderate injuries.
Observe the instructions in this warning notice in order to avoid the personal injuries.
Please note
A notice of this kind indicates additional information, which will simplify the handling of the machine.
10.4 Limitation of liability
All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.
No claims can be derived from the information provided, the illustrations or descriptions in this manual.
The manufacturer does not assume any liability for damages arising as a result of the following:
Non-observation of the manual, uses for non-intended purposes, improper repairs, technical alterations or modifications of the device, use of unauthorized spare parts.
Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.
10.5 Copyright protection
This document is copyright protected.
Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.
Subject to content and technical changes.
11 Safety
This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.
11.1 Intended use
This device is only intended for use in households in enclosed spaces.
This device is only for domestic use in enclosed spaces for
deep-frying and re-heating of food. This device is intended for use in the household and for similar applications such as:
- in kitchens for employees in shops, offices, and other commercial areas; - in B&Bs,
- in agricultural estates;
- by customers in hotels, motels and other residential establishments.
Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.
WARNING Warning
Danger due to unintended use!
Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.
- Use the device exclusively for its intended use. Observe the procedural methods described in this Operating Manual.
Claims of all kinds due to damages resulting from unintended uses are excluded.
The User bears the sole risk.
HINWEIS Please note
Please observe the following general safety notices with regard to the safe handling of the device.
- Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
- Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. The device and its connecting cable must be kept away from children who are less than 8 years old. Children are not allowed to play with the device. The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
HINWEIS Please note
- Do not operate the device with wet hands and do not let it run empty. Do not leave the device unsupervised when it is in operation.
- Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
- Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
- Do not use accessories which are not recommended by the manufacturer, as this can cause damage to your device or personal injury. Do not use outdoors. Do not let the cord hang over the end of a table or do not place it on a hot surface. Do not place the device on or near by a gas oven, electronic oven or into a heated oven.
- Do not put anything on top of the appliance. This disrupts the airflow and affects the hot air frying result. The device automatically changes to standby mode after the cooking time is over or after 3 min. without using it. Unplug the device then to turn it off completely. Use the device only for frying and re-heating.
- Make sure that the handle was properly secured to the basket and anchored.
- Do not submerge the heating unit, cord or plug in water or other liquids to prevent electrical shock. Make sure that the vents on the cover are not covered with other items.
HINWEIS Please note
Unplug the device after use. Then you can move, clean or maintain it. Do not unplug the device by pulling the cord. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will be void.
11.3 Sources of danger
11.3.1 Danger of Burning
WARNING: The device can become very hot.
Do not touch the frying basket, frying pot and the air outlet during the frying or when the unit is still hot! Do not touch the inside of the device during operation. Do not move the device if it contains hot food. Use cooking gloves or pot holders when you come into contact with the hot device. Do not move the appliance during use. Fry only in the enclosed frying pot. Use this frying pot exclusively with this fryer. Use the frying pot never otherwise. Unplug the device after use. After that you can move, clean or maintain it. Let the appliance cool down before you remove items, add or clean them. Do not put wet food into the device. Remove all ice from frozen food to be fried. Look for the hot steam rising from the air outlet.
11.3.2 Danger of Fire
WARNING
There is a risk of fire if the appliance is used incorrectly.
Adhere to the following safety instructions in order to avoid a risk of fire:
This device produces high temperatures, which can lead to burns.
WARNING
This device works on hot air. Do not fill it with oil or fat! Danger of burns! Make sure that no flammable objects are above or near the device. If the oil catches fire, immediately pull the plug from the socket and close the lid of the device. Do not install unless the frying basket is completely free of water. Place the food into the frying basket and avoid that they touch the heating elements. If the device catches fire, immediately remove the plug out of the outlet (if possible) and extinguish the flames with a damp fabric. Never use water to extinguish the fire!
11.3.3 Dangers due to electrical power
DANGER: Mortal danger due to electrical power!
Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:
- Avoid any liquid getting into the device to avoid an electrical shock or short circuit.
- Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
- Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
- Do not submerge the heating unit, cord or plug in water or other liquids to prevent electrical shock.
12 Commissioning
This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:
▲WARNING Warning
Personal and property damages can occur during commissioning of the device!
Observe the following safety notices to avoid such dangers:
▷ Packaging materials may not be used for playing. There is a danger of suffocation.
12.2 Delivery scope and transport inspection
As a rule, the Fryer is delivered with the following components:
Fryer - Frying basket with handle - Frying pot Power cord - Operating Instructions
NOTE Please note
Examine the shipment for its completeness and for any visible damages. - Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.
12.3 Setup location requirements
In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
- The device must be set up on a firm, flat, horizontal and heat resistant surface with sufficient load-bearing capacity for the device.
- Choose the setup location in such a way that children cannot reach the device.
- The device is not intended to be installed in a wall or a built-in cupboard.
- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
- The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 15 cm on all sides.
- Do not cover up any openings on the device and do not block these off.
- Do not remove the device's adjustable feet.
- The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
- The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
12.4 Unpacking
To unpack the device, proceed as follows:
- Place the box containing the unit on a countertop or table.
- Remove the device from the box and remove the outer packaging.
- Remove all stickers or labels (except for the rating plate!).
12.5 Disposal of the packaging
The packaging protects the device against damage during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.
Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.
NOTE Please note
If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.
12.6 Electrical connection
In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:
- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
- The electrical outlet must be protected by a 16A safety cut-out switch. Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition and is suited to the power of the appliance.
- The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
- Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.
13 Design and Function
This chapter provides you with important safety notices on the design and function of the device.

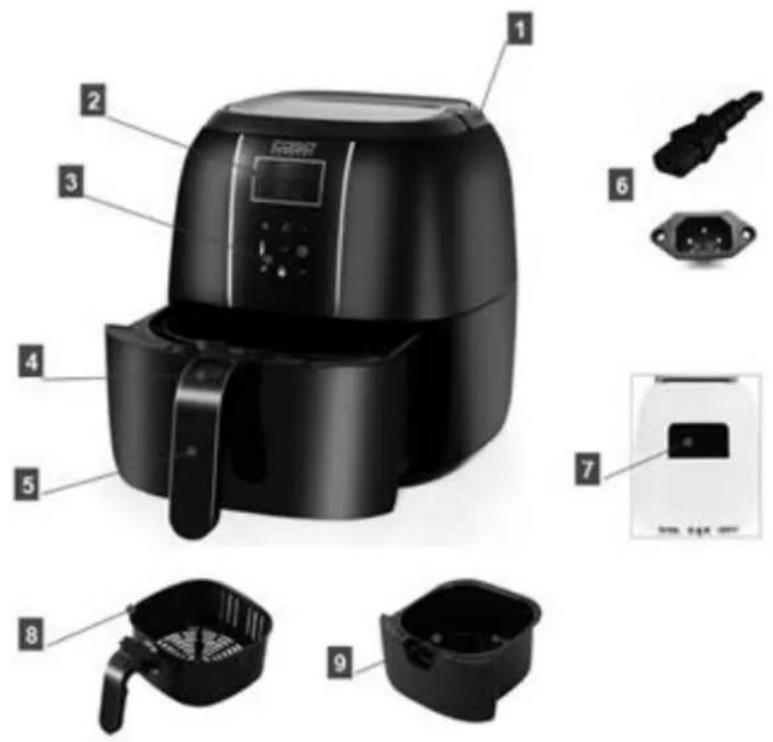

13.1 Complete overview
- Pull handle and air inlet
- LCD display
- Sensor touch control panel
- Basket release button
- Frying basket handle
- Main power cord
- Air outlet and oil smoke filter
- Frying basket
- Frying pot
13.2 Warning notices on device
▲CAUTION ATTENTION
Danger due to hot surface!
There is a warning notice referring to dangers due to hot surfaces located on the device. The surfaces of the device can become extremely hot.
Do not touch the hot surfaces of the device. Danger of burns! Do not set or lay any items on the device.
13.3 Rating plate
The rating plate with the connection and performance data can be found beneath the heater.
14 Operation and Handling
This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:
Note: Please note
This device is only intended for use in households in enclosed spaces.
14.1 Before initial use
- Thoroughly clean the basket and the pot with hot water, some washing-up liquid and a non-abrasive sponge.
Note: Please note
You can also clean these parts in the dishwasher. - Wipe the inside and outside of the appliance with a moist cloth.
14.2 Secure switch
This appliance is equipped with a secure switch. When pulling the pot out of the fryer during its working, the fryer will stop heating and the timer will hold automatically until the pot is put back.
Note: Please note
It's better to pull out the pot for no longer than 30 seconds, to make sure the stable temperature inside the pot to have better results.
This appliance is equipped with a secure switch. When pulling the pot out of the fryer during its working, the fryer will stop heating and the timer will hold on automatic until the pot is put back.
14.3 Commissioning
- Connect the main plug into a socket. The device beeps and shows
- Unlock & Temperature setting: Press
for 3 seconds to unlock the device.
The display shows 180° C and 10 Min* . Press the temperature (in 5° C steps) Max.: 200° C , Min.: 60° C .
to increase/decrease
- Time setting: Press n + n or n - n ,to increase/decrease the time (in 1 Min. steps). Max.: 60 Min., Min. 1 Min.
- Let the device preheat for 3-4 Min. without food or add 3 Min. to your cooking time.
- Pull out the frying basket on the handle and fill it with your desired food.
HINWEIS Please note
- Never fill the basket beyond the amount indicated in the table, as this could affect the quality of the end result.
- Slide the pot back into the fryer.
NOTE Please note
Never use the pot without the basket in it.
- Fast cooking: Press
and the device immediately starts frying
(Temperature: 180°C , cooking time: 10 Min.). While frying you can still adjust the time and temperature (see step 4 and 5).
- Boost: Press BOOST and the device will start a program of 5 minutes which will briefly reach 230° C.
is shown. Press it again to choose a programme.
| Programme | Amount | Temperature | Time |
| Frozen fries | 350 g | 200 °C | 16 min. |
| Home made fries | 350 g | 200 °C | 18 min. |
| Steak | 300 g | 180 °C | 15 min. |
| Drumsticks | 300 g | 180 °C | 20 min. |
| Fish | 300 g | 200 °C | 12 min. |
| Muffin | 5 pieces | 200 °C | 17 min. |
12. Frying:
After you adjusted time and temperature, press shows and . The temperature and
to start the device. The display time is shown.
- Temperature and time are adjustable during frying (see steps 4 and 5).
- Some ingredients require shaking halfway through the preparation time. To shake or turn over the ingredients, pull the pot out of the appliance by the handle and shake it or turn over the ingredients with a fork (or tongs). Then put the pot back into the fryer.
NOTE
Please note
Do not press the basket release button during shaking or turning over the ingredients.
- Pause/Continue: Press to stop the device. Press again to continue.
STOP: Press
to stop the device.
14. After frying:
- When the frying is done you will hear a beep, but in order to cool down the fryer and protect the interior fuse, the fan will run for 1 minute longer and then stop automatically. You will hear 4 short beeps. The fryer will enter standby mode.
- Pull out the frying basket using the handle and put it on a heat-resistant surface. Check whether the food is cooked through. If not, you can slide the basket back into the fryer and set the timer for a few minutes.
- To remove the ingredients, press the basket release button and lift the basket out of the pot. The frying basket and the ingredients are hot. You can use a fork (or tongs) to take out the ingredients. To remove large or fragile ingredients, use a pair of tongs to lift the ingredients out of the basket.
▲WARNING Warning
The frying basket and the food are very hot!
14.4 Tips for frying
- After the fryer has started its program, you can still adjust the time and temperature at any moment by pressing the appropriate buttons.
- Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
- A larger amount of ingredients only requires a slightly longer preparation time, while a smaller amount only requires a slightly shorter preparation time.
- Shaking smaller ingredients halfway through the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
- Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the fryer within a few minutes after adding the oil.
- Do not prepare extremely greasy ingredients such as sausages in the fryer.
- Snacks that can be prepared in an oven can also be prepared in the fryer.
- The optimal amount for preparing crispy fries is 500 grams.
- Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
- You can also use the fryer to reheat ingredients. To reheat ingredients, set the temperature to 150°C for up to 10 minutes.
The table below helps you select the basic settings for the ingredients you want to prepare. Please refer to the recipe book for more different ingredients.
Keep in mind that these settings are indications. As ingredients differ in origin, size, shape, and brand, we cannot guarantee the best setting for your ingredients.
| Food | Quantity/
Weigth | Temperature | Time |
| French fries (frozen) | 200 - 500 g | 200 °C | 12 - 20 min. |
| Home made French fries | 200 - 500 g | 180 °C | 16 - 30 min. |
| Breadcrumbed cheese
snacks | 200 - 300 g | 200 °C | 8 - 15 min. |
| Chicken nuggets | 100 - 500 g | 200 °C | 10 - 15 min. |
| Fillet of Chicken | 100 - 500 g | 200 °C | 18 - 25 min. |
| Drumsticks | 100 - 500 g | 180 °C | 18 - 22 min. |
| Steak | 100 - 500 g | 180 °C | 8 - 15 min. |
| Pork chops | 100 - 500 g | 180 °C | 10 - 20 min. |
| Hamburger | 100 - 500 g | 180 °C | 7 - 14 min. |
| Frozen fish fingers | 100 - 400 g | 200 °C | 6 - 12 min. |
| Muffin | 5 pieces | 200 °C | 15 - 18 min. |
15 Cleaning and Maintenance
This chapter provides you with important notices regarding cleaning and maintaining the device. Please observe the notices to prevent damages due to incorrect cleaning and to ensure trouble-free operation.
CAUTION Attention
Please observe the following safety notices before you commence with cleaning the device:
The device must be cleaned at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria. Clean the device directly after use. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. The frying basket and pot are anti-stick coated. Do not use any aggressive or abrasive cleaning agents or solvents. Do not scrape off stubborn dirt with hard items.
15.2 Cleaning
- Remove the plug from the outlet and let the device cool down.
- The frying basket and the frying pot can be washed in warm soapy water.
- Dry the parts thoroughly after this. After cleaning, reassemble the device.
15.3 Safety notices
CAUTION Attention
- Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
- Improperly performed repairs can cause considerable dangers for the user and damages to the device.
16 Disposal of the Old Device
Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.
If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.
NOTE Please note
Use the collection point established in your town to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service, or your dealer for information. Ensure that your old device is stored safely away from children until it is taken away.
17 Guarantee
We provide a 24-month guarantee for this product, commencing from the date of sale, for faults attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.
The guarantee does not include damages incurred as a result of improper handling or use, as well as malfunctions that only have a minor effect on the function or value of the device. Consumables, transit damages (inasmuch as we are not responsible for these), and damages incurred as a result of any repairs not performed by us are also excluded from the guarantee entitlements.
This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery.
All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).
18 Technical Data
| Device | Fryer |
| Name | AF200 |
| Item No.: | 3172 (black), 3175 (white), 3176 (red) |
| Mains data | 220 V – 240 V; 50 Hz / 60 Hz |
| Power consumption | 1200 W - 1400 W |
| External measurements (W x H x D): | 280 x 313 x 395 mm |
| Net weight | 4,95 kg |
User Manual
Deep Fryer AF200
19 User Manual
19.1 General Information
