Product type	Cordless impact drill/driver
Brand	Panasonic
Model	EY7960
Rated voltage	21.6 V DC (Li-ion)
No-load speed (low)	100 - 400 rpm
No-load speed (high)	350 - 1500 rpm
Impact rate (low)	1800 - 7200 bpm
Impact rate (high)	6300 - 27000 bpm
Chuck capacity	1.5 mm to 13 mm
Tightening torque (clutch)	18 positions: 1.0 N·m to 6.9 N·m
Weight (with battery)	2.55 kg
Total length	245 mm
Battery	Li-ion 21.6 V, 3 Ah (model EY9L60)
Charger	EY0L80, full charge time approx. 60 min
Drilling capacity (wood)	Up to 38 mm
Drilling capacity (metal)	Up to 13 mm
Drilling capacity (masonry)	Up to 13 mm
Power source	Rechargeable Li-ion battery
Main functions	Screwdriving, drilling, hammer drilling, adjustable clutch, reverse rotation, spindle lock, LED light, overheat and low battery indicators
Maintenance and cleaning	Clean with a dry, clean cloth; do not use water, solvent or volatile product
Safety	Wear ear protection, use auxiliary handle, dust mask if necessary, hold tool by insulated gripping surfaces when drilling in areas that may contain electrical cables
Included accessories	Auxiliary handle, keyless chuck, battery and charger (depending on kit)

Frequently Asked Questions - EY7960 PANASONIC

How to install or remove a bit on the EY7960 drill?

Ensure the battery is removed or the switch is in the center (locked) position. To install: insert the bit and turn the locking collar clockwise until it stops clicking. To remove: turn the collar counterclockwise and remove the bit. If the chuck has play, loosen the center screw (left-hand thread) with a screwdriver after opening the jaws.

How to adjust the clutch tightening torque?

Turn the clutch adjustment ring to one of the 18 numbered settings. Low torque is suitable for small screws, high torque for larger ones. For drilling or hammer drilling, set the ring to the drill bit or hammer symbol. Always test on a scrap piece before working.

How to use the hammer mode on the EY7960 model?

Turn the clutch adjustment ring to the T (hammer) position. This mode is for drilling in soft concrete, brick or similar materials. Make sure to stop the tool and clear it from the workpiece before switching from drilling to hammer mode or vice versa.

Which battery to use with the EY7960 drill?

Use only Panasonic Li-ion batteries from the EY9L60 series (21.6 V, 3 Ah) or compatible. Never use other batteries. The battery must be charged with the supplied EY0L80 charger. For optimal battery life, store the battery discharged after use and recharge it at room temperature (0 °C to 40 °C).

How to recharge the battery and what are the charger indicators?

Plug the charger into a mains outlet. Insert the battery aligning the marks. Solid green light indicates charger ready; slow flashing green = charging; fast flashing green = charge complete. Solid orange light means cold battery (slow charge); flashing orange = hot battery (waiting to cool). If orange and green flash rapidly, the battery is defective or dirty.

What to do if the drill suddenly stops during use?

This may be due to motor or battery overheating. The overheat warning light turns on (motor) or flashes (battery). Let the tool cool completely (at least 30 minutes) until the light turns off. If the low battery indicator flashes, recharge the battery immediately. Avoid continuous high-load use.

How to clean and maintain the EY7960 drill?

Clean the tool regularly with a dry, clean cloth. Never use water, solvents or volatile cleaning products. Ensure the cooling vents are not blocked. Store the tool in a dry, dust-free place. Replace the battery cover when the battery is not in use.

What are the important safety precautions to follow?

Wear ear protection as noise can damage hearing. Always use the auxiliary handle to avoid loss of control. Hold the tool by insulated gripping surfaces when drilling in areas where electrical cables may be embedded. Wear a dust mask if necessary. Do not operate the reverse switch while the trigger is pressed. Store the tool with the switch in the center (locked) position.

How to use the built-in LED light?

Press the LED light button after turning on the main switch once. The light dimly illuminates the work area. It turns off automatically after 5 minutes of inactivity. Do not look directly into the beam. This light is not powerful enough to replace a normal flashlight.

What are the recommended accessories for the EY7960 drill?

Use only bits suitable for the chuck capacity (1.5 to 13 mm). For screwdriving, use quality screwdriver bits. The auxiliary handle is provided and should be used for all work. A spare charger and battery (model EY9L60) are recommended for extended use.

USER MANUAL EY7960 PANASONIC

Operating Instructions

Bedienungsanleitung

Line drawing of a handheld electric drill press (no text or symbols)

Before operating this unit, please read these instructions completely and save this manual for future use.

(A)	Keyless drill chuckSchlüsselfreies BohrfutterMandrin porte-foret sans filMandrino autoserranteBoorkop zonder sleutelMandril sin llaveNøglefri borepatronNyckellös borrchuckNøkkelfri drillchuckAvaimeton poran kiinnityslaiteБесключевой зажимной патронБезключовый затискний патрон	(B)	Clutch handleKupplungsringPoignée de l'embrayageImpugnatura frizioneKoppelingshandgreepMango de embragueKoblinghåndtagKopplingshandtagKoblingshåndtakKytkimen kahvaРукоятка муфтыРукоятка муфти
(C)	Speed selector switchBereichsschalterInterrupteur de sélection de vitesseRegolatore di velocitàSnelheidskeuzeschakelaarInterruptor selector de velocidadHastighedsvælgerHastighetsomkopplareHastighetskontrollNopeuden valintakytkinПереключатель выбора скоростиПеремикач вибору швидкості	(D)	Forward/Reverse leverRechts/Linkslauf SchalterLevier d'inversion marche avant-marche arrièreLeva di avanzamento/inversioneVoorwaarts/achterwaarts-hendelPalanca de avance/inversiónGreb til forlæns/baglæns retningRiktningsomkopplareForover/Revers bryterEteenpäin/taaksepäin vipuРычаг переключения вперед/назадВажіль перемикання вперед/назад
(E)	Alignment marksAusrichtmarkierungenMarques d'alignementMarcature allineamentoUitlijntekensMarcas de alineaciónFlugtemærkerAnpassningsmärkenOpprettingsmerkeSovitusmerkitМетки совмещенияМітки вирівнювання	(F)	Battery pack release buttonAkku-EntriegelungsknopfBouton de libération de batterie autonomeTasto di rilascio pacco batteriaAccu-ontgrendeltoetsBotón de liberación de bateríaUdløserknap til batteripakningFrigöringsknapp för batteriUtløserknapp for batteripakkeAkkupaketin irrotuspainikeКнопка освобождения батарейного блокаКнопка вивільнення батарейного блоку
(G)	Battery pack (EY9L60)Akku (EY9L60)Batterie autonome (EY9L60)Pacco batteria (EY9L60)Accu (EY9L60)Batería (EY9L60)Batteripakning (EY9L60)Batteri (EY9L60)Batteripakke (EY9L60)Akku (EY9L60)Батарейный блок (EY9L60)Батарейний блок (EY9L60)	(H)	Control panelBedienfeldPanneau de commandePannello di controlloBedieningspaneelPanel de controleKontrolpanelKontrollpanelKontrollpanelSäätöpaneeliПанель управленияПанель управління
(I)	Overheat warning lamp (battery/motor)Überhitzungs-Warnlampe (Akku/motor)Témoin d'avertissement de surchauffe (batterie/moteur)Spia avvertenza surriscaldamento (batteria/motore)Oververhitting-waarschuwingslampje (accu/motor)Luz de advertencia de sobrecalentamiento (batería/motor)Advarselslamp til overophedning (batteri/motoren)Varningslampa för överhettning (batteri/motorn)Varsellampe for overoppheting (batteri/motor)Ylikuumenemisen varoituslamppu (akku/moottoria)Предупреждающая лампочка перегрева (батареи/мотор)Попереджувальна лампочка перегріву (батареї/мотор)	(J)	LED light on/off buttonLED-Leuchten-EIN/AUS-TasteBouton Marche/Arrêt de la lumière DELTasto di accensione e spegnimento della luce LEDAan/uit-toets (ON/OFF) voor LED-lampjeBotón ON/OFF de luz LEDTÆND/SLUK-knap til LED-lysStrömbrytare för LED-IjusPÅ/AV-knapp for LED-lysLED-valon kytkin/katkaisupainikeКнопка включения/выключения светодиодной подсветкиКнопка ввімкнення/вимкнення світлодіодного підсвічування
(K)	LED lightLED-LeuchteLumière DELLuce LEDLED-lampjeLuz indicadoraLED-lysLED-ljusLED-lysLED-valoСветодиодная подсветкаСвітлодіодне підсвічування	(L)	Battery low warning lampAkkuladungs-WarnlampeTémoin d'avertissement de batterie basseSpia avvertenza batteria scaricaWaarschuwingslampje voor lage accuspanningLuz de aviso de baja carga de bateríaAdvarselslampes batterieffekt lavVarningslampa för svagt batteriVarsellampe for at batteriet er for lavtAlhaisen akkujännitteen varoituslamppuПредупреждающая лампочка низкого заряда батареиПопереджувальна лампочка низького заряду батареї
(M)	Variable speed control triggerBetriebsschalterGâchette de commande de vitesseGrilletto di controllo velocità variableStartschakelaar variabele snelheidDisparador del control de velocided variableKontroludløser for variabel hastighedSteglös varvtalsreglerareHovedbryter, trinnløsNopeudensäätökytkinПереключатель регулировки переменной скоростиПеремикач регулювання змінної швидкості	(N)	Support handleZusatzgriffManche de supportManiglia di sostegnoSteungreepMango de soporteHjælpehåndtagStödhandtagStøttehåndtakTukikahvaПоддерживающая рукояткаПідтримуюча рукоятка
(O)	Battery charger (EY0L80)Ladegerät (EY0L80)Chargeur de batterie (EY0L80)Caricabatterie (EY0L80)Acculader (EY0L80)Cargador de batería (EY0L80)Batterioplader (EY0L80)Batteriladdare (EY0L80)Batterilader (EY0L80)Akkulaturi (EY0L80)Зарядное устройство (EY0L80)Зарядний пристрій (EY0L80)	(P)	Battery pack coverAkkuabdeckungCouvercle de la batterie autonomeCoperchio pacco batteriaAccudekselCubierta de bateríaAkkuafdækningBatterilockBatteripakkedekselAkun kansiКрышка аккумуляторной батареиКришка аккумуляторної батареї
(Q)	Ni-MH/Ni-Cd battery pack dockNi-MH/Ni-Cd-AkkuladeschachtPoste d'accueil de la batterie autonome Ni-MH/Ni-CdSpazio raccordo pacco batteria Ni-MH/Ni-CdNi-MH/Ni-Cd accuhouderEnchufe de carga de batería Ni-MH/Ni-CdNi-MH/Ni-Cd batteripakningsdokDocka för NiMH/NiCd-batteriDokk for Ni-MH/Ni-Cd-batteripakkeNi-MH/Ni-Cd akun liitinУглубление для установки никель-металлогидридного батарейного блока/никель-кадмиевого батарейного блокаЗаглиблення для встановлення нікель-метал-гідридного батарейного блоку/нікель-кадмієвого батарейного блоку	(R)	Li-ion battery pack dockLi-ion-AkkuladeschachtPoste d'accueil de la batterie autonome Li-ionSpazio raccordo pacco batteria Li-ionLi-ion accuhouderEnchufe de carga de batería Li-ionLi-ion batteripakningsdokDocka för litiumjonbatteriDokk for Li-ion-batteripakkeLi-ioniakun liitinУглубление для установки литий-ионного батарейного блокаЗаглиблення для встановлення літій-іонного батарейного блоку

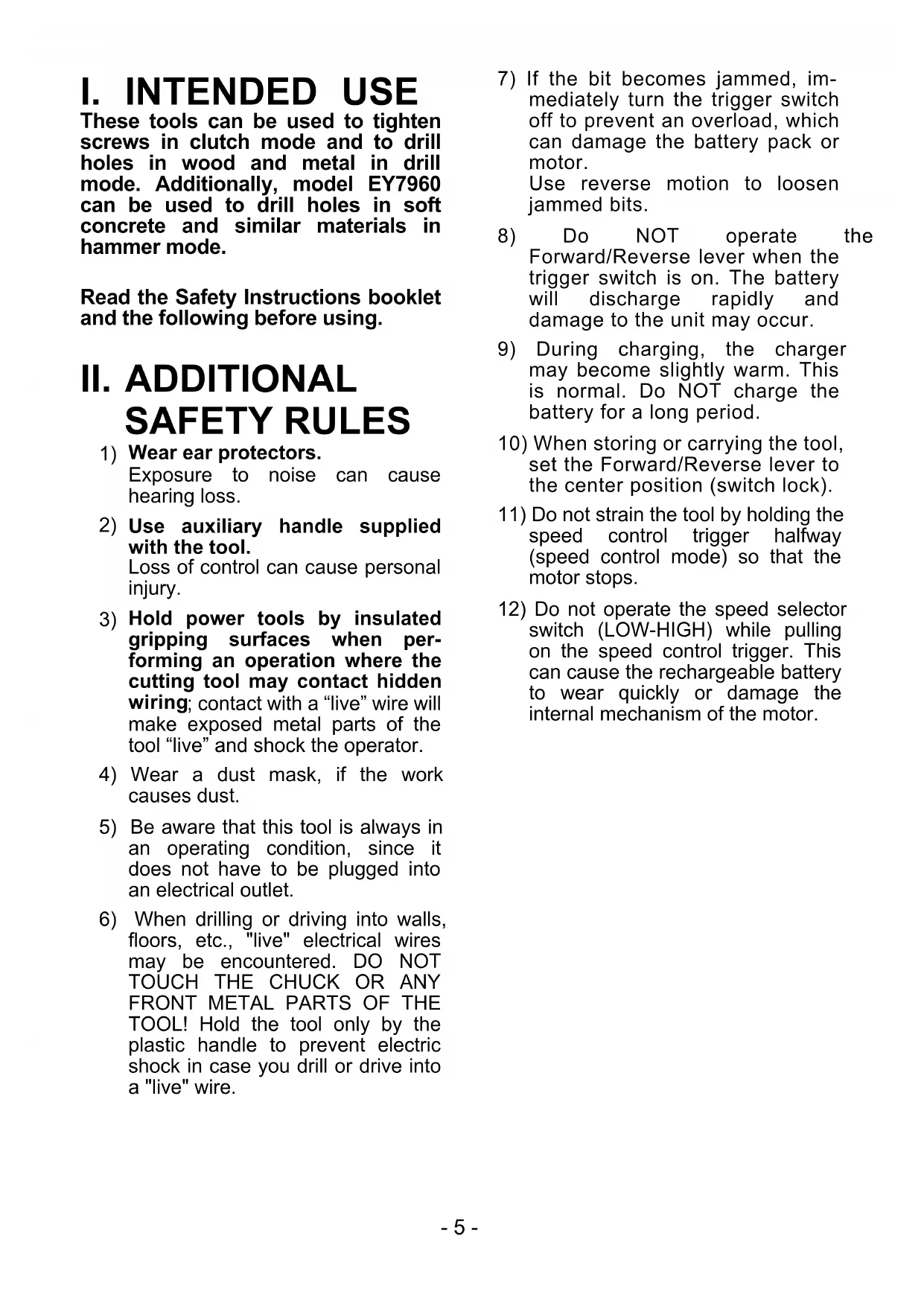

I. INTENDED USE

These tools can be used to tighten screws in clutch mode and to drill holes in wood and metal in drill mode. Additionally, model EY7960 can be used to drill holes in soft concrete and similar materials in hammer mode.

Read the Safety Instructions booklet and the following before using.

II. ADDITIONAL SAFETY RULES

1) Wear ear protectors.
Exposure to noise can cause hearing loss.
2) Use auxiliary handle supplied with the tool.
Loss of control can cause personal injury.
3) Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring; contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.
4) Wear a dust mask, if the work causes dust.
5) Be aware that this tool is always in an operating condition, since it does not have to be plugged into an electrical outlet.
6) When drilling or driving into walls, floors, etc., "live" electrical wires may be encountered. DO NOT TOUCH THE CHUCK OR ANY FRONT METAL PARTS OF THE TOOL! Hold the tool only by the plastic handle to prevent electric shock in case you drill or drive into a "live" wire.

7) If the bit becomes jammed, immediately turn the trigger switch off to prevent an overload, which can damage the battery pack or motor.
Use reverse motion to loosen jammed bits.

8) Do NOT operate the

Forward/Reverse lever when the trigger switch is on. The battery will discharge rapidly and damage to the unit may occur.

9) During charging, the charger may become slightly warm. This is normal. Do NOT charge the battery for a long period.

10) When storing or carrying the tool, set the Forward/Reverse lever to the center position (switch lock).

11) Do not strain the tool by holding the speed control trigger halfway (speed control mode) so that the motor stops.

12) Do not operate the speed selector switch (LOW-HIGH) while pulling on the speed control trigger. This can cause the rechargeable battery to wear quickly or damage the internal mechanism of the motor.

Symbol	Meaning
V	Volts
---	Direct current
n_0	No load speed
...min-1	Revolutions orreciprocations per minutes
Ah	Electrical capacity ofbattery pack
∪	Forward rotation
∪	Reverse rotation
↑	Rotation with hammering
	Rotation only
	Read the operatinginstructions before use.
For indoor use only.

WARNING:

• Do not use other than the Panasonic battery packs that are designed for use with this rechargeable tool.
• Do not dispose of the battery pack in a fire, or expose it to excessive heat.
• Do not drive the likes of nails into the battery pack, subject it to shocks, dismantle it, or attempt to modify it.
• Do not allow metal objects to touch the battery pack terminals.
• Do not carry or store the battery pack in the same container as nails or similar metal objects.
• Do not charge the battery pack in a high-temperature location, such as next to a fire or in direct sunlight. Otherwise, the battery may overheat, catch fire, or explode.
• Never use other than the dedicated charger to charge the battery pack. Otherwise, the battery may leak, overheat, or explode.
  • After removing the battery pack from the tool or the charger, always reattach the pack cover. Otherwise, the battery contacts could be shorted, leading to a risk of fire.

III.ASEMBLY Attaching or Removing Bit

NOTE:

When attaching or removing a bit, disconnect battery pack from tool or place the switch in the center position (switch lock).

This tool is equipped with a keyless drill chuck.

1. Attachment

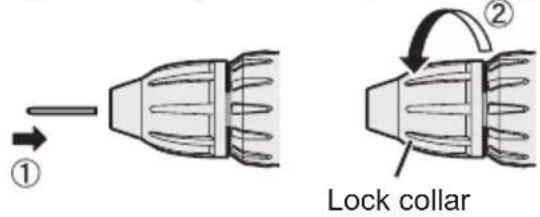

Insert the bit and turn the lock collar clockwise (looking from the front) to tighten firmly until it stops clicking.

2. Removal

Turn the lock collar counterclockwise (looking from the front), then remove the bit.

NOTE:

If excessive play occurs in the chuck, secure the drill in place and ① open the chuck jaws by turning the lock collar and ② tighten the screw (left-handed screw) with a screwdriver by turning it counterclockwise (viewed from the front).

Attaching or Removing Battery Pack

1. To connect the battery pack:

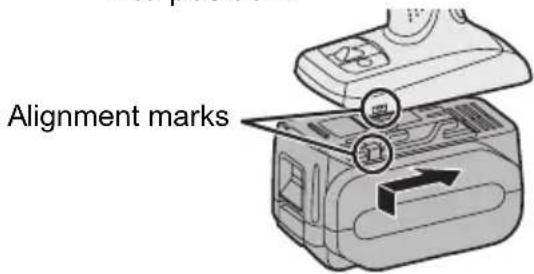

Line up the alignment marks and attach the battery pack.

- Slide the battery pack until it locks into position.

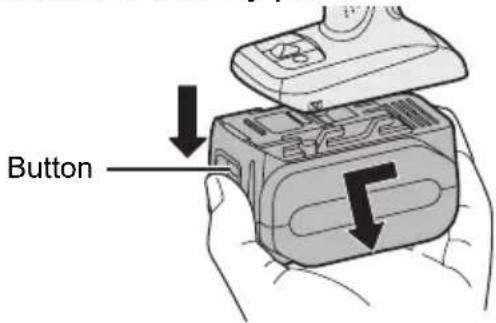

2. To remove the battery pack:

Push on the button from the front to release the battery pack.

Support handle

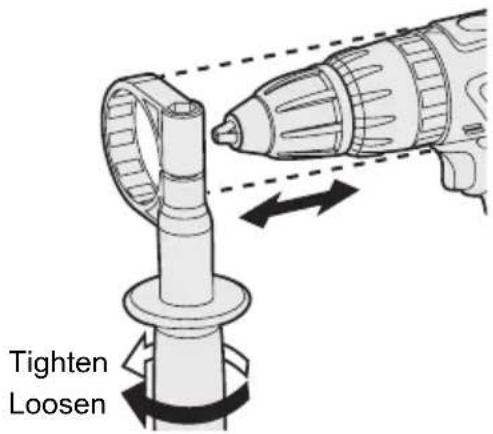

Place the support handle at your favorite position and tighten the handle securely.

Remove the handle when placing the tool in the storage case.

IV. OPERATION

[Main Body]

Switch Operation

1. The speed increases with the amount of depression of the trigger. When beginning work, depress the trigger slightly to start the rotation slowly.
2. A feedback electronic controller is used to give a strong torque even in low speed.
3. The brake operates when the trigger is released and the motor stops immediately.

NOTE:

When the brake operates, a braking sound may be heard. This is normal.

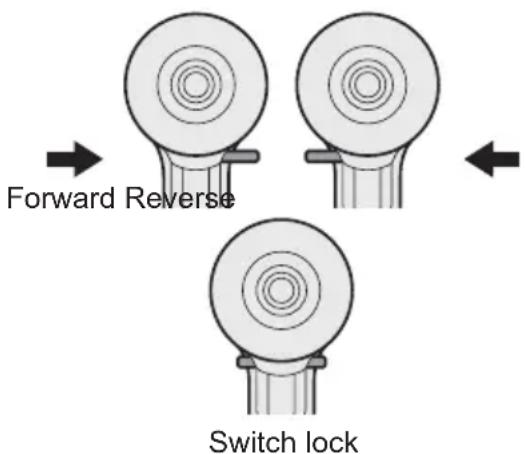

Switch and Forward/Reverse Lever Operation

CAUTION:

To prevent damage, do not operate Forward/Reverse lever until the bit comes to a complete stop.

Forward Rotation Switch Operation

1. Push the lever for forward rotation.
2. Depress the trigger switch slightly to start the tool slowly.
3. The speed increases with the amount of depression of the trigger for efficient tightening of screws and drilling. The brake operates and the chuck stops immediately when the trigger is released.
4. After use, set the lever to its center position (switch lock).

Reverse Rotation Switch Operation

1. Push the lever for reverse rotation. Check the direction of rotation before use.
2. Depress the trigger switch slightly to start the tool slowly.
3. After use, set the lever to its center position (switch lock).

Clutch Torque Setting

Adjust the torque to one of the 18 clutch settings or "2" position (EY7460).

Adjust the torque to one of the 18 clutch settings or "½", "ₜ" position (EY7960).

NOTE:

Always make sure to stop operation of the tool and disengage it from the work, when you select Hammering mode from Drilling mode or when you shift to Drilling mode from Hammering mode by rotating clutch handle.

CAUTION:

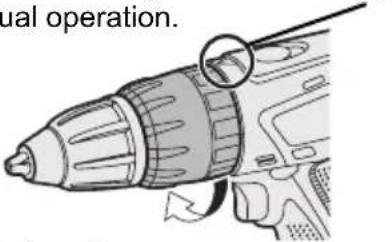

Set the clutch setting at this mark (◀) before actual operation.

Speed Selection

Choose a low or high speed to suit the use.

The more the variable speed control trigger is pulled, the higher the speed becomes.

CAUTION:

• Check the speed selector switch before use.
• Use at low speed when high torque is needed during operation. (Using at high speed when high torque is required may cause a motor breakdown.)
• Do not operate the speed selector switch (LOW-HIGH) while pulling on the speed control trigger. This can cause the rechargeable battery to wear quickly or damage the internal mechanism of the motor.
  * See specifications for "MAXIMUM RECOMMENDED CAPACITIES".

CAUTION:

• To prevent excessive temperature increase of the tool surface, do not operate the tool continuously using two or more battery packs. The tool needs cool-off time before switching to another pack.
• Do not close up vent holes on the sides of the body during operation. Otherwise, the machine function is adversely affected to cause a failure.
• Do NOT strain the tool (motor). This may cause damage to the unit.
• Use the tool in such a way as to prevent the air from the body vent holes from blowing directly onto your skin. Otherwise, you may get burned.

Bit-locking Function

1. With the trigger switch not engaged and a screwdriver bit locked in place, the tool can be used as a manual screwdriver (up to 40 N·m, 408 kgf·cm, 353 in-lbs).

There will be a little play in the chuck, but this is not a malfunction.

1. This feature is handy for tightening screws that require more torque than the maximum torque of the driver (position 2 on the clutch), for confirming the tightness of a screw or to loosen an extremely tight screw.

Illustration of a hand using a power drill on a handheld device (no text or symbols visible)

Control Panel

(1) LED light

Illustration of a hand using a power tool to lift a light bulb (no text or symbols present)

Before the use of LED light, always pull the power switch once.

Press the LED light button.

The light illuminates with very low current, and it does not adversely affect the performance of the tool during use or its battery capacity.

CAUTION:

• The built-in LED light is designed to illuminate the small work area temporarily.
• Do not use it as a substitute for a regular flashlight, since it does not have enough brightness.
  • LED light turns off when the tool has not been used for 5 minutes.

Caution: DO NOT STARE INTO BEAM.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

(2) Overheat warning lamp

Off (normal operation)

Illuminated: Overheat (motor)

Flashing: Overheat (battery)

Indicates operation has been halted due to motor or battery overheating.

To protect the motor or battery, be sure to note the following when carrying out this operation.

• If the motor or battery becomes hot, the protection function will be activated and the motor or battery will stop operating. The overheat warning lamp on the control panel illuminates or flashes when this feature is active.
• If the overheating protection feature activates, allow the tool to cool thoroughly (at least 30 minutes). The tool is ready for use when the overheat warning lamp goes out.
• Avoid using the tool in a way that causes the overheating protection feature to activate repeatedly.
• If the tool is operated continuously under high-load conditions or if it is used in hot-temperature conditions (such as during summer), the overheating protection feature may activate frequently.
• If the tool is used in cold-temperature conditions (such as during winter) or if it is frequently stopped during use, the overheating protection feature may not activate.

(3) Battery low warning lamp

Off (normal operation)

Flashing (No charge) Battery protection feature active

Excessive (complete) discharging of lithium ion batteries shortens their service life dramatically. The driver includes a battery protection feature designed to prevent excessive discharging of the battery pack.

• The battery protection feature activates immediately before the battery loses its charge, causing the battery low warning lamp to flash.
• If you notice the battery low warning lamp flashing, charge the battery pack immediately.

[Battery Pack]

For Appropriate Use of Battery pack

Li-ion Battery pack (EY9L60)

- For optimum battery life, store the Li-ion battery pack following use without charging it.

- When charging the battery pack, confirm that the terminals on the battery charger are free of foreign substances such as dust and water etc. Clean the terminals before charging the battery pack if any foreign substances are found on the terminals.

The life of the battery pack terminals may be affected by foreign substances such as dust and water etc. during operation.

- When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

Shorting the battery terminals together may cause sparks, burns or a fire.

• When operating the battery pack, make sure the work place is well ventilated.
• When the battery pack is removed from the main body of the tool, replace the battery pack cover immediately in order to prevent dust or dirt from contaminating the battery terminals and causing a short circuit.

Illustration of a mechanical device with no visible text or symbols

Battery Pack Life

The rechargeable batteries have a limited life. If the operation time becomes extremely short after recharging, replace the battery pack with a new one.

Battery Recycling

ATTENTION:

For environmental protection and recycling of materials, be sure that it is disposed of at an officially assigned location, if there is one in your country.

[Battery Charger]

Charging

Cautions for the Li-ion Battery Pack

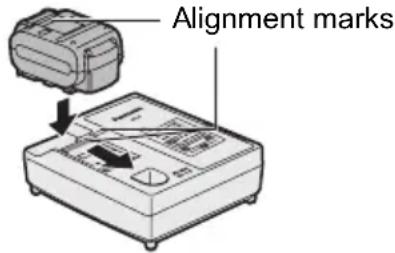

- If the temperature of the battery pack falls approximately below -10^ (14°F), charging will automatically stop to prevent degradation of the battery.

Common Cautions for the Li-ion/Ni-MH/Ni-Cd Battery Pack

• The ambient temperature range is between 0^ (32°F) and 40^ (104°F).
  If the battery pack is used when the battery temperature is below 0^ C ( 32^ F), the tool may fail to function properly.
• When charging a cool battery pack (below 0°C (32°F)) in a warm place, leave the battery pack at the place and wait for more than one hour to warm up the battery to the level of the ambient temperature.
• Cool down the charger when charging more than two battery packs consecutively.
• Do not insert your fingers into contact hole, when holding charger or any other occasions.

CAUTION:

To prevent the risk of fire or damage to the battery charger.

• Do not use power source from an engine generator.
• Do not cover vent holes on the charger and the battery pack.
• Unplug the charger when not in use.

Li-ion Battery Pack

NOTE:

Your battery pack is not fully charged at the time of purchase. Be sure to charge the battery before use.

Battery charger (EY0L80)

1. Plug the charger into the AC outlet.

NOTE:

Sparks may be produced when the plug is inserted into the AC power supply, but this is not a problem in terms of safety.

2. Insert the battery pack firmly into the charger.

1. Line up the alignment marks and place the battery onto the dock on the charger.
2. Slide forward in the direction of the arrow.

3. During charging, the charging lamp will be lit.

When charging is completed, an internal electronic switch will automatically be triggered to prevent overcharging.

- Charging will not start if the battery pack is warm (for example, immediately after heavy-duty operation). The orange standby lamp will be flashing until the battery cools down.

Charging will then begin automatically.

4. The charge lamp (green) will flash slowly once the battery is approximately 80% charged.

5. When charging is completed, the charging lamp will start flashing quickly in green color.

1. If the temperature of the battery pack is 0^ C or less, charging takes longer to fully charge the battery pack than the standard charging time. Even when the battery is fully charged, it will have approximately 50% of the power of a fully charged battery at normal operating temperature.
2. If the power lamp does not light immediately after the charger is plugged in, or if after the standard charging time the charging lamp does not flash quickly in green, consult an authorized service center.
3. If a fully charged battery pack is inserted into the charger again, the charging lamp lights up. After several minutes, the charging lamp may flash quickly to indicate the charging is completed.
4. Remove the battery pack while the battery pack release button is held up.

Battery pack release button

Diagram of a device with a button and pointer, no visible text or symbols

Ni-MH/Ni-Cd Battery Pack

NOTE:

When you charge the battery pack for the first time, or after prolonged storage, charge it for about 24 hours to bring the battery up to full capacity.

Battery charger (EY0L80)

1. Plug the charger into the AC outlet.

NOTE:

Sparks may be produced when the plug is inserted into the AC power supply, but this is not a problem in terms of safety.

1. Insert the battery pack firmly into the charger.

Illustration of a mechanical device with a button and arrow, no visible text or symbols

1. During charging, the charging lamp will be lit.

When charging is completed, an internal electronic switch will automatically be triggered to prevent overcharging.

- Charging will not start if the battery pack is warm (for example, immediately after heavy-duty operation).

The orange standby lamp will be flashing until the battery cools down.

Charging will then begin automatically.

1. When charging is completed, the charging lamp will start flashing quickly in green color.

2. If the charging lamp does not light immediately after the charger is plugged in, or if after the standard charging time the charging lamp does not flash quickly in green, consult an authorized service center.

3. If a fully charged battery pack is inserted into the charger again, the charging lamp lights up. After several minutes, the charging lamp may flash quickly to indicate the charging is completed.

LAMP INDICATIONS

Green Lit

Charger is plugged into the AC outlet.

Ready to charge.

Green Flashing Quickly

Charging is completed. (Full charge.)

Green Flashing

Battery is approximately 80% charged. (Usable charge.

Li-ion only.)

Green Lit

Now charging.

Orange Lit

Battery pack is cool.

The battery pack is being charged slowly to reduce the load on the battery. (Li-ion only.)

Orange Flashing

Battery pack is warm. Charging will begin when temperature of battery pack drops.

If the temperature of the battery pack is -10^ or less, the charging status lamp (orange) will also start flashing.

Charging will begin when the temperature of the battery pack goes up (Li-ion only).

Charging Status Lamp

Left: green Right: orange will be displayed.

Both Orange and Green Flashing Quickly

Charging is not possible. Clogged with dust or malfunction of the battery pack.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

V. MAINTENANCE

Use only a dry, soft cloth for wiping the unit. Do not use a damp cloth, thinner, benzine, or other volatile solvents for cleaning.

VI. ACCESSORIES

Use only bits suitable for size of drill's chuck.

VII.APPENDIX

MAXIMUM RECOMMENDED CAPACITIES

Model		EY7460	EY7960
Screw driving	Machine screw M8
	Wood screw ø 10 mm (3/8")
	Self-drilling screw ø 6 mm (15/64")
Drilling	For Wood ø 38 mm (1-1/2")
	For Metal ø 13 mm (1/2")
	For Masonry --- 13 mm (1/2")

VIII. SPECIFICATIONS MAIN UNIT

Model		EY7460	EY7960
Motor voltage 21.6 V DC
No load speed	Low 100 - 400 min	-1 (rpm)
	High 350 - 1500 min	-1 (rpm)
Blows Rate Per Minute	Low --- 1800 - 7200 min	-1 (bpm)
	High ---	6300 - 27000 min	-1 (bpm)
Chuck capacity ø 1.5 mm - ø 13 mm (1/16" - 1/2")
Clutch torque		Approx. 1.0 N·m (10 kgf-cm, 8.8 in-lbs) – 6.9 N·m (70 kgf-cm, 61 in-lbs)
Overall length		232 mm (9-1/8")	245 mm (9-5/8")
Weight (with battery pack: EY9L60)		2.45 kg (5.39 lbs)	2.55 kg (5.61 lbs)

BATTERY PACK

Model	EY9L60
Storage battery	Li-ion Battery
Battery voltage	21.6 V DC (3.6 V x 6 cells)
Capacity	3 Ah

BATTERY CHARGER

Model	EY0L80
Rating	See the rating plate on the bottom of the charger.
Weight	0.95 kg (2.1 lbs)

[Li-ion battery pack]

Charging time	3 Ah	14.4 V 21.6 V	28.8 V
		EY9L40 EY9L60 Usable: 35 min.Full: 50 min.	EY9L80 Usable: 45 min.Full: 60 min.	Usable: 55 min.Full: 70 min.

[Ni-Cd/Ni-MH battery pack]

Charging time		7.2 V 9.6 V 12 V 15		6 V 18 V 24 V
	1.2 Ah	EY9065 EY9066	EY9080 EY9086	EY9001 EY9006
		20 min.
	1.7 Ah		EY9180 EY9182	EY9101 EY9103
			25 min.
	2 Ah	EY9168 EY9188		EY9106 EY9107 EY9108	EY9136		EY9116 EY9117
		30 min. 60 min.
	3 Ah			EY9200 EY9230 EY9210 45 min.		10	90 min.
	3.5 Ah			EY9201 EY9231 EY9251 55 min. 65 min.		51

NOTE: This chart may include models that are not available in your area. Please refer to the latest general catalogue.
NOTE: For the dealer name and address, please see the included warranty card.

ONLY FOR U. K.

IX. ELECTRICAL PLUG INFORMATIO

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amp and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 🎨 or the BSI mark 🌿 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol ± .

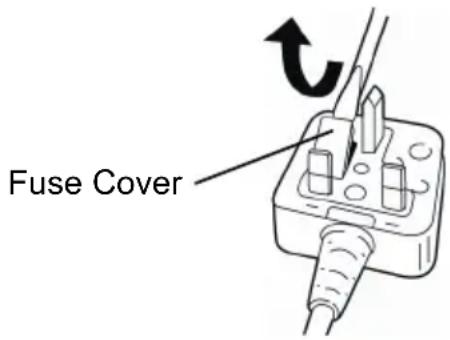

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse and fuse cover if it is removable.

HINWEIS:

Illustration of a drill bit with a circular arrow indicating motion (no text or symbols)

Wahl der Drehzahl

Illustration of a hand using a power drill to lift a tool (no text or symbols visible)

Bedienfeld

(1) LED-Leuchte

Illustration of a hand using a drill pen and a power tool with a circular indicator light (no text or symbols)

Illustration of a handheld electronic device (no text or symbols visible)

Illustration of a device with a sensor or probe inserted, showing no text or symbols on the device itself.

Ni-MH/Ni-Cd-Akku

HINWEIS:

Illustration of a mechanical device with a button and arrow indicating direction (no text or symbols)

REMARQUE:

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

Illustration of a device with an open lid and internal components, no text or symbols present

Illustration of a drill bit with a magnified inset showing the drill bit (no text or symbols present)

Illustration of a hand using a drill bit on a base, no text or symbols present

Panneau de commande

(1) Lumière DEL

Illustration of a hand holding a handheld electric drill with a circular button nearby (no text or symbols)

Illustration of a mechanical device with no visible text or symbols

Illustration of a mechanical device with a cylindrical component and a downward arrow indicating a force or movement (no text or symbols present)

NOTA:

Illustration of a device with an open lid and internal components, no visible text or symbols

Illustration of a hand using a handheld electric drill to lift a tool (no text or symbols visible)

Illustration of a hand holding a handheld electric drill with a circular button nearby (no text or symbols)

Illustration of a mechanical device with no visible text or symbols

Illustration of a mechanical device with a knob and control panel (no text or symbols)

OPMERKING:

Simple line drawing of a hand holding a tool with an arrow indicating motion (no text or symbols)

III. MONTAGEIII. MONTAGE

Illustration of a drill bit with a magnified inset showing the drill bit (no text or symbols present)

Illustration of a hand using a handheld electric drill bit to lift a tool (no text or symbols visible)

Bedieningspaneel

(1) LED-lampje

Illustration of a hand using a handheld electric drill to lift a circular component (no text or symbols)

Illustration of a mechanical device with no visible text or symbols

Illustration of a mechanical device with a button and arrow, no visible text or symbols

NOTA:

Simple line drawing of a hand holding a tool with an arrow indicating motion (no text or symbols)

III. MONTAJEIII. MONTAJE

Illustration of a device with an open lid and internal components (no text or symbols)

Technical illustration of a drill bit with a magnified inset showing the drill bit (no text or symbols present)

Illustration of a hand using a handheld electric drill bit to lift a cylindrical tool (no text or symbols visible)

Panel de controle

(1) Luz LED

Illustration of a hand holding a handheld electric drill with a circular button nearby (no text or symbols)

Illustration of a mechanical device with no visible text or symbols

Illustration of a mechanical device with a button and arrow, no visible text or symbols

BEMÆRK:

III. MONTERING III. MONTERING

Illustration of a hand using a handheld electric drill to lift a tool (no text or symbols visible)

Kontrolpanel

(1) LED-lys

Illustration of a hand holding a handheld electric drill with a circular button nearby (no text or symbols)

Lyser: Overophedning (motor)

Blinker: Overophedning (batteri)

Illustration of a mechanical device with no visible text or symbols

Batteripakningens levetid

Illustration of a mechanical device with a button and arrow, no visible text or symbols

1. Urtagning av bits

OBSERVERA:

III. MONTERINGIII.

Illustration of a drill bit with a circular head and arrow indicating motion (no text or symbols)

Varvtalsomkoppling

Illustration of a hand using a handheld electric drill bit to lift a tool (no text or symbols visible)

Kontrollpanel

(1) LED-ljus

Illustration of a hand holding a handheld electric drill with a circular button nearby (no text or symbols)

Illustration of a mechanical device with no visible text or symbols

Illustration of a mechanical device with a knob and handle, no visible text or symbols

MERK:

Illustration of a device with an open lid and internal components, no visible text or symbols

Illustration of a hand using a power drill on a base (no text or symbols)

Kontrollpanel

(1) LED-lys

Illustration of a hand using a handheld electric drill to lift a battery, with a circular button indicating the power input (no text or symbols present)

(2) Varsellampe for overoppheting

Av (normalt arbeid)

Lyser: Overopphe-ting (motor)

Blinker: Overopphe-ting (batteri)

Illustration of a mechanical device with no visible text or symbols

Illustration of a mechanical device with a button and arrow, no visible text or symbols

1. Under lading lyser ladelampen hele tiden.

V. VEDLIKEHOLDV. VEDLIKEHOLD

HUOMAUTUS:

Illustration of a hand using a handheld electric drill pen (no text or symbols visible)

Säätöpaneeli

(1) LED-valo

Illustration of a hand holding a handheld electric drill with a circular button labeled 'SUN' (no text or symbols on the drill itself)

Illustration of a mechanical device with no visible text or symbols

Akun kestoikä

Illustration of a mechanical device with a cylindrical component and a downward arrow indicating force or movement (no text or symbols)

VIII. TEKNISET TIEDOTVIII. TEKNISET TIEDOT

PÄÄLAITE

ПРИМЕЧАНИЕ:

Illustration of a hand using a handheld electric drill pen (no text or symbols visible)

Панель управления

Illustration of a hand using a handheld electric drill on a battery, with a circular button nearby (no text or symbols)

Illustration of a mechanical device with no visible text or symbols

Illustration of a device with a button and arrow, no visible text or symbols

ПРИМИТКА:

Two-step diagram showing a hairdryer being inserted into a tool, labeled ① and ② (no text or symbols present)

Diagram of a device with labeled parts, showing top and bottom views of a device casing (no text or symbols present)

Technical line drawing of a drill bit with a magnified inset showing the tip (no text or symbols)

Вибір швидкості

Illustration of a hand using a handheld electric drill pen (no text or symbols visible)

Панель управління

Illustration of a hand using a handheld electric drill to lift a battery, with a circular button indicating the power input (no text or symbols present)

Illustration of a mechanical device with no visible text or symbols

Illustration of a mechanical device with a cylindrical component and a directional arrow (no text or symbols)

EY971074601 H2008 Printed in China
