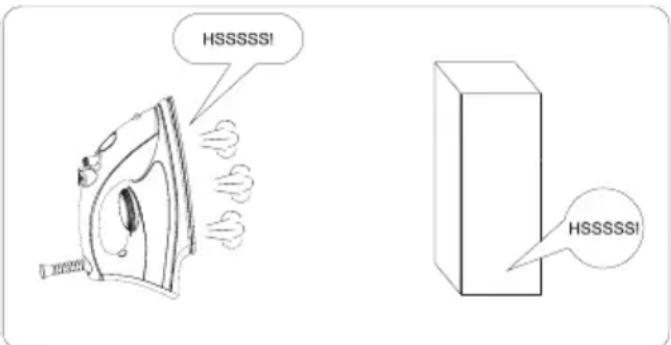

HSSSSSI HSSSSSI

BRRRRI BRRRRI!

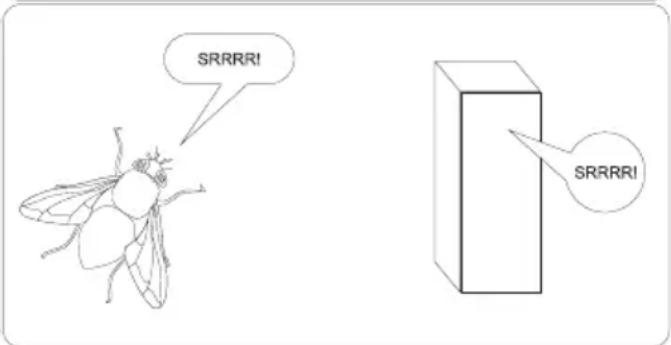

SRRRI SRRRI

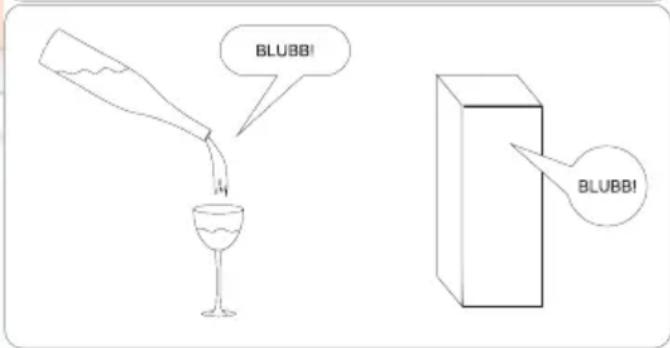

BLUBBI BLUBBI

CRACK! CRACK!

GRATULUJEMY WYBORU SPRZĘTU MARKI AMICA

P

SZANOWNI PAŃSTWO!

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines below (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Simple black-and-white line drawing of a tree with cloud-like canopy and wavy base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Simple black-and-white line drawing of a tree with cloud and water lines (no text or symbols)

Simple line drawing of a three chasing recycling symbol (no text or labels)

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines below (no text or symbols)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

THANK YOU FOR PURCHASING AN AMICA APPLIANCE

DEAR CUSTOMER!

Your appliance is exceptionally easy to use and extremely efficient. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions

Figures in this user manual are for illustrative purposes only. Full appliance fittings are listed in a relevant section.

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

Some provisions in this user manual are unified for refrigerating products of different types (for a refrigerator, refrigerator-freezer or freezer)

The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.

Keep this manual for future re- ference, or to pass it over to the next user.

This appliance is not intended for use by persons (including children) with limited physical or mental capabilities and persons who lack experience or familiarity with the appliance.

Do not allow una tte nde d children to use the appliance. Do not allow them to play with the appliance. They must not climb inside the drawers and swing on the doors.

The appliance operates properly at the ambient temperature (see product fiche). Do not use it in the cellar, unheated summer cottage during autumn and winter.

When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit.

When transporting, moving or positioning the fridge-freezer do not tilt it by more than 40^ from the vertical position. Should such a situation occur, the appliance should be switched on after minimum 2 hours from its re-placement in the right position (fig.2).

Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.

The “cracking” sound, which the appliance may emit is caused by the expansion and contraction of parts as a result of temperature variations.

For safety reasons do not repair the appliance yourself. Repairs car-ried out by persons who do not have the required qualifications may result in serious danger for the user of the appliance.

GUIDELINES CONCERNING THE SAFETY OF USE

Air the room in which the appliance is placed for a few minutes (the size of the room for a product containing isobuthane/R600a must be at least 4m ^3 ) to avoid damage to the cooling system.

Do not refreeze partly thawed products.

Do not store beverages in bottles and cans, especially carbonated be- verages, in the freezer chamber. The cans and the bottles may explode.

Do not put frozen products, taken out directly from the freezer (lollies, ice cubes, etc.) into your mouth, their low temperature may cause severe frost-bite.

Make sure you do not damage the cooling system, by puncturing the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant is flammable. If the refrigerant makes contact with the eyes, rinse them with clean water and call for medical assistance immediately.

If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.

This appliance is intended for food storage, do not use it for other purposes.

When performing activities, such as cleaning, maintenance or moving, the appliance must be completely disconnected from power supply (by pulling the plug out from the socket)

This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.

Anti-bacteria System (varies depending on the model. Its presence is indicated by the label inside the appliance chamber) - The Antibacteria System protects foods and products inside the- refrigerator from bacteria and mould which may cause unpleasant smells and shorten storage time. The Antibacteria System prolongs the freshness of food. The special material used to construct the fridge liner prevents bacterial, microorganism and mould growth.

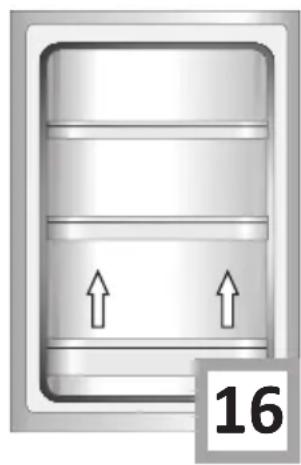

In order to obtain more space in the freezer, you can remove the drawers and place the food directly on the shelves. This has no effect on the product mechanical properties and cooling performance. Declared freezer capacity was calculated with the drawers removed.

Installation before using the appliance for the first time

• Take the product out of the package, re- move the scotch tape protecting the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent.
• Do not throw away the polystyrene elements of the packaging. If it is necessary to transport the fridge-freezer, pack it in the polystyrene elements and film as well as protecting it with scotch tape
• Clean the interior surface of the fridge-freezer and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry.
• Place the fridge-freezer on an even, flat and stable surface, in dry, aired and shaded room, far from the heat sources such as: oven, hob, central heating radiators, central heating pipes, hot water installation, etc.
• On the exterior surface of the product may be a protective foil, this foils should be removed.
• Make sure the appliance is placed in a horizontal position by screwing in the 2 adju-stable front legs (fig. 3)
• To ensure that the door opens freely, the distance between the side of the appliance (on door hinges side) and the wall is shown on figure 5.*
• Ensure adequate ventilation of the room and free air circulation from all sides of the appliance (fig. 6).*
• Two condenser spacers enabling an appropriate air circulation should be installed as shown on the figure (Fig. 7).

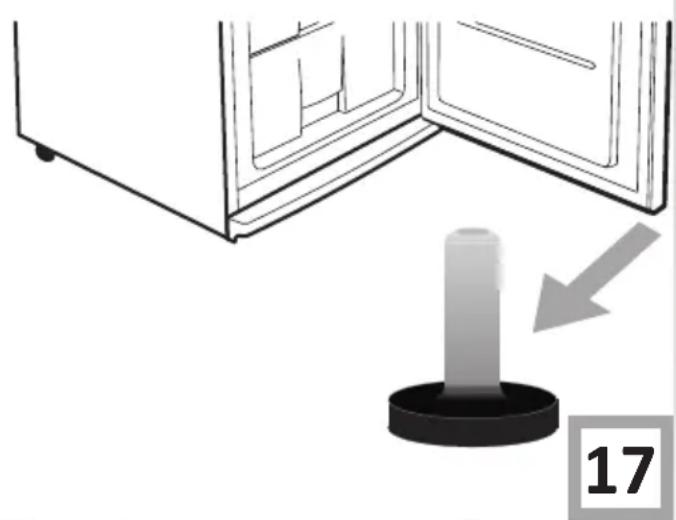

• Appliance door is secured with a spacer insert located in the bottom cover (Fig. 17). It must be removed before use.

Minimum distances from the heat sources

• from the electric gas and other ovens - 30 mm,
• from oil or coal fired ovens - 300 mm,
• from built-in ovens - 50 mm

If there is no possibility of ensuring the above-mentioned distances, provide an appropriate insulation board.

• The rear wall of the refrigerator, in particular, the condenser and other elements of the cooling system must not contact other elements, which may damage them, (e.g. central heating pipes and the water supply pipes).

• It is forbidden to readjust or modify any parts of the unit. It is crucial not to damage the capillary tube visible in the compressor recess. The tube may not be bent, straightened or wound.

• If the capillary tube is damaged by the user the guarantee will be void (fig. 8).

• In some models the handle is put into the appliance, You should screw it with Your own screwdriver,

Mains connection

• Prior to connection, it is recommended to set the temperature control knob to an "OFF" or other position that disconnects the appliance from the power supply (See page with the control description).
• This appliance should be connected to AC 220-240V 50Hz supply socket. The socket must be fitted properly, and must be supplied with an earthing conduit and a 10A fuse.
• It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.
• Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate.
• If an extension lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be flooded by water or waste water.
• See the type plate at the lower part of the internal wall of the appliance for detailed specifications**.

Disconnecting the mains

- Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off (fig. 9).

* Only free-standing appliances

** According to the model

OPERATION AND FUNCTIONS

Switching on the appliance

The factory temperature settings are, respectively, +4°C in the refrigerator compartment (item 13) and -18°C in the freezer compartment (item 8). The set temperature is shown on the refrigerator display for a short period of time, then the temperature will flash alternately with the symbol "H 1" (item 8). In addition, an acoustic signal will sound indicating an elevated temperature in the appliance and a warning symbol will start flashing (item 7). When the correct temperature, allowing for safe food storage is reached, an acoustic signal and the "H 1" symbol turn off automatically. An acoustic signal and the "H 1" symbol may be turned off manually using the freezer temperature control touch sensors (item 10). A flashing warning symbol cannot be turned off manually (item 7).

Note: When the appliance is switched on for the first time, after cleaning or when not in use for a prolonged period of time, refrigerator compartments reach the set temperature after approximately 4-6 hours.

Touch sensor control panel (Fig. 10)

The appliance may be controlled by touch buttons located on the control panel (Fig. 10). Active functions are illuminated with white light. Inactive functions are not illuminated and are grey.

Description of control panel

1. Refrigerator compartment on / off
2. Rapid cooling function
3. Holiday function
4. "Party" function
5. Super Freeze function
6. Freezer compartment on / off
7. High temperature indicator (warning)
8. The freezer compartment temperature indicator
9. Child Lock
10. Set the temperature in the freezer compartment
11. Set the temperature in the refrigerator compartment
12. Open door alert
13. The refrigerator compartment temperature indicator

Appliance functions

Refrigerator compartment on / off

Touch ① to turn off the refrigerator compartment independently. After touching the symbol, — appears on the refrigerator temperature display.

Rapid cooling function

Touch *to activate this function. This function is recommended when a large amount of fresh food is to be cooled to 5°C. The function turns off automatically after reaching the set temperature. Touch *to turn off the function early. This will be indicated when the function is not illuminated on the display.

Holiday function

Touch 🔒to activate this function. This function is recommended when the appliance will not be used for a long period of time (during holidays for example). With this function, the appliance will operate in economical mode. When this function is deactivated, temperature in both compartments will return to previously set values.

Note: Before holiday function activation, remove all perishable products from the refrigerator compartment and leave the door closed. Do not remove the products from the freezer compartment. This function only works for the refrigerator compartment and has no impact on the frozen products. Holiday function may not be activated when the rapid cooling function is on. Deactivate the rapid cooling function first.

"Party" function

Touch to activate this function. With this function you can quickly and safely cool drinks in the freezer compartment. Recommended maximum time is 30 minutes (it is not recommended to change the default settings when using this function for the first time). The duration of this function may be set between 10 and 60 minutes. The time is adjusted by touch the ▼ and ▲ symbols for the freezer compartment (when the function is active). When the function is activated, countdown will start on the display indicating the set temperature in the freezer compartment. After the set time has elapsed, an acoustic signal will sound. Touch the "Party" symbol twice to turn off the signal.

Note: Do not place cans and bottles containing drinks in the freezer. These may burst in very low temperatures.

Super Freeze function

Touch to activate this function. Use this function 24h before loading the freezer with large amount of fresh food. The recommended place to put fresh products is compartment marked with the symbol. The super freeze function is automatically disabled 26h after its activation or when the temperature in the freezer compartment drops below -18°C.

Freezer compartment on / off

Touch ① to turn off the freezer compartment independently. After touching the symbol, – appears on the freezer temperature display.

High temperature indicator (warning)

The warning will be activated (the display will show the △ symbol and an acoustic signal will sound) if:
- temperature in the freezer compartment raises above -13^ . The warning symbol stops flashing when the temperature reaches -18^ .
- temperature in the freezer compartment raises above -8°C. The "H 1" symbol will flash on the display in place of the temperature indicator for the freezer compartment. The warning symbol will turn off when the temperature reaches -18°C.
- Temperature in the refrigerator drops below -1°C. The "L" symbol will flash on the display in place of

OPERATION AND FUNCTIONS

the temperature indicator for the refrigerator compartment. The warning symbol will turn off when the temperature reaches +1°C.

Open door alert

When the refrigerator door is open, the symbol lights up and the refrigerator compartment temperature display shows "d". If the door remains open for longer than 3 minutes an acoustic warning signal sounds (in selected models). The symbol will turn off when the refrigerator door is closed. This indicator does not apply to the freezer compartment door.

Child Lock

Touch the 1 symbols for both refrigerator and freezer compartments simultaneously to activate the Child Lock. Child Lock activation is confirmed with symbol illuminated on the display. When the Child Lock is active, all touch control sensors are inactive. Only the combination of touch sensors for activating / deactivating the Child Lock is active. Touch the 2 sensors for both compartments simultaneously to deactivate the function. In addition, it is recommended to use this function when cleaning the external surface of the door.

Set the temperature in the refrigerator compartment

Touch the ▼ and ▲ sensors to adjust the temperature in the range of 2°C to 9°C. Touch the ▼ symbol to decrease the temperature in the refrigerator, or touch the ▲ symbol to increase the temperature in the refrigerator.

Set the temperature in the freezer compartment

Touch the ▼ and ▲ sensors to adjust the temperature in the range of -16°C to -24°C. Touch the ▼ symbol to decrease the temperature in the freezer, or touch the ▲ symbol to increase the temperature in the freezer.

Refrigerator compartment display and freezer compartment display.

The displays indicate the set temperature or a symbol / value for the individual fridge-freezer functions. The displays do not show the actual temperature inside the compartments but only temperature set by the user.

Error Codes

The fridge-freezer equipped with a display on the door may indicate a fault. Except for the previously mentioned symbols specified in the appliance control description, one of the following symbols may appear on the display: EE, ER, F, FF. If one of these symbols is displayed, contact manufacturer's authorized service centre. Contacting the service is also recommended when the "H1" or "L" symbols are flashing continuously for 24 hours (when symbols cannot be turned off manually by touching the 10 or 11 touch sensors).

OPERATION AND FUNCTIONS

Storage of food in the fridge-freezer

Observe the following recommendations to ensure the food remains fresh.

• The products should be placed on plates, in containers or packed in food wrap. Di-tribute them evenly I over the shelves.
• If the food contacts the rear wall, it may cause frosting or wetting of the products.
• Do not put dishes with hot food t into the fridge
• Products which absorb flavours easily such as butter, milk, white cheese and products with intense flavour, such as fish, smoked meat, hard cheese must be placed on shelves, packed in food wrap or in tightly sealed containers.
• The storage of vegetables containing significant quantities of water will cause the deposition of condensation on the vegetable containers, it does not impact on the proper functioning of the fridge.
• Before putting the vegetables into the fridge, dry them well.
• Excessive moisture shortens the shelf life of vegetables, especially the leafed vegeta-bles.
• Do not wash the vegetables before storing in the refrigerator. Washing removes the natural protection, therefore it is better to wash the vegetables directly before con-sumption.

• It is recommended to place the products in freezer drawers 1, 2, 3* up to natural loading capacity (Fig. 11a / 11b).**

• Packed products

• Shelf
• Natural loading capacity
• (^/^**)
• Stacking of products on the freezer shelves is acceptable.*
• It is acceptable to place products beyond the natural loading capacity by 20-30 mm.**
• In order to increase the loading capacity of the freezer chamber and allow the stacking of products on the freezer evaporator wire shelves up to maximum height it is possible to remove drawers 1 and 2.*

Freezing food\*\*

• Practically all the food products, except for vegetables consumed raw, such as lettuce can be frozen.
• Only food products of the highest quality, divided into small portions for single use, should be frozen.
• Products should be packed in materials that are odourless, resistant to air and moisture penetration, and not susceptible to fat. Plastic bags, polyethylene and aluminium sheets are the best wrapping materials.
• The packaging should be tight and should stick to the frozen products. Do not use glass containers.

• Keep fresh and warm foodstuff at ambient temperature away from the products, which have already been frozen.

• We advise you not to place more of fresh food at a time to the freezer per day (see table witch technical specification).

• In order to maintain optimum quality of the frozen food, reorganise the food that is in the middle of the freezer, so that it does not touch the products that are not yet frozen.
• It is recommended that you move the already frozen products to one side and place the fresh products that are to be frozen on the opposite side, as close to the rear and side walls as possible.
• To freezing products, use space marked (^ / ^**) .
• Bear in mind that the temperature in the freezer is affected by several factors, including the ambient temperature and the quantity of food products in the chamber, the frequency of opening the door, the amount of frost in the freezer, and the thermostat setting.
• If you cannot open the freezer door immediately after closing it, allow 1-2 minutes for the negative pressure to com-pensate, and try again to open the door.

The storage time for frozen products depends on their quality before freezing when fresh, and on the storage temperature. The following storage periods are recommended when the temperature of -18^ or lower is maintained::

Products Months
Beef 6-8
Veal 3-6
Giblets 1-2
Pork 3-6
Poultry 6-8
Eggs 3-6
Fish 3-6
Vegetables 10-12
Fruit 10-12

Do not store frozen food in rapid cooling chamber. Ice cubes can be prepared and stored in this chamber.***

* Applicable to appliances with a freezer compartment at the bottom of the appliance.
** Applicable to appliances with a freezer compartment (*/***)
*** Not applicable to appliances with a freezer compartment marked (*/***)

USING THE REFRIGERATOR EFFICIENTLY

Practical everyday tips

• Do not place fridges or freezers next to radiators, heaters, stoves or in direct sunlight.
• Make sure that air vents are not covered up and clean the dust off them once or twice a year.
• Select the right temperature: 6 to 8°C in your refrigerator and -18°C in your freezer is sufficient.
• When on holiday, turn up the temperature in your fridge.
• Only open your fridge or freezer when necessary. It helps if you know what food each contains and where it is located. Return food to the fridge or freezer as soon as possible after you have used it so that it does not warm up too much.
• Wipe the inside of your fridge regularly with a cloth soaked in a mild detergent. Appliances which are not self-defrosting will require regular defrosting. Do not allow frost layers thicker than 10 mm to form.
• Keep the seal around the door clean, otherwise it will not shut properly. Always replace broken seals.

Understanding the stars

* Temperature is at least -6°C; sufficient to store frozen food for about a week. Drawers or compartments marked with one star used to be a feature of (mostly) cheaper fridges.
** Food can be stored at -12°C or below for 1-2 weeks without losing its taste. Not suitable for freezing food.
*** This rating is mainly used to store foods at -18°C or below. Can also be used to freeze up to 1 kilogram of fresh food.
**** This appliance is suitable for storing foods at -18°C or below and freezing larger quantities of fresh foods.

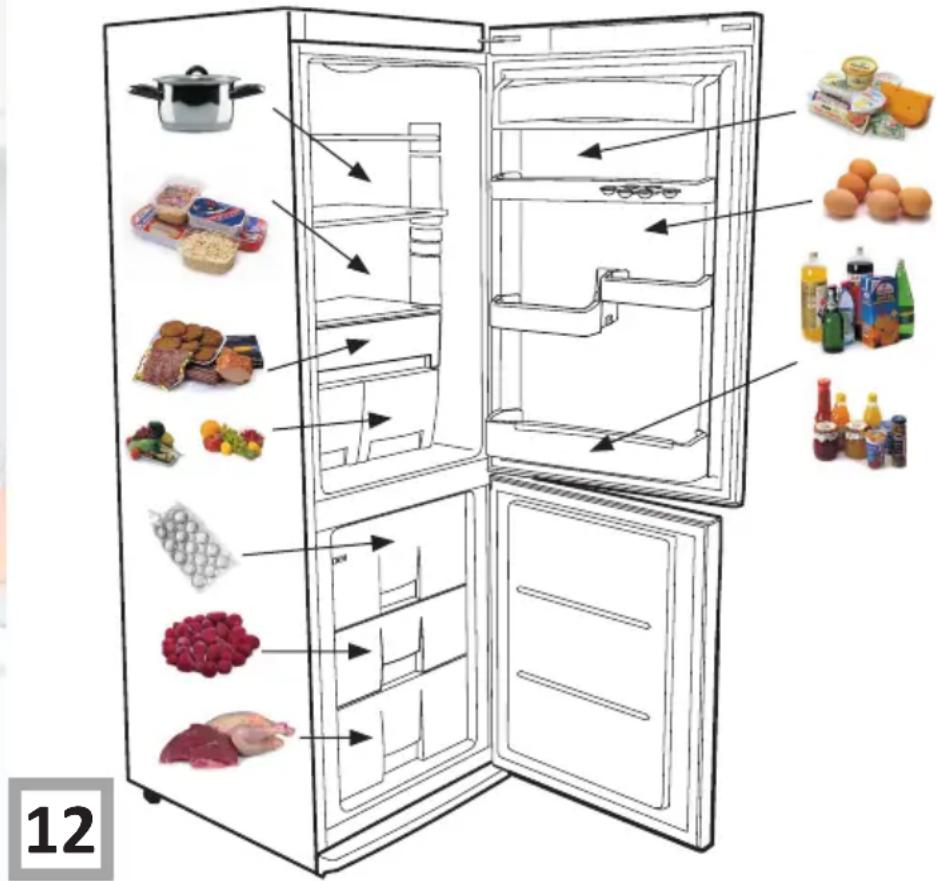

Storage zones in the refrigerator

• Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber.
• The coldest area is directly above the vegetables drawers. Use this area for all delicate and highly perishable food e.g.
• Fish, meat, poultry
• Sausage products, ready meals
• Dishes or baked goods containing eggs or cream
• Fresh dough, cake mixtures
• Pre-packed vegetable and other fresh food with a label stating it should be kept at a temperature of approx 4oC.
• The warmest area is in the top section of the door. Use this for storing butter and cheese.

Food that should not be stored in a refrigerator

• Not all food is suitable for storing in the refrigerator, particularly:
• Fruit and vegetables which are sensitive to cold, such as bananas, avocado, papaya, passion fruit, aubergines, peppers, tomatoes and cucumbers.
• Fruit which is not yet ripe
• Potatoes

Example of storing the food - see figure 12.

DEFROSTING, WASHING AND MAINTENANCE

Never clean the product's casing or plastic parts using solvents or strong, abrasive detergents (e.g. washing powders or creams)! Use mild liquid detergents and soft cloths only. Do not use sponges.

Defrosting the fridge\*\*\*

• Frost settles on the rear wall of the fridge chamber. It is removed automatically. During the defrosting, the condensate, which contains contaminants may clog the opening in the through. Should it occur, carefully unclog the opening with the cleaning plug (fig. 13).
• The appliance operates in cycles: it refrigerates (then the frost settles on the rear wall), and defrosts (water flows down the rear wall)

Disconnect the appliance from the mains before cleaning by removing the p from the mains socket or switching off the fuse. Prevent water from penetrating the control panel or the light.

• Do not use defrosting aerosols. They may cause the formation of an explosive mixture, or contain solvents which may damage the plastic components of the appliance and even be harmful to health.
• Make sure the water used for cleaning does not flow into the evaporation container through the discharge opening.
• The whole appliance, except for the door gasket must be cleaned with a mild cleaning detergent. The door gasket should be cleaned with water and wiped dry.
• Wash all the accessories (vegetable containers, door shelves, glass shelves, etc.).

Defrosting the freezer\*\*

• It is recommended to combine defrosting the appliance with washing it.
• Excessive accumulation of ice on the freezing areas impairs the appliance's freezing capacity and increases the energy consumption.
• Defrost the appliance at least once or twice a year. In case of a higher ice build-up, defrosting must be carried out more frequently.
• If there is food in the freezer, set the knob to the max. position about 4 hours before the planned defrosting. This will ensure the possibility of storing the food at the ambient temperature for a longer time.
• After taking the food out of the freezer, put it in a container, wrap it with several layers of paper, a blanket and store it at a cool place.
• The defrosting operation should last as short as possible. Long storage of food at the ambient temperature shortens their shelf life.

In order to defrost the freezer chamber, you must take the following steps:\*\*

• Switch of the appliance using the control panel and pull the plug out from the socket..

• Open the door and remove the food from the freezer.

• Depending on the model, pull out the drainage tube located in the bottom of the freezer compartment and place a suitable vessel underneath.

• Leave the door open, this will speed up the defrost process. Additionally, a pot with hot water (not boiling) may be placed inside the freezer compartment.
• Wash the interior of the freezer and wipe it dry.
• Switch on the appliance as per the relevant point in the manual.

Automatic fridge defrosting\*\*\*\*

The fridge chamber has been equipped with an automatic defrosting function. However, frost may settle on the rear wall of the fridge chamber. This happens usually, when large quantities of fresh food products are stored in the fridge.

Automatic fridge defrosting\*\*\*\*

The freezer chamber has been equipped with an automatic defrosting function (no-frost). The food is frozen in the cooled circulation air, and the moisture from the freezer chamber is discharged outside. As a result, no ice and frost is produced in the freezer and the products do not freeze on each other.

Washing the fridge and freezer chambers manually\*\*\*\*

It is recommended to wash the fridge and freezer chambers at least once a year. This prevents the formation of bacteria and bad odours. Switch off the appliance, using button (1), remove the food from the chambers and wash them using water with a mild detergent. Then, wipe the chambers dry with a cloth.

Taking out and putting in the shelves

Slide the shelf out, then slide it in as much as possible so that its clamp could fit the guide groove (fig. 15).

Taking out and putting in the door shelf

Lift the door shelf, remove it and put it back from the top into its required position (fig. 16).

You must not put an electric heater, a heating fan or a hair dryer into the freezer by any means.

** Applicable to appliances with a freezer compartment (*/***) Not applicable to appliances with a Frost-free System.
*** Applicable to appliances with a refrigerator compartment Not applicable to appliances with a Frost-free System.
**** Applicable to appliances with a Frost-free System.

TROUBLE-SHOOTING

Problems Possible causes Remedies
The appliance does not work	The electric circuit is disrupted	- check whether the plug is properly inserted into the socket- check whether the power cable of the appliance is not damaged- check whether there is voltage in the socket, by plugging another appliance, e.g. a night lamp- check whether the appliance is switched on by setting the thermostat to a position above 0.
The lighting inside the chamber does not work	The bulb is loose or fused (only appliances with bulb lightning type)	- fit the bulb correctly or replace it (see section above “Replacing the interior light bulb)
Temperature inside the appliance is not low enough or too high	Incorrect setting of the adjustment knob - reset	set the knob to a higher position
	The ambient temperature is higher or lower than the climate range from table with technical specification	- the appliance is adapted to operation in the climate range from table with technical specification.
	The appliance is located in a sunlit place or near heat sources	- move the appliance to another place. Observe the guidelines contained in the manual
	Too much warm food loaded at a time	- wait 72 hours until the food becomes cool (freeses) and the required temperature is reached inside the chamber
	Internal air circulation obstructed	- place the food and containers in such a way that they do not touch the rear wall of the fridge
	The air circulation at the back of the appliance is obstructed	- move the appliance min. 30 mm away from the wall
	The door of the frid- ge/freezer is opened too often and/or remains open for too long	- reduce the frequency of opening the door and/or shorten the time when door remains open
	The door does not close completely	- place the food and containers so that they would not interfere with door closed
	The compressor is switched on too rarely	- check whether the ambient temperature is not lower than climate class
	Door gasket inserted incorrectly - press the	gasket in
The appliance works continuously	Incorrect setting of the adjustment knob - reset	set the knob to a lower position
	See. "Temperature inside the appliance is not low enough for description of other possible causes	See. "Temperature inside the appliance is not low enough for description of other possible remedies
Water collects in the lower part of the appliance	The water discharge opening is clogged (depending on the model)	- clean the discharge opening (see the operating manual - chapter entitled "Defrosting the fridge")
	Internal air circulation obstructed	- place the food and containers in such a way as that they do not touch the rear wall of the fridge
The appliance generates unusual noise	Incorrect levelling of the appliance - level the appliance properly
	The appliance is touching furniture and/or other objects	- place the appliance at a location that ensures proper clearances around it

Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation.

Sounds, which can be easily prevented:

• noise caused by the appliance which is not level - adjust the position with the adjustable turn-in front feet. Alternatively, place pads made of soft material under the rear rollers, especially when the appliance is placed on tiles.
• touching the adjacent piece of furniture - move the refrigerator away.
• creaking of the drawers or shelves - take out and put back the drawer or shelf.
• sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the thermostat, compressor (switching on) and cooling system (thermal expansion and contraction of the radiator caused by flow of the cooling agent).

ENVIRONMENTAL PROTECTION

Ozone layer protection

Simple black-and-white line drawing of a tree with two wavy lines at the base (no text or symbols)

The refrigerants and foaming agents, which are 100% free of FCKW and FKW have been used for manufacturing our product. Therefore we are helping to protect the ozone layer and prevent the increase of greenhouse effects. Also,

the innovative technology and environmentally friendly insulation help in reducing energy consumption.

Recycling of the packaging

Abstract recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Our packaging are made of environmentally friendly materials, which can be reused:

• The external packaging is made of cardboard/foil
• The FCKW free shape of foamed polystyrene (PS)
• Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EQUIPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before its scrapping. Also, remove the appliance lock or render it useless so that the appliance presents no

danger to children while being stored for di-sposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment properly contributes to the avoidance of consequences harmful to the human health and natural environment, resulting from the presence of hazardous substances and improper storage and processing of such equipment.

CLIMATE RANGE

The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

Climate range	Permissible ambient temperature
SN from +10°C to +32°C
N from +16°C to +32°C
ST from +16°C to +38°C
T from +16°C to +43°C

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC,
  • Electromagnetic Compatibility (EMC) Directive 2014/30/EC,
  • ErP Directive 2009/125/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

CHANGING THE DIRECTION OF THE DOOR OPENING (FIG. 20)

IT IS RECOMMENDED that changing the direction of opening the refrigerator door is carried out by a service specialist. However, one should bear in mind that this service is covered by the warranty. When changing the door opening direction alone, it is recommended to do this with help of another person. Required tools: no. 8 and no. 10 wrench and a screwdriver.

When changing the direction of opening the door, do NOT place the appliance in a horizontal position!

Follow the instructions below:

CAUTION! Turn off the refrigerator and freezer compartments — touch 1 and 6 sensors. Once both compartment are off, the symbols will become grey (see Fig. 3). Unplug the appliance — remove the power cord plug from the wall socket.

1. Remove four bolts (13) and remove the door cover (12) from the upper door.
2. Remove the caps (c) located on and inside the door.
3. Remove the clamp (14) and pull the tube (15) from the door including the sleeve (16). Before this, disconnect the connectors (23) of the wire 15 and 24 from the electronic controller.
4. Remove the upper support (6) including a nut and sealing and a spacer located under the support.
5. Remove the refrigerator door (1). Remove the cap (5) at the bottom. To open the door to the left side, screw the cap (5) on the opposite side of the door (included).
6. Remove the middle support (4) including the axle seals and the plastic element.
7. Remove the freezer door (3). Remove the cap (25) at the bottom. To open the door to the left side, screw the cap on the opposite side of the door (included).
8. Remove the lower cover (11) including a small cap (10).
9. Remove the axle (2), including the seals and a fixing element (26) of the lower support (7) and screw to the support 7 on the opposite side of the compartment, symmetrically to their previous position.
10. Remove the nuts (8) from the part separating the freezer compartment from the refrigerator and put them in holes on the opposite side.
11. Remove the caps (9) from the freezer compartment door and put them (push) on the opposite side.
12. Place the freezer compartment door on the support (7) and axle (2).
13. Rotate the support (4) with seals on the axle and plastic spacer by 180 degrees and insert the support axle in the freezer door screw on the opposite side of the axle seal in the upper and lower part of the support.
14. Remove the four bolts (18) and remove the decorative panel (19).
15. Put the tube (15) to the other side of the compartment symmetrically to its previous position. Put the tube in a special cavity on the left. Make sure that the tube does not have any sharp bends.
16. Screw the decorative panel. Before this, put the tube on the left side of the compartment symmetrically to its previous position.
17. Place the refrigerator compartment door on the support axle (4).
18. Put the tube 24 in the refrigerator compartment door on the other side and hang on the clamp (22). Connect the connectors (23) of cords 15 and 24.
19. Rotate the support 6 including the axle seals and the plastic spacer by 180^ . Remove the axle and seals and put on the other side of the support. After placing the support 6 axle in the refrigerator compartment door, fix on the opposite side of the refrigerator, in the lower holes.
20. Screw the cover (12) in the upper part of the refrigerator door. Use c covers to cover the support 6 and the remaining empty space.
21. Place the cap (10) in the lower cover (11) on the opposite side and put the cover in its previous position.

WARRANTY AND AFTER-SALE SERVICES

Warranty

Warranty service as stated on the warranty card

The manufacturer shall not be held liable for any damage caused by improper use of the product.

NOUS VOUS FÉLICITONS D'AVOIR CHOISI UN APPAREIL DE LA MARQUE AMICA

MESDAMES MESSIEURS!

Simple black-and-white line drawing of a tree with cloud-like canopy and wavy base (no text or symbols)

Abstract recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at the base (no text or symbols)

Abstract recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

3 Glass over the FRESH ZONE container

4 FRESH ZONE container

5 Glass shelf over the containers

6 Vegetable container

7 Freezer shelf

8 Top door shelf cover

9 Egg tray

Glass shelf over the containers 1

Vegetable container 2

Glass over the FRESH ZONE con- tainer 1

FRESH ZONE container 1

Large door shelf 1

Medium door shelf 2

Small door shelf 2

Top door shelf cover 1

Bottle rack 1

Egg tray 1

Cleaning plug 1

Freezer shelf 3

ÉQUIPEMENT

1 Oświetlenie

2 Étagère en verre

Fresh Zone container 1

Groot rekje 1

Middelste rekje 2

Klein deurvak 2

Deksel top rekje 1

Flessenrek 1

Eierenhouder 1

Modern kitchen interior with white cabinetry and kitchenware, no visible text or symbols

Modern kitchen interior with a white refrigerator and shelf, no visible text or symbols

Amica Wronki S.A. ul.Mickiewicza 52 64-510 Wronki tel. [phone] fax [phone] www.amica.pl IO-REF-0082/3 (04.2016)

QR code image containing encoded data, no visible human-readable text

Amica Wronki S.A.

ul.Mickiewicza 52

64-510 Wronki

tel. [phone]

fax [phone]

www.amica.pl

IO-REF-0082/3

(04.2016)
