Colour Monitor WV-CK1420 Before attempting to connect or operate this product, please read these instructions carefully. ENGLISH DEUTSCH FRANÇAIS

ESPAÑOLENGLISH VERSION

THIS APPARATUS MUST BE EARTHED.To ensure safe operation the three-pin plug supplied must be insertedonly into a standard three-pin power point which is effectively earthedthrough the normal household wiring. Extension cords used with theequipment must be three-core and be correctly wired to provide con-nection to earth. Wrongly wired extension cords are a major cause offatalities.The fact that the equipment operates satisfactorily does not implythat the power point is earthed and that the installation is completelysafe. For your safety, if in any doubt about the effective earthing ofthe power point, consult a qualified electrician. The lightning flash with arrowhead sym- bol, within an equilateral triangle, is interned to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilat- eral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appli- ance.

• Looping through BNC connectors for video input and out- put.

• Looping through RCA connectors for audio input and out- put.

• Maximum 0.7W for speaker output. PRECAUTIONS

• Do not block the ventilation slots.

• Do place the video monitor at least 5cm (2 inches) apart from the wall.

• Do not expose the monitor to water or moisture.

• Do not operate the monitor if it becomes wet.

• Do take immediate action if ever the monitor does become wet. Turn power off and refer servicing to quali- fied service personnel. Moisture can damage the monitor and also create the danger of electric shock.

• Do not drop metallic parts through slots. This action could permanently damage the monitor. Do turn power off immediately and refer servicing to qualified service personnel.

• Do not attempt to disassemble the monitor. To prevent electric shock, do not remove screws or cover. There are no user serviceable parts inside. Refer servicing to qual- ified service personnel.

• Do not use the monitor beyond its temperature, humidity or power source ratings. a) Ambient temperature must not range beyond –10°C - +50°C (14°F–122°F). b) Avoid using the monitor when humidity is above 90%. c) The input power must be 220 - 240V AC

• Do not stack two or more sets. If more than two monitors are used, place them less than 15cm apart. Otherwise, the monitors may produce noise on the display screen. ENGLISH- 2 -

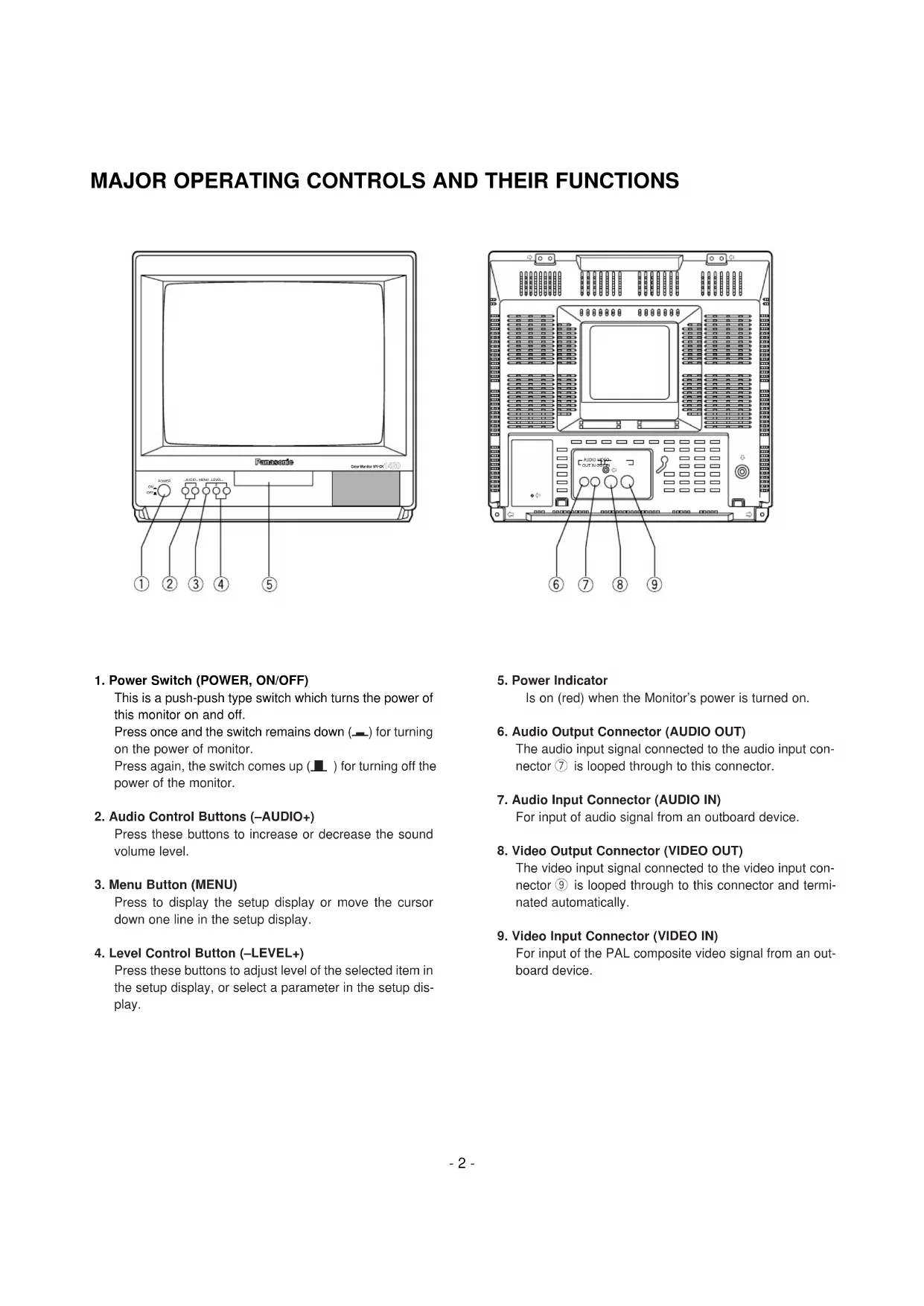

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

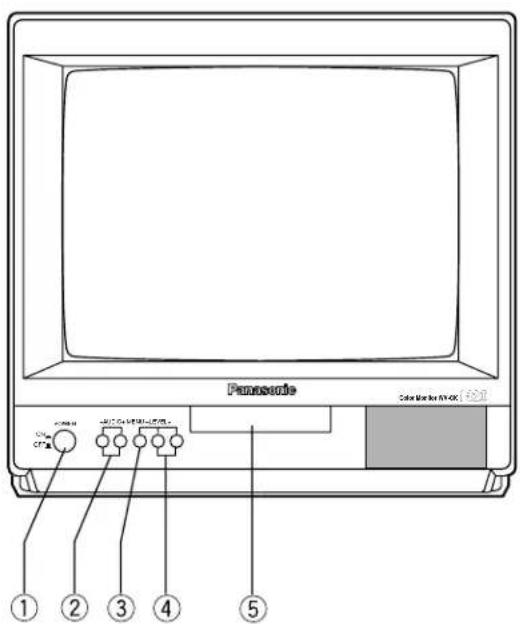

1. Power Switch (POWER, ON/OFF)

This is a push-push type switch which turns the power of this monitor on and off. Press once and the switch remains down (;) for turning on the power of monitor. Press again, the switch comes up (l ) for turning off the power of the monitor.

2. Audio Control Buttons (–AUDIO+)

Press these buttons to increase or decrease the sound volume level.

Press these buttons to adjust level of the selected item in the setup display, or select a parameter in the setup dis- play.

Is on (red) when the Monitor’s power is turned on.

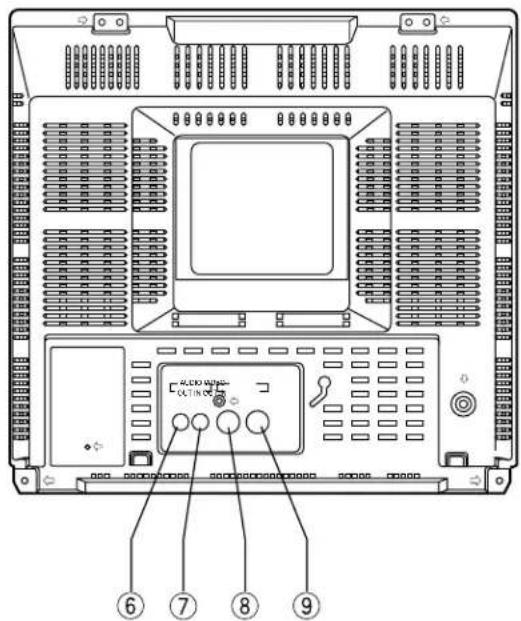

6. Audio Output Connector (AUDIO OUT)

The audio input signal connected to the audio input con- nector u is looped through to this connector.

7. Audio Input Connector (AUDIO IN)

For input of audio signal from an outboard device.

8. Video Output Connector (VIDEO OUT)

The video input signal connected to the video input con- nector o is looped through to this connector and termi- nated automatically.

9. Video Input Connector (VIDEO IN)

For input of the PAL composite video signal from an out- board device. POWER

1. Turn on the Power Switch of the Monitor.

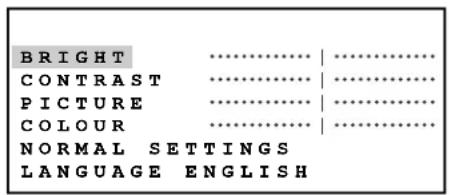

2. Press the MENU button, the setup display shown below appears on the monitor screen.

It will disappear automatically when no operation takes place for about 3 seconds.

3. Move the cursor to LANGUAGE by pressing the MENU button.

4. Select the desired LANGUAGE parameter by pressing the LEVEL (–) or (+) buttons, Pressing the buttons will toggle the setup display in selected language as shown below.

5. Move the cursor to BRIGHT, CONTRAST, PICTURE or COLOUR by pressing the MENU button, then adjust the level of the

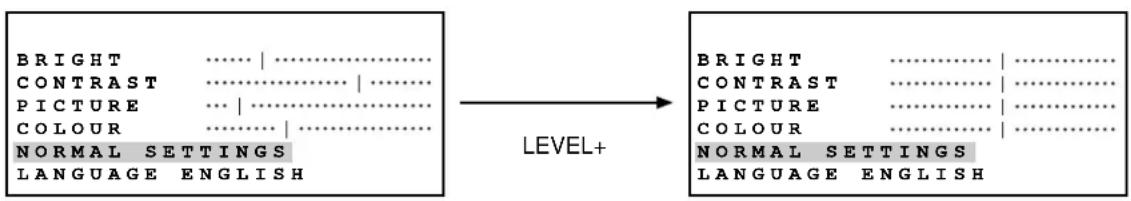

selected item by pressing the LEVEL (–) or (+) buttons. While adjusting the selected item level, the display changes to the indicator as shown below. 6. To reset the monitor to the default settings, move the cursor to NORMAL SETTINGS by pressing the MENU button. Then press the LEVEL (+) button to return to the factory default settings. 7. To exit the setup display, press the MENU button repeatedly until the cursor is passed over LANGUAGE or wait for about 3 sec- onds until it disappears.

SPECIFICATIONS Power Source: 220 - 240V AC, 50Hz Power Consumption: Approx. 66W Screen Size: 371.8mm diagonal tube screen size, 90° deflection 335.4mm diagonal actual visual size Horizontal Resolution: 330TV lines at centre Video Input: 1.0V[p-p] composite/75Ω, BNC with Auto Termination Audio Input: –8dB/Hi-z, RCA standard jack Speaker Output: 0.7W Sweep Linearity: Horizontal: Less than 5% Vertical: Less than 5% Sweep Geometry: Less than 2% Ambient Operating Humidity: Less than 90% Ambient Operating Temperature: –10°C - +50°C (14°F - 122°F) Dimensions: 366(W) x 346(H) x 365(D)mm (14-7/16”(W) x 13-10/16”(H) x 14-6/16”(D)) Weight: 9.6kg (21.2lbs.) Weights and dimensions shown are approximate. Specifications are subject to change without notice. CABLE INFORMATIONS Power Cable

1. Keep the Power Switch q in the OFF position during

2. Connect the Power Cord to a grounded electrical outlet.

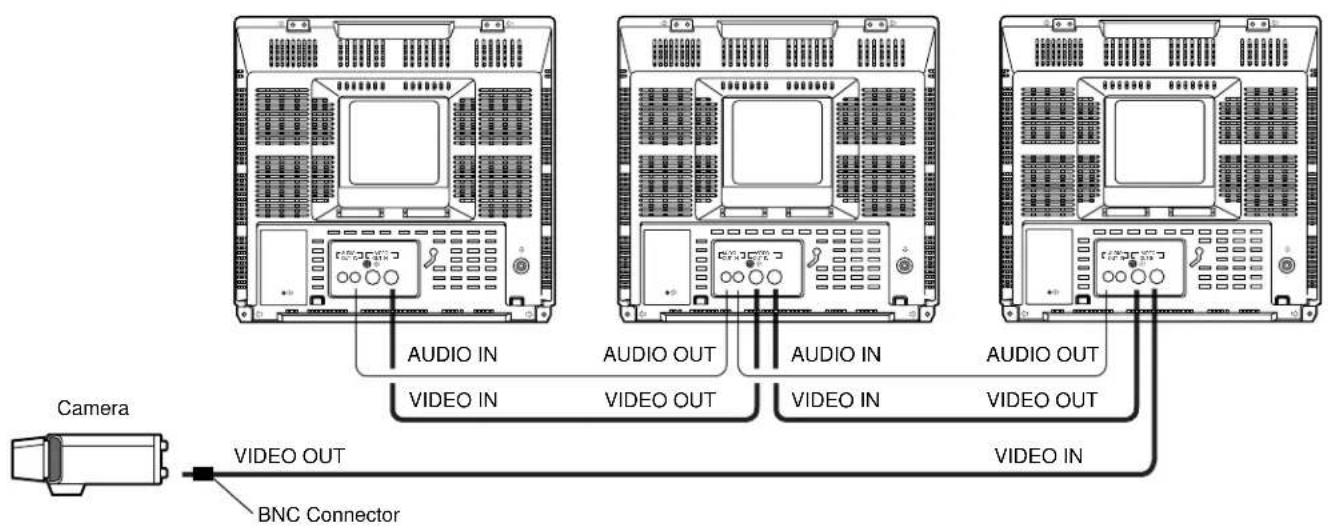

2. Up to 10 monitors can be hooked up in this configuration

before signal loss occurs. Total cable length should not exceed 150m (500 feet).

3. Wiring Precautions:

• Do not bend coaxial cable into a curve whose radius is smaller than 10 times of its diameter:

• Never crush or pinch the cable. All these will change the impedance of the cable and cause poor picture quality. Recommended maximum cable length Cable RG-59/U RG-6/U RG-11/U RG-15/U (3C-2V) (5C-2V) (7C-2V) (10C-2V) Recommended 250m 500m 600m 800m maximum cable length (825ft) (1650ft) (1980ft) (2650ft) CONNECTION AUDIO IN AUDIO OUT AUDIO IN AUDIO OUT VIDEO IN
