USER MANUAL DO221SV DOMO

Black and blue vacuum cleaner with handle and spool (no visible text or symbols)

DO221SV

Two symbolic icons: a warning triangle with an exclamation mark and an open book (no text or labels)

Technical diagram of a vacuum cleaner with labeled parts 1, 2, and 3, showing exploded view and assembly details.

OPLADEN

Simple line drawing of a mechanical or electrical component with an arrow pointing to a section (no text or symbols)

MUURBEVESTIGING

Simple line drawing of a device with arrows indicating direction (no text or symbols)

GEBRUIK

Diagram of a cylindrical mechanical component with an arrow pointing to a separate cylindrical part (no text or symbols present)

Diagram showing two mechanical components labeled A and B with directional arrows indicating motion (no text or symbols beyond labels)

Illustration of a toy car with a propeller and directional arrow (no text or symbols)

PROBLEEM EN OPLOSSING

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a vacuum cleaner with numbered parts and an inset showing internal components

AVANT LA PREMIÈRE UTILISATION

Technical diagram of a vacuum cleaner with labeled parts 1, 2, and 3, showing exploded view and assembly details.

CHARGE

Diagram showing a mechanical or electrical component with an arrow indicating direction, possibly illustrating a motion or connection.

SUPPORT MURAL

Simple line drawing of a car with directional arrows indicating movement or force (no text or symbols)

UTILISATION

Illustration of a car with a brush and a ruler, no text or symbols present

Warning symbol for a trash bin with crossed and unshaded lines indicating no waste or discharge

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a vacuum cleaner with numbered parts and an inset showing internal components

Simple line drawing of a mechanical or electrical component with an arrow pointing to a section (no text or symbols)

WANDBEFESTIGUNG

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

GEBRAUCH

Illustration of a car with a pen and a ruler, no text or symbols present

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

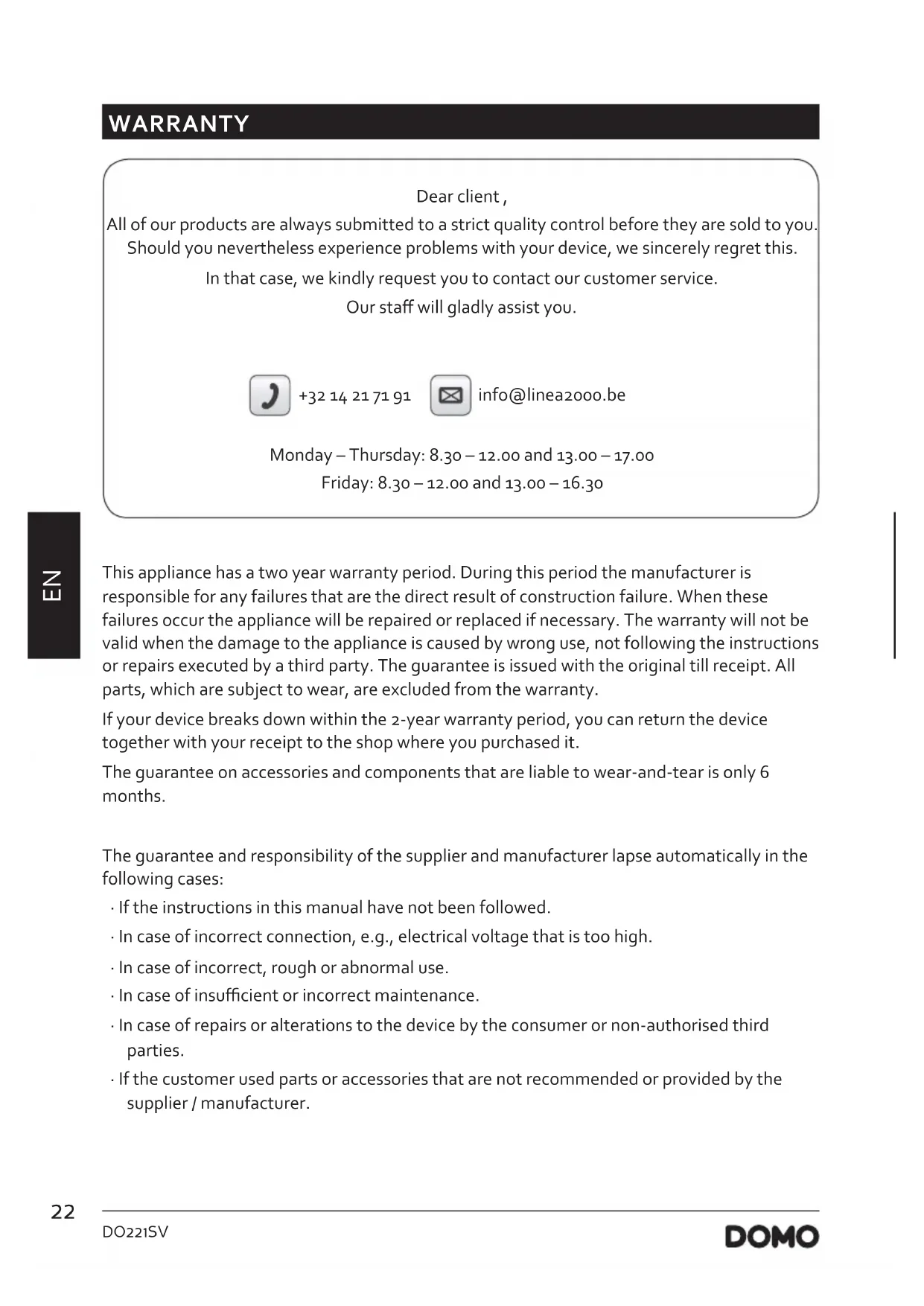

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

· Kitchen for personnel of shops, offices or other similar professional surroundings
· Farms
· Hotel or motel rooms and other surroundings with a residential character
- Guest rooms or similar

• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
  · Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
  · Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.
· Never immerse the appliance, the cord or the plug in water or any other liquid.
· Make sure that children do not touch the cord or appliance.
- Keep the cord away from sharp edges and hot parts or other heat sources.
· Before use, remove all packaging materials and any promotional stickers.
- Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.
- Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.
· Make sure that the air intake or the floor suction opening do not become blocked.
· Make sure that the machine does not come into contact with liquids.
- First charge a new battery up completely.
· Pull the plug from the outlet when the vacuum cleaner is fully charged.

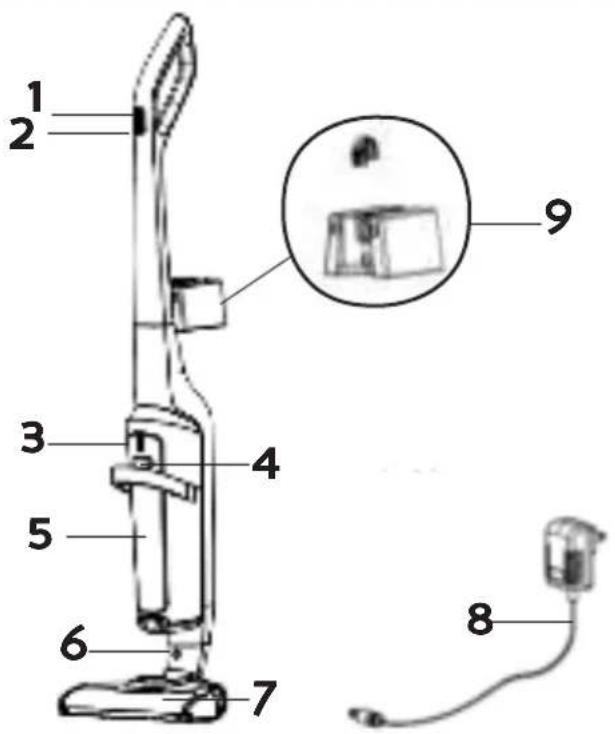

PARTS

1. On-off button
2. Speed control
3. Battery charge indicator
4. Unlock button for dust reservoir
5. Dust reservoir
6. Release button floor nozzle
7. Floor nozzle with rotating floor brush
8. Adaptor
9. Wall mount

Labeled diagram of a vacuum cleaner with numbered parts and an inset showing internal components

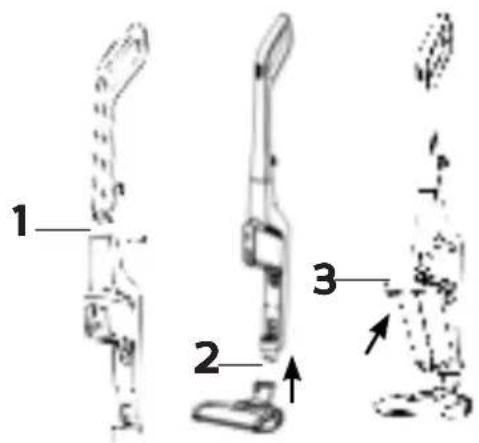

BEFORE THE FIRST USE

To set up the machine properly, please follow the steps below:

1. Place the handle on the base and fix with the supplied screw. Make sure that no wiring is trapped between the components.
2. Make sure the floor nozzle is clicked into the stick vacuum cleaner.
3. Click the dust reservoir into the stick vacuum cleaner.

Technical diagram of a vacuum cleaner with labeled parts 1, 2, and 3, showing exploded view and assembly details.

CHARGING

• Connect the adaptor to the stick vacuum cleaner by the foreseen connection on the back side of the appliance to charge the stick vacuum cleaner.
• The battery charge indicator indicates when the appliance has been fully charged.
• The machine cannot be started during charging.

Simple line drawing of a vertical structure with an arrow pointing to it, no text or symbols present.

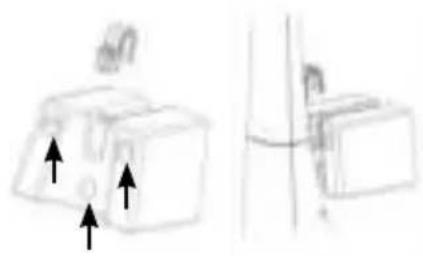

WALL MOUNT

Please follow below instructions to fix the wall mount:

1. Drill 3 holes in the wall corresponding to the attachment points of the wall mount.
2. Insert the supplied plugs into the wall.
3. Fix the wall mount using the supplied screws.
4. To store the device, simply hang it on the wall mount.

Simple line drawing of a device with arrows indicating movement or force (no text or symbols)

USE

• Press the on-off switch on the handle to turn the machine on. The battery indicator light is blue and indicates the battery level. If the battery is almost empty, the light will flash on and off.
• When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up.
• Press the speed control to increase or lower the suction power.

- The machine is equipped with a safety which will ensure that the machine shuts itself off if, for example, objects which are too large are sucked up, or if fingers become tangled in the floor brush. This is for personal safety and to protect the motor. To reverse the floor brush, press 2 times the on/off button or the speed control.

CLEANING AND MAINTENANCE

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine off well. Never submerge the machine in water!

CLEANING THE DUST RESERVOIR

1. Press the dust reservoir unlock button to remove it from the vacuum cleaner.
2. Then take the filters out of the dust reservoir. Empty the dust t reservoir.

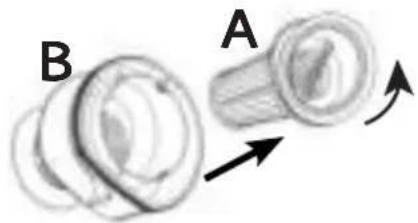

3. Take part A from part B.
4. The dust reservoir, part A and part B can be cleaned under running water. Do take care to dry them completely before using them again in the machine.

Diagram of a mechanical component with a cylindrical body and a separate cylindrical housing, showing an arrow indicating assembly (no text or symbols present)

Diagram showing two mechanical components labeled A and B with directional arrows indicating movement (no text or symbols beyond labels)

We advise replacing the filters regularly to ensure an optimal operation of the machine. Dirty filters will reduce the suction power drastically. After every cleaning, clean the dust reservoir and the filters to extend the life span of your machine.

CLEANING THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.
2. Unclip the cover on the left side of the floor nozzle.
3. Remove the rotating floor brush from the floor nozzle.
4. Remove hairs and other dirt that have wrapped around the floor brush. If you do not clean the floor brush regularly, it will become damaged and your machine will become unusable.
5. The rotating floor brush may be rinsed off under running water. Make sure that it is completely dry before using it.
6. Place the floor brush back into the floor nozzle when it is clean.
7. Click the closure valve back into place to close it.
8. Push the nozzle back onto the stick. The machine is now again ready for use.

Stuck hairs can damage the machine or your floor. Always remove the hairs stuck on the brushes.

Illustration of a car with a pen and arrow pointing to it, no text or symbols present

PROBLEM AND SOLUTION

Problem Solution
The machine does not start up. ·	The battery is empty. Charge the machine.
The machine does not vacuum. ·	The filters are dirty/the dust reservoir is full.· The floor nozzle is clogged/the floor brush is blocked.· Clean the machine as described in this manual.
The running time of the machine is shorter and shorter.	· The machine is not sufficiently charged. Charge the machine fully and try again.· The battery is broken or old. Contact the after sales service.· Stuck hairs. Remove the hairs stuck on the brushes.

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and black rectangular symbol below

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Labeled diagram of a vacuum cleaner with numbered parts and an inset showing internal components

Technical diagram of a vacuum cleaner with labeled parts 1, 2, and 3, showing exploded view and assembly details.

CARGA

Simple line drawing of a mechanical or electrical component with an arrow pointing to a connection point (no text or symbols)

SOPORTE MURAL

Simple line drawing of a device with arrows indicating direction (no text or symbols)

USO

Illustration of a medical or laboratory device with a tool and arrow pointing to a vertical structure (no text or symbols)

PROBLEMAS Y SOLUCIONES

Warning symbol for a waste bin with crossed and unshaded lines indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a vacuum cleaner with numbered parts and an inset showing a component detail

PŘED PRVNÍM POUŽITÍM

Technical diagram of a vacuum cleaner with labeled parts 1, 2, and 3, showing exploded view and assembly details.

NABÍJENÍ

Simple line drawing of a vertical structure with an arrow pointing to it, no text or symbols present.

DRŽÁK NA STĚNU

Simple line drawing of a device with arrows indicating direction (no text or symbols)

POUŽITÍ

Diagram of a mechanical component with a cylindrical body and a separate inset showing internal components (no text or symbols)

Diagram showing two mechanical components labeled A and B with directional arrows indicating movement (no text or symbols beyond labels)

Illustration of a toy car with a ruler and an arrow pointing to it (no text or symbols)

MOŽNÉ PROBLÉMY A JEJICH ŘEŠENÍ

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and black rectangle, indicating no waste or disposal

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a vacuum cleaner with labeled parts 1, 2, and 3, showing exploded view and assembly details.

NABÍJANIE

Simple line drawing of a mechanical or electrical component with an arrow pointing to a section (no text or symbols)

DRŽIAK NA STENU

Simple line drawing of a device with arrows indicating movement or force (no text or symbols)

POUŽITIE

Diagram of a cylindrical mechanical component with a separate inset showing internal components (no text or symbols)

Diagram showing two mechanical components labeled A and B with directional arrows indicating motion (no text or symbols beyond labels)

Illustration of a car with a pen and arrow pointing to it (no text or symbols)

MOŽNÉ PROBLÉMY A ICH RIEŠENIA

Problém Příčina
Vysávač sa nespustí. · Batéria je vybitá. Vysávač sa práve nabíja.
Vysávač nevysáva.	Filter v zásobníku je špinavý / zásobník nečistôt je plný.Podlahová hubica je upchaná / kefa zaseknutý.Celý vysávač vyčistite podl'a vyššie uvedeného postupu.
Rapídne sa skracuje aktívnu doba výdrže batérie.	Vysávač nebol nabitý na 100%. Nechajte nabit' vysávač znova a naplno. Skúste znova.Batéria je bud'stará, alebo rozbitá. Obrátte sa na záručný / pozáručný servis.V kefe sú namotané vlasy. Vyčistite.

OHŁAD NA ŽIVOTNÉ PROSTREDIE

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)
