USER MANUAL DO222SV DOMO

Instruction booklet Stick vacuum cleaner

PROBLEM EN OPLOSSING

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

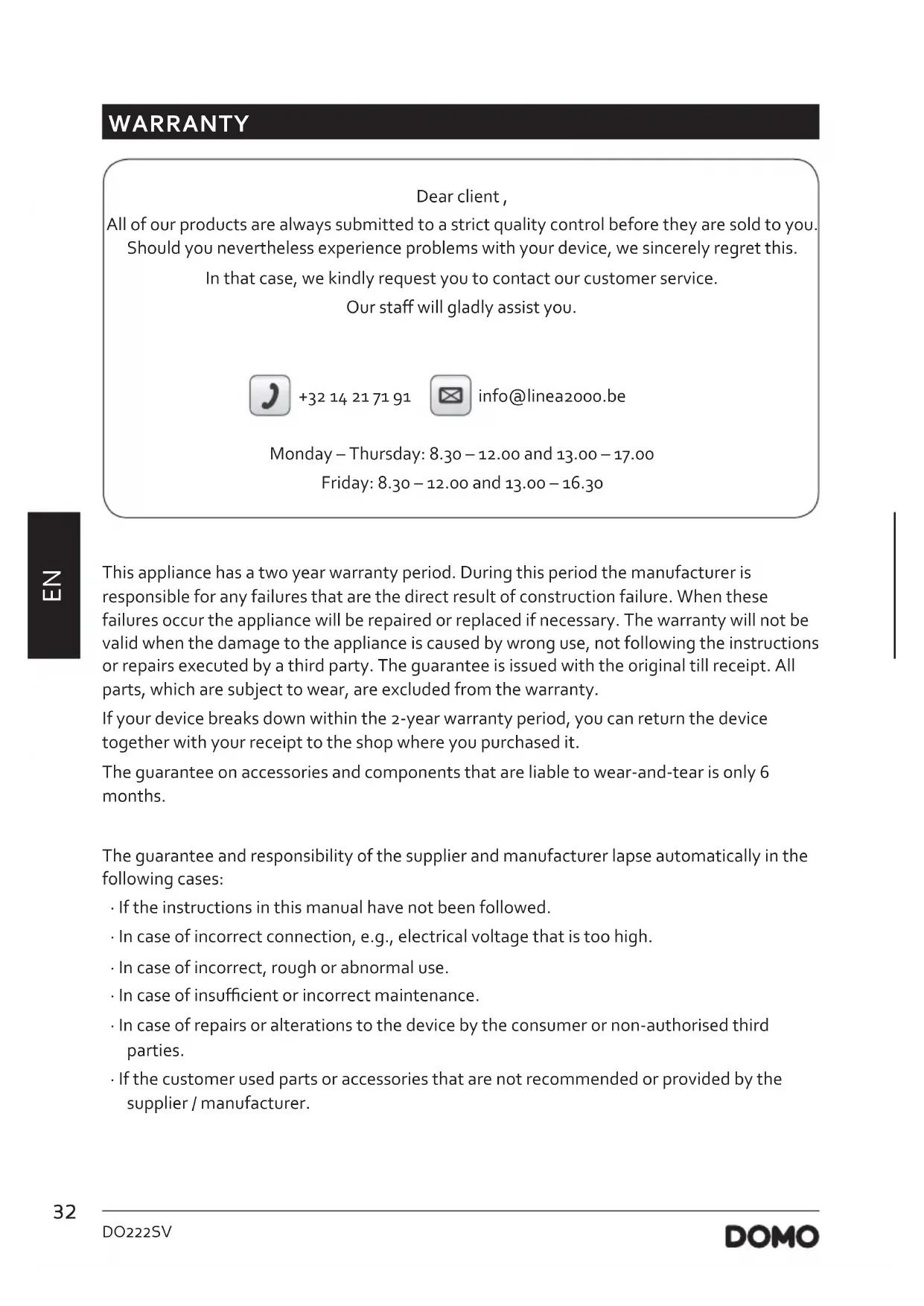

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

If the instructions in this manual have not been followed.
In case of incorrect connection, e.g., electrical voltage that is too high.
In case of incorrect, rough or abnormal use.
In case of insufficient or incorrect maintenance.
- In case of repairs or alterations to the device by the consumer or non-authorised third parties.
- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

• Read all instructions before use.
• This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.
  Children cannot be allowed to play with the appliance.
• Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.
• This appliance is suitable to be used in a household environment and in similar surroundings such as:

· Kitchen for personnel of shops, offices or other similar professional surroundings
Farms
· Hotel or motel rooms and other surroundings with a residential character
Guest rooms or similar

• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• Never immerse the appliance, the cord or the plug in water or any other liquid.

• Keep the cord away from sharp edges and hot parts or other heat sources.

• Before use, remove all packaging materials and any promotional stickers.
• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.
• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.
• Make sure that the air intake or the floor suction opening do not become blocked.
• Make sure that the machine does not come into contact with liquids.
• First charge a new battery up completely.
• Pull the plug from the outlet when the vacuum cleaner is fully charged.
• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.
• Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it off immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.
• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.
• Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.
• Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.
• Never use the appliance without a filters. This will damage the motor and render it unusable.

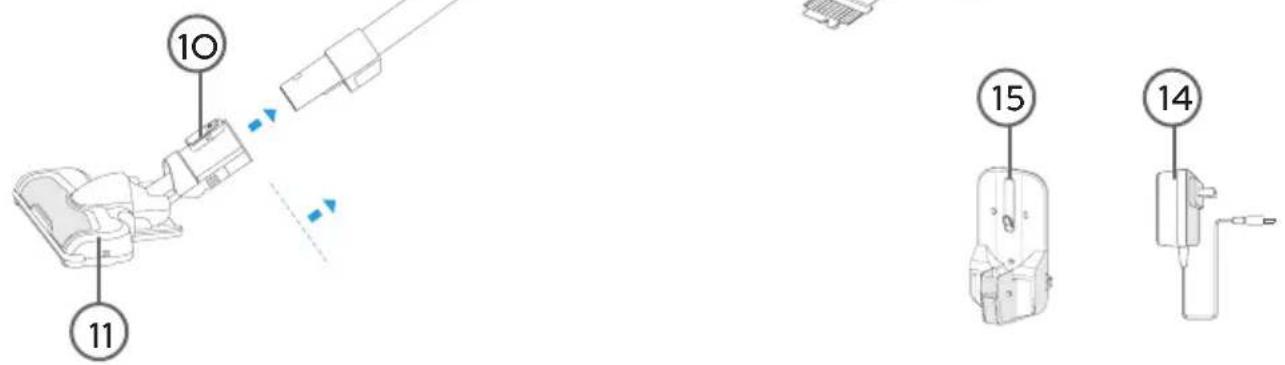

PARTS

1. On-off button
2. Battery charge indicator
3. Dust reservoir
4. Unlock button for dust reservoir
5. Release filter
6. Motor compartment
7. Battery release button
8. Handle release button
9. Tube
10. Release button floor nozzle
11. Floor nozzle with rotating floor brush
12. Crevice vacuum cleaner
13. Dust brush
14. Adapter
15. Wall fixing

MONTAGE

THE HAND VACUUM CLEANER

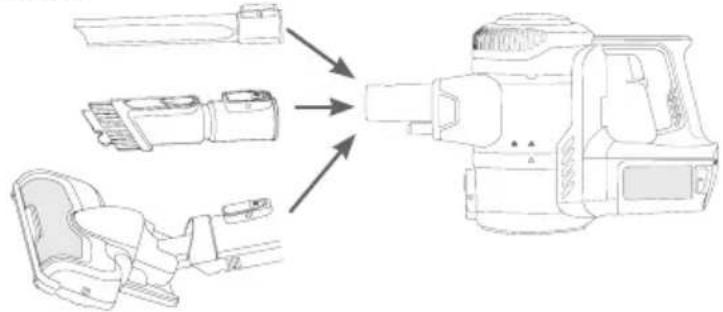

1. Click the floor brush, dust brush or crevice tool securely into place in the opening on the front of the appliance.

乙

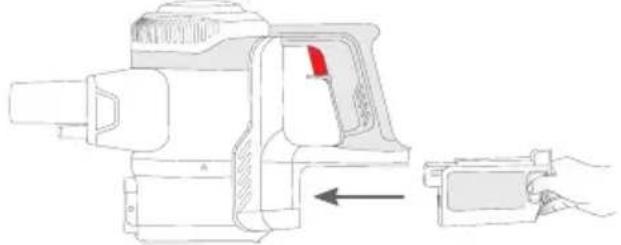

1. Insert the batteries of the motor compartment. Push until it clicks into place in the motor compartment.

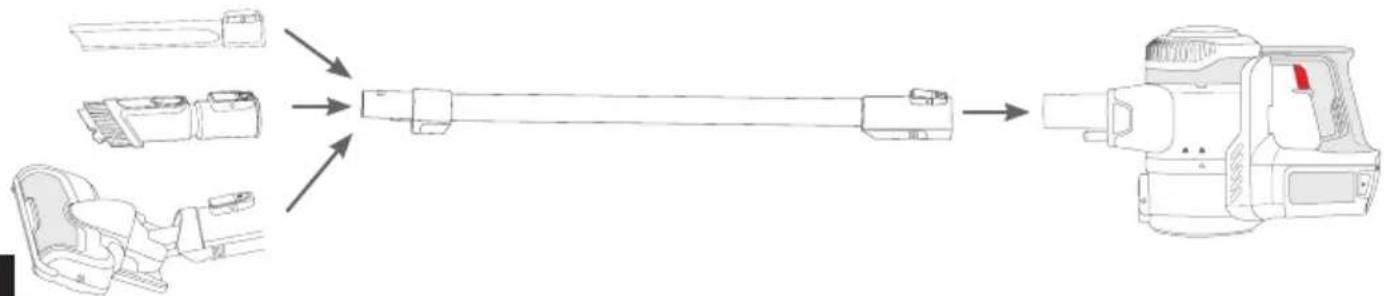

1. Click the tube firmly into place in the vacuum opening on the front of the machine.
2. Click the floor brush, dust brush or the crevice tool firmly into place in the tube.

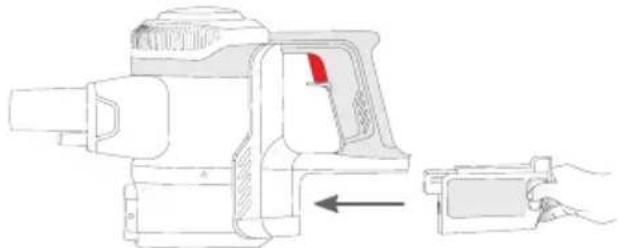

1. Insert the batteries of the motor compartment. Push until it clicks into place in the motor

compartment.

To disassemble the appliance, remove the various parts step by step: the floor brush, the crevice tool, the dust brush and the tube. To do this, press the release button and remove the relevant part by pulling it firmly.

CHARGING

• Prior to first use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery.

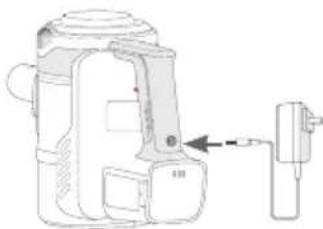

• First connect the adapter to the machine and put the adapter in the outlet.
• The battery level indicator will now light up and indicate when the machine is fully charged.
• To extend the life cycle of the battery, you should regularly charge the machine fully, and allow the battery to run flat.

CHANGE BATTERY

If you notice the battery is quicker exhausted and takes longer to charge, the battery is worn out. You can easily replace the battery by following the steps below.

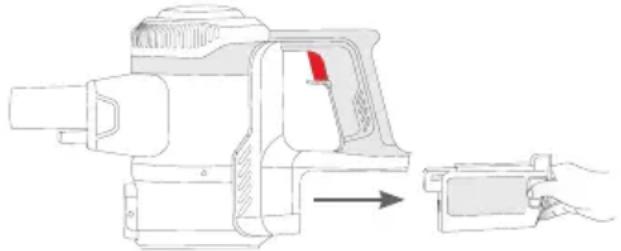

1. Remove the battery from the motor compartment via the battery release button.

1. Slide the new battery into the motor compartment. Push until it locks into the motor compartment.

You can buy this battery via our webshop or after sales service.

USE

• Press the on-off switch on the handle to turn the machine on. When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up. The dirt will be collected in the dust reservoir.
  The machine is equipped with a safety which will ensure that the machine shuts itself off if, for example, objects which are too large are sucked up, or if fingers become tangled in the floor brush. This is for personal safety and to protect the motor. To reverse the floor brush, press the on/off button again.
• For the best results, clean the dust reservoir and the filters after each use. This is better for the suction power and the life span of the machine.

ACCESOIRES

You can attach the following accessories to the vacuum:

• Dust brush: for furniture, bookshelves, curtains and hard to clean surfaces.
• Crevice vacuum cleaner: for crevices, corners, stairs, keyboards,...

STORAGE

WALLFIXING

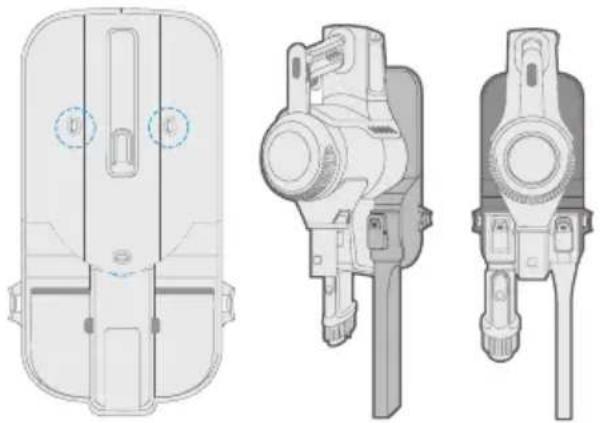

1. Hold the wall fixing in a vertical position against the wall.
2. Mark the holes with a pencil.
3. Drill the holes in the wall and insert the plugs supplied.
4. Use the screws to secure the wall fixing.
5. Place the motor unit on the fixing to store it.

CLEANING AND MAINTENANCE

THE DUST CONTAINER AND THE FILTERS

Never exceed the maximum indicator on the dust container.

1. Empty the dust container by pressing the release button. The dust container falls open and you can then remove the coarse dirt.

1. Close the dust container and turn it to the left to detach it from the appliance.

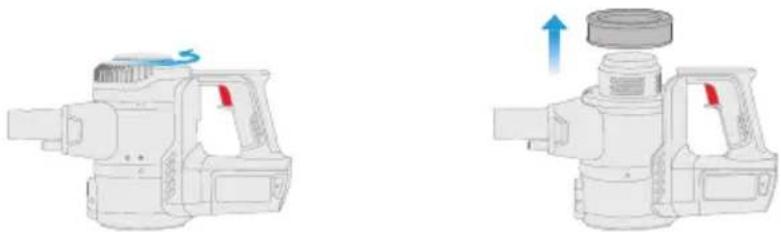

1. Turn the filter to the left to remove it from the motor compartment.

1. Loosen the release of the filter at the top of the appliance to remove the HEPA filter.

1. Clean all these parts carefully with water. Pay attention that the parts are completely dry before using the appliance again.
2. Replace all the parts step by step in the appliance before using it again.

CLEANING THE FLOOR BRUSH

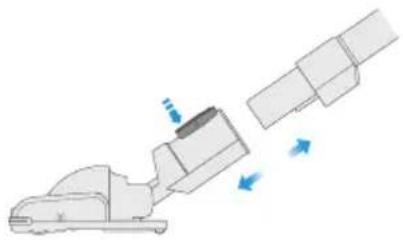

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.

1. Unclip the cover on the left side of the floor nozzle.
2. Remove the rotating floor brush from the floor nozzle.

1. Remove hairs and other dirt that have wrapped around the floor brush. If you do not clean the floor brush regularly, it will become damaged and your machine will become unusable.
2. The rotating floor brush may be rinsed off under running water. Make sure that it is completely dry before using it.
3. Place the floor brush back into the floor nozzle when it is clean.
4. Click the closure valve back into place to close it.
5. Push the nozzle back onto the stick. The machine is now again ready for use.

Stuck hairs can damage the machine or your floor. Always remove the hairs stuck on the brushes.

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine off well. Never submerge the machine in water!

PROBLEM AND SOLUTION

Problem Solution
The machine does not start up.	·The battery is empty. Charge the machine. ·The battery is not inserted properly. Insert the battery until it clicks into place.
The machine does not vacuum.	·The filters are dirty/the dust reservoir is full. ·The floor nozzle is clogged/the floor brush is blocked. ·The nozzle opening is clogged. ·Stuck hairs. Remove the hairs stuck on the brushes. ·Clean the machine as described in this manual.
The running time of the machine is shorter and shorter.	·The machine is not sufficiently charged. Charge the machine fully and try again. ·The battery is broken or old. Replace the battery.
The indicator light does not burn while charging.	·There is poor contact. ·Check that the adapter is connected properly. ·Remove the dust on the connector of the upright vacuum cleaner.

ENVIRONMENTAL GUIDELINES

Z

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.
