USER MANUAL DO328IP DOMO

Instruction booklet Induction cooking plate

PROBLEM EN OPLOSSING

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday-Thursday:8.30-12.00 and 13.00-17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

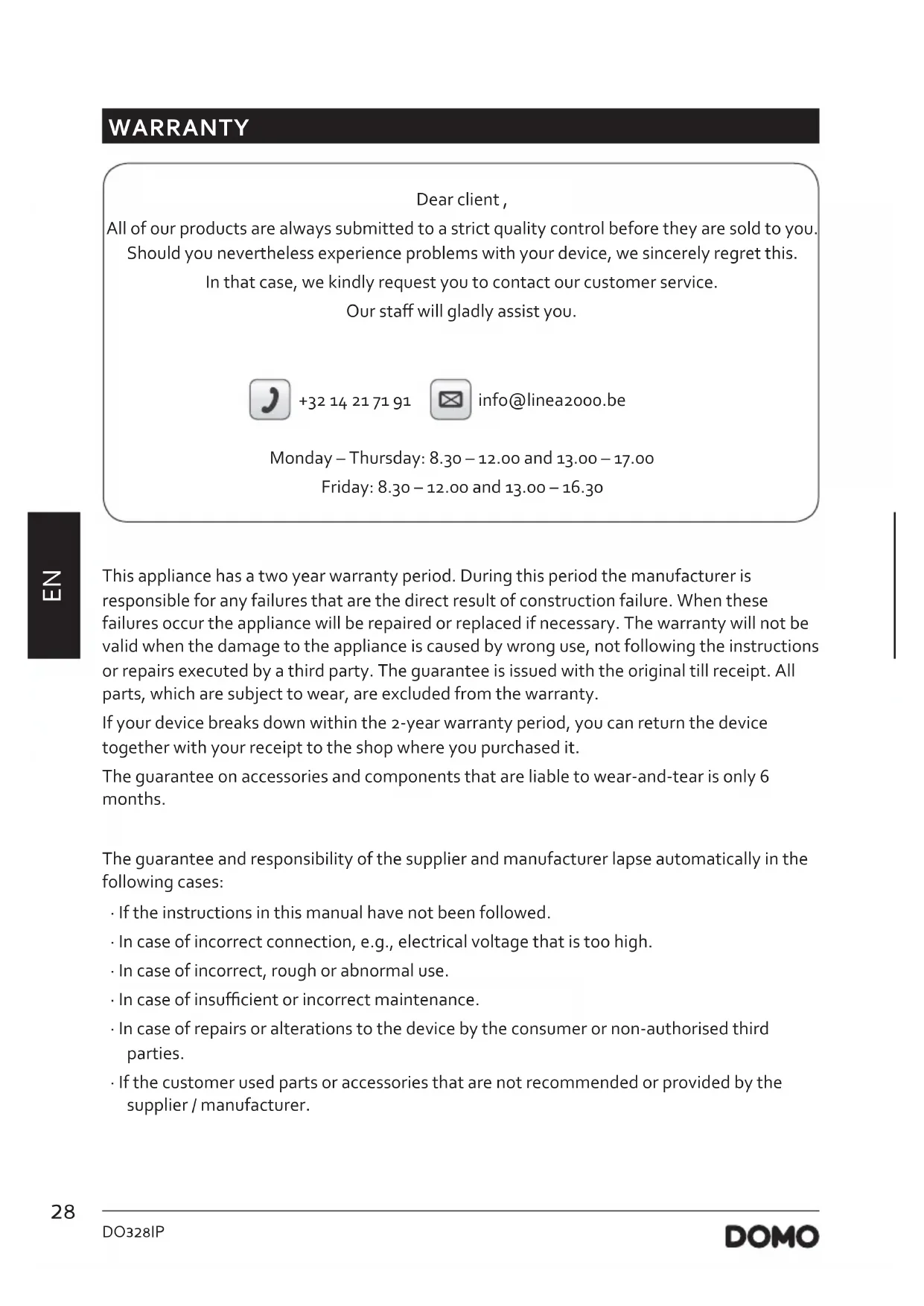

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

If the instructions in this manual have not been followed.
In case of incorrect connection, e.g., electrical voltage that is too high.
In case of incorrect, rough or abnormal use.
In case of insufficient or incorrect maintenance.
- In case of repairs or alterations to the device by the consumer or non-authorised third parties.
- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children

younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

· Kitchen for personnel of shops, offices or other similar professional surroundings
Farms
· Hotel or motel rooms and other surroundings with a residential character
Guest rooms or similar

Attention: The appliance is not intended to be operated by means of an external timer or separate remote control system.

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.

• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Never place the device on metal or a flammable surface (e.g. table cloth, carpet, etc.).
• Do not block the ventilation slots of the device. This may overheat the device. Keep a min. distance of 10 cm (2.5 inches) to walls or other items.
• Do not place the induction hotplate next to devices or objects, which react sensitively to magnetic fields (e.g. radios, TVs, cassette recorders, etc.).
• Do not place induction hotplates next to open fires, heaters or other sources of heat.
• Make sure that the mains connection cable is not damaged or squashed beneath the device.
• Make sure that the mains connection cable does not come into contact with sharp edges and/or hot surfaces.

If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Metallic objects such as knives, forks, spoons and lids should not be placed on the hotplate since they can get hot.

• Do not place any magnetically objects like credit cards, cassettes etc. on the glass surface while the device is in operation.

• On order to avoid overheating, do not place any aluminium foil or metal plates on the device.

• Do not insert any objects like wires or tools into the ventilation slots. Attention: this may cause electric shocks.

• Do not touch the hot surface of the ceramic field. Please note: the induction hotplate does not heat up itself during cooking, but the temperature of the cookware heats up the hotplate!

• Do not heat up any unopened tins on the induction hotplate. A heated tin could explode; therefore remove the lid under all circumstances beforehand.
• Scientific tests have proven that induction hotplates do not pose a risk. However, persons with a pacemaker should keep a minimum distance of 60 cm to the device while it is in operation.
• The control panel reacts to touch, not requiring any pressure at all.
  Each time a touch is registered, you hear a signal or beep.

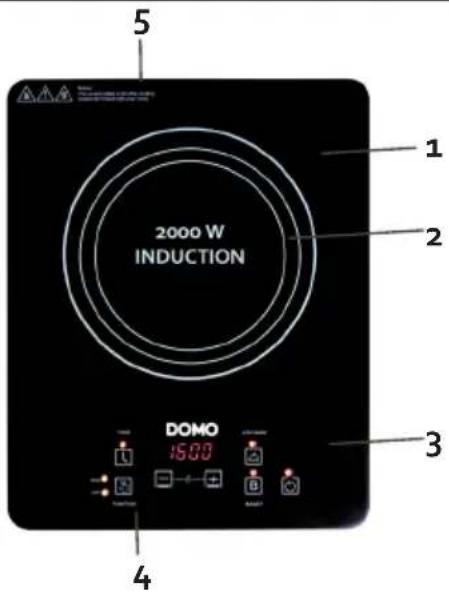

PARTS

1. Ceramic hob
2. Cooking zone
3. Control Panel
4. Ventilation entry
5. Air circulation
6. On/Off button
7. Keeping warm function
8. Childproof lock
9. Timer
10. Function
11. Boost mode

USE

• When operating the device, please put on a pan/pot firstly. The diameter of the pan must be between 15 cm and 19,5 cm.
• Use pots and pans that are suited for induction hobs. This can be tested easily. The bottom of your pots and pans must be magnetic. Take a magnet and place it on the bottom of your pot or pan, if it sticks the bottom is magnetic and the pot is suited for ceramic cooking plates.

Connecting

• When you place the plug in the outlet, you will hear a signal. The display will show an 'L', which means that the hob has gone into standby mode.

Turning the appliance on

• Press the on/off button to prepare the hob. The appliance will turn off automatically if you do not press the function button within 10 seconds.
• Press the function button to start the heating. The appliance will emit an audible signal if the correct pan is not positioned on the hob and will then turn off automatically after one minute.
• Press the on/off button once more to turn the appliance off.

Function

• Once you have pressed the function button, you can adjust the temperature and the

power.

• Press + or - to adjust the power.
• Press + or - to adjust the temperature.

Timer

• Press the timer button to set the timer between 1 minute and 3 hours. The screen will display a clock that can be set. Press + and - to set the desired time.
  Once the desired time has been set, the timer will appear on the screen for a few seconds.
• When the timer is done, the appliance will turn off automatically.

Keeping warm function

• Press the keep warm button to maintain the warmth. The hob will keep the pan warm at a low temperature.
• Caution: if this function is turned on, the power can no longer be adjusted.

Boost mode

• The boost mode heats the hob immediately with the highest power. Press this button again to turn the boost function off. The appliance will then automatically return to the original power level.

Childproof lock

• Press and hold + and - simultaneously for a few seconds to turn on the lock. The light will turn on, indicating that the lock has been turned on. Only the on/off button will work if this function is set, no other buttons will respond.
• Press and hold + and - simultaneously for a few seconds to turn this function off again.

Turning off

• Press the on/off button to turn the hob off.
• Caution: do not touch the cooking zone if the screen displays 'H', which means that the hob is still hot. If 'L' is displayed, this means that the hob has cooled or is cold.

CLEANING AND MAINTENANCE

• Pull the power plug prior to cleaning the device. Do not use any caustic cleaning agents and make sure that no water penetrates the device.
• To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.
• Wipe off the ceramic field with a damp cloth or use a mild, non-abrasive soap solution.
• Wipe off the casing and the operating panel with a soft cloth or a mild detergent.
• Do not use any petrol products to not damage the plastic parts and the casing/operating

panel.

• Do not use any flammable, acidity or alkaline materials or substances near the device, as this may reduce the service life of the device and lead to deflagration when the device is turned on.
• Make sure that the bottom of the cookware does not scrape across the surface of the ceramic field, although a scratched surface does not impair the use of the device.
• Make sure that the device was properly cleaned before storing it in a dry place.
• Make sure that the control panel is always clean and dry. Do not leave any objects lying on the hob.

PROBLEM EN SOLUTIONS

PROBLEM POSSIBLE CAUSES
The display does not light up after connecting the appliance.	Has the appliance been connected correctly? Is the button or plug damaged?
The on/off button has been turned on and the light turned on but it does not heat.	Are you using the correct pan? For other causes, contact the repair service.
Heating stops suddenly during the process.	Is the temperature too high? Is the environment too hot? Are the ventilation openings blocked? Is the timer done? The appliance has gone into safe mode. Wait a few minutes and reconnect the appliance before trying it again.
E3 or E6 error message Wait a few seconds and press the on/off button once the temperature of the hob has returned to normal. The hob will work normally again.
E7 or E8 error message Turn the appliance off and turn it back on once the temperature is back to normal. The appliance will then work as it should.
E1, E2, E4, E5 or Eb Contact the repair service.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

MOZNÉ PROBÉMY A JEJICH RESENI

OHLED NA ZÍVOTNÍ PROSTřEDÍ
